• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.

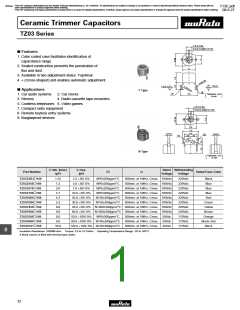

Ceramic Trimmer Capacitors
TZ03 Series
2.5±0.2 dia.
0.5±0.2 Depth 0.5 min.
■ Features
1. Color coded case facilitates identification of
capacitance range.
2. Sealed construction prevents the penetration of
6
flux and dust.
3. Available in two adjustment styles: Top/Rear.
4. + (Cross-shaped) slot enables automatic adjustment.
1.0±0.1
1.0±0.1
■ Applications
1. Car audio systems
3. Stereos
F Type
6.6
Tolerance: ±0.5
2. Car clocks
in mm
4. Radio cassette tape recorders
5. Cordless telephones 6. Video games
7. Compact radio equipment
2.5±0.2 dia.
0.5±0.2 Depth 0.5 min.
8. Remote keyless entry systems
9. Burglarproof devices
6.0
7.8
6.4
1.2±0.1
1.0±0.1
3.0
3.4
N Type
Tolerance: ±0.5
in mm
C min. (max.)
(pF)
C max.
(pF)
Rated Withstanding
Part Number
TC
Q
Stator/Case Color
Voltage
Voltage
TZ03Z2R3p169
TZ03Z050p169
TZ03Z070p169
TZ03Z100p169
TZ03R200p169
TZ03R300p169
TZ03P450p169
TZ03P600p169
TZ03Z500p169
TZ03R900p169
TZ03R121p169
1.25
1.5
2.0
2.7
4.2
5.2
6.8
9.8
6.0
9.0
10.0
2.3 +50/-0%
5.0 +50/-0%
NP0±200ppm/°C
NP0±200ppm/°C
NP0±200ppm/°C
NP0±200ppm/°C
N750±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
110Vdc
110Vdc
110Vdc
Black
Blue
7.0 +50/-0%
Blue
10.0 +50/-0%
20.0 +50/-0%
30.0 +50/-0%
45.0 +50/-0%
60.0 +50/-0%
50.0 +100/-0%
90.0 +100/-0%
Blue
Red
Green
Yellow
Brown
Orange
Black+Dot
Black
N1200±500ppm/°C 300min. at 1MHz, Cmax. 100Vdc
N1200±500ppm/°C 300min. at 1MHz, Cmax. 100Vdc
NP0±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax. 50Vdc
300min. at 1MHz, Cmax. 50Vdc
300min. at 1MHz, Cmax. 50Vdc
120.0 +100/-0% N750±300ppm/°C
8
Insulation Resistance: 10000M ohm Torque: 2.0 to 14.7mNm Operating Temperature Range: -25 to +85°C
A blank column is filled with terminal type codes.
32
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
■ Construction
■ Mounting Holes
F Type
N Type
3 dia.
1.1±0.1
3
3.3
5
Tolerance: ±0.5
in mm
Tolerance: ±0.5
(
)
in mm
■ Temperature Characteristics
TZ03Z070
TZ03R200
Z070 (NP0±200ppm/°C)
R200 (N750±300ppm/°C)
+6
+6
+4
+2
+4
+2
85
55
55
85
20
20
0
–25
0
Temp. (°C)
0
0
–2
–25
–2
Temp. (°C)
–4
–6
–4
–6
8
TZ03P600
TZ03Z500
P600 (N1200±500ppm/°C)
Z500 (NP0±300ppm/°C)
+8
+8
+6
+4
+6
+4
+2
+2
55
20
85
20
55
85
0
0
–2
0
0
–25
–25
Temp. (°C)
Temp. (°C)
–2
–4
–4
–6
–6
–8
–8
–10
–10
Continued on the following page.
33
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Continued from the preceding page.
■ Temperature Characteristics
TZ03R121
R121 (N750±300ppm/°C)
+8
+6
+4
+2
55
85
20
0
–2
–25
0
Temp. (°C)
–4
–6
–8
–10
■ Frequency Characteristics
TZ03Z070
TZ03R200
R200
Z070
1000
100
10
1000
100
10
1000
1000
100
100
Q
Q
10
10
1
100 200 300 400 500 600 700 800 900 1000
Frequency (MHz)
1
100
200
300
400
500
Frequency (MHz)
TZ03P450
TZ03P600
P600
P450
1000
1000
1000
100
10
1000
100
100
100
8
Q
Q
10
10
10
1
100
200
300
400
500
1
100
200
300
400
500
Frequency (MHz)
Frequency (MHz)
Continued on the following page.
34
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Continued from the preceding page.
■ Frequency Characteristics
TZ03R900
R900
1000
1000
100
10
100
Q
10
1
100
200
300
400
500
Frequency (MHz)
■ Temperature Profile
Flow Soldering Profile
Soldering profile for Lead-free solder (96.5Sn/3Ag/0.5Cu), Eutectic solder (63Sn/37Pb)
T3
T2
Standard Profile
Heating
t2
Limit Profile
Pre-heating
Cycle
Heating
T1
of reflow
Standard Profile
Temp. (T1)
Time (t1)
Temp. (T2)
Time (t2)
150°C
60 to 120sec.
250°C
5sec. max.
1 time
t1
time (s)
Pre-heating
Limit Profile
Pre-heating
Heating
Cycle
of reflow
Temp. (T1)
Time (t1)
Temp. (T3)
Time (t2)
150°C
60 to 120sec.
265±3°C
5sec. max.
2 times
Solder Iron
Standard Profile
Temperature of soldering iron tip
Soldering time
Soldering iron power output
Cycle of solder iron
350±10°C
3sec. max.
30W max.
1 time
■ Notice (Storage and Operating Condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
8. Do not use the trimmer capacitor under the
conditions listed below.
(1) Corrosive gasses atmosphere
(ex. Chlorine gas, Hydrogen sulfide gas,
Ammonia gas, Sulfuric acid gas, Nitric oxide gas,
etc.)
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 degrees C and 30 to
85%RH.
8
(2) In liquid (ex. water, oil, medical liquid,
organic solvent, etc.)
3. Do not store in or near corrosive gasses.
4. Use within 6 months of delivery.
(3) Dusty / dirty atmosphere
5. Open the package just before using.
6. Prior to storing previously opened packages, the
packaging should be heat-sealed. Avoid using
rubber bands for repackaging.
(4) Direct sunlight
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
(7) Other variations of the above
7. Do not store under direct sunlight.
35
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
■ Notice (Soldering and Mounting)
1. Soldering
2. Mounting
(1) TZ03 series can be soldered by flow soldering
method and soldering iron. Do not use reflow
soldering method.
(1) Do not apply excessive force (preferably 5.0 N
[Ref: 500gf] max.), when the trimmer capacitor
is mounted on the PCB.
(2) Soldering condition
(2) Use the suitable PCB holes which are the same
pitch as the terminal of the trimmer capacitor.
If it would not fit with the terminal, the
excessive stress would be applied to the
terminal and the trimmer capacitor may deviate
from the specified characteristics.
Refer to the temperature profile.
If the soldering conditions are not suitable, e.g.,
excessive time and/or excessive temperature,
the trimmer capacitor may deviate from the
specified characteristics.
(3) The dimension of mounting hole should be Murata's
standard mounting hole used at flow soldering.
The amount of solder is critical. Insufficient
amounts of solder can lead to insufficient
soldering strength on PCB. Excessive amounts of
solder may cause bridging between the terminals
or contact failure due to flux wicking up.
(4) When using soldering iron, the string solder
should be applied to the lower part of the
terminal only. Do not apply flux except to the
terminals. Excessive amounts of solder and/or
applying solder to the upper part of the
terminal may cause fixed rotor or the contact
failure due to flux invasion into the movable
part and/or the contact point. The soldering
iron should not come in contact with the plastic
case of the trimmer capacitor. If such contact
does occur, the trimmer capacitor may be damaged.
(5) Our recommended chlorine content of string
solder is 0.5wt% max.
(3) Do not apply bending stress more than 10.0N
(Ref: 1kgf) after the trimmer capacitor has
been mounted on the PCB.
(4) Mount trimmer capacitor in contact with PCB.
(5) In case of bending the terminals, do not apply
excessive force to the body of the product and
prevent the terminal fixing part from damaging.
3. Cleaning
Isopropyl alcohol and Ethyl alcohol are available
material for cleaning. If you use any other types
of solvents, please evaluate performance by
your set. Moreover, please confirm no damage for
trimmer capacitor after cleaning by your conditions.
4. Other
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
(6) Do not use water-soluble flux (for water cleaning).
To prevent the deterioration of trimmer
capacitor characteristics, apply flux only to
terminals.
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
2. When adjusting with a screwdriver, do not apply
excessive force (preferably 1.0 N [Ref: 100gf] max.)
to minimize capacitance drift. If excessive force
is applied to the screwdriver slot, it may cause
deformation of the products.
driver slot.
(1) Recommended screwdriver for manual adjustment
MURATA: KMDR010
(2) Recommended screwdriver bit for automatic
adjustment
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
MURATA: KMBT010
8
■ Notice (Other)
Before using trimmer capacitor, please test after
assembly in your particular mass production system.
36
厂商 型号 描述 页数 下载

TAI-SAW

 		TZ0234D [ Your Best Partner For Frequency Devices ] 8 页

TAI-SAW

 		TZ0260A [ Your Best Partner For Frequency Devices ] 8 页

TAI-SAW

 		TZ0384C [ Your Best Partner For Frequency Devices ] 8 页

MURATA

 		TZ03K200A001A00 [ Ceramic Trimmer Capacitors ] 46 页

MURATA

 		TZ03K200B001A00 [ Ceramic Trimmer Capacitors ] 46 页

MURATA

 		TZ03K200C001A00 [ Ceramic Trimmer Capacitors ] 46 页

MURATA

 		TZ03KA001B00 [ Ceramic Trimmer Capacitors ] 1 页

MURATA

 		TZ03KB001B00 [ Ceramic Trimmer Capacitors ] 1 页

MURATA

 		TZ03KE001B00 [ Ceramic Trimmer Capacitors ] 1 页

MURATA

 		TZ03KF001B00 [ Ceramic Trimmer Capacitors ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.228848s
