CZE2.0-F-RL1

型号:

CZE2.0-F-RL1

品牌:

RECTRON[ RECTRON SEMICONDUCTOR ]

页数:

3 页

PDF大小:

362 K

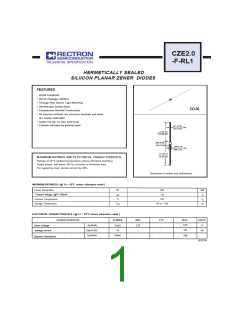

CZE2.0
-F-RL1
HERMETICALLY SEALED
SILIICON PLANAR ZENER DIODES
FEATURES
ROHS Compliant
*
*
*
*
*
*
DO-35 Package (JEDEC)
Through-Hole Device Type Mounting
Hermetically Sealed Glass
DO-35
Compression Bonded Construction
All external surfaces are corrosion resistant and leads
are readily solderable
Solder hot dip Tin (Sn) lead finish
Cathode indicated by polarity band
*
*
(
)
.021 0.55
DIA.
(
)
.018 0.46
(
)
1.5 38.10
1.0 (25.40)
(
)
.196 5.08
.120 (3.05)
(
)
.089 2.28
DIA.
.060(1.53)
(38.10)
1.5
1.0 (25.40).
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 oC ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Dimensions in inches and (millimeters)
MAXIMUM RATINGES ( @ TA = 25oC unless otherwise noted )
P
Power Dissipation
Foward Voltage
300
mW
V
D
@IF=100mA
1.0
150
VF
TJ
OC
OC
Junction Temperature
Storage Temperature
TSTG
-55 to + 150
ELECTRICAL CHARACTERISTICS ( @ TA = 25oC unless otherwise noted )
CHARACTERISTICS SYMBOL
Vz(v)
MIN.
2.02
-
TYP.
MAX.
2.20
120
UNITS
V
(I 5mA)
z=
Zener voltage
eakage current
-
-
I
(V =0.5V)
R
R
νA
(I 5mA)
z=
Zz(w)
100
Dynamic Resistance
2010-04
DISCLAIMER NOTICE
Rectron Inc reserves the right to make changes without notice to any product
specification herein, to make corrections, modifications, enhancements or other
changes. Rectron Inc or anyone on its behalf assumes no responsibility or liabi-
lity for any errors or inaccuracies. Data sheet specifications and its information
contained are intended to provide a product description only. "Typical" paramet-
ers which may be included on RECTRON data sheets and/ or specifications ca-
n and do vary in different applications and actual performance may vary over ti-
me. Rectron Inc does not assume any liability arising out of the application or
use of any product or circuit.
Rectron products are not designed, intended or authorized for use in medical,
life-saving implant or other applications intended for life-sustaining or other rela-
ted applications where a failure or malfunction of component or circuitry may di-
rectly or indirectly cause injury or threaten a life without expressed written appr-
oval of Rectron Inc. Customers using or selling Rectron components for use in
such applications do so at their own risk and shall agree to fully indemnify Rect-
ron Inc and its subsidiaries harmless against all claims, damages and expendit-
ures.
