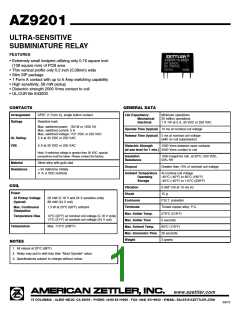

AZ9201
ULTRA-SENSITIVE
SUBMINIATURE RELAY
FEATURES
• Extremely small footprint utilizing only 0.16 square inch
(108 square mm) of PCB area
• Thin vertical profile only 0.2 inch (5.08mm) wide
• Slim SIP package
• 1 Form A contact with up to 5 Amp switching capability
• High sensitivity, 58 mW pickup
• Dielectric strength 2000 Vrms contact to coil
• UL,CUR file E43203
CONTACTS
GENERAL DATA
Arrangement
Ratings
SPST (1 Form A), single button contact
Resistive load:
Life Expectancy
Mechanical
Electrical
Minimum operations
20 million operations
1 X 105 at 5 A, 30 VDC or 250 VAC
Max. switched power: 150 W or 1250 VA
Max. switched current: 5 A
Operate Time (typical) 10 ms at nominal coil voltage
Max. switched voltage: 110* VDC or 250 VAC
5 A at 30 VDC or 250 VAC
Release Time (typical) 5 ms at nominal coil voltage
UL Rating:
VDE
(with no coil suppression)
5 A at 30 VDC or 250 VAC
Dielectric Strength
1000 Vrms between open contacts
(at sea level for 1 min.) 2000 Vrms contact to coil
Note: If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
Insulation
1000 megohms min. at 20°C, 500 VDC,
Resistance
50% RH
Material
Silver alloy with gold clad
Dropout
Greater than 10% of nominal coil voltage
Resistance
< 50 milliohms initially
(1 A, 6 VDC method)
Ambient Temperature At nominal coil voltage
Operating
Storage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 115°C (239°F)
COIL
Vibration
0.062" DA at 10–55 Hz
15 g
Power
Shock
At Pickup Voltage
(typical)
58 mW (5-18 V and 24 V sensitive coils)
88 mW (24 V coil)
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
Max. Continuous
Dissipation
1.3 W at 20°C (68°F) ambient
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Temperature Rise
12°C (22°F) at nominal coil voltage (5-18 V coils)
17°C (31°F) at nominal coil voltage (24 V coil)
Temperature
Max. 115°C (239°F)
80°C (176°F)
Max. Immersion Time 30 seconds
Weight 3 grams
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
3/6/13
