8N4S271FC-1080CDI8

型号：

8N4S271FC-1080CDI8

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

18 页

PDF大小：

495 K

下载PDF手册

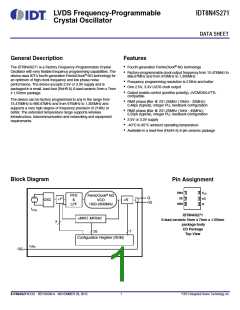

LVDS Frequency-Programmable
Crystal Oscillator
IDT8N4S271
DATA SHEET
General Description
Features
The IDT8N4S271 is a Factory Frequency-Programmable Crystal
Oscillator with very flexible frequency programming capabilities. The
device uses IDT’s fourth generation FemtoClock® NG technology for
an optimum of high clock frequency and low phase noise
performance. The device accepts 2.5V or 3.3V supply and is
packaged in a small, lead-free (RoHS 6) 6-lead ceramic 5mm x 7mm
x 1.55mm package.
• Fourth generation FemtoClock® NG technology
• Factory-programmable clock output frequency from 15.476MHz to
866.67MHz and from 975MHz to 1,300MHz
• Frequency programming resolution is 218Hz and better
• One 2.5V, 3.3V LVDS clock output
• Output enable control (positive polarity), LVCMOS/LVTTL
compatible
The device can be factory programmed to any in the range from
15.476MHz to 866.67MHz and from 975MHz to 1,300MHz and
supports a very high degree of frequency precision of 218Hz or
better. The extended temperature range supports wireless
infrastructure, telecommunication and networking end equipment
requirements.
• RMS phase jitter @ 231.25MHz (12kHz - 20MHz):
0.48ps (typical), integer PLL feedback configuration
• RMS phase jitter @ 231.25MHz (1kHz - 40MHz): 
0.50ps (typical), integer PLL feedback configuration
• 2.5V or 3.3V supply
• -40°C to 85°C ambient operating temperature
• Available in a lead-free (RoHS 6) 6-pin ceramic package
Block Diagram
Pin Assignment
DNU 1
OE 2
6 V
DD
FemtoClock® NG
VCO
1950-2600MHz
PFD
&
LPF
Q
nQ
5 nQ
4 Q
÷P
OSC
÷N
GND 3
fXTAL
IDT8N4S271
6-lead ceramic 5mm x 7mm x 1.55mm
package body
÷MINT, MFRAC
2
CD Package
Top View
7
25
Configuration Register (ROM)
Pullup
OE
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
1
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Pin Description and Characteristic Tables
Table 1. Pin Descriptions
Number
Name
DNU
OE
Type
Description
1
2
Do not use (factory use only).
Input
Power
Output
Power
Pullup
Output enable pin. See Table 3A for function. LVCMOS/LVTTL interface levels.
Power supply ground.
3
GND
Q, nQ
VDD
4, 5
6
Differential clock output pair. LVDS interface levels.
Power supply pin.
NOTE: Pullup refers to an internal input resistor. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
CIN
Parameter
Test Conditions
Minimum
Typical
5.5
Maximum
Units
pF
Input Capacitance
Input Pullup Resistor
RPULLUP
50
k
Function Tables
Table 3A. OE Configuration
Input
OE
Output Enable
0
Outputs Q, nQ are in high-impedance state
Outputs are enabled
1 (default)
NOTE: OE is an asynchronous control.
Table 3B. Output Frequency Range
15.476MHz to 866.67MHz
975MHz to 1,300MHz
NOTE: Supported output frequency range. The output frequency can be programmed to any frequency in this range and to a precision of
218Hz or better.
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
2
©2012 Integrated Device Technology, Inc.

IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Principles of Operation
The block diagram consists of the internal 3rd overtone crystal and
oscillator which provide the reference clock fXTAL of either
18-bit fractional portion (MFRAC) and provides the means for
high-resolution frequency generation. The output frequency fOUT is
calculated by:
114.285MHz or 100MHz. The PLL includes the FemtoClock NG VCO
along with the Pre-divider (P), the feedback divider (M) and the post
divider (N). The P, M, and N dividers determine the output frequency
based on the fXTAL reference. The feedback divider is fractional
supporting a huge number of output frequencies. The configuration
of the feedback divider to integer-only values results in an improved
output phase noise characteristics at the expense of the range of
output frequencies. Internal registers are used to hold one factory
pre-set P, M, and N configuration setting. The P, M, and N frequency
configuration supports an output frequency range from 15.476MHz to
866.67MHz and from 975MHz to 1,300MHz.
1
P N
MFRAC + 0.5
------------
f
= f
MINT + -------------------------------------
OUT
XTAL
18
2
Frequency Configuration
An order code is assigned to each frequency configuration
programmed by the factory (default frequencies). For more
information on the available default frequencies and order codes,
please see the Ordering Information section in this document. For
available order codes, see the FemtoClock NG Ceramic-Package XO
and VCXO Ordering Product Information document.
The devices use the fractional feedback divider with a delta-sigma
modulator for noise shaping and robust frequency synthesis
capability. The relatively high reference frequency minimizes phase
noise generated by frequency multiplication and allows more efficient
shaping of noise by the delta-sigma modulator.
For more information on programming capabilities of the device for
custom frequency and pull-range configurations, see the FemtoClock
NG Ceramic 5x7 Module Programming Guide.
The output frequency is determined by the 2-bit pre-divider (P), the
feedback divider (M) and the 7-bit post divider (N). The feedback
divider (M) consists of both a 7-bit integer portion (MINT) and an
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
3
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum
Ratings may cause permanent damage to the device. These ratings
are stress specifications only. Functional operation of product at
these conditions or any conditions beyond those listed in the DC
Characteristics or AC Characteristics is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect
product reliability.
Item
Rating
Supply Voltage, VDD
Inputs, VI
3.63V
-0.5V to VDD + 0.5V
Outputs, IO (LVDS)
Continuous Current
Surge Current
10mA
15mA
Package Thermal Impedance, JA
49.4C/W (0 mps)
-65C to 150C
Storage Temperature, TSTG
DC Electrical Characteristics
Table 4A. Power Supply DC Characteristics, VDD =3.3V 5%, TA = -40°C to 85°C
Symbol
VDD
Parameter
Test Conditions
Minimum
Typical
3.3
Maximum
3.465
Units
V
Power Supply Voltage
Power Supply Current
3.135
IDD
134
160
mA
Table 4B. Power Supply DC Characteristics, VDD = 2.5V 5%, TA = -40°C to 85°C
Symbol
VDD
Parameter
Test Conditions
Minimum
Typical
2.5
Maximum
2.625
Units
V
Power Supply Voltage
Power Supply Current
2.375
IDD
129
155
mA
Table 4C. LVCMOS/LVTTL DC Characteristic, VDD = 3.3V 5% or 2.5V 5%, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
VDD + 0.3
VDD + 0.3
0.8
Units
V
VDD = 3.3V
VDD = 2.5V
VDD = 3.3V
2
VIH
VIL
Input High Voltage
OE
OE
1.7
-0.3
-0.3
V
V
Input Low Voltage
VDD = 2.5V
0.7
V
IIH
IIL
Input High Current
Input Low Current
OE
OE
VDD = VIN = 3.465V or 2.625V
VDD = 3.465V or 2.625V, VIN = 0V
10
µA
µA
-150
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
4
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Table 4D. LVDS DC Characteristics, VDD = 3.3V 5%, TA = -40°C to 85°C
Symbol
VOD
Parameter
Test Conditions
Minimum
Typical
Maximum
454
Units
mV
mV
V
Differential Output Voltage
VOD Magnitude Change
Offset Voltage
247
370
VOD
VOS
50
1.125
1.22
1.375
50
VOS
VOS Magnitude Change
mV
Table 4E. LVDS DC Characteristics, VDD = 2.5V 5%, TA = -40°C to 85°C
Symbol
VOD
Parameter
Test Conditions
Minimum
Typical
Maximum
454
Units
mV
mV
V
Differential Output Voltage
VOD Magnitude Change
Offset Voltage
247
360
VOD
VOS
50
1.125
1.21
1.375
50
VOS
VOS Magnitude Change
mV
AC Electrical Characteristics
Table 5. AC Characteristics, VDD = 3.3V 5% or 2.5V 5%, TA = -40°C to 85°C
Symbol
fOUT
fI
Parameter
Test Conditions
Minimum
15.476
975
Typical
Maximum
Units
866.67
1,300
10
MHz
MHz
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ps
Output Frequency
Initial Accuracy
Measured @ 25°C
Option code = A or B
100
50
fS
fA
fT
Temperature Stability
Aging
Option code = E or F
Option code = K or L
20
Frequency drift over 10 year life
Frequency drift over 15 year life
Option code A, B (10 year life)
Option code E, F (10 year life)
Option code K, L (10 year life)
3
5
113
63
Total Stability
33
tjit(cc)
Cycle-to-Cycle Jitter; NOTE 1
RMS Period Jitter; NOTE 1
20
tjit(per)
3
5
ps
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
5
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Table 5 (continued). AC Characteristics, VDD = 3.3V 5% or 2.5V 5%, TA = -40°C to 85°C
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
RMS Phase Jitter (Random);
Fractional PLL feedback and
17MHz fOUT 1300MHz,
0.497
0.882
ps
f
XTAL=100.000MHz (2xxx order Integration range: 12kHz-20MHz
codes), NOTES 2, 3, 4
500MHz fOUT 1300MHz,
Integration range: 12kHz-20MHz
0.232
0.250
0.275
0.242
0.476
0.275
0.504
0.322
0.450
0.405
0.311
0.680
0.359
0.700
ps
ps
ps
ps
ps
ps
ps
125MHz fOUT 500MHz,
Integration range: 12kHz-20MHz
17MHz fOUT 125MHz,
Integration range: 12kHz-20MHz
RMS Phase Jitter (Random);
Integer PLL feedback and
fOUT 156.25MHz,
Integration range: 12kHz-20MHz
tjit(Ø)
fXTAL=100.00MHz 
(1xxx order codes), 
NOTES 2, 3, 5
fOUT 231.25MHz,
Integration range: 12kHz-20MHz
fOUT 156.25MHz,
Integration range: 12kHz-20MHz
fOUT 231.25MHz,
Integration range: 12kHz-20MHz
RMS Phase Jitter (Random)
Fractional PLL feedback and
17MHz fOUT 1300MHz,
Integration range: 12kHz-20MHz
0.474
0.986
ps
f
XTAL=114.285MHz (0xxx order
codes), NOTES 2, 3, 6
Single-side Band Phase Noise, 
100Hz from Carrier
N(100)
N(1k)
fOUT 231.25MHz
fOUT 231.25MHz
fOUT 231.25MHz
fOUT 231.25MHz
fOUT 231.25MHz
-88
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Single-side Band Phase Noise, 
1kHz from Carrier
-110
-123
-125
-137
-141
Single-side Band Phase Noise, 
10kHz from Carrier
N(10k)
N(100k)
N(1M)
N(10M)
Single-side Band Phase Noise, 
100kHz from Carrier
Single-side Band Phase Noise, 
1MHz from Carrier
Single-side band phase noise, 
10MHz from Carrier
fOUT 231.25MHz
tR / tF
odc
Output Rise/Fall Time
Output Duty Cycle
20% to 80%
50
47
450
53
ps
%
Device Startup Time After
Power Up
tSTARTUP
20
ms
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
NOTE: XTAL parameters (initial accuracy, temperature stability, aging and total stability) are guaranteed by manufacturing.
NOTE 1: This parameter is defined in accordance with JEDEC standard 65.
NOTE 2: Refer to the phase noise plot.
NOTE 3: See the FemtoClock NG Ceramic 5x7 Modules Programming guide for more information on PLL feedback modes and the optimum
configuration for phase noise. Integer PLL feedback is the default operation for the dddd = 1xxx order codes.
NOTE 4: Applies to output frequencies: 81MHz, 122.88MHz, 231.25MHz, 622.08MHz, 866.67MHz and 1124MHz.
NOTE 5: Applies to output frequencies: 75MHz, 100MHz, 106.25MHz, 125MHz, 156.25MHz, 425MHz, 500MHz, 625MHz, 975MHz 
and 1300MHz.
NOTE 6: Applies to output frequencies: 15.4762MHz, 38.88MHz, 114.285MHz, 496MHz, 669.32MHz and 658MHz.
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
6
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Typical Phase Noise at 231.25MHz (12kHz - 20MHz)
Offset Frequency (Hz)
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
7
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Parameter Measurement Information
SCOPE
SCOPE
Q
Q
V
V
DD
DD
3.3V 5%
POWER SUPPLY
2.5V 5%
POWER SUPPLY
+
Float GND –
+
Float GND –
nQ
nQ
2.5V LVDS Output Load Test Circuit
3.3V LVDS Output Load Test Circuit
Phase Noise Plot
VOH
VREF
VOL
1σ contains 68.26% of all measurements
2σ contains 95.4% of all measurements
3σ contains 99.73% of all measurements
4σ contains 99.99366% of all measurements
6σ contains (100-1.973x10-7)% of all measurements
Offset Frequency
f1
Histogram
f2
Reference Point
(Trigger Edge)
RMS Phase Jitter =
Mean Period
(First edge after trigger)
1
*
Area Under Curve Defined by the Offset Frequency Markers
2 * * ƒ
RMS Phase Jitter
RMS Period Jitter
nQ
nQ
Q
Q
tPW
tPERIOD
➤
➤
tcycle n
tcycle n+1
➤
➤
tPW
tjit(cc) = tcycle n – tcycle n+1
|
|
odc =
x 100%
1000 Cycles
tPERIOD
Cycle-to-Cycle Jitter
Output Duty Cycle/Pulse Width/Period
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
8
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Parameter Measurement Information, continued
VDD
out
nQ
80%
tF
80%
tR
DC Input
VOD
20%
LVDS
20%
Q
out
VOS/Δ VOS
ä
Output Rise/Fall Time
Offset Voltage Setup
VDD
out
DC Input
100
LVDS
out
Differential Output Voltage Setup
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
9
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Applications Information
LVDS Driver Termination
For a general LVDS interface, the recommended value for the
termination impedance (ZT) is between 90and 132. The actual
value should be selected to match the differential impedance (Z0) of
your transmission line. A typical point-to-point LVDS design uses a
100parallel resistor at the receiver and a 100differential
transmission-line environment. In order to avoid any
transmission-line reflection issues, the components should be
surface mounted and must be placed as close to the receiver as
possible. IDT offers a full line of LVDS compliant devices with two
types of output structures: current source and voltage source. The
standard termination schematic as shown in Figure 1A can be used
with either type of output structure. Figure 1B, which can also be
used with both output types, is an optional termination with center tap
capacitance to help filter common mode noise. The capacitor value
should be approximately 50pF. If using a non-standard termination, it
is recommended to contact IDT and confirm if the output structure is
current source or voltage source type. In addition, since these
outputs are LVDS compatible, the input receiver’s amplitude and
common-mode input range should be verified for compatibility with
the output.
ZO ZT
LVDS
Driver
LVDS
Receiver
ZT
Figure 1A. Standard Termination
ZT
ZO ZT
LVDS
Driver
2
ZT
2
LVDS
Receiver
C
Figure 1B. Optional Termination
Figure 1. Typical LVDS Driver Termination
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
10
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Schematic Layout
Figure 2 shows an example IDT8N4S271 application schematic. The
schematic example focuses on functional connections and is
intended as an example only and may not represent the exact user
configuration. Refer to the pin description and functional tables in the
datasheet to ensure the logic control inputs are properly set. For
example OE can be configured from an FPGA instead of set with pull
up and pull down resistors as shown.
capacitor on the VDD pin must be placed on the device side with direct
return to the ground plane though vias. The remaining filter
components can be on the opposite side of the PCB.
Power supply filter component recommendations are a general
guideline to be used for reducing external noise from coupling into
the devices. The filter performance is designed for a wide range of
noise frequencies. This low-pass filter starts to attenuate noise at
approximately 10kHz. If a specific frequency noise component is
known, such as switching power supplies frequencies, it is
recommended that component values be adjusted and if required,
additional filtering be added. Additionally, good general design
practices for power plane voltage stability suggests adding bulk
capacitance in the local area of all devices.
As with any high speed analog circuitry, the power supply pins are
vulnerable to random noise, so to achieve optimum jitter performance
isolation of the VDD pin from power supply is required. In order to
achieve the best possible filtering, it is recommended that the
placement of the filter components be on the device side of the PCB
as close to the power pins as possible. If space is limited, the 0.1µF
Logic Control Input Examples
Set Logic
Input to '1'
Set Logic
Input to '0'
VDD
VDD
RU1
1K
RU2
Not Ins tall
To Logic
Input
pins
To Logic
Input
pins
RD1
Not Install
RD2
1K
3.3V
FB1
2
1
VDD
C4
10uF
BLM18BB221SN1
C5
0.1uF
Place 0.1uF bypass cap
directly adjacent to
the VDD pin.
U3
DNU VDD
C3
0.1uF
1
2
3
6
5
4
Zo = 50 Ohm
OE
OE
nQ
Q
+
R1
100
GND
Zo = 50 Ohm
-
IDT8N4S271CCD
LVDS Receiv er
Figure 2. IDT8N4S271 Schematic Example
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
11
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Power Considerations
This section provides information on power dissipation and junction temperature for the IDT8N4S271.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the IDT8N4S271 is the sum of the core power plus the output power dissipated due to the loading. The following
is the power dissipation for VDD = 3.3V + 5% = 3.465V, which gives worst case results.
•
Power (core)MAX = VDD_MAX * IDD_MAX = 3.465V * 160mA = 554.4mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 49.4°C/W per Table 6 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.554W * 49.4°C/W = 112.4°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 6. Thermal Resistance JA for 6 Lead Ceramic 5mm x 7mm Package, Forced Convection
JA by Velocity
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
49.4°C/W
44.2°C/W
42.1°C/W
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
12
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Reliability Information
Table 7. JA vs. Air Flow Table for a 6-lead Ceramic 5mm x 7mm Package
JA vs. Air Flow
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
49.4°C/W
44.2°C/W
42.1°C/W
Transistor Count
The transistor count for IDT8N4S271 is: 47,511
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
13
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Package Outline and Package Dimensions
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
14
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Ordering Information for FemtoClock NG Ceramic-Package XO and VCXO Products
The programmable VCXO and XO devices support a variety of
devices options such as the output type, number of default frequen-
cies, internal crystal frequency, power supply voltage, ambient
temperature range and the frequency accuracy. The device options,
default frequencies and default VCXO pull range must be specified at
the time of order and are programmed by IDT before the shipment.
The table below specifies the available order codes, including the
device options and default frequency configurations. Example part
number: the order code 8N3QV01FG-0001CDI specifies a
contains a 114.285MHz internal crystal as frequency source,
industrial temperature range, a lead-free (6/6 RoHS) 6-lead ceramic
5mm x 7mm x 1.55mm package and is factory-programmed to the
default frequencies of 100MHz, 122.88MHz, 125MHz and
156.25MHz and to the VCXO pull range of min. 100ppm.
Other default frequencies and order codes are available from IDT on
request. For more information on available default frequencies, see
the FemtoClock NG Ceramic-Package XO and VCXO Ordering
Product Information document.
programmable, quad default-frequency VCXO with a voltage supply
of 2.5V, a LVPECL output, a 50ppm crystal frequency accuracy,
Part/Order Numbers
8N X X XXX X X - dddd XX X X
Shipping Package
8: Tape & Reel
(no letter): Tray
FemtoClock NG
I/O Identifier
Ambient Temperature Range
“I”: Industrial: (TA = -40°C to 85°C)
(no letter) : (TA = 0°C to 70°C)
0: LVCMOS
3: LVPECL
4: LVDS
Package Code
CD: Lead-Free, 6/10-lead ceramic 5mm x 7mm x 1.55mm
Number of Default Frequencies
S: 1: Single
D: 2: Dual
Q: 4: Quad
Default-Frequency and VCXO Pull Range
See document FemtoClock NG Ceramic-Package XO and VCXO
Ordering Product Information.
dddd
fXTAL (MHz) PLL Feedback
Use for
VCXO, XO
XO
Part Number
0000 to 0999
1000 to 1999
2000 to 2999
114.285
Fractional
Integer
OEfct. at
Function #pins
pin
100.000
Fractional
XO
001
003
V01
V03
V75
V76
V85
085
270
271
272
273
XO
XO
10
10
10
10
6
OE@2
OE@1
OE@2
OE@1
OE@2
nOE@2
—
Last digit = L: configuration pre-programmed and not changeable
VCXO
VCXO
VCXO
VCXO
VCXO
XO
Die Revision
C
6
6
Option Code (Supply Voltage and Frequency-Stability)
6
OE@1
OE@1
OE@2
nOE@2
nOE@1
A: VCC = 3.3V 5%, 100ppm
B: VCC = 2.5V 5%, 100ppm
XO
6
XO
6
E: VCC = 3.3V 5%,
F: VCC = 2.5V 5%,
K: VCC = 3.3V 5%,
L: VCC = 2.5V 5%,
50ppm
50ppm
20ppm
20ppm
XO
6
XO
6
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
15
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Table 9. Device Marking
Industrial Temperature Range (TA = -40°C to 85°C)
Commercial Temperature Range (TA = 0°C to 70°C)
IDT8N4S271yC-
ddddCDI
IDT8N4S271yC-
ddddCD
Marking
y = Option Code, dddd=Default-Frequency and VCXO Pull Range
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
16
©2012 Integrated Device Technology, Inc.
IDT8N4S271 Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
Revision History Sheet
Rev
Table
Page
Description of Change
Date
15
16
Ordering Information Table - corrected Die Revision from “G” to “C”.
Marking Table - corrected marking.
A
11/29/2012
T9
IDT8N4S271CCD REVISION A NOVEMBER 29, 2012
17
©2012 Integrated Device Technology, Inc.
IDT8N4S271Data Sheet
LVDS FREQUENCY-PROGRAMMABLE CRYSTAL OSCILLATOR
We’ve Got Your Timing Solution
6024 Silver Creek Valley Road Sales
Technical Support
800-345-7015 (inside USA)
netcom@idt.com
San Jose, California 95138
+408-284-8200 (outside USA) +480-763-2056
Fax: 408-284-2775
www.IDT.com/go/contactIDT
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in this document,
including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined in the independent state and are not
guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the
suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any
license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme invironmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably expected to signifi-
cantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or their respective third
party owners.
Copyright 2012. All rights reserved.
厂商 型号 描述 页数 下载

UTC

 		8N40 8A ， 400V N沟道功率MOSFET[ 8A, 400V N-CHANNEL POWER MOSFET ] 6 页

UTC

 		8N40G-TA3-T 8A ， 400V N沟道功率MOSFET[ 8A, 400V N-CHANNEL POWER MOSFET ] 6 页

UTC

 		8N40G-TF1-T 8A ， 400V N沟道功率MOSFET[ 8A, 400V N-CHANNEL POWER MOSFET ] 6 页

UTC

 		8N40G-TN3-R [ N-CHANNEL POWER MOSFET ] 6 页

UTC

 		8N40G-TN3-T [ N-CHANNEL POWER MOSFET ] 6 页

UTC

 		8N40L-TA3-T 8A ， 400V N沟道功率MOSFET[ 8A, 400V N-CHANNEL POWER MOSFET ] 6 页

UTC

 		8N40L-TF1-T 8A ， 400V N沟道功率MOSFET[ 8A, 400V N-CHANNEL POWER MOSFET ] 6 页

UTC

 		8N40L-TN3-R [ N-CHANNEL POWER MOSFET ] 6 页

UTC

 		8N40L-TN3-T [ N-CHANNEL POWER MOSFET ] 6 页

IDT

 		8N4D001AG-0000CDI8 [ Quad-Frequency Programmable XO ] 21 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.226415s
