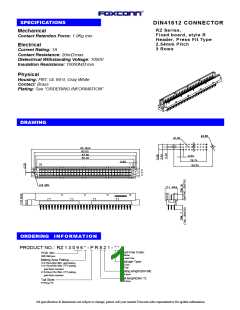

SPECIFICATIONS
DIN41612 CONNECTOR
RZ Series,
Mechanical
Fixed board, style R
Header, Press Fit Type
2.54mm Pitch
3 Rows
Contact Retention Force: 1.0Kg min.
Electrical
Current Rating: 1A
Contact Resistance: 20mΩ max.
Dielectrical Withstanding Voltage: 1000V
Insulation Resistance: 10000MΩ min.
Physical
Housing: PBT, UL 94-0, Gray White
Contact: Brass
Plating: See “ORDERING INFORMATION”
DRAWING
ORDERING INFORMATION
PRODUCT NO.: RZ 1 3 0 9 6 * - P R 8 2 1 - * *
Lead Free Code:
N=None
F=Lead Free
POS. NO.:
096=096 pos.
Mating Area Plating:
3=0.76um(30u")Min. gold plating
C=0.76um(30u")Min. FPT plating,
Package Type:
A=Tube
4=Tray
gold flash included
Mating length(Dim M):
2=4.9mm
K=0.38um(15u")Min. FPT plating,
gold flash included
Tail length(Dim T):
8=4.3mm
Tail Style:
P=Press Fit
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
