RX-4575LC

型号:

RX-4575LC

品牌:

SEIKO[ SEIKO EPSON CORPORATION ]

页数:

2 页

PDF大小:

289 K

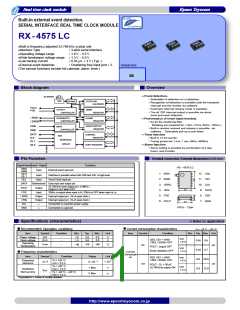

Real time clock module
Epson Toyocom
Built-in external event detection.
SERIAL INTERFACE REAL TIME CLOCK MODULE
RX-4575 LC
Built in frequency adjusted 32.768 kHz crystal unit.
Interface Type
:
:
:
:
:
3-wire serial interface
1.6 V 5.5 V
Operating voltage range
Wide timekeeper voltage range
Low backup current
1.3 V 5.5 V
0.35
µA / 3 V ( Typ. )
External event detection.
Chattering free input port 2.
Actual size
(The various functions include full calendar, alarm, timer.)
Block diagram
Overview
Event detection.
32.768 kHz
Selectable Hi detection or Lo detection.
Recognition of detection is available both the hardware
interrupt and the monitor via software.
Automatic interrupt release mode is available.
The all 'OR' interrupt output is possible via alarm,
timer and event detection.
OSC
DIVIDER
CLOCK and
CALENDAR
FOUT
FOE
OUTPUT
TIMER
ALARM
CONTROLLER
REGISTER
REGISTER
/ IRQN
INTERRUPTS
CONTROLLER
Performance of event input terminal.
As for the chattering filter,
/ EIRQN
following are prepared for. ( 8ms, 31ms, 62ms, 125ms )
Built-in resistor connect and release is possible via
software. Selectable pull-up or pull-down.
Timer function
EINA
EINB
EVENT DETECT
REGISTER
INPUT
CONTROLLER
DATA
CLK
CONTROL
REGISTER
BUS
Built in 12 bit counter.
Timing period are 1 min, 1 sec, 64Hz, 4096Hz.
INTERFACE
CIRCUIT
CE 1
CE 0
SHIFT REGISTER
Alarm function
Alarm setting is possible by combination of a day,
hours, and minutes.
Pin Function
Terminal connection /External dimensions (Unit:mm)
RX 4575 LC
Signal Name Input / Output
Functions
EINA
Input
EINB
CE 0
Input
CE 1
External event input pin.
1. EINA
2. EINB
3. /EIRQ
4. /IRQ
5. FOE
6. FOUT
12. VDD
Interface is possible when both CE0 and CE1 is high level.
Serial Clock input pin.
11. CE1
10. CLK
9. DATA
8. CE0
CLK
Input
DATA
Bidirectional Data input and output pin.
32.768 kHz clock output pin ( C-MOS ) .
FOUT
Output
Output is Hi-Z when OFF.
2.4
FOE
/ EIRQ
/ IRQ
VDD
Input
32kHz is output when input is Hi, 32kHz is OFF when input is Lo.
Output
Output
Interrupt output pin. ( N-ch open drain )
Interrupt output pin. ( N-ch open drain )
Connected to a positive power supply.
Connected to a ground.
7. GND
2.8
VSOJ 12pin
GND
Specifications (characteristics)
Refer to application
!
!
Recommended
Operating conditions
Current consumption characteristics
Ta = 40 °C +85 °C
Item
Symbol
Condition
Min.
Typ.
Max.
Unit
Item
Symbol
Condition
Min. Typ. Max. Unit
DD
Power voltage
Clock voltage
Operating
V
V
1.6
1.3
3.0
3.0
5.5
5.5
V
V
DD
V
CE0, CE1 = GND
CLK
0.45 0.9
= 5 V
/ IRQ, / EIRQ= OFF
FOUT : output OFF
Event detection OFF
OPR
40
°
T
+25
+85
C
BK
µ
I
A
A
Temperature
DD
V
= 3 V
0.35 0.7
8.0 20.0
5.0 12.0
Current
Consumpti
on
!
Frequency characteristics
Item
Symbol
Condition
Rating
Unit
CE0, CE1 = GND
/ IRQ, / EIRQ= OFF
DD
V
= 5 V
a
°
C
Frequency
tolerance
T
V
T
= +25
= 3.0 V
= +25
= 1.6 V
40
= 1.6 V
6
±
*
×
f / f
5
23
10
s
DD
32k
µ
I
FOUT ; CL = 30 pF
32.768 kHz output ON
a
°
C
DD
V
= 3 V
1 Max.
3 Max.
DD
Oscillation
Start-up time
V
STA
t
a
°
C
°
+85
T
V
=
C
s
DD
*Equivalent to 1 minute of monthly deviation
http://www.epsontoyocom.co.jp
“Quartz + MEMS” EPSON TOYOCOM
In order to meet customer needs in a rapidly advancing digital,
broadband and ubiquitous society, we are committed to offering
products that are one step ahead of the market and a rank above
the rest in quality. To achieve our goals, we follow a “3D (three
device) strategy” designed to drive both horizontal and vertical
growth. We will to grow our three device categories of “Timing
Devices”, ”Sensing Devices” and “Optical Devices”, and expand
vertical growth through a combination of products from these
categories.
Quartz devices have become crucial in the network environment
where products are increasingly intended for broadband,
ubiquitous applications and where various types of terminals can
transfer information almost immediately via LAN and WAN on a
global scale. Epson Toyocom Corporation addresses every single
aspect within a network environment. The new corporation offers
“Digital Convergence” solutions to problems arising with products
for consumer use, such as, core network systems and automotive
systems.
A Quartz MEMS is any high added value quartz device that exploits the
characteristics of quartz crystal material but that is produced using MEMS
(micro-electro-mechanical system) processing technology.
Market needs are advancing faster than previously imagined toward
smaller, more stable crystal products, but we will stay ahead of the curve
by rolling out products that exceed market speed and quality
requirements. We want to further accelerate the 3D strategy by QMEMS.
PROMOTION OF ENVIRONMENTAL MANAGEMENT SYSTEM
CONFORMING TO INTERNATIONAL STANDARDS
At Epson Toyocom, all environmental initiatives operate under the Plan-Do-Check-Action(PDCA) cycle designed to achieve continuous improvements.
The environmental management system (EMS) operates under the ISO 14001 environmental management standard.
All of our major manufacturing and non-manufacturing sites, in Japan and overseas, completed the acquisition of ISO 14001 certification.
In the future, new group companies will be expected to acquire the certification around the third year of operations.
ISO 14000 is an international standard for environmental
management that was established by the International
Standards Organization in 1996 against the background
of growing concern regarding global warming, destruction
of the ozone layer, and global deforestation.
WORKING FOR HIGH QUALITY
In order provide high quality and reliable products and services than meet customer needs,
Epson Toyocom made early efforts towards obtaining ISO9000 series certification and has acquired ISO9001 for all business establishments in Japan
and abroad. We have also acquired ISO/TS 16949 certification that is requested strongly by major automotive manufacturers as standard.
QS-9000 is an enhanced standard for quality
assurance systems formulated by leading
U.S.automobile manufacturers based on
the international ISO 9000 series.
ISO/TS 16949 is a global standard based on
QS-9000, a severe standard corresponding to
the requirements from the automobile industry.
Notice
This material is subject to change without notice.
Any part of this material may not be reproduced or duplicated in any form or any means without the written permission of Epson Toyocom.
The information, applied circuitry, programming, usage, etc., written in this material is intended for reference only. Epson Toyocom does not assume
any liability for the occurrence of infringing on any patent or copyright of a third party. This material does not authorize the licensing on for any patent
or intellectual copyrights.
Any product described in this material may contain technology or the subject relating to strategic products under the control of the Foreign
Exchange and Foreign Trade Law of Japan and may require an export license from the Ministry of International Trade and Industry or other
approval from another government agency.
You are requested not to use the products (and any technical information furnished, if any) for the development and/or manufacture of weapon of
mass destruction or for other military purposes. You are also requested that you would not make the products available to any third party who may
use the products for such prohibited purposes.
These products are intended for general use in electronic equipment. When using them in specific applications that require extremely high reliability,
such as the applications stated below, you must obtain permission from Epson Toyocom in advance.
/ Space equipment (artificial satellites, rockets, etc.) / Transportation vehicles and related (automobiles, aircraft, trains, vessels, etc.)
/ Medical instruments to sustain life / Submarine transmitters / Power stations and related / Fire work equipment and security equipment
/ traffic control equipment / and others requiring equivalent reliability.
In this new crystal master for Epson Toyocom, product codes and markings will remain as previously identified prior to the merger.
Due to the on-going strategy of gradual unification of part numbers, please review product codes and markings, as they will change during the
course of the coming months.
We apologize for the inconvenience, but we will eventually have a unified part numbering system for Epson Toyocom that will be user friendly.
