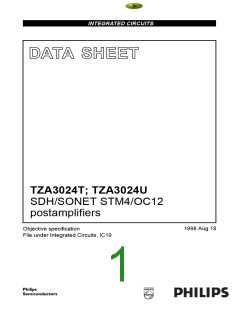

INTEGRATED CIRCUITS
DATA SHEET
TZA3024T; TZA3024U
SDH/SONET STM4/OC12
postamplifiers
1998 Aug 18
Objective specification
File under Integrated Circuits, IC19
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
FEATURES
APPLICATIONS
• Pin compatible with the NE/SA5224 and NE/SA5225 but
with extended power supply range and less external
component count
• Digital fibre optic receiver in short, medium and long
haul optical telecommunications transmission systems
or in high speed data networks
• Wideband operation from 1.0 kHz to 620 MHz typical
• Applicable in 622 Mbits/s SDH/SONET receivers
• Single supply voltage from 3.0 to 5.5 V
• Wideband RF gain block.
GENERAL DESCRIPTION
• PECL (Positive Emitter Coupled Logic) compatible data
outputs
The TZA3024 is a high gain limiting amplifier that is
designed to process signals from fibre optic preamplifiers
such as the TZA3023. It is pin compatible with the
NE/SA5224 and NE/SA5225 but with an extended power
supply range, and needs less external components.
Capable of operating at 622 Mbits/s, the chip has input
signal level detection with a user-programmable threshold.
The data and level-detection status outputs are differential
outputs for optimum noise margin and ease of use.
• Programmable input signal level-detection which can be
adjusted using a single external resistor
• On-chip DC offset compensation without external
capacitor
• Fully differential for excellent PSRR.
ORDERING INFORMATION
TYPE
PACKAGE
NUMBER
NAME
DESCRIPTION
VERSION
SOT109-1
−
TZA3024T
TZA3024U
SO16
plastic small outline package; 16 leads; body width 3.9 mm
−
naked die in waffle pack carriers; die dimensions 1.58 × 1.58 mm
1998 Aug 18
2
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
BLOCK DIAGRAM
TEST
2
(2, 10, 15, 21, 26)
DC-OFFSET
TZA3024
COMPENSATION
(24) 13
(23) 12
4 (7)
5 (8)
DIN
DOUT
A1
A2
A3
DOUTQ
DINQ
(16) 8
25 kΩ
JAM
RECTIFIER
(18) 10
(17) 9
ST
16 (30)
15 (29)
A4
RSET
STQ
1 kΩ
BAND GAP
REFERENCE
V
ref
(3, 4, 6, 9) (1, 14)
(11, 12)
6
(13) (19, 20, 22, 25) (27, 28)
3
1
7
11
14
AGND
SUB
V
CF DGND
V
CCD
MBK851
CCA
The numbers in brackets refer to the pad numbers of the naked die version.
Fig.1 Block diagram.
1998 Aug 18
3
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
PINNING
SYMBOL
PIN
TYPE
DESCRIPTION
SUB
1
2
3
4
substrate
test pin
ground
substrate pin; must be at the same potential as AGND (pin 3)
for test purpose only; to be left open-circuit in the application
analog ground; must be at the same potential as DGND (pin 11)
TEST
AGND
DIN
analog input differential input; DC bias level is set internally at approximately 2.55 V;
complimentary to DINQ (pin 5)
DINQ
5
analog input differential input; DC bias level is set internally at approximately 2.55 V;
complimentary to DIN (pin 4)
VCCA
CF
6
7
supply
analog supply voltage; must be at the same potential as VCCD (pin 14)
analog input filter capacitor for input signal level detector; capacitor should be connected
between this pin and VCCA (pin 6)
JAM
8
PECL input
PECL-compatible input; controls the output buffers DOUT and DOUTQ
(pins 13 and 12). When a LOW signal is applied, the outputs will follow the input
signal. When a HIGH signal is applied, the DOUT and DOUTQ pins will latch into
LOW and HIGH states, respectively. When left unconnected, this pin is actively
pulled LOW (JAM off).
STQ
ST
9
PECL output PECL-compatible status output of the input signal level detector; when the input
signal is below the user-programmed threshold level, this output is HIGH;
complimentary to ST (pin 10)
10
PECL output PECL-compatible status output of the input signal level detector; when the input
signal is below the user-programmed threshold level, this output is LOW;
complimentary to STQ (pin 9)
DGND
11
12
ground
digital ground; must be at the same potential as AGND (pin 3)
DOUTQ
PECL output PECL-compatible differential output; when JAM is HIGH, this pin will be forced
into a HIGH condition; complimentary to DOUT (pin 13)
DOUT
13
PECL output PECL-compatible differential output; when JAM is HIGH, this pin will be forced
into a LOW condition; complimentary to DOUTQ (pin 12)
VCCD
Vref
14
15
16
supply
digital supply voltage; must be at the same potential as VCCA (pin 6)
analog output band gap reference voltage; typical value is 1.2 V; internal series resistor of 1 kΩ
RSET
analog input input signal level detector programming; nominal DC voltage is VCCA − 1.5 V;
threshold level is set by connecting an external resistor between RSET and VCCA
or by forcing a current into RSET; default value for this resistor is 180 kΩ which
corresponds with approximately 4 mV(p-p) differential input signal
1998 Aug 18
4
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
PAD CONFIGURATION
Pad centre locations
COORDINATES(1)
SYMBOL
SUB
PAD
x
y
handbook, halfpage
1
−235.7
−392.8
−532.8
−647.8
−647.8
−647.8
−647.8
−647.8
−647.8
−647.8
−647.8
−532.8
−392.8
−235.7
−78.6
+647.8
+647.8
+647.8
+507.1
+350.0
+210.0
+70.0
SUB
TEST
AGND
DIN
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
RSET
TEST
AGND
AGND
n.c.
2
V
ref
3
V
CCD
4
DOUT
DOUTQ
DGND
ST
5
TZA3024T
DINQ
AGND
DIN
6
V
7
CCA
DINQ
AGND
TEST
VCCA
VCCA
CF
8
−70.0
CF
9
−210.0
−350.0
−507.1
−647.8
−647.8
−647.8
−647.8
−647.8
−647.8
−647.8
−647.8
−507.1
−350.0
−210.0
−70.0
STQ
JAM
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
MBK852
SUB
TEST
JAM
Fig.2 Pin configuration.
+61.4
STQ
+218.5
+375.6
+532.7
+647.8
+647.8
+647.8
+647.8
647.8
ST
DGND
DGND
TEST
DGND
DOUTQ
DOUT
DGND
TEST
VCCD
VCCD
Vref
70.0
647.8
210.0
647.8
350.0
647.8
507.1
532.7
647.8
392.7
647.8
RSET
n.c.
235.6
647.8
78.5
647.8
n.c.
−78.6
+647.8
Note
1. Coordinates represent the position of the centre of the
pad, in µm, with respect to the centre of the die.
1998 Aug 18
5
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
Bonding pad locations
3
2
1
32
31
30
29 28
V
27
AGND
4
CCD
n.c.
AGND
DIN
26
25
24
23
22
21
5
6
TEST
DGND
DOUT
DOUTQ
DGND
TEST
7
(1)
x
1.58
mm
0
8
DINQ
AGND
TEST
0
y
9
TZA3024U
10
V
20
11
DGND
CCA
12 13
14
15 16
17
18
19
(1)
1.58 mm
MBK853
(1) Typical value.
Pad size: 90 × 90 µm.
Fig.3 Bonding pad locations of TZA3024U.
outputs ST and STQ. This flag can also be used to prevent
FUNCTIONAL DESCRIPTION
the PECL outputs DOUT and DOUTQ from reacting to
noise in the absence of a valid input signal, by connecting
the output STQ to the input JAM. This insures that data will
only be transmitted when the input signal-to-noise ratio is
sufficient for low bit error rate system operation.
The TZA3024 accepts up to 622 Mbits/s SDH/SONET
data streams, with amplitudes from 2 mV(p-p) up to 1 V(p-p)
single-ended. The input signal will be amplified and limited
to differential PECL output levels (see Fig.1).
The input buffer A1 presents an impedance of
approximately 4.5 kΩ to the data stream on the inputs
DIN and DINQ. The input can be used both single-ended
and differential, but differential operation is preferred for
better performance.
PECL logic
The logic level symbol definitions for PECL are shown in
Fig.4.
Because of the high gain of the postamplifier, a very small
offset voltage would shift the decision level in such a way
that the input sensitivity decreases drastically. Therefore a
DC offset compensation circuit is implemented in the
TZA3024, which keeps the input of buffer A3 at its toggle
point in the absence of any input signal.
Input biasing
The input pins DIN and DINQ are DC biased at
approximately 2.55 V by an internal reference generator
(see Fig.5). The TZA3024 can be DC-coupled, but
AC-coupling is preferred. In case of DC-coupling, the
driving source must operate within the allowable input
signal range (2.0 V to VCCA + 0.5 V).
An input signal level detection is implemented to check if
the input signal is above the user-programmed level.
The outcome of this test is available at the PECL
Also a DC offset voltage of more than a few millivolts
1998 Aug 18
6
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
should be avoided, since the internal DC offset
compensation circuit has a limited correction range.
Since the voltage on pin RSET is held constant at 1.5 V
below VCCA, the current flowing into this pin will be:
1.5
RDETECT
If AC coupling is used to remove any DC compatibility
requirement, the coupling capacitors must be large
enough to pass the lowest input frequency of interest.
For example, 1 nF coupling capacitors react with the
internal 4.5 kΩ input bias resistors to yield a lower −3 dB
frequency of 35 kHz. This then sets a limit on the
maximum number of consecutive pulses that can be
sensed accurately at the system data rate. Capacitor
tolerance and resistor variation must be included for an
accurate calculation.
IRSET
=
[A ]
(2)
-----------------------
Combining these two formulas results in a general formula
to calculate RDETECT for a given input signal
level-detection:
750
RDETECT
=
[Ω ]
(3)
-----------------------------------------
(VDIN – VDINQ
)
In this formula, VDIN and VDINQ are in Volts.
Example: Detection should occur if the differential voltage
of the input signals drops below 4 mV(p-p). In this case,
a reference current of 0.002 × 0.004 = 8 µA should flow
into pin RSET. This can be set using a current source or
simply by connecting a resistor of the appropriate value.
The resistor must be connected between VCCA and
pin RSET. In this example the resistor would be:
DC-offset compensation
A control loop connected between the inputs of buffer A3
and amplifier A1 (see Fig.1) will keep the input of buffer A3
at its toggle point in the absence of any input signal.
Because of the active offset compensation which is
integrated in the TZA3024, no external capacitor is
required. The loop time constant determines the lower
cut-off frequency of the amplifier chain, which is set at
approximately 850 Hz.
750
0.004
RDETECT
=
= 187.5 kΩ
----------------
The hysteresis is fixed internally at 3 dB electrical. In the
example above, a differential level below 4 mV(p-p) of the
input signal will drive pin ST LOW, and an input signal level
above 5.7 mV(p-p) will drive pin ST HIGH.
Input signal level-detection
The TZA3024 allows for user-programmable input signal
level-detection and can automatically disable the switching
of the PECL outputs if the input signal is below a set
threshold level. This prevents the outputs from reacting to
noise in the absence of a valid input signal, and insures
that data will only be transmitted when the signal-to-noise
ratio of the input signal is sufficient for low bit error rate
system operation. Complementary PECL flags (ST and
STQ) indicate whether the input signal is above or below
the programmed threshold level.
Since a JAM function is provided which forces the data
outputs to a predetermined state (DOUT = LOW and
DOUTQ = HIGH), the pins STQ and JAM can be
connected to automatically disable the signal transmission
when the chip senses that the input signal is below the
programmed threshold level.
The response time of the input signal level-detection circuit
is determined by the time constant of the input capacitors,
together with the filter time constant (1 µs internal plus the
additional capacitor at pin CF).
The input signal is amplified and rectified before being
compared to a programmable threshold reference. A filter
is included to prevent noise spikes from triggering the
level-detector. This filter has a nominal 1 µs time constant
and additional filtering can be achieved by using an
external capacitor between pin CF and VCCA (the internal
driving impedance nominally is 25 kΩ). The resultant
signal is then compared to a threshold current through
pin RSET (see Fig.6). This current can be set by
PECL output circuits
The output circuit of ST and STQ is given in Fig.7.
The output circuit of DOUT and DOUTQ is given in Fig.8.
Some PECL termination schemes are given in Fig.9.
connecting an external resistor RDETECT between
pin RSET and VCCA, or by forcing a current into pin RSET.
The relationship between the threshold current and the
detected input voltage is approximately:
IRSET = 0.002 × (VDIN – VDINQ) [A]
(1)
1998 Aug 18
7
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
V
V
CC
V
O(max)
V
OQH
V
OH
o(p-p)
V
OQL
V
OO
V
OL
V
O(min)
MGR243
Fig.4 Logic level symbol definitions for PECL.
V
CC
DIN
DINQ
4.5 kΩ
4.5 kΩ
330 µA
330 µA
2.55 V
MGR244
Fig.5 Data input circuit DIN and DINQ.
8
1998 Aug 18
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
V
handbook, halfpage
CC
RSET
1.5 V
MGR245
Fig.6 Level-detect input circuit RSET.
V
handbook, halfpage
CC
V
V
LOW
HIGH
ST, STQ
10 kΩ
MGR246
Fig.7 PECL output circuit ST and STQ.
V
handbook, halfpage
CC
105 Ω
105 Ω
DOUT
DOUTQ
0.5 mA
9 mA
0.5 mA
MGR247
Fig.8 PECL output circuit DOUT and DOUTQ.
9
1998 Aug 18
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
V
− 2 V
CC
R1 = 50 Ω
R1 = 50 Ω
V
V
O
V
I
Z
= 50 Ω
o
V
IQ
MGR248
OQ
V
= 3.3 V
CC
R1 = 127 Ω
R1 = 127 Ω
V
O
V
I
Z
= 50 Ω
o
V
IQ
V
OQ
R2 = 82.5 Ω
R2 = 82.5 Ω
GND
MGR249
V
= 5.0 V
CC
R1 = 83.3 Ω
R1 = 83.3 Ω
V
V
O
V
I
Z
= 50 Ω
o
V
IQ
OQ
R2 = 125 Ω
R2 = 125 Ω
GND
MGR250
Fig.9 PECL output termination schemes.
10
1998 Aug 18
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
VCC
Vn
PARAMETER
CONDITIONS
MIN.
−0.5
MAX.
+6
UNIT
supply voltage
DC voltage
V
note 1
pins 4 and 5 (7 and 8): DIN and DINQ
pin 7 (13): CF
−0.5
−0.5
−0.5
V
CC + 0.5
CC + 0.5
V
V
V
V
V
pin 8 (16): JAM
VCC + 0.5
VCC + 0.5
pins 9, 10, 12 and 13 (17, 18, 23 and 24):
STQ, ST, DOUTQ and DOUT
VCC − 2
pin 15 (29): Vref
pin 16 (30): RSET
DC current
−0.5
−0.5
+3.2
V
V
VCC + 0.5
In
note 1
pin 4 and 5 (7 and 8): DIN and DINQ
pin 7 (13): CF
−1
+1
mA
mA
mA
mA
−1
+1
pin 8 (16): JAM
−1
+1
pins 9, 10, 12 and 13 (17, 18, 23 and 24):
STQ, ST, DOUTQ and DOUT
−25
+10
pin 15 (29): Vref
−2
−2
−
+2.5
+2
mA
mA
mW
°C
pin 16 (30): RSET
Ptot
Tstg
Tj
total power dissipation
storage temperature
junction temperature
operating ambient temperature
tbf
−65
−
+150
150
+85
°C
Tamb
−40
°C
Note
1. The numbers in brackets refer to the pad numbers of the naked die version.
THERMAL CHARACTERISTICS
SYMBOL
PARAMETER
VALUE
UNIT
Rth(j-s)
Rth(j-a)
thermal resistance from junction to solder point
thermal resistance from junction to ambient
tbf
tbf
K/W
K/W
1998 Aug 18
11
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
CHARACTERISTICS
For typical values Tamb = 25 °C and VCC = 3.3 V; minimum and maximum values are valid over the entire ambient
temperature range and supply voltage range; all voltages measured with respect to ground; unless otherwise specified.
SYMBOL
Supplies
PARAMETER
CONDITIONS
MIN.
TYP.
MAX.
UNIT
VCC
ICCD
ICCA
Ptot
Tj
digital supply voltage
digital supply current
3
−
−
−
3.3
5.5
27
22
V
note 1
18
15
110
−
mA
mA
mW
°C
analog supply current
total power dissipation
junction temperature
note 1
270
−40
−40
+120
+85
Tamb
operating ambient temperature
+25
°C
Inputs: DIN and DINQ
Vi(se)(p-p) input signal voltage
0.002
0.004
−
−
1.0
2.0
V
V
single-ended (peak-to-peak
value)
Vi(dif)(p-p)
input signal voltage differential
(peak-to-peak value)
VI
absolute input signal voltage
2.1
2.55
VCCA + 0.5
50
V
VIO(eq)
equivalent input signal offset
voltage
−
−
µV
VIO(cor)
input offset voltage correction
range
note 2
−5
−
+5
mV
Ri
input resistance
single-ended
single-ended
note 3
2.9
−
4.5
−
7.6
2.5
115
kΩ
pF
µV
Ci
input capacitance
Vn(i)(rms)
equivalent input RMS noise
voltage
−
90
Input signal level-detect: RSET
Iref
input reference current
input reference voltage
note 4
5
−
60
µA
V
Vref
referenced to VCCA
−1.55
−1.5
−
−1.45
12
Vth(p-p)
programmability (single-ended,
peak-to-peak value)
Vi = 200 kHz square
wave
2
mV
hys
RF
tF
hysteresis
electrically measured
2
3
4
dB
kΩ
µs
filter resistance
filter time constant
14
0.5
25
1.0
41
2.0
CF = 0
1998 Aug 18
12
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
SYMBOL
PARAMETER
CONDITIONS
MIN.
TYP.
MAX.
UNIT
PECL outputs: DOUT and DOUTQ
VOL
VOH
tr
LOW-level output voltage
HIGH-level output voltage
output rise time
RL = 50 Ω to VCC − 2 V
RL = 50 Ω to VCC − 2 V
20% to 80%
V
CC − 1840 −
CC − 1100 −
V
V
CC − 1620 mV
CC − 900 mV
V
−
200
300
250
30
ps
tf
output fall time
80% to 20%
−
140
−
ps
tw(p-p)
f-3dB(l)
f-3dB(h)
pulse width distortion
low frequency −3 dB point
high frequency −3 dB point
−
ps
−
0.85
620
1.5
770
kHz
MHz
460
PECL outputs: ST and STQ
VOL
VOH
tr
LOW-level output voltage
RL = 50 Ω to VCC − 2 V
RL = 50 Ω to VCC − 2 V
20% to 80%
V
V
−
−
CC − 1840 −
CC − 1100 −
V
CC − 1620 mV
CC − 900 mV
HIGH-level output voltage
output rise time
V
−
−
600
200
ns
ns
tf
output fall time
80% to 20%
PECL input: JAM
VIL
LOW-level input voltage
−
−
V
CC − 1490 mV
VIH
HIGH-level input voltage
JAM input current
V
CC − 1165 −
−
mV
Ii(JAM)
note 5
note 6
−10
−
+10
µA
Reference voltage output: Vref
Vref
reference voltage
1.165
1.20
1.235
V
Notes
1. DOUT, DOUTQ, ST and STQ outputs are left unconnected.
2. If the input is DC coupled, the preceding amplifier’s output offset voltage should not exceed these limits, in order to
avoid malfunctioning of the DC offset compensation circuit.
total output RMS noise
low frequency gain
3. Input RMS noise =
------------------------------------------------------------
4. The reference currents can be set by a resistor between VCCA and pin RSET. The corresponding input signal
level-detect range is from 2 to 12 mV(p-p) single-ended. See Section “Input signal level-detection” for detailed
information.
5. Internal pull-down resistor of 500 kΩ to DGND.
6. Internal series resistor of 1 kΩ.
1998 Aug 18
13
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
APPLICATION INFORMATION
V
CC
100 nF
100 nF
180 kΩ
RSET
16
CF
V
V
CCD
V
ref
CCA
7
15
(29)
14
(27, 28)
6
(30)
(13)
(11, 12)
10 nF
10 nF
DIN
DOUT
4 (7)
(24) 13
data in
data out
TZA3024
DINQ
DOUTQ
5 (8)
(23) 12
(3, 4, 6, 9) (1, 14) (16)
(17)
9
(18) (19, 20, 22, 25)
10 11
3
1
8
AGND SUB JAM
STQ ST
DGND
level-detect
status
1 kΩ
50 Ω
50 Ω
V
− 2 V
CC
MBK854
The numbers in brackets refer to the pad numbers of the naked die version.
Fig.10 Application diagram.
1998 Aug 18
14
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
BM8K5
e
1998 Aug 18
15
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
PACKAGE OUTLINE
SO16: plastic small outline package; 16 leads; body width 3.9 mm
SOT109-1
D
E
A
X
v
c
y
H
M
A
E
Z
16
9
Q
A
2
A
(A )
3
A
1
pin 1 index
θ
L
p
L
1
8
e
w
M
detail X
b
p
0
2.5
scale
5 mm
DIMENSIONS (inch dimensions are derived from the original mm dimensions)
A
(1)
(1)
(1)
UNIT
A
A
A
b
c
D
E
e
H
L
L
p
Q
v
w
y
Z
θ
1
2
3
p
E
max.
0.25
0.10
1.45
1.25
0.49
0.36
0.25
0.19
10.0
9.8
4.0
3.8
6.2
5.8
1.0
0.4
0.7
0.6
0.7
0.3
mm
1.27
0.050
1.05
0.041
1.75
0.25
0.01
0.25
0.01
0.25
0.1
8o
0o
0.010 0.057
0.004 0.049
0.019 0.0100 0.39
0.014 0.0075 0.38
0.16
0.15
0.244
0.228
0.039 0.028
0.016 0.020
0.028
0.012
inches
0.069
0.01 0.004
Note
1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.
REFERENCES
OUTLINE
EUROPEAN
PROJECTION
ISSUE DATE
VERSION
IEC
JEDEC
EIAJ
95-01-23
97-05-22
SOT109-1
076E07S
MS-012AC
1998 Aug 18
16
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
SOLDERING
Introduction
Wave soldering
Wave soldering techniques can be used for all SO
packages if the following conditions are observed:
There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.
• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave) soldering
technique should be used.
• The longitudinal axis of the package footprint must be
parallel to the solder flow.
• The package footprint must incorporate solder thieves at
the downstream end.
This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our “Data Handbook IC26; Integrated Circuit Packages”
(order code 9398 652 90011).
During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.
Reflow soldering
Reflow soldering techniques are suitable for all SO
packages.
Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.
6 seconds. Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.
Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.
Repairing soldered joints
Fix the component by first soldering two diagonally-
opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.
Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.
1998 Aug 18
17
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
DEFINITIONS
Data sheet status
Objective specification
Preliminary specification
Product specification
This data sheet contains target or goal specifications for product development.
This data sheet contains preliminary data; supplementary data may be published later.
This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
1998 Aug 18
18
Philips Semiconductors
Objective specification
SDH/SONET STM4/OC12 postamplifiers
TZA3024T; TZA3024U
NOTES
1998 Aug 18
19
Philips Semiconductors – a worldwide company
Argentina: see South America
Middle East: see Italy
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. +61 2 9805 4455, Fax. +61 2 9805 4466
Tel. +31 40 27 82785, Fax. +31 40 27 88399
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213, Tel. +43 160 1010,
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Fax. +43 160 101 1210
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
Norway: Box 1, Manglerud 0612, OSLO,
220050 MINSK, Tel. +375 172 200 733, Fax. +375 172 200 773
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Belgium: see The Netherlands
Brazil: see South America
Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 689 211, Fax. +359 2 689 102
Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. +48 22 612 2831, Fax. +48 22 612 2327
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381
Portugal: see Spain
Romania: see Italy
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +852 2319 7700
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 755 6918, Fax. +7 095 755 6919
Colombia: see South America
Czech Republic: see Austria
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,
Tel. +65 350 2538, Fax. +65 251 6500
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,
Tel. +45 32 88 2636, Fax. +45 31 57 0044
Slovakia: see Austria
Slovenia: see Italy
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615800, Fax. +358 9 61580920
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. +27 11 470 5911, Fax. +27 11 470 5494
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,
Tel. +33 1 40 99 6161, Fax. +33 1 40 99 6427
South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 23 53 60, Fax. +49 40 23 536 300
Tel. +55 11 821 2333, Fax. +55 11 821 2382
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,
Spain: Balmes 22, 08007 BARCELONA,
Tel. +30 1 4894 339/239, Fax. +30 1 4814 240
Tel. +34 93 301 6312, Fax. +34 93 301 4107
Hungary: see Austria
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 5985 2000, Fax. +46 8 5985 2745
India: Philips INDIA Ltd, Band Box Building, 2nd floor,
254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. +91 22 493 8541, Fax. +91 22 493 0966
Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. +41 1 488 2741 Fax. +41 1 488 3263
Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. +62 21 794 0040 ext. 2501, Fax. +62 21 794 0080
Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. +886 2 2134 2865, Fax. +886 2 2134 2874
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. +66 2 745 4090, Fax. +66 2 398 0793
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
TEL AVIV 61180, Tel. +972 3 645 0444, Fax. +972 3 649 1007
Tel. +90 212 279 2770, Fax. +90 212 282 6707
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
20124 MILANO, Tel. +39 2 6752 2531, Fax. +39 2 6752 2557
252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
TOKYO 108-8507, Tel. +81 3 3740 5130, Fax. +81 3 3740 5077
MIDDLESEX UB3 5BX, Tel. +44 181 730 5000, Fax. +44 181 754 8421
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
Tel. +1 800 234 7381
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 757 4880
Uruguay: see South America
Vietnam: see Singapore
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +9-5 800 234 7381
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 625 344, Fax.+381 11 635 777
For all other countries apply to: Philips Semiconductors,
Internet: http://www.semiconductors.philips.com
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 27 24825
© Philips Electronics N.V. 1998
SCA60
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Printed in The Netherlands
425102/200/01/pp20
Date of release: 1998 Aug 18
Document order number: 9397 750 04086
厂商 型号 描述 页数 下载

RHOMBUS-IND

 		TZA1-10 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-20 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-5 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-7 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-10 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-20 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-5 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-7 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

NXP

 		TZA1000 QIC读写放大器[ QIC read-write amplifier ] 24 页

NXP

 		TZA1000T/N3 [ IC 1 CHANNEL READ WRITE AMPLIFIER CIRCUIT, PDSO24, 7.50 MM, PLASTIC, SOT-137-1, SOP-24, Drive Electronics ] 26 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.199103s
