CYS25G0102DX-ATC

型号：

CYS25G0102DX-ATC

品牌：

CYPRESS[ CYPRESS ]

页数：

16 页

PDF大小：

203 K

下载PDF手册
G0102DX
CYS25G0102DX

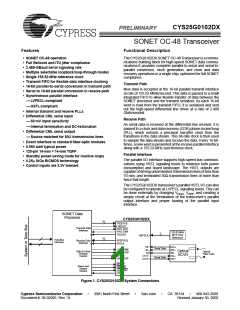

PRELIMINARY
SONET OC-48 Transceiver
Features
Functional Description
• SONET OC-48 operation
• Full Bellcore and ITU jitter compliance
• 2.488-GBaud serial signaling rate
• Multiple selectable loopback/loop-through modes
• Single 155.52-MHz reference clock
• Transmit FIFO for flexible data interface clocking
• 16-bit parallel-to-serial conversion in transmit path
• Serial to 16-bit parallel conversion in receive path
• Synchronous parallel interface
The CYS25G0102DX SONET OC-48 Transceiver is a commu-
nications building block for high-speed SONET data commu-
nications.It provides complete parallel-to-serial and serial-to-
parallel conversion, clock generation, and clock and data
recovery operations in a single chip, optimized for full SONET
compliance.
Transmit Path
New data is accepted at the 16-bit parallel transmit interface
at rate of 155.52 Mbits/second. This data is passed to a small
integrated FIFO to allow flexible transfer of data between the
SONET processor and the transmit serializer. As each 16-bit
word is read from the transmit FIFO, it is serialized and sent
out the high-speed differential line driver at a rate of 2.488
Gbits/second.
— LVPECL-compliant
— HSTL-compliant
• Internal transmit and receive PLLs
• Differential CML serial input
— 50 mV input sensitivity
Receive Path
As serial data is received at the differential line receiver, it is
passed to a clock and data recovery (CDR) phase-locked loop
(PLL), which extracts a precision low-jitter clock from the
transitions in the data stream. This bit-rate clock is then used
to sample the data stream and receive the data. Every 16 bit-
times, a new word is presented at the receive parallel interface
along with a 155.52-MHz synchronous clock.
— Internal termination and DC-restoration
• Differential CML serial output
— Source matched for 50Ω transmission lines
• Direct interface to standard fiber-optic modules
• 0.550 watt typical power
• 120-pin 14-mm × 14-mm TQFP
• Standby power-saving mode for inactive loops
• 0.25µ SiGe BiCMOS technology
Parallel Interface
The parallel I/O interface supports high-speed bus communi-
cations using HSTL signaling levels to minimize both power
consumption and board landscape. The HSTL outputs are
capable of driving unterminated transmission lines of less than
70 mm, and terminated 50Ω transmission lines of more than
twice that length.
• Control inputs are 3.3V tolerant
The CYS25G0102DX transceiver’s parallel HSTL I/O can also
be configured to operate at LVPECL signaling levels. This can
be done externally by changing VDDQ, VREF, and creating a
simple circuit at the termination of the transceiver’s parallel
output interface and proper biasing of the parallel input
interface.
SONET Data
Processor
16
CYS25G0102DX
TXD[15:0]
TXCLKI
Transmit Data
Interface
FIFO_RST
FIFO_ERR
TXCLKO
155.52 MHz
BITS Time
Reference
2
REFCLK±
16
Host Bus
Interface
RXD[15:0]
RXCLK
Receive Data
Interface
IN+
IN–
SD
OUT–
OUT+
RD+
RD–
SD
TD–
TD+
Serial Data
Serial Data
LOOPTIME
DIAGLOOP
LOOPA
Data & Clock
Direction
Control
Optical
XCVR
Optical
Fiber Links
LINELOOP
RESET
PWRDN
LOCKREF
LFI
Status and
System
Control
Figure 1. CYS25G0102DX System Connections
Cypress Semiconductor Corporation
•
3901 North First Street
•
San Jose
•
CA 95134
•
408-943-2600
Document #: 38-02026 Rev. *A
Revised January 30, 2002
PRELIMINARY
CYS25G0102DX
Clocking
Multiple loopback and loop-through modes are available for
both diagnostic and normal operation. For systems containing
redundant SONET rings that are maintained in standby, the
CYS25G0102DX may also be dynamically powered down to
conserve system power.
The source clock for the transmit data path is selectable from
either the recovered clock or an external BITS (Building
Integrated Timing Source) reference clock. The low jitter of the
CDR PLL allows loop-timed operation of the transmit data path
while still meeting all Bellcore and ITU jitter requirements.
Logic Block Diagram
(155.52 MHz)
(155.52 MHz)
(155.52 MHz)
RXCLK
TXCLKI
REFCLK±
TXD[15:0]
16
RXD[15:0]
16
FIFO_ERR TXCLKO
FIFO_RST
Input
Register
Output
Register
TX PLL
X16
÷16
Shifter
FIFO
÷16
Recovered
Bit-Clock
TX Bit-Clock
Shifter
RX CDR
PLL
Retimed
Data
Lock-to-Ref
LOOPTIME
DIAGLOOP
Lock-to-Data/
Clock Control
Logic
LINELOOP
LOOPA
OUT±
IN±
PWRDN LOCKREF SD LFI RESET
Document #: 38-02026 Rev. *A
Page 2 of 16
PRELIMINARY
CYS25G0102DX
CYS25G0102DX Pinout[1]
Top View
NC
90
LFI
RESET
1
VCCQ
2
89
VSSQ
88
DIAGLOOP
LINELOOP
LOOPA
3
REFCLK+
4
87
REFCLK–
5
86
NC
VSSN
6
85
LOOPTIME
84
VCCN
7
PWRDN
VSSN
8
83
VSSN
SD
VSSN
9
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
VCCN
VSSN
LOCKREF
RXD[0]
RXD[1]
RXD[2]
RXD[3]
VSSN
VDDQ
RXD[4]
RXD[5]
RXD[6]
RXD[7]
VSSN
VDDQ
RXCLK
VSSN
VDDQ
NC
TXCLKO
VSSN
CYS25G0102DX
VDDQ
TXD[0]
TXD[1]
TXD[2]
TXD[3]
VCCQ
VSSQ
VCCN
VSSN
TXD[4]
TXD[5]
TXD[6]
TXD[7]
TXD[8]
NC
TXD[9]
NC
TXD[10]
TXD[11]
NC
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
Notes:
1. No connect (NC) pins must be left unconnected, or floating. Connecting any of these pins to the positive or negative power supply may cause improper operation
or failure of the device.
Document #: 38-02026 Rev. *A
Page 3 of 16

PRELIMINARY
CYS25G0102DX
Pin Descriptions
Name
I/OCharacteristics
Signal Description
Transmit Path Signals
TXD[15:0]
HSTL inputs
sampled by
TXCLKI↑
Parallel Transmit Data Inputs. A 16-bit word, sampled by TXCLKI↑. TXD[15] is the most
significant bit (MSB), the first bit transmitted.
TXCLKI
HSTL clock input
Parallel Transmit Data Input Clock. The TXCLKI is used to transfer the data into the input
register of the serializer. The TXCLKI samples the data, TXD [15:0], on the rising edge of
the clock cycle.
TXCLKO
VREF
HSTL clock output Transmit Clock Output. Divide by 16 of the selected transmit bit-rate clock. It can be used
to coordinate byte-wide transfers between upstream logic and the CYS25G0102DX.
HSTL analog
reference
Reference Voltage for HSTL Parallel Input Bus. VDDQ/2.[2]
Receive Path Signals
RXD[15:0]
HSTL output,
synchronous
Parallel Receive Data Output. These outputs change following RXCLK↓. RXD[15] is the
most significant bit of the output word, and is received first on the serial interface.
RXCLK
HSTL clock output Receive Clock Output. Divide by 16 of the bit-rate clock extracted from the received serial
stream. RXD [15:0] is clocked out on the falling edge of the RXCLK.
CM_SER
RXCN1
RXCN2
RXCP1
RXCP2
Analog
Analog
Analog
Analog
Analog
Common Mode Termination. Capacitor shunt to VSS for common mode noise.
Receive Loop Filter Capacitor (Negative)
Receive Loop Filter Capacitor (Negative)
Receive Loop Filter Capacitor (Positive)
Receive Loop Filter Capacitor (Positive)
Device Control and Status Signals
REFCLK±
Differential LVPECL Reference Clock. This clock input is used as the timing reference for the transmit and
input
receive PLLs. A derivative of this input clock may also be used to clock the transmit parallel
interface. The reference clock input signal must be AC-coupled before it is received by the
input buffer (see Figure 6).
LFI
LVCMOS2.5 output Line Fault Indicator. When LOW, this signal indicates that the selected receive data stream
has been detected as invalid by either a LOW input on SD, or by the receive VCO being
operated outside its specified limits.
RESET
LVCMOS2.5 input
LVCMOS2.5 input
Reset for all logic functions except the transmit FIFO.
LOCKREF
Receive PLL Lock to Reference. When LOW, the receive PLL locks to REFCLK instead
of the received serial data stream.
SD
LVCMOS2.5 input
Signal Detect. When LOW, the receive PLL locks to REFCLK instead of the received serial
data stream. The SD is to be connected to an external optical module to indicate a loss of
received optical power.
FIFO_ERR LVCMOS2.5 output OutputTransmitFIFOError. WhenHIGHthetransmitFIFOhasunderoroverflowed. When
this occurs, the FIFO’s internal clearing mechanism will clear the FIFO within nine clock
cycles. In addition, FIFO_RST must be activated at device power-up to ensure that the in
and out pointers of the FIFO are set to maximum separation.
FIFO_RST LVCMOS2.5 input
Input Transmit FIFO Reset. When LOW, the in and out pointers of the transmit FIFO are
set to maximum separation. FIFO_RST must be activated at device power-up to ensure that
the in and out pointers of the FIFO are set to maximum separation. When the FIFO is being
reset, the output data is a 1010... pattern.
PWRDN
LVCMOS2.5 input
Device Power Down. When LOW, the logic and drivers are all disabled and placed into a
standby condition where only minimal power is dissipated.
Loop Control Signals
DIAGLOOP LVCMOS2.5 input
Diagnostic Loopback Control. When HIGH, transmit data is routed through the receive
clockanddatarecoveryandpresentedattheRXD[15:0]outputs. WhenLOW, receivedserial
data is routed through the receive clock and data recovery and presented at the RXD[15:0]
outputs.
Note:
2. See Figure 10 for implementing VREF as an LVPECL interface.
Document #: 38-02026 Rev. *A
Page 4 of 16

PRELIMINARY
CYS25G0102DX
Pin Descriptions (continued)
Name
I/OCharacteristics
Signal Description
LINELOOP LVCMOS2.5 input
Line Loopback Control. When HIGH, received serial data is looped back from receive to
transmit after being reclocked by a recovered clock. When LINELOOP is LOW, the data
passed to the OUT± line driver is controlled by LOOPA. When both LINELOOP and LOOPA
are LOW, the data passed to the OUT± line driver is generated in the transmit shifter.
LOOPA
LVCMOS2.5 input
Analog Line Loopback. When LINELOOP is LOW and LOOPA is HIGH, received serial
data is looped back from receive input buffer to transmit output buffer, but is not routed
through the clock and data recovery PLL. When LOOPA is LOW, the data passed to the
OUT± line driver is controlled by LINELOOP.
LOOPTIME LVCMOS2.5 input
Loop Time Mode. When HIGH, the extracted receive bit-clock replaces transmit bit clock.
When LOW, the REFCLK input is multiplied by 16 to generate the transmit bit clock.
Serial I/O
OUT±
Differential CML
output
Differential Serial Data Output. This differential CML output is capable of driving termi-
nated 50Ω transmission lines or commercial fiber-optic transmitter modules.
IN±
Differential CML
input
Differential Serial Data Input. This differential input accepts the serial data stream for
deserialization and clock extraction.
Power
VCCN
VSSN
Power
+2.5V supply (for digital and low-speed I/O functions)
Signal and power ground (for digital and low-speed I/O functions)
+2.5V quiet power (for analog functions)
Ground
VCCQ
VSSQ
VDDQ
Quiet ground (for analog functions)
+1.5V supply for HSTL outputs[3]
can be externally reset to clear the error indication or if no
action is taken, the internal clearing mechanism will clear the
FIFO in nine clock cycles. When the FIFO is being reset, the
output data is a 1010 pattern.
CYS25G0102DX Operation
The CYS25G0102DX is a highly configurable device designed
to support reliable transfer of large quantities of data using
high-speed serial links. It performs necessary clock and data
recovery, clock generation, serial-to-parallel conversion, and
parallel-to-serial conversion. CYS25G0102DX also provides
various loopback functions.
Transmit PLL Clock Multiplier
The Transmit PLL Clock Multiplier accepts a 155.52-MHz
external clock at the AC-coupled REFCLK input, and multiplies
that clock by 16 to generate a bit-rate clock for use by the
transmit shifter. The operating serial signaling rate and
allowable range of REFCLK frequencies is listed in Table 6.
The REFCLK input is a standard LVPECL input. The reference
clock input signal must be AC-coupled before it is received by
the input buffer (see Figure 6).
CYS25G0102DX Transmit Data Path
Operating Modes
The transmit path of the CYS25G0102DX supports 16-bit-
wide data paths.
Serializer
Phase-Align Buffer
The parallel data from the phase-align buffer is passed to the
Serializer, which converts the parallel data to serial data using
the bit-rate clock generated by the Transmit PLL clock multi-
plier. TXD[15] is the MSB of the output word, and is transmitted
first on the serial interface.
Data from the input register is passed to a phase-align buffer
(FIFO). This buffer is used to absorb clock phase differences
between the transmit input clock and the internal character
clock.
Initialization of the phase-align buffer takes place when the
FIFO_RST input is asserted LOW. When FIFO_RST is
returned HIGH, the present input clock phase relative to
TXCLKO is set. Once set, the input clock is allowed to skew in
time up to half a character period in either direction relative to
REFCLK; i.e. ±180°. This time shift allows the delay path of the
character clock (relative to REFLCK) to change due to
operating voltage and temperature while not effecting the
desired operation. FIFO_RST is an asynchronous input.
FIFO_ERR is the transmit FIFO Error indicator. When HIGH,
the transmit FIFO has either under or overflowed. The FIFO
Serial Output Driver
The serial interface Output Driver makes use of high-perfor-
mance differential CML (Current Mode Logic) to provide a
source-matched driver for the transmission lines. This driver
receives its data from the Transmit Shifters or the receive
loopback data. The outputs have signal swings equivalent to
that of standard LVPECL drivers, and are capable of driving
AC-coupled optical modules or transmission lines.
Note:
3. VDDQ equals 2.5V if interfacing to a parallel LVPECL interface.
Document #: 38-02026 Rev. *A
Page 5 of 16

PRELIMINARY
CYS25G0102DX
Deserializer
CYS25G0102DX Receive Data Path
The CDR circuit extracts bits from the serial data stream and
clocks these bits into the Deserializer at the bit-clock rate. The
Deserializer converts serial data into parallel data. RXD[15] is
the MSB of the output word and is received first on the serial
interface.
Serial Line Receivers
A differential line receiver, IN±, is available to accept the input
serial data stream. The serial line receiver inputs can accom-
modate high wire interconnect and filtering losses or trans-
mission line attenuation (VDIF > 25 mV, or 50 mV peak-to-peak
differential), and can be AC-coupled to +3.3V- or +5V-powered
fiber-optic interface modules. The common-mode tolerance of
these line receivers accommodates a wide range of signal
termination voltages.
Loopback/Timing Modes
CYS25G0102DX supports various loopback modes as
described below.
Facility Loopback (line loopback with retiming)
Lock to Data Control
When the LINELOOP signal is set HIGH, the Facility Loopback
mode is activated and the high-speed serial receive data (IN±)
is presented to the high-speed transmit output (OUT±) after
retiming. In Facility Loopback mode, the high-speed receive
data (IN±) is also converted to parallel data and presented to
the low-speed receive data output pins (RXD[15:0]). The
receive recovered clock is also divided down and presented to
the low-speed clock output (RXCLK).
The line Receiver routed to the clock and data recovery PLL is
monitored for
• status of the signal detect (SD) pin
• status of the LOCKREF pin.
This status is presented on the LFI (Line Fault Indicator)
output, which changes asynchronously in the cases when SD
or LOCKREF goes from HIGH to LOW. Otherwise, it changes
synchronously to the REFCLK.
Equipment Loopback (diagnostic loopback with retiming)
When the DIAGLOOP signal is set HIGH, transmit data is
looped back to the RX PLL, replacing IN±. Data is looped back
from the parallel TX inputs to the parallel RX outputs. The data
is looped back at the internal serial interface and goes through
transmit shifter and the receive CDR. SD is ignored in this
mode.
Clock/Data Recovery
The extraction of a bit-rate clock and recovery of data bits from
the received serial stream is performed by a Clock/Data
Recovery (CDR) block. The clock extraction function is
performed by a high-performance embedded phase-locked
loop (PLL) that tracks the frequency of the incoming bit stream
and aligns the phase of the internal bit-rate clock to the transi-
tions in the selected serial data stream.
Line Loopback Mode (non-retimed data)
When the LOOPA signal is set HIGH, the RX serial data is
directly buffered out to the transmit serial data. The data at the
serial output is not retimed.
CDR accepts a character-rate (bit-rate divided by 16)
reference clock on the REFCLK input. This REFCLK input is
used to ensure that the VCO (within the CDR) is operating at
the correct frequency (rather than some harmonic of the bit-
rate), to improve PLL acquisition time, and to limit unlocked
frequency excursions of the CDR VCO when no data is
present at the serial inputs.
Loop Timing Mode
When the LOOPTIME signal is set HIGH, the TX PLL is
bypassed and receive bit-rate clock is used for transmit side
shifter.
Regardless of the type of signal present, the CDR will attempt
to recover a data stream from it. If the frequency of the
recovered data stream is outside the limits set by the range
controls, the CDR PLL will track REFCLK instead of the data
stream. When the frequency of the selected data stream
returns to a valid frequency, the CDR PLL is allowed to track
the received data stream. The frequency of REFCLK is
required to be within ±100 ppm of the frequency of the clock
that drives the REFCLK signal of the remote transmitter to
ensure a lock to the incoming data stream.
Reset Modes
ALL logic circuits in the device can be reset using RESET and
FIFO_RST signals. When RESET is set LOW, all logic circuits
except FIFO are internally reset. When FIFO_RST is set LOW,
the FIFO logic is reset.
Power-down Mode
CYS25G0102DX provides a global power-down signal
PWRDN. When LOW, this signal powers down the entire
device to a minimal power dissipation state. RESET and
FIFO_RST signals should be asserted LOW along with
PWRDN signal to ensure low power dissipation.
For systems using multiple or redundant connections, the LFI
output can be used to select an alternate data stream. When
an LFI indication is detected, external logic can toggle
selection of the input device. When such a port switch takes
place, it is necessary for the PLL to reacquire lock to the new
serial stream.
LVPECL Compliance
The CYS25G0102DX HSTL parallel I/O can be configured to
LVPECL compliance with slight termination modifications. On
the transmit side of the transceiver, the TXD[15:0] and TXCLKI
can be made LVPECL compliant by following the guidelines
illustrated in Figure 10. To emulate a LVPECL signal on the
receiver side, VDDQ needs to be set to 2.5V and the trans-
mission lines need to be terminated with the equivalent 50Ω
impedance. A simple resistive translation is illustrated in
Figure 9. This circuit needs to be used on all 16 RXD[15:0]
pins, TXCLKO, and RXCLK. The circuit has been calculated
assuming the system is built with 50Ω transmission lines.
External Filter
The CDR circuit uses external capacitors for the PLL filter.
A 0.1-µF capacitor needs be connected between RXCN1 and
RXCP1. Similarly a 0.1-µF capacitor needs to be connected
between RXCN2 and RXCP2. The recommended packages
and dielectric material for these capacitors are 0805 X7R or
0603 X7R.
Document #: 38-02026 Rev. *A
Page 6 of 16
PRELIMINARY
CYS25G0102DX
DC Voltage Applied to HSTL Outputs
Maximum Ratings
in High-Z State[4] ................................. –0.5V to VDDQ + 0.5V
(Stresses beyond those listed under “Maximum Ratings” may
cause permanent damage to the device. These are stress
ratings only, and functional operation of the device at these or
any other conditions beyond those indicated under the recom-
mended operating conditions is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may
affect device reliability.)
DC Voltage Applied to any output in the High-Z state or
power-off state[4] ................................... –0.5V to VCC + 0.5V
DC Input Voltage[4] ................................ –0.5V to VCC + 0.5V
Static Discharge Voltage .......................................... > 2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current.................................................... > 200 mA
Storage Temperature .................................–65°C to +150°C
Operating Range
Ambient Temperature with
Power Applied.............................................–55°C to +125°C
Ambient
Range
Commercial
Industrial
Temperature
VDDQ
VCC
VCC Supply Voltage to Ground Potential ....... –0.5V to +3.6V
0°C to +70°C 1.4V to 1.6V[5] 2.5V ±5%
-40°C to +85°C 1.4V to 1.6V[5] 2.5V ±5%
VDDQ Supply Voltage to Ground Potential..... –0.5V to +3.6V
DC Specifications
Table 1. DC Specifications – LVCMOS2.5
Parameter
Description
Test Conditions
Min.
Max.
Unit
LVCMOS2.5 Outputs
VOHT
Output HIGH Voltage
VCC = 2.375V,
IOH = –1 mA, VIH = 1.7V
2
V
V
V
VCC = 2.375V,
IOH = –8 mA, VIH = 1.7V
1.8
VOLT
Output LOW Voltage
VCC = 2.375V,
IOL = 1 mA,
VIL=0.7V
0.4
0.6
VCC = 2.375V,
IOL = 8 mA,
VIL=0.7V
V
IOS
Output Short Circuit Current
VOUT = 0V
–20
–90
mA
LVCMOS2.5 Inputs
VIHT
Input HIGH Voltage
VCC = 2.375V to 2.625V
VCC = 2.375V to 2.625V
VIN = VCC
1.7
3.6
0.7
10
V
V
VILT
Input LOW Voltage
Input HIGH Current
Input LOW Current
–0.3
IIHT
µA
µA
IILT
VIN = GND
–10
Capacitance
CIN
Input Capacitance
VCC = Max.
@ f = 1 MHz
5
pF
Table 2. DC Specifications – Power
Parameter
Power
Description
Test Conditions
Typ.
Max.
Unit
ICC
Active Power Supply Current
Standby Current
240
285
5
mA
mA
ISB
Notes:
4. This value is limited to 3.6V maximum.
5. For LVPECL interface, VDDQ = VCC
.
Document #: 38-02026 Rev. *A
Page 7 of 16


PRELIMINARY
CYS25G0102DX
Table 3. DC Specifications – Differential LVPECL Input (REFCLK)
Parameter
Description
Test Conditions
Min.
Max.
Unit
Receiver LVPECL Compatible Inputs
VINSGLE
VDIFFE
Input Single-ended Swing
Input Differential Voltage
200
400
600
mV
mV
1200
Capacitance
CINE
Input Capacitance
4
pF
Table 4. DC Specifications – Differential CML
Parameter Description
Transmitter CML Compatible Outputs
Test Conditions
Min.
Max.
Unit
VOHC
Output HIGH Voltage
(VCC Referenced)
100Ω differential load VCC – 0.5 VCC – 0.15
100Ω differential load VCC – 1.2 VCC – 0.7
V
V
VOLC
Output LOW Voltage
(VCC Referenced)
VDIFFOC
VSGLCO
Output Differential Swing
100Ω differential load
100Ω differential load
560
280
1600
800
mV
mV
Output Single-ended Voltage
Receiver CML Compatible Inputs
VINSGLC
VDIFFC
VICHH
VICLL
Input Single-ended Swing
Input Differential Voltage
Highest Input HIGH Voltage
Lowest Input LOW Voltage
Input HIGH Current
25
50
600
1200
VCC
mV
mV
V
1.1
V
IICH
VIN = VICHH Max.
VIN = VICLL Min.
47
20
µA
µA
IICL
Input LOW Current
Capacitance
CINC
Input Capacitance
4
pF
Table 5. DC Specifications – HSTL
Parameter
HSTL Outputs
VOHH
Description
Test Conditions
Min.
Max.
Unit
Output HIGH Voltage
Output LOW Voltage
VCC = Min.,
IOH= –4.0 mA
V
DDQ – 0.4
V
V
VOLH
VCC = Min.,
0.4
IOL= 4.0 mA
IOSH
Output Short Circuit Current
VOUT = 0V
100
mA
HSTL Inputs
VIHH
Input HIGH Voltage
Input LOW Voltage
Input HIGH Current
VREF + 0.13 VDDQ + 0.3
V
V
VILH
–0.3
VREF – 0.1
IIHH
VDDQ = Max.
VIN = VDDQ
50
µA
IILH
Input LOW Current
VDDQ = Max.
VIN = 0V
–40
µA
Capacitance
CINH
Input Capacitance
VDDQ = Max.
@ f = 1 MHz
5
pF
Document #: 38-02026 Rev. *A
Page 8 of 16
PRELIMINARY
CYS25G0102DX
AC Specifications
Table 6. AC Specifications – REFCLK
Parameter
Description
Min.
154.5
6.38
35
Max.
156.5
6.47
65
Unit
MHz
ns
tREF
REFCLK Input Frequency
REFCLK Period
tREFP
tREFD
tREFT
tREFR
tREFF
REFCLK Duty Cycle
%
REFCLK Frequency Tolerance (relative to received serial data)[6]
–100
0.3
+100
1.5
ppm
ns
REFCLK Rise Time
REFCLK Fall Time
0.3
1.5
ns
Table 7. AC Specifications – Parallel Interface
Parameter
Description
Min.
154.5
6.38
40
Max.
156.5
6.47
60
Unit
MHz
ns
tTS
TXCLKI Frequency (must be frequency coherent to REFCLK)
TXCLKI Period
tTXCLKI
tTXCLKID
tTXCLKIR
tTXCLKIF
tTXDS
TXCLKI Duty Cycle
%
TXCLKi Rise Time
0.3
1.5
ns
TXCLKi Fall Time
0.3
1.5
ns
Write Data Set-up to ↑ of TXCLKI
Write Data Hold from ↑ of TXCLKI
TXCLKO Frequency
1.5
ns
tTXDH
0.5
ns
tTOS
154.5
6.38
43
156.5
6.47
57
MHz
ns
tTXCLKO
tTXCLKOD
tTXCLKOR
tTXCLKOF
tRS
TXCLKO Period
TXCLKO Duty Cycle
%
TXCLKO Rise Time
0.3
1.5
ns
TXCLKO Fall Time
0.3
1.5
ns
RXCLK Frequency
154.5
6.38
43
156.5
6.47
57
MHz
ns
tRXCLK
tRXCLKD
tRXCLKR
tRXCLKF
tRXDS
RXCLK Period
RXCLK Duty Cycle
RXCLK Rise Time[7]
RXCLK Fall Time[7]
%
0.3
1.5
ns
0.3
1.5
ns
Recovered Data Set-up with reference to ↑ of RXCLK.
Recovered Data Hold with reference to ↑ of RXCLK.
Valid Propagation delay
2.2
ns
tRXDH
2.2
ns
tRXPD
-1.0
1.0
ns
Table 8. AC Specifications – CML Serial Outputs
Parameter Description
tRISE
tFALL
tTJ
Min.
60
Typ.
Max.
170
Unit
ps
CML Output Rise Time (20–80%, 100Ω balanced load)
CML Output Fall Time (80–20%, 100Ω balanced load)
Total Output Jitter (p-p)[8]
60
170
ps
0.035
0.005
0.05
0.007
UI
Total Output Jitter (rms)[8]
UI
Note:
6. +20 ppm is required to meet the SONET output frequency specification.
7. RXCLK rise and fall times are measured at the 20 to 80 percentile region of the rising and falling edge of the clock signal.
8. The RMS and P-to-P Jitter values are measured using a 12-KHz to 20-MHz SONET Filter.
Document #: 38-02026 Rev. *A
Page 9 of 16
PRELIMINARY
CYS25G0102DX
Jitter Waveforms
Figure 2. Jitter Transfer Waveform of CYS25G0102DX
Figure 3. Jitter Tolerance Waveform of CYS25G0102DX
Document #: 38-02026 Rev. *A
Page 10 of 16
PRELIMINARY
CYS25G0102DX
Switching Waveforms
Transmit Interface Timing
tTXCLKI
tTXCLKIDH
tTXCLKIDL
TXCLKI
tTXDS tTXDH
TXD[15:0]
tTXCLKO
tTXCLKODL
tTXCLKODH
TXCLKO
Receive Interface Timing
tRXCLK
tRXCLKDL
tRXCLKDH
RXCLK
tRXPD
tRXDS
tRXDH
RXD[15:0]
Document #: 38-02026 Rev. *A
Page 11 of 16
PRELIMINARY
CYS25G0102DX
AC Test Loads and Waveforms
Input Test Waveform Specifications
V
V
ICHH
CC
V
CC
90%
10%
90%
10%
80%
80%
V =V /2
V =V /2
th
CC
th
CC
20%
≤ 150 ps
20%
≤ 150 ps
GND
V
ICLL
< 2 ns
< 2 ns
(a) LVCMOS2.5 Input Test Waveform
(b) CML Input Test Waveform
V
V
IHH
IEHH
80%
80%
80%
20%
80%
20%
V =0.75V
V =0.75V
th
th
20%
≤ 1.0 ns
20%
V
V
IHL
IELL
≤ 1.0 ns
< 1 ns
< 1 ns
(d) LVPECL Input Test Waveform
(c) HSTL
Input Test Waveform
AC Test Loads
OUTPUT
OUT+
C
R1= 500Ω
L
(Includes fixture and
probe capacitance)
L
R =100Ω
L
C
= 30 pF
R
L
R1
OUT–
(a) LVCMOS2.5 AC Test Load
(b) CML AC Test Load
1.5V
R1
OUTPUT
R1=100Ω
R2=100Ω
L
C
L
C
≤ 7 pF
R2
(Includes fixture and
probe capacitance)
(c) HSTL
AC Test Load
Document #: 38-02026 Rev. *A
Page 12 of 16
PRELIMINARY
CYS25G0102DX
CYS25G0102DX
Limiting Amp
F
µ
0.1
0.1
Ω
Zo=50
IN+
IN–
OUT+
OUT–
Ω
100
Ω
Zo=50
F
µ
Figure 4. Serial Input Termination
Optical Module
CYS25G0102DX
0.1
0.1
F
µ
Ω
Zo=50
IN+
OUT+
OUT–
Ω
100
IN–
Ω
Zo=50
F
µ
Figure 5. Serial Output Termination
Clock Oscillator
CYS25G0102DX
VCC
Ω
Zo=50
0.1uF
Ω
130
VCC
130
LVPECL
OUTPUT
Ω
82
Ω
Refclock Internally
Biased
0.1uF
Ω
Ω
Zo=50
82
Figure 6. Clock Oscillator Termination
CYS25G0102DX
FRAMER
VDDQ=1.5V
HSTL
INPUT
HSTL
OUTPUT
Ω
Ω
Zo=50
100
Ω
100
Figure 7. TXCLKO/ RXCLK Termination
CYS25G0102DX
FRAMER
HSTL
INPUT
HSTL
OUTPUT
Ω
Zo=50
Figure 8. RXD[15:0] Termination
Document #: 38-02026 Rev. *A
Page 13 of 16
PRELIMINARY
CYS25G0102DX
VDDQ=2.5V
RXD[15;0],
FRAMER
VDDQ=3.3V
59Ω
RXCLK,
Ω
Zo=50
70Ω
LVPECL INPUT
TXCLKO
OUTPUT
Ω
150
CYS25G0102DX
Figure 9. LVPECL Level Termination
3.3V
2.5V
3.3V
Ω
656
CYS25G0102DX
VREF
VCCN
VCCQ
Ω
LVPECL Device
344
VDDQ
3.3V
Ω
130
Ω
O = 50
Z
3.3V
130
Ω
35.5
TXD0
Ω
Ω
46.5
Ω
82
TXD15
Figure 10. LVPECL Parallel Input
Ordering Information
Speed
Ordering Code
Package Name
Package Type
Operating Range
Standard
AT120
120-Pin TQFP
Commercial
Document #: 38-02026 Rev. *A
Page 14 of 16
PRELIMINARY
CYS25G0102DX
Package Diagram
120-Pin Thin Quad Flatpack (14 × 14 × 1.4 mm) with Heat Slug AT120
51-85116
All product and company names mentioned in this document may be the trademarks of their respective holders.
Document #: 38-02026 Rev. *A
Page 15 of 16
© Cypress Semiconductor Corporation, 2002. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use
of any circuitry other than circuitry embodied in a Cypress Semiconductor product. Nor does it convey or imply any license under patent or other rights. Cypress Semiconductor does not authorize
its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress
Semiconductor products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress Semiconductor against all charges.
PRELIMINARY
CYS25G0102DX
Document Title: CYS25G0102DX SONET OC-48 Transceiver
Document Number: 38-02026
Issue
Orig. of
Change
REV.
**
ECN NO.
109132
110444
Date
Description of Change
8/27/01
02/20/02
CGX
CGX
New Data Sheet
*A
Fixed typos: 155 Gbits to 155 Mbits
Changed pins 113, 116, and 119 to quiet power supplies
Added Industrial temperature
Document #: 38-02026 Rev. *A
Page 16 of 16
厂商 型号 描述 页数 下载

CRYSTEKMICROWAVE

 		CYS1A11A-20.000 石英晶体薄型HC49S含铅水晶[ Quartz Crystal Low Profile HC49S Leaded Crystal ] 1 页

CRYSTEKMICROWAVE

 		CYS1A11A-FREQ 石英晶体薄型HC49S含铅水晶[ Quartz Crystal Low Profile HC49S Leaded Crystal ] 1 页

CRYSTEKMICROWAVE

 		CYS1A11AS-20.000 石英晶体薄型HC49S含铅水晶[ Quartz Crystal Low Profile HC49S Leaded Crystal ] 1 页

CRYSTEKMICROWAVE

 		CYS1A11AS-FREQ 石英晶体薄型HC49S含铅水晶[ Quartz Crystal Low Profile HC49S Leaded Crystal ] 1 页

CRYSTEKMICROWAVE

 		CYS1A11B-20.000 石英晶体薄型HC49S含铅水晶[ Quartz Crystal Low Profile HC49S Leaded Crystal ] 1 页

CRYSTEKMICROWAVE

 		CYS1A11B-FREQ 石英晶体薄型HC49S含铅水晶[ Quartz Crystal Low Profile HC49S Leaded Crystal ] 1 页

CRYSTEKMICROWAVE

 		CYS1A11BS-20.000 石英晶体薄型HC49S含铅水晶[ Quartz Crystal Low Profile HC49S Leaded Crystal ] 1 页

CRYSTEKMICROWAVE

 		CYS1A11BS-FREQ 石英晶体薄型HC49S含铅水晶[ Quartz Crystal Low Profile HC49S Leaded Crystal ] 1 页

CRYSTEKMICROWAVE

 		CYS1A11C-20.000 石英晶体薄型HC49S含铅水晶[ Quartz Crystal Low Profile HC49S Leaded Crystal ] 1 页

CRYSTEKMICROWAVE

 		CYS1A11C-FREQ 石英晶体薄型HC49S含铅水晶[ Quartz Crystal Low Profile HC49S Leaded Crystal ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.254315s
