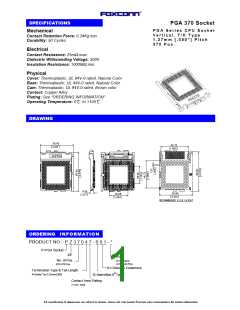

SPECIFICATIONS
PGA 370 Socket
P G A S e r i e s C P U S o c k e t
V e r t i c a l , T / H T y p e
1 . 2 7 m m [ . 0 5 0 ” ] P i t c h
3 7 0 P o s .
Mechanical
Contact Retention Force: 0.34Kg min.
Durability: 50 Cycles
Electrical
Contact Resistance: 25mW max.
Dielectric Withstanding Voltage: 500V
Insulation Resistance: 1000MW min.
Physical
Cover: Thermoplastic, UL 94V-0 rated, Natural Color
Base: Thermoplastic, UL 94V-0 rated, Natural Color
Cam: Thermoplastic, UL 94V-0 rated, Brown color
Contact: Copper Alloy
Plating: See “ORDERING INFORMATION”
Operating Temperature: 0℃ to +105℃
DRAWING
ORDERING INFORMATION
PRODUCT NO.: P Z 3 7 0 4 7 - S 0 1 - *
P=PGA Socket
ZIF
Type
No. of Pos.
S=Standard
A=W/ Anti-Flux
370=370 Pos.
01=General Customers
Termination Type & Tail Length
4=Solder Tail 2.35mm[.093]
S=Interstitial,S Type
Contact Area Plating
7=15u" Gold
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
