SZCM1213A-01SO

型号：

SZCM1213A-01SO

品牌：

ONSEMI[ ONSEMI ]

页数：

12 页

PDF大小：

570 K

下载PDF手册

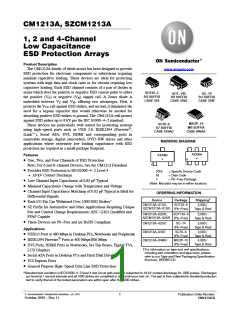

CM1213A, SZCM1213A
1, 2 and 4-Channel
Low Capacitance
ESD Protection Arrays
Product Description
The CM1213A family of diode arrays has been designed to provide
ESD protection for electronic components or subsystems requiring
minimal capacitive loading. These devices are ideal for protecting
systems with high data and clock rates or for circuits requiring low
capacitive loading. Each ESD channel consists of a pair of diodes in
series which steer the positive or negative ESD current pulse to either
the positive (V ) or negative (V ) supply rail. A Zener diode is
www.onsemi.com
SOT23−3
SO SUFFIX
CASE 318
SOT−143
SR SUFFIX
CASE 318A
SC−74
SO SUFFIX
CASE 318F
P
N
embedded between V and V , offering two advantages. First, it
P
N
protects the V rail against ESD strikes, and second, it eliminates the
CC
need for a bypass capacitor that would otherwise be needed for
absorbing positive ESD strikes to ground. The CM1213A will protect
against ESD pulses up to 8 kV per the IEC 61000−4−2 standard.
These devices are particularly well−suited for protecting systems
MSOP−10
MR SUFFIX
CASE 846AE
SC70−6
S7 SUFFIX
CASE 419AD
®
using high−speed ports such as USB 2.0, IEEE1394 (Firewire ,
iLinkt), Serial ATA, DVI, HDMI and corresponding ports in
removable storage, digital camcorders, DVD−RW drives and other
applications where extremely low loading capacitance with ESD
protection are required in a small package footprint.
MARKING DIAGRAM
XXXMG
XXXMG
Features
G
G
• One, Two, and Four Channels of ESD Protection
Note: For 6 and 8−channel Devices, See the CM1213 Datasheet
• Provides ESD Protection to IEC61000−4−2 Level 4
1
1
XXX
M
G
= Specific Device Code
= Date Code
= Pb−Free Package
♦
8 kV Contact Discharge
• Low Channel Input Capacitance of 0.85 pF Typical
• Minimal Capacitance Change with Temperature and Voltage
• Channel Input Capacitance Matching of 0.02 pF Typical is Ideal for
Differential Dignals
• Each I/O Pin Can Withstand Over 1000 ESD Strikes*
• SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
(Note: Microdot may be in either location)
ORDERING INFORMATION
†
Device
Package
Shipping
CM1213A−01SO,
SZCM1213A−01SO
SOT23−3
(Pb−Free)
3,000 /
Tape & Reel
CM1213A−02SR,
SZCM1213A−02SR
SOT143−4
(Pb−Free)
3,000 /
Tape & Reel
• These Devices are Pb−Free and are RoHS Compliant
Applications
CM1213A−02SO
CM1213A−04S7
CM1213A−04MR
SC−74
(Pb−Free)
3,000 /
Tape & Reel
SC70−6
(Pb−Free)
3,000 /
Tape & Reel
• USB2.0 Ports at 480 Mbps in Desktop PCs, Notebooks and Peripherals
®
• IEEE1394 Firewire Ports at 400 Mbps/800 Mbps
MSOP−10
(Pb−Free)
4,000 /
Tape & Reel
• DVI Ports, HDMI Ports in Notebooks, Set Top Boxes, Digital TVs,
LCD Displays
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
• Serial ATA Ports in Desktop PCs and Hard Disk Drives
• PCI Express Ports
• General Purpose High−Speed Data Line ESD Protection
*Standard test condition is IEC61000−4−2 level 4 test circuit with each pin subjected to 8 kV contact discharge for 1000 pulses. Discharges
are timed at 1 second intervals and all 1000 strikes are completed in one continuous test run. The part is then subjected to standard production
test to verify that all of the tested parameters are within spec after the 1000 strikes.
© Semiconductor Components Industries, LLC, 2011
1
Publication Order Number:
October, 2016 − Rev. 11
CM1213A/D
CM1213A, SZCM1213A
BLOCK DIAGRAM
V
V
V
CH4
V
V
CH3
CH2
P
P
P
CH1
CH1
CH2
V
N
CH1
CM1213A−04MR
CM1213A−04S7
N
N
CM1213A−01SO
CM1213A−02SR
CM1213A−02SO
www.onsemi.com
2
CM1213A, SZCM1213A
PACKAGE/PINOUT DIAGRAMS
Table 1. PIN DESCRIPTIONS
1−Channel, 3−Lead SOT23−3 Package (CM1213A−01SO)
Top View
Pin
1
Name
Type
I/O
Description
ESD Channel
CH1 (1)
1
CH1
2
V
PWR
GND
Positive Voltage Supply Rail
Negative Voltage Supply Rail
3
V (3)
N
P
3
V
N
V
P
(2)
2
3−Lead SOT23−3
2−Channel, 4−Lead SOT143−4 Package (CM1213A−02SR)
Pin
1
Name
Type
GND
I/O
Description
Negative Voltage Supply Rail
ESD Channel
V
N
Top View
2
CH1
CH2
V
N
(1)
1
4
V (4)
P
3
I/O
ESD Channel
4
V
P
PWR
Positive Voltage Supply Rail
CH1 (2)
2
3
CH2 (3)
2−Channel, SC−74 Package (CM1213A−02SO)
4−Lead SOT143−4
Pin
1
Name
NC
Type
−
Description
No Connect
2
VN
GND
I/O
Negative Voltage Supply Rail
ESD Channel
3
CH1
CH2
NC
Top View
4
I/O
ESD Channel
NC (1)
(2)
1
2
3
6
5
4
V (6)
P
5
−
No Connect
V
NC (5)
N
6
VP
PWR
Positive Voltage Supply Rail
CH1 (3)
CH2 (4)
6−Lead SC−74
4−Channel, 6−Lead SC70−6 (CM1213A−04S7)
Pin
1
Name
Type
I/O
Description
ESD Channel
CH1
2
V
GND
I/O
Negative Voltage Supply Rail
ESD Channel
N
Top View
3
CH2
CH3
CH1
1
2
3
6
5
4
CH4
4
I/O
ESD Channel
V
N
V
P
5
V
PWR
I/O
Positive Voltage Supply Rail
ESD Channel
P
6
CH4
CH2
CH3
6−Lead SC70−6
4−Channel, 10−Lead MSOP−10 Package (CM1213A04MR)
Pin
1
Name
CH1
NC
Type
I/O
−
Description
ESD Channel
2
No Connect
Top View
3
V
PWR
I/O
−
Positive Voltage Supply Rail
ESD Channel
CH1
NC
P
CH2
NC
1
2
3
4
5
10
9
NC
P
CH4
4
CH2
NC
V
8
V
N
7
6
NC
CH3
5
No Connect
6
CH3
NC
I/O
−
ESD Channel
10−Lead MSOP−10
7
No Connect
8
V
GND
I/O
−
Negative Voltage Supply Rail
ESD Channel
N
9
CH4
NC
10
No Connect
www.onsemi.com
3
CM1213A, SZCM1213A
SPECIFICATIONS
Table 2. ABSOLUTE MAXIMUM RATINGS
Parameter
Rating
6.0
Units
V
Operating Supply Voltage (V − V )
P
N
Operating Temperature Range
–40 to +85
–65 to +150
°C
°C
V
Storage Temperature Range
DC Voltage at any channel input
(V − 0.5) to (V + 0.5)
N P
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
Table 3. STANDARD OPERATING CONDITIONS
Parameter
Rating
Units
°C
Operating Temperature Range
Package Power Rating
SOT23−3, SOT143−4, SC−74, and SC70−6 Packages
MSOP−10 Package
–40 to +85
mW
225
400
Functional operation above the stresses listed in the Recommended Operating Ranges is not implied. Extended exposure to stresses beyond
the Recommended Operating Ranges limits may affect device reliability.
Table 4. ELECTRICAL OPERATING CHARACTERISTICS (Note1)
Symbol
Parameter
Operating Supply Voltage (V −V )
Conditions
Min
Typ
Max
5.5
Units
V
V
P
3.3
P
N
I
Operating Supply Current
(V −V ) = 3.3 V
8.0
mA
V
P
P
N
V
Diode Forward Voltage
Top Diode
Bottom Diode
I = 8 mA; T = 25°C
F A
F
0.60
0.60
0.80
0.80
0.95
0.95
I
Channel Leakage Current
Channel Input Capacitance
T = 25°C; V = 5 V, V = 0 V
0.1
1.0
1.2
mA
LEAK
A
P
N
C
At 1 MHz, V = 3.3 V, V = 0 V, V = 1.65 V
0.85
pF
IN
P
N
IN
(Note 2)
Channel Input Capacitance Matching
At 1 MHz, V = 3.3 V, V = 0 V, V = 1.65 V
0.02
pF
kV
DC
P
N
IN
IN
(Note 2)
V
R
ESD Protection − Peak Discharge
Voltage at any channel input, in system
Contact discharge per
ESD
IEC 61000−4−2 standard
T = 25°C (Notes 2 and 3)
A
8
V
Channel Clamp Voltage
Positive Transients
Negative Transients
T = 25°C, I = 1A, t = 8/20 mS
V
CL
A
PP
P
(Note 2)
+10
–1.7
Dynamic Resistance
Positive Transients
Negative Transients
I
= 1A, t = 8/20 mS
W
DYN
PP
P
Any I/O pin to Ground
(Note 2)
0.9
0.5
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
1. All parameters specified at T = –40°C to +85°C unless otherwise noted.
A
2. Standard IEC 61000−4−2 with C
= 150 pF, R
= 330 W, V = 3.3 V, V grounded.
Discharge
Discharge P N
3. These measurements performed with no external capacitor on V (V floating).
P
P
www.onsemi.com
4

CM1213A, SZCM1213A
PERFORMANCE INFORMATION
Input Channel Capacitance Performance Curves
Figure 1. Typical Variation of CIN vs. VIN
(f = 1 MHz, VP = 3.3 V, VN = 0 V, 0.1 ꢀF Chip Capacitor between VP and VN, 255C)
Figure 2. Typical Variation of CIN vs. Temp
(f = 1 MHz, VIN = 30 mV, VP = 3.3 V, VN = 0 V, 0.1 ꢀ F Chip Capacitor between VP and VN)
www.onsemi.com
5
CM1213A, SZCM1213A
PERFORMANCE INFORMATION (Cont’d)
Typical Filter Performance (nominal conditions unless specified otherwise, 50 Ohm Environment)
Figure 3. Insertion Loss (S21) vs. Frequency (0 V DC Bias, VP=3.3 V)
Figure 4. Insertion Loss (S21) vs. Frequency (2.5 V DC Bias, VP=3.3 V)
www.onsemi.com
6
CM1213A, SZCM1213A
APPLICATION INFORMATION
Design Considerations
In order to realize the maximum protection against ESD pulses, care must be taken in the PCB layout to minimize parasitic
series inductances on the Supply/Ground rails as well as the signal trace segment between the signal input (typically
a connector) and the ESD protection device. Refer to Application of Positive ESD Pulse between Input Channel and Ground,
which illustrates an example of a positive ESD pulse striking an input channel. The parasitic series inductance back to the power
supply is represented by L and L . The voltage V on the line being protected is:
1
2
CL
V
CL
= Fwd Voltage Drop of D + V
+ L x d(I
) / dt + L x d(I
) / dt
1
SUPPLY
1
ESD
2
ESD
where I
is the ESD current pulse, and V
is the positive supply voltage.
ESD
SUPPLY
An ESD current pulse can rise from zero to its peak value in a very short time. As an example, a level 4 contact discharge
per the IEC61000−4−2 standard results in a current pulse that rises from zero to 30 Amps in 1 ns. Here d(I
)/dt can be
ESD
−9
approximated by DI
/Dt, or 30/(1x10 ). So just 10 nH of series inductance (L and L combined) will lead to a 300 V
ESD
1
2
increment in V
!
CL
Similarly for negative ESD pulses, parasitic series inductance from the V pin to the ground rail will lead to drastically
N
increased negative voltage on the line being protected.
The CM1213A has an integrated Zener diode between V and V . This greatly reduces the effect of supply rail inductance
P
N
L on V by clamping V at the breakdown voltage of the Zener diode. However, for the lowest possible V , especially when
2
CL
P
CL
V is biased at a voltage significantly below the Zener breakdown voltage, it is recommended that a 0.22 mF ceramic chip
P
capacitor be connected between V and the ground plane.
P
As a general rule, the ESD Protection Array should be located as close as possible to the point of entry of expected
electrostatic discharges. The power supply bypass capacitor mentioned above should be as close to the V pin of the Protection
P
Array as possible, with minimum PCB trace lengths to the power supply, ground planes and between the signal input and the
ESD device to minimize stray series inductance.
Additional Information
See also ON Semiconductor Application Note “Design Considerations for ESD Protection”, in the Applications section.
L
2
V
CC
POSITIVE SUPPLY RAIL
V
P
PATH OF ESD CURRENT PULSE I
ESO
LINE BEING
PROTECTED
SYSTEM OR
CIRCUITRY
BEING
PROTECTED
L
1
D
D
1
0.22 mF
CHANNEL
INPUT
ONE
CHANNEL
OF
2
V
CL
25 A
CM1213
0 A
GROUND RAIL
V
N
CHASSIS GROUND
Figure 5. Application of Positive ESD Pulse between Input Channel and Ground
www.onsemi.com
7
CM1213A, SZCM1213A
PACKAGE DIMENSIONS
SOT−23 (TO−236)
CASE 318−08
ISSUE AR
NOTES:
D
1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH.
MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF
THE BASE MATERIAL.
0.25
3
4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH,
PROTRUSIONS, OR GATE BURRS.
T
H
E
E
1
2
MILLIMETERS
INCHES
NOM
0.039
0.002
0.017
0.006
0.114
0.051
0.075
0.017
0.021
0.094
−−−
DIM
A
A1
b
c
D
E
e
L
MIN
0.89
0.01
0.37
0.08
2.80
1.20
1.78
0.30
0.35
2.10
0_
NOM
1.00
0.06
0.44
0.14
2.90
1.30
1.90
0.43
0.54
2.40
−−−
MAX
MIN
MAX
0.044
0.004
0.020
0.008
0.120
0.055
0.080
0.022
0.027
0.104
10 _
L
1.11
0.10
0.50
0.20
3.04
1.40
2.04
0.55
0.69
2.64
10 _
0.035
0.000
0.015
0.003
0.110
0.047
0.070
0.012
0.014
0.083
0 _
3X
b
L1
VIEW C
e
TOP VIEW
L1
A
H
E
T
c
A1
SEE VIEW C
SIDE VIEW
END VIEW
RECOMMENDED
SOLDERING FOOTPRINT*
3X
0.90
2.90
3X
0.95
PITCH
0.80
DIMENSIONS: MILLIMETERS
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
www.onsemi.com
8
CM1213A, SZCM1213A
PACKAGE DIMENSIONS
SOT−143
CASE 318A−06
ISSUE U
D
e
NOTES:
1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIM­
UM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE
MATERIAL.
4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PRO­
TRUSIONS, OR GATE BURRS. MOLD FLASH, PROTRUSIONS,
AND GATE BURRS SHALL NOT EXCEED 0.25 PER SIDE.
DIMENSION E1 DOES NOT INCLUDE INTERLEAD FLASH OR
PROTRUSION. INTERLEAD FLASH AND PROTRUSION SHALL
NOT EXCEED 0.25 PER SIDE.
D
E
A
GAUGE
PLANE
SEATING
PLANE
L
L2
5. DIMENSIONS D AND E1 ARE DETERMINED AT DATUM H.
6. DATUMS A AND B ARE DETERMINED AT DATUM H.
DETAIL A
E1
MILLIMETERS
b1
e1
DIM MIN
MAX
1.12
0.15
0.51
0.94
0.20
3.05
2.64
1.40
3X
b
B
A
A1
b
0.80
0.01
0.30
0.76
0.08
2.80
2.10
1.20
M
0.20
C A-B D
TOP VIEW
b1
c
D
H
c
E
c
0.10
C
E1
e
1.92 BSC
0.20 BSC
0.35 0.70
0.25 BSC
A
DETAIL A
e1
L
A1
SEATING
PLANE
C
SIDE VIEW
END VIEW
L2
RECOMMENDED
SOLDERING FOOTPRINT*
1.92
4X
0.75
2.70
0.20
0.96
3X
0.54
DIMENSIONS: MILLIMETERS
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
www.onsemi.com
9
CM1213A, SZCM1213A
PACKAGE DIMENSIONS
SC−88 (SC−70 6 Lead), 1.25x2
CASE 419AD
ISSUE A
SYMBOL
MIN
NOM
MAX
D
0.80
A
1.10
e
e
A1
A2
0.00
0.80
0.10
1.00
b
c
0.15
0.10
1.80
1.80
1.15
0.30
0.18
2.20
2.40
1.35
D
2.00
2.10
E1
E
E
E1
e
1.25
0.65 BSC
0.36
L
0.26
0.46
L1
L2
0.42 REF
0.15 BSC
TOP VIEW
0º
4º
8º
θ
10º
θ1
q1
A2
A1
A
q
L
b
L1
q1
c
L2
SIDE VIEW
END VIEW
Notes:
(1) All dimensions are in millimeters. Angles in degrees.
(2) Complies with JEDEC MO-203.
www.onsemi.com
10
CM1213A, SZCM1213A
PACKAGE DIMENSIONS
SC−74
CASE 318F−05
ISSUE N
SCALE 2:1
NOTES:
1. DIMENSIONING AND TOLERANCING PER
D
ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. MAXIMUM LEAD THICKNESS INCLUDES
LEAD FINISH THICKNESS. MINIMUM LEAD
THICKNESS IS THE MINIMUM THICKNESS
OF BASE MATERIAL.
4. 318F−01, −02, −03, −04 OBSOLETE. NEW
STANDARD 318F−05.
6
5
2
4
E
H
E
1
3
MILLIMETERS
INCHES
NOM
0.039
0.002
0.015
0.007
0.118
0.059
0.037
0.016
0.108
−
DIM
A
A1
b
c
D
E
e
L
MIN
0.90
0.01
0.25
0.10
2.90
1.30
0.85
0.20
2.50
0°
NOM
1.00
0.06
0.37
0.18
3.00
1.50
0.95
0.40
2.75
−
MAX
1.10
0.10
0.50
0.26
3.10
1.70
1.05
0.60
3.00
10°
MIN
0.035
0.001
0.010
0.004
0.114
0.051
0.034
0.008
0.099
0°
MAX
0.043
0.004
0.020
0.010
0.122
0.067
0.041
0.024
0.118
10°
b
e
ꢁ
C
A
0.05 (0.002)
H
E
L
ꢁ
A1
SOLDERING FOOTPRINT*
2.4
0.094
0.95
0.037
1.9
0.074
0.95
0.037
0.7
0.028
1.0
0.039
mm
inches
ǒ
Ǔ
SCALE 10:1
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
www.onsemi.com
11
CM1213A, SZCM1213A
PACKAGE DIMENSIONS
MSOP 10, 3x3
CASE 846AE
ISSUE O
SYMBOL
MIN
NOM
MAX
A
A1
A2
b
1.10
0.15
0.95
0.27
0.23
3.10
5.05
3.10
0.00
0.75
0.17
0.13
2.90
4.75
2.90
0.05
0.85
c
D
3.00
4.90
E
E1
E
E1
e
3.00
0.50 BSC
0.60
L
0.40
0.80
L1
L2
θ
0.95 REF
0.25 BSC
0º
8º
DETAIL A
TOP VIEW
D
END VIEW
A2
A
c
A1
e
b
q
SIDE VIEW
L2
Notes:
L
(1) All dimensions are in millimeters. Angles in degrees.
(2) Complies with JEDEC MO-187.
L1
DETAIL A
FireWire is a registered trademark of Apple Computer, Inc.
iLink is a trademark of S. J. Electro Systems, Inc.
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent
coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein.
ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards,
regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or
specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer
application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not
designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification
in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized
application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and
expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such
claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This
literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
Literature Distribution Center for ON Semiconductor
19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
For additional information, please contact your local
Sales Representative
CM1213A/D
厂商 型号 描述 页数 下载

ETC

 		SZC12N25 模拟IC\n[ Analog IC ] 4 页

ETC

 		SZC12P25 模拟IC\n[ Analog IC ] 4 页

ETC

 		SZC15N20 模拟IC\n[ Analog IC ] 4 页

ETC

 		SZC15P20 模拟IC\n[ Analog IC ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.607857s
