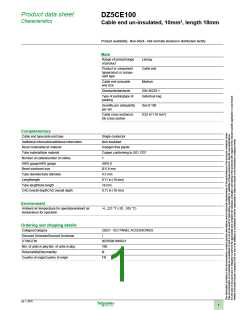

Product data sheet
Characteristics
DZ5CE100
Cable end un-insulated, 10mm², length 18mm
Product availability: Non-Stock - Not normally stocked in distribution facility
Main
Range of productrange
of product
Linergy
Product or component
typeproduct or compo-
nent type
Cable end
Cable end sizecable
end size
Medium
Standardsstandards
DIN 46228-1
Individual bag
Type of packingtype of
packing
Quantity per setquantity
per set
Set of 100
Cable cross sectionca-
ble cross section
0.02 in² (10 mm²)
Complementary
Cable end typecable end type
Additional informationadditional information
Bezel materialbezel material
Tube materialtube material
Number of cablesnumber of cables
AWG gaugeAWG gauge
Single conductor
Non-insulated
Halogen-free plastic
Copper conforming to ISO 1337
1
AWG 8
Bezel sizebezel size
Ø 5.8 mm
4.5 mm
Tube diametertube diameter
Lengthlength
0.71 in (18 mm)
18 mm
Tube lengthtube length
CAD overall depthCAD overall depth
0.71 in (18 mm)
Environment
Ambient air temperature for operationambient air
temperature for operation
-4...221 °F (-20...105 °C)
Ordering and shipping details
CategoryCategory
22621 - IEC PANEL ACCESSORIES
Discount ScheduleDiscount Schedule
GTINGTIN
I
00785901649021
Nbr. of units in pkg.Nbr. of units in pkg.
ReturnabilityReturnability
100
N
Country of originCountry of origin
FR
Jul 1, 2016
