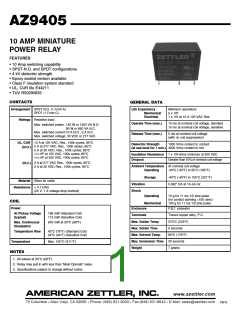

AZ9405
10 AMP MINIATURE
POWER RELAY
FEATURES
• 10 Amp switching capability
• SPST-N.O. and SPDT configurations
• 4 kV dielectric strength
• Epoxy sealed version available
•
Class F insulation system standard
• UL, CUR file E44211
• TUV R50290833
CONTACTS
GENERAL DATA
Arrangement SPST N.O. (1 Form A)
Life Expectancy
Mechanical
Electrical
Minimum operations
5 x 106
1 x 105 at 10 A 120 VAC Res.
SPDT (1 Form C)
Ratings Resistive load:
Operate Time (max.)
Release Time (max.)
Dielectric Strength
10 ms at nominal coil voltage, standard
15 ms at nominal coil voltage, sensitive
Max. switched power: 150 W or 1400 VA N.O.
90 W or 850 VA N.C.
Max. switched current:10 A N.O., 3 A N.C..
Max. switched voltage: 30 VDC or 277 VAC
5 ms at nominal coil voltage
(with no coil suppression)
UL, CUR 10 A at 125 VAC, Res., 100k cycles, 85°C
1000 Vrms contact to contact
5 A at 277 VAC, Res., 100k cycles, 85°C
5 A at 30 VDC, Res., 100k cycles, 85°C
1/10 HP at 125 VAC, 100k cycles, 85°C
1/10 HP at 250 VAC, 100k cycles, 85°C
(N.O.)
(at sea level for 1 min.) 4000 Vrms contact to coil
Insulation Resistance 1 x 109 ohms minimum at 500 VDC
Dropout
Greater than 10%of nominal coil voltage
3 A at 277 VAC Res., 100k cycles, 85°C
3 A at 30 VDC Res., 100k cycles, 85°C
(N.C.)
Ambient Temperature At nominal coil voltage
Operating
Storage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 105°C (221°F)
0.062" DA at 10–55 Hz
Material Silver tin oxide
Resistance < 0.1 Ohm
Vibration
Shock
(24 V, 1 A voltage drop method)
Operating
10 g for 11 ms 1/2 sine pulse
(no contact opening >100 usec)
100 g for 11 ms 1/2 sine pulse
COIL
Mechanical
Power
At Pickup Voltage
(typical)
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
196 mW (Standard Coil)
113 mW (Sensitive Coil)
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Continuous
Dissipation
676 mW at 20°C (68°F)
Temperature Rise
42°C (76°F) (Standard Coil)
24°C (44°F) (Sensitive Coil)
80°C (176°F)
Max. Immersion Time 30 seconds
Weight 7 grams
Temperature
Max. 155°C (311°F)
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
1/8/15
