This is the PDF file of catalog No.T13E-4.
No.T13E4.pdf 99.8.23

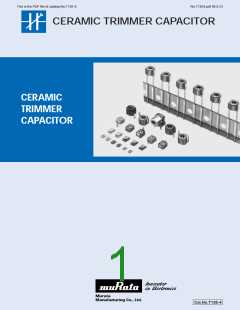

CERAMIC TRIMMER CAPACITOR
CERAMIC
TRIMMER
CAPACITOR
Mu ra ta
Ma nu fa cturin g Co., Ltd .
Cat.No.T13E-4
This is the PDF file of catalog No.T13E-4.
No.T13E4.pdf 99.8.23
What kind of trimmer capacitor are you looking for?
You will find the suitable one from Murata's numerous product line on trimmer capacitor.
MOUNTING
METHOD?
SURFACE
MOUNT
INSERTION
TO PCB
SOLDERING
METHOD?
INSERTION
METHOD?
REFLOW
FLOW
MANUAL
INSERTION
AUTOMATIC
INSERTION
HEADROOM?
HEADROOM?
3.2mm
max.
5.3mm
max.
6.5mm
max.
1.0mm 1.2mm 1.25mm 1.45mm 1.7mm
3.2mm
max.
3.2mm
max.
max.
max.
max.
max.
max.
TZ03
BULK
PACKAGE
TZ03
RADIAL
TAPING
TZS02 TZVX2 TZVY2 TZV02 TZC03
P.4Y5 P.8Y9 P.6Y7 P.8Y9 P.10Y11
TZBX4
P.12Y14
P.15Y18
P.17
This is the PDF file of catalog No.T13E-4.
No.T13E4.pdf 99.8.23
!MURATA TRIMMER CAPACITOR SELECTION GUIDE
Product External
Dimensions (mm)
Maximum Capacitance
Value (pF)
Volume
(mm3)
Height
(mm)
Automatic
Adjustment
Model Number
TZS02 Series
Weight (g)
Page
4Y5
6 • 10 • 20
6
10
9
1.0
1.25
1.2
0.02
Applicable
NEW
TZVY2 Series
3 • 6 • 10 • 20 • 25 •
45
6Y7
8Y9
8Y9
0.03
0.03
0.04
Applicable
Applicable
Applicable
TZVX2 Series
TZV02 Series
2.5 • 3 • 6 • 10 • 20
2.5 • 3 • 6 • 10 • 20
11
1.45
Standard Type
(Minus Slot)
1.6
10Y11
TZC03 Series
3 • 6 • 10 • 20 • 30
23
0.06
Applicable
Cross Slot Type
1.7
3 • 6 • 10 • 20 • 25 •
30 • 40 • 50
12Y14
15Y18
TZBX4 Series
54
3.0
0.17
0.41
Applicable
Applicable
2.3 • 5 • 7 • 10 • 11 •
20 • 30 • 45 • 50 • 60 •
90 • 120
TZ03 Series
180
5.0
…………
¡Taping specifications for chip trimmer capacitors
…………
P.20 to 21
P.19
¡Notes
1
This is the PDF file of catalog No.T13E-4.
No.T13E4.pdf 99.8.23
!RECOMMENDED SCREWDRIVER FOR MANUAL ADJUSTMENT
Model Number
(Trimmer Capacitors)
Part Number
Screwdriver
(in mm)
80
1.5
TZS02
TZVY2
TZVX2
TZV02
KMT04
Bit shape ; Quadrangle (0.54Z0.54)
FUTABA TOOL MFG.CO.,LTD. DA-89
108
18
KMTZ16F
KMTZ15T
KMTZ11V
PPTZ-0022
KMTZ14T
Bit shape ; Minus (1.8Z0.35)
TORAY INDUSTRIES, INC. SA-5406
108
1.5
Bit shape ; Quadrangle (0.54Z0.54)
VESSEL MFG. NO.9000
09A3.0
125
15
9 0 0 0
ES S EL
CERAMIC BLADE
ELECTRONICS
V
0.9-30
Bit shape ; Minus (0.9Z0.4)
122
TZC03
Standard Type
(Minus Slot)
50
20
TZBX4
TZ03
Bit shape ; Minus (2.2Z0.4)
TORAY INDUSTRIES,INC. SA-1825
120
13
TZCO3
Cross Slot Type
Bit shape ; Minus (1.8Z0.45)
Consult a MURATA Factory representative regarding other adjustment tools.
2
This is the PDF file of catalog No.T13E-4.
No.T13E4.pdf 99.8.23
!RECOMMENDED SCREWDRIVER BIT FOR AUTOMATIC ADJUSTMENT
Model Number
(Trimmer Capacitors)
Part Number
Screwdriver Bit
(in mm)
20
2
TZS02
KMTZ39
Bit shape ; Quadrangle (0.54Z0.54)
25
0.6
TZVY2
TZVX2
TZV02
KMTZ40K
KMTZ37K
KMTZ32K
KMTZ35
Bit shape ; Minus (0.7Z0.34)
25
2
Bit shape ; Quadrangle (0.49Z0.49)
25
0.6
Bit shape ; Minus (0.9Z0.4)
TZC03
Standard Type
(Minus Slot)
30
TZBX4
TZ03
Bit shape ; Minus (2.2Z0.4)
TORAY INDUSTRIES,INC. JB-1825
25
5
TZCO3
Cross Slot Type
KMTZ36T
Bit shape ; Minus (1.8Z0.45)
!QUALIFIED STANDARDS
MURATA FACTORY
Qualified Date
Standard
Qualified Number
A5704
SABAE MURATA MFG CO.,LTD.
August 14, 1997
ISO9001 and QS9000
3
This is the PDF file of catalog No.T13E-4.
No.T13E4.pdf 99.8.23
CHIP TRIMMER CAPACITOR
Chip Ceramic Trimmer Capacitor TZS02 Series
Just 1mm Height Chip Trimmer Capacitor with
Excellent Heat Resistance and Stable Characteristics
!FEATURES
1. Ultra-small and thin type with external dimensions of
2.2(W)Z2.7(L)Z0.95(T)mm. (30% less in volume from
TZVX2.)
2. Newly designed metal rotor and rugged construction
ensure high stability thereby minimizing capacitance drift
after adjustment.
3. Unique construction with no plastic material provides
superior soldering heat resistance to maintain excellent
characteristic performance after reflow soldering.
4. Mountable by automatic placer.
5. Funnel shaped metal case and pierced square hole enable
in-process automatic sdjustment. Pierced square hole
allows high resistance to tuning force.
!CONSTRUCTION
6. Including the fixed capacitor, built-in capacitor in parallel
with trimmer capacitor type is also available. It makes
reduction of space and cost of mounting in circuit. Please
Cover
contact us about the capacitance value of built-in capacitor.
!APPLICATIONS
¡Crystal oscillators, Crystal filters
Metal Rotor
¡Pagers
¡Cordless telephones
Monolithic
Stator
¡Camcorders
¡Hand-held telephones, Automotive telephones
¡Hand radios
!DIMENSIONS/STANDARD LAND PATTERNS
¡Radar detectors
¡Remote keyless entry systems
2.7
-0.6
0.20 Depth
!PART NUMBERING
(Please specify the part number when ordering.)
(Ex.)
TZS02
Z
060
A
110 T00
q
w
e
r
t
y
qModel Number
wTemperature Coefficient Characteristics
eCapacitance Value
rTerminal Style
tOther Specification 110:Standard
yPackaging Code
T00:Taping 3,000pcs./reel (180mm dia.)
T01:Taping10,000pcs./reel (330mm dia.)
No Code:Bulk Package 500pcs./bag
0.4
3.2
2.1
Tolerance : T0.1
(
)
in mm
4
