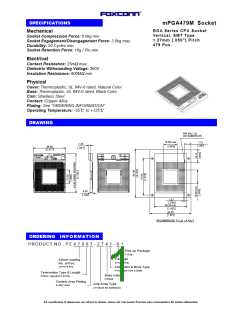

SPECIFICATIONS
mPGA479M Socket
BGA Series CPU Socket
Vertical, SMT Type
1.27mm [.050”] Pitch
479 Pos.
Mechanical
Socket Compression Force: 8.0kg min.
Socket Engagement/Disengagement Force: 3.0kg max.
Durability: 20 Cycles min.
Socket Retention Force: 10g / Pin min.
Electrical
Contact Resistance: 25mW max.
Dielectric Withstanding Voltage: 360V
Insulation Resistance: 800MW min.
Physical
Cover: Thermoplastic, UL 94V-0 rated, Natural Color
Base: Thermoplastic, UL 94V-0 rated, Black Color
Cam: Stainless Steel
Contact: Copper Alloy
Plating: See “ORDERING INFORMATION”
Operating Temperature: -55℃ to +125℃
DRAWING
ORDERING INFORMATION
PRODUCT NO.: PZ 4 7 9 0 3 - 2 7 4 1 - 0 1
Pick-up Package
1=Cap
Package
0=Hard Tray
Actual Loading
No. of Pos.
479=479 Pos.
Actuaction & Body Type
1=Standard Cam & Body
Termination Type & Length
0=BGA Type(63/37 Sn/Pb)
Base color
4=Black
Contact Area Plating
3=30u" Gold
Grid Array Type
27=26x26 for Northwood
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
