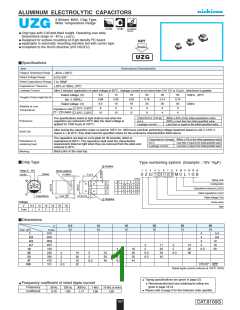

ALUMINUM ELECTROLYTIC CAPACITORS
3.95mmL MAX. Chip Type,
Wide Temperature Range
UZG
Chip type with 3.95mmLMAX height. Operating over wide
temperature range of –40 to
.
+
105°C
Designed for surface mounting on high density PC board.
Applicable to automatic mounting machine fed with carrier tape.
Compliant to the RoHS directive (2011/65/EU).
UZT
Smaller
UZG
Specifications
Item
Performance Characteristics
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
–40 to +105°C
6.3 to 50V
1 to 100µF
20% at 120Hz, 20°C
After 2 minutes' application of rated voltage at 20°C leakage current is not more than 0.01 CV or 3 (µA) , whichever is greater.
,
6.3
0.38
6.3
6
10
0.32
10
16
0.20
16
3
25
0.16
25
3
35
0.14
35
3
50
0.14
50
3
Rated voltage (V)
tan δ (MAX.)
120Hz 20°C
Tangent of loss angle (tan δ)
Rated voltage (V)
120Hz
Stability at Low
Temperature
5
Z–25°C / Z+20°C
Z–40°C / Z+20°C
Impedance ratio
ZT / Z20 (MAX.)
10
10
6
6
4
4
Capacitance change
tan δ
Leakage current
Within 30% of the initial capacitance value
300% or less than the initial specified value
Less than or equal to the initial specified value
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 1000 hours at 105°C.
Endurance
Shelf Life
After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
The capacitors are kept on a hot plate for 30 seconds, which is
Capacitance change
tan δ
Leakage current
Within 10% of the initial capacitance value
Less than or equal to the initial specified value
Less than or equal to the initial specified value
Resistance to
soldering heat
maintained at 250°C. The capacitors shall meet the characteristic
requirements listed at right when they are removed from the plate and
restored to 20°C.
Marking
Black print on the case top.
Chip Type
Type numbering system (Example : 16V 10 F)
µ
Positive
1
2
3
4
5
6
7
8
9 10 11 12 13 14
Voltage (C : 16V)
Plastic platform
Series
C
0.2
Lot No.
0.3 MAX.
U Z G 1 C 1 0 0 M C L 1 G B
(mm)
6.3
1.8 2.1 2.4
4.3 5.3 6.6
4.3 5.3 6.6
1.0 1.3 2.2
Taping code
φD
A
B
C
E
4
5
Configuration
Capacitance tolerance ( 20ꢀ)
Rated capacitance (10µF)
Rated voltage (16V)
Series name
+0.05
0.5 to 0.8
Capacitance
3.90
–0.2
Negative
Voltage
V
6.3
j
10
A
16
C
25
E
35
V
50
H
Type
Code
Dimensions
6.3
10
16
25
35
50
V
Cap. (µF)
1
0J
1A
1C
1E
1V
1H
Code
010
2R2
3R3
4R7
100
220
330
470
101
4
4
4
5
5.4
9.6
12.
16.
26.
2.2
3.3
4.7
10
22
33
4
5
6.3
6.3
11
20
33
42
4
5
6.3
13
22
36
4
5
6.3
6.3
16
26
35
44
6.3
4
5
5
6.3
19
5
5
6.3
24
30
40
26
32
52
47
100
Case size
φ D(mm)
Rated
ripple
Rated ripple current (mArms) at 105°C 120Hz
Taping specifications are given in page 23.
Frequency coefficient of rated ripple current
Recommended land size soldering by reflow are
given in page 18,19.
Frequency
50 Hz
120 Hz
300 Hz
1 kHz
10 kHz or more
Please refer to page 3 for the minimum order quantity.
Coefficient
0.70
1.00
1.17
1.36
1.50ꢀꢀ
