TZS2Z100A001R01

型号：

TZS2Z100A001R01

品牌：

MURATA[ muRata ]

页数：

49 页

PDF大小：

875 K

下载PDF手册
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15

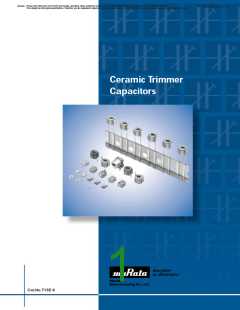

Ceramic Trimmer
Capacitors
Mu ra ta
Ma nu fa cturin g Co., Ltd .
Cat.No.T13E-9
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
1
2
3
4
5
6
7
8
CONTENTS
Part Numbering
2
3
Selection Guide of Ceramic Trimmer Capacitor
1
2
3
4
5
6
7
8
TZR1 Series
TZS2 Series
TZY2 Series
TZV2 Series
TZC3 Series
TZW4 Series
TZB4 Series
TZ03 Series
4
8
12
16
20
25
29
35
42
45
47
Packaging
Recommended Adjustment Tools
Qualified Standards
The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U. S. A.
Recycled Paper
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
o Part Numbering
Ceramic Trimmer Capacitors
(Part Number)
TZ Y2
R
200
A
001 R00
q
w
e
r
t
y
u
qProduct ID
yIndividual Specification
Product ID
Code
Individual Specifications
TZ
Trimmer Capacitors
001
110
169
310
A10
B10
TZR1,TZS2,TZY2,TZW4 Standard Type
TZV2,TZC3 (Minus Slot) Standard Type
TZ03 Standard Type
wSeries/Terminal
Code
03
Series/Terminal
6mm Size Lead Type
4mm Size SMD/Lead Type
4mm Size SMD Type
3mm Size SMD Type
TZC3 (Plus Slot) Standard Type
TZB4 No-cover Film Standard Type
TZB4 with Cover Film Standard Type
B4
W4
C3
S2
uPackaging
2mm Size SMD Type (Height 1.0mm)
2mm Size SMD Type (Height 1.25mm)
2mm Size SMD Type (Height 1.45mm)
1mm Size SMD Type (Height 0.90mm)
Code
A00
B00
M00
R00
R01
Packaging
Ammo Pack (Radial Taping)
Bulk
Y2
V2
R1
Magazine
Reel (Taping ø180mm)
Reel (Taping ø330mm)
eTemperature Characteristics
Code
Z
Temperature Characteristics
NP0 ppm/°C
N150ppm/°C
N200ppm/°C
N450ppm/°C
N750ppm/°C
N1000ppm/°C
N1200ppm/°C
S
N
T
R
K
P
Please refer to ratings for tolerance of temperature characteristics.
rMaximum Capacitance
Expressed by three figures. The unit is pico-farad(pF). The first
and second figures are significant digits, and the third figure
expresses the number of zeros which follow the two numbers.
If there is a decimal point, it is expressed by the capital letter "R".
In this case, all figures are significant digits.
tTerminal Shape
Code
Terminal Shape
Top Adjustment; TZR1,TZS2,TZY2,TZV2,
TZC3,TZW4,TZB4 (SMD Type)
A
Top Adjustment; TZB4 (SMD Type),
Rear Adjustment; TZ03 (Lead Type)
B
C
D
Top Adjustment; TZB4 (Lead Type)
Rear Adjustment; TZB4 (Lead Type)
Top Adjustment; TZ03 (Lead Type),
Rear Adjustment; TZB4 (SMD Type)
E
F
N
T
Y
Top Adjustment; TZ03 (Lead Type)
Rear Adjustment; TZ03 (Lead Type)
Top Adjustment; TZ03 (Taping Type)
Side Adjustment; TZ03 (Lead Type)
Please refer to dimensions for terminals in detail.
2
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Selection Guide of Ceramic Trimmer Capacitor
Start
Mounting Method
Surface Mount
PCB Insertion
Soldering Method
Insertion Method
Reflow
Flow
Manual Insertion
Automatic Insertion
Height 0.90mm max.
1.5(W) x 1.7(L)
Height 3.2mm max.
4.0(W) x 4.5(L)
Height 3.2mm max.
4.0(W) x 4.5(L)
Height 6.6mm max.
6.0(W) x 6.0(L)
TZR1
Height 1.00mm max.
2.2(W) x 2.7(L)
TZB4_C
TZB4_A
(with cover film)
TZ03_T
Radial Taping Type
TZS2
TZB4_D
Height 1.25mm max.
2.5(W) x 3.2(L)
Height 5.3mm max.
6.0(W) x 6.0(L)
TZB4_B
(with cover film)
TZY2
Height 1.45mm max.
2.3(W) x 3.2(L)
TZ03_F
TZ03_E
TZ03_N
TZ03_B
TZV2
Height 1.7mm max.
3.2(W) x 4.5(L)
TZB4_E
(with cover film)
TZC3
Height 1.8mm max.
3.2(W) x 4.5(L)
TZC3
Height 2.5mm max.
4.2(W) x 5.2(L)
TZW4
Height 7.7mm max.
7.0(W) x 7.5(L)
Height 3.2mm max.
4.0(W) x 4.5(L)
TZ03_Y
TZB4_A
TZB4_B
TZB4_E
3
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
1
Ceramic Trimmer Capacitors
TZR1 Series
1.7
■ Features
(Depth;0.15)
0.2
1. Ultra-small and thin with external dimensions
of 1.5(W)x1.7(L)x0.85(H)mm
(80% less in volume than the current product).
2. Unique construction with no plastic material
provides superior soldering heat resistance to
maintain excellent characteristic performance
after reflow soldering.
0.35
3. Suitable for high frequency circuit due to high
self resonant frequency (6.2GHz of TZR1Z010 at
1.0pF setting)
Tolerance: ±0.1
(
)
in mm
■ Applications
1. "Bluetooth"
2. Crystal oscillators
4. Hand radios
3. Crystal filters
5. Miniature tuner packs (FM Radio, TV)
6. Remote keyless entry systems
7. Pagers
Cmin. (max.)
Cmax.
(pF)
Rated
Voltage
Withstanding
Voltage
Part Number
(pF)
TC
Q
TZR1Z010A001
TZR1Z1R5A001
TZR1Z040A001
TZR1R080A001
0.55
0.7
1.0 +100/-0%
1.5 +100/-0%
4.0 +100/-0%
8.0 +100/-0%
NP0±300ppm/°C
NP0±300ppm/°C
NP0±500ppm/°C
N750±500ppm/°C
200min. at 200MHz, Cmax.
200min. at 200MHz, Cmax.
300min. at 1MHz, Cmax.
300min. at 1MHz, Cmax.
25Vdc
25Vdc
25Vdc
25Vdc
55Vdc
55Vdc
55Vdc
55Vdc
1.5
3.0
Insulation Resistance : 10000M ohm Torque : 0.1 to 1.0mNm Operating Temperature Range : -25 to +85°C
■ Construction
Cover
Metal Rotor
Monolithic
Stator
4
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
■ Temperature Characteristics
1
TZR1Z010
TZR1Z1R5
010 (NP0±300 ppm/°C)
1R5 (NP0±300 ppm/°C)
+8
+6
+4
+8
+6
+4
+2
0
+2
0
65
85
65
85
-25
-25
20
20
0
0
-2
-4
-2
-4
-10
-10
45
45
Temp. (°C)
Temp. (°C)
-6
-6
-8
-8
-10
-12
-10
-12
TZR1Z040
TZR1R080
R080 (N750±500 ppm/˚C)
Z040 (NP0±500 ppm/˚C)
+8
+6
+8
+6
+4
+4
+2
20
Temp.(˚C)
85
65
+2
45
85
65
0
0
−2
−25
−10
0
−25
20
−2
−4
0
45
−10
−4
Temp.(˚C)
−6
−8
−6
−8
−10
−10
−12
−12
■ Frequency Characteristics
TZR1Z010
TZR1Z1R5
Z010
Z1R5
10000
10000
1000
100
1000
100
0.55pF set
0.7pF set
Q
Q
10
1
10
1
1.0pF set
1.5pF set
0
0
0
2
4
6
8
10
0
2
4
6
8
10
Frequency (GHz)
Frequency (GHz)
TZR1Z040
TZR1R080
Z040
R080
1000
1000
100
1000
100
1000
100
100
10
1
Q
Q
10
10
1
10
500 1000 1500 2000 2500
Frequency (MHz)
500
1000
Frequency (MHz)
1500
2000
Continued on the following page.
5
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
■ Land Pattern
■ Temperature Profile
1
Gradual Cooling
(in air)
Preheating (in air)
Solderring
2.2
1.2
230
183
100
Tolerance: ±0.1
0
in mm
60 sec. to 120 sec.
30 sec. max.
(Solder melting zone)
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
(1) Corrosive gasses atmosphere
(ex. Chlorine gas, Hydrogen sulfide gas,
Ammonia gas, Sulfuric acid gas, Nitric oxide gas,
etc.)
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 degree C and 30 to
85%RH.
(2) In liquid (ex. water, oil, medical liquid,
organic solvent, etc.)
(3) Dusty / dirty atmosphere
(4) Direct sunlight
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
5. Do not store under direct sunlight.
6. Do not use the trimmer capacitor under the
conditions listed below.
(7) Other variations of the above
■ Notice (Soldering and mounting)
1. Soldering
flux wicking up.
(1) TZR1 series can be soldered by reflow soldering
method and soldering iron. Do not use flow
soldering method (dipping).
(5) When using soldering iron, the diameter of the
string solder shall be less than 0.5mm. The
string solder shall be applied to the lower
part of the terminal only. Do not apply flux
except to the terminals. Excessive amounts of
solder and/or applying solder to the upper part
of the terminal may cause fixed metal rotor or
the contact failure due to flux invasion into
the movable part and/or the contact point. The
soldering iron should not come in contact with
the monolithic stator of the trimmer capacitor.
If such contact does occur, the trimmer
capacitor may be damaged.
(2) Standard soldering condition
(a) Reflow soldering: Refer to the standard
temperature profile.
(b) Soldering iron:
> Temperature of tip 260+-10 degree C
> Soldering time
> Diameter
3 sec. max.
0.5mm max.
20W max.
> Wattage of iron
Before using other soldering conditions than
those listed above, please consult with Murata
factory representative prior to using. If the
soldering conditions are not suitable, e.g.,
excessive time and/or excessive temperature, the
trimmer capacitor may deviate from the specified
characteristics.
(6) Our recommended chlorine content of solder is
as follows.
(a) Solder paste: 0.2wt% max.
(b) String solder: 0.5wt% max.
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
(3) The amount of solder is critical.
(4) The thickness of solder paste should be printed
from 100 micro m to 150 micro m and the dimension
of land pattern should be Murata's standard land
pattern used at reflow soldering.
2. Mounting
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf) max.), when the trimmer capacitor
is mounted on the PCB.
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
Excessive amounts of solder may cause bridging
between the terminals or contact failure due to
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breaking.
Continued on the following page.
6
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
(3) Use the suitable dimension of the pick-up nozzle.
(1.1-1.2mm external diameter and 0.8-0.9mm bore
diameter.)
4. Other
Note the polarity of the trimmer capacitor to
1
minimize influence by stray capacitance.
3. Cleaning
(Refer to the dimensions concerning the polarity.)
Can not be cleaned because of open construction.
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
is applied to the screwdriver slot, it may cause
deformation of the products.
driver slot.
*Recommended screwdriver for manual adjustment
MURATA: KMDR160
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
2. When adjusting with a screwdriver, do not apply
excessive force (preferable 0.5N (Ref; 50gf) max.)
to minimize capacitance drift. If excessive force
■ Notice (Other)
Before using trimmer capacitor, please test after
assembly in your particular mass production system.
7
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Ceramic Trimmer Capacitors
TZS2 Series
2.7
0.6
0.20 Depth
■ Features
2
1. Ultra-small and thin type with external dimensions
of 2.2(W)x2.7(L)x0.95(H)mm
(30% less in volume from the current product).
2. Unique construction with no plastic material
provides superior soldering heat resistance to
maintain excellent characteristic performance
after reflow soldering.
0.4
3. Pierced square hole allows for high resistance to
tuning force and in-process automatic adjustment.
Tolerance: ±0.1
in mm
■ Applications
1. Crystal oscillators
2. Crystal filters
3. Hand radios
4. Cordless telephones
5. Cellular telephones 6. Tuner packs
7. Pagers
8. Remote keyless entry systems
9. PHS
10. Radar detectors
12. Compact radios
11. W-LAN
13. Headphone stereos
Cmin. (max.)
(pF)
Cmax.
(pF)
Rated
Voltage
Withstanding
Voltage
Part Number
TC
Q
TZS2Z060A001
TZS2Z100A001
TZS2R200A001
3.0
3.5
7.0
6.0 +100/-0%
10.0 +100/-0%
20.0 +100/-0%
NP0±300ppm/°C
NP0±300ppm/°C
N750±500ppm/°C
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
25Vdc
25Vdc
25Vdc
55Vdc
55Vdc
55Vdc
Insulation Resistance : 10000M ohm Torque : 0.5 to 5.0mNm Operating Temperature Range : -25 to +85°C
■ Construction
Cover
Metal Rotor
Monolithic
Stator
8
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
■ Temperature Characteristics
TZS2Z060
TZS2Z100
Z100 (NP0±300 ppm/˚C)
Z060 (NP0±300 ppm/˚C)
+8
+6
+4
+8
+6
+4
+2
+2
85
2
65
Temp.(˚C)
85
0
0
−25
−25
20
65
20
−2
−4
0
0
−2
−4
45
−10
45
−10
Temp.(˚C)
−6
−8
−6
−8
−10
−10
−12
−12
TZS2R200
R200 (N750±500 ppm/˚C)
+8
+6
+4
+2
20
Temp.(˚C)
85
65
45
0
−2
−25
−10
0
−4
−6
−8
−10
−12
■ Frequency Characteristics
TZS2Z060
TZS2Z100
Z100
Z060
1000
1000
1000
1000
100
100
100
100
Q
Q
10
10
10
10
1
1
200
400
600
800
1000
500
1000
1500
2000
Frequency (MHz)
Frequency (MHz)
Continued on the following page.
9
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
■ Frequency Characteristics
TZS2R200
R200
1000
1000
2
100
100
Q
10
10
1
200
400
600
800
1000
Frequency (MHz)
■ Land Pattern
■ Temperature Profile
Gradual Cooling
(in air)
3.2
2.1
Preheating (in air)
Solderring
230
183
100
0
60 sec. to 120 sec.
30 sec. max.
Tolerance: ±0.1
(Solder melting zone)
in mm
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
(1) Corrosive gasses atmosphere
(ex. Chlorine gas, Hydrogen sulfide gas,
Ammonia gas, Sulfuric acid gas, Nitric oxide gas,
etc.)
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 degree C and 30 to
85%RH.
(2) In liquid (ex. water, oil, medical liquid,
organic solvent, etc.)
(3) Dusty / dirty atmosphere
(4) Direct sunlight
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
5. Do not store under direct sunlight.
6. Do not use the trimmer capacitor under the
conditions listed below.
(7) Other variations of the above
■ Notice (Soldering and mounting)
1. Soldering
> Temperature of tip 260+-10 degree C
(1) TZS2 series can be soldered by reflow soldering
method and soldering iron. Do not use flow
soldering method (dipping).
> Soldering time
> Diameter
3 sec. max.
1.0mm max.
20W max.
> Wattage of iron
(2) Standard soldering condition
(a) Reflow soldering: Refer to the standard
temperature profile.
Before using other soldering conditions than
those listed above, please consult with Murata
factory representative prior to using. If the
soldering conditions are not suitable, e.g.,
(b) Soldering iron:
Continued on the following page.
10
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
excessive time and/or excessive temperature,
the trimmer capacitor may deviate from the
specified characteristics.
capacitor may be damaged.
(6) Our recommended chlorine content of solder is
as follows.
(3) The amount of solder is critical.
(a) Solder paste: 0.2wt% max.
(4) The thickness of solder paste should be printed
from 100 micro m to 150 micro m and the dimension
of land pattern should be Murata's standard land
pattern used at reflow soldering.
(b) String solder: 0.5wt% max.
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
2
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
Excessive amounts of solder may cause bridging
between the terminals or contact failure due to
flux wicking up.
2. Mounting
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf) max.), when the trimmer capacitor
is mounted on the PCB.
(5) When using soldering iron, the diameter of the
string solder shall be less than 0.5mm. The
string solder shall be applied to the lower part
of the terminal only. Do not apply flux except
to the terminals. Excessive amounts of solder
and/or applying solder to the upper part of the
terminal may cause fixed metal rotor or contact
failure due to flux invasion into the movable
part and/or the contact point. The soldering
iron should not come in contact with the
monolithic stator of the trimmer capacitor.
If such contact does occur, the trimmer
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breakage.
(3) Use the suitable dimension of the pick-up nozzle
(1.8mm external diameter and 1.3mm bore
diameter).
3. Cleaning
Cannot be cleaned because of open construction.
4. Other
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
excessive force (preferable 1.0N (Ref; 100gf) max.)
to minimize capacitance drift. If excessive force
is applied to the screwdriver slot, it may cause
deformation of the products.
driver slot.
(1) Recommended screwdriver for manual adjustment
MURATA: KMDR050
(2) Recommended screwdriver bit for automatic
adjustment
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
MURATA: KMBT050
2. When adjusting with a screwdriver, do not apply
■ Notice (Other)
Before using trimmer capacitor, please test after
assembly in your particular mass production system.
11
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Ceramic Trimmer Capacitors
TZY2 Series
3.2±0.2
0.45
■ Features
1. Small and thin size with external dimensions
of 2.5(W)x3.2(L)x1.25max.(H)mm
2. New shape of cover can improve the flux invasion
compared with current products.
3. Improvement of the adhesion between rotor and
stator leads to superior stability.
0.5
3
4. Unique construction with no plastic material
provides superior soldering heat resistance to
maintain excellent characteristic performance
after reflow soldering.
Tolerance: ±0.1
(
)
in mm
5. Suitable for high frequency circuit due to high
self resonant frequency (4.8GHz of TZY2Z010 at
1.0pF setting)
■ Applications
1. Crystal oscillators
2. Crystal filters
4. Cordless telephones
6. Hand radios
3. Pagers
5. PHS
7. Cellular telephones
8. Watches
9. Remote keyless entry systems
10. W-LAN
11. Radar detectors
12. Compact radios
14. Burglarproof devices
13. DVD
15. Headphone stereos
Cmin. (max.)
Cmax.
(pF)
Rated
Voltage
Withstanding
Voltage
Part Number
TC
Q
(pF)
TZY2Z010A001
TZY2Z2R5A001
TZY2Z030A001
TZY2Z060A001
TZY2Z100A001
TZY2R200A001
TZY2R250A001
TZY2K450A001
0.5
0.65
1.5
2.5
3.0
4.5
5.5
8.0
1.0 +100/-0%
2.5 +100/-0%
3.0 +100/-0%
6.0 +100/-0%
10.0 +100/-0%
20.0 +100/-0%
25.0 +100/-0%
45.0 +100/-0%
NP0±300ppm/°C
NP0±300ppm/°C
NP0±300ppm/°C
NP0±300ppm/°C
NP0±300ppm/°C
N750±500ppm/°C
N750±500ppm/°C
N1000±500ppm/°C
200min. at 200MHz, Cmax.
200min. at 200MHz, Cmax.
300min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
300min. at 1MHz, Cmax.
300min. at 1MHz, Cmax.
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
55Vdc
55Vdc
55Vdc
55Vdc
55Vdc
55Vdc
55Vdc
55Vdc
Insulation Resistance : 10000M ohm Torque : 0.5 to 5.0mNm Operating Temperature Range : -25 to +85°C
■ Construction
Cover
Metal Rotor
Monolithic
Stator
12
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
■ Temperature Characteristics
TZY2Z010
TZY2Z100
Z100 (NP0±300 ppm/˚C)
Z010 (NP0±300 ppm/°C)
+8
+6
+4
+8
+6
+4
+2
0
Temp. (°C)
+2
Temp.(˚C)
85
0
65
85
-25
20
−25
0
65
-2
-4
20
-10
45
0
−2
−4
45
−10
-6
−6
−8
-8
-10
-12
−10
−12
3
TZY2R200
TZY2K450
K450 (N1000±500ppm/°C)
R200 (N750±500 ppm/˚C)
+12
+10
+8
+6
+8
+6
+4
+2
+4
+2
20
Temp.(˚C)
85
65
Temp. (°C)
85
45
45
65
20
0
−2
−25
−10
0
0
0
25
–2
–4
–6
−4
−6
−8
–8
–10
–12
−10
−12
■ Frequency Characteristics
TZY2Z010
TZY2Z100
Z010
Z100
1000
1000
1000
100
10
100
100
Q
Q
0.5pF set
10
10
1.0pF set
1
1
0
2
4
Frequency (GHz)
6
8
200
400
600
800
1000
Frequency (MHz)
Continued on the following page.
13
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
■ Frequency Characteristics
TZY2R200
TZY2K450
R200
K450
1000
1000
1000
1000
100
10
1
100
100
100
Q
Q
10
10
10
3
1
200
400
600
800
1000
200
400
600
800
Frequency (MHz)
Frequency (MHz)
■ Land Pattern
■ Temperature Profile
4.0
2.4
Gradual Cooling
(in air)
Preheating (in air)
Solderring
230
183
100
0
60 sec. to 120 sec.
30 sec. max.
(Solder melting zone)
Tolerance: ±0.1
in mm
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
(1) Corrosive gasses atmosphere
(ex. Chlorine gas, Hydrogen sulfide gas,
Ammonia gas, Sulfuric acid gas, Nitric oxide gas,
etc.)
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 degree C and 30 to
85%RH.
(2) In liquid (ex. water, oil, medical liquid,
organic solvent, etc.)
(3) Dusty / dirty atmosphere
(4) Direct sunlight
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
5. Do not store under direct sunlight.
6. Do not use the trimmer capacitor under the
conditions listed below.
(7) Other variations of the above
■ Notice (Soldering and mounting)
1. Soldering
> Temperature of tip 260+-10 degree C
(1) TZY2 series can be soldered by reflow soldering
method and soldering iron. Do not use flow
soldering method (dipping).
> Soldering time
> Diameter
3 sec. max.
1mm max.
20W max.
> Wattage of iron
(2) Standard soldering condition
(a) Reflow soldering: Refer to the standard
temperature profile.
Before using other soldering conditions than
those listed above, please consult with Murata
factory representative prior to using. If the
soldering conditions are not suitable, e.g.,
(b) Soldering iron:
Continued on the following page.
14
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
excessive time and/or excessive temperature, the
trimmer capacitor may deviate from the specified
characteristics.
capacitor may be damaged.
(6) Our recommended chlorine content of solder is
as follows.
(3) The amount of solder is critical.
(a) Solder paste: 0.2wt% max.
(4) The thickness of solder paste should be printed
from 120 micro m to 170 micro m and the dimension
of land pattern should be Murata's standard land
pattern used at reflow soldering.
(b) String solder: 0.5wt% max.
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
Excessive amounts of solder may cause bridging
between the terminals or contact failure due to
flux wicking up.
2. Mounting
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf) max.), when the trimmer capacitor
is mounted on the PCB.
(5) When using soldering iron, the diameter of the
string solder shall be less than 0.5mm. The
string solder shall be applied to the lower
part of the terminal only. Do not apply flux
except to the terminals. Excessive amounts of
solder and/or applying solder to the upper part
of the terminal may cause fixed metal rotor or
contact failure due to flux invasion into
the movable part and/or the contact point. The
soldering iron should not come in contact with
the monolithic stator of the trimmer capacitor.
If such contact does occur, the trimmer
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breakage.
3
(3) Use the suitable dimension of the pick-up nozzle
(1.8mm external diameter and 1.3mm bore
diameter).
3. Cleaning
Cannot be cleaned because of open construction.
4. Other
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
excessive force (preferable 1.0N (Ref; 100gf) max.)
to minimize capacitance drift. If excessive force
is applied to the screwdriver slot, it may cause
deformation of the products.
driver slot.
(1) Recommended screwdriver for manual adjustment
ENGINEER INC.: DA-89
(Murata P/N is KMDR060)
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
(2) Recommended screwdriver bit for automatic
adjustment
MURATA: KMBT060
2. When adjusting with a screwdriver, do not apply
■ Notice (Other)
Before using trimmer capacitor, please test after
assembly in your particular mass production system.
15
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Ceramic Trimmer Capacitors
TZV2 Series
3.2±0.2
0.5 Depth 0.2
■ Features
1. Small size with external dimensions of
2.3(W)x3.2(L)x1.45max.(H)mm
Marking(6pF)
Marking(10pF)
2. Unique construction with no plastic material
provides superior soldering heat resistance to
maintain excellent characteristic performance after
reflow soldering.
3. Designed for automatic placement in surface mount
applications.
Tolerance: ±0.1
4. Funnel shaped metal case enables in-process
automatic adjustment.
in mm
■ Applications
4
1. Crystal oscillator
3. Hand radios
5. Cellular telephones
7. Pagers
2. Crystal filters
4. Cordless telephones
6. Tuner packs
8. Remote keyless entry systems
10. Radar detectors
12. Compact radios
9. PHS
11. W-LAN
13. Headphone stereos 14. DVD
15. Burglarproof devices
Cmin. (max.)
Cmax.
(pF)
Rated
Voltage
Withstanding
Voltage
Part Number
(pF)
TC
Q
TZV2Z2R5A110
TZV2Z030A110
TZV2Z060A110
TZV2Z100A110
TZV2R200A110
0.65
1.5
2.5
3.0
4.5
2.5 +100/-0%
3.0 +100/-0%
6.0 +100/-0%
10.0 +100/-0%
20.0 +100/-0%
NP0±300ppm/°C
NP0±300ppm/°C
NP0±300ppm/°C
NP0±300ppm/°C
N750±500ppm/°C
200min. at 200MHz, Cmax.
300min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
55Vdc
55Vdc
55Vdc
55Vdc
55Vdc
Insulation Resistance : 10000M ohm Torque : 1.0 to 10.0mNm Operating Temperature Range : -25 to +85°C
■ Construction
Cover
Spring Washer
Metal Rotor
Monolithic Stator
16
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
■ Temperature Characteristics
TZV2Z2R5
TZV2Z060
Z2R5 (NP0±300 ppm/˚C)
Z060 (NP0±300 ppm/˚C)
+8
+6
+4
+8
+6
+4
+2
Temp.(˚C)
85
+2
0
85
65
0
−25
65
20
−2
−25
0
20
45
−10
−2
−4
0
45
−10
−4
Temp.(˚C)
−6
−8
−6
−8
−10
−10
−12
−12
TZV2Z100
TZV2R200
R200 (N750±500 ppm/˚C)
Z100 (NP0±300 ppm/˚C)
+8
+6
+8
+6
+4
4
+4
+2
20
Temp.(˚C)
85
65
+2
45
Temp.(˚C)
85
0
0
−2
−25
−10
0
−25
65
20
0
−2
−4
45
−10
−4
−6
−8
−6
−8
−10
−10
−12
−12
■ Frequency Characteristics
TZV2Z2R5
TZV2Z060
Z060
Z2R5
1000
1000
1000
1000
100
100
100
100
Q
Q
10
10
10
10
1
1
500
1000
1500
2000
500
1000
1500
2000
2500
3000
Frequency (MHz)
Frequency (MHz)
Continued on the following page.
17
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
■ Frequency Characteristics
TZV2Z100
TZV2R200
R200
Z100
1000
1000
1000
1000
100
100
100
100
Q
Q
10
10
10
10
1
1
200
400
600
800
1000
200
400
600
800
1000
Frequency (MHz)
Frequency (MHz)
4
■ Land Pattern
■ Temperature Profile
4.0
2.4
Gradual Cooling
(in air)
Preheating (in air)
Solderring
230
183
100
0
60 sec. to 120 sec.
30 sec. max.
(Solder melting zone)
Tolerance: ±0.1
in mm
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
(1) Corrosive gasses atmosphere
(ex. Chlorine gas, Hydrogen sulfide gas,
Ammonia gas, Sulfuric acid gas, Nitric oxide gas,
etc.)
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 degree C and 30 to
85%RH.
(2) In liquid (ex. water, oil, medical liquid,
organic solvent, etc.)
(3) Dusty / dirty atmosphere
(4) Direct sunlight
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
5. Do not store under direct sunlight.
6. Do not use the trimmer capacitor under the
conditions listed below.
(7) Other variations of the above
■ Notice (Soldering and mounting)
1. Soldering
>Temperature of tip 260+-10 degree C
(1) TZV2 series can be soldered by reflow soldering
method and soldering iron. Do not use flow
soldering method (dipping).
>Soldering time
>Diameter
3 sec. max.
1mm max.
20W max.
>Wattage of iron
(2) Standard soldering condition
(a) Reflow soldering: Refer to the standard
temperature profile.
Before using other soldering conditions than
those listed above, please consult with Murata
factory representative prior to using. If the
soldering conditions are not suitable, e.g.,
(b) Soldering iron:
Continued on the following page.
18
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
excessive time and/or excessive temperature, the
trimmer capacitor may deviate from the specified
characteristics.
capacitor may be damaged.
(6) Our recommended chlorine content of solder is
as follows.
(3) The amount of solder is critical.
(a) Solder paste: 0.2wt% max.
(4) The thickness of solder paste should be printed
from 120 micro m to 170 micro m and the dimension
of land pattern should be Murata's standard land
pattern used at reflow soldering.
(b) String solder: 0.5wt% max.
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
2. Mounting
Excessive amounts of solder may cause the
bridging between the terminals or the contact
failure due to flux wicking up.
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf) max.), when the trimmer capacitor
is mounted on the PCB.
(5) When using soldering iron, the diameter of the
string solder shall be less than 0.5mm. The
string solder shall be applied to the lower
part of the terminal only. Do not apply flux
except to the terminals. Excessive amounts of
solder and/or applying solder to the upper part
of the terminal may cause fixed metal rotor or
contact failure due to flux invasion into
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breakage.
(3) Use the suitable dimension of the pick-up nozzle
(1.8mm external diameter and 1.3mm bore
diameter).
3. Cleaning
Cannot be cleaned because of open construction.
4. Other
4
the movable part and/or the contact point. The
soldering iron should not come in contact with
the monolithic stator of the trimmer capacitor.
If such contact does occur, the trimmer
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
excessive force (preferable 1.0N (Ref; 100gf) max.)
to minimize capacitance drift. If excessive force
is applied to the screwdriver slot, it may cause
deformation of the products.
driver slot.
(1) Recommended screwdriver for manual adjustment
VESSEL: No.9000-0.9x30
(Murata P/N : KMDR020)
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
(2) Recommended screwdriver bit for automatic
adjustment
MURATA: KMBT020
2. When adjusting with a screwdriver, do not apply
■ Notice (Other)
Before using trimmer capacitor, please test after
assembly in your particular mass production system.
19
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Ceramic Trimmer Capacitors
TZC3 Series
■ Features
1. Small size with external dimension of
3.2(W)x4.5(L)x1.6(H)mm (Cross slot type: 1.7(H)mm)
2. Color coded stator permits easy identification of
capacitance and reduces mounting errors.
3. Can be adjusted with conventional adjustment tools
having a thickness of 0.5mm.
0.5
2.5 dia.
4.5
4.5
4. Available for cross slot type to provide better
adjustability.
Standard Type
Tolerance: ±0.1
5. Providing mechanism to prevent air leak offers
better mountability with automatic mounter.
(Cross slot type)
in mm
0.6
0.6
0.5±0.05
Depth 0.4±0.05
6. Designed for automatic placement in surface mount
applications.
7. Heat resistant resin withstands reflow soldering
temperatures.
ø2.5
4.5
■ Applications
1. Compact radios
2. Headphone stereos
4. Portable radio equipments
6. Cellular telephones
5
3. Pagers
5. Hybrid ICs
7. Cordless telephones 8. Remote keyless entry systems
Cross Slot Type
Tolerance: ±0.1
in mm
0.6
0.6
Cmin. (max.)
(pF)
Cmax.
(pF)
Rated Withstanding
Part Number
TC
Q
Stator/Case Color
Voltage
Voltage
TZC3Z030Appp
TZC3Z060Appp
TZC3R100Appp
TZC3P200Appp
TZC3P300Appp
1.4
2.0
3.0
5.0
6.5
3.0 +50/-0%
6.0 +50/-0%
10.0 +50/-0%
20.0 +50/-0%
30.0 +50/-0%
NP0±300ppm/°C
NP0±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
Brown
Blue
White
Red
N1200±500ppm/°C 300min. at 1MHz, Cmax. 100Vdc
N1200±500ppm/°C 300min. at 1MHz, Cmax. 100Vdc
Green
Insulation Resistance : 10000M ohm Torque : 1.5 to 10.0mNm Operating Temperature Range : -25 to +85°C
The last three digits show the slot type. 110: standard (minus) type, 310 : cross slot type.
■ Construction
Standard Type
Cross Slot Type
Center axis
Center axis
Rotor spring terminal
Rotor spring terminal
Ceramic plate
Ceramic plate
Stator
Stator
(One molded injection
with stator terminal)
(One molded injection
with stator terminal)
Stator terminal
Stator terminal
Continued on the following page.
20
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
■ Temperature Characteristics
TZC3Z030
TZC3Z060
Z060 (NP0±300 ppm/˚C)
Z030 (NP0±300 ppm/˚C)
+8
+6
+4
+8
+6
+4
Temp.(˚C)
85
Temp.(˚C)
85
+2
0
+2
0
20
20
0
45
0
45
−10
−10
−2
−4
−2
−4
65
−25
65
−25
−6
−8
−6
−8
−10
−10
−12
−12
TZC3R100
TZC3P200
R100 (N750±300 ppm/˚C)
P200 (N1200±500ppm/°C)
+8
+6
+4
+2
+8
+6
+4
+2
65
45
0
85
85
45
65
0
20
−2
20
–2
−25
Temp.(˚C)
−10
0
–25
–10
0
Temp.(°C)
−4
–4
−6
−8
–6
–8
–10
−10
5
–12
−12
■ Frequency Characteristics
TZC3Z030
TZC3Z060
Z030
Z060
1000
1000
1000
1000
100
100
Q
100
100
Q
10
10
10
10
1
1
100
500
1000
1500
2000
100
500
1000
1500
2000
Frequency (MHz)
Frequency (MHz)
Continued on the following page.
21
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
■ Frequency Characteristics
TZC3R100
TZC3P200
R100
P200
1000
1000
100
10
1000
1000
Q
Q
100
100
100
10
10
10
1
1
200
400
600
800
1000
200
400
600
800
1000
Frequency (MHz)
Frequency (MHz)
■ Land Pattern
Standard Type
Cross Slot Type
+0
−0.5
+0
5.0
5.0
−0.5
3.3±0.1
3.3±0.1
5
Tolerance: ±0.1
Tolerance: ±0.1
in mm
in mm
■ Temperature Profile
Gradual Cooling
(in air)
Preheating (in air)
Solderring
230
183
100
0
60 sec. to 120 sec.
30 sec. max.
(Solder melting zone)
22
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
(1) Corrosive gasses atmosphere
(ex. Chlorine gas, Hydrogen sulfide gas,
Ammonia gas, Sulfuric acid gas, Nitric oxide gas,
etc.)
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 degree C and 30 to
85%RH.
(2) In liquid (ex. water, oil, medical liquid,
organic solvent, etc.)
(3) Dusty / dirty atmosphere
(4) Direct sunlight
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
5. Do not store under direct sunlight.
6. Do not use the trimmer capacitor under the
conditions listed below.
(7) Other variations of the above
■ Notice (Soldering and mounting)
1. Soldering
of the terminal may cause fixed metal rotor or
contact failure due to flux invasion into the
movable part and/or the contact point. The
soldering iron should not come in contact with
the stator of the trimmer capacitor. If such
contact does occur, the trimmer capacitor may
be damaged.
(1) TZC3 series can be soldered by reflow soldering
method and soldering iron. Do not use flow
soldering method (dipping).
(2) Standard soldering condition
(a) Reflow soldering: Refer to the standard
temperature profile.
(b) Soldering iron:
(6) Our recommended chlorine content of solder is
as follows.
> Temperature of tip 260+-10 degree C
> Soldering time
> Diameter
3 sec. max.
1mm max.
20W max.
(a) Solder paste: 0.2wt% max.
5
(b) String solder: 0.5wt% max.
> Wattage of iron
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
Before using other soldering conditions than
those listed above, please consult with Murata
factory representative prior to using. If the
soldering conditions are not suitable, e.g.,
excessive time and/or excessive temperature, the
trimmer capacitor may deviate from the specified
characteristics.
(8) When soldering the TZC3 series, the solder
should not flow into the staking part of the
substrate. If such flow does occur, driver slot
rotation will be damaged.
(3) The amount of solder is critical.
2. Mounting
(4) The thickness of solder paste should be printed
from 150 micro m to 200 micro m and the dimension
of land pattern should be Murata's standard land
pattern used at reflow soldering.
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf) max.), when the trimmer capacitor
is mounted on the PCB.
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breakage.
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
Excessive amounts of solder may cause bridging
between the terminals or contact failure due to
flux wicking up.
(3) Use the suitable dimension of the pick-up nozzle
(2.5mm external diameter and 1.5mm bore
diameter).
3. Cleaning
(5) When using soldering iron, the diameter of the
string solder shall be less than 0.5mm. The
string solder shall be applied to the lower
part of the terminal only. Do not apply flux
except to the terminals. Excessive amounts of
solder and/or applying solder to the upper part
Cannot be cleaned because of open construction.
4. Other
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
23
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
(Murata P/N is KMBT040)
2. When adjusting with a screwdriver, do not apply
excessive force (preferable 1.0N (Ref; 100gf) max.)
to minimize capacitance drift. If excessive force
is applied to the screwdriver slot, it may cause
deformation of the products.
driver slot.
(1) Recommended screwdriver for manual adjustment
Standard type --> MURATA: KMDR010
Cross slot type --> TORAY: SA-1825
(Murata P/N is KMDR040)
(2) Recommended screwdriver bit for automatic
adjustment
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
Standard type --> MURATA: KMBT010
Cross slot type --> TORAY: JB-1825
■ Notice (Other)
Before using trimmer capacitor, please test after
assembly in your particular mass production system.
5
24
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Ceramic Trimmer Capacitors
TZW4 Series
5.2±0.2
1.6±0.2
0.5 Depth
■ Features
1. To meet high power application due to withstanding
voltage 550Vdc.
2. Extremely high self resonant frequency.
(More than 3GHz at 1.5pF setting)
3. Typical application: Impedance matching for Cellular
Base Station.
3.0
2.2
4. High Q value in more than VHF,UHF and Micro wave band.
(More than 200 in 500MHz, C max.)
+0.1
-0.2
5. Available for pick and place machine. Possible
thinner design due to 2.5mm low profile.
6. Non electrical contact construction
(rotor as middle electrode) provides high reliability.
7. Compact size due to 4.2(W)x5.2(L)x2.5max.(H)mm.
Tolerance: ±0.1
0.3
(
)
in mm
■ Applications
1. Transmitting power amplifier for Cellular Base Station
2. Transmitting amplifier for PHS Base Station
3. High frequency electric circuit
4. High power radio transmission
5. Transponder amplifier for cable TV
Cmin. (max.)
(pF)
Cmax.
(pF)
Rated
Voltage
Withstanding
Voltage
Part Number
TC
Q
TZW4Z1R5A001
0.4
1.5 +100/-0%
NP0±300ppm/°C
200min. at 500MHz, Cmax.
250Vdc
550Vdc
Insulation Resistance : 10000M ohm Torque : 2.0 to 10.0mNm Operating Temperature Range : -55 to +125°C
6
■ Construction
Cover
Metal Rotor
Monolithic
Stator
25
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
■ Temperature Characteristics
TZW4Z1R5
Z1R5 (NP0±300 ppm/˚C)
+8
+6
+4
+2
Temp.(˚C)
85
0
−25
65
20
−2
−4
0
45
−10
−6
−8
−10
−12
■ Frequency Characteristics
TZW4Z1R5
Z1R5
1000
1.5pF set
100
Q
10
1
500
1000
1500
2000
2500
3000
Frequency (MHz)
6
■ Land Pattern
■ Temperature Profile
Gradual Cooling
(in air)
Preheating (in air)
Solderring
7.0
4.4
300
250
+5
260-0°C Peak
200
150
100
50
0
150 to 180°C
220°C
60 to 120 sec.
30 to 60 sec.
Tolerance: ±0.1
in mm
(Solder melting zone)
26
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
(1) Corrosive gasses atmosphere
(Ex. Chlorine gas, Hydrogen sulfide gas,
Ammonia gas, Sulfuric acid gas, Nitric oxie gas,
etc.)
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 C. and 30 to 85%RH.
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
(2) In liquid (Ex. water, oil, medical liquid,
organic solvent, etc.)
(3) Dusty / dirty atmosphere
(4) Direct sunlight
5. Open the package just before using.
6. Do not store under direct sunlight.
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
7. Do not use the trimmer capacitor under the
conditions listed below.
(7) Other variations of the above
■ Notice (Soldering and mounting)
1. Soldering
string solder shall be applied to the lower
part of the terminal only. Do not apply flux
except to the terminals. Excessive amounts of
solder and/or applying solder to the upper part
of the terminal may cause fixed metal rotor or
the contact failure due to flux invasion into
the movable part and/or the contact point. The
soldering iron should not come in contact with
the monolithic stator of the trimmer capacitor.
If such contact does occur, the trimmer
capacitor may be damaged.
(1) TZW4 series can be soldered by reflow soldering
method and soldering iron. Do not use flow
soldering method (dipping).
(2) Standard soldering condition
(a) Reflow soldering: Refer to the standard
temperature profile.
(b) Soldering iron:
> Temperature of tip 390+-10 degree C
> Soldering time
> Diameter
5 sec. max.
1.0mm max.
30W max.
> Wattage of iron
(6) Our recommended chlorine content of solder is
as follows.
Before using other soldering conditions than
those listed above, please consult with Murata
factory representative prior to using. If the
soldering conditions are not suitable, e.g.,
excessive time and/or excessive temperature, the
trimmer capacitor may deviate from the specified
characteristics.
(a) Solder paste: 0.2wt% max.
(b) String solder: 0.5wt% max.
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
6
(3) The amount of solder is critical.
2. Mounting
(4) The thickness of solder paste should be printed
from 150 micro m to 200 micro m and the dimension
of land pattern should be Murata's standard land
pattern used at reflow soldering.
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf) max.), when the trimmer capacitor
is mounted on the PCB.
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breaking.
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
Excessive amounts of solder may cause bridging
between the terminals or contact failure due to
flux wicking up.
(3) Use the suitable dimension of the pick-up nozzle.
(1.8mm external diameter and 1.1mm bore
diameter.)
3. Cleaning
(5) When using soldering iron, the diameter of the
string solder shall be less than 0.5mm. The
Can not be cleaned because of open construction.
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
to minimize capacitance drift. If excessive force
applied to the screwdriver slot, it may cause
deformation of the products.
driver slot.
-Recommended screwdriver for manual adjustment
VESSEL : NO.9000 -1.3x30
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
(Murata P/N is KMDR130)
2. When adjusting with a screwdriver, do not apply
excessive force(preferable 1.0N(Ref; 100gf) max.)
27
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
■ Notice (Other)
Before using trimmer capacitor, please test after
assembly in your particular mass production system.
6
28
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Ceramic Trimmer Capacitors
TZB4 Series
0.6±0.1 Depth 0.5
1.4±0.1 dia.
1.4±0.1 dia.
1.4±0.1 dia.
■ Features
1. Miniature rectangular shape:
4.0(W)x4.5(L)x3.0(H)mm
4.5±0.2
2. Color coded case facilitates identification of
capacitance range.
3. Designed for automatic placement in surface mount
applications.
2.7±0.3
1.2±0.1
4. Designed to withstand flux baths and solder baths
(with cover film type)
A Type
B Type
C Type
E Type
Tolerance: ±0.5
5. Can be temporarily attached to PCB with adhesives
(Terminal style A and B)
in mm
5.0
6. Can be reflow and flow (with cover film type)
soldering method
0.6±0.1 Depth 0.5
7. Stable characteristics over a wide frequency range
(Resonant frequency: 1000MHz min. / 6pF)
4.5±0.2
■ Applications
1. Car audio systems
2. Cordless telephones
4. Pagers
3. Hybrid ICs
5. Remote keyless entry systems
1.2±0.1
6. Tuner packs
8. DVD
7. Surveillance cameras
9. Burglarproof devices
Tolerance: ±0.5
in mm
7.0
0.6±0.1 Depth 0.5
4.5±0.2
7
0.8±0.1
5.0
6.2
Tolerance: ±0.5
in mm
0.6±0.1 Depth 0.5
1.4±0.1 dia.
0.6±0.1 Depth 0.5
4.5±0.2
4.5±0.2
2.0±0.2
7.0
4.8
4.0±0.2
0.8±0.1
6.2
5.0
4.5
D Type
Tolerance: ±0.5
Tolerance: ±0.5
in mm
in mm
29
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Cmin. (max.)
(pF)
Cmax.
(pF)
Rated Withstanding
Part Number
TC
Q
Stator/Case Color
Voltage
Voltage
TZB4Z030pp10
TZB4Z060pp10
TZB4Z100pp10
TZB4R200pp10
TZB4P300pp10
TZB4P400pp10
TZB4Z250pp10
TZB4R500pp10
1.4
2.0
3.0
4.5
6.5
8.5
4.0
7.0
3.0 +50/-0%
6.0 +50/-0%
NP0±200ppm/°C
NP0±200ppm/°C
NP0±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax 100Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
110Vdc
110Vdc
Brown
Blue
10.0 +50/-0%
20.0 +50/-0%
30.0 +50/-0%
40.0 +50/-0%
25.0 +100/-0%
50.0 +100/-0%
White
Red
N1200±500ppm/°C 300min. at 1MHz, Cmax 100Vdc
N1200±500ppm/°C 300min. at 1MHz, Cmax 100Vdc
Green
Yellow
NP0±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax. 50Vdc
300min. at 1MHz, Cmax 50Vdc
Black+Marking
Black+Marking
Insulation Resistance : 10000M ohm Torque : 1.5 to 10.0mNm Operating Temperature Range : -25 to +85°C
First blank: Terminal Type
Second blank: Cover film codes (A: not provided, B: provided)
■ Construction
Cover Film (Cover film type)
Rotor Spring
Plastic Case
−
Metal Rotor
Ceramic Plate
Stator Terminal
+
Rotor Terminal
■ Land Pattern/Mounting Holes
A Type
B Type
+0
- 0.5
+0
8.0
7.0
- 0.5
4.0±0.2
2.4±0.2
7
(in mm)
(in mm)
C Type
D Type
2.8±0.2 dia.
1.1±0.1 dia.
1.1±0.1 dia.
5.0±0.5
0.8±0.1
(in mm)
5.0±0.5
(in mm)
Continued on the following page.
30
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
■ Land Pattern/Mounting Holes
E Type
+0
8.0
- 0.5
4.2±0.2
3.2±0.2 dia.
(in mm)
■ Temperature Characteristics
Z060 (NP0±200ppm/°C)
Z100 (NP0±300ppm/°C)
+10
+8
+6
+4
+2
+10
+8
+6
+4
+2
+20
+55
+55
+20
+85
+85
0
–2
0
–2
Temp. (°C)
–25
Temp. (°C)
–25
0
0
–4
–4
–6
–6
–8
–8
–10
–10
R200 (N750±300ppm/°C)
R500 (N750±200ppm/°C)
+10
+8
+6
+4
+2
+10
+8
+6
+4
+2
+20
+85
+55
+20
+55
+85
0
–2
0
–2
Temp. (°C)
Temp.(°C)
0
–25
0
–25
7
–4
–6
–4
–6
–8
–8
–10
–10
Continued on the following page.
31
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
■ Frequency Characteristics
Z060
Z100
1000
1000
1000
1000
100
Q
100
100
100
Q
10
10
10
10
1
1
100 200 300 400 500 600 700 800 900 1000
Frequency (MHz)
100 200 300 400 500 600 700 800 900 1000
Frequency (MHz)
R500
R200
1000
1000
100
10
1000
1000
100
100
100
Q
Q
10
10
10
1
1
100
200
300
400
500
600
100
200
300
400
500
Frequency (MHz)
Frequency (MHz)
7
■ Temperature Profile
Reflow
Flow
Gradual Cooling
(in air)
Preheating (in air)
Solderring
Gradual Cooling
(in air)
Solderring
Preheating (in air)
230
183
250
200
100
100
0
60 sec. to 120 sec.
30 sec. max.
0
60 sec. to 120 sec.
5 sec. max.
(Solder melting zone)
32
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
(1) Corrosive gasses atmosphere
(ex. Chlorine gas, Hydrogen sulfide gas,
Ammonia gas, Sulfuric acid gas, Nitric oxide gas,
etc.)
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 degree C and 30 to
85%RH.
(2) In liquid (ex. water, oil, medical liquid,
organic solvent, etc.)
(3) Dusty / dirty atmosphere
(4) Direct sunlight
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
5. Do not store under direct sunlight.
6. Do not use the trimmer capacitor under the
conditions listed below.
(7) Other variations of the above
■ Notice (Soldering and mounting)
1. Soldering
trimmer capacitor. If such contact does occur,
the trimmer capacitor may be damaged.
(6) Our recommendable chlorine content of solder is
as follows.
(1) Can be soldered by reflow soldering method, flow
soldering method, and soldering iron.
(2) Standard soldering condition
(a) Reflow soldering: Refer to the standard
temperature profile.
(a) Solder paste: 0.2wt% max.
(b) String solder: 0.5wt% max.
*Available for terminal shape A, B, and E.
(b) Flow soldering: Refer to the standard
temperature profile.
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
> Immerse the body in solder bath
- Available for cover film type
2. Mounting
> Only immerse the terminal in solder bath
- Availabe for terminal shape C and D.
(c) Soldering iron:
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf) max.), when the trimmer capacitor
is mounted on the PCB.
> Temperature of tip
> Soldering time
> Diameter
260+-10 degree C
3 sec. max.
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breakage.
3mm max.
(3) Use the suitable PCB holes which are the same
pitch as the terminal of the trimmer capacitor.
If it would not fit with the terminal, the
excessive stress would be applied to the
terminal and the trimmer capacitor may deviate
from the specified characteristics (Terminal
shape C and D).
> Wattage of iron
30W max.
Before using other soldering conditions than
those listed above, please consult with Murata
factory representative prior to using. If the
soldering conditions are not suitable, e.g.,
excessive time and/or excessive temperature, the
trimmer capacitor may deviate from the specified
characteristics.
7
(4) Do not apply bending stress more than 10.0N
(Ref.; 1kgf) after the trimmer capacitor has
been mounted on the PCB (Terminal shape C and D).
(5) Mount trimmer capacitor in contact with PCB
(Terminal shape C and D).
(3) The amount of solder is critical.
(4) The thickness of solder paste should be printed
from 150 micro m to 200 micro m and the dimension
of land pattern should be Murata's standard land
pattern used at reflow soldering. Insufficient
amounts of solder can lead to insufficient
soldering strength on PCB. Excessive amounts of
solder may cause bridging between the terminals
or contact failure due to flux wicking up.
(6) In case of bending the terminals, do not apply
excessive force to the body of the product and
prevent the terminal fixing part from damaging.
(7) Use the suitable dimension of the pick-up nozzle.
> Without cover film type
- External dimensions of 4.5x4.0mm and
2.5mm bore diameter.
(5) When using soldering iron, the string solder
shall be applied to the lower part of the
> With cover film type
terminal only. Do not apply flux except to the
terminals. Excessive amounts of solder and/or
applying solder to the upper part of the
- 4.0mm external diameter and 2.0mm bore
diameter.
3. Cleaning [with cover film type]
terminal may cause fixed rotor or contact failure
due to flux invasion into the movable part and/or
the contact point. The soldering iron should not
come in contact with the plastic case of the
(1) Isopropyl alcohol and Ethyl alcohol are
available material for cleaning. Water group
material like Pinealpha, Cleanthru can not be
used. For other materials, please consult with
Continued on the following page.
33
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
Murata factory representative prior to using.
(2) The total cleaning time by dipping, vapor and
ultra-sonic method shall be less than 2 minutes.
For ultra-sonic cleaning, the available
condition is as follows.
compatibility usually depends on the jig
construction and/or the cleaning condition such
as the depth of immersion, please check the
cleaning equipment to determine the suitable
conditions. If the trimmer capacitor is cleaned
by other conditions, the trimmer capacitor may
deviate from the specified characteristics.
> Cleaning time: 1 min. max.
> Power: 20W/liter max.
> Frequency: 20 - 60kHz
4. Other
> Temperature: Ambient temperature
Due to the ultra-sonic cleaning equipment's
peculiar self resonance point and the cleaning
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
driver slot.
(1) Recommended screwdriver for manual adjustment
MURATA: KMDR010
(2) Recommended screwdriver bit for automatic
adjustment
4. Do not break the cover film before the completion
of PCB mounting, soldering, and cleaning.
5. Do not clean the trimmer capacitor after the cover
film has been broken.
MURATA: KMBT010
2. When adjusting with a screwdriver, do not apply
excessive force (preferable 1.0N (Ref; 100gf) max.)
to minimize capacitance drift. If excessive force
is applied to the screwdriver slot, it may cause
deformation of the products.
6. To break the cover film, first turn the screwdriver
more than 45 deg., the set the capacitance value.
(Only inserting the screwdriver cannot break the
cover film.)
■ Notice (Other)
Before using trimmer capacitor, please test after
assembly in your particular mass production system.
7
34
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Ceramic Trimmer Capacitors
TZ03 Series
2.5±0.2 dia.
0.5±0.2 Depth 0.5 min.
■ Features
1. Color coded case facilitates identification of
capacitance range.
2. Sealed construction prevents the penetration of
flux and dust.
6
6.6
0.25±0.05
0.2±0.05
1.2±0.1
1.0±0.1
3.1
3.5
3. Available in three adjustment styles: Top/Rear/
Side.
4. Available in both tape and reel and magazine
packaging for automatic insertion.
5. + (Cross-shaped) slot enables automatic adjustment.
B Type
E Type
N Type
Y Type
Tolerance: ±0.5
in mm
■ Applications
2.5±0.2 dia.
1. Car audio systems
2. Car clocks
0.5±0.2 Depth 0.5 min .
3. Stereos
4. Radio cassette tape recorders
5. Cordless telephones 6. Video games
7. Compact radio equipments
8. Remote keyless entry systems
9. Burglarproof devices
6
1.0±0.1
1.0±0.1
Tolerance: ±0.5
in mm
0.25±0.05
0.2±0.05
2.5±0.2 dia.
2.5±0.2 dia.
0.5±0.2 Depth 0.5 min.
0.5±0.2 Depth 0.5 min.
6.0
6
7.8
6.4
1.2±0.1
1.0±0.1
3.0
3.4
1.0±0.1
1.0±0.1
F Type
6.6
Tolerance: ±0.5
Tolerance: ±0.5
in mm
in mm
2.5±0.2 dia.
Trimmer Cap. Body
2.5±0.2 dia.
8
0.5±0.2 Depth 0.5 min.
2.5
0.5±0.2 Depth 0.5 min.
Socket
6.0
1.2
3.7
3.5
5
7
0.3
4.5
1.2
1.2
7.5
Solder
T Type
2.5±0.3
Tolerance: ±0.5
Tolerance: ±0.5
in mm
in mm
35
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Cmin. (max.)
(pF)
Cmax.
(pF)
Rated Withstanding
Part Number
TC
Q
Stator/Case Color
Voltage
Voltage
TZ03Z2R3p169
TZ03Z050p169
TZ03Z070p169
TZ03N100p169
TZ03Z100p169
TZ03T110p169
TZ03R200p169
TZ03T200p169
TZ03R300p169
TZ03P450p169
TZ03P600p169
TZ03Z500p169
TZ03R900p169
TZ03R121p169
1.25
1.5
2.0
2.1
2.7
3.0
4.2
4.2
5.2
6.8
9.8
6.0
9.0
10.0
2.3 +50/-0%
5.0 +50/-0%
NP0±200ppm/°C
NP0±200ppm/°C
NP0±200ppm/°C
N200±200ppm/°C
NP0±200ppm/°C
N450±300ppm/°C
N750±300ppm/°C
N450±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
110Vdc
110Vdc
110Vdc
Black
Blue
7.0 +50/-0%
Blue
10.0 +50/-0%
10.0 +50/-0%
11.0 +50/-0%
20.0 +50/-0%
20.0 +50/-0%
30.0 +50/-0%
45.0 +50/-0%
60.0 +50/-0%
50.0 +100/-0%
90.0 +100/-0%
White
Blue
White
Red
Pink
Green
Yellow
Brown
Orange
Black+Dot
Black
N1200±500ppm/°C 300min. at 1MHz, Cmax. 100Vdc
N1200±500ppm/°C 300min. at 1MHz, Cmax. 100Vdc
NP0±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax. 50Vdc
300min. at 1MHz, Cmax. 50Vdc
300min. at 1MHz, Cmax. 50Vdc
120.0 +100/-0% N750±300ppm/°C
Insulation Resistance : 10000M ohm Torque : 2.0 to 15.0mNm Operating Temperature Range : -25 to +85°C
A blank column is filled with terminal type codes.
■ Construction
■ Mounting Holes
B Type
E Type
3 dia.
1±0.1
3
3.3
5
6.3
8
Tolerance: ±0.5
Tolerance: ±0.5
in mm
in mm
Continued on the following page.
36
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
■ Mounting Holes
F Type
N Type
3 dia.
1±0.1
3
3.3
5
Tolerance: ±0.5
in mm
Tolerance: ±0.5
in mm
T Type
Y Type
5
5.0±0.2
Tolerance: ±0.5
in mm
(in mm)
■ Temperature Characteristics
Z070 (NP0±200ppm/°C)
T110 (N450±300ppm/°C)
+6
+4
+2
+6
+4
+2
85
55
Temp. (°C)
20
55
85
20
0
0
–25
0
0
–25
–2
Temp. (°C)
–2
–4
–6
–4
–6
8
R200 (N750±300ppm/°C)
P600 (N1200±500ppm/°C)
+6
+8
+4
+2
+6
+4
+2
55
85
20
20
55
85
0
0
–25
0
Temp. (°C)
0
–25
Temp. (°C)
–2
–2
–4
–6
–8
–4
–6
–10
Continued on the following page.
37
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
■ Temperature Characteristics
Z500 (NP0±300ppm/°C)
R121 (N750±300ppm/°C)
+8
+8
+6
+4
+6
+4
+2
55
20
85
+2
55
85
20
0
–2
–25
0
–2
–25
0
Temp. (°C)
Temp. (°C)
0
–4
–6
–8
–4
–6
–8
–10
–10
■ Frequency Characteristics
T110
Z070
1000
100
10
1000
1000
100
10
1000
100
100
Q
Q
10
10
1
100 200 300 400 500 600 700 800 900 1000
Frequency(MHz)
1
100 200 300 400 500 600 700 800 900 1000
Frequency (MHz)
R200
P450
1000
1000
1000
1000
100
100
100
100
8
Q
Q
10
10
10
10
1
100
200
300
400
500
1
100
200
300
400
500
Frequency (MHz)
Frequency (MHz)
Continued on the following page.
38
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
■ Frequency Characteristics
P600
R900
1000
1000
1000
100
10
1000
100
10
100
100
Q
Q
10
10
1
100
200
300
400
500
1
100
200
300
400
500
Frequency (MHz)
Frequency (MHz)
■ Temperature Profile
Flow
Gradual Cooling
(in air)
Solderring
Preheating (in air)
250
200
100
0
60 sec. to 120 sec.
5 sec. max.
8
39
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
8. Do not use the trimmer capacitor under the
conditions listed below.
(1) Corrosive gasses atmosphere
(ex. Chlorine gas, Hydrogen sulfide gas,
Ammonia gas, Sulfuric acid gas, Nitric oxide gas,
etc.)
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 degree C and 30 to
85%RH.
(2) In liquid (ex. water, oil, medical liquid,
organic solvent, etc.)
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
(3) Dusty / dirty atmosphere
5. Open the package just before using.
6. Prior to storing previously opened packages, the
packaging should be heat-sealed. Avoid using
rubber bands for repackaging.
(4) Direct sunlight
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
(7) Other variations of the above
7. Do not store under direct sunlight.
■ Notice (Soldering and mounting)
1. Soldering
capacitor characteristics, apply flux only to
terminals.
(1) TZ03 series can be soldered by flow soldering
method and soldering iron. Do not use reflow
soldering method.
2. Mounting
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf) max.), when the trimmer capacitor
is mounted on the PCB.
(2) Standard soldering condition
(a) Flow soldering: Refer to the standard
temperature profile.
(2) Use the suitable PCB holes which are the same
pitch as the terminal of the trimmer capacitor.
If it would not fit with the terminal, the
excessive stress would be applied to the
terminal and the trimmer capacitor may deviate
from the specified characteristics.
(b) Soldering iron:
> Temperature of tip 260+-10 degree C
> Soldering time
> Diameter
3 sec. max.
3mm max.
30W max.
> Wattage of iron
Before using other soldering conditions than
those listed above, please consult with Murata
factory representative prior to using. If the
soldering conditions are not suitable, e.g.,
excessive time and/or excessive temperature,
the trimmer capacitor may deviate from the
specified characteristics.
(3) Do not apply bending stress more than 10.0N
(Ref.; 1kgf) after the trimmer capacitor has
been mounted on the PCB.
(4) Mount trimmer capacitor in contact with PCB.
(5) In case of bending the terminals, do not apply
excessive force to the body of the product and
prevent the terminal fixing part from damaging.
3. Cleaning
(3) The dimension of mounting hole should be Murata's
standard mounting hole used at flow soldering.
The amount of solder is critical. Insufficient
amounts of solder can lead to insufficient
soldering strength on PCB. Excessive amounts of
solder may cause bridging between the terminals
or contact failure due to flux wicking up.
(1) Isopropyl alcohol and Ethyl alcohol are available
material for cleaning. Water group materials like
Pinealpha, Cleanthru cannot be used. For other
materials, please consult with Murata factory
representative prior to using.
(2) The total cleaning time by dipping, vapor and
ultra-sonic method shall be less than 2 minutes.
For ultra-sonic cleaning, the available
condition is as follows.
(4) When using soldering iron, the string solder
shall be applied to the lower part of the
8
terminal only. Do not apply flux except to the
terminals. Excessive amounts of solder and/or
applying solder to the upper part of the
> Cleaning time: 30 sec. max.
> Power: 20W/liter max.
terminal may cause fixed rotor or the contact
failure due to flux invasion into the movable
part and/or the contact point. The soldering
iron should not come in contact with the plastic
case of the trimmer capacitor. If such contact
does occur, the trimmer capacitor may be damaged.
(5) Our recommendable chlorine content of string
solder is 0.5wt% max.
> Frequency: 20 - 60kHz
> Temperature: Ambient temperature
Due to the ultra-sonic cleaning equipment's
peculiar self resonance point and the cleaning
compatibility usually depends on the jig
construction and/or the cleaning condition such
as the depth of immersion, please check the
cleaning equipment to determine the suitable
conditions. If the trimmer capacitor is cleaned
by other conditions, the trimmer capacitor may
(6) Do not use water-soluble flux (for water cleaning).
To prevent the deterioration of trimmer
Continued on the following page.
40
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Continued from the preceding page.
deviate from the specified characteristics.
minimize influence by stray capacitance.
4. Other
(Refer to the dimensions concerning the polarity.)
Note the polarity of the trimmer capacitor to
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
excessive force (preferable 1.0N (Ref; 100gf) max.)
to minimize capacitance drift. If excessive force
is applied to the screwdriver slot, it may cause
deformation of the products.
driver slot.
(1) Recommended screwdriver for manual adjustment
MURATA: KMDR010
(2) Recommended screwdriver bit for automatic
adjustment
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
MURATA: KMBT010
2. When adjusting with a screwdriver, do not apply
■ Notice (Other)
Before using trimmer capacitor, please test after
assembly in your particular mass production system.
8
41
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Packaging
■ Minimum Quantity
Minimum Quantity (pcs.)
Part Number
φ180mm Reel
φ330mm Reel
Ammo Pack
Magazine
Bulk
500
500
500
500
500
100
500
1000
3000
3000
2000
2000
1000
500
10000
10000
10000
8000
4000
-
-
-
-
TZR1
TZS2
TZY2
TZV2
TZC3
TZW4
TZB4
TZ03
-
-
-
-
-
-
-
-
-
-
500
2500
-
-
-
1000
80
Y terminal type is supplied on the 500pcs./bulk basis.
■ Dimension of Tape
TZR1 Series
TZS2 Series
2.0±0.1
2.0±0.1
4.0±0.1
1.05±0.2
1.25±0.2
0.25±0.1
4.0±0.1
4.0±0.1
4.0±0.1
+0.1
1.5 -0 dia.
+0.1
-0
1.5
Dia.
0.25±0.1
1.8±0.2
2.5±0.2
(in mm)
(in mm)
TZY2/TZV2 Series
TZC3 Series
+0.1
− 0
1.5
A
dia.
+0.1
dia.
1.5
2.0
4.0
t
2.0±0.2
0.3
− 0
0.25
2
4
A
A-Across
section
A
A-Across
section
A
3.6±0.2
8
2.7±0.2
t=TZY2 (TZVY2) : 1.6±0.2
TZV2 (TZV02) : 1.9±0.2
4.0
Tolerance : ±0.1
in mm
Tolerance: ±0.1
in mm
8
Continued on the following page.
42
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Packaging
Continued from the preceding page.
■ Dimension of Tape
TZW4 Series
TZB4 Series
+0.1
− 0
1.5
dia.
+0.1
− 0
1.5
dia.
3.55±0.2
2.6
2.0
8.0
4 .0
0.3±0.1
2
4
0.3
A
A
A
A-Across
section
4.6
8
1.8
4.3
A-Across
section
A
Direction of feed
Tolerance: ±0.1
in mm
Tolerance: ±0.1
in mm
■ Dimension of dia. 178mm Reel
TZR1/TZS2/TZY2/TZV2 Series
TZC3/TZW4/TZB4 Series
13±0.5 dia.
21±0.8 dia.
13±0.5 dia.
21±0.8 dia.
2±0.5
2±0.5
2±0.5
2±0.5
9±1.5
14±1.5
178±2 dia.
178±2 dia.
(in mm)
(in mm)
■ Dimension of dia. 330mm Reel
TZR1/TZS2/TZY2/TZV2 Series
TZC3/TZB4 Series
13.0±0.5 dia.
13.0±0.5 dia.
21.0±0.8 dia.
2.0±0.5
2.0±0.5
21.0±0.8 dia.
2.0±0.5
9.5±1.5
2.0±0.5
328±2 dia.
14.0±1.5
328±2 dia.
8
(in mm)
(in mm)
Continued on the following page.
43
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Packaging
Continued from the preceding page.
■ Dimension of Tape
■ Ammo Pack
TZ03 Series
TZ03 Series
1
0±1.5
12.7
6.35±1.3
1.5 max.
1.5 max.
2
+0.8
ø0.6±0.1
5.0
3.85±0.7
−0.2
1.7 max.
12.7±0.3
ø4.0±0.1
1 : Tolerance varies with ∆S.
2 : Except 1mm from the stand-off position.
(in mm)
8
44
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Recommended Adjustment Tools
Please use the following recommended screwdriver.
You can order this driver with part number below.
Though you can also adjust the capacitance value by commercial products, please use one which has the same head size as
the driver below.
■ For Manual Adjusutment
MURATA
Model Number
Manufacturers
Model Number
Series
Shape
80
1.5
MURATA MFG.
TZR1
TZS2
TZY2
TZV2
KMDR160
KMDR050
KMDR060
KMDR020
KMDR040
KMDR160
Bit shape:
Minus (0.3×0.13)
(in mm)
(in mm)
(in mm)
(in mm)
(in mm)
(in mm)
80
1.5
MURATA MFG.
KMDR050
Bit shape: Square (0.54×0.54)
108
18
ENGINEER INC.
DA-89
Bit shape: Minus (0.8×0.35)
125
15
9 0 0 0
VESSEL MFG.
0.9-30
NO.9000-0.9g30
Bit shape: Minus (0.9×0.4)
120
13
TORAY INDUSTRIES, INC.
TZC3 Cross Slot Type
SA-1825
Bit shape: Minus (1.8×0.45)
122
50
20
MURATA MFG.
TZC3 Standard Type (Minus Slot) KMDR010
KMDR010
8
Bit shape: Minus (2.2×0.4)
125
15
VESSEL MFG.
CERAMIC BLADE
ELECTRONICS
9 0 0 0
1.3-30
TZW4
KMDR130
NO.9000-1.3g30
Bit shape: Minus (1.3×30)
(in mm)
122
50
20
TZB4
TZ03
MURATA MFG.
KMDR010
KMDR010
Bit shape: Minus (2.2×0.4)
(in mm)
Continued on the following page.
45
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Recommended Adjustment Tools
Continued from the preceding page.
■ For Automatic Adjustment
MURATA
Model Number
Manufacturers
Model Number
Series
Shape
20
2
MURATA MFG.
TZS2
KMBT050
KMBT060
KMBT020
KMBT040
KMBT010
KMBT050
Bit shape: Square (0.54×0.54)
(in mm)
(in mm)
(in mm)
(in mm)
(in mm)
25
0.6
MURATA MFG.
TZY2
KMBT060
Bit shape: Minus (0.56 ×0.25)
25
0.6
MURATA MFG.
TZV2
KMBT020
Bit shape: Minus (0.9×0.4)
25
5
TORAY INDUSTRIES, INC.
TZC3 Cross Slot Type
JB-1825
Bit shape: Minus (1.8×0.45)
30
TZC3 Standard Type (Minus Slot)
MURATA MFG.
TZB4
TZ03
KMBT010
Bit shape: Minus (2.2×0.4)
8
46
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Qualified Standards
The products listed herein have been produced by the QS9000 and ISO9001 certified factory
MURATA FACTORY
Qualified Date
Standard
Qualified Number
Sabae Murata Mfg. Co., Ltd.
August 14, 1997
UNDERWRITERS LABORATORIES INC.
A5704
No ODCs (Ozone Depleting Chemicals) are used on Murata's all trimmer potentiometers
TRIMCAPr is a registered trademark of Murata Mfg. Co., Ltd.
47
Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.
!Note
T13E9.pdf 04.6.15
Note:
1. Export Control
For customers outside Japan
<
>
Murata products should not be used or sold for use in the development, production, stockpiling or utilization of any conventional weapons or mass-destructive
weapons (nuclear weapons, chemical or biological weapons, or missiles), or any other weapons.
For customers in Japan
<
>
For products which are controlled items subject to the “Foreign Exchange and Foreign Trade Law” of Japan, the export license specified by the law is required
for export.
2. Please contact our sales representatives or product engineers before using the products in this catalog for the applications listed below, which require especially
high reliability for the prevention of defects which might directly damage to a third party's life, body or property, or when one of our products is intended for use
in applications other than those specified in this catalog.
q Aircraft equipment
w Aerospace equipment
e Undersea equipment
t Medical equipment
u Traffic signal equipment
o Data-processing equipment
r Power plant equipment
y Transportation equipment (vehicles, trains, ships, etc.)
i Disaster prevention / crime prevention equipment
! Application of similar complexity and/or reliability requirements to the applications listed in the above
3. Product specifications in this catalog are as of April 2004. They are subject to change or our products in it may be discontinued without advance notice. Please
check with our sales representatives or product engineers before ordering. If there are any questions, please contact our sales representatives or product
engineers.
4. Please read rating and
CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
5. This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or
transact the approval sheet for product specifications before ordering.
6. Please note that unless otherwise specified, we shall assume no responsibility whatsoever for any conflict or dispute that may occur in connection with the effect
of our and/or a third party's intellectual property rights and other related rights in consideration of your use of our products and/or information described or
contained in our catalogs. In this connection, no representation shall be made to the effect that any third parties are authorized to use the rights mentioned
above under licenses without our consent.
7. No ozone depleting substances (ODS) under the Montreal Protocol are used in our manufacturing process.
http://www.murata.com/
He a d O ffice
In te rn a tio n a l Divisio n
2-26-10, Tenjin Nagaokakyo-shi, Kyoto 617-8555, Japan Phone: 81-75-951-9111
3-29-12, Shibuya, Shibuya-ku, Tokyo 150-0002, Japan
Phone: 81-3-5469-6123 Fax: 81-3-5469-6155 E-mail: intl@murata.co.jp
厂商 型号 描述 页数 下载

MURATA

 		TZS2K200A001A00 [ Ceramic Trimmer Capacitors ] 46 页

MURATA

 		TZS2K200B001A00 [ Ceramic Trimmer Capacitors ] 46 页

MURATA

 		TZS2K200C001A00 [ Ceramic Trimmer Capacitors ] 46 页

MURATA

 		TZS2KA001B00 [ Ceramic Trimmer Capacitors ] 1 页

MURATA

 		TZS2KB001B00 [ Ceramic Trimmer Capacitors ] 1 页

MURATA

 		TZS2KE001B00 [ Ceramic Trimmer Capacitors ] 1 页

MURATA

 		TZS2KF001B00 [ Ceramic Trimmer Capacitors ] 1 页

MURATA

 		TZS2KN001B00 [ Ceramic Trimmer Capacitors ] 1 页

MURATA

 		TZS2N200A001A00 [ Ceramic Trimmer Capacitors ] 46 页

MURATA

 		TZS2N200B001A00 [ Ceramic Trimmer Capacitors ] 46 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.225109s
