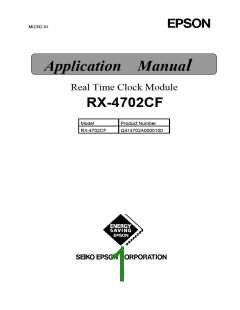

MQ392-01
Application Manual
Real Time Clock Module
RX-4702CF
Model
Product Number
RX-4702CF
Q414702A0000100
In pursuit of "Saving" Technology ,Epson electronic device.
Our Lineup of semiconductors, Liquid crystal displays and quartz devices
assists in creating the products of our customers' dreams.
Epson IS energy savings.
NOTICE
• The material is subject to change without notice.
• Any part of this material may not be reproduced or duplicated in any form or any means without the
written permission of Seiko Epson.
• The information, applied circuit, program, using way etc., written in this material is just for reference.
Seiko Epson does not assume any liability for the occurrence of infringing any patent or copyright of third
party. This material does not authorize the licence for any patent or intellectual property rights.
• Any product described in this material may contain technology or the subject relating to strategic
products under the control of the Foreign Exchange and Foreign Trade Law of Japan and may require an
export licence from the Ministry of International Trade and industry or other approval from another
government agency.
• The products (except for some product for automotive applications) listed up on this material are designed
to be used with ordinary electronic equipment (OA equipment, AV equipment, communications equipment,
measuring instruments etc). Seiko Epson does not assume any liability for the case using the products with
the appoication required high reliability or safety extremely (such as aerospace equipment etc).
When intending to use any our product with automotive application and the other application than
ordinary electronic equipments as above, please contact our sales representatives in advance.
RX - 4702 CF
CONTENTS
1. Overview.................................................................................................................. 1
2. Block diagram........................................................................................................ 1
3. Terminal description............................................................................................ 2
3.1. Terminal connections.............................................................................................................. 2
3.2. Terminal functions ................................................................................................................... 2
4. Absolute maximum ratings................................................................................ 3
5. Recommended operating conditions ............................................................ 3
6. Frequency characteristics................................................................................. 3
7. Electrical characteristics.................................................................................... 3
7.1. DC electrical characteristics ................................................................................................. 3
7.2. Temperature sensor characteristics................................................................................... 4
7.3. AC electrical characteristics.................................................................................................. 5
8. How to use.............................................................................................................. 6
8.1. Register table............................................................................................................................ 6
8.2. Register description................................................................................................................. 7
8.2.1. Clock and calendar registers ( Reg-0 to Reg-6 )............................................................... 7
8.2.2. Alarm registers ( Reg-7 to Reg-A ).................................................................................. 7
8.2.3. Additional counter ( Reg-B,C )........................................................................................... 8
8.2.4. Control register 3 ( Reg-D ) ............................................................................................... 8
8.2.5. Control register 3 ( Reg-D ) ............................................................................................... 9
8.2.6. Control register 2 ( Reg-F )................................................................................................ 9
8.3. Read/write of data.................................................................................................................. 10
8.4. Alarm interrupt......................................................................................................................... 11
8.5. FOE start function.................................................................................................................. 12
8.6. Power Down / power Up Timing........................................................................................ 12
8.7. External connection example............................................................................................. 12
9. External dimensions / Marking layout......................................................... 13
9.1. External dimensions.............................................................................................................. 13
9.2. Marking layout......................................................................................................................... 13
10. Reference data................................................................................................. 14
11. Application notes.............................................................................................. 15
RX - 4702 CF
Serial RTC module with alarm and timer function
RX - 4702 CF
Built-in 32.768 kHz crystal oscillator with frequency adjusted
Alarm interrupt function for day of week, day, hour, and minute
Timer interrupt function which can be set up between 1/4096 second and 255 minutes
OVF interrupt function based on 12-bit additional counter
Ability to detect stopping of oscillation and time update
Automatic adjustment for leap year
Built-in temperature sensor ( voltage output : 7.8 mV / °C Typ.)
Wide range of interface voltage between 1.6 V and 5.5 V
Wide range of clock voltage between 1.6 V and 5.5 V
Low power consumption at 0.5 µA / 3 V ( Typ.)
Available as small package ( CF : SON-10 pin PKG.)
1. Overview
This module is a serial interface real time clock that has a built-in crystal oscillator. The module offers
many functions such as clock & calendar circuitry with automatic leap year adjustment (from seconds to
year), additional counter, alarm, and time update. In addition, it is equipped with a diode temperature
sensor (analog voltage output).
The serial interface can be controlled by three signal lines, and it saves the port which a system uses
most. Because it is available in small package SON in high density mounting, it is ideally suited for
applications such as mobile phones, handy terminals or other small electronic systems.
2. Block diagram
32.768 kHz
OSC
Control Line
DIVIDER
CLOCK
and
VTEMP
/ SOFF
Temperature
Sensor
CALENDAR
ADDITIONAL
COUNTER
REGISTER
FOUT
FOE
FOUT
CONTROLLER
INTERRUPTS
CONTROLLER
ALARM
/ IRQ
REGISTER
DATA
CLK
CE
CONTROL
REGISTER
BUS
and
INTERFACE
CIRCUIT
SYSTEM
CONTROLLER
Page - 1
MQ - 392 - 01
RX - 4702 CF
3. Terminal description
3.1. Terminal connections
RX - 4702 CF
1. CE
10. VDD
9. VTEMP
8. / IRQ
7. FOE
# 1
# 10
2. CLK
3. DATA
4. / SOFF
5. GND
# 5
# 6
6. FOUT
SON - 10pin
3.2. Terminal functions
Signal
I / O
Signal description
name
This is a chip enabled input pin with the builit-in pull-down resistor.
When the CE pin is "H" level, access to this RTC is possible.
When the CE pin is at the "L" level, the DATA pin is at the high impedance level and
the CLK and DATA pins cannot accept input.
CE
Input
Input
This is a shift clock input pin for serial data transmission. In the write mode, it takes in
data from the DATA pin using the CLK signal rise edge. In the read mode, it outputs
data from the DATA pin using the fall edge.
CLK
This is a data input/output pin for serial data transmission. After the input rise of CE, by
using the first 8-bit write data to set the write or read mode, this pin can be set as either
input pin or output pin.
DATA
FOUT
Bi-directional
Output
This pin outputs the clock signal of frequency. (32.768 kHz CMOS output). Depending
on the FOE input pin, output from the FOUT pin can be prohibited.
This is the input pin for the FOUT output control. When the FOE pin is at the "H" level,
the FOUT pin goes into the output state; when it is at the "L" level, the FOUT pin is at
the high impedance level.
FOE
Input
VTEMP
Output
This is the voltage output pin for the temperature sensor (analog).
This is the input pin for the temperature sensor control. When the /SOFF pin is at the
"H" level and the SON bit is 1, the temperature sensor circuitry starts and outputs a
voltage according to the temperature of the VTEMP pin. When the /SOFF pin is at the
"L" level, the temperature sensor circuitry stops and the VTEMP pin is at the high
impedance level.
/ SOFF
Input
/ IRQ
VDD
Output
This is an open drain output pin for alarm and additional counter interrupt.
This pin connects to the plus side of the power.
GND
This pin connects to the minus side (ground) of the power.
This pin is not connected internally.
Use OPEN, or GND or VDD to connect.
N.C.
* Be sure to connect a filter capacity of at least 0.1 µF close to VDD GND.
Page - 2
MQ - 392 - 01
RX - 4702 CF
4. Absolute maximum ratings
GND=0 V
Parameter
Symbol
Condition
Rating
Unit
Power voltage
Input voltage
Output voltage 1
Output voltage 2
VDD
VIN
to +7.0
to VDD+0.3
to +8.0
V
V
V
0.3
GND0.3
GND0.3
input pin
/ IRQ pin
VOUT1
VOUT2
TSTG
FOUT, DATA pins
to VDD+0.3
V
GND0.3
55
Stored bare product after unpacking
Storage temperature
to +125
°C
5. Recommended operating conditions
GND=0 V
Parameter
Symbol
Condition
Rating
Unit
Power voltage
Clock voltage
Operating temperature
VDD
VCLK
TOPR
1.6 to 5.5
1.6 to 5.5
to +85
40
V
V
°C
No condensation
6. Frequency characteristics
GND=0 V
Parameter
Symbol
Condition
Rating
5 ± 23
± 2 Max.
Unit
f / f
f / V
Ta= +25 °C, VDD=3.0 V
Ta= +25 °C, VDD=1.6 V to 5.5 V
Ta= 20 °C to +70 °C,
× 106
( 1) ( 2)
Frequency precision
Oscillation start time
Frequency temperature
characteristics
× 106 / V
Top
+10 / 120
× 106
VDD= 3.0 V ; Reference at +25 °C
Frequency voltage
characteristics
Aging
tSTA
3 Max.
s
Ta= +25 °C, VDD=3.0 V
fa
Ta= +25 °C, VDD=3.0 V ; first year
± 5 Max.
× 106 / year
1 ) This difference is 1 minute by 1 month. ( excluding offset )
2 ) Also,This precision includes shift of frequency by the solder handling of reflow.
7. Electrical characteristics
If not specifically indicated, GND=0 V, VDD=1.6 V to 5.5 V
7.1. DC electrical characteristics
, Ta= 40 °C to +85 °C
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Current
consumption (1)
Current
consumption (2)
Current
consumption (3)
Current
consumption (4)
Current
consumption (5)
Current
consumption (6)
Current
consumption (7)
Current
CE, FOE, /SOFF = GND
/IRQ = VDD
32.768 kHz output is OFF
Sensor output is OFF
IDD1
VDD=5 V
VDD=3 V
0.8
1.6
µA
IDD2
IDD3
IDD4
IDD5
IDD6
IDD7
IDD8
0.5
3.0
1.7
8.0
5.0
50
1.0
7.5
4.5
20.0
12.0
75
µA
µA
µA
µA
µA
µA
µA
VDD=5 V,
CL= 0 pF
VDD=3 V,
CE, /SOFF = GND
CL= 0 pF FOE, / IRQ = VDD
32.768 kHz output is ON
Sensor output is OFF
VDD=5 V,
CL=30 pF
VDD=3 V,
CL=30 pF
CE, FOE, = GND
VDD=5 V
VDD=3 V
Input pin
/SOFF, / IRQ = VDD
32.768 kHz output is OFF
Sensor output is ON
40
60
consumption (8)
VIH
VIL
0.8VDD
GND0.3
VDD+0.3
0.2VDD
V
V
Input voltage
Input
leakage current
ILK
Input Pin except CE, VIN= VDD or GND
0.5
0.5
µA
Input resistance (1)
RDWN1
RDWN2
VOH1
VOH2
VOH3
VOL1
VOL2
VOL3
VOL4
VOL5
VDD=5 V
VDD=3 V
75
150
4.5
2.0
150
300
300
600
5.0
3.0
3.0
CE pin
VIN=VDD
kΩ
kΩ
V
V
V
V
V
V
V
Input resistance (2)
Output voltage (1)
VDD=5 V, IOH=1 mA
VDD=3 V, IOH=1 mA
VDD=3 V, IOH=100 µA
VDD=5 V, IOL= 1 mA
VDD=3 V, IOL= 1 mA
VDD=3 V, IOL= 100 µA
VDD=5 V, IOL= 1 mA
VDD=3 V, IOL= 1 mA
DATA ,
FOUT pins
2.9
GND
GND
GND
GND
GND
GND+0.5
GND+0.8
GND+0.1
GND+0.25
GND+0.4
DATA ,
FOUT pins
Output voltage (2)
/ IRQ pin
V
Output
leakage current
Output pins other than VTEMP
VOUT= VDD or GND
IOZ
0.5
0.5
µA
Page - 3
MQ - 392 - 01
RX - 4702 CF
If not specifically indicated, GND=0 V, VDD=2.7 V to 5.5 V
7.2. Temperature sensor characteristics
, Ta= 40 °C to +85 °C
Parameter Symbol
Condition
Min.
Typ.
Max.
Unit
Temperature
output voltage
Output precision TACR
Temperature
sensitivity ( 1)
VTEMP pin, Ta=+25 °C
GND based output voltage
Ta=+25 °C
VTEMP
1.480
V
°C
± 5.0
8.3
VSE
40 °C Ta +85 °C
40 °C Ta +85 °C
NL ≤ ±2.0 %
7.3
40
7.8
mV / °C
%
Linearity ( 2)
Temperature
detection range
Output
NL
± 2.0
+ 85
TSOP
°C
VTEMP pin, Ta=+25 °C
GND standard and VDD standard
RO
1.0
3.0
kΩ
resistance ( 3)
CL
RL
100
pF
kΩ
Load condition
500
VDD= 3.0 V , CL=100 pF , RL=500 k,
within ±1 °C
Response time
tRSP
200
µs
1) Temperature sensitivity
2) Linearity
VSE = ( V (+85 °C) V (40 °C) ) / 125 [ mV / °C ]
a : Maximum deviation between the measured value of
VTEMP and the approximate straight line
a
b
NL =
× 100 [%]
b : Difference between the measured values at -40 °C and
+85 °C
VTEMP
a
[ V ]
V (40 °C )
a
Approximate
straight line
b
Output
voltage
Measured value
a
V(+85 °C )
Ta
0
+85
40
[°C]
Temperature
V1
∆ Ι1
3) Output resistance ( Ro )
Ro =
RTC
OP.AMP.
VTEMP
1 MΩ
Ι1
V1
Page - 4
MQ - 392 - 01
RX - 4702 CF
7.3. AC electrical characteristics
Parameter
If not specifically indicated, GND=0 V, Ta= 40 °C to +85 °C
VDD=3 V ± 10 % VDD=5 V ± 10 %
Symbol Condition
Unit
Min. Typ. Max. Min. Typ. Max.
tCLK
tWH
tWL
tCS
tCH
tCR
tDS
tDH
tWZ
tDO
tRD
CLK clock cycle
600
300
300
300
300
400
75
350
175
175
175
175
300
50
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
CLK H pulse width
CLK L pulse width
CE setup time
CE hold time
CE recovery time
Write data setup time
Write data hold time
Write data disable time
Output mode switching time
Read data delay time
75
50
0
0
0
0
CL=50 pF
CL=50 pF
RL=10 kΩ
300
200
120
100
tRZ
Output disable time
ns
tRF
Input rise/fall time
FOUT duty
100
60
50
60
ns
%
40
40
tW / t
50% VDD level
Timing chart
50
%
C E
t
tCH
t
CR
RF
t CS
t WH tWL
t RF
90 %
CLK
10 %
t DS
t
DH
Data Write
DATA
D 0
D 1
D 6
D 7
D 0
D 6
D 7
(Setup code, setup address)
(Write data)
t DO
Data Read
t
RZ
t
WZ
D 7
%
%
90
10
DATA
D 0
D 1
D 6
D 0
tRD
D 6
D 7
(Read data)
Starting from here the DATA pin goes into the
output mode.
(Setup code, setup address)
Page - 5
MQ - 392 - 01
RX - 4702 CF
8. How to use
8.1. Register table
Address
Function
bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0
note
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
fos
fr
40
40
¡
20
20
20
5
10
10
10
4
8
8
8
3
8
8
8
8
8
3
8
8
4
4
4
2
4
4
4
4
4
2
4
4
2
2
1
1
second
minute
3
fr
2
1
hour
3, 5
3
fr
6
1
0
day of week
day
¡
fr
20
¡
10
10
10
10
10
4
2
1
3, 5
3, 5
fr
2
1
month
C
40
40
80
AE
AE
AE
AE
128
fr
20
20
20
5
2
1
year
2
1
minute alarm
hour alarm
day of week alarm
day alarm
additional counter 1
additional counter 2
control 3
2
1
6
6
1
0
20
32
AC0
¡
10
16
2
1
6
64
AC1
2
1
OVF 2048 1024
512
256
3, 4
¡
¡
FOES TEST1
ACIE ACE SON
2, 5, 7
4, 5
¡
¡
¡
¡
¡
¡
AF
AIE
control 1
¡
¡
¡
¡
TEST0 STOP RESET HOLD
control 2
2, 5, 7
Note
1 )
When after the initial power-up or when the result of read out the fos bit is "1" , initialize all registers, before
using the module.
Be sure to avoid entering incorrect date and time data, as clock operations are not guaranteed when the data or
time data is incorrect.
Access is specified by the first 4 bits in the serial communication.
Setting
Mode
Code
Write
Read
3 h
C h
At the initial power supply, the FOES, ACE, SON and TEST0, TEST1 bits are reset to 0. For the other bits,
because their register values are not fixed, be sure to initialize them before use. During the initialization, do not
use data other than date and time; otherwise there is no guarantee that the clock will operate.
2 )
The ‘fr' bits are read only bit and cannot be written.
3 )
4 )
5 )
6 )
7 )
Only the write "0" is possible to AF and OVF.
Don't write "1" at an initial value of " ¡ " bit as "0" afterwards.
The "" bits are read/write bits as same as memory.
The TEST0 and TEST1 bits are reserved for testing work by EPSON. Be sure to set "0" for this bit.
Page - 6
MQ - 392 - 01
RX - 4702 CF
8.2. Register description
8.2.1. Clock and calendar registers ( Reg-0 to Reg-6 )
Data is in the BCD format. For example, if the second register is "0101 1001", this means 59 seconds. The time
measurement uses the 24-hour format (fixed).
If the alarm interrupt is not used, registers 7 to A can be used as 7-bit memory register. In this case, be sure to set
the AIE(Alarm Interrupt Enable) bit to 0 and forbid use of the alarm interrupt.
If the Timer interrupt is not used, register D can be used as an 8-bit memory register. In this case, be sure to set the
TIE (Timer Interrupt Enable) bit to 0 and forbid use of the Timer interrupt.
Year register and leap year, and year-digit carry bits
If the year register's 2-digit BCD is divided by four and the remainder is 0, this year is determined as the
leap year. This works automatically for both the Western calendar as well as the Japanese Heisei calendar.
(Year 00 is taken as a leap year.)
Also, for the year register, 99 is followed by 00. At this time, the year-digit carry bit C (bit 6 of register 5) is
set to 1.
· Day of week register
The day of week register makes use of the 7 bits from 0 to 6. The bits are assigned as shown in the
following table. Be sure not to set multiple days of week to 1.
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
Day of week
0
0
0
0
0
0
1
0
0
0
0
0
1
0
0
0
0
0
1
0
0
0
0
0
1
0
0
0
0
0
1
0
0
0
0
0
1
0
0
0
0
0
1
0
0
0
0
0
0
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
fos ( OSC Flag )
This flag is a bit for recording when the oscillation stops. This bit is used to detect when decrease in the
power voltage causes the oscillation to stop. 1 indicates oscillation has stopped and this information is kept
until 0 is written to it. This flag is not affected even when other bits (STOP, RESET) are 1.
fr ( READ Flag )
This flag is a bit which becomes 0 when the RTC is set to the non-selection state (CE input pin becomes
"L"), or 1 when the RTC is set to the selection state (CE becomes "H") during which there is a 1 second
digit increase. Because of this characteristic, it becomes possible to determine whether a 1 second digit
increase has occurred during read-out of the clock register. If fr is 1, it becomes necessary to read all the
clock registers again.
C ( Year-digit Carry bit in register5.)
When the year register advances from 99 to 00, if 0 is written to the value before the advance in year, this
bit is set to 1. Even thought the year register of this RTC uses the lower 2 digits of the Western calendar, by
looking at the year-digit carry bit, it becomes possible to handle the upper two digits of the Western
calendar also.
For example, the year-digit carry bit can be used to handle the four-digit year value in a way so that if it is 0,
the upper two digits are considered as 19, or if it is 1 the upper two digits are considered as 20.
8.2.2. Alarm registers ( Reg-7 to Reg-A )
Alarm can be set to day of week, day, hour, or minute. Each of the respective alarm register has the AE bit (Alarm
Enable bit) attached to bit 7. By taking advantage of this bit, the hourly alarm and daily alarm can easily be set up.
The day of week alarm can be set to any multiple days of the week. When the AE bit is 0, the appropriate register
and the clock register are compared; when the bit is 1, this means "don't care" and the data is ignored and the two
are regarded as the same. When the alarm goes off, the AF (Alarm Flag) bit is set to 1; if at this moment the AIE
(Alarm Interrupt Enable) bit is 1, the /IRQ pin is set to the low level and the interrupt signal occurs. If the AIE bit is 0,
the alarm interrupt output from the /IRQ pin will be prohibited.
The relationship between the day of week alarm bit and each day of the week is shown as follows:
bit
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
Wednesday
Day of week Saturday
Friday
Thursday
Tuesday
Monday
Sunday
Page - 7
MQ - 392 - 01
RX - 4702 CF
8.2.3. Additional counter ( Reg-B,C )
Address
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
B
C
128
fr
64
AC1
32
AC0
16
OVF
8
4
2
512
1
256
2048
1024
This is a 12-bit presettable count-up counter. After the initial value is set, when the ACE (Additional Counter Enable)
bit of control register 3 is set to 1, at the timing of the source clock selected at the AC0 and AC1 bits of Reg-C,
count-up continues as long as the ACE bit is 1.
When the above Additional counter overflows (FFFh -> 000h), the OVF bit becomes 1. At this moment, if the ACIE
(Additional Counter Interrupt Enable) bit of control register 3 has been set to 1, it is possible to trigger the additional
counter overflow interrupt at the /IRQ pin. As long as the count-up operation is not stopped by the register
operation, the clock operation continues even if the RTC is in the non-selection state (during backup), and interrupt
from this state can happen.
During data read of the additional counter, if the fr flag is 1, this indicates the counter has been updated during the
read operation; therefore it is necessary to read the counter data again. Also, if 16 Hz is selected for the source
clock, because the update timing cannot be caught at the fr flag when the counter is operating, an update check
with data read at 2 times is required. However, while the counter is stopping, such data read at 2 times is not
required.
By using the additional counter function, time lapse measurement, various cooking Timer operations of interrupt
after n minutes, and long Timer can be made possible.
When you set data to this counter, set data to register B first.Set data to register C next.Set data to both register by
all means.
additional counter and source clock selection
AC1
AC0
Source clock
Possible count range
0
0
1
1
0
1
0
1
16 Hz
0
0
0
0
to 255.93 seconds
to 4095 seconds
to 4095 minutes
to 4095 hours
Update in seconds
Update in minutes
Update in hours
8.2.4. Control register 3 ( Reg-D )
Address
D
bit 7
bit 6
bit 5
¡
bit 4
¡
bit 3
¡
bit 2
bit 1
ACE
bit 0
FOES
TEST1
ACIE
SON
TEST1 bit : this bit is reserved for testing work by EPSON.
Be sure to always set this bit to 0. Be careful not to set this bit to 1 accidentally when writing to other bits of
Reg-D. It can be cleared by setting the CE pin to "L".
FOES bit ( FOE Start Mode )
When this bit is set to 1, the additional counter will not start at the time 1 is written to the ACE( Additional
Counter Enable) bit of control register 3. With the ACE bit in 1, when the FOE input pin changes from the
"H" level to the "L" level (fall edge), the additional counter will start.
When the FOES bit is set to 0, the additional counter will start at the time the 1 is written to the
ACE( Additional Counter Enable) bit of control register 3. When the power is supplied initially, this bit is
reset to 0.
ACIE bit ( Additional Counter Interrupt Enable )
This bit determines whether the interrupt signal should be generated from the /IRQ pin when the overflow
interrupt event of the additional counter occurs. When the ACIE bit is 1, the interrupt signal is generated.
ACE bit ( Additional Counter Enable )
When this bit is set to 1, the additional counter starts the count-up. When this bit is set to 0, the additional
counter stops the count-up. When the power is supplied initially, this bit is reset to 0.
SON bit ( Sensor ON )
When this bit is 1 and, furthermore, the /SOFF pin is at the "H" level, the builit-in temperature sensor
circuitry starts and the analog voltage is output from the VTEMP pin according to the temperature. When
this bit is 0, the temperature sensor circuitry stops and the VTEMP pin is at the high impedance level. When
the power is supplied initially, this bit is reset to 0.
Page - 8
MQ - 392 - 01
RX - 4702 CF
8.2.5. Control register 3 ( Reg-D )
Address
E
bit 7
¡
bit 6
¡
bit 5
¡
bit 4
¡
bit 3
AF
bit 2
¡
bit 1
AIE
bit 0
¡
AF bit ( Alarm Flag )
When an alarm occurs the AF bit sets to 1.
Data is kept until 0 is written to bit. 1cannot be written to this bit.
AIE bit ( Alarm Enable )
AIE bit decides whether to generate the interrupt signal when the alarm events occur.
The AIE bit controls the alarm interrupt.
8.2.6. Control register 2 ( Reg-F )
Address
F
bit 7
¡
bit 6
bit 5
bit 4
bit 3
bit 2
¡
bit 1
¡
bit 0
¡
TEST0
STOP
RESET HOLD
TEST0 bit : this bit is reserved for testing work by EPSON.
Be sure to always set this bit to 0. Be careful not to set this bit to 1 accidentally when writing to other bits of
Reg-F. It can be cleared by setting the CE pin to "L".
STOP bit
When this bit is set to 1, the clock stops after 2 kHz of split cycle counter. When this bit becomes 0 the
clock resumes. When you needs stop to the clock update, set " 1" to STOP bit and RESET bit both.
RESET bit
When this bit is set to 1, the counter between 2 kHz and 1 Hz is reset and the clock also stops. After 1 is
written to this bit, this can be released by setting CE to "L". This bit is not influenced by states of the other
bits. When you use this bit, and update stops, use STOP bit simultaneously.
HOLD bit
When this bit is set to 1, second digit increase is prohibited. If second digit increase happens while this bit
is set to 1, when this bit returns to 0 the automatic compensation will work to correct by one unit. It is
recommended that the HOLD bit be within one second.
Function description table
Bit
Function
Alarm
Additional
counter
STOP
RESET
HOLD
Clock
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
runs
1
runs
stops
stops
stops
stops
stops
stops
stops
runs 2
stops
stops
stops
stops
stops
stops
stops
stops
stops
stops
stops
stops
stops
1 : If the deviation is within 1 second, the automatic compensation function will kick in to
perform the automatic compensation.
2: Runs only the ACE( Additional Counter Enable ) bit is 1.
Page - 9
MQ - 392 - 01
RX - 4702 CF
8.3. Read/write of data
After read/write and the CE input rise, the 4-bit mode is set up and then the 4-bit address is specified. Then, data
read/write in units of 8 bits is performed. If input of unit of 8-bit data is not finished before the CE input falls, the 8-bit
write data will be ignored at the time CE input falls. (The previous data is undetermined.) Both read and write use
LSB-First.
Auto incrementing of the address is cyclic, so address "F" is followed by address "0".
8.3.1. Write of data
1) Take "3" as the write mode in the first four bits after the CE input rise, and set the address to write to the
next four bits.
2) The next 8 bits of write data is written to the address set earlier, and the next 8 bits of data is written to
the address which is automatically incremented from the last one.
C E
CLK
DATA
D0 D1 D2 D3 D0 D1 D2 D3 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Write mode
setup code (3)
Setup address (N)
Data write(address N)
Data write(address N+1)
* When writing data, the data needs to be entered in 8-bits units.
If the input of data in 8-bits unit is not completed before CE input falls, the 8-bits data will not be written
properly at the time CE input falls.
8.3.2. Read of data
1) Take "C" as the read mode in the first four bits after the CE input rise, and set the address to read to the
next four bits.
2) The next 8 bits of read data is read from the address set earlier, and the next 8 bits of data is read from
the address which is automatically incremented from the last one.
C E
CLK
D0 D1
D0 D1
D0 D1 D2 D3 D0 D1 D2 D3
D2 D3 D4 D5 D6 D7
Data read(address N)
D2 D3 D4 D5 D6 D7
Data read(address N+1)
DATA
Setup address
Read mode
setup code (C)
From here the DATA pin turns into the output
8.3.3. Write/Read mode setup code.
2
Mode
Setup
Code
Prohibition
Code
Write
Read
3 h
C h
1 h
8 h
1) In the mode setting code, if a value other than those listed above is used, the subsequent data will be
ignored and the DATA pin remains in the input state.
2) Don't use the Prohibition code.
Page - 10
MQ - 392 - 01
RX - 4702 CF
8.4. Alarm interrupt
When the alarm matches and AIE=1, the /IRQ pin outputs "L"; when AIE=0, the /IRQ pin is at the high impedance
level. The alarm interrupt is output when "carry" from the 10-second digit to minute digit occurs
"1"
"1"
"1"
AIF bit
The AIE bit is not output in the 0 range.
"0"
"0"
High impedance
/IRQ output
AF bit
"L" level
"1"
"0"
Alarm interrupt timing
0 is written to the AF bit.
How to use it
The day of week, day, hour, and minute can be set. For day of week, multiple days can be set at a time.
To avoid unintended hardware interrupt during the alarm setup, it is recommended that initially both the AF
bit and AIE bit be set to 0. Then, set up the alarm data, and apply zero clear to the AF flag in order to
initialize the alarm circuitry with certainty. Afterwards, set the AIE bit to 1. If no hardware interrupt is
desired to be used, set the AIE bit to 0, and monitor the AF bit with software as required.
Usage example
1 ) Set the alarm to go off at 6 PM tomorrow
0 to the AIE bit and the AF bit.
· Write
· Write 1 to the AE bit of the day alarm.
· Get the current day of week stored in register 3 in the day of week alarm register, left shift the data
by 1 bit and then perform the write operation. (Be careful with the fr bit. If bit 6 is 1 (Saturday),
write 01h (Sunday).)
· Write 18h to the hour alarm register.
· Write 00h to the minute alarm register.
· Apply zero clear to the AF bit.
· Write 1 to the AIE bit.
2 ) Set the alarm to go off at 6 am everyday except Saturday and Sunday
· Write 0 to the AIE bit and the AF bit.
· Write 1 to the AE bit of the day alarm.
· Write 3Eh to the day of week alarm register.
· Write 06h to the hour alarm register.
· Write 00h to the minute alarm register.
· Apply zero clear to the AF bit.
· Write 1 to the AIE bit.
Page - 11
MQ - 392 - 01
RX - 4702 CF
8.5. FOE start function
When the FOES(FOE Start Mode) bit of control register 3 is set to 1, the additional counter function triggered by
FOE starts. While this mode is selected, the additional counter does not starts when 1 is written to the ACE
(Additional Counter Enable) bit of control register 3.
With the ACE bit being 1, the additional counter starts when the FOE input pin changes from the "H" level to the "L"
level (fall edge). After the additional counter starts, regardless of the state of the FOE pin, as long as it is not
stopped by the register operation (ACE bit being 0), it will continue even if RTC is in the non-selected state. When
the power is supplied initially, the FOES bit is reset to 0.
FOE pin
Calculation
counter
Counter starts
Counter starts
ACE:"1"
ACE:"0" ACE:"1"
Software process
8.6. Power Down / power Up Timing.
VDD
VCLK
CD
F
R
t
t
t
tCU
CE
VIL
VIL
Backup
Parameter
Symbol
Condition
Min.
0
2
1
0
Typ.
Max.
Unit
CE time before power drop
Power drop time
Power rise time
tCD
tF
tR
µs
µs / V
µs / V
µs
CE time after power rise
tCU
When main power souce input to VDD from backup condition, CE should be definitely LOW
8.7. External connection example
Note
4.7 µF
DD
V
Schottky
Barrier
Diode
+
V
DD
RX - 4702
VO
V
SS
Voltage
Detector
V
DD
CE
DATA
CLK
0.1 µF
/ IRQ
FOUT
FOE
GND
Note :
It uses the secondary battery or a lithium battery. When using the secondary battery, the diode is not required.
When using the lithium battery, the diode is required.
For detailed value on the resistance, please consult a battery manufacturer.
Page - 12
MQ - 392 - 01
RX - 4702 CF
9. External dimensions / Marking layout
9.1. External dimensions
RX - 4702 CF ( SON-10pin )
External dimensions
Recommended soldering pattern
5.0 ± 0.2
0.4
0.26
1.0
#10
# 6
1.0
0.6
# 1
# 5
# 5
# 1
4.6
1.2 Max.
0.1
Unit : mm
9.2. Marking layout
RX - 4702 CF ( SON-10pin )
Logo
Type
E 4702
123 A
#1 Pin Mark
Production lot
Contents displayed indicate the general markings and display, but are not the standards for the fonts, sizes and positioning.
Page - 13
MQ - 392 - 01
RX - 4702 CF
10. Reference data
(1)Example of frequency and temperature
characteristics
[Finding the frequency stability]
θT = +25 C Typ.
°
1. Frequency and temperature characteristics can be
approximated using the following equations.
fT = α ( θT - θX )2
10-6
= -0.035 10-6 Typ.
×
α
×
0
: Frequency deviation in any temperature
fT
α
1 / °C2 )
: Coefficient of secondary temperature
( ( 0.035±0.005 ) × 10-6 / °C2 )
: Ultimate temperature (+25±5 °C)
: Any temperature
-50
-100
-150
θT °C )
θX °C )
2. To determine overall clock accuracy, add the frequency
precision and voltage characteristics.
-50
0
+50
+100
Temperature [ C]
°
f/f = f/fo + fT + fV
: Clock accuracy (stable frequency) in
any temperature and voltage.
: Frequency precision
: Frequency deviation in any
temperature.
f/f
(2) Example of frequency and voltage characteristics
f/fo
fT
Condition :
3 V as reference, Ta=+25 °C
+ 3
: Frequency deviation in any voltage.
fV
0
3. How to find the date difference
Date Difference = f/f × 86400(Sec)
* For example: f/f = 11.574 × 10-6 is an error of
approximately 1 second/day.
- 3
2
3
4
5
DD
Supply Voltage V [V]
(3) Current and voltage consumption characteristics
(3-1) Current consumption when non-accessed (i)
when FOUT=OFF
(3-2) Current consumption when non-accessed (ii)
when FOUT=32.768kHz
Condition :
Condition :
Ta = +25 °C
CE, /SOFF, FOE = GND
Ta = +25 °C
CE, /SOFF = GND
1.0
10
DD
/ IRQ = V
DD
FOE, / IRQ = V
FOUT ; Output OFF
FOUT ; 32.768 kHz output ON
CL=30 pF
0.5
5
CL=0 pF
5
2
3
4
5
2
3
4
DD
DD
Supply Voltage V [V]
Supply Voltage V [V]
Page - 14
MQ - 392 - 01
RX - 4702 CF
11. Application notes
1) Notes on handling
This module uses a C-MOS IC to realize low power consumption. Carefully note the following cautions when handling.
(1) Static electricity
While this module has built-in circuitry designed to protect it against electrostatic discharge, the chip could still be damaged by a
large discharge of static electricity. Containers used for packing and transport should be constructed of conductive materials. In
addition, only soldering irons, measurement circuits, and other such devices which do not leak high voltage should be used with
this module, which should also be grounded when such devices are being used.
(2) Noise
If a signal with excessive external noise is applied to the power supply or input pins, the device may malfunction or "latch up." In
order to ensure stable operation, connect a filter capacitor (preferably ceramic) of greater that 0.1F as close as possible to the
power supply pins (between VDD and GNDs). Also, avoid placing any device that generates high level of electronic noise near
this module.
* Do not connect signal lines to the shaded area in the figure shown in Fig. 1 and, if possible, embed this area in a GND land.
(3) Voltage levels of input pins
When the input pins are at the mid-level, this will cause increased current consumption and a reduced noise margin, and can
impair the functioning of the device. Therefore, try as much as possible to apply the voltage level close to VDD or GND.
(4) Handling of unused pins
Since the input impedance of the input pins is extremely high, operating the device with these pins in the open circuit state can
lead to unstable voltage level and malfunctions due to noise. Therefore, pull-up or pull-down resistors should be provided for all
unused input pins.
2) Notes on packaging
(1) Soldering heat resistance.
If the temperature within the package exceeds +260 °C, the characteristics of the crystal oscillator will be degraded and it may
be damaged. The reflow conditions within our reflow profile is recommended. Therefore, always check the mounting
temperature and time before mounting this device. Also, check again if the mounting conditions are later changed.
* See Fig. 2 profile for our evaluation of Soldering heat resistance for reference.
(2) Mounting equipment
While this module can be used with general-purpose mounting equipment, the internal crystal oscillator may be damaged in
some circumstances, depending on the equipment and conditions. Therefore, be sure to check this. In addition, if the mounting
conditions are later changed, the same check should be performed again.
(3) Ultrasonic cleaning
Depending on the usage conditions, there is a possibility that the crystal oscillator will be damaged by resonance during
ultrasonic cleaning. Since the conditions under which ultrasonic cleaning is carried out (the type of cleaner, power level, time,
state of the inside of the cleaning vessel, etc.) vary widely, this device is not warranted against damage during ultrasonic
cleaning.
(4) Mounting orientation
This device can be damaged if it is mounted in the wrong orientation. Always confirm the orientation of the device before
mounting.
(5) Leakage between pins
Leakage between pins may occur if the power is turned on while the device has condensation or dirt on it. Make sure the device
is dry and clean before supplying power to it.
Fig. 1 : Example GND Pattern
Fig. 2 : Reference profile for our evaluation of Soldering heat resistance.
Temperature [ °C ]
RX - 4702 CF
( SON - 10pin )
+260 °C Max.
1 5 °C / s
+1 +5 °C / s
+170 °C
+220 °C
+1 +5 °C / s
100 s
35 s
Pre-heating area
Stable Melting area
time [ s ]
In addition, please confirm the Notes of an individual specification.
Page - 15
MQ - 392 - 01
Application Manual
Distributor
AMERICA
EPSON ELECTRONICS AMERICA, INC.
HEADQUARTER
150 River Oaks Parkway, San Jose, CA 95134, U.S.A.
Phone: (1)800-228-3964 (Toll free) : (1)408-922-0200 (Main) Fax: (1)408-922-0238
http://www.eea.epson.com
Atlanta Office
3010 Royal Blvd. South, Ste. 170, Alpharetta, GA 30005, U.S.A.
Phone: (1)877-332-0020 (Toll free) : (1)770-777-2078 (Main) Fax: (1)770-777-2637
Boston Office
Chicago Office
El Segundo Office
301Edgewater Place, Ste. 120, Wakefield, MA 01880, U.S.A.
Phone: (1)800-922-7667 (Toll free) : (1)781-246-3600 (Main) Fax: (1)781-246-5443
101 Virginia St., Ste. 290, Crystal Lake, IL 60014, U.S.A.
Phone: (1)800-853-3588 (Toll free) : (1)815-455-7630 (Main) Fax: (1)815-455-7633
1960 E. Grand Ave., 2nd Floor, El Segundo, CA 90245, U.S.A.
Phone: (1)800-249-7730 (Toll free) : (1)310-955-5300 (Main) Fax: (1)310-955-5400
EUROPE
EPSON EUROPE ELECTRONICS GmbH
HEADQUARTER
Riesstrasse 15, 80992 Munich, Germany
Phone: (49)-(0)89-14005-0 Fax: (49)-(0)89-14005-110
http://www.epson-electronics.de
Düsseldorf Branch Office
Altstadtstrasse 176, 51379 Leverkusen, Germany
Phone: (49)-(0)2171-5045-0 Fax: (49)-(0)2171-5045-10
UK & Ireland Branch Office Unit 2.4, Doncastle House, Doncastle Road, Bracknell, Berkshire RG12 8PE, England
Phone: (44)-(0)1344-381700 Fax: (44)-(0)1344-381701
French Branch Office
LP 915 Les Conquérants, 1 Avenue de l' Atlantique, Z.A. de Courtaboeuf 2
91976 Les Ulis Cedex, France
Phone: (33)-(0)1-64862350 Fax: (33)-(0)1-64862355
ASIA
EPSON (CHINA) CO., LTD.
23F, Beijing Silver Tower 2# North RD DongSangHuan ChaoYang District, Beijing, China
Phone: (86) 10-6410-6655 Fax: (86) 10-6410-7319
http://www.epson.com.cn
4F, Bldg.,27, No.69, Gui Qing Road, Cao hejing, Shanghai, China
Phone: (86) 21-6485-0835 Fax: (86) 21-6485-0775
EPSON HONG KONG LTD.
20/F., Harbour Centre, 25 Harbour Road, Wanchai, Hong kong
Phone: (852) 2585-4600 Fax: (852) 2827-2152
http://www.epson.com.hk
EPSON ELECTRONIC TECHNOLOGY DEVELOPMENT (SHENZHEN )CO., LTD.
Flat 16A, 16/F, New Times Plaza, No.1 Taizi Road, Shenzhen, China
Phone: (86) 755-6811118 Fax: (86) 755-6677786
EPSON TAIWAN TECHNOLOGY & TRADING LTD.
14F, No.7, Song Ren Road, Taipei 110
Phone: (886) 2-8786-6688 Fax: (886)2-8786-6660
EPSON SINGAPORE PTE. LTD.
No.1, Temasek Avenue #36-00, Millenia Tower, Singapore 039192
Phone: (65) 337-7911 Fax: (65) 334-2716 http://www.epson.com.sg
SEIKO EPSON CORPORATION KOREA Office
50F, KLI 63 Building,60 Yoido-dong, Youngdeungpo-Ku, Seoul, 150-763, Korea
Phone: (82) 2-784-6027 Fax: (82) 2-767-3677 http://www.epson-device.co.kr
http://www.epson.com.tw
Gumi Branch Office
6F, Good Morning Securities Bldg., 56, Songjeong-dong Gumi-City, Gyongsangbuk-Do,
730-090, Korea
Phone: (82) 54-454-6027 Fax: (82) 54-454-6093
ELECTRONIC DEVICE MARKETING DEPARTMENT
Electronic devices information on WWW server
http://www.epsondevice.com
厂商 型号 描述 页数 下载

RECOM

RX-0505D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

RX-0505D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

RX-0505S 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

RX-0505S/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

RX-0509D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

RX-0509D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

RX-0509S 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

RX-0509S/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

RX-0512D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

RX-0512D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.219049s
