RX-4591CF

型号：

RX-4591CF

品牌：

SEIKO[ SEIKO EPSON CORPORATION ]

页数：

19 页

PDF大小：

256 K

下载PDF手册

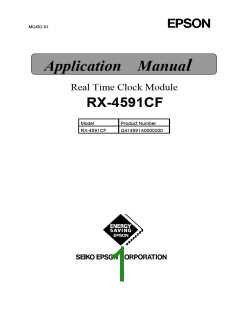

MQ402-01
Application Manual
Real Time Clock Module
RX-4591CF
Model
Product Number
RX-4591CF
Q414591A0000200
In pursuit of "Saving" Technology ,Epson electronic device.
Our Lineup of semiconductors, Liquid crystal displays and quartz devices
assists in creating the products of our customers' dreams.
Epson IS energy savings.
NOTICE
• The material is subject to change without notice.
• Any part of this material may not be reproduced or duplicated in any form or any means without the
written permission of Seiko Epson.
• The information, applied circuit, program, using way etc., written in this material is just for reference.
Seiko Epson does not assume any liability for the occurrence of infringing any patent or copyright of third
party. This material does not authorize the licence for any patent or intellectual property rights.
• Any product described in this material may contain technology or the subject relating to strategic
products under the control of the Foreign Exchange and Foreign Trade Law of Japan and may require an
export licence from the Ministry of International Trade and industry or other approval from another
government agency.
• The products (except for some product for automotive applications) listed up on this material are designed
to be used with ordinary electronic equipment (OA equipment, AV equipment, communications equipment,
measuring instruments etc). Seiko Epson does not assume any liability for the case using the products with
the appoication required high reliability or safety extremely (such as aerospace equipment etc).
When intending to use any our product with automotive application and the other application than
ordinary electronic equipments as above, please contact our sales representatives in advance.
RX - 4591 CF
CONTENTS
1. Overview.................................................................................................................. 1
2. Block diagram........................................................................................................ 1
3. Terminal description............................................................................................ 2
3.1. Terminal connections.............................................................................................................. 2
3.2. Pin functions.............................................................................................................................. 2
4. Absolute maximum ratings................................................................................ 3
5. Recommended operating functions............................................................... 3
6. Frequency characteristics................................................................................. 3
7. Electrical characteristics.................................................................................... 3
7.1. DC electrical characteristics ................................................................................................. 3
7.2. AC electrical characteristics.................................................................................................. 4
8. How to use.............................................................................................................. 5
8.1. Register table............................................................................................................................ 5
8.2. Register description................................................................................................................. 6
8.2.1. Clock and calendar registers (Reg-0 to Reg-6)................................................................. 6
8.2.2. Alarm registers (Reg-8 to Reg-A) ...................................................................................... 6
8.2.3. Timer counter (Reg-B and Reg-C)..................................................................................... 7
8.2.4. Control register and flag register (between Reg-D and Reg-F)......................................... 8
8.3. Read/Write of data .................................................................................................................. 9
8.3.1. Write of data...................................................................................................................... 9
8.3.2. Read of data...................................................................................................................... 9
8.3.3. Write/Read mode setting code for each bank ................................................................... 9
8.4. Alarm interrupt / Timer interrupt ........................................................................................ 10
80.4.1. Alarm interrupt............................................................................................................... 10
8.4.2. Timer interrupt ................................................................................................................. 11
8.6. Shifting to backup and returning ....................................................................................... 12
8.7. External connection example............................................................................................. 12
9. External dimension / Marking layout........................................................... 13
9.1. External dimensions.............................................................................................................. 13
9.2. Marking layout......................................................................................................................... 13
10. Reference data................................................................................................. 14
11. Application notes.............................................................................................. 15
RX - 4591 CF
Miniature Serial Interface RTC Module
RX - 4591 CF
• Built-in 32.768 kHz crystal oscillator with frequency adjusted
• Serial interface in 4 lines form
( possible to make it to 3 lines by wired-OR connecting DI and DO pins )
( /IRQ pin )
( /IRQ pin )
• Alarm interrupt function for day of the week, day, hour, and minute
• Timer interrupt function
( second·minute, /AIRQ pin )
( FOE, FOUT pins )
• Time update interrupt function
• OE function 32.768 kHz output
• Automatic adjustment for leap year (supports from year 2000 to 2099)
• Wide range of interface voltage between 1.6 V and 5.5 V
• Wide range of clock (retained) voltage between 1.2 V and 5.5 V
• Low current consumption at 0.3 µA / 3 V ( Typ.)
• Available as small package ( CF : SON−10 pin PKG. )
1. Overview
This module is a real-time clock with serial interface in 4 lines form (or 3 lines form). It has a built-in crystal
oscillator. The module offers many functions such as Clock & Calendar circuitry with automatic leap year
adjustment, interval timer, time update interrupt, and other rich functions like 32.768 kHz output. Because it is
available in small package SON-22 pin in high density mounting, it is ideally suited for applications such as
mobile phone, handy terminals and other small electronic systems.
2. Block diagram
32.768 kHz
CLOCK
and
CALENDAR
OSC
DIVIDER
FOUT
FOE
FOUT
CONTROLLER
TIMER
REGISTER
INTERRUPTS
CONTROLLER
ALARM
REGISTER
/ IRQ
D I
CONTROL
REGISTER
BUS
DO
CLK
CE
INTERFACE
CIRCUIT
and
SYSTEM
CONTROLLER
Page - 1
MQ - 402 - 01
RX - 4591 CF
3. Terminal description
3.1. Terminal connections
RX - 4591 CF
1. VDD
10. CE
9. CLK
8. DO
7. D I
# 1
# 10
# 6
2. FOE
3. / IRQ
4. T1
# 5
5. FOUT
6. GND
SON - 10pin
3.2. Pin functions
Signal
I / O
Signal description
name
This is a chip enabled input pin with the builit-in pull- down resistor.
When the CE pin is "H" level, access to this RTC is possible.
Also, when the chip is not selected, the DO pin is at the high impedance level, and the
CLK and DI pins would not accept input.
CE
Input
This is the shift clock input pin for serial data transfer.
CLK
D I
Input
Input
In the write mode, it takes in data from the DI pin using the CLK signal rise edge. In the
read mode, it outputs data from the DO pin using the fall edge.
This is the data input pin for serial data transfer.
This is the data output pin for serial data transfer.
DO
Output
This is the C-MOS output pin with output control provided via the FOE pin.
When FOE = "H" (high level), this pin outputs a 32.768-kHz signal.
When output is stopped, the FOUT pin = "L" (low level).
FOUT
Output
This is an input pin used to control the output mode of the FOUT pin.
When this pin's level is high, the FOUT pin is in output mode. When it is low, output via
the FOUT pin is stopped.
FOE
Input
/ IRQ
T1
Output
This is an open drain output pin for alarm and additional counter interrupt.
This pin is used by the manufacturer for testing.
Be sure to connect this pin to GND.
−
VDD
This pin connects to the plus side of the power.
−
−
GND
This pin connects to the minus side (ground) of the power.
Note: Be sure to connect a bypass capacitor rated at least 0.1 μF between VDD and GND.
Page - 2
MQ - 402 - 01
RX - 4591 CF
4. Absolute maximum ratings
GND=0 V
Item
Symbol
Condition
Rating
Unit
Power voltage
Input voltage
VDD
VIN
Between VDD and GND
Input pin
to +6.5
V
V
V
−0.3
GND−0.3
GND−0.3
to VDD+0.3
to VDD+0.3
to +6.5
Output voltage (1)
Output voltage (2)
Storage temperature
VOUT1
DO, FOUT pins
VOUT2
TSTG
/ IRQ pin
V
GND−0.3
−55
Stored bare product after unpacking
to +125
°C
5. Recommended operating functions
GND=0 V
Item
Symbol
Condition
Min.
Typ.
Max.
Unit
Operating power voltage
Clock power voltage
Operating temperature
VDD
VCLK
TOPR
1.6
1.2
−40
3.0
3.0
+25
5.5
5.5
+85
V
V
°C
−
−
No condensation
6. Frequency characteristics
GND=0 V
Item
Symbol
Condition
Rating
5 ± 23
Unit
× 10−6
( 1) ( 2)
Frequency precision
Frequency voltage
characteristics
Frequency temperature
characteristics
Oscillation start up time
Aging
∆ f / f
Ta= +25 °C, VDD=3.0 V
f / V
Top
Ta= +25 °C, VDD=2.0 V to 5.0 V
± 2 Max.
× 10−6 / V
Ta= −20 °C to +70 °C,
VDD= 3.0 V ; reference at +25 °C
Ta= +25 °C, VDD=3.0 V
+10 / −120
× 10−6
tSTA
3 Max.
± 5 Max.
s
Ta= +25 °C, VDD=3.0 V ; first year
× 10−6 / year
fa
1 ) This difference is 1 minute by 1 month. ( excluding offset )
2 ) Also,This precision includes shift of frequency by the solder handling of reflow.
7. Electrical characteristics
*If not specifically indicated, GND=0 V, VDD=1.6 V to 5.5 V,
7.1. DC electrical characteristics
Ta= −40 °C to +85 °C
Item
Symbol
Condition
Min.
Typ.
Max.
Unit
Current consumption
(1)
Current consumption
(2)
CE = GND
/IRQ = VDD
FOUT ;
Output OFF ( low level )
Input pin
Input pin ( 5 V ± 10 % )
Input pin
Input pin ( 5 V ± 10 % )
IDD1
VDD=5 V
VDD=3 V
0.4
0.9
µA
IDD2
0.3
0.8
VIH1
VIH2
VIL1
V
V
V
V
0.70 × VDD
0.75 × VDD
GND − 0.3
GND − 0.3
4.5
VDD + 0.3
VDD + 0.3
0.30 × VDD
0.25 × VDD
5.0
"H" input voltage
" L " input voltage
VIL2
VOH1
VOH2
VOH3
VOH4
VOH5
VOL1
VOL2
VOL3
VOL4
VOL5
RDWN1
RDWN2
VDD = 5 V, IOH = −1 mA
VDD = 3 V, IOH = −1 mA
VDD = 3 V, IOH = −100 µA
VDD = 5 V, IOH = −1 mA
VDD = 3 V, IOH = −1 mA
VDD = 5 V, IOL = 1 mA
VDD = 3 V, IOL = 1 mA
VDD = 3 V, IOL = 100 µA
VDD = 5 V, IOL = 1 mA
VDD = 3 V, IOL = 1 mA
VDD=5 V
DO pin
2.2
2.9
4.75
2.6
GND
GND
GND
GND
3.0
3.0
5.0
3.0
"H" Output voltage
"L" Output voltage
V
V
FOUT pin
DO pin
GND+0.5
GND+0.8
GND+0.1
GND+0.25
GND+0.4
300
FOUT,
/IRQ pins
CE pin
VIN = VDD
GND
75
150
Input resistance (1)
Input resistance (2)
150
300
kΩ
µA
µA
V
VDD=3 V
600
Input pin other than CE
VIN = VDD or GND
Input leakage current
ILK
0.5
0.5
−0.5
Output leakage
current
Power supply
detection voltage
IOZ
Output pin, VOUT = VDD or GND
−0.5
VDET
VLOW
VDD pin
VDD pin
1.6
1.1
1.8
1.2
2.0
1.4
Page - 3
MQ - 402 - 01
RX - 4591 CF
7.2. AC electrical characteristics
If not specifically indicated, GND=0 V, Ta= −40 °C to +85 °C
VDD = 3 V 10
VDD = 5 V 10
±
%
±
%
Item
Symbol
Condition
Unit
Min.
Max.
Min.
Max.
tCLK
tWH
tWL
tRF
CLK clock cycle
500
250
250
350
175
175
ns
ns
ns
ns
ns
ns
ns
ns
s
ns
ns
ns
ns
CLK H pulse width
CLK L pulse width
CLK rise and fall time
CLK setup time
100
50
tCLKS
50
25
tCS
CE setup time
200
200
300
150
100
200
tCH
CE hold time
tCR
CE recovery time
CE enable time
tWCE
0.95
0.95
tDS
Write data setup time
Write data hold time
Read data delay time
DO output switching time
100
100
50
50
tDH
tRD
L
C =50 pF
200
50
150
25
tZR
CL=50 pF
tRZ
tZZ
DO output disable time
200
100
ns
ns
RL=10 kΩ
DI/DO conflict avoiding time
0
0
Timing chart
tWCE
t
CS
C E
tCLK
tRF
tRF
tCLKS
t
t
t
t
CR
WL WH
CH
%
80
CLK
20 %
tDS tDH
M 3
• Read
D I
M 2
A 0
tZZ
tRD
D 7
tRZ
Hi-Z
D O
D 6
D 6
D 0
t
ZR
• Write
D I
M 3
M 2
A 0
D 7
D 0
Hi-Z
D O
If DI and DO pins are wired-OR connected to make it to 3 lines form, secure tzz to avoid bus conflict.
Page - 4
MQ - 402 - 01
RX - 4591 CF
8. How to use
8.1. Register table
Address
Function
bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0
note
{
0
1
2
3
4
5
6
7
8
9
SEC
MIN
40
40
{
20
20
20
5
10
10
10
4
8
8
8
3
8
8
8
•
4
4
4
2
4
4
4
•
2
2
1
1
3
3
3
3
3
3
{
{
{
{
{
HOUR
2
1
WEEK
6
{
{
1
0
DAY
20
{
10
10
10
•
2
1
MONTH
2
1
YEAR
80
•
40
•
20
•
2
1
−
RAM
•
•
4
6
MIN Alarm
HOUR Alarm
WEEK Alarm
DAY Alarm
Timer Counter 0
Timer Counter 1
Extension Register
Flag Register
Control Register
AE
AE
40
•
20
20
5
10
10
4
8
8
3
8
8
4
4
2
4
4
2
1
2
1
4, 6
6
1
0
A
AE
4, 6
20
32
•
10
16
•
2
1
•
B
C
128
•
64
•
2
1
7
2048 1024
512
256
4, 7
3, 5
1, 2
3, 5
{
TEST1
TEST3
D
WADA USEL
TE
TF
TIE
TSEL1 TSEL0
E
VDET VLOW UF
AF
ICNT VLF PON
{
TEST2
{
F
UIE
AIE
STOP RESET
Note
When after the initial power-up or when the result of read out the VLF bit is "1" , initialize all registers, before using
the module.
Be sure to avoid entering incorrect date and time data, as clock operations are not guaranteed when the data or
time data is incorrect.
During the initial power-up, the VLF bit is set to "1".
1 )
2 )
And, all register values are undefined, so be sure to initialize all registers.
Only the writes clear to "0" is possible for UF,TF,AF, and VLF.
3 ) All bits marked with ' { ' are read-only bits. Their value when read is always "0".
4 ) Any bit marked with ' • ' is a RAM bit that can be used to read or write any data.
TEST1, TEST2, TEST3 bits are used by manufacture for testing. Be sure to set it to "0" before use.
When alarm is not used, addresses between 8 and A can be used as RAM (AIE = "0").
5 )
6 )
7 )
When the timer counter (addresses B and C) is read, the data value preset previously can be read.
When the timer is not used, addresses B and C can be used as RAM (TE,TIE = "0").
The first 4 bits that sets mode code in the serial communication specify R/W for Bank 0 and Bank 1.
(For details, see the [8.3. Read/Write of data] section.)
8 )
Setup
Mode
Code
Read
Write
8 h
0 h
Page - 5
MQ - 402 - 01
RX - 4591 CF
8.2. Register description
8.2.1. Clock and calendar registers (Reg-0 to Reg-6)
• Data format
Data is in the BCD format. For example, if the SEC register is set to "0101 1001", this means 59 seconds.
The time measurement is in 24-hour format (fixed).
• YEAR register and leap year
The YEAR register becomes year 00 after year 99.
Divide the YEAR register’s 2-digit BCD by four, and if the remainder is 0, then this year is determined as the
leap year. ( Year 00 is processed as a leap year. This calendar expires in year 2099.)
• Day of the WEEK register
The day of the WEEK register is made of 7 bits from 0 to 6. The bits are assigned as shown in the following
table.
Be sure not to set multiple days of week to "1".
bit 6
0
bit 5
0
bit 4
0
bit 3
0
bit 2
0
bit 1
0
bit 0
1
Day of the week
Sunday
0
0
0
0
0
1
0
Monday
0
0
0
0
1
0
0
Tuesday
0
0
0
1
0
1
0
0
0
0
0
Wednesday
Thursday
Friday
0
0
0
0
0
0
1
0
0
0
1
0
0
0
0
0
0
Saturday
8.2.2. Alarm registers (Reg-8 to Reg-A)
Address
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
8
MIN alarm
AE
40
20
20
5
10
10
4
8
8
3
8
4
4
2
4
2
2
1
2
1
1
0
1
9
HOUR alarm
WEEK alarm
DAY alarm
AE
•
6
•
A
AE
20
10
You can set the day of the week, day, hour and minute for alarm. The WADA bit specifies which alarm of the WEEK
alarm or the DAY alarm assign to the register A.
Bit 7 is the AE (Alarm Enable) bit for all the alarm registers. By using this bit, you can easily set the hourly alarm and
the daily alarm. The day of the week alarm can be set to any multiple days of week.
When the AE bit is set to "0", the appropriate register and the clock register are compared; when the AE bit is set to
"1" ("don’t care"), the two registers are not compared because they are considered to have the same value.
When the alarm goes off, the AF (Alarm Flag) bit of Reg-E is set to "1"; if at this moment the AIE (Alarm Interrupt
Enable) bit of Reg-F has been set to "1", the /IRQ pin is set to the low level and the interrupt signal occurs. If the AIE
bit has been set to "0", the alarm interrupt output from the /IRQ pin is prohibited.
If alarm interrupt is not used, then addresses 8 to A can be used as memory registers. In this case, set the AIE bit to
"0" to prohibit usage of the alarm and alarm interrupt.
• The relationship between the day of the week alarm bit and each day of the week
bit
bit 6
bit 5
Bit 4
bit 3
bit 2
bit 1
bit 0
Day of the week Saturday Friday Thursday Wednesday Tuesday Monday Sunday
Page - 6
MQ - 402 - 01
RX - 4591 CF
8.2.3. Timer counter (Reg-B and Reg-C)
Address
Function
bit 7
128
•
bit 6
64
•
bit 5
32
•
bit 4
16
•
bit 3
bit 2
bit 1
bit 0
B
Timer counter 0
8
4
2
1
C
Timer counter 1
2048
1024
512
256
This register controls 12 bits of internal preset-able down counter used for timer interrupt.
TSEL0 and TSEL1 of Reg-D specify the count cycle of the down counter (source clock). Timer counter 0 and timer
counter 1 specify the preset value of the down counter.
When the TE bit of Reg-D is set to "0, The presetable counter loads the written data to the timer counter (It is initial
value. ), and then stops the count down. Afterwards, when the TE bit set to 1, count down starts.
Using a source clock cycle, the down counter continues the countdown. When the data becomes zero, the TF (Timer
Flag) of Reg-E is set to "1". At this moment, if the TIE bit (Timer Interrupt Enable) of Reg-F was set to 1 beforehand,
the /IRQ pin is asserted low for generate the interrupt signal.
When the TIE bit is set to "0", output from the /IRQ pin is prohibited.
Next, it reloads the data of timer counter register and restarts the countdown (repeat operation).
But, even if write 1 to the TE bit, and write 0 to the timer counter, timer interrupt from the /TIRQ pin is not generated.
In order to operate timer expectedly, you should set the TE bit and the TIE bit adequately.
If timer interrupt is not used, then addresses B and C may be used as memory registers. In this case, set TE bit and
TIE bit to "0", to prohibit timer operation and timer interrupts.
• Timer interrupt and source clock selection
TSEL1
TSEL0
Source clock
0
0
1
1
0
1
0
1
4096 Hz
64 Hz
1 Hz
Update in minutes
• Timer interrupt interval
Timer
counter
setting
value
Source clock
Update in
minutes
4096 Hz
64 Hz
1 Hz
0
1
2
−
−
−
−
15.625 ms
31.25 ms
1 s
2 s
1 min
2 min
•
•
•
244.14 µs
488.28 µs
•
•
•
•
•
•
•
•
•
•
•
•
41
82
10.010 ms
20.020 ms
31.250 ms
46.875 ms
50.049 ms
78.125 ms
100.10 ms
156.25 ms
200.20 ms
300.05 ms
312.50 ms
468.75 ms
500.00 ms
625.00 ms
0.7813 s
640.63 ms
1.281 s
41 s
82 s
41 min
82 min
128
2.000 s
128 s
192 s
205 s
320 s
410 s
640 s
820 s
1229 s
1280 s
1920 s
2048 s
2560 s
3200 s
3840 s
128 min
192 min
205 min
320 min
410 min
640 min
820 min
1229 min
1280 min
1920 min
2048 min
2560 min
3200 min
3840 min
192
3.000 s
205
3.203 s
320
5.000 s
410
6.406 s
640
10.000 s
12.813 s
19.203 s
20.000 s
30.000 s
32.000 s
40.000 s
50.000 s
60.000 s
820
1229
1280
1920
2048
2560
3200
3840
0.9375 s
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
4095
0.9998 s
63.984 s
4095 s
4095 min
Page - 7
MQ - 402 - 01
RX - 4591 CF
8.2.4. Control register and flag register (between Reg-D and Reg-F)
Address
Function
bit 7
bit 6
bit 5
bit 4
bit 3
{
bit 2
bit 1
TSEL1 TSEL0
VLF PON
STOP RESET
bit 0
{
D
E
F
Extension register TEST WADA USEL
TE
Flag register
VDET
VLOW
UF
TF
AF
AIE
ICNT
{
{
Control register
TEST
UIE
TIE
• TEST bit: This bit is used by manufacture for testing.
Be sure to set this bit to "0". Be careful not to set this bit to "1" when writing to other bits of Reg-D.
When CE pin goes to L, TEST is cleared .
• WADA bit (WEEK Alarm / DAY Alarm)
This bit sets either the WEEK alarm or the DAY alarm. When this bit is 0, the Reg-A is re-assigned to the
WEEK alarm register. And when this bit is 1, the Reg-A is re-assigned to the DAY alarm register.
• USEL bit (Update Interrupt Select)
Specify the occurrence timing of time update interrupt.
[Selection of timing for time update interrupt]
USEL
Timing
Auto recovery time
0
Update in seconds
7.813 ms
1
Update in minutes
7.813 ms
• TE bit (Timer Enable)
When the TE bit is 0, The presetable counter loads the written data to the timer counter (It is initial value. ),
and then stops the count down. And when the TE bit is 1, count down starts.
DET ( Voltage Detect )
• V
When power supply is higher than VDET voltage, this bit shows 0. And when power supply is lower than
VDETvoltage, this bit shows 1. But in this case, this bit continues keeping 1 till it is cleared by 0.
This bit is not affected by another bits ( STOP, RESET ).
LOW ( Voltage Low )
• V
When power supply is higher than VLOW voltage, this bit shows 0. And when power supply is lower than
VLOW voltage, this bit shows 1. But in this case, this bit continues keeping 1 till it is cleared by 0.
This bit is not affected by another bits ( STOP, RESET ).
• AF bit, TF bit, and UF bit (Alarm Flag, Timer Flag, Update Flag)
When the alarm occurs , the AF bit is set to 1. When the data is just zero, the TF (Timer Flag) of Reg-E is set
to 1. At the end of time update, the UF bit is set. These data 1 is retained until writing over them with 0. You
cannot write "1" over these bits.
• AIE bit, TIE bit, and UIE bit (Alarm, Timer, Update Interrupt Enable)
These bits control whether or not to generate interrupt signal from IRQpin, when alarm, timer, or time update
interrupt event occurs. AIE corresponds to alarm interrupt, TIE corresponds to timer interrupt, and UIE
corresponds to time update interrupt.
• ICNT ( Invalid Counter Data )
When crystal oscillation is stopped by for example down of supply voltage, this bit shows 1.
But in this case, this bit continues keeping 1 till it is cleared by 0.
This bit is not affected by another bits ( STOP, RESET ).
• VLF (Voltage Low Flag)
This bit shows the logic sum of each bit ( VLOW, ICNT, PON ). In this case, this bit continues keeping 1 till it
is cleared by 0. This bit is not affected by another bits ( STOP, RESET ).
• PON bit ( Power On Reset )
When the initial power-up occurs, or device returns from a blackout or such as, this bit shows 1.
And this case, this bit continues keeping 1 till it is cleared by 0.
This bit is not affected by another bits ( STOP, RESET ).
• STOP bit
When this bit is set to "1", the operation of counting up the seconds in the Clock & Calendar circuitry is
stopped, which stops the clock. When this bit is set to "0", the clock resumes its operation.
• RESET bit
When this bit is set 1, clock update was stop and clock data (except seconds digits) is reset for 00 year
January 1day Sunday 00hour 00minutes. When CE terminal turned into L, this bit is cleared automatically.
After using the RESET function, set the all clock and calendar data.
Page - 8
MQ - 402 - 01
RX - 4591 CF
8.3. Read/Write of data
For both read and write, first set up chip condition (internally CE="H") to CE0="H" and CE1="H", then specify the
4-bits address, and finally read or write in 8-bits units.
Both read and write use MSB-first. In continuous operation, objected address is auto incremented.
Auto incrementing of the address is cyclic, so address "F" is followed by address "0".
8.3.1. Write of data
1) One-shot writing
C E
CLK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
D I
0
0
0
0
A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0
Address N Data N
Mode
D O
Hi-Z
2) Continuous writing
C E
CLK
1
2
3
4
5
6
7
8
9
10
11
D I
0
0
0
0
A3 A2 A1 A0 D7 D6 D5
Address N
D1 D0 D7 D6
D1 D0 D7 D6
D1 D0
Mode
Data N
Data N+1
Data N+m
D O
Hi-Z
*When writing data, the data needs to be entered in 8-bits units.
If the input of data in 8-bits unit is not completed before CE input falls, the 8-bits data will not be written
properly at the time CE input falls.
8.3.2. Read of data
1) One-shot reading
C E
CLK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
D I
1
0
0
0
A3 A2 A1 A0
Address N
Mode
D O
D7 D6 D5 D4 D3 D2 D1 D0
Data N
Hi-Z
2) Continuous reading
C E
CLK
1
2
3
4
5
6
7
8
9
10
11
D I
1
0
0
0
A3 A2 A1 A0
Address N
Mode
D O
D7 D6 D5
Data N
D1 D0 D7 D6
D1 D0 D7 D6
D1 D0
Hi-Z
Data N+1
Data N+m
8.3.3. Write/Read mode setting code for each bank
Mode
Setup Code
*In the mode setting code, if a value other than those listed is used, the
subsequent data will be ignored and the DO pin remains in the Hi-z
state.
Read
8 h
Write
0 h
Page - 9
MQ - 402 - 01
RX - 4591 CF
8.4. Alarm interrupt / Timer interrupt
80.4.1. Alarm interrupt
When the alarm matches and AIE=1, the /IRQ pin outputs "L"; when AIE=0, the /IRQ pin is at the high impedance
level. Alarm data is compared when update occurs just in minutes digits.
"1"
"1"
"1"
AIE bit
The AIE bit is not output in the “0” range
"0"
"0"
High impedance
/IRQ output
AF bit
"L" level
"1"
"0"
Alarm interrupt timing
“0” is written to the AF bit.
• How to use
The day of the week, day, hour and minute can be set.
WADA bit sets either the WEEK alarm or the DAY alarm. For the day of the week, multiple days can be set
at one time. To avoid unintended hardware interrupt during the alarm setup, it is recommended that AIE bit
be initially set to "0".
Then, set up the alarm data, and apply zero clear to the AF flag in order to initialize (with certainty) the alarm
circuitry. Afterward, set the AIE bit to "1". If you desire no hardware interrupt, set the AIE bit to "0", and
monitor the AF bit with software as required.
• Usage example
1) Set the alarm to go off at 6 pm tomorrow.
Write "0" to the AIE bit.
Write "00h" to the MIN alarm register.
Write "18h" to the HOUR alarm register.
· Write tomorrow’s date to the WEEK/DAY alarm register.
Write "1" to the WADA bit (selecting the DAY alarm).
Clear the AF bit to zero.
Write "1" to the AIE bit.
2) Set the alarm to go off at 6 am every morning except Saturdays and Sundays.
Write "0" to the AIE bit.
Write "00h" to the MIN alarm register.
Write "06h" to the HOUR alarm register.
Write "3Eh" to the WEEK/DAY alarm register.
Write "0" to the WADA bit (selecting the WEEK alarm).
Clear the AF bit to zero.
Write "1" to the AIE bit.
Page - 10
MQ - 402 - 01
RX - 4591 CF
8.4.2. Timer interrupt
· If TIE="1" when interrupt occurs, the /IRQ pin outputs "L".
· If TIE="0" when interrupt occurs, the /IRQ pin enters the high impedance state and the TF bit becomes "1", and
remains so.
"1"
"0"
TIE bit
High impedance
"L" level
/IRQ output
t RTN
Auto return.
"1"
"0"
TF bit
Interrupt timing
0 is written to the TF bit
Automatic return
The automatic return time (tRTN) is determined by the source clock specified in Reg-D.
Source clock
Automatic return time (tRTN)
122
4096 Hz
µs
64 Hz
7.813 ms
7.813 ms
7.813 ms
1 Hz
Update in minutes
• Timer measurement error
Because the timer error is +0/-1 cycle time of the selected source clock, the timer time is following range.
(Timer time( ). − Source clock period time ) to (Timer time.)
) Timer time = Source clock cycle × Value of the timer counter.
Now, the actual time of the timer is the above time, plus the communication duration of the serial data
transfer clock.
• Timer start timing
In the data write mode, the timer starts counting from the rise edge of the CLK when writing to address D as
shown in the following time chart.
Address D
CLK pin
TSEL1 TSEL0
TE
0
0
DATA pin
Internal timer
/IRQ pin
Timer operation
• How to use the /IRQ pin is asserted low for generate the interrupt signal.
At the cycle (source clock) specified in the timer interrupt setup register, the countdown starts from the value
of the timer counter. When the data becomes zero, the /IRQ pin is asserted "L" for generate the interrupt
signal. It can be used as an interval timer between a minimum of 1/4096 second to a maximum of 4095
minutes. To avoid unintended hardware interrupt during the timer setup, setting both TF bit and TIE bit, in the
beginning, is recommended.
If you do not want to use any timer interrupt, set TIE bit to "0", and monitor the TF bit with software as
required.
Page - 11
MQ - 402 - 01
RX - 4591 CF
8.6. Shifting to backup and returning
DD
V
CLK
V
CD
F
R
t
t
t
CU
t
CE
IL
V
IL
V
Backup
Item
Symbol
tCD
Condition
Min.
0
Typ.
Max.
Unit
CE time before power drop
-
-
-
-
µs
µs/ V
µs/ V
µs
Power drop time
tF
2
Power rise time
tR
tCU
1
0
CE time after power rise
* When RTC switch into the backup-mode, CE keeps low level sure and, set the RTC into a disable state.
8.7. External connection example
D 1
Note
4.7 µF
DD
V
Schottky
Barrier
Diode
+
RX-4591
VDD
CE
D I
DO
0.1 µF
CLK
/ IRQ
FOUT
FOE
GND
Note :
Use the secondary battery or a lithium battery. If using the secondary battery, a diode is not necessary. If using a lithium
battery, a diode is necessary. For information on resistance value, please consult the battery manufacturer.
Page - 12
MQ - 402 - 01
RX - 4591 CF
9. External dimension / Marking layout
9.1. External dimensions
RX - 4591 CF ( SON-10pin )
• External dimensions
• Recommended soldering pattern
5.0 ± 0.2
0.4
1.0
#10
# 6
0.26
1.0
0.6
# 1
# 5
# 5
0.1
# 1
4.6
1.2 Max.
Unit : mm
9.2. Marking layout
RX - 4591 CF ( SON-10pin )
Logo
Type
E 4591
123 A
#1 Pin Mark
Production lot
Contents displayed indicate the general markings and display, but are not the standards for the fonts, sizes and positioning.
Page - 13
MQ - 402 - 01
RX - 4591 CF
10. Reference data
(1) Example of frequency and temperature characteristics
T = +25 C Typ.
[Finding the frequency stability]
θ
°
10-6
×
= -0.035 10-6 Typ.
×
α
1. Frequency and temperature characteristics can be
approximated using the following equations.
T = ( T - X)2
0
∆f
α θ
θ
Frequency deviation in any
temperature
T
∆f
-50
-100
-150
α
1 / °C2)
Coefficient of secondary temperature
(−0.035±0.005) × 10-6 / °C2
Ultimate temperature (+25 5 C)
T
X
C)
θ
θ
°
± °
Any temperature
°
C)
-50
0
+50
+100
2. To determine overall clock accuracy, add the frequency
precision and voltage characteristics.
Temperature [ C]
°
T + fV
∆f/f = ∆f/fo + ∆f
∆
Clock accuracy (stable frequency) in any
temperature and voltage
∆f/f
(2) Example of frequency and voltage characteristics
Condition :
Frequency precision
∆f/fo
3 V as reference, Ta=+25 °C
+ 3
Frequency deviation in any temperature
Frequency deviation in any voltage
T
V
∆f
∆f
0
3. How to find the date difference
Date difference = ∆f/f × 86400 (seconds)
* For example: ∆f/f = 11.574 × 10-6 is an error of
approximately 1 second/day.
- 3
2
3
4
5
DD
Supply Voltage V [V]
(3) Current and voltage consumption characteristics
(3-1) Current consumption when non-accessed (i)
(3-2) Current consumption when non-accessed (ii)
when FOUT=32.768 kHz
when FOUT=OFF
Condition :
Condition :
Ta = +25 °C
Ta = +25 °C
1.0
CE = GND
10
CE, FOE = GND
FOE, / IRQ = VDD
/ IRQ = VDD
FOUT ; 32.768 kHz output ON
FOUT ; Output OFF
CL=30 pF
0.5
5
2
3
4
5
2
3
4
5
Supply Voltage VDD[V]
Supply Voltage VDD[V]
Page - 14
MQ - 402 - 01
RX - 4591 CF
11. Application notes
1) Notes on handling
This module uses a C-MOS IC to realize low power consumption. Carefully note the following cautions when handling.
(1) Static electricity
While this module has built-in circuitry designed to protect it against electrostatic discharge, the chip could still be damaged by a
large discharge of static electricity. Containers used for packing and transport should be constructed of conductive materials. In
addition, only soldering irons, measurement circuits, and other such devices which do not leak high voltage should be used with
this module, which should also be grounded when such devices are being used.
(2) Noise
If a signal with excessive external noise is applied to the power supply or input pins, the device may malfunction or "latch up." In
order to ensure stable operation, connect a filter capacitor (preferably ceramic) of greater that 0.1F as close as possible to the
power supply pins (between VDD and GNDs). Also, avoid placing any device that generates high level of electronic noise near
this module.
* Do not connect signal lines to the shaded area in the figure shown in Fig. 1 and, if possible, embed this area in a GND land.
(3) Voltage levels of input pins
When the input pins are at the mid-level, this will cause increased current consumption and a reduced noise margin, and can
impair the functioning of the device. Therefore, try as much as possible to apply the voltage level close to VDD or GND.
(4) Handling of unused pins
Since the input impedance of the input pins is extremely high, operating the device with these pins in the open circuit state can
lead to unstable voltage level and malfunctions due to noise. Therefore, pull-up or pull-down resistors should be provided for all
unused input pins.
2) Notes on packaging
(1) Soldering heat resistance.
If the temperature within the package exceeds +260 °C, the characteristics of the crystal oscillator will be degraded and it may
be damaged. The reflow conditions within our reflow profile is recommended. Therefore, always check the mounting
temperature and time before mounting this device. Also, check again if the mounting conditions are later changed.
* See Fig. 2 profile for our evaluation of Soldering heat resistance for reference.
(2) Mounting equipment
While this module can be used with general-purpose mounting equipment, the internal crystal oscillator may be damaged in
some circumstances, depending on the equipment and conditions. Therefore, be sure to check this. In addition, if the mounting
conditions are later changed, the same check should be performed again.
(3) Ultrasonic cleaning
Depending on the usage conditions, there is a possibility that the crystal oscillator will be damaged by resonance during
ultrasonic cleaning. Since the conditions under which ultrasonic cleaning is carried out (the type of cleaner, power level, time,
state of the inside of the cleaning vessel, etc.) vary widely, this device is not warranted against damage during ultrasonic
cleaning.
(4) Mounting orientation
This device can be damaged if it is mounted in the wrong orientation. Always confirm the orientation of the device before
mounting.
(5) Leakage between pins
Leakage between pins may occur if the power is turned on while the device has condensation or dirt on it. Make sure the device
is dry and clean before supplying power to it.
Fig. 1 : Example GND Pattern
Fig. 2 : Reference profile for our evaluation of Soldering heat resistance.
Temperature [ °C ]
RX - 4591 CF
( SON - 10pin )
+260 °C Max.
1
−
5 C / s
− °
+1 +5 °C / s
+170 °C
100 s
Pre-heating area
+220 °C
35 s
Stable Melting area
+1 +5 °C / s
time [ s ]
In addition, please confirm the Notes of an individual specification.
Page - 15
MQ - 402 - 01
Application Manual
Distributor
AMERICA
EPSON ELECTRONICS AMERICA, INC.
HEADQUARTER
150 River Oaks Parkway, San Jose, CA 95134, U.S.A.
Phone: (1)800-228-3964 (Toll free) : (1)408-922-0200 (Main) Fax: (1)408-922-0238
http://www.eea.epson.com
Atlanta Office
3010 Royal Blvd. South, Ste. 170, Alpharetta, GA 30005, U.S.A.
Phone: (1)877-332-0020 (Toll free) : (1)770-777-2078 (Main) Fax: (1)770-777-2637
Boston Office
Chicago Office
El Segundo Office
301Edgewater Place, Ste. 120, Wakefield, MA 01880, U.S.A.
Phone: (1)800-922-7667 (Toll free) : (1)781-246-3600 (Main) Fax: (1)781-246-5443
101 Virginia St., Ste. 290, Crystal Lake, IL 60014, U.S.A.
Phone: (1)800-853-3588 (Toll free) : (1)815-455-7630 (Main) Fax: (1)815-455-7633
1960 E. Grand Ave., 2nd Floor, El Segundo, CA 90245, U.S.A.
Phone: (1)800-249-7730 (Toll free) : (1)310-955-5300 (Main) Fax: (1)310-955-5400
EUROPE
EPSON EUROPE ELECTRONICS GmbH
HEADQUARTER
Riesstrasse 15, 80992 Munich, Germany
Phone: (49)-(0)89-14005-0 Fax: (49)-(0)89-14005-110
http://www.epson-electronics.de
Düsseldorf Branch Office
Altstadtstrasse 176, 51379 Leverkusen, Germany
Phone: (49)-(0)2171-5045-0 Fax: (49)-(0)2171-5045-10
UK & Ireland Branch Office Unit 2.4, Doncastle House, Doncastle Road, Bracknell, Berkshire RG12 8PE, England
Phone: (44)-(0)1344-381700 Fax: (44)-(0)1344-381701
French Branch Office
LP 915 Les Conquérants, 1 Avenue de l' Atlantique, Z.A. de Courtaboeuf 2
91976 Les Ulis Cedex, France
Phone: (33)-(0)1-64862350 Fax: (33)-(0)1-64862355
ASIA
EPSON (CHINA) CO., LTD.
23F, Beijing Silver Tower 2# North RD DongSangHuan ChaoYang District, Beijing, China
Phone: (86) 10-6410-6655 Fax: (86) 10-6410-7319
http://www.epson.com.cn
4F, Bldg.,27, No.69, Gui Qing Road, Cao hejing, Shanghai, China
Phone: (86) 21-6485-0835 Fax: (86) 21-6485-0775
EPSON HONG KONG LTD.
20/F., Harbour Centre, 25 Harbour Road, Wanchai, Hong kong
Phone: (852) 2585-4600 Fax: (852) 2827-2152
http://www.epson.com.hk
EPSON ELECTRONIC TECHNOLOGY DEVELOPMENT (SHENZHEN )CO., LTD.
Flat 16A, 16/F, New Times Plaza, No.1 Taizi Road, Shenzhen, China
Phone: (86) 755-6811118 Fax: (86) 755-6677786
EPSON TAIWAN TECHNOLOGY & TRADING LTD.
14F, No.7, Song Ren Road, Taipei 110
Phone: (886) 2-8786-6688 Fax: (886)2-8786-6660
EPSON SINGAPORE PTE. LTD.
No.1, Temasek Avenue #36-00, Millenia Tower, Singapore 039192
Phone: (65) 337-7911 Fax: (65) 334-2716 http://www.epson.com.sg
SEIKO EPSON CORPORATION KOREA Office
50F, KLI 63 Building,60 Yoido-dong, Youngdeungpo-Ku, Seoul, 150-763, Korea
Phone: (82) 2-784-6027 Fax: (82) 2-767-3677 http://www.epson-device.co.kr
http://www.epson.com.tw
Gumi Branch Office
6F, Good Morning Securities Bldg., 56, Songjeong-dong Gumi-City, Gyongsangbuk-Do,
730-090, Korea
Phone: (82) 54-454-6027 Fax: (82) 54-454-6093
ELECTRONIC DEVICE MARKETING DEPARTMENT
Electronic devices information on WWW server
http://www.epsondevice.com
厂商 型号 描述 页数 下载

RECOM

 		RX-0505D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

 		RX-0505D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0505S 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0505S/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0509D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

 		RX-0509D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0509S 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0509S/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0512D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

 		RX-0512D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.272996s
