TZW4Z010A001R00

型号:

TZW4Z010A001R00

品牌:

MURATA[ muRata ]

页数:

3 页

PDF大小:

58 K

• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.

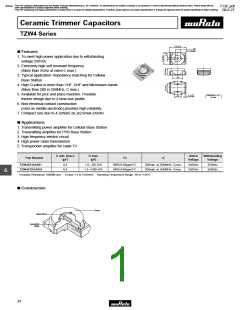

Ceramic Trimmer Capacitors
TZW4 Series
5.2±0.2
1.6
0.4 Depth
Features
1. To meet high power application due to withstanding
voltage 550Vdc
2. Extremely high self resonant frequency
(More than 3GHz at rated C max.)
3. Typical application: Impedance matching for Cellular
3.0
Base Station
4. High Q value in more than VHF, UHF and Microwave bands
(More than 200 in 500MHz, C max.)
5. Available for pick and place machine. Possible
thinner design due to 2.6mm low profile.
+0.1
0.3
-0.2
Tolerance: ±0.1
2.2
(
)
in mm
6. Non electrical contact construction
(rotor as middle electrode) provides high reliability.
7. Compact size due to 4.2(W)x5.2(L)x2.6max.(H)mm.
Applications
1. Transmitting power amplifier for Cellular Base Station
2. Transmitting amplifier for PHS Base Station
3. High frequency electric circuit
4. High power radio transmission
5. Transponder amplifier for cable TV
C min. (max.)
(pF)
C max.
(pF)
Rated
Voltage
Withstanding
Voltage
Part Number
TC
Q
TZW4Z010A001
TZW4Z1R5A001
0.4
0.4
1.0 +50/-0%
NP0±150ppm/°C
NP0±150ppm/°C
200min. at 500MHz, Cmax.
200min. at 500MHz, Cmax.
250Vdc
250Vdc
550Vdc
550Vdc
1.5 +100/-0%
6
Insulation Resistance: 10000M ohm Torque: 1.5 to 10.0mNm Operating Temperature Range: -55 to +125°C
Construction
Cover
Metal Rotor
Monolithic
Stator
24
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Temperature Characteristics
Frequency Characteristics
TZW4Z1R5
TZW4Z1R5
Z1R5 (NP0±150 ppm/˚C)
Z1R5
+8
+6
+4
+2
1000
Temp. (˚C)
45
0
20
105
125
1.5pF set
65
55
25
10
0
85
2
100
4
6
8
Q
10
12
10
1
500
1000
1500
2000
2500
3000
Frequency (MHz)
Land Pattern
7.0
4.4
Tolerance: ±0.1
in mm
6
Temperature Profile
Reflow Soldering Profile
qSoldering profile for Lead-free solder (96.5Sn/3Ag/0.5Cu)
wSoldering profile for Eutectic solder (63Sn/37Pb)
(Limit profile: refer to q)
T5
T3
T4
T2
T3
T2
T1
t2
t2
t3
Limit Profile
T1
Standard Profile
Standard Profile
t1
t1
time (s)
time (s)
Standard Profile
Heating
Standard Profile
Heating
Peak
temperature
(T3)
Peak
temperature
(T3)
Pre-heating
Pre-heating
Cycle
Cycle
of reflow
of reflow
Temp. (T1) Time (t1) Temp. (T2) Time (t2)
150 to 180°C 60 to 120sec. 220°C
Temp. (T1) Time (t1) Temp. (T2) Time (t2)
30 to 60sec. 245±3°C
2 times
150°C 60 to 120sec. 183°C
30sec. 230 +5/-0°C 1 time
Limit Profile
Heating
Temp. (T4) Time (t3)
Peak
temperature
(T5)
Pre-heating
Temp. (T1) Time (t1)
Cycle
of reflow
150 to 180°C 60 to 120sec. 230°C
30 to 50sec. 260 +5/-0°C 2 times
Solder Iron
Standard Profile
Temperature of soldering iron tip
Soldering time
Soldering iron power output
Cycle of solder iron
350±10°C
3sec. max.
30W max.
1 time
25
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Notice (Storage and Operating Condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
6. Do not use the trimmer capacitor under the
conditions listed below.
(1) Corrosive gasses atmosphere
(Ex. Chlorine gas, Hydrogen sulfide gas,
Ammonia gas, Sulfuric acid gas, Nitric oxie gas,
etc.)
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 degrees C and 30
to 85%RH.
(2) In liquid (Ex. water, oil, medical liquid,
organic solvent, etc.)
3. Do not store in or near corrosive gasses.
4. Use within 6 months of delivery.
(3) Dusty/dirty atmosphere
5. Do not store under direct sunlight.
(4) Direct sunlight
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
(7) Other variations of the above
Notice (Soldering and Mounting)
1. Soldering
of the terminal may cause fixed metal rotor or
the contact failure due to flux invasion into
the movable part and/or the contact point. The
soldering iron should not come in contact with
the monolithic stator of the trimmer capacitor.
If such contact does occur, the trimmer
capacitor may be damaged.
(1) TZW4 series can be soldered by reflow soldering
method and soldering iron. Do not use flow
soldering method (dipping).
(2) Soldering condition
Refer to the temperature profile.
If the soldering conditions are not suitable, e.g.,
excessive time and/or excessive temperature, the
trimmer capacitor may deviate from the specified
characteristics.
(6) Our recommended chlorine content of solder is
as follows.
(a) Solder paste: 0.2wt% max.
(3) The amount of solder is critical.
(b) String solder: 0.5wt% max.
(4) The thickness of solder paste should be printed
from 150 micro m to 200 micro m and the dimension
of land pattern should be Murata's standard land
pattern used at reflow soldering.
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
Excessive amounts of solder may cause bridging
between the terminals or contact failure due to
flux wicking up.
2. Mounting
(1) Do not apply excessive force (preferably 5.0 N
[Ref: 500gf] max.), when the trimmer capacitor
is mounted on the PCB.
6
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breaking.
(5) When using soldering iron, the diameter of the
string solder should be less than 0.5mm. The
string solder should be applied to the lower
part of the terminal only. Do not apply flux
except to the terminals. Excessive amounts of
solder and/or applying solder to the upper part
(3) Use the suitable dimension of the pick-up nozzle
(1.8mm external diameter and 1.1mm bore
diameter).
3. Cleaning
Cannot be cleaned because of open construction.
Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
driver slot.
-Recommended screwdriver for manual adjustment
VESSEL: No.9000 -1.3x30
(Murata: KMDR130)
2. When adjusting with a screwdriver, do not apply
excessive force (preferably 1.0 N [Ref: 100gf] max.)
to minimize capacitance drift. If excessive force
applied to the screwdriver slot, it may cause
deformation of the products.
Notice (Other)
Before using trimmer capacitor, please test after
assembly in your particular mass production system.
26
