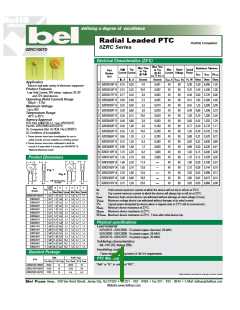

defining a degree of excellence
Radial Leaded PTC
RoHS6 Compliant
0ZRC Series
0ZRC1007D
Electrical Characteristics (23°C)
Flame retardant epoxy, meets UL-94-V-0 requirements.
Application
Telecom and wide variety of electronic equipment
Product Features
Low Hold Current, 90V rating - replaces 30, 60
and 72V rated devices
Operating (Hold Current) Range
100mA ~ 3.75A
Maximum Voltage
Up to 90V
Temperature Range
-40°C to 85°C
Agency Approval
TUV (Std. EN60738-1-1, Cert. R50102187,
Part No. 0ZRC0040-0ZRC0375)
UL Component (Std. UL1434, File E305051)
UL Conditions of Acceptability:
1.These devices have been investigated for use in
safety circuits and are suitable as a limiting device.
2.These devices have been calibrated to limit the
current to 8 amps within 5 seconds, per ANSI/NFPA 70,
“National Electrical Code”
Product Dimensions
Fig 1
Fig 2
All dimensions
in mm
Hold current-maximum current at which the device will not trip in still air at 23°C.
Trip current-minimum current at which the device will always trip in still air at 23°C.
Maximum fault current device can withstand without damage at rated voltage (Vmax).
Maximum voltage device can withstand without damage at its rated current.
Typical power dissipated by device when in tripped state in 23°C still air environment.
Minimum device resistance at 23°C.
IH
ø
IT
Imax
Vmax
Pd
Rmin
Rmax
R1max
Maximum device resistance at 23°C.
Maximum device resistance at 23°C, 1 hour after initial device trip.
Physical specifications
Lead material
0ZRC0010 - 0ZRC0040 - Tin plated copper clad steel, 24 AWG.
0ZRC0050 - 0ZRC0090 - Tin plated copper, 24 AWG.
0ZRC0110 - 0ZRC0375 - Tin plated copper, 20 AWG.
Soldering characteristics
MIL-STD-202, Method 208E.
Insulating coating
Flame retardant epoxy,meets UL-94-V-0 requirements.
PTC Marking
Standard Package
H
“bel” or “b”, l code and “RC”.
Specifications subject to change without noticeG
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel:201 - 432 - 0463 • Fax:201 - 432 - 9542 • E-Mail: belfuse@belfuse.com
Website:www.belfuse.com
