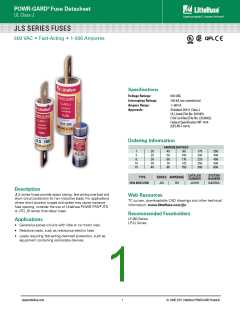

POWR-GARD® Fuse Datasheet
UL Class J
JLS SerieS FUSeS
600 VAC • Fast-Acting • 1-600 Amperes
QPL
Specifications
Voltage Ratings:
Interrupting Ratings:
Ampere Range:
Approvals:
600 VAꢁ
200 kA rms symmetrical
1–600 A
Standard 248-8, ꢁlass J
UL Listed (File No. E81895)
ꢁSA ꢁertified (File No. LR29862)
Federal Specification WF-1814
(QPL-W-F-1814)
Ordering Information
ampere ratingS
1
3
6
10
15
20
25
30
35
40
45
50
60
70
80
90
175
200
225
250
300
350
400
450
500
600
100
110
125
150
CataLog
SyStem
nUmber
0JLS110.X
type
NON-ꢀNDꢀꢁAꢂꢀNG
SerieS amperage
JLS 110
nUmber
JLS110
Description
JLS series fuses provide space saving, fast-acting overload and
short-circuit protection for non-inductive loads. For applications
where short-duration surges and spikes may cause nuisance
fuse opening, consider the use of Littelfuse POWR-PRO® JTD
or JTD_ID series time-delay fuses.
Web Resources
TC curves, downloadable CAD drawings and other technical
information: www.littelfuse.com/jls
Recommended Fuseholders
LFJ60 Series
LPSJ Series
Applications
•ꢀ General purpose circuits with little or no motor load.
•ꢀ Resistive loads, such as resistance electric heat.
•ꢀ Loads requiring fast-acting overload protection, such as
equipment containing solid-state devices.
1
www.littelfuse.com
© JUNE 2011 Littelfuse POWR-GARD Products
