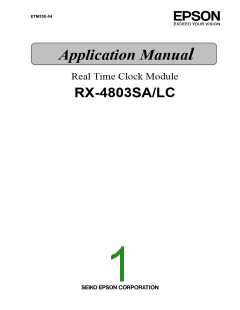

ETM33E-04
Application Manual
Real Time Clock Module
RX-4803SA/LC
Preliminary
NOTICE
This material is subject to change without notice.
Any part of this material may not be reproduced or duplicated in any form or any means without the
written permission of Seiko Epson.
The information about applied circuitry, software, usage, etc. written in this material is intended for
reference only. Seiko Epson does not assume any liability for the occurrence of infringing on any
patent or copyright of a third party. This material does not authorize the licensing for any patent or
intellectual copyrights.
When exporting the products or technology described in this material, you should comply with the
applicable export control laws and regulations and follow the procedures required by such laws and
regulations.
You are requested not to use the products (and any technical information furnished, if any) for the
development and/or manufacture of weapon of mass destruction or for other military purposes. You
are also requested that you would not make the products available to any third party who may use
the products for such prohibited purposes.
These products are intended for general use in electronic equipment. When using them in specific
applications that require extremely high reliability, such as the applications stated below, you must
obtain permission from Seiko Epson in advance.
/ Space equipment (artificial satellites, rockets, etc.) / Transportation vehicles and
related (automobiles, aircraft, trains, vessels, etc.) / Medical instruments to sustain life /
Submarine transmitters / Power stations and related / Fire work equipment and security
equipment / traffic control equipment / and others requiring equivalent reliability.
All brands or product names mentioned herein are trademarks and/or registered trademarks of their
respective.
RX - 4803 SA / LC
Contents
1. Overview........................................................................................................................1
2. Block Diagram ...............................................................................................................1
3. Terminal description ......................................................................................................2
3.1. Terminal connections................................................................................................................. 2
3.2. Pin Functions............................................................................................................................. 2
4. Absolute Maximum Ratings...........................................................................................3
5. Recommended Operating Conditions............................................................................3
6. Frequency Characteristics.............................................................................................3
7. Electrical Characteristics ...............................................................................................4
7.1. DC characteristics...................................................................................................................... 4
7.2. AC Characteristics ..................................................................................................................... 5
8. Use Methods .................................................................................................................6
8.1. Description of Registers ............................................................................................................. 6
8.1.1. Write / Read and Bank Select....................................................................................... 6
8.1.2. Register table (Bank1).................................................................................................. 6
8.1.3. Register table (Bank2).................................................................................................. 7
8.1.4. Register table (Bank3).................................................................................................. 7
8.2. Details of Registers.................................................................................................................... 8
8.2.1. Clock counter ( 1/100S, SEC - HOUR )......................................................................... 8
8.2.2. Calendar counter ( WEEK - YEAR ).............................................................................. 9
8.2.3. Alarm registers........................................................................................................... 10
8.2.4. Fixed-cycle timer control registers .............................................................................. 10
8.2.5. Extension register....................................................................................................... 10
8.2.6. Flag register............................................................................................................... 11
8.2.7. Control register........................................................................................................... 12
8.2.8. OSC Offset Contorol ( Reg -C / Bank 3 ) ................................................................... 14
8.2.9. Capture Buffer / Event control ( Bank 3 ).................................................................... 15
8.3. Fixed-cycle Timer Interrupt Function ........................................................................................ 16
8.3.1. Diagram of fixed-cycle timer interrupt function ............................................................ 16
8.3.2. Related registers for function of time update interrupts................................................ 17
8.3.3. Fixed-cycle timer interrupt interval (example).............................................................. 18
8.3.4. Fixed-cycle timer start timing...................................................................................... 18
8.4. Time Update Interrupt Function................................................................................................ 19
8.4.1. Time update interrupt function diagram ...................................................................... 19
8.4.2. Related registers for time update interrupt functions. .................................................. 20
8.5. Alarm Interrupt Function .......................................................................................................... 21
8.5.1. Diagram of alarm interrupt function ............................................................................ 21
8.5.2. Related registers ........................................................................................................ 22
8.5.3. Examples of alarm settings ........................................................................................ 23
8.6. Read/Write of data................................................................................................................... 24
8.6.1. Write of data .............................................................................................................. 24
8.6.2. Read of data .............................................................................................................. 24
8.7. VDD and CE timing.................................................................................................................. 25
8.8. Backup and Recovery .............................................................................................................. 25
8.9. Connection with Typical Microcontroller.................................................................................... 26
8.10. When used as a clock source (32 kHz-TCXO)........................................................................ 26
8.11. Note about read-out method of a 1/100s register .................................................................... 26
9. External Dimensions / Marking Layout.........................................................................28
10. Application notes.......................................................................................................30
RX - 4803 SA / LC
Serial Interface Real-time Clock Module
RX - 4803 SA / LC
• Features built-in 32.768 kHz DTCXO, High Stability.
• Serial interface in 4 lines form
• Alarm interrupt function for day, date, hour, and minute settings
• Fixed-cycle timer interrupt function
• Time update interrupt function
(Seconds, minutes)
• 32.768 kHz output with OE function (FOE and FOUT pins)
• Auto correction of leap years
• Wide interface voltage range:
• Wide time-keeping voltage range:
• Low current consumption:
(from 2000 to 2099)
1.6 V to 5.5 V
1.6 V to 5.5 V
0.75µA / 3 V (Typ.)
.
1. Overview
This module is an serial interface real-time clock which includes a 32.768 kHz DTCXO.
In addition to providing a calendar (year, month, date, day, hour, minute, second) function and a clock
counter function, this module provides an abundance of other functions including an alarm function,
fixed-cycle timer function, time update interrupt function, and 32.768 kHz output function.
The devices in this module are fabricated via a C-MOS process for low current consumption, which enables
long-term battery back-up.
All of these many functions are implemented in SOP-14 pin and VSOJ-12 pin package.
2. Block Diagram
32.768 kHz
32kHz
DTCXO
CLOCK
and
DIVIDER
CALENDAR
FOE
TIMER
FOUT
CONTROLLER
REGISTER
FOUT
EVIN
/ INT
ALARM
INTERRUPT
REGISTER
CONTROLLER
D I
SYSTEM
CONTROLLER
and
DO
INTERFACE
CIRCUIT
CLK
CE
CONTROL
REGISTER
Page - 1
ETM33E-04


RX - 4803 SA / LC
3. Terminal description
3.1. Terminal connections
RX − 4803 SA
RX − 4803 LC
1. CE
14. D I
1. N.C.
2. FOE
3. VDD
4. FOUT
5. CLK
6. CE
12. EVIN
11. / INT
10. GND
9. T2(VPP
8. DO
2. CLK
3. FOUT
4. N.C.
5. TEST
6. VDD
7. FOE
13. DO
12. T2 (VPP
11. GND
10. / INT
9. EVIN
8. N.C.
)
)
7. D I
VSOJ − 12pin
SOP − 14pin
3.2. Pin Functions
Signal
I/O
Function
name
This is the chip enabled input pin. It has a built-in pull-down resistance.
When the CE pin is at the "H" level, access to this RTC becomes possible. Also, when the
chip is not selected, the DO pin is at the high impedance level, and the CLK and DI pins
would not accept input.
CE
Input
Input
This is the shift clock input pin for serial data transfer.
In the write mode, it takes in data from the DI pin using the CLK signal rise edge.
In the read mode, it outputs data from the DO pin using the fall edge.
CLK
D I
Input
This is the data input pin for serial data transfer.
This is the data output pin for serial data transfer.
DO
Output
This is the C-MOS output pin with output control provided via the FOE pin.
When FOE = "H" (high level), this pin outputs a 32.768 kHz signal.
When output is stopped, the FOUT pin = "Hi-Z"( high impedance ).
FOUT
Output
This is an input pin used to control the output mode of the FOUT pin.
When this pin's level is high, the FOUT pin is in output mode. When it is low, output via the
FOUT pin is stopped.
FOE
/ INT
Input
This pins is used to output alarm signals, timer signals, time update signals, and other
signals. This pin is an open drain pin.
Output
EVIN
VDD
Input
External event input pin.
This pin is connected to a positive power supply.
This pin is connected to a ground.
−
−
GND
TEST
T2(VPP)
Input
−
Use by the manufacture for testing. ( Do not connect externally.)
Use by the manufacture for testing. ( Do not connect externally.)
This pin is not connected to the internal IC.
Leave N.C. pins open or connect them to GND or VDD.
N.C.
−
Note: Be sure to connect a bypass capacitor rated at least 0.1 μF between VDD and GND.
Page - 2
ETM33E-04



RX - 4803 SA / LC
4. Absolute Maximum Ratings
GND = 0 V
Unit
Item
Symbol
Condition
Between VDD and GND
CE, CLK, DI, FOE, EVIN pin
DO, FOUT pin
Rating
Supply voltage
Input voltage
VDD
to +6.5
V
V
−0.3
−0.3
VIN1
to +6.5
Output voltage (1)
Output voltage (2)
Storage temperature
VOUT1
VOUT2
TSTG
to VDD+0.3
to +6.5
V
GND−0.3
GND−0.3
−55
/INT pins
V
When stored separately,
without packaging
to +125
°C
5. Recommended Operating Conditions
GND = 0 V
Unit
Item
Symbol
Condition
Min.
Typ.
Max.
Operating supply voltage
VDD
Interface voltage
1.6
2.2
1.6
−40
3.0
3.0
3.0
+25
5.5
5.5
5.5
+85
V
V
Temp. compensation
voltage
Temperature compensation
voltage
VTEM
VCLK
TOPR
Clock supply voltage
Operating temperature
V
−
No condensation
°C
6. Frequency Characteristics
GND = 0 V
Unit
Item
Symbol
Condition
Rating
Ta= 0 to +50 °C, VDD=3.0 V
Ta=−40 to +85 °C, VDD=3.0 V
± 1.9 (∗1)
± 3.4 (∗2)
U A
U B
Ta= 0 to +50 °C, VDD=3.0 V
Ta=−40 to +85 °C, VDD=3.0 V
± 3.8 (∗3)
± 5.0 (∗4)
± 3.8 (∗3)
± 5.0 (∗4)
× 10−６
Frequency stability
∆ f / f
Ta= 0 to +50 °C, VDD=3.0 V
Ta=−30 to +70 °C, VDD=3.0 V
U C
A A
+5± 5.0 (∗5)
± 1.0 Max.
Ta= +25 °C, VDD=3.0 V
Frequency/voltage
characteristics
× 10−６/ V
f / V
tSTA
fa
Ta= +25 °C, VDD=2.2 V to 5.5 V
1.0 Max.
3.0 Max.
Ta= +25 °C, VDD=1.6 V
Ta=−40 to +85 °C, VDD=1.6 V to 5.5 V
Oscillation start time
s
× 10−６
year
/
Aging
Ta= +25 °C, VDD=3.0 V, first year
± 3 Max.
*
*
1 ) Equivalent to 5 seconds of month deviation.
3 ) Equivalent to 10 seconds of month deviation.
*
*
2 ) Equivalent to 9 seconds of month deviation.
*
5 ) Equivalent to 13 seconds of month deviation. ( excluding offset )
4 )
Page - 3
ETM33E-04



RX - 4803 SA / LC
7. Electrical Characteristics
7.1. DC characteristics
*Unless otherwise specified, GND = 0 V , VDD = 1.6 V to 5.5 V , Ta = −40 °C to +85 °C
Item
Symbol
Condition
Min.
Typ.
Max.
Unit
Current
consumption (1)
CE = GND, /INT = VDD
FOE = GND
FOUT : output OFF ( High Z )
Compensation interval 2.0 s
IDD1
VDD =5 V
VDD=3 V
0.75
3.4
µA
Current
consumption (2)
IDD2
0.75
2.1
Current
consumption (3)
IDD3
IDD4
IDD5
IDD6
IDD7
IDD8
IDD9
IDD10
VDD=5 V
VDD=3 V
VDD=5 V
VDD=3 V
VDD=5 V
VDD=3 V
VDD=5 V
VDD=3 V
2.0
1.5
7.0
4.5
0.7
0.7
120
115
7.5
5.0
CE = GND, /INT, FOE = VDD
FOUT : 32 kHz, CL = 0 pF
Compensation interval 2.0 s
µA
µA
µA
µA
Current
consumption (4)
Current
consumption (5)
20.0
12.0
2.95
1.85
900
350
CE = GND, /INT, FOE = VDD
FOUT: 32 kHz, CL = 30 pF
Compensation interval 2.0 s
Current
consumption (6)
Current
consumption (7)
CE = GND, /INT, FOE = GND
FOUT : output OFF ( High Z )
Compensation OFF
Current
consumption (8)
Current
consumption (9)
CE = GND, /INT, FOE = GND
FOUT : output OFF ( High Z )
Compensation ON ( peak )
Current
consumption (10)
High-level input
voltage
Low-level input
voltage
VIH
VIL
CE, DI, CLK, FOE, EVIN pins
CE, DI, CLK, FOE, EVIN pins
5.5
V
V
0.8 × VDD
GND − 0.3
0.2 × VDD
VOH1
VOH2
VOH3
VOL1
VOL2
VOL3
VOL4
VOL5
4.5
2.2
2.9
GND
GND
GND
GND
GND
5.0
3.0
3.0
VDD=5 V, IOH=−1 mA
VDD=3 V, IOH=−1 mA
VDD=3 V, IOH=−100 µA
VDD=5 V, IOL=1 mA
VDD=3 V, IOL=1 mA
VDD=3 V, IOL=100 µA
VDD=5 V, IOL=1 mA
VDD=3 V, IOL=1 mA
High-level
output voltage
FOUT, DO pins
V
V
GND+0.5
GND+0.8
GND+0.1
GND+0.25
GND+0.4
FOUT, DO pins
/INT pin
Low-level
output voltage
V
Input leakage
current
Output leakage
current
ILK
CE, DI, CLK, FOE pins, VIN = VDD or GND
0.5
0.5
−0.5
−0.5
µA
µA
IOZ
/INT, DO, FOUT pins, VOUT = VDD or GND
VDD=5 V
75
150
300
300
600
Input resistance
RDWN CE pin
kΩ
VDD=3 V
150
• Temperature compensation and consumption current
Compensation ON
1 ms
IDD9,10
Average
IDD1,2
Compensation OFF
IDD7,8
Compensation interval ( 2.0 s )
Page - 4
ETM33E-04


RX - 4803 SA / LC
7.2. AC Characteristics
Item
* Unless otherwise specified, GND = 0 V , Ta = −40 °C to +85 °C
2.4V ≤ VDD < 4.5V 4.5V ≤ VDD ≤ 5.5V
Symbol
Condition
Unit
Min.
500
220
220
Max.
Min.
350
155
155
Max.
CLK clock cycle
tCLK
tWH
tWL
tRF
ns
ns
ns
ns
ns
ns
ns
ns
s
CLK H pulse width
CLK L pulse width
CLK rise and fall time
CLK setup time
60
40
tCLKS
tCS
50
25
CE setup time
200
200
300
150
150
200
CE hold time
tCH
CE recovery time
CE enable time
tCR
tWCE
tDS
0.95
0.95
Write data setup time
Write data hold time
Read data delay time
DO output switching time
100
100
50
50
ns
ns
ns
ns
tDH
tRD
CL=50 pF
200
50
150
20
tZR
CL=50 pF
RL=10 kΩ
tRZ
DO output disable time
200
150
ns
DI/DO conflict avoiding time
FOUT duty
tZZ
0
0
ns
%
tW / t
50% VDD level
40
60
40
60
Timing chart
tWCE
tCS
C E
tCLK
tRF
tRF
tCLKS
tWL
tWH
tCH
tCR
80%
20%
CLK
tDS
tDH
• Read
D I
M 3
M 2
A 0
ZZ
tRD
tRZ
t
Hi-Z
D O
D 7
D 6
D 0
tZR
• Write
D I
M 3
M 2
A 0
D 7
D 6
D 0
Hi-Z
D O
∗ If DI and DO pins are wired-OR connected to make it to 3 lines form, secure tzz to avoid bus conflict.
Page - 5
ETM33E-04

RX - 4803 SA / LC
8. Use Methods
8.1. Description of Registers
8.1.1. Write / Read and Bank Select
R/W and Register bank are specified by the four bits mode setting code.
Bank1: Basic time and calendar register … Bank1 is compatible with RX-4801.
Bank2: Extension register… Adds 1/100s Counter.
Bank3: Extension register… Capture buffer and Event control registers.
Mode
Read
Write
Bank 1
9 h
Bank 2
A h
Bank 3
B h
1 h
2 h
3 h
The register of the same name of Bank1 and Bank2 is the same register.
8.1.2. Register table (Bank1)
Address
Function
SEC
bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read
Write
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
0
1
2
3
4
5
6
7
8
9
40
40
20
20
20
5
10
10
10
4
8
8
8
3
8
8
8
•
4
4
4
2
4
4
4
•
2
2
1
1
MIN
HOUR
2
1
WEEK
6
1
0
DAY
20
10
10
10
•
2
1
MONTH
2
1
YEAR
80
•
40
•
20
•
2
1
RAM
•
•
MIN Alarm
HOUR Alarm
WEEK Alarm
DAY Alarm
Timer Counter 0
Timer Counter 1
Extension Register
Flag Register
Control Register
AE
AE
40
•
20
20
5
10
10
4
8
8
3
8
8
4
4
2
4
4
2
1
2
1
6
1
0
P
P
A
AE
20
32
•
10
16
•
2
1
•
P
P
P
P
P
P
P
P
P
P
B
C
D
E
F
128
64
•
2
1
2048 1024
512
256
•
TEST WADA USEL
TE FSEL1 FSEL0 TSEL1 TSEL0
UF
TF
AF
EVF
EIE
VLF VDET
CSEL1 CSEL0 UIE
TIE
AIE
RESET
P : Possible , I : Impossible
Note
When after the initial power-up or when the result of read out the VLF bit is "1" , initialize all registers, before
using the module.
Be sure to avoid entering incorrect date and time data, as clock operations are not guaranteed when the data
or time data is incorrect.
∗1)
During the initial power-up, the TEST bit is reset to "0" and the VLF bit is set to "1".
∗ At this point, all other register values are undefined, so be sure to perform a reset before using the module.
Only a "0" can be written to the UF, TF, AF, VLF, or VDET bit.
∗2)
∗3)
∗4)
∗5)
Any bit marked with "" should be used with a value of "0" after initialization.
Any bit marked with "•" is a RAM bit that can be used to read or write any data.
The TEST bit is used by the manufacturer for testing. Be sure to set "0" for this bit when writing.
Page - 6
ETM33E-04




RX - 4803 SA / LC
8.1.3. Register table (Bank2)
Address
Function
1/100 S
bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read
Write
P
P
P
P
P
P
P
P
P
P
I
0
1
2
3
4
5
6
7
8
9
80
40
40
20
20
20
20
5
10
10
10
10
4
8
8
8
8
3
8
8
8
8
8
3
8
8
4
4
4
4
2
4
4
4
4
4
2
4
4
2
2
1
1
P
P
P
P
P
P
P
P
P
SEC
MIN
40
2
1
HOUR
2
1
WEEK
6
1
0
DAY
20
10
10
10
10
10
4
2
1
MONTH
2
1
YEAR
80
AE
AE
40
40
•
20
20
20
5
2
1
MIN Alarm
HOUR Alarm
WEEK Alarm
DAY Alarm
Timer Counter 0
Timer Counter 1
Extension Register
Flag Register
Control Register
2
1
2
1
6
1
0
P
P
A
AE
20
32
•
10
16
•
2
1
•
P
P
P
P
P
P
P
P
P
P
B
C
D
E
F
128
64
•
2
1
2048 1024
512
256
•
TEST WADA USEL
TE FSEL1 FSEL0 TSEL1 TSEL0
UF
TF
AF
EVF
EIE
VLF VDET
CSEL1 CSEL0 UIE
TIE
AIE
RESET
1/100S Reg. is cleared to "00" by writing in the SEC Reg. or RESET bit and the ERST bit operation.
8.1.4. Register table (Bank3)
Address
Function
bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read
Write
P
P
I
I
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
1/100 S CP
80
40
40
−
20
20
−
10
10
−
8
8
−
−
−
−
−
−
−
−
−
−
4
4
−
−
−
−
−
−
−
−
−
−
2
2
−
−
−
−
−
−
−
−
−
−
1
1
−
−
−
−
−
−
−
−
−
−
SEC CP
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
P
−
−
−
−
−
−
−
−
−
−
P
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
OSC Offset
OFS3 OFS2 OFS1 OFS0
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
P
P
Event Control
ECP EHL
ET1
ET0
ERST
When an initial power on, frequency offset is ±0 selected by "0000".
Page - 7
ETM33E-04


RX - 4803 SA / LC
8.2. Details of Registers
It explains each register based on Bank2.
8.2.1. Clock counter ( 1/100S, SEC - HOUR )
Address
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
0
1
2
3
1/100 S
SEC
MIN
80
40
40
40
20
20
20
20
10
10
10
10
8
8
8
8
4
4
4
4
2
2
2
2
1
1
1
1
HOUR
∗) "o" indicates write-protected bits. A zero is always read from these bits.
• The clock counter counts 1/100s, seconds, minutes, and hours.
• The data format is BCD format. For example, when the "seconds" register value is "0101 1001" it indicates 59
seconds.
∗ Note with caution that writing non-existent time data may interfere with normal operation of the clock counter.
1) 1/100 Second counter
Address
0
Function
1/100 S
bit 7
80
bit 6
40
bit 5
20
bit 4
10
bit 3
8
bit 2
4
bit 1
2
bit 0
1
• This second counter counts from "00" to "01," "02," and up to 99/100 seconds, after which it starts again
from 00 seconds.
2) Second counter
Address
Function
SEC
bit 7
bit 6
40
bit 5
20
bit 4
10
bit 3
8
bit 2
4
bit 1
2
bit 0
1
1
• This second counter counts from "00" to "01," "02," and up to 59 seconds, after which it starts again
from 00 seconds.
3) Minute counter
Address
Function
MIN
bit 7
bit 6
40
bit 5
20
bit 4
10
bit 3
8
bit 2
4
bit 1
2
bit 0
1
2
• This minute counter counts from "00" to "01," "02," and up to 59 minutes, after which it starts again from
00 minutes.
4) Hour counter
Address
Function
HOUR
bit 7
bit 6
bit 5
20
bit 4
10
bit 3
8
bit 2
4
bit 1
2
bit 0
1
3
• This hour counter counts from "00" hours to "01," "02," and up to 23 hours, after which it starts again
from 00 hours.
Page - 8
ETM33E-04


RX - 4803 SA / LC
8.2.2. Calendar counter ( WEEK - YEAR )
Address
4
Function
WEEK
bit 7
bit 6
6
bit 5
5
bit 4
4
bit 3
3
bit 2
2
bit 1
1
bit 0
0
∗) "o" indicates write-protected bits. A zero is always read from these bits.
1) Day of the WEEK counter
• The day (of the week) is indicated by 7 bits, bit 0 to bit 6.
The day data values are counted as: Day 01h → Day 02h → Day 04h → Day 08h → Day 10h → Day
20h → Day 40h → Day 01h → Day 02h, etc.
• The correspondence between days and count values is shown below.
WEEK
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
Day
Data [h]
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
1
0
0
0
0
0
1
0
0
0
0
0
1
0
0
0
0
0
1
0
0
0
0
0
1
0
0
0
0
0
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
01 h
02 h
04 h
08 h
10 h
20 h
40 h
1
0
0
0
0
0
0
Write/Read
Saturday
∗ Do not set "1" to more than one day at the same time.
Also, note with caution that any setting other than the
seven shown above should not be made as it may
interfere with normal operation.
Write prohibit
−
−
Address
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
5
6
7
DAY
MONTH
YEAR
20
10
10
10
8
8
8
4
4
4
2
2
2
1
1
1
80
40
20
∗) "o" indicates write-protected bits. A zero is always read from these bits.
• The auto calendar function updates all dates, months, and years from January 1, 2001 to December 31, 2099.
• The data format is BCD format. For example, a date register value of "0011 0001" indicates the 31st.
∗ Note with caution that writing non-existent date data may interfere with normal operation of the calendar counter.
2) Date counter
Address
4
Function
DAY
bit 7
bit 6
bit 5
20
bit 4
10
bit 3
8
bit 2
4
bit 1
2
bit 0
1
• The updating of dates by the date counter varies according to the month setting.
∗ A leap year is set whenever the year value is a multiple of four (such as 04, 08, 12, 88, 92, or 96). In
February of a leap year, the counter counts dates from "01," "02," "03," to "28," "29," "01," etc.
DAY
Month
Date update pattern
1, 3, 5, 7, 8, 10, or 12
4, 6, 9, or 11
February in normal year
February in leap year
01, 02, 03 ∼ 30, 31, 01 ∼
01, 02, 03 ∼ 30, 01, 02 ∼
01, 02, 03 ∼ 28, 01, 02 ∼
01, 02, 03 ∼ 28, 29, 01 ∼
Write/Read
3) Month counter
Address
5
Function
MONTH
bit 7
bit 6
bit 5
bit 4
10
bit 3
8
bit 2
4
bit 1
2
bit 0
1
• The month counter counts from 01 (January), 02 (February), and up to 12 (December), then starts again
at 01 (January).
4) Year counter
Address
Function
YEAR
bit 7
Y80
bit 6
Y40
bit 5
Y20
bit 4
Y10
bit 3
Y8
bit 2
Y4
bit 1
Y2
bit 0
Y1
6
• The year counter counts from 00, 01, 02 and up to 99, then starts again at 00.
• Any year that is a multiple of four (04, 08, 12, 88, 92, 96, etc.) is handled as a leap year.
Page - 9
ETM33E-04

RX - 4803 SA / LC
8.2.3. Alarm registers
Address
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
8
9
MIN Alarm
HOUR Alarm
WEEK Alarm
DAY Alarm
AE
AE
40
•
6
20
20
5
10
10
4
8
8
3
8
4
4
2
4
2
2
1
2
1
1
0
1
A
AE
20
10
•
• The alarm interrupt function is used, along with the AEI, AF, and WADA bits, to set alarms for specified date, day,
hour, and minute values.
• When the settings in the above alarm registers and the WADA bit match the current time, the /INT pin goes to
low level and "1" is set to the AF bit to report that and alarm interrupt event has occurred.
8.2.4. Fixed-cycle timer control registers
Address
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
B
C
Timer Counter 0
Timer Counter 1
128
•
64
•
32
•
16
•
8
2048
4
1024
2
512
1
256
• These registers are used to set the preset countdown value for the fixed-cycle timer interrupt function.
The TE, TF, TIE, and TSEL0/1 bits are also used to set the fixed-cycle timer interrupt function.
• When the value in the above fixed-cycle timer control register changes from 001h to 000h, the /INT pin goes to
low level and "1" is set to the TF bit to report that a fixed-cycle timer interrupt event has occurred.
8.2.5. Extension register
Address
D
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
Extension Register
TEST
(0)
WADA
(−)
USEL
(−)
TE
(−)
FSEL1 FSEL0 TSEL1 TSEL0
(0)
(Default)
(0)
(−)
(−)
∗1) The default value is the value that is read (or is set internally) after powering up from 0 V.
∗2) "o" indicates write-protected bits. A zero is always read from these bits.
∗3) "−" indicates a default value is undefined.
• This register is used to specify the target for the alarm function or time update interrupt function and to select or
set operations such as fixed-cycle timer operations.
1) TEST bit
This is the manufacturer's test bit. Its value should always be "0".
Be careful to avoid writing a "1" to this bit when writing to other bits.
Data
Description
TEST
∗ Default
0
Normal operation mode
Setting prohibited (manufacturer's test bit)
Write/Read
1
2) WADA ( Week Alarm/Day Alarm ) bit
This bit is used to specify either WEEK or DAY as the target of the alarm interrupt function.
Writing a "1" to this bit specifies DAY as the comparison obLCct for the alarm interrupt function.
Writing a "0" to this bit specifies WEEK as the comparison obLCct for the alarm interrupt function.
3) USEL ( Update Interrupt Select ) bit
This bit is used to specify either "second update" or "minute update" as the update generation timing of the
time update interrupt function.
Auto reset time
Data
update interrupts
USEL
tRTN
0
1
second update
minute update
∗ Default
500 ms
Write/Read
7.813 ms
4) TE ( Timer Enable ) bit
This bit controls the start/stop setting for the fixed-cycle timer interrupt function.
Writing a "1" to this bit specifies starting of the fixed-cycle timer interrupt function (a countdown starts from a
preset value).
Writing a "0" to this bit specifies stopping of the fixed-cycle timer interrupt function.
Page - 10
ETM33E-04



RX - 4803 SA / LC
5) FSEL0,1 ( FOUT frequency Select 0, 1 ) bits
The combination of these two bits is used to set the FOUT frequency.
FSEL1
(bit 3)
FSEL0
(bit 2)
FOUT frequency
32768 Hz Output
FSEL0,1
0
0
1
1
0
1
0
1
∗ Default
1024 Hz Output
1 Hz Output
Write/Read
32768 Hz Output
6) TSEL0,1 ( Timer Select 0, 1 ) bits
The combination of these two bits is used to set the countdown period (source clock) for the fixed-cycle timer
interrupt function (four settings can be made).
TSEL1
(bit 1)
TSEL0
(bit 0)
Source clock
4096 Hz
TSEL0,1
0
0
1
1
0
1
0
1
/ Once per 244.14 µs
64 Hz / Once per 15.625 ms
"Second" update / Once per second
"Minute" update / Once per minute
Write/Read
8.2.6. Flag register
Address
E
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
Flag register
UF
(−)
TF
(−)
AF
(−)
EVF
(0)
VLF
(1)
VDET
(1)
(Default)
(0)
(0)
∗1) The default value is the value that is read (or is set internally) after powering up from 0 V.
∗2) "o" indicates write-protected bits. A zero is always read from these bits.
∗3) "−" indicates a default value is undefined.
• This register is used to detect the occurrence of various interrupt events and reliability problems in internal data.
1) UF ( Update Flag ) bit
If set to "0" beforehand, this flag bit's value changes from "0" to 1" when a time update interrupt event has
occurred. Once this flag bit's value is "1", its value is retained until a "0" is written to it.
∗ For details, see "8.4. Time Update Interrupt Function".
2) TF ( Timer Flag ) bit
If set to "0" beforehand, this flag bit's value changes from "0" to 1" when a fixed-cycle timer interrupt event has
occurred. Once this flag bit's value is "1", its value is retained until a "0" is written to it.
∗ For details, see "8.3. Fixed-cycle Timer Interrupt Function".
3) AF ( Alarm Flag ) bit
If set to "0" beforehand, this flag bit's value changes from "0" to 1" when an alarm interrupt event has occurred.
Once this flag bit's value is "1", its value is retained until a "0" is written to it.
∗ For details, see "8.5. Alarm Interrupt Function".
4) EVF ( Event Flag ) bit
If set to "0" beforehand, this flag bit's value changes from "0" to 1" when a event input interrupt has occurred.
Once this flag bit's value is "1", its value is retained until a "0" is written to it.
5) VLF ( Voltage Low Flag ) bit
This flag bit indicates the retained status of clock operations or internal data. Its value changes from "0" to "1"
when data loss occurs, such as due to a supply voltage drop. Once this flag bit's value is "1", its value is
retained until a "0" is written to it.
When after powering up from 0 V this bit's value is "1" .
Page - 11
ETM33E-04

RX - 4803 SA / LC
Data
0
Description
VLF
The VLF bit is cleared to zero to prepare for the next status detection.
Write
Read
1
This bit is invalid after a "1" has been written to it.
Data loss is not detected.
0
1
Data loss is detected. All registers must be initialized.
( This setting is retained until a "zero" is written to this bit. )
6) VDET ( Voltage Detection Flag ) bit
This flag bit indicates the status of temperature compensation. Its value changes from "0" to "1" when stop the
temperature compensation, such as due to a supply voltage drop. Once this flag bit's value is "1", its value is
retained until a "0" is written to it.
When after powering up from 0 V this bit's value is "1".
Data
0
Description
VDET
The VDET bit is cleared to zero to prepare for the next low voltage detection.
Write
1
0
1
The write access of "1" to this bit is invalid.
Temperature compensation is normal.
Read
Temperature compensation is stop detected.
8.2.7. Control register
Address
F
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
Control Register
CSEL1 CSEL0
(0)
UIE
(−)
TIE
(−)
AIE
(−)
EIE
(0)
RESET
(Default)
(1)
(0)
(−)
∗1) The default value is the value that is read (or is set internally) after powering up from 0 V.
∗2) "o" indicates write-protected bits. A zero is always read from these bits.
∗3) "−" indicates no default value has been defined.
• This register is used to control interrupt event output from the /INT pin and the stop/start status of clock and
calendar operations.
1) CSEL0,1 ( Compensation interval Select 0, 1 ) bits
The combination of these two bits is used to set the temperature compensation interval.
CSEL1
(bit 7)
CSEL0
(bit 6)
Compensation interval
0.5 s
CSEL0,1
0
0
1
1
0
1
0
1
∗ Default
2.0 s
10 s
30 s
Write/Read
2) UIE ( Update Interrupt Enable ) bit
When a time update interrupt event is generated (when the UF bit value changes from "0" to "1"), this bit's value
specifies if an interrupt signal is generated (/INT status changes from Hi-Z to low) or is not generated (/INT
status remains Hi-Z).
When a "1" is written to this bit, an interrupt signal is generated (/INT status changes from Hi-Z to low) when an
interrupt event is generated.
When a "0" is written to this bit, no interrupt signal is generated when an interrupt event occurs.
Page - 12
ETM33E-04

RX - 4803 SA / LC
Data
0
Function
UIE
When a time update interrupt event occurs, an interrupt signal is not
generated or is canceled (/INT status changes from low to Hi-Z).
When a time update interrupt event occurs, an interrupt signal is generated
(/INT status changes from Hi-Z to low).
∗ When a time update interrupt event occurs, low-level output from the /INT pin occurs only when
the value of the control register's UIE bit is "1". This /INT status is automatically cleared (/INT
status changes from low to Hi-Z) 7.8 ms after the interrupt occurs.
Write/Read
1
2) TIE ( Timer Interrupt Enable ) bit
When a fixed-cycle timer interrupt event occurs (when the TF bit value changes from "0" to "1"), this bit's value
specifies if an interrupt signal is generated (/INT status changes from Hi-Z to low) or is not generated (/INT
status remains Hi-Z).
When a "1" is written to this bit, an interrupt signal is generated (/INT status changes from Hi-Z to low) when an
interrupt event is generated.
When a "0" is written to this bit, no interrupt signal is generated when an interrupt event occurs.
Data
Function
TIE
When a fixed-cycle timer interrupt event occurs, an interrupt signal is not
generated or is canceled (/INT status changes from low to Hi-Z).
0
When a fixed-cycle timer interrupt event occurs, an interrupt signal is
generated (/INT status changes from Hi-Z to low).
* When a fixed-cycle timer interrupt event has been generated low-level output from the /INT pin
occurs only when the value of the control register's TIE bit is "1". Up to 7.8 ms after the interrupt
occurs, the /INT status is automatically cleared (/INT status changes from low to Hi-Z).
Write/Read
1
3) AIE ( Alarm Interrupt Enable ) bit
When an alarm timer interrupt event occurs (when the AF bit value changes from "0" to "1"), this bit's value
specifies if an interrupt signal is generated (/INT status changes from Hi-Z to low) or is not generated (/INT
status remains Hi-Z).
When a "1" is written to this bit, an interrupt signal is generated (/INT status changes from Hi-Z to low) when an
interrupt event is generated.
When a "0" is written to this bit, no interrupt signal is generated when an interrupt event occurs.
Data
Function
AIE
When an alarm interrupt event occurs, an interrupt signal is not generated
or is canceled (/INT status changes from low to Hi-Z).
0
When an alarm interrupt event occurs, an interrupt signal is generated
(/INT status changes from Hi-Z to low).
∗ When an alarm interrupt event has been generated low-level output from the /INT pin occurs
only when the value of the control register's AIE bit is "1". This setting is retained until the AF bit
value is cleared to zero. (No automatic cancellation)
Write/Read
1
∗ For details, see "8.5. Alarm Interrupt Function".
[Caution]
(1) The /INT pin is a shared interrupt output pin for three types of interrupts. It outputs the OR'ed result of these interrupt outputs.
When an interrupt has occurred (when the /INT pin is at low level), the UF, TF, read AF flags to determine which flag has a value of "1"
(this indicates which type of interrupt event has occurred).
(2) To keep the /INT pin from changing to low level, write "0" to the UIE, TIE, and AIE bits. To check whether an event has occurred without
outputting any interrupts via the /INT pin, use software to monitor the value of the UF, TF, and AF interrupt flags.
4) EIE ( Event Interrupt Enable ) bit
When a Event input is generated (when the EVF bit value changes from "0" to "1"), this bit's value specifies if an
interrupt signal is generated (/INT status changes from Hi-Z to low) or is not generated (/INT status remains
Hi-Z). When a "1" is written to this bit, an interrupt signal is generated (/INT status changes from Hi-Z to low)
when an interrupt event is generated.
When a "0" is written to this bit, no interrupt signal is generated when an interrupt event occurs.
5) RESET bit
When this bit is set to "1", values (less than seconds) of the counter in the Clock & Calendar circuitry is reset,
and the clock also stops.
After "1" is written to this bit, this can be released by setting CE to "L".
Page - 13
ETM33E-04
RX - 4803 SA / LC
8.2.8. OSC Offset Contorol ( Reg -C / Bank 3 )
Address
C
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
OSC Offset
OFS3
OFS2
OFS1
OFS0
1) OFS bits (OFS3-OFS0)
The offset adjustment is done to the oscillation frequency.
Adjust value ( x 10-6 )
RX-4803SA RX-4803LC
± 0.0 ± 0.0
OFS3
OFS2
OFS1
OFS0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
−0.6
−1.2
−1.8
−2.4
−3.0
−3.6
−4.2
+4.8
+4.2
+3.6
+3.0
+2.4
+1.8
+1.2
+0.6
−0.7
−1.4
−2.1
−2.8
−3.5
−4.2
−4.9
+5.6
+4.9
+4.2
+3.5
+2.8
+2.1
+1.4
+0.7
*The OFS register affects the frequency stability. Please refer to a lower graph.
Please be careful if you offset and adjust it.
The offset function is effective for frequency adjustment at the normal temperature.
Frequency Stability vs. Temperature vs. OSC Offset Value
(Typ_data)
20
OSC_Offset:08h
15
10
5
OSC_Offset:00h
0
-5
-10
-15
OSC_Offset:07h
60 85
-20
-40
-15
10
35
Temperature [℃]
Page - 14
ETM33E-04


RX - 4803 SA / LC
8.2.9. Capture Buffer / Event control ( Bank 3 )
Address
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
0
1
F
1/100 S CP
SEC CP
Event Control
80
40
40
EHL
20
20
ET1
10
10
ET0
8
8
4
4
2
2
1
1
ECP
ERST
It is a register that sets it concerning the event detection.
1) ECP bit ( Event Capture enable )
It is specified whether to do the second and 1/100S data to the capture buffer in capture
when the event is detected.
ECP
Operation
0
1
Capture doesn't operate
Capture operation
2) EHL bit ( High/Low detection select )
The disregard level of the event input is specified.
The event is detected by maintaining the level specified by the EHL bit longer than the chattering removal
cycle.
EHL
0
1
Operation
"L" level detect
"H" level detect
3) ET1,ET0 bits ( Event chattering Time Set )
The removal cycle of the chattering removal function is set.
･Chattering removal cycle
ET1
0
0
ET0
0
1
Cycle
not provided
3.9 ms
1
1
0
1
15.6 ms
125 ms
4) ERST bit
When this bit is made "1", the counter of the Clock&Calendar circuit (counter for 16KHz to 2Hz
and 1/100 seconds) at less than second is reset synchronizing with the external event detection.
ALL "0" is cleared to CP and the CP register of the second at the same time for 1/100 seconds.
Timing continues until the event is generated after "1" is written in the ERST bit.
The counter at less than second when an external event is detected is reset, and the ERST bit is
cleared.
Moreover, it is also possible to assume this reset action to be invalid by doing "0" writing
directly to the ERST bit before the event is generated.
When the highly accurate time suiting is done, this bit is used.
The time for the counter at less than second to be reset influences the operation of the alarm, the
fixed cycle timer, and the update interrupt of time, etc.
Page - 15
ETM33E-04
RX - 4803 SA / LC
8.3. Fixed-cycle Timer Interrupt Function
The fixed-cycle timer interrupt generation function generates an interrupt event periodically at any fixed cycle set
between 244.14 µs and 4095 minutes.
When an interrupt event is generated, the /INT pin goes to low level and "1" is set to the TF bit to report that an
event has occurred. (However, when a fixed-cycle timer interrupt event has been generated low-level output from
the /INT pin occurs only when the value of the control register's TIE bit is "1". Up to 7.8 ms after the interrupt
occurs, the /INT status is automatically cleared (/INT status changes from low-level to Hi-Z).
∗ Example of
/INT operation
7.8ms
(Max.)
period
TIE = " 1 "
TIE = " 1 " → " 0 "
TE = " 0 " → " 1 "
8.3.1. Diagram of fixed-cycle timer interrupt function
Fixed-cycle timer starts
Fixed-cycle timer stops
" 1 "
" 0 "
(1)
(7)
TE bit
Operation of fixed-cycle timer
" 1 "
(9)
" 1 "
" 0 "
(5)
TIE bit
Hi - z
" L "
/INT output
(6)
(7)
∗ Even when the TE bit is
tRTN
tRTN
cleared to zero, /INT
remains low during the
tRTN time.
tRTN
tRTN
(8)
∗ Even when the TF bit is
cleared to zero, /INT
remains low during the
tRTN time.
" 1 "
" 0 "
(4)
(3)
TF bit
period
period
period
period
(2)
• • • 001 h → 000 h
(1)
Event occurs
(7)
∗ When the TE bit value changes from "0" to "1" the fixed-cycle timer function starts.
The counter always starts counting down from the preset value when the TE value changes from "0" to "1".
RTC internal operation
Write operation
(1) When a "1" is written to the TE bit, the fixed-cycle timer countdown starts from the preset value.
(2) A fixed-cycle timer interrupt event starts a countdown based on the countdown period (source clock). When
the count value changes from 001h to 000h, an interrupt event occurs.
∗ After the interrupt event that occurs when the count value changes from 001h to 000h, the counter
automatically reloads the preset value and again starts to count down. (Repeated operation)
(3) When a fixed-cycle timer interrupt event occurs, "1" is written to the TF bit.
(4) When the TF bit = "1" its value is retained until it is cleared to zero.
(5) If the TIE bit = "1" when a fixed-cycle timer interrupt occurs, /INT pin output goes low.
∗ If the TIE bit = "0" when a fixed-cycle timer interrupt occurs, /INT pin output remains Hi-Z.
(6) Output from the /INT pin remains low during the tRTN period following each event, after which it is
automatically cleared to Hi-Z status.
∗ /INT is again set low when the next interrupt event occurs.
(7) When a "0" is written to the TE bit, the fixed-cycle timer function is stopped and the /INT pin is set to Hi-Z
status.
∗ When /INT = low, the fixed-cycle timer function is stopped. The tRTN period is the maximum amount of time
before the /INT pin status changes from low to Hi-Z.
(8) When /INT = low, the /INT pin status changes from low to Hi-Z as soon as the TF bit value changes from "1"
to "0".
(9) When /INT = low, the /INT pin status changes from low to Hi-Z as soon as the TIE bit value changes from "1"
to "0".
Page - 16
ETM33E-04


RX - 4803 SA / LC
8.3.2. Related registers for function of time update interrupts.
Address
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
B
C
D
E
F
Timer Counter 0
Timer Counter 1
Extension Register
Flag Register
128
•
64
•
32
•
16
•
TE
TF
TIE
8
4
2
512
1
256
2048
FSEL1
AF
1024
FSEL0
EVF
TEST
WADA
USEL
TSEL1 TSEL0
VLF
UF
VDET
CSEL1
CSEL0
UIE
AIE
EIE
RESET
Control Register
∗1) "o" indicates write-protected bits. A zero is always read from these bits.
∗2) Bits marked with "•" are RAM bits that can contain any value and are read/write-accessible.
∗ Before entering settings for operations, we recommend writing a "0" to the TE and TIE bits to prevent hardware
interrupts from occurring inadvertently while entering settings.
∗ When the RESET bit value is "1" the time update interrupt function operates only partially.
(Operation continues if the source clock setting is 4096 Hz. Otherwise, operation is stopped.)
∗ When the fixed-cycle timer interrupt function is not being used, the fixed-cycle timer control register (Reg – B to
C) can be used as a RAM register. In such cases, stop the fixed-cycle timer function by writing "0" to the TE and
TIE bits.
1) TSEL0,1 bits (Timer Select 0, 1)
The combination of these two bits is used to set the countdown period (source clock) for the fixed-cycle timer
interrupt function (four settings can be made).
TSEL1 TSEL0
(bit 1) (bit 0)
Auto reset time
tRTN
Effects of
RESET bits
TSEL0,1
Source clock
0
0
1
1
0
1
0
1
4096 Hz / Once per 244.14 µs
64 Hz / Once per 15.625 ms
"Second" update / Once per second
"Minute" update / Once per minute
122 µs
7.8125 ms
7.8125 ms
7.8125 ms
−
∗ Does not operate
when the RESET
bit value is "1".
Write/Read
∗1) The /INT pin's auto reset time (tRTN) varies as shown above according to the source clock setting.
∗2) When the source clock has been set to "second update" or "minute update", the timing of both
countdown and interrupts is coordinated with the clock update timing.
2) Fixed-cycle Timer Control register (Reg - B to C)
This register is used to set the default (preset) value for the counter. Any count value from 1 (001 h) to
4095 (FFFh) can be set. The counter counts down based on the source clock's period, and when the count
value changes from 001h to 000h, the TF bit value becomes "1".
The countdown that starts when the TE bit value changes from "0" to "1" always begins from the preset value.
Be sure to write "0" to the TE bit before writing the preset value. If a value is written while TE = "1" the first
subsequent event will not be generated correctly.
Address C
Address B
Timer Counter 1
Timer Counter 0
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
512
bit 0
256
bit 7
128
bit 6
64
bit 5
32
bit 4
bit 3
bit 2
bit 1
2
bit 0
1
2048 1024
16
8
4
•
•
•
•
3) TE (Timer Enable) bit
This bit controls the start/stop setting for the fixed-cycle timer interrupt function.
Data
Description
Stops fixed-cycle timer interrupt function.
Starts fixed-cycle timer interrupt function.
TE
0
Write/Read
1
∗ The countdown that starts when the TE bit value changes from "0" to "1" always begins from the
preset value.
4) TF (Timer Flag) bit
If set to "0" beforehand, this flag bit's value changes from "0" to 1" when a fixed-cycle timer interrupt event has
occurred. Once this flag bit's value is "1", its value is retained until a "0" is written to it.
Data
Description
TF
The TF bit is cleared to zero to prepare for the next status detection
0
∗ Clearing this bit to zero enables /INT low output to be canceled (/INT remains Hi-Z) when timer
Write
interrupt event has occurred.
1
0
This bit is invalid after a "1" has been written to it.
Fixed-cycle timer interrupt events are not detected.
Read
Fixed-cycle timer interrupt events are detected.
(Result is retained until this bit is cleared to zero.)
1
Page - 17
ETM33E-04

RX - 4803 SA / LC
5) TIE (Timer Interrupt Enable) bit
When a fixed-cycle timer interrupt event occurs (when the TF bit value changes from "0" to "1"), this bit's value
specifies whether an interrupt signal is generated (/INT status changes from Hi-Z to low) or is not generated
(/INT status remains Hi-Z).
Data
Description
TIE
1) When a fixed-cycle timer interrupt event occurs, an interrupt signal is not
generated or is canceled (/INT status remains Hi-Z).
2) When a fixed-cycle timer interrupt event occurs, the interrupt signal is
canceled (/INT status changes from low to Hi-Z).
0
∗ Even when the TIE bit value is "0" another interrupt event may change the /INT status to low (or
may hold /INT = "L").
Write/Read
When a fixed-cycle timer interrupt event occurs, an interrupt signal is
generated (/INT status changes from Hi-Z to low).
∗ When a fixed-cycle timer interrupt event has been generated low-level output from the /INT pin
occurs only when the value of the control register's TIE bit is "1". Up to 7.8 ms after the interrupt
occurs, the /INT status is automatically cleared (/INT status changes from low to Hi-Z).
1
8.3.3. Fixed-cycle timer interrupt interval (example)
Timer
Source clock
"Second"
update
"Minute"
update
Counter
setting
4096 Hz
64 Hz
TSEL1,0 = 0,0
TSEL1,0 = 0,1
TSEL1,0 = 1,0
TSEL1,0 = 1,1
0
1
2
−
−
−
1 s
2 s
−
15.625 ms
31.25 ms
1 min
2 min
244.14 µs
488.28 µs
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
41
205
410
10.010 ms
50.049 ms
100.10 ms
500.00 ms
640.63 ms
3.203 s
6.406 s
41 s
205 s
410 s
41 min
205 min
410 min
2048 min
2048
32.000 s
2048 s
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
4095
0.9998 s
63.984 s
4095 s
4095 min
• Time error in fixed-cycle timer
A time error in the fixed-cycle timer will produce a positive or negative time period error in the selected
source clock. The fixed-cycle timer's time is within the following range relative to the time setting.
(Fixed-cycle timer's time setting (∗) − source clock period) to (timer's time setting)
∗) The timer's time setting = source clock period × timer counter's division value.
∗ The time actually set to the timer is adjusted by adding the time described above to the
communication time for the serial data transfer clock used for the setting.
8.3.4. Fixed-cycle timer start timing
Counting down of the fixed-cycle timer value starts at the rising edge of the CLK signal that occurs when the TE
value is changed from "0" to "1" (after bit 0 is transferred).
Address D
CLK pin
FSEL0
FSEL1
TSEL1 TSEL0
TE
D O pin
Internal timer
/INT pin
Operation of timer
Page - 18
ETM33E-04


RX - 4803 SA / LC
8.4. Time Update Interrupt Function
The time update interrupt function generates interrupt events at one-second or one-minute intervals, according to
the timing of the internal clock.
When an interrupt event occurs, the UF bit value becomes "1" and the /INT pin goes to low level to indicate that
an event has occurred. (However, when a fixed-cycle timer interrupt event has been generated, low-level output
from the /INT pin occurs only when the value of the control register's UIE bit is "1". This /INT status is
automatically cleared (/INT status changes from low level to Hi-Z) 7.8 ms (fixed value) after the interrupt occurs.
∗ /INT operation
example
7.8ms
period
UIE = " 1 "
UIE = " 1 " → " 0 "
8.4.1. Time update interrupt function diagram
" 1 "
(7)
" 1 "
" 0 "
(4)
UIE bit
Hi - z
" L "
/INT output
(5)
tRTN
tRTN
tRTN
tRTN
(6)
∗ /INT status change
when UF bit is cleared
to zero.
" 1 "
" 0 "
(3)
(2)
UF bit
period
period
period
period
(1)
Events
Operation in RTC
Write operation
(1) A time update interrupt event occurs when the internal clock's value matches either the second update time
or the minute update time. The USEL bit's specification determines whether it is the second update time or
the minute update time that must be matched.
(2) When a time update interrupt event occurs, the UF bit value becomes "1".
(3) When the UF bit value is "1" its value is retained until it is cleared to zero.
(4) When a time update interrupt occurs, /INT pin output is low if UIE = "1".
∗ If UIE = "0" when a timer update interrupt occurs, the /INT pin status remains Hi-Z.
(5) Each time an event occurs, /INT pin output is low only up to the tRTN time (which is fixed as 7.1825 ms for
time update interrupts) after which it is automatically cleared to Hi-Z.
∗ /INT pin output goes low again when the next interrupt event occurs.
(6) When /INT = low, the /INT pin status changes from low to Hi-Z as soon as the UF bit value changes from "1"
to "0".
(7) When /INT = low, the /INT pin status changes from low to Hi-Z as soon as the UIE bit value changes from
"1" to "0".
Page - 19
ETM33E-04


RX - 4803 SA / LC
8.4.2. Related registers for time update interrupt functions.
Address
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
TEST
WADA
TE
TF
FSEL1
AF
FSEL0
EVF
TSEL1
TSEL0
VDET
D
E
F
Extension Register
Flag Register
Control Register
USEL
UF
UIE
VLF
CSEL1
CSEL0
TIE
AIE
EIE
RESET
∗) "o" indicates write-protected bits. A zero is always read from these bits.
∗ Before entering settings for operations, we recommend writing a "0" to the UIE bit to prevent hardware interrupts
from occurring inadvertently while entering settings.
∗ When the RESET bit value is "1" time update interrupt events do not occur.
∗ Although the time update interrupt function cannot be fully stopped, if "0" is written to the UIE bit, the time update
interrupt function can be prevented from changing the /INT pin status to low.
1) USEL (Update Interrupt Select) bit
This bit is used to select "second" update or "minute" update as the timing for generation of time update
interrupt events.
Data
Description
USEL
Selects "second update" (once per second) as the timing for generation of
interrupt events
0
Write/Read
Selects "minute update" (once per minute) as the timing for generation of
interrupt events
1
2) UF (Update Flag) bit
Once it has been set to "0", this flag bit value changes from "0" to "1" when a time update interrupt event occurs.
When this flag bit = "1" its value is retained until a "0" is written to it.
Data
Description
UF
The UF bit is cleared to zero to prepare for the next status detection
∗ Clearing this bit to zero does not enable the /INT low output status to be cleared (to Hi-Z).
0
Write
1
0
This bit is invalid after a "1" has been written to it.
Time update interrupt events are not detected.
Read
Time update interrupt events are detected.
(The result is retained until this bit is cleared to zero.)
1
3) UIE (Update Interrupt Enable) bit
When a time update interrupt event occurs (UF bit value changes from "0" to "1"), this bit selects whether to
generate an interrupt signal (/INT status changes from Hi-Z to low) or to not generate it (/INT status remains
Hi-Z).
Data
Description
UIE
1) Does not generate an interrupt signal when a time update interrupt event
occurs (/INT remains Hi-Z)
2) Cancels interrupt signal triggered by time update interrupt event (/INT
changes from low to Hi-Z).
0
∗ Even when the UIE bit value is "0" another interrupt event may change the /INT status to low (or
may hold /INT = "L").
Write/Read
When a time update interrupt event occurs, an interrupt signal is generated
(/INT status changes from Hi-Z to low).
∗ When a time update interrupt event occurs, low-level output from the /INT pin occurs only when
the UIE bit value is "1". Up to 7.8 ms after the interrupt occurs, the /INT status is automatically
cleared (/INT status changes from low to Hi-Z).
1
Page - 20
ETM33E-04

RX - 4803 SA / LC
8.5. Alarm Interrupt Function
The alarm interrupt generation function generates interrupt events for alarm settings such as date, day, hour, and
minute settings.
When an interrupt event occurs, the AF bit value is set to "1" and the /INT pin goes to low level to indicate that
an event has occurred.
∗ Example of
/INT operation
AIE = " 1 "
( AF = " 0 " → " 1 " )
AF = " 1 " → " 0 " or
AIE = " 1 " → " 0 "
8.5.1. Diagram of alarm interrupt function
" 1 "
" 1 "
" 0 "
(4)
AIE bit
(5)
Hi - z
" L "
(7)
/INT output
AF bit
(6)
" 1 "
" 0 "
(3)
(2)
(1)
Event
occurs
RTC internal operation
Write operation
(1) The hour, minute, date or day when an alarm interrupt event is to occur is set in advance along with the
WADA bit, and when the setting matches the current time an interrupt event occurs.
(Note) Even if the current date/time is used as the setting, the alarm will not occur until the counter counts up
to the current date/time (i.e., an alarm will occur next time, not immediately).
(2) When a time update interrupt event occurs, the AF bit values becomes "1".
(3) When the AF bit = "1", its value is retained until it is cleared to zero.
(4) If AIE = "1" when an alarm interrupt occurs, the /INT pin output goes low.
∗ When an alarm interrupt event occurs, /INT pin output goes low, and this status is then held until it is
cleared via the AF bit or AIE bit.
(5) If the AIE value is changed from "1" to "0" while /INT is low, the /INT status immediately changes from low to
Hi-Z. After the alarm interrupt occurs and before the AF bit value is cleared to zero, the /INT status can be
controlled via the AIE bit.
(6) If the AF bit value is changed from "1" to "0" while /INT is low, the /INT status immediately changes from low
to Hi-Z.
(7) If the AIE bit value is "0" when an alarm interrupt occurs, the /INT pin status remains Hi-Z.
Page - 21
ETM33E-04


RX - 4803 SA / LC
8.5.2. Related registers
Address
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
1
2
3
4
8
9
MIN
HOUR
WEEK
40
20
20
5
20
20
20
5
10
10
4
10
10
10
4
10
TE
TF
TIE
8
8
3
8
8
8
3
8
4
4
2
4
4
4
2
4
2
2
1
2
2
2
1
1
1
0
1
1
1
0
1
6
DAY
MIN Alarm
HOUR Alarm
WEEK Alarm
DAY Alarm
Extension Register
Flag Register
Control Register
40
•
6
AE
AE
A
AE
20
USEL
UF
2
•
TEST
WADA
FSEL1
AF
AIE
FSEL0
EVF
EIE
TSEL1
TSEL0
VDET
RESET
D
E
F
VLF
CSEL1
CSEL0
UIE
∗1) "o" indicates write-protected bits. A zero is always read from these bits.
∗2) Bits marked with "•" are RAM bits that can contain any value and are read/write-accessible.
∗ Before entering settings for operations, we recommend writing a "0" to the AIE bit to prevent hardware interrupts
from occurring inadvertently while entering settings.
∗ When the RESET bit value is "1" alarm interrupt events do not occur.
∗ When the alarm interrupt function is not being used, the Alarm registers (Reg - 8 to A) can be used as a RAM
register. In such cases, be sure to write "0" to the AIE bit.
∗ When the AIE bit value is "1" and the Alarm registers (Reg - 8 to A) is being used as a RAM register, /INT may
be changed to low level unintentionally.
1) WADA (Week Alarm /Day Alarm) bit
The alarm interrupt function uses either "Day" or "Week" as its target. The WADA bit is used to specify either
WEEK or DAY as the target for alarm interrupt events.
Data
Description
WADA
Sets WEEK as target of alarm function
(DAY setting is ignored)
0
Write/Read
Sets DAY as target of alarm function
(WEEK setting is ignored)
1
2) Alarm registers (Reg - 8 to A)
Address
8
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
MIN Alarm
AE
AE
40
•
6
20
20
5
10
10
4
8
8
3
8
4
4
2
4
2
2
1
2
1
1
0
1
9
HOUR Alarm
WEEK Alarm
DAY Alarm
A
AE
20
10
•
The hour, minute, date or day when an alarm interrupt event will occur is set using this register and the
WADA bit.
In the WEEK alarm /Day alarm register (Reg - A), the setting selected via the WADA bit determines
whether WEEK alarm data or DAY alarm data will be set. If WEEK has been selected via the WADA bit,
multiple days can be set (such as Monday, Wednesday, Friday, Saturday).
When the settings made in the alarm registers and the WADA bit match the current time, the AF bit value
is changed to "1". At that time, if the AIE bit value has already been set to "1", the /INT pin goes low.
∗1) The register that "1" was set to "AE" bit, doesn't compare alarm.
(Example) Write 80h (AE = "1") to the WEEK Alarm /DAY Alarm register (Reg - A):
Only the hour and minute settings are used as alarm comparison targets. The week and date settings
are not used as alarm comparison targets.
As a result, alarm occurs if only an hour and minute accords with alarm data.
∗2) If all three AE bit values are "1" the week/date settings are ignored and an alarm interrupt event will
occur once per minute.
Page - 22
ETM33E-04

RX - 4803 SA / LC
3) AF (Alarm Flag) bit
When this flag bit value is already set to "0", occurrence of an alarm interrupt event changes it to "1". When this
flag bit value is "1", its value is retained until a "0" is written to it.
Data
Description
AF
The AF bit is cleared to zero to prepare for the next status detection
0
∗ Clearing this bit to zero enables /INT low output to be canceled (/INT remains Hi-Z) when an
Write
alarm interrupt event has occurred.
1
0
This bit is invalid after a "1" has been written to it.
Alarm interrupt events are not detected.
Read
Alarm interrupt events are detected.
(Result is retained until this bit is cleared to zero.)
1
4) AIE (Alarm Interrupt Enable) bit
When an alarm interrupt event occurs (when the AF bit value changes from "0" to "1"), this bit's value specifies
whether an interrupt signal is generated (/INT status changes from Hi-Z to low) or is not generated (/INT status
remains Hi-Z).
Data
Description
AIE
1) When an alarm interrupt event occurs, an interrupt signal is not
generated or is canceled (/INT status remains Hi-Z).
2) When an alarm interrupt event occurs, the interrupt signal is canceled
(/INT status changes from low to Hi-Z).
0
∗ Even when the AIE bit value is "0" another interrupt event may change the /INT status to low
(or may hold /INT = "L").
Write/Read
When an alarm interrupt event occurs, an interrupt signal is generated (/INT
status changes from Hi-Z to low).
1
∗
When an alarm interrupt event occurs, low-level output from the /INT pin occurs only when the
AIE bit value is "1". This value is retained (not automatically cleared) until the AF bit is cleared
to zero.
8.5.3. Examples of alarm settings
1) Example of alarm settings when "Day" has been specified (and WADA bit = "0")
Reg – A
Reg - 9
Reg - 8
Day is specified
bit bit bit bit bit bit bit bit
HOUR
Alarm
MIN
Alarm
7
6
5
4
3
2
1
0
WADA bit = "0"
AE S
F
T
W
T
M
S
Monday through Friday, at 7:00 AM
∗ Minute value is ignored
0
0
0
1
1
0
1
0
1
0
1
0
1
0
0
1
07 h
80 h to FF h
18 h
80 h to FF h
30 h
Every Saturday and Sunday, for 30 minutes
each hour ∗ Hour value is ignored
0
1
1
1
1
1
1
1
1
Every day, at 6:59 AM
59 h
Χ
Χ
Χ
Χ
Χ
Χ
Χ
Χ: Don't care
2) Example of alarm settings when "Day" has been specified (and WADA bit = "1")
Reg - A
Reg - 9
Reg - 8
Day is specified
bit
6
bit
7
bit bit bit bit bit bit
HOUR
Alarm
MIN
Alarm
5
4
3
2
1
0
WADA bit = "1"
AE
20 10 08 04 02 01
•
First of each month, at 7:00 AM
∗ Minute value is ignored
15th of each month, for 30 minutes each
hour ∗ Hour value is ignored
0
0
0
0
0
1
0
0
0
1
0
0
1
1
07 h
80 h to FF h
18 h
80 h to FF h
30 h
0
1
0
Every day, at 6:59 PM
59 h
Χ
Χ
Χ
Χ
Χ
Χ
Χ
Χ: Don't care
Page - 23
ETM33E-04

RX - 4803 SA / LC
8.6. Read/Write of data
For both read and write, first set up chip condition (internally CE="H") to CE="H" , then specify the 4-bits address,
and finally read or write in 8-bits units. Both read and write use MSB-first. In continuous operation, objected
address is auto incremented. Auto incrementing of the address is cyclic, so address "F" is followed by address "0".
8.6.1. Write of data
1) One-shot writing
C E
CLK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
D I
0
0
0
x
A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0
Address N Data N
Mode
D O
Hi-Z
2) Continuous writing
C E
CLK
1
2
3
4
5
6
7
8
9
10
11
D I
0
0
0
x
A3 A2 A1 A0 D7 D6 D5
Address N
D1 D0 D7 D6
D1 D0 D7 D6
D1 D0
Mode
Data N
Data N+1
Data N+m
D O
Hi-Z
*When writing data, the data needs to be entered in 8-bits units.
If the input of data in 8-bits unit is not completed before CE input falls, the 8-bits data will not be written
properly at the time CE input falls.
8.6.2. Read of data
1) One-shot reading
C E
CLK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
D I
1
0
0
x
A3 A2 A1 A0
Address N
Mode
D O
D7 D6 D5 D4 D3 D2 D1 D0
Data N
Hi-Z
2) Continuous reading
C E
CLK
1
2
3
4
5
6
7
8
9
10
11
D I
1
0
0
x
A3 A2 A1 A0
Address N
Mode
D O
D7 D6 D5
Data N
D1 D0 D7 D6
D1 D0 D7 D6
D1 D0
Hi-Z
Data N+1
Data N+m
Page - 24
ETM33E-04



RX - 4803 SA / LC
8.7. VDD and CE timing
* When the power is turned to ON, use with CE = " L " ( VCL[V] in the diagram ) as illustrated in the following
timing chart.
1.6 V
VDD
t
CL
VCL
CE
Item
Symbol
VCL
Remark
Specification
0.3 (Max.)
Unit
V
CE impressed voltage
until VDD = 1.6 V
CE voltage when power is
turned to ON
Time to maintain CE=VCL[V]
until VDD = 1.6 V
CE=VCL[V] time when power
is turned to ON
tCL
ms
30 ( Min. )
8.8. Backup and Recovery
VDD
VDET
VCLK
0 V
t R1
t F
t R2
Back up
Item
Symbol
Condition
Min.
Typ.
Max.
Unit.
Power supply
detection voltage ( 1 )
Power supply
detection voltage ( 2 )
Power supply
VDET
VLOW
t F
2.2
1.6
V
V
−
−
−
−
2
µs /V
drop time
Initial power-up time
t R1
10
ms /V
µs /V
µs /V
5
1.6V → VDD ≤ 3.6V
1.6V → VDD > 3.6V
Clock maintenance
power-up time
t R2
15
Please control a power supply in the above agreement so that normalcy operates a detect circuit of power supply injection.
Please start a power supply at 0V by all means.
Before power supply change operation and a shift to backup state ,please set a CE terminal at a Low level
Page - 25
ETM33E-04


RX - 4803 SA / LC
8.9. Connection with Typical Microcontroller
D 1
Note
4.7 µF
VDD
Schottky
Barrier
Diode
+
RX-4803
VDD
CE
D I
0.1 µF
DO
CLK
/ INT
FOUT
FOE
GND
Note : When using the seconding battery, the diode is not required.
When using the primary battery, the diode is required.
For detailed value on the resistance, please consult a battery maker.
8.10. When used as a clock source (32 kHz-TCXO)
VDD
RX-4803
VDD
CE
D I
TEST
T2
DO
0.1 µF
CLK
EVIN
FOUT
/ INT
32.768kHz
O E
FOE
GND
Page - 26
ETM33E-04


RX - 4803 SA / LC
8.11. Note about read-out method of a 1/100s register
RA-4803 is equipped with a 1/100s register.
As for 1/100 counters, it is worked in very fast clock than second.
Therefore, as for the count operation of each, behavior in a chip access hold facility (P.8 reference) operation is different.
When using a 1/100s register, be careful as follows.
Behavior, when access hold function worked.
When communication to a clock counter of an RTC started, by access hold facility, update in the time can stop hold
automatically.
However, as for 1/100 second counters, data cannot stop hold, and count is continued.
As for 1/100 value, it is examined data by IC circuit, and it is captured to 1/100s register.
Therefore, there is case lost continuity of data in 1/100 second data and time data when 1/100 second digits are captured
just after a second updates.
This phenomenon occurs in restrictive timing, but internal Time and date are correct and internal updates are correct.
A lag of a readout result is -1 second at the maximum.
Read-out method of 1/100 second digits to prevent mismatching of the time
Method 1
Method to read two times of 1/100 second digits
Step1:
please read 1/100 second digits and time data, and stored those.
Step2:
Please read only 1/100 second digits again.
Please complete Step2 within 10ms from Step1.
Step3:
If two 1/100 second digits are same values, please advance next.
When two values are different, please return to Step1.
Note
Between Step2 and Step1, please put CE=LOW by all means.
Method 2
Method to use an interruption flag of the fixed period interrupt function.
Step1
Please clear USEL bit of address Dh in a zero.
It is update interruption of sec.
Please clear UF bit of address Eh in a zero.
Step3:
Please read time data and 1/100 data.
Please read UF bit.
Step5:
Please adopt the data that I read in case of UF=0.
Please cancel the data that I read in case of UF=1.
Step6:
When it is executed again, return to Step2.
When second is updated, a UF bit is set to 1.
Therefore it must be executed Step2 and 4 within one second.
Please complete Step4 within 1sec from Step2.
(recommendation,:, lower than 10ms)
Please divide Step3 and Step4 by CE=LOW.
Page - 27
ETM33E-04
RX - 4803 SA / LC
9. External Dimensions / Marking Layout
9.1. RX − 4803 SA
9.1.1. External dimensions
RX − 4803 SA ( SOP − 14pin )
• External dimensions
• Recommended soldering pattern
10.1 ± 0.2
0° - 10°
#14
#8
1.4
5.4
1.4
5.0 7.4
±
0.2
0.1
0.6
#1
#7
0.15
1.27
0.7
0.05
Min.
1.27 × 6 = 7.62
3.2
±
0.35
1.27 1.2
Unit : mm
∗
The cylinder of the crystal oscillator can be seen in this area ( front ),
but it has no affect on the performance of the device.
9.1.2. Marking layout
RX − 4803 SA ( SOP − 14pin )
UA : A
UB : Blank
UC : C
Frequency
Stability
Type
Logo
R 4803 A
E A123B
AA : W
Production lot
∗ Contents displayed indicate the general markings and display, but are not the standards for the fonts, sizes and positioning.
Page - 28
ETM33E-04

RX - 4803 SA / LC
9.2. RX − 4803 LC
9.2.1. External dimensions
RX − 4803 LC ( VSOJ − 20pin )
• External dimensions
• Recommended soldering pattern
3.7 ± 0.2
0.1
2.5
# 12
# 7
0.5
0.27
# 1
# 6
0.08
M
2.77
0.5
0.22
Unit : mm
0.08
∗
The cylinder of the liquid crystal oscillator can be seen in this area ( back and front ),
but it has no affect on the performance of the device.
9.2.2. Marking layout
RX − 4803 LC ( VSOJ − 20pin )
UA : A
UB : Blank
UC : C
Type
Logo
Frequency
Stability
AA : W
E4803A
A123B
Production lot
#1 Pin Mark
∗ Contents displayed indicate the general markings and display, but are not the standards for the fonts, sizes and positioning.
Page - 29
ETM33E-04
RX - 4803 SA / LC
10. Application notes
1) Notes on handling
This module uses a C-MOS IC to realize low power consumption. Carefully note the following cautions when handling.
(1) Static electricity
While this module has built-in circuitry designed to protect it against electrostatic discharge, the chip could still be damaged by
a large discharge of static electricity. Containers used for packing and transport should be constructed of conductive materials.
In addition, only soldering irons, measurement circuits, and other such devices which do not leak high voltage should be used
with this module, which should also be grounded when such devices are being used.
(2) Noise
If a signal with excessive external noise is applied to the power supply or input pins, the device may malfunction or "latch up."
In order to ensure stable operation, connect a filter capacitor (preferably ceramic) of greater that 0.1 µF as close as possible
to the power supply pins (between VDD and GNDs). Also, avoid placing any device that generates high level of electronic
noise near this module.
* Do not connect signal lines to the shaded area in the figure shown in Fig. 1 and, if possible, embed this area in a GND land.
(3) Voltage levels of input pins
When the input pins are at the mid-level, this will cause increased current consumption and a reduced noise margin, and can
impair the functioning of the device. Therefore, try as much as possible to apply the voltage level close to VDD or GND.
(4) Handling of unused pins
Since the input impedance of the input pins is extremely high, operating the device with these pins in the open circuit state can
lead to unstable voltage level and malfunctions due to noise. Therefore, pull-up or pull-down resistors should be provided for
all unused input pins.
2) Notes on packaging
(1) Soldering heat resistance.
If the temperature within the package exceeds +260 °C, the characteristics of the crystal oscillator will be degraded and it may
be damaged. The reflow conditions within our reflow profile is recommended. Therefore, always check the mounting
temperature and time before mounting this device. Also, check again if the mounting conditions are later changed.
* See Fig. 2 profile for our evaluation of Soldering heat resistance for reference.
(2) Mounting equipment
While this module can be used with general-purpose mounting equipment, the internal crystal oscillator may be damaged in
some circumstances, depending on the equipment and conditions. Therefore, be sure to check this. In addition, if the
mounting conditions are later changed, the same check should be performed again.
(3) Ultrasonic cleaning
Depending on the usage conditions, there is a possibility that the crystal oscillator will be damaged by resonance during
ultrasonic cleaning. Since the conditions under which ultrasonic cleaning is carried out (the type of cleaner, power level, time,
state of the inside of the cleaning vessel, etc.) vary widely, this device is not warranted against damage during ultrasonic
cleaning.
(4) Mounting orientation
This device can be damaged if it is mounted in the wrong orientation. Always confirm the orientation of the device before
mounting.
(5) Leakage between pins
Leakage between pins may occur if the power is turned on while the device has condensation or dirt on it. Make sure the
device is dry and clean before supplying power to it.
Fig. 1 : Example GND Pattern
RX - 4803 SA
Fig. 2 : Reference profile for our evaluation of Soldering heat resistance.
Temperature [ °C ]
300
OVER
TP
; +260 °C
+255 °C
tp ; at least 30 s
Ramp-down rate
Ramp-up rate
+3 °C/s Max.
250
200
150
100
50
tL
TL
; +217 °C
; +200 °C
-6 °C/s Max.
60 s to 150 s
( +217 °C over )
Ts max
RX - 4803 LC
ts
Ts min ; +150 °C
60 s to 120 s
( +150 °C to +200 °C)
Time +25 °C to Peak
∗ The shaded part (
) indicates
where a GND pattern should be set
without getting too close to a signal line
0
60
120 180 240 300 360 420 480 540 600 660 720 780
Time [ s ]
Page - 30
ETM33E-04

Application Manual
AMERICA
EPSON ELECTRONICS AMERICA, INC.
HEADQUARTER
214 Devcon Drive, San Jose, CA 95112, U.S.A.
Phone: (1)800-228-3964
FAX :(1)408-922-0238
http://www.eea.epson.com
Chicago Office
1827 Walden Office Square. Suite 520 Schaumburg, IL 60173, U.S.A.
Phone: (1)847-925-8350
Fax: (1)847 925-8965
El Segundo Office
1960 E. Grand Ave., 2nd Floor, El Segundo, CA 90245, U.S.A.
Phone: (1)800-249-7730 (Toll free) : (1)310-955-5300 (Main)
Fax: (1)310-955-5400
EUROPE
EPSON EUROPE ELECTRONICS GmbH
HEADQUARTER
Riesstrasse 15, 80992 Munich, Germany
Phone: (49)-(0)89-14005-0 Fax: (49)-(0)89-14005-110
http://www.epson-electronics.de
ASIA
EPSON (China) CO., LTD.
HEADQUARTER
7F, Jinbao Building No.89 Jinbao Street Dongcheng District, Beijing, China, 100005
Phone: (86) 10-8522-1199 Fax: (86) 10-8522-1120
http://www.epson.com.cn/ed/
Shanghai Branch
Shenzhen Branch
High-Tech Building,900 Yishan Road Shanghai 200233,China
Phone: (86) 21-5423-5577 Fax: (86) 21-5423-4677
12/F, Dawning Mansion,#12 Keji South Road, Hi-Tech Park,Shenzhen, China
Phone: (86) 755-2699-3828 Fax: (86) 755-2699-3838
EPSON HONG KONG LTD.
Unit 715-723 7/F Trade Square, 681 Cheung Sha Wan Road, Kowloon, Hong Kong
Phone: (86) 755-2699-3828 (Shenzhen Branch)
Fax: (86) 755-2699-3838 (Shenzhen Branch)
http://www.epson.com.hk
EPSON TAIWAN TECHNOLOGY & TRADING LTD.
14F, No.7, Song Ren Road, Taipei 110
Phone: (886) 2-8786-6688 Fax: (886)2-8786-6660
http://www.epson.com.tw/ElectronicComponent
EPSON SINGAPORE PTE. LTD.
No 1 HarbourFront Place, #03-02 HarbourFront Tower One, Singapore 098633.
Phone: (65)- 6586-5500 Fax: (65) 6271-3182
http://www.epson.com.sg/epson_singapore/electronic_devices/electronic_devices.page
SEIKO EPSON CORPORATION KOREA Office
5F (63Bldg.,Yoido-dong) 50, 63-ro, Yeongdeungpo-gu, Seoul, 150-763, Korea
Phone: (82) 2-784-6027 Fax: (82) 2-767-3677
http://www.epson-device.co.kr
Distributor
Electronic devices information on WWW server
http://www5.epsondevice.com/en/quartz/index.html
厂商 型号 描述 页数 下载

RECOM

 		RX-0505D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

 		RX-0505D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0505S 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0505S/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0509D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

 		RX-0509D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0509S 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0509S/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0512D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

 		RX-0512D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.213716s
