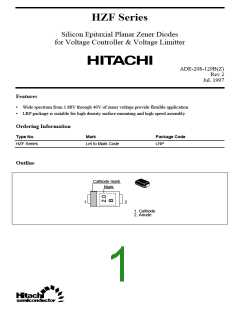

HZF Series
Silicon Epitaxial Planar Zener Diodes
for Voltage Controller & Voltage Limitter
ADE-208-129B(Z)
Rev 2
Jul. 1997
Features
•
•
Wide spectrum from 1.88V through 40V of zener voltage provide flexible application.
LRP package is suitable for high density surface mounting and high speed assembly.
Ordering Information
Type No.
Mark
Package Code
HZF Series
Let to Mark Code
LRP
Outline
Cathode mark
Mark
1
2
1. Cathode
2. Anode
HZF Series
Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
Pd
Value
0.9
Unit
W
Power dissipation
Junction temperature
Storage temperature
Tj
150
°C
Tstg
-55 to +150
°C
Electrical Characteristics (Ta = 25°C)
Zener Voltage
Reverese Current
Dynamic Resistance
Test
Test
Condition rd (W)
Test
Condition
VZ (V)*1
Condition IR (mA)
Type
Grade
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
Min
1.88
2.00
2.08
2.20
2.28
2.40
2.5
Max
2.12
2.24
2.33
2.45
2.56
2.70
2.9
IZ (mA)
Max
VR (V)
Max
IZ (mA)
HZF2.0
40
200
0.5
25
40
HZF2.2
HZF2.4
HZF2.7
HZF3.0
HZF3.3
HZF3.6
HZF3.9
HZF4.3
HZF4.7
HZF5.1
40
40
40
40
40
40
40
40
40
40
200
200
200
100
80
0.7
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
20
15
15
15
15
15
15
15
10
8
40
40
40
40
40
40
40
40
40
40
2.7
3.1
2.8
3.2
3.0
3.4
3.1
3.5
3.3
3.7
3.4
3.8
60
3.6
4.0
3.7
4.1
40
3.9
4.4
4.0
4.5
20
4.3
4.8
4.4
4.9
20
4.7
5.2
4.8
5.4
20
5.1
5.7
Note: 1. Tested with DC.
2
HZF Series
Zener Voltage
VZ (V)*1
Reverese Current
Test
Dynamic Resistance
Test
Test
Condition IR (mA)
Condition rd (W)
Condition
IZ (mA)
40
Type
Grade
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
Min
5.3
Max
IZ (mA)
Max
VR (V)
Max
HZF5.6
6.0
40
20
1.5
8
5.6
6.3
HZF6.2
HZF6.8
HZF7.5
HZF8.2
HZF9.1
HZF10
HZF11
HZF12
HZF13
HZF15
HZF16
HZF18
HZF20
HZF22
HZF24
5.8
6.6
40
40
40
40
40
40
20
20
20
20
20
20
20
10
10
20
20
20
20
20
10
10
10
10
10
10
10
10
10
10
3.0
6
40
40
40
40
40
40
20
20
20
20
20
20
20
10
10
6.2
7.0
6.4
7.2
3.5
6
6.8
7.7
7.0
7.9
4.0
4
7.5
8.4
7.7
8.7
5.0
4
8.2
9.3
8.5
9.6
6.0
6
9.1
10.2
10.6
11.2
11.6
12.3
12.6
13.5
14.1
15.0
15.6
16.5
17.1
18.3
19.1
20.3
21.2
22.4
23.3
24.5
25.6
27.6
9.4
7.0
6
10.0
10.4
11.0
11.4
12.0
12.4
13.3
13.8
14.7
15.3
16.2
16.8
18.0
18.8
20.0
20.8
22.0
22.8
24.0
8.0
8
9.0
8
10.0
11.0
12.0
13.0
15.0
17.0
19.0
10
10
12
12
14
14
16
Note: 1. Tested with DC.
3
HZF Series
Zener Voltage
VZ (V)*1
Reverese Current
Test
Dynamic Resistance
Test
Test
Condition IR (mA)
Condition rd (W)
Condition
IZ (mA)
10
Type
Grade
Min
Max
IZ (mA)
Max
VR (V)
Max
HZF27
BP
CP
BP
CP
BP
CP
BP
CP
25.1
27.0
28.0
30.0
31.0
33.0
34.0
36.0
28.9
30.8
32.0
34.0
35.0
37.0
38.0
40.0
10
10
21.0
16
HZF30
HZF33
HZF36
10
10
10
10
10
10
23.0
25.0
27.0
18
18
20
10
10
10
Note: 1. Tested with DC.
Note: 2. Type No. is as follows; HZF2.0BP, HZF2.0CP, ••• HZF36BP, HZF36CP.
4
HZF Series
Mark Code
Type
Grade
MarK No. Type
HZF7.5
Grade
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
Mark No. Type
Grade
BP
Mark No.
3 0 B
HZF2.0
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
BP
CP
2.0 B
2.0 C
2.2 B
2.2 C
2.4 B
2.4 C
2.7 B
2.7 C
3.0 B
3.0 C
3.3 B
3.3 C
3.6 B
3.6 C
3.9 B
3.9 C
4.3 B
4.3 C
4.7 B
4.7 C
5.1 B
5.1 C
5.6 B
5.6 C
6.2 B
6.2 C
6.8 B
6.8 C
7.5 B
7.5 C
8.2 B
8.2 C
9.1 B
9.1 C
1 0 B
1 0 C
1 1 B
1 1 C
1 2 B
1 2 C
1 3 B
1 3 C
1 5 B
1 5 C
1 6 B
1 6 C
1 8 B
1 8 C
2 0 B
2 0 C
2 2 B
2 2 C
2 4 B
2 4 C
2 7 B
2 7 C
HZF30
HZF33
HZF36
CP
3 0 C
3 3 B
HZF2.2
HZF2.4
HZF2.7
HZF3.0
HZF3.3
HZF3.6
HZF3.9
HZF4.3
HZF4.7
HZF5.1
HZF5.6
HZF6.2
HZF6.8
HZF8.2
HZF9.1
HZF10
HZF11
HZF12
HZF13
HZF15
HZF16
HZF18
HZF20
HZF22
HZF24
HZF27
BP
CP
3 3 C
3 6 B
BP
CP
3 6 C
5
HZF Series
Main Characteristic
50
40
30
20
10
0
10
20
30
40
Zener Voltage VZ (V)
Fig.1 Zener current Vs. Zener voltage
0.10
0.09
1.0
2mm
0.08
0.07
0.06
40
%/°C
35
30
Cu Foil
0.8
25
20
15
10
5
0.05
0.04
0.03
0.02
Printed circuit board
mV/°C
×
×
20 20 1.6t mm
Material:
Glass Epoxy Resin+Cu Foil
0.6
0.4
0.01
0
0
–5
–0.01
–0.02
–10
–15
–20
–0.03
–0.04
–0.05
–0.06
0.2
0
15 20
40 45
0
5
10
25 30 35
0
50
Ambient Temperature Ta (°C)
200
100
150
Zener Voltage V Z (V)
Fig.2 Temperature Coefficient Vs. Zener voltage
Fig.3 Power Dissipation Vs. Ambient Temperature
6
HZF Series
Main Characteristic
104
PRSM
Ta = 25°C
nonrepetitive
t
103
102
10
HZF27BP
HZF36CP
HZF6.2BP
HZF5.6BP
HZF15CP
1.0
10–5
10–4
10–3
10–2
10–1
1.0
Time t (s)
Fig.4 Surge Reverse Power Ratings (Reference only)
103
102
2mm
HZF8.2BP
10
Cu Foil
Printed circuit board
HZF15CP
10–2
×
×
20 20 1.6t mm
Material:
Glass Epoxy Resin+Cu Foil
1.0
10–3
10 –1
1.0
10
102
103
Time t (s)
Fig.5 Transient Thermal Impedance (Reference only)
7
HZF Series
Package Dimensions
Unit : mm
Cathode Mark
1
2
4.5 ± 0.2
5.0 ± 0.3
1
2
Cathode
Anode
Hitachi Code
JEDEC Code
EIAJ Code
LRP
—
—
1.2 ± 0.3
1.2 ± 0.3
Weight (g)
0.058
8
Cautions
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-
safes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
Hitachi, Ltd.
Semiconductor & Integrated Circuits.
Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Tel: Tokyo (03) 3270-2111 Fax: (03) 3270-5109
URL
NorthAmerica
Europe
: http:semiconductor.hitachi.com/
: http://www.hitachi-eu.com/hel/ecg
Asia (Singapore)
Asia (Taiwan)
: http://www.has.hitachi.com.sg/grp3/sicd/index.htm
: http://www.hitachi.com.tw/E/Product/SICD_Frame.htm
Asia (HongKong) : http://www.hitachi.com.hk/eng/bo/grp3/index.htm
Japan
: http://www.hitachi.co.jp/Sicd/indx.htm
For further information write to:
Hitachi Semiconductor
(America) Inc.
Hitachi Europe GmbH
Hitachi Asia (Hong Kong) Ltd.
Group III (Electronic Components)
7/F., North Tower, World Finance Centre,
Harbour City, Canton Road, Tsim Sha Tsui,
Kowloon, Hong Kong
Tel: <852> (2) 735 9218
Fax: <852> (2) 730 0281
Hitachi Asia Pte. Ltd.
16 Collyer Quay #20-00
Hitachi Tower
Singapore 049318
Tel: 535-2100
Electronic components Group
Dornacher Stra§e 3
D-85622 Feldkirchen, Munich
Germany
Tel: <49> (89) 9 9180-0
Fax: <49> (89) 9 29 30 00
179 East Tasman Drive,
San Jose,CA 95134
Tel: <1> (408) 433-1990
Fax: <1>(408) 433-0223
Fax: 535-1533
Hitachi Asia Ltd.
Taipei Branch Office
3F, Hung Kuo Building. No.167,
Tun-Hwa North Road, Taipei (105)
Tel: <886> (2) 2718-3666
Fax: <886> (2) 2718-8180
Telex: 40815 HITEC HX
Hitachi Europe Ltd.
Electronic Components Group.
Whitebrook Park
Lower Cookham Road
Maidenhead
Berkshire SL6 8YA, United Kingdom
Tel: <44> (1628) 585000
Fax: <44> (1628) 778322
Copyright ' Hitachi, Ltd., 1999. All rights reserved. Printed in Japan.
厂商 型号 描述 页数 下载

SUNMATE

 		HZF100BP [ 1W patch zener diode SMA 100V series ] 2 页

SUNMATE

 		HZF10BP [ 1W patch zener diode SMA 10V series ] 2 页

HITACHI

 		HZF10BP [ Zener Diode, 10V V(Z), 6%, 0.9W, Silicon, Unidirectional, LRP, 2 PIN ] 7 页

HITACHI

 		HZF10BPTL [ Zener Diode, 0.9W, Silicon, Unidirectional ] 5 页

RENESAS

 		HZF10BPTR [ Zener Diode, 0.9W, Silicon, Unidirectional ] 5 页

HITACHI

 		HZF10BPTR [ 暂无描述 ] 5 页

HITACHI

 		HZF10CPTL [ 0.9W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE ] 5 页

HITACHI

 		HZF10CPTR [ 0.9W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE ] 5 页

SUNMATE

 		HZF110BP [ 1W patch zener diode SMA 110V series ] 2 页

SUNMATE

 		HZF11BP [ 1W patch zener diode SMA 11V series ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.293049s
