HYS64D64020GDL-7-A

型号:

HYS64D64020GDL-7-A

描述:

? 512MB ( 64Mx64 ) PC2100 2银行?\n[ ?512MB (64Mx64) PC2100 2-bank? ]

品牌:

ETC[ ETC ]

页数:

11 页

PDF大小:

305 K

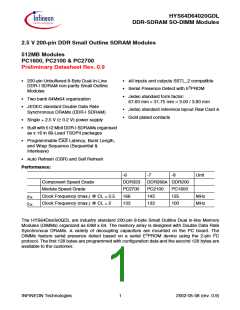

HYS64D64020GDL
DDR-SDRAM SO-DIMM Modules
2.5 V 200-pin DDR Small Outline SDRAM Modules
512MB Modules
PC1600, PC2100 & PC2700
Preliminary Datasheet Rev. 0.9
200-pin Unbuffered 8-Byte Dual-In-Line
DDR-I SDRAM non-parity Small Outline
Modules
All inputs and outputs SSTL_2 compatible
Serial Presence Detect with E2PROM
Jedec standard form factor:
67.60 mm × 31.75 mm × 3.00 / 3.80 mm
Two bank 64Mx64 organization
JEDEC standard Double Data Rate
Synchronous DRAMs (DDR-I SDRAM)
Jedec standard reference layout Raw Card A
Gold plated contacts
Single + 2.5 V ( 0.2 V) power supply
Built with 512 Mbit DDR-I SDRAMs organised
as x 16 in 66-Lead TSOPII packages
Programmable CAS Latency, Burst Length,
and Wrap Sequence (Sequential &
Interleave)
Auto Refresh (CBR) and Self Refresh
Performance:
-6
-7
-8
Unit
Component Speed Grade
DDR333
PC2700
166
DDR266A DDR200
Module Speed Grade
PC2100
143
PC1600
125
fCK
fCK
Clock Frequency (max.) @ CL = 2.5
Clock Frequency (max.) @ CL = 2
MHz
MHz
133
133
100
The HYS64Dxx0x0GDL are industry standard 200-pin 8-byte Small Outline Dual in-line Memory
Modules (DIMMs) organized as 64M x 64. The memory array is designed with Double Data Rate
Synchronous DRAMs. A variety of decoupling capacitors are mounted on the PC board. The
DIMMs feature serial presence detect based on a serial E2PROM device using the 2-pin I2C
protocol. The first 128 bytes are programmed with configuration data and the second 128 bytes are
available to the customer.
INFINEON Technologies
1
2002-05-08 (rev. 0.9)
HYS64D64020GDL
DDR-SDRAM SO-DIMM Modules
Ordering Information
Type
Compliance Code
Description
SDRAM
Technology
PC2700 (CL=2.5):
HYS64D64020GDL-6-A
PC2100 (CL=2):
PC2700-25330-A
PC2100-20330-A
PC1600-20220-A
two banks 512 MB SO-DIMM
two banks 512 MB SO-DIMM
two banks 512 MB SO-DIMM
512 MBit (x16)
512 MBit (x16)
512 MBit (x16)
HYS64D64020GDL-7-A
PC1600 (CL=2):
HYS64D64020GDL-8-A
Note: All part numbers end with a place code, designating the silicon-die revision. Reference
information available on request. Example: HYS 64D32020GDL-8-A, indicating Rev.A die are
used for DDR-SDRAM components.
The Compliance Code which is printed on the module labels describes the speed sort class
(f.e. PC2100), the latencies (f.e. 20330 means CAS latency = 2, trcd latency = 3 and trp
latency = 3) and the Raw Card used for this module
INFINEON Technologies
2
2002-05-08 (rev. 0.9)
HYS64D64020GDL
DDR-SDRAM SO-DIMM Modules
Pin Definitions and Functions
A0 - A12
Address Inputs
CS0, CS1 *)
VDD
Chip Selects
BA0, BA1
DQ0 - DQ63
RAS
Bank Selects
Power (+ 2.5 V)
Data Input/Output
VSS
Ground
Row Address Strobe
Column Address Strobe
Read/Write Input
VDDQ
I/O Driver power supply
VDD Indentification flag
I/O reference supply
Serial EEPROM power supply
Serial bus clock
CAS
VDDID
WE
VREF
CKE0 - CKE1
DQS0 - DQS8
CLK0 - CLK1,
CLK0 - CLK1
DM0 - DM8
Clock Enable
VDDSPD
SCL
SDRAM low data strobes
SDRAM clock (positive lines)
SDRAM clock (negative lines)
data masks
SDA
Serial bus data line
slave address select
no connect
SA0 - SA2
NC
DQS0 - DQS8
data strobes
DU
Dont use, reserved for future
use
*) CKE1 and CS1 are used on two bank modules only
Address Format
Density Organization Memory SDRAMs # of
SDRAM
# of row/ Refresh Period Interval
Banks
SDRAMs density
bank/
columns
bits
512 MB 64M × 64
2
32M x 16
8
512Mbit
13/2/10 8k
64 ms 7.8 µs
INFINEON Technologies
3
2002-05-08 (rev. 0.9)
HYS64D64020GDL
DDR-SDRAM SO-DIMM Modules
Pin Configuration
Pin
#
Pin
#
Pin
#
Pin#
Pin
#
Pin
#
Pin
#
Pin
#
Front
Side
Back
Side
Front
Side
Back
Side
Front
Side
Back
Side
Front
Side
Back
Side
1
3
5
7
9
VREF
VSS
DQ0
DQ1
2
4
6
8
VREF
VSS
DQ4
DQ5
51
VSS
52 VSS
101
A9
102
A8
151 DQ42 152 DQ46
153 DQ43 154 DQ47
155 VDD 156 VDD
157 VDD 158 CK1
159 VSS 160 CK1
161 VSS 162 VSS
163 DQ48 164 DQ52
165 DQ49 166 DQ53
167 VDD 168 VDD
169 DQS6 170 DM6
171 DQ50 172 DQ54
173 VSS 174 VSS
175 DQ51 176 DQ55
177 DQ56 178 DQ60
179 VDD 180 VDD
181 DQ57 182 DQ61
183 DQS7 184 DM7
185 VSS 186 VSS
187 DQ58 188 DQ62
189 DQ59 190 DQ63
191 VDD 192 VDD
193 SDA 194 SA0
195 SCL 196 SA1
53 DQ19 54 DQ23
55 DQ24 56 DQ28
103 VSS 104 VSS
105
107
109
111
A7
A5
A3
A1
106
108
110
112
A6
A4
A2
A0
57
VDD
58 VDD
VDD 10 VDD
59 DQ25 60 DQ29
61 DQS3 62 DM3
11 DQS0 12 DM0
13
15
17
19
21
23
DQ2 14 DQ6
VSS 16 VSS
DQ3 18 DQ7
DQ8 20 DQ12
VDD 22 VDD
DQ9 24 DQ13
63
VSS
64 VSS
113 VDD 114 VDD
A10/AP
65 DQ26 66 DQ30
115
117 BA0 118 RAS
119 WE 120 CAS
121 CS0 122 CS1
123 DU 124 DU
125 VSS 126 VSS
77 (DQS8) 78 (DM8) 127 DQ32 128 DQ36
116 BA1
67 DQ27 68 DQ31
69
VDD
70 VDD
71 (CB0) 72 (CB4)
73 (CB1) 74 (CB5)
25 DQS1 26 DM1
27 VSS 28 VSS
75
VSS
76 VSS
29 DQ10 30 DQ14
31 DQ11 32 DQ15
79 (CB2) 80 (CB6)
81 VDD 82 VDD
83 (CB3) 84 (CB7)
129 DQ33 130 DQ37
131 VDD 132 VDD
133 DQS4 134 DM4
135 DQ34 136 DQ38
137 VSS 138 VSS
139 DQ35 130 DQ39
141 DQ40 142 DQ44
143 VDD 144 VDD
145 DQ41 146 DQ45
147 DQS5 148 DM5
149 VSS 150 VSS
33
35
37
39
VDD 34 VDD
CK0 36 VDD
CK0 38 VSS
VSS 40 VSS
85
87
DU
86
DU
VSS
88 VSS
89 (CK2) 90 VSS
91 (CK2) 92 VDD
41 DQ16 42 DQ20
43 DQ17 44 DQ21
93
VDD
94 VDD
45
VDD 46 VDD
95 CKE1 96 CKE0
Vddspd
198 SA2
47 DQS2 48 DM2
49 DQ18 50 DQ22
97
99
DU
98
DU
197
A12
100 A11
199 Vddid 200 DU
Note: Pins 71, 72, 73, 74, 77, 78, 79, 80, 83, 84, 89 and 91 are reserved for x72 variants of this module and are not used on the x64
. versions. Pin 86 is reserved for a registered variant of this module and is not used on the unbuffered version
front side
back side
INFINEON Technologies
4
2002-05-08 (rev. 0.9)
HYS64D64020GDL
DDR-SDRAM SO-DIMM Modules
CS1
CS0
CS
LDQS
CS
LDQS
LDM
CS
LDQS
CS
DQS0
DM0
DQS4
DM4
LDQS
LDM
LDM
LDM
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
0
DQ0
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
0
1
2
3
4
5
6
7
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
0
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
0
1
2
3
4
5
6
7
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
1
2
3
4
5
6
7
1
2
3
4
5
6
7
D4
D2
D6
D0
UDQS
UDQS
UDM
UDQS
DQS1
DM1
UDQS
UDM
DQS5
DM5
UDM
UDM
I/O
I/O
8
9
I/O
I/O
8
9
I/O
I/O
8
9
I/O
I/O
8
9
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ8
DQ9
I/O 10
I/O 11
I/O 12
I/O 13
I/O 14
I/O 15
I/O 10
I/O 11
I/O 12
I/O 13
I/O 14
I/O 15
I/O 10
I/O 11
I/O 12
I/O 13
I/O 14
I/O 15
I/O 10
I/O 11
I/O 12
I/O 13
I/O 14
I/O 15
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
CS
LDQS
CS
CS
CS
LDQS
LDM
DQS2
DM2
DQS6
DM6
LDQS
LDQS
LDM
LDM
LDM
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
I/O 0
I/O 1
I/O 2
I/O 3
I/O 4
I/O 5
I/O 6
I/O 7
I/O 0
I/O 1
I/O 2
I/O 3
I/O 4
I/O 5
I/O 6
I/O 7
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
I/O 0
I/O 1
I/O 2
I/O 3
I/O 4
I/O 5
I/O 6
I/O 7
I/O 0
I/O 1
I/O 2
I/O 3
I/O 4
I/O 5
I/O 6
I/O 7
D5
D1
D3
D7
DQS3
DM3
UDQS
UDM
I/O 8
UDQS
UDM
I/O 8
UDQS
UDM
I/O 8
UDQS
UDM
I/O 8
DQS7
DM7
Serial Presence Detect (SPD)
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
I/O 9
I/O 9
I/O 9
I/O 9
I/O 10
I/O 11
I/O 12
I/O 13
I/O 14
I/O 15
I/O 10
I/O 11
I/O 12
I/O 13
I/O 14
I/O 15
I/O 10
I/O 11
I/O 12
I/O 13
I/O 14
I/O 15
I/O 10
I/O 11
I/O 12
I/O 13
I/O 14
I/O 15
SCL
SA0
SA1
SA2
A0
A1
SDA
A2
WP
Unless otherwise noted, resistor values are 22 Ohm with +/- 5% tolerance
SDRAMS D0-D7
BA0-BA1
CK0
SDRAMS D0-D7
A0-AN
RAS
CAS
WE
4 loads
4 loads
CK 0
SDRAMS D0-D7
CK1
SDRAMS D0-D7
SDRAMS D0-D7
CK 1
SDRAMS D0-D3
SDRAMS D4-D7
CKE0
CKE1
SPD
V
V
SPD
DD
Note: DQ wiring may differ from that described
in this drawing; however DQ/DM/DQS
relationships are maintained as shown.
SDRAMS D0-D7
REF
V
ID strap connections:
V
and V
DD
Q
DD
Strap out (open): V
SDRAMS D0-D7
DD
V
V
DD
SS
= V
DD
DD
Q
SDRAMS D0-D7, SPD
V
ID
DD
Block Diagram: Two Bank 64M x 64 DDR-SDRAM SO-DIMM Modules
using x16 Organized SDRAMs on Raw Card Version A
INFINEON Technologies
5
2002-05-08 (rev. 0.9)
HYS64D64020GDL
DDR-SDRAM SO-DIMM Modules
Absolute Maximum Ratings
Parameter
Symbol
Limit Values
Unit
min.
– 0.5
– 0.5
-55
max.
3.6
3.6
+150
1
Input / Output voltage relative to VSS
Power supply voltage on VDD/VDDQ to VSS
Storage temperature range
VIN, VOUT
VDD, VDDQ
TSTG
V
V
oC
W
mA
Power dissipation (per SDRAM component)
Data out current (short circuit)
PD
IOS
50
Permanent device damage may occur if “Absolute Maximum Ratings” are exceeded.
Functional operation should be restricted to recommended operation conditions.
Exposure to higher than recommended voltage for extended periods of time affect device reliability
Supply Voltage Levels
Parameter
Symbol
Limit Values
nom.
Unit
Notes
min.
max.
Device Supply Voltage
Output Supply Voltage
Input Reference Voltage
Termination Voltage
VDD
2.3
2.5
2.7
V
V
V
V
V
-
VDDQ
VREF
VTT
2.3
2.5
2.7
1)
2)
3)
0.49 x VDDQ
VREF – 0.04
2.3
0.5 x VDDQ
VREF
0.51 x VDDQ
VREF + 0.04
3.6
EEPROM supply voltage
VDDSPD
2.5
1
2
Under all conditions, VDDQ must be less than or equal to VDD
Peak to peak AC noise on VREF may not exceed 2% VREF (DC)
VREF is also expected to track noise variations in VDDQ
VTT of the transmitting device must track VREF of the receiving device.
.
.
3
DC Operating Conditions (SSTL_2 Inputs)
(VDDQ = 2.5 V, TA = 70 °C, Voltage Referenced to VSS)
Parameter
Symbol
Limit Values
max.
Unit
Notes
min.
DC Input Logic High
DC Input Logic Low
Input Leakage Current
Output Leakage Current
VIH (DC)
VIL (DC)
IIL
VREF + 0.15
– 0.30
– 5
VDDQ + 0.3
V
1)
VREF – 0.15
V
5
5
µA
µA
1)
2)
IOL
– 5
1) The relationship between the VDDQ of the driving device and the VREF of the receiving device is what
determines noise margins. However, in the case of VIH (max) (input overdrive), it is the VDDQ of the receiving
device that is referenced. In the case where a device is implemented such that it supports SSTL_2 inputs but
has no SSTL_2 outputs (such as a translator), and therefore no VDDQ supply voltage connection, inputs must
tolerate input overdrive to 3.0 V (High corner VDDQ + 300 mV).
2) For any pin under test input of 0 V VIN VDDQ + 0.3 V. Values are shown per DDR-SDRAM component.
INFINEON Technologies
6
2002-05-08 (rev. 0.9)
HYS64D64020GDL
DDR-SDRAM SO-DIMM Modules
Operating, Standby and Refresh Currents (PC2700, PC2100, PC1600)
512MB
x64
2bank
-6
512MB
x64
2bank
-7
512MB
x64
2bank
-8
Notes
Symbol
Parameter/Condition
Unit
mA
MAX
MAX
MAX
4
1
: one bank; active / precharge; tRC = tRC MIN; tCK =
Operating Current
IDD0
tCK MIN; DQ, DM, and DQS inputs changing once per clock cycle;
1080
920
840
address and control inputs changing once every two clock cycles
: one bank; active/read/precharge; Burst = 4;
Operating Current
IDD1
1140
144
960
112
880
96
mA
mA
1, 3
2
Refer to the following page for detailed test conditions.
: all banks idle; power-down
Precharge Power-Down Standby Current
IDD2P
mode; CKE <= VIL MAX; tCK = tCK MIN
: /CS >= VIH MIN, all banks idle;
Precharge Floating Standby Current
CKE >= VIH MIN; tCK = tCK MIN ,address and other control inputs
changing once per clock cycle, VIN = VREF for DQ, DQS and DM.
480
400
320
IDD2F
mA
2
: /CS >= VIH MIN, all banks idle;
Precharge Quiet Standby Current
CKE >= VIH MIN; tCK = tCK MIN ,address and other control inputs
stable at >= VIH MIN or <= VIL MAX; VIN = VREF for DQ, DQS and DM.
320
184
224
144
200
128
IDD2Q
mA
mA
2
2
: one bank active; power-down
Active Power-Down Standby Current
IDD3P mode; CKE <= VIL MAX; tCK = tCK MIN;VIN = VREF for DQ, DQS and
DM.
: one bank active; active / precharge;CS >= VIH
Active Standby Current
MIN; CKE >= VIH MIN; tRC = tRAS MAX; tCK = tCK MIN; DQ, DM, and
DQS inputs changing twice per clock cycle; address and control inputs
changing once per clock cycle
IDD3N
IDD4R
IDD4W
600
560
400
860
840
mA
mA
mA
2
: one bank active; Burst = 2; reads; continuous burst;
Operating Current
address and control inputs changing once per clock cycle; 50% of data
outputs changing on every clock edge; CL = 2 for DDR200, and
DDR266A, CL=3 for DDR333; tCK = tCK MIN; IOUT = 0mA
1260
1220
1040
1020
1, 3
: one bank active; Burst = 2; writes; continuous burst;
Operating Current
address and control inputs changing once per clock cycle; 50% of data
outputs changing on every clock edge; CL = 2 for DDR200, and
DDR266A, CL=3 for DDR333; tCK = tCK MIN
1
1
: tRC = tRFC MIN, distributed refresh
1620
20
1480
20
1360
20
Auto-Refresh Current
IDD5
IDD6
mA
mA
: CKE <= 0.2V; external clock on; tCK = tCK MIN
Self-Refresh Current
: four bank; four bank interleaving with BL=4;
Refer to the following page for detailed test conditions.
Operating Current
IDD7
1900
1760
1600
mA
1, 3
1. The module IDD values are calculated from the component IDD datasheet values as:
n * IDDx[component]
for single bank modules (n: number of components per module bank)
n * IDDx[component] + n * IDD3N[component]
for two bank modules (n: number of components per module bank)
2. The module IDD values are calculated from the component IDD datasheet values as:
n * IDDx[component]
2 * n * IDDx[component]
for single bank modules (n: number of components per module bank)
for two bank modules (n: number of components per module bank)
3. DQ I/O (IDDQ) currents are not included into calculations: module IDD values will be measured differently depending on load conditions
4. Test condition for maximum values: VDD = 2.7V ,Ta = 10°C
INFINEON Technologies
7
2002-05-08 (rev. 0.9)
HYS64D64020GDL
DDR-SDRAM SO-DIMM Modules
Electrical Characteristics & AC Timing for DDR-I components
(for reference only)
(0 °C TA 70 °C; VDDQ = 2.5V 0.2V; VDD = 2.5V 0.2V)
DDR333
-6
DDR266A
-7
DDR200
-8
Symbol
tAC
Parameter
Unit Notes
Min
- 0.7
- 0.6
0.45
0.45
Max
+ 0.7
+ 0.6
0.55
0.55
Min
Max
Min
Max
+ 0.8
+ 0.8
0.55
0.55
DQ output access time from CK/CK
0.75 + 0.75
0.75 + 0.75
0.8
0.8
0.45
0.45
ns
ns
tCK
tCK
ns
ns
ns
ns
ns
ns
1-4
1-4
1-4
1-4
1-4
1-4
1-4
1-4
1-4
1, 10
tDQSCK DQS output access time from CK/CK
tCH
tCL
CK high-level width
CK low-level width
Clock Half Period
0.45
0.45
0.55
0.55
tHP
tCK
tCK
tDH
tDS
tIPW
min (tCL, tCH)
min (tCL, tCH)
min (tCL, tCH)
CL = 2.5
CL = 2.0
6
12
12
7
12
12
8
12
12
Clock cycle time
7.5
7.5
0.5
0.5
2.2
10
DQ and DM input hold time
DQ and DM input setup time
0.45
0.45
2.2
0.6
0.6
2.5
Control and Addr. input pulse width (each input)
1-4,
11
tDIPW DQ and DM input pulse width (each input)
1.75
1.75
2
ns
tHZ
tLZ
Data-out high-impedence time from CK/CK
Data-out low-impedence time from CK/CK
- 0.7
- 0.7
0.75
+ 0.7
+ 0.7
1.25
0.75 + 0.75
0.75 + 0.75
0.8
0.8
0.75
+ 0.8
+ 0.8
1.25
ns
ns
tCK
1-4, 5
1-4, 5
1-4
tDQSS Write command to 1st DQS latching transition
0.75
1.25
+ 0.5
DQS-DQ skew
tDQSQ
+ 0.45
+ 0.6
ns
1-4
(for DQS & associated DQ signals)
tQHS
tQH
Data hold skew factor
+ 0.55
+ 0.75
+ 1.0
ns
ns
tCK
tCK
tCK
tCK
ns
1-4
1-4
Data Output hold time from DQS
tHP-tQHS
0.35
0.2
tHP-tQHS
0.35
0.2
0.2
2
tHP-tQHS
0.35
0.2
0.2
2
tDQSL,H DQS input low (high) pulse width (write cycle)
1-4
tDSS
tDSH
DQS falling edge to CK setup time (write cycle)
DQS falling edge hold time from CK (write cycle)
1-4
0.2
1-4
tMRD Mode register set command cycle time
tWPRES Write preamble setup time
tWPST Write postamble
2
1-4
0
0
0
1-4, 7
0.40
0.25
0.75
0.8
0.60
0.40
0.25
0.9
1.0
0.9
1.0
0.9
0.40
45
0.60
0.40
0.25
1.1
1.1
1.1
1.1
0.9
0.40
50
0.60
tCK 1-4, 6
tWPRE Write preamble
tCK
ns
ns
ns
ns
tCK
tCK
ns
ns
1-4
fast slew rate
Address and control input
setup time
tIS
slow slew rate
fast slew rate
slow slew rate
2-4,
10,11
0.75
0.8
Address and control input hold
time
tIH
tRPRE Read preamble
tRPST Read postamble
0.9
1.1
0.60
1.1
0.60
1.1
0.60
1-4
1-4
1-4
1-4
0.40
42
120,000
tRAS
tRC
Active to Precharge command
70,000
120,000
Active to Active/Auto-refresh command period
60
65
70
Auto-refresh to Active/Auto-refresh
command period
tRFC
72
75
80
ns
1-4
INFINEON Technologies
8
2002-05-08 (rev. 0.9)
HYS64D64020GDL
DDR-SDRAM SO-DIMM Modules
Electrical Characteristics & AC Timing for DDR-I components
(for reference only)
(0 °C TA 70 °C; VDDQ = 2.5V 0.2V; VDD = 2.5V 0.2V)
DDR333
-6
DDR266A
-7
DDR200
-8
Symbol
Parameter
Unit Notes
Min
18
18
12
15
Max
Min
Max
Min
Max
tRCD
tRP
tRRD
tWR
Active to Read or Write delay
Precharge command period
Active bank A to Active bank B command
Write recovery time
20
20
15
15
20
20
15
15
ns
ns
ns
ns
1-4
1-4
1-4
1-4
Auto precharge write recovery
+ precharge time
tDAL
(twr/tck) + (trp/tck)
tCK
1-4,9
tWTR Internal write to read command delay
tXSNR Exit self-refresh to non-read command
tXSRD Exit self-refresh to read command
Average Periodic Refresh
1
1
1
tCK
ns
tCK
1-4
1-4
1-4
75
75
80
200
200
200
tREFI
7.8
7.8
7.8
µs
1-4, 8
512Mb based
Interval
1. Input slew rate >=1V/ns for DDR266 & DDR333 and = 1V/ns for DDR200.
2. The CK/CK input reference level (for timing reference to CK/CK) is the point at which CK and CK cross: the input reference
level for signals other than CK/CK, is VREF. CK/CK slew rate are >= 1.0 V/ns.
3. Inputs are not recognized as valid until VREF stabilizes.
4. The Output timing reference level, as measured at the timing reference point indicated in AC Characteristics (Note 3) is VTT
.
5. tHZ and tLZ transitions occur in the same access time windows as valid data transitions. These parameters are not referred to a
specific voltage level, but specify when the device is no longer driving (HZ), or begins driving (LZ).
6. The maximum limit for this parameter is not a device limit. The device operates with a greater value for this parameter, but sys-
tem performance (bus turnaround) degrades accordingly.
7. The specific requirement is that DQS be valid (HIGH, LOW, or some point on a valid transition) on or before this CK edge. A
valid transition is defined as monotonic and meeting the input slew rate specifications of the device. When no writes were pre-
viously in progress on the bus, DQS will be transitioning from Hi-Z to logic LOW. If a previous write was in progress, DQS
could be HIGH, LOW, or transitioning from HIGH to LOW at this time, depending on tDQSS
.
8. A maximum of eight Autorefresh commands can be posted to any given DDR SDRAM device.
9. For each of the terms, if not already an integer, round to the next highest integer. tCK is equal to the actual system clock cycle
time.
10. These parameters guarantee device timing, but they are not necessarily tested on each device
11. Fast slew rate >= 1.0 V/ns , slow slew rate >= 0.5 V/ns and < 1V/ns for command/address and CK & CK slew rate >1.0 V/ns,
measured between VOH(ac) and VOL(ac)
INFINEON Technologies
9
2002-05-08 (rev. 0.9)
HYS64D64020GDL
DDR-SDRAM SO-DIMM Modules
SPD Codes for PC2700, PC2100 & PC1600
512MB
x64
2bank
-6
512MB
x64
2bank
-7
512MB
x64
2bank
-8
Byte#
Description
HEX
80
HEX
80
HEX
80
0
1
Number of SPD Bytes
128
Total Bytes in Serial PD
Memory Type
256
08
08
08
2
DDR-SDRAM
07
07
07
3
Number of Row Addresses
Number of Column Addresses
Number of DIMM Banks
Module Data Width
13
0D
0A
0D
0A
0D
0A
4
9
5
1 / 2
02
02
02
6
x64
0
SSTL_2.5
40
40
40
7
8
Module Data Width (cont’d)
Module Interface Levels
SDRAM Cycle Time at CL = 2.5
Access Time from Clock at CL = 2.5
DIMM Config
00
04
00
04
00
04
9
6ns / 7ns / 8ns
0.7ns / 0.75ns / 0.8ns
non-ECC / ECC
Self-Refresh,15.6ms
x16
60
70
80
10
11
12
13
14
70
75
80
00
00
00
Refresh Rate/Type
82
82
82
SDRAM Width, Primary
Error Checking SDRAM Data Width
Minimum Clock Delay for Back-to-Back
Random Column Address
Burst Length Supported
Number of SDRAM Banks
Supported CAS Latencies
CS Latencies
10
10
10
na
00
00
00
15
tccd = 1 CLK
01
01
01
16
17
18
19
20
21
2, 4 & 8
4
0E
04
0C
01
02
20
0E
04
0C
01
02
20
0E
04
0C
01
02
20
CAS latency = 2 & 2.5
CS latency = 0
WE Latencies
Write latency = 1
SDRAM DIMM Module Attributes
unbuffered
Concurrent Auto
Precharge, weak driver
22
SDRAM Device Attributes: General
C1
C1
C1
23
24
Min. Clock Cycle Time at CAS Latency = 2
Access Time from Clock for CL = 2
Minimum Clock Cycle Time at CL = 1.5
Access Time from Clock at CL = 1.5
Minimum Row Precharge Time
Minimum Row Act. to Row Act. Delay tRRD
Minimum RAS to CAS Delay tRCD
Minimum RAS Pulse Width tRAS
Module Bank Density (per bank)
Addr. and Command Setup Time
Addr. and Command Hold Time
Data Input Setup Time
7.5ns / 7.5ns / 10ns
75
70
75
75
00
00
50
3C
50
2D
40
90
90
50
50
00
41
4B
30
32
75
00
00
BC
C1
A0
80
00
00
50
3C
50
32
40
B0
B0
60
60
00
46
50
30
3C
A0
00
00
B1
C1
0.7ns / 0.75ns / 0.8ns
25
26
not supported
not supported
00
00
27
18ns / 20ns / 20ns
48
28
12ns / 15ns / 15ns
30
29
18ns / 20ns / 20ns
48
30
42ns / 45ns / 50ns
2A
31
64MByte
40
32
0.75ns / 0.9ns / 1.1ns
75
33
34
0.75ns / 0.9ns / 1.1ns
0.45ns / 0.5ns / 0.6ns
75
45
35
Data Input Hold Time
0.45ns / 0.5ns / 0.6ns
45
36-40
41
Superset Information
00
Minimum Core Cycle Time tRC
Min. Auto Refresh Cmd Cycle Time tRFC
Maximum Clock Cycle Time tck
Max. DQS-DQ Skew tDQSQ
X-Factor tQHS
60ns / 65ns / 70ns
3C
48
42
72ns / 75ns / 80ns
43
12ns
30
44
0.45ns / 0.5ns / 0.6ns
2D
55
00
45
46-61
62
0.55ns / 0.75ns / 1.0ns
Superset Information
SPD Revision
Revision 0.0
00
63
Checksum for Bytes 0 - 62
Manufacturers JEDEC ID Code
Manufacturer
0A
64
C1
65-71
72
INFINEON
INFINEON INFINEON
Module Assembly Location
Module Part Number
73-90
91-92
93-94
95-98
99-127
128-255
Module Revision Code
Module Manufacturing Date
Module Serial Number
open for Customer use
INFINEON Technologies
10
2002-05-08 (rev. 0.9)
HYS64D64020GDL
DDR-SDRAM SO-DIMM Modules
Package Outlines Raw Card A
DDR-SDRAM SO-DIMM Modules Raw Card A
0.1 5
67.6
63.6
3.8 m ax.
39
11.4
1
41
199
0.1
1
2.15
2.45
2.15
47.4
11.55
4.2
1.0
40
2.45
2
42
200
1.8
4
D etail of C ontacts
D etail of C ham fer
0.45
0.2 -0.1 5
0.6
L-DIM-200-6
INFINEON Technologies
11
2002-05-08 (rev. 0.9)
厂商 型号 描述 页数 下载

INFINEON

HYS64-72V2200GU-8 3.3V 2M ×64 /72- 1位BANK SDRAM模块3.3V 4M ×64 /72- 2位BANK SDRAM模块[ 3.3V 2M x 64/72-Bit 1 BANK SDRAM Module 3.3V 4M x 64/72-Bit 2 BANK SDRAM Module ] 17 页

INFINEON

HYS64-74V8200GU 3.3 V 8M ×64 /72- 1位银行SDRAM模块3.3 V 16M ×64 /72- 2位银行SDRAM模块[ 3.3 V 8M x 64/72-Bit 1 Bank SDRAM Module 3.3 V 16M x 64/72-Bit 2 Bank SDRAM Module ] 17 页

INFINEON

HYS6472V16200GU 3.3 V 16M ×64 /72-位SDRAM模块3.3 V 32M ×64 /72-位SDRAM模块3.3 V 64M ×64 /72-位SDRAM模块[ 3.3 V 16M x 64/72-Bit SDRAM Modules 3.3 V 32M x 64/72-Bit SDRAM Modules 3.3 V 64M x 64/72-Bit SDRAM Modules ] 17 页

INFINEON

HYS6472V4200GU 3.3V 4M ×64 /72- 1位BANK SDRAM模块3.3V 8M ×64 /72- 2位BANK SDRAM模块[ 3.3V 4M x 64/72-Bit 1 BANK SDRAM Module 3.3V 8M x 64/72-Bit 2 BANK SDRAM Module ] 15 页

INFINEON

HYS64D128020GBDL-6-A [ DDR DRAM Module, 128MX64, 0.7ns, CMOS, SO-DIMM-200 ] 11 页

ETC

HYS64D128020GBDL-7-A ? 1GB ( 1024Mx64 ) PC2100 2银行?\n[ ?1GB (1024Mx64) PC2100 2-bank? ] 11 页

INFINEON

HYS64D128020GU-7-A 2.5 V 184针无缓冲DDR- SDRAM我模块[ 2.5 V 184-pin Unbuffered DDR-I SDRAM Modules ] 18 页

INFINEON

HYS64D128020GU-8-A 2.5 V 184针无缓冲DDR- SDRAM我模块[ 2.5 V 184-pin Unbuffered DDR-I SDRAM Modules ] 18 页

QIMONDA

HYS64D128020GU-8-A [ DDR DRAM Module, 128MX64, 0.8ns, CMOS, PDMA184 ] 18 页

INFINEON

HYS64D128021 200针的小型双列直插式内存模块[ 200-Pin Small Outline Dual-In-Line Memory Modules ] 23 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.191632s
