NZF220TT1/D

型号:

NZF220TT1/D

描述:

EMI滤波与ESD保护\n[ EMI Filter with ESD Protection ]

品牌:

ETC[ ETC ]

页数:

4 页

PDF大小:

43 K

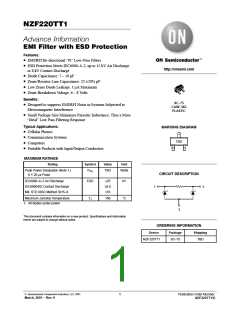

NZF220TT1
Advance Information
EMI Filter with ESD Protection
Features:
EMI/RFI Bi–directional “Pi” Low–Pass Filters
ESD Protection Meets IEC6000–4–2, up to 15 kV Air Discharge,
or 8 kV Contact Discharge
http://onsemi.com
Diode Capacitance: 7 – 10 pF
Zener/Resistor Line Capacitance: 22 ±20% pF
Low Zener Diode Leakage: 1 mA Maximum
Zener Breakdown Voltage; 6 – 8 Volts
Benefits:
SC–75
CASE 463
PLASTIC
Designed to suppress EMI/RFI Noise in Systems Subjected to
Electromagnetic Interference
Small Package Size Minimizes Parasitic Inductance, Thus a More
“Ideal” Low Pass Filtering Response
Typical Applications:
MARKING DIAGRAM
Cellular Phones
Communication Systems
Computers
TBD
Portable Products with Input/Output Conductors
MAXIMUM RATINGS
Rating
Symbol
Value
Unit
Peak Power Dissipation (Note 1.)
P
PK
TBD
Watts
CIRCUIT DESCRIPTION
8 × 20 ms Pulse
IEC6000–4–2 Air Discharge
IEC6000402 Contact Discharge
MIL STD 883C Method 3015–6
ESD
±25
±8.0
±16
kV
1
2
Maximum Junction Temperature
1. All diodes under power
T
J
150
°C
3
This document contains information on a new product. Specifications and information
herein are subject to change without notice.
ORDERING INFORMATION
Device
Package
Shipping
NZF220TT1
SC–75
TBD
Semiconductor Components Industries, LLC, 2001
1
Publication Order Number:
March, 2001 – Rev. 0
NZF220TT1/D
NZF220TT1
ELECTRICAL CHARACTERISTICS
Symbol
Characteristic
Min
6.0
N/A
N/A
7.0
17.6
90
Typ
Max
8.0
1.0
1.25
10
Unit
V
V
Z
Zener Breakdown Voltage, @ I = 1 mA
ZT
I
r
Zener Leakage Current, @ V = 3 V
mA
V
R
V
F
Zener Forward Voltage, @ I = 50 mA
F
Capacitance
Capacitance
Resistor
Zener Internal Capacitance, @ 0 V Bias
Zener/Resistor Array Line Capacitance
Resistance
pF
pF
W
26.4
110
F
C
(Note 2.)
Cutoff Frequency
220
MHz
2. 50 W Source and 50 W Lead Termination per Figure 2
Applications Information
Suppressing Noise at the Source
Filter all I/O signals leaving the noisy environment
Locate I/O driver circuits close to the connector
Use the longest rise/fall times possible for all digital signals
Reducing Noise at the Receiver
Filter all I/O signals entering the unit
Locate the I/O filters as close as possible to the connector
Minimizing Noise Coupling
Use multilayer PCBs to minimize power and ground inductance
Keep clock circuits away from the I/O connector
Ground planes should be used whenever possible
Minimize the loop area for all high speed signals
Provide for adequate power decoupling
ESD Protection
Locate the suppression devices as close to the I/O connector as possible
Minimize the PCB trace length to the suppression device
Minimize the PCB trace length for the ground return for the suppression device
http://onsemi.com
2
NZF220TT1
Frequency Response Specification
TRACKING
GENERATOR
SPECTRUM
ANALYZER
50 W
TG OUTPUT
RF INPUT
NZF220T
50 W
V
G
V
in
V
out
TEST BOARD
Test Conditions:
NZF220T
Source Impedance = 50 W
Load Impedance = 50 W
Input Power = 0 dB
Figure 1. Measurement Conditions
–6.3
Y
Y
OUTPUT
3 dB = 220 MHz
–50
1.0
10
100
1000 3000
f, FREQUENCY (MHz)
Figure 2. Typical EMI Filter Response
(50 W Source and 50 W Lead Termination)
http://onsemi.com
3
NZF220TT1
OUTLINE DIMENSIONS
EMI Filter with ESD Protection
SC–75/SOT–416
CASE 463–01
ISSUE B
–A–
S
NOTES:
2
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER.
3
G
–B–
MILLIMETERS
INCHES
1
DIM MIN
MAX
0.80
1.80
0.90
0.30
MIN
MAX
0.031
0.071
0.035
0.012
D 3 PL
0.20 (0.008)
A
B
C
D
G
H
J
0.70
1.40
0.60
0.15
0.028
0.055
0.024
0.006
M
B
0.20 (0.008) A
K
1.00 BSC
0.039 BSC
---
0.10
1.45
0.10
0.10
0.25
1.75
0.20
---
0.004
0.057
0.004
0.004
0.010
0.069
0.008
K
L
J
C
S
0.50 BSC
0.020 BSC
STYLE 4:
L
PIN 1. CATHODE
2. CATHODE
3. ANODE
H
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes
without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular
purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability,
including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or
specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be
validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others.
SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications
intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or
death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold
SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable
attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim
alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer.
PUBLICATION ORDERING INFORMATION
NORTH AMERICA Literature Fulfillment:
CENTRAL/SOUTH AMERICA:
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Spanish Phone: 303–308–7143 (Mon–Fri 8:00am to 5:00pm MST)
Email: ONlit–spanish@hibbertco.com
Phone: 303–675–2175 or 800–344–3860 Toll Free USA/Canada
Fax: 303–675–2176 or 800–344–3867 Toll Free USA/Canada
Email: ONlit@hibbertco.com
Toll–Free from Mexico: Dial 01–800–288–2872 for Access –
then Dial 866–297–9322
ASIA/PACIFIC: LDC for ON Semiconductor – Asia Support
Phone: 1–303–675–2121 (Tue–Fri 9:00am to 1:00pm, Hong Kong Time)
Toll Free from Hong Kong & Singapore:
Fax Response Line: 303–675–2167 or 800–344–3810 Toll Free USA/Canada
N. American Technical Support: 800–282–9855 Toll Free USA/Canada
001–800–4422–3781
EUROPE: LDC for ON Semiconductor – European Support
German Phone: (+1) 303–308–7140 (Mon–Fri 2:30pm to 7:00pm CET)
Email: ONlit–german@hibbertco.com
French Phone: (+1) 303–308–7141 (Mon–Fri 2:00pm to 7:00pm CET)
Email: ONlit–french@hibbertco.com
Email: ONlit–asia@hibbertco.com
JAPAN: ON Semiconductor, Japan Customer Focus Center
4–32–1 Nishi–Gotanda, Shinagawa–ku, Tokyo, Japan 141–0031
Phone: 81–3–5740–2700
Email: r14525@onsemi.com
English Phone: (+1) 303–308–7142 (Mon–Fri 12:00pm to 5:00pm GMT)
Email: ONlit@hibbertco.com
ON Semiconductor Website: http://onsemi.com
EUROPEAN TOLL–FREE ACCESS*: 00–800–4422–3781
For additional information, please contact your local
Sales Representative.
*Available from Germany, France, Italy, UK, Ireland
NZF220TT1/D
