UZRT040GC1

型号:

UZRT040GC1

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

5 页

PDF大小:

166 K

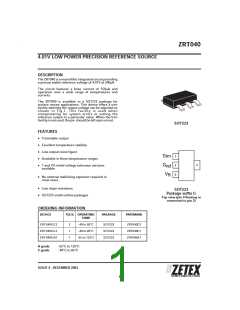

ZRT040
4.01V LOW POWER PRECISION REFERENCE SOURCE
DESCRIPTION
The ZRT040 is a m onolithic integrated circuit providing
a precise stable reference voltage of 4.01V at 500µA.
The circuit features a knee current of 150µA and
operation over a wide range of tem peratures and
currents.
The ZRT040 is available in a SOT223 package for
surface m ount applications. This device offers a trim
facility whereby the output voltage can be adjusted as
s h o w n in Fig .1 . Th is fa c ilit y is u s e d w h e n
co m p e n s a tin g fo r s ys te m e rro rs o r s e ttin g th e
reference output to a particular value. When the trim
facility is not used, the pin should be left open circuit.
SOT223
FEATURES
Trim m able output
Excellent tem perature stability
Low output noise figure
Available in three tem perature ranges
1 and 2% initial voltage tolerance versions
available
No external stabilising capacitor required in
m ost cases
Low slope resistance
SOT223
Package suffix G
SOT223 sm all outline packages
Top view (pin 4 floating or
connected to pin 2)
ORDERING INFORMATION
DEVICE
TOL% OPERATING
TEMP.
PACKAGE
PARTMARK
ZRT040GC2
ZRT040GC1
ZRT040GA1
2
1
1
-40 to 85°C
-40 to 85°C
-55 to 125°C
SOT223
SOT223
SOT223
ZRT040C2
ZRT040C1
ZRT040A1
A grade
C grade
-55°C to 125°C
-40°C to 85°C
ISSUE 4 - DECEMBER 2003
S E M IC O N D U C T O R S
1
ZRT040
ABSOLUTE MAXIMUM RATINGS
PARAMETER
S YMBOL
LIMIT
UNIT
(1)
Re ve rs e cu rre n t
75
m A
Op e ra tin g te m p e ra tu re :
A g ra d e
T
OMP
S TG
-55 to 125
-40 to 85
-55 to 150
°C
°C
°C
C g ra d e
S to ra g e te m p e ra tu re
T
(1) Above 25°C this figure should be linearly derated to 15m A at 125°C
POWER DISSIPATION (at T
= 25°C unless otherwise stated)
am b
PACKAGE
VALUE
UNIT
S OT223
2
W
TEMPERATURE DEPENDENT ELECTRICAL CHARACTERISTICS
S YMBOL PARAMETER
INITIAL
VOLTAGE
TOLERANCE %
GRADE A
GRADE C
TYP MAX
UNIT
m V
TYP MAX
Ou tp u t vo lta g e ch a n g e o ve r
re le va n t te m p e ra tu re
ra n g e (S e e n o te (a ))
1 & 2
1 & 2
11.0
15.0
36,0
50.0
7.5
24.0
V
R
T V
Ou tp u t vo lta g e te m p e ra tu re
co e fficie n t (S e e n o te (b ))
15.0
50.0
ppm /°C
C
R
ELECTRICAL CHARACTERISTICS (at T
= 25°C unless otherwise stated)
am b
S YMBOL
PARAMETER
CONDITIONS
MIN.
TYP. MAX.
UNIT
V
Ou tp u t vo lta g e
R
1% to le ra n ce (A1,C1)
I =500A
3.97
3.93
4.01
4.01
Ϯ5
4.05
4.09
V
R
2% to le ra n ce (C2)
V
%
V
Ou tp u t vo lta g e a d ju s tm e n t ra n g e
R =100k⍀
T
TRIM
T V
Ch a n g e in T V w ith o u tp u t a d ju s tm e n t
2.5
ppm /°C/%
m A
C
TRIM
C R
I
Op e ra tin g cu rre n t ra n g e
0.15
75
R
t
t
Tu rn -o n tim e
Tu rn -o ff tim e
40
0.3
s
o n
R =1k⍀
L
o ff
e
Ou tp u t vo lta g e n o is e (o ve r th e ra n g e 0.1 Pe a k to p e a k
50
V
n p -p
to 10Hz)
m e a s u re m e n t
R
S lo p e re s is ta n ce
I = 0.5m A to
R
1.1
3.0
S
5m A
(S e e n o te (c))
ISSUE 4 - DECEMBER 2003
S E M IC O N D U C T O R S
2
ZRT040
TYPICAL CHARACTERISTICS
NOTES:
(a) Output change w ith tem perature
(d) Slope resistance (RS)
Th e a b s o lu te m a xim u m d iffe re n ce b e tw e e n th e
m axim um output voltage and the m inim um output
voltage over the specified tem perature range:
The slope resistance is defined as:
changeinVR
RS =
specificcurrentrange
V =V
-V
(b) Output tem perature coefficient (T V )
R
m ax m in
I=5-0.5=4.5m A (typically)
C
R
(e) Line regulation
The ratio of the output change with tem perature to the
specified tem perature range expressed in ppm /°C:
The ratio of change in output voltage to the change in
input voltage producing it:
VR x10 6
TCVR
=
ppm °C
RS x100
% / V
VR xT
T= Full tem perature range
VR xRSOURCE
(c) Operating current (I )
R
Maxim um operating current m ust be derated as
indicated in m axim um ratings.
ISSUE 4 - DECEMBER 2003
S E M IC O N D U C T O R S
3
ZRT040
SCHEMATIC DIAGRAM
Figure 1:
This circuit will allow the reference to be trim m ed over
a wide range. The device is specified over a Ϯ5% trim
range.
ISSUE 4 - DECEMBER 2003
S E M IC O N D U C T O R S
4
ZRT040
PACKAGE OUTLINE
Controlling dim ensions are in m illim eters. Approxim ate conversions are given in inches
PACKAGE DIMENSIONS
Millim eters
Inches
Millim eters
Min Max
2.30 BSC
4.60 BSC
Inches
Min Max
DIM
DIM
Min
Max
Min
Max
0.071
0.004
0.033
0.122
0.013
0.264
A
A1
b
1.80
0.10
0.84
3.10
0.33
6.70
e
0.0905 BSC
0.181 BSC
0.02
0.66
2.90
0.23
6.30
0.0008
0.026
0.114
0.009
0.248
e1
E
6.70
7.30
3.70
0.264
0.287
b2
C
E1
L
3.30
0.90
0.130
0.0355
0.146
D
© Zetex plc 2003
Europe
Am ericas
Asia Pacific
Zetex plc
Zetex Gm bH
Zetex Inc
Zetex (Asia) Ltd
Fields New Road
Chadderton
Streitfeldstraß e 19
D-81673 München
700 Veterans Mem orial Hwy
Hauppauge, NY 11788
3701-04 Metroplaza Tower 1
Hing Fong Road
Oldham , OL9 8NP
United Kingdom
Kwai Fong
Hong Kong
Germ any
USA
Telephone (44) 161 622 4444
Fax: (44) 161 622 4446
hq@zetex.com
Telefon: (49) 89 45 49 49 0
Fax: (49) 89 45 49 49 49
europe.sales@zetex.com
Telephone: (1) 631 360 2222
Fax: (1) 631 360 8222
usa.sales@zetex.com
Telephone: (852) 26100 611
Fax: (852) 24250 494
asia.sales@zetex.com
Th e s e o ffice s a re s u p p o rte d b y a g e n ts a n d d is trib u to rs in m a jo r co u n trie s w o rld -w id e .
This publication is issued to provide outline inform ation only which (unless agreed by the Com pany in writing) m ay not be used, applied or reproduced
for any purpose or form part of any order or contract or be regarded as a representation relating to the products or services concerned. The Com pany
reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service.
For the latest product inform ation, log on to w w w .zetex.com
ISSUE 4 - DECEMBER 2003
S E M IC O N D U C T O R S
5
