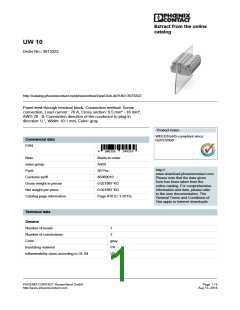

Extract from the online
catalog
UW 10
Order No.: 3073322
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3073322
Panel feed-through terminal block, Connection method: Screw
connection, Load current : 76 A, Cross section: 0.5 mm² - 16 mm²,
AWG 20 - 8, Connection direction of the conductor to plug-in
direction: 0 °, Width: 10.1 mm, Color: gray
Product notes
WEEE/RoHS-compliant since:
02/07/2008
Commercial data
EAN
4
046356
344579
Note
Made-to-order
A420
sales group
http://
Pack
50 Pcs.
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Customs tariff
Gross weight in pieces
Net weight per piece
Catalog page information
85369010
0.021967 KG
0.021967 KG
Page 610 (C-1-2013)
Technical data
General
Number of levels
Number of connections
Color
1
2
gray
PA
V0
Insulating material
Inflammability class according to UL 94
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 1 / 5
Aug 13, 2014
UW 10 Order No.: 3073322
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3073322
General
Rated surge voltage
Pollution degree
6 kV
3
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current IN
III
I
IEC 60947-7-1
57 A
500 V
nein
1
Nominal voltage UN
Open side panel
Number of positions
Dimensions
Width
10.1 mm
Connection data
Connection side
Level 1 ext. 1
Screw connection
0.5 mm²
16 mm²
0.5 mm²
10 mm²
20
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
6
Conductor cross section stranded, with ferrule
without plastic sleeve min.
0.5 mm²
Conductor cross section stranded, with ferrule
without plastic sleeve max.
10 mm²
0.5 mm²
10 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
0.5 mm²
4 mm²
2 conductors with same cross section, stranded
min.
0.5 mm²
2 conductors with same cross section, stranded
max.
4 mm²
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
0.5 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 2 / 5
Aug 13, 2014
UW 10 Order No.: 3073322
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3073322
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2.5 mm²
0.5 mm²
6 mm²
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Cross section with insertion bridge, solid max.
10 mm²
Cross section with insertion bridge, stranded max. 10 mm²
Stripping length
11 mm
B 6
Internal cylindrical gage
Screw thread
M4
Tightening torque, min
Tightening torque max
1.5 Nm
1.8 Nm
Certificates / Approvals
Certification
GOST, UL Recognized
Certifications applied for:
Certification Ex:
Accessories
Item
Designation
Description
Bridges
0203153
0203328
0203137
EB 2-10
EB 3-10
EB 10-10
Insertion bridge, Number of positions: 2, Color: gray
Insertion bridge, Number of positions: 3, Color: gray
Insertion bridge, Number of positions: 10, Color: gray
General
3074389
3074059
3074525
DP-UW 10
POT-UW 10
UW 10-F
Spacer plate, Color: gray
Sealing plate, Color: gray
Flange cover, Color: gray
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 3 / 5
Aug 13, 2014
UW 10 Order No.: 3073322
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3073322
Marking
0816210
TMT 10 R
Marker for terminal blocks, Roll, white, unlabeled, can be labeled
with: THERMOMARK ROLL, THERMOMARK X, THERMOMARK
S1.1, Perforated, Mounting type: Snap into universal marker
groove, Snap into flat marker groove, for terminal block width:
10.2 mm, Lettering field: 6.35 x 10.15 mm
0828295
TMT (EX9,5)R
Marker for terminal blocks, Roll, white, unlabeled, can be
labeled with: THERMOMARK ROLL, THERMOMARK ROLL X1,
THERMOMARK X1.2, Mounting type: Snap into universal marker
groove, Snap into tall marker groove, Lettering field: 9.5 x 50000
mm
0818069
0818124
UC-TM 10
Marker for terminal blocks, Sheet, white, unlabeled, can be
labeled with: BLUEMARK CLED, BLUEMARK LED, Plotter,
Mounting type: Snap into tall marker groove, for terminal block
width: 10.2 mm, Lettering field: 9.6 x 10.5 mm
UC-TMF 10
Marker for terminal blocks, Sheet, white, unlabeled, can be
labeled with: BLUEMARK CLED, BLUEMARK LED, Plotter,
Mounting type: Snap into flat marker groove, for terminal block
width: 10.2 mm, Lettering field: 9.6 x 5.1 mm
1053001
0809997
ZB 10:UNBEDRUCKT
ZBF10:UNBEDRUCKT
Zack marker strip, Strip, white, unlabeled, can be labeled with:
Plotter, Mounting type: Snap into tall marker groove, for terminal
block width: 10.2 mm, Lettering field: 10.5 x 10.15 mm
Zack Marker strip, flat, Strip, white, unlabeled, can be labeled with:
Plotter, Mounting type: Snap into flat marker groove, for terminal
block width: 10 mm, Lettering field: 5.15 x 10 mm
Tools
1205066
SZS 1,0X4,0 VDE
Screwdriver, slot-headed, VDE insulated, size: 1.0 x 4.0 x 100
mm, 2-component grip, with non-slip grip
Drawings
Dimensioned drawing
* Only when using the UW...ꢀF flange
plate
** Dimensions when using the DP-UW...
spacer plate
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 4 / 5
Aug 13, 2014
UW 10 Order No.: 3073322
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3073322
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2014 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 5 / 5
Aug 13, 2014
