UWR-12/1250-D12ASTL1

型号：

UWR-12/1250-D12ASTL1

描述：

模拟IC\n[ Analog IC ]

品牌：

ETC[ ETC ]

页数：

8 页

PDF大小：

125 K

下载PDF手册
®
®

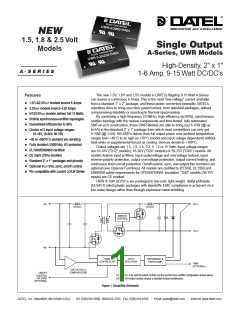

INNOVATION and EXCELLENCE
NEW
1.5, 1.8 & 2.5 Volt
Models
Single Output
A-Series, UWR Models
High-Density, 2" x 1"
1-6 Amp, 9-15 Watt DC/DC's
A - S E R I E S
The new 1.5V, 1.8V and 2.5V models in DATEL’s flagship 9-15 Watt A-Series
can source a continuous 6 Amps. This is the most "low-voltage" current available
from a standard 1" x 2" package, and these power converters exemplify DATEL’s
relentless drive to bring you more power/current, from standard packages, without
compromising reliability or resorting to thermal specmanship.
Features
■
1.5/1.8/2.5VOUT models source 6 Amps
■
■
■
■
■
3.3VOUT models source 4.25 Amps
5/12/15VOUT models deliver full 15 Watts
310kHz synchronous-rectifier topologies
Guaranteed efficiencies to 86%
By combining a high-frequency (310kHz), high-efficiency (to 88%), synchronous-
rectifier topology with the newest components and time-tested, fully automated,
SMT-on-pcb construction, these UWR Models are able to bring you 9-15W (@ up
to 6A) in the standard 2" x 1" package from which most competitors can only get
5-10W (@ 3-4A). All UWR’s deliver their full output power over ambient temperature
ranges from –40°C to as high as +70°C (model and input voltage dependent) without
heat sinks or supplemental forced-air cooling. Devices derate to +100°C.
Output voltages are 1.5, 1.8, 2.5, 3.3, 5, 12 or 15 Volts. Input voltage ranges
are 10-18V ("D12" models), 18-36V ("D24" models) or 36-75V ("D48") models. All
models feature input pi filters, input undervoltage and overvoltage lockout, input
reverse-polarity protection, output overvoltage protection, output current limiting, and
continuous short-circuit protection. On/off control, sync, and output-trim functions are
optional (see Optional Functions). All models are certified to IEC950, UL1950 and
EN60950 safety requirements for OPERATIONAL insulation. "D48" models (36-75V
inputs) are CE marked.
Choice of 3 input voltage ranges:
10-18V, 18-36V, 36-75V
■
■
■
■
■
■
■
–40 to +60/70°C ambient w/o derating
Fully isolated (1500Vdc); I/O protected
UL1950/EN60950 certified
CE mark (75VIN models)
Standard 2" x 1" packages and pinouts
Optional VOUT trim, sync, on/off control
Pin compatible with Lucent LC/LW Series
UWR 9-15W DC/DC’s are packaged in low-cost, light-weight, diallyl phthalate
(UL94V-0 rated) plastic packages with standoffs. EMC compliance is achieved via a
low-noise design rather than through expensive metal shielding.
+VIN
+VOUT
SWITCH
CONTROL
–VOUT
–VIN
PWM
CONTROLLER
OPTO
ISOLATION
REFERENCE &
ERROR AMP
TRIM
(OPTIONAL)
UVLO & OVLO
COMPARATORS
ON/OFF
CONTROL
OR SYNC
1.5, 1.8, 2.5, 3.3V and 5V-output models use the synchronous-rectifier configuration shown above.
12V and 15V-output models employ a standard forward architecture.
(OPTIONAL)
Figure 1. Simplified Schematic
DATEL, Inc., Mansfield, MA 02048 (USA)
·
Tel: (508)339-3000, (800)233-2765 Fax: (508)339-6356 · Email: sales@datel.com · Internet: www.datel.com
A Series
9 - 1 5 W , S I N G L E O U T P U T D C / D C C O N V E R T E R S
■
Performance Specifications and Ordering Guide
Output
Input
Package
(Case,
Pinout)
■
R/N (mVp-p)
Regulation (Max.)
Efficiency
VIN Nom.
(Volts)
Range
(Volts)
IIN ■
(mA)
VOUT
(Volts)
IOUT
(mA)
Model
Typ.
Max.
Line
Load ■
Min.
Typ.
UWR-1.5/6000-D12A
UWR-1.5/6000-D24A
UWR-1.5/6000-D48A
UWR-1.8/6000-D12A
UWR-1.8/6000-D24A
UWR-1.8/6000-D48A
UWR-2.5/6000-D12A
UWR-2.5/6000-D24A
UWR-2.5/6000-D48A
UWR-3.3/4250-D12A
UWR-3.3/4250-D24A
UWR-3.3/4250-D48A
UWR-5/3000-D12A
UWR-5/3000-D24A
UWR-5/3000-D48A
UWR-12/1250-D12A
UWR-12/1250-D24A
UWR-12/1250-D48A
UWR-15/1000-D12A
UWR-15/1000-D24A
UWR-15/1000-D48A
1.5
1.5
1.5
1.8
1.8
1.8
2.5
2.5
2.5
3.3
3.3
3.3
5
6000
6000
6000
6000
6000
6000
6000
6000
6000
4250
4250
4250
3000
3000
3000
1250
1250
1250
1000
1000
1000
45
45
45
50
50
50
60
60
60
85
85
85
85
85
85
85
85
85
85
85
85
65
65
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.2ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.5ꢀ
0.5ꢀ
0.5ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
0.3ꢀ
12
24
48
12
24
48
12
24
48
12
24
48
12
24
48
12
24
48
12
24
48
10-18
18-36
36-75
10-18
18-36
36-75
10-18
18-36
36-75
10-18
18-36
36-75
10-18
18-36
36-75
10-18
18-36
36-75
10-18
18-36
36-75
85/914
50/454
40/226
85/1084
50/539
40/268
80/1489
45/740
35/367
80/1375
45/672
35/336
110/1471
55/710
35/355
20/1471
20/718
20/359
20/1471
20/718
20/359
TBD
TBD
82ꢀ
82.5ꢀ
83ꢀ
83ꢀ
83.5ꢀ
84ꢀ
84ꢀ
84.5ꢀ
85ꢀ
85ꢀ
87ꢀ
87ꢀ
85ꢀ
88ꢀ
88ꢀ
85ꢀ
87ꢀ
87ꢀ
85ꢀ
87ꢀ
87ꢀ
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
C14, P22
65
TBD
70
TBD
70
TBD
70
TBD
80
TBD
80
TBD
80
TBD
100
100
100
100
100
100
100
100
100
100
100
100
83ꢀ
84.5ꢀ
85ꢀ
83ꢀ
5
85.5ꢀ
85.5ꢀ
82.5ꢀ
85ꢀ
5
12
12
12
15
15
15
85ꢀ
82.5ꢀ
85ꢀ
85ꢀ
■ Typical at TA = +25°C under nominal line voltage and full-load conditions, unless otherwise noted.
■ Ripple/Noise (R/N) is tested/speciifed over a 20MHz bandwidth. All models are specified with two
external 0.47µF multi-layer ceramic capacitors installed across their output pins.
■ Load regulation is specified over 10ꢀ-100ꢀ load conditions. 1.5-5V models are stable and
regulate under no-load conditions. 12/15V models have minimum loading requirements.
See Performance/Functional Specifications.
■ Nominal line voltage, no-load/full-load conditions.
M E C H A N I C A L S P E C I F I C A T I O N S
P A R T N U M B E R S T R U C T U R E
U WR - 5 / 3000 - D48 A CT LX
2.00
(50.80)
PLASTIC CASE
Output Configuration:
U = Unipolar
Pin Length Option:
L1 = 0.110"
L2 = 0.145"
0.49
Case C14
(12.45)
Wide Range Input
STANDOFF
0.020 (0.51)
Optional Functions
See Below
0.040 0.002 DIA.
(1.016 0.051)
Nominal Output Voltage:
1.5, 1.8, 2.5, 3.3, 5, 12 or 15 Volts
0.20 MIN
(5.08)
A-Series
High Reliability
0.60
(15.24)
0.800
(20.32)
Maximum Output Current
in mA
Input Voltage Range:
0.100
(2.54)
D12 = 10-18 Volts (12V nominal)
D24 = 18-36 Volts (24V nominal)
D48 = 36-75 Volts (48V nominal)
4
5
1
2
0.800
1.00
(25.40)
(20.32)
0.400
(10.16)
Optional Functions
6
3
T
Trim function on pin 5. No pin 3.
On/Off Control function (positive polarity) on pin 3. No pin 5.
BOTTOM VIEW
0.200
(5.08)
C
0.10
DIMENSION ARE IN INCHES (MM)
(2.54)
CT On/Off Control function (positive polarity) on pin 3. Trim function on pin 5.
L1 Pin length: 0.110 in. (2.79mm) 0.010
I/O Connections
Pin Function P22
L2 Pin length: 0.145 in. (3.68mm) 0.010
N
On/Off Control function (negative polarity) on pin 3. No pin 5.
NT On/Off Control function (negative polarity) on pin 3. Trim function on pin 5.
Sync function on pin 3. No pin 5.
1
2
3
4
5
6
+Input
–Input
On/Off Control*
+Output
* Pins 3 and 5 are optional.
S
See Optional Functions and
Technical Notes for details.
ST Sync function on pin 3. Trim function on pin 5.
Blank -- No Trim function. No On/Off Control function.
Trim*
Common
2
UWR Models
9 - 1 5 W , S I N G L E O U T P U T D C / D C C O N V E R T E R S
Performance/Functional Specifications
Typical @ TA = +25°C under nominal line voltage and full-load conditions, unless noted. ■■
Dynamic Characteristics
Transient Response (50ꢀ load step)
200µsec max. to 1.5ꢀ of final value
Start-Up Time: ■
VIN to VOUT
Input
50msec
30msec
Input Voltage Range:
On/Off to VOUT
D12A Models
D24A Models
D48A Models
10-18 Volts (12V nominal)
18-36 Volts (24V nominal)
36-75 Volts (48V nominal)
Switching Frequency
310kHz ( 30kHz)
Environmental
Overvoltage Shutdown:
D12A Models
Operating Temperature (Ambient):
Without Derating ■
With Derating
18.5-21 Volts (20V typical)
37-40 Volts (38V typical)
77-81 Volts (78.5V typical)
–40 to +60/70°C
D24A Models
to +100°C (See Derating Curves)
D48A Models
Case Temperature:
Start-Up Threshold: ■
D12A Models
Maximum Allowable
+100°C
9.4-9.8 Volts (9.6V typical)
16.5-18 Volts (17V typical)
34-36 Volts (35V typical)
Storage Temperature
–40 to +105°C
D24A Models
Physical
D48A Models
Dimensions
Shielding
2" x 1" x 0.49" (51 x 25 x 12.45mm)
None
Undervoltage Shutdown: ■
D12A Models
7.5-8.5 Volts (8V typical)
16-17 Volts (16.5V typical)
32.5-35.5 Volts (34V typical)
D24A Models
Case Material
Pin Material
Weight
Diallyl phthalate, UL94V-0 rated
Brass, solder coated
D48A Models
Input Current:
1.4 ounces (39.7 grams)
Normal Operating Conditions
Standby Mode (Off, OV, UV)
See Ordering Guide
5mA
■ All models are specified with two external 0.47µF multi-layer ceramic capacitors installed
across their output pins.
Input Filter Type
Pi
■ See Minimum Output Loading Requirements under Technical Notes.
■ See Technical Notes for details.
■ The On/Off Control, Sync and Trim functions are optional and must be installed by DATEL.
See Optional Functions or contact DATEL for details.
Reverse-Polarity Protection
Brief duration, 10A maximum
On/Off Control (Optional, Pin 3): ■ ■
D12AC, D24AC, & D48AC Models
On = open or 13V - +VIN, IIN = 50µA max.
Off = 0-0.8V, IIN = 1mA max.
■ The On/Off Control is designed to be driven with open-collector logic or the application of
appropriate voltages (referenced to –Input (Pin 2)). Applying a voltage to the On/Off Control
pin when no input voltage is applied to the converter may cause permanent damage.
See Technical Notes.
D12AN, D24AN, & D48AN Models
On = 0-0.8V, IIN = 2.6mA max.
Off = open or 3.3-5.5V, IIN = 1mA max.
Sync (Optional, Pin 3) ■ ■
Input Threshold (Rising edge active)
Input Voltage Low
■ Output noise maybe further reduced with the addition of additional external output
capacitors. See Technical Notes.
1-2.7 Volts
0-0.9 Volts
2.8-5 Volts
35kΩ minimum
3.5-4.8 Volts
35mA
■ Operating temperature range without derating is model and input-voltage dependent.
See Temperature Derating.
Input Voltage High
Input Resistance
Output High Voltage (100µA load)
Output Drive Current
Absolute Maximum Ratings
Input/Output Pulse Width
160-360nsec
Input Voltage:
Continuous:
Output
D12 Models
D24 Models
D48 Models
22 Volts
44 Volts
88 Volts
VOUT Accuracy (50ꢀ load):
1.5V/1.8V/2.5V/3.3V Outputs
5/12/15V Outputs
1.5ꢀ, maximum
1ꢀ, maximum
Transient (100msec):
D12 Models
D24 Models
50 Volts
50 Volts
100 Volts
Minimum Loading for Specification: ■
1.5V/1.8V/2.5V/3.3V/5V Outputs
12V/15V Outputs
No load
D48 Models
10ꢀ of IOUT max.
Input Reverse-Polarity Protection
Current must be <10 Amps. Brief
duration only. Fusing recommended.
Minimum Loading for Stability: ■
1.5V/1.8V/2.5V/3.3V/5V Outputs
12V/15V Outputs
No load
25mA
Output Overvoltage Protection:
1.5/1.8V Outputs
2.5V/3.3V Outputs
TBD/TBD Volts, unlimited duration
TBD/4.5 Volts, unlimited duration
6.8/15/18 Volts, unlimited duration
Ripple/Noise (20MHz BW) ■ ■
Line/Load Regulation
Efficiency
See Ordering Guide
See Ordering Guide
See Ordering Guide
5V/12V/15V Outputs
Output Current
Current limited. Devices can
withstand sustained output short
circuits without damage.
Isolation Voltage:
Input-to-Output
1500Vdc minimum
470pF
Case Temperature
+100°C
Isolation Capacitance
Isolation Resistance
Storage Temperature
–40 to +105°C
+300°C
100MΩ
Lead Temperature (soldering, 10 sec.)
Current Limiting:
1.5V/1.8V/2.5V/3.3V/5V Outputs
12V/15V Outputs
Hiccup technique, auto-recovery
These are stress ratings. Exposure of devices to any of these conditions may adversely
affect long-term reliability. Proper operation under conditions other than those listed in the
Performance/Functional Specifications Table is not implied.
Power-limiting technique, auto-recovery
Overvoltage Protection
Temperature Coefficient
Zener/transorb clamp, magnetic feedback
0.04ꢀ per °C.
3
A Series
9 - 1 5 W , S I N G L E O U T P U T D C / D C C O N V E R T E R S
Trim adjustment greater than 5ꢀ can have an adverse effect on the convert-
er's performance and is not recommended.
T E C H N I C A L N O T E S
Floating Outputs
4
1
2
3
+OUTPUT
TRIM
Since these are isolated DC/DC converters, their outputs are "floating."
Designers will usually use the output Common (pin 6) as the ground/return of
the load circuit.You can, however, use the +Output (pin 4) as ground/return to
effectively reverse the output polarity.
+INPUT
–INPUT
5
6
20kΩ
5-22
LOAD
Turns
Minimum Output Loading Requirements
ON/OFF
CONTROL
COMMON
1.5-5V models employ a synchronous-rectifier design topology. All models
regulate within spec and are stable under no-load conditions. 12/15V models
employ a traditional forward architecture and require 10ꢀ loading (125mA for
12V models, 100mA for 15V models) to achieve their listed regulation specs.
12/15V models also have a minimum-load-for-stability requirement (25mA).
For 12/15V models, operation between 25mA and 10ꢀ loading will result
in stable operation but regulation may degrade. Operation under no-load
conditions will not damage the 12/15V devices; however they may not meet
all listed specifications.
Figure 2.Trim Connections Using A Trim Pot
4
1
2
3
+OUTPUT
+INPUT
RTRIM DOWN
5
6
–INPUT
TRIM
LOAD
ON/OFF
CONTROL
Filtering and Noise Reduction
COMMON
All A-Series UWR 9-15 Watt DC/DC Converters achieve their rated ripple and
noise specifications using the external input and output capacitors specified
in the Performance/Functional Specifications table. In critical applications,
input/output noise may be further reduced by installing additional external I/O
caps. Input capacitors should be selected for bulk capacitance, low ESR and
high rms-ripple-current ratings. Output capacitors should be selected for low
ESR and appropriate frequency response. All caps should have appropriate
voltage ratings and be mounted as close to the converters as possible.
Figure 3.Trim Connections To Decrease Output Voltage Using Fixed Resistors
4
1
2
3
+OUTPUT
TRIM
+INPUT
–INPUT
5
6
LOAD
The most effective combination of external I/O capacitors will be a function
of your particular load and layout conditions. Our Applications Engineers will
be happy to recommend potential solutions and can discuss the possibility of
our modifying a given device’s internal filtering to meet your specific require-
ments. Contact our Applications Engineering Group for additional details.
RTRIM UP
ON/OFF
CONTROL
COMMON
Figure 4.Trim Connections To Increase Output Voltage Using Fixed Resistors
Input Fusing
Model
Trim Equation
Certain applications and/or safety agencies may require the installation of
fuses at the inputs of power conversion components. Fuses should also be
used if the possibility of sustained, non-current-limited, input-voltage polarity
reversals exists. For DATEL A-Series UWR 9-15 Watt DC/DC Converters, you
should use slow-blow type fuses with values no greater than the following.
2.49(VO – 1.27)
3.3 – VO
–16.9
–15
RTDOWN (kΩ) =
UWR-3.3/4250-D12A
UWR-3.3/4250-D24A
UWR-3.3/4250-D48A
3.16
–16.9
RTUP (kΩ) =
VO – 3.3
2.49(VO – 2.527)
5 – VO
VIN Range
Fuse Value
RTDOWN (kΩ) =
RTUP (kΩ) =
UWR-5/3000-D12A
UWR-5/3000-D24A
UWR-5/3000-D48A
"D12A" Models
"D24A" Models
"D48A" Models
3 Amps
2 Amps
1 Amp
6.292
–15
VO – 5
6.34(VO – 5.714)
12 – VO
–49.9
–63.4
RTDOWN (kΩ) =
RTUP (kΩ) =
RTDOWN (kΩ) =
RTUP (kΩ) =
UWR-12/1250-D12A
UWR-12/1250-D24A
UWR-12/1250-D48A
Trimming Output Voltages
36.23
These converters have a trim capability (pin 5) that allows users to adjust the
output voltage 5ꢀ. Adjustments to the output voltage can be accomplished
via a trim pot, Figure 2, or a single fixed resistor as shown in Figures 3 and 4.
A single fixed resistor can increase or decrease the output voltage depending
on its connection. Fixed resistors should have an absolute TCR less than
100ppm/°C to minimize sensitivity to changes in temperature.
–49.9
VO – 12
7.87(VO – 7.136)
15 – VO
UWR-15/1000-D12A
UWR-15/1000-D24A
UWR-15/1000-D48A
56.16
–63.4
VO – 15
A single resistor connected from the Trim (pin 5) to the +Output (pin 4), see
Figure 3, will decrease the output voltage. A resistor connected from the Trim
(pin 5) to Output Common (pin 6) will increase the output voltage.
Accuracy of adjustment is subject to tolerances or resistor values
and factory-adjusted output accuracy. VO = desired output voltage.
4
UWR Models
9 - 1 5 W , S I N G L E O U T P U T D C / D C C O N V E R T E R S
D24A Temperature Derating Curves for 5V, 12V and 15V Output Models
Start-Up Threshold and Undervoltage Shutdown
15.0
13.5
12.0
10.5
9.0
7.5
6.0
4.5
3
Under normal start-up conditions, devices will not begin to regulate until the
ramping-up input voltage exceeds the Start-Up Threshold Voltage (35V for
"D48A" models). Once operating, devices will not turn off until the input volt-
age drops below the Undervoltage Shutdown/Lockout limit (34V for "D48A"
models). Subsequent re-start will not occur until the input is brought back
up to the Start-Up Threshold. This built-in hysteresis obviously avoids any
indeterminate on/off situations at a single voltage.
VIN = 18V-27V
VIN = 18V-30V
VIN = 18V-36V
Start-Up Time
The VIN to VOUT Start-Up Time is the interval between the time at which
a ramping input voltage crosses the turn-on threshold point and the fully-
loaded output voltage enters and remains within its specified accuracy band.
Actual measured times will vary with input source impedance, external input
capacitance, and the slew rate and final value of the input voltage as it
appears to the converter.
1.5
0
–40
0
40
45
50
55
60
65
70
75
80
85
90
95
100
Ambient Temperature (°C)
The On/Off to VOUT Start-Up Time assumes the converter is turned off via
the On/Off Control with the nominal input voltage already applied to the
converter. The specification defines the interval between the time at which the
converter is turned on and the fully-loaded output voltage enters and remains
within its specified accuracy band.
D24A and D48A Temperature Derating Curves for 3.3V Output Models
14
12
10
8
VIN = 18V-27V (D24A)
VIN = 36V-48V (D48A)
VIN = 18V-30V (D24A)
VIN = 36V-60V (D48A)
T E M P E R A T U R E D E R A T I N G
VIN = 18V-36V (D24A)
VIN = 36V-75V (D48A)
The thermal performance of A-Series UWR 15 Watt DC/DC Converters is
depicted in the derating curves shown below. All devices, when operated at
full load, in still ambient air, over their full specified input voltage range, can
safely operate to +60°C. All models, other than the D12A models (10-18 Volt
input range), can operate at higher ambient temperatures if the input range
is narrowed. For example, model UWR-5/3000-D48A can operate safely to
+70°C if the input range is kept between 36 and 48 Volts. Contact DATEL's
Applications Engineering Group if you need additional details.
6
4
2
0
–40
0
40
45
50
55
60
65
70
75
80
85
90
95
100
Ambient Temperature (°C)
D12A (10-18V) Temperature Derating Curves
D48A Temperature Derating Curves for 5V, 12V and 15V Output Models
15.0
13.5
12.0
10.5
9.0
7.5
6.0
4.5
3
15.0
VIN = 36V-48V
13.5
VOUT = 5V, 12V and 15V
12.0
10.5
9.0
VIN = 36V-60V
7.5
VOUT = 3.3V
VIN = 36V-75V
6.0
4.5
3
1.5
0
1.5
0
–40
0
40
45
50
55
60
65
70
75
80
85
90
95
100
–40
0
40
45
50
55
60
65
70
75
80
85
90
95
100
Ambient Temperature (°C)
Ambient Temperature (°C)
5
A Series
9 - 1 5 W , S I N G L E O U T P U T D C / D C C O N V E R T E R S
E F F I C I E N C Y V S . L I N E A N D L O A D
UWR-3.3/4250-D12A Efficiency vs. Line and Load
UWR-5/3000-D12A Efficiency vs. Line and Load
90
90
85
80
75
85
80
75
V
IN = 10V
70
65
60
55
50
45
40
V
IN = 10V
70
65
60
55
50
45
V
IN = 12V
V
IN = 12V
V
IN = 18V
V
IN = 18V
0.4
0.9
1.4
1.8
2.3
2.8
3.3
3.8
4.3
0.3
0.6
1.0
1.3
1.7
2
2.3
2.7
3
Load Current (Amps)
Load Current (Amps)
UWR-5/3000-D24A Efficiency vs. Line and Load
UWR-3.3/4250-D24A Efficiency vs. Line and Load
90
85
80
75
70
65
60
55
50
45
40
90
85
80
75
70
65
60
55
50
45
V
IN = 18V
V
IN = 18V
V
IN = 24V
V
IN = 24V
V
IN = 36V
V
IN = 36V
0.3
0.6
1.0
1.3
1.7
2
2.3
2.7
3
0.4
0.9
1.4
1.8
2.3
2.8
3.3
3.8
4.3
Load Current (Amps)
Load Current (Amps)
UWR-3.3/4250-D48A Efficiency vs. Line and Load
UWR-5/3000-D48A Efficiency vs. Line and Load
90
85
80
75
70
65
60
55
50
45
90
85
80
75
70
65
60
55
50
45
40
V
IN = 36V
V
IN = 36V
V
IN = 48V
V
IN = 48V
V
IN = 75V
V
IN = 75V
0.4
0.9
1.4
1.8
2.3
2.8
3.3
3.8
4.3
0.3
0.6
1.0
1.3
1.7
2
2.3
2.7
3
Load Current (Amps)
Load Current (Amps)
6
UWR Models
9 - 1 5 W , S I N G L E O U T P U T D C / D C C O N V E R T E R S
E F F I C I E N C Y V S . L I N E A N D L O A D
UWR-15/1000-D12A Efficiency vs. Line and Load
UWR-12/1250-D12A Efficiency vs. Line and Load
90
85
80
75
70
65
60
55
90
85
80
75
V
IN = 10V
V
IN = 10V
70
65
60
55
50
V
IN = 12V
V
IN = 12V
V
IN = 18V
V
IN = 18V
0.1
0.2
0.3
0.4
0.6
0.7
0.8
0.9
0.9
0.9
1
1
1
0.1
0.2
0.4
0.5
0.7
0.8
1.0
1.1
1.1
1.1
1.3
1.3
1.3
Load Current (Amps)
Load Current (Amps)
UWR-12/1250-D24A Efficiency vs. Line and Load
UWR-15/1000-D24A Efficiency vs. Line and Load
90
85
80
75
70
65
60
55
50
90
85
80
75
70
65
60
55
V
IN = 18V
V
IN = 18V
V
IN = 24V
V
IN = 24V
V
IN = 36V
V
IN = 36V
0.1
0.2
0.3
0.4
0.6
0.7
0.8
0.1
0.2
0.4
0.5
0.7
0.8
1.0
Load Current (Amps)
Load Current (Amps)
UWR-12/1250-D48A Efficiency vs. Line and Load
UWR-15/1000-D48A Efficiency vs. Line and Load
90
85
80
75
70
65
60
55
50
90
85
80
75
70
65
60
55
V
IN = 36V
V
IN = 36V
V
IN = 48V
V
IN = 48V
V
IN = 75V
V
IN = 75V
0.1
0.2
0.3
0.4
0.6
0.7
0.8
0.1
0.2
0.4
0.5
0.7
0.8
1.0
Load Current (Amps)
Load Current (Amps)
7
A Series
9 - 1 5 W , S I N G L E O U T P U T D C / D C C O N V E R T E R S
Typical Performance Curves
Output Ripple and Noise (PARD)
(VIN = nominal, 3.3V @ 4.25A, two external 0.47µF output capacitors.)
Output Ripple and Noise (PARD)
(VIN = nominal, 12V @ 1.25A, two external 0.47µF output capacitors.)
20mV/div, 20MHz BW
20mV/div, 20MHz BW
Output Ripple and Noise (PARD)
(VIN = nominal, 5V @ 3A, two external 0.47µF output capacitors.)
Output Ripple and Noise (PARD)
(VIN = nominal, 15V @ 1A, two external 0.47µF output capacitors.)
20mV/div, 20MHz BW
20mV/div, 20MHz BW
®
®
INNOVATION and EXCELLENCE
DS-0426B
9/01
ISO-9001 REGISTERED
DATEL (UK) LTD. Tadley, England Tel: (01256)-880444
DATEL, Inc. 11 Cabot Boulevard, Mansfield, MA 02048-1151
Tel: (508) 339-3000 (800) 233-2765 Fax: (508) 339-6356
DATEL S.A.R.L. Montigny Le Bretonneux, France Tel: 01-34-60-01-01
DATEL GmbH München, Germany Tel: 89-544334-0
DATEL KK Tokyo, Japan Tel: 3-3779-1031, Osaka Tel: 6-6354-2025
Internet: www.datel.com
Email: sales@datel.com
Data Sheet Fax Back: (508) 261-2857
DATEL makes no representation that the use of its products in the circuits described herein, or the use of other technical information contained herein, will not infringe upon existing or future patent rights.The descriptions contained herein do
not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without notice. The DATEL logo is a registered DATEL, Inc. trademark.
8
厂商 型号 描述 页数 下载

MURATA

 		UWR-1.2/6000-D12ACL1-Y [ Analog Circuit, ] 2 页

MURATA

 		UWR-1.2/6000-D12ACL2-C [ DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, ROHS COMPLIANT, PLASTIC PACKAGE-6 ] 12 页

MURATA

 		UWR-1.2/6000-D12ACL2-Y [ Analog Circuit, ] 2 页

MURATA

 		UWR-1.2/6000-D12ACT-C [ DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, ROHS COMPLIANT, PLASTIC PACKAGE-6 ] 12 页

MURATA

 		UWR-1.2/6000-D12ACT-Y [ Analog Circuit ] 2 页

MURATA

 		UWR-1.2/6000-D12ACTL1-C [ DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, ROHS COMPLIANT, PLASTIC PACKAGE-6 ] 12 页

MURATA

 		UWR-1.2/6000-D12ACTL1-Y [ Analog Circuit, ] 2 页

MURATA

 		UWR-1.2/6000-D12ACTL2-C [ DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, ROHS COMPLIANT, PLASTIC PACKAGE-6 ] 12 页

MURATA

 		UWR-1.2/6000-D12ACTL2-Y [ Analog Circuit, ] 2 页

MURATA

 		UWR-1.2/6000-D12AL1-C [ DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, ROHS COMPLIANT, PLASTIC PACKAGE-6 ] 12 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.221649s
