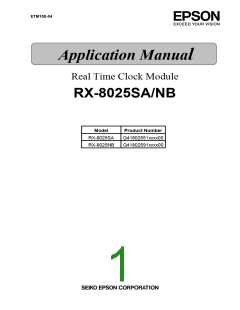

ETM10E-04
Application Manua
l
Real Time Clock Module
RX-8025SA/NB
Preliminary
Model
Product Number
Q41802551xxxx00
Q41802591xxxx00
RX-8025SA
RX-8025NB
NOTICE
•
•
This material is subject to change without notice.
Any part of this material may not be reproduced or duplicated in any form or any means without the
written permission of Seiko Epson.
•
The information about applied circuitry, software, usage, etc. written in this material is intended for
reference only. Seiko Epson does not assume any liability for the occurrence of infringing on any
patent or copyright of a third party. This material does not authorize the licensing for any patent or
intellectual copyrights.
•
•
When exporting the products or technology described in this material, you should comply with the
applicable export control laws and regulations and follow the procedures required by such laws and
regulations.
You are requested not to use the products (and any technical information furnished, if any) for the
development and/or manufacture of weapon of mass destruction or for other military purposes. You
are also requested that you would not make the products available to any third party who may use the
products for such prohibited purposes.
•
These products are intended for general use in electronic equipment. When using them in specific
applications that require extremely high reliability, such as the applications stated below, you must
obtain permission from Seiko Epson in advance.
/ Space equipment (artificial satellites, rockets, etc.) / Transportation vehicles and related
(automobiles, aircraft, trains, vessels, etc.) / Medical instruments to sustain life /
Submarine transmitters / Power stations and related / Fire work equipment and security
equipment / traffic control equipment / and others requiring equivalent reliability.
•
All brands or product names mentioned herein are trademarks and/or registered trademarks of their
respective.
RX - 8025 SA NB
/
Contents
1. Overview........................................................................................................................1
2. Block Diagram ...............................................................................................................1
3. Description of Pins.........................................................................................................2
3.1. Pin Layout ........................................................................................................................................2
3.2. Pin Functions....................................................................................................................................2
4. Absolute Maximum Ratings ...........................................................................................3
5. Recommended Operating Conditions............................................................................3
6. Frequency Characteristics .............................................................................................3
7. Electrical Characteristics................................................................................................3
7.1. DC Electrical Characteristics............................................................................................................3
7.2. AC Electrical Characteristics............................................................................................................4
8.1. Functional descriptions ...............................................................................................5
8.1. Overview of Functions......................................................................................................................5
8.2. Description of Registers ...................................................................................................................6
8.3. Clock Precision Adjustment Function.............................................................................................13
8.4. Periodic Interrupt Function .............................................................................................................15
8.5. Alarm W function............................................................................................................................17
8.6. Alarm D function.............................................................................................................................19
8.7. The various detection Functions ....................................................................................................20
2
8.8. Reading/Writing Data via the I C Bus Interface.............................................................................23
8.9. External Connection Example ........................................................................................................27
9. External Dimensions / Marking Layout.........................................................................28
9.1. External Dimensions.......................................................................................................................28
9.2. Marking Layout...............................................................................................................................28
10. Reference Data .........................................................................................................29
11. Application notes .......................................................................................................30
RX - 8025 SA
/
NB
I2C-Bus Interface Real-time Clock Module
RX - 8025 SA NB
/
• Features built-in 32.768-kHz quartz oscillator, frequency adjusted for high precision
( ± 5 × 10−6 when Ta = +25°C )
• Supports I2C-Bus's high speed mode (400 kHz)
• Includes time (H/M/S) and calendar (YR/MO/DATE/DAY) counter functions (BCD code)
• Select between 12-hr and 24-hr clock mode.
• Auto calculation of leap years until 2099
• Built-in high-precision clock precision control logic
• CPU interrupt generation function (cycle time range: 1 month to 0.5 seconds, includes interrupt flags
and interrupt stop function)
• Dual alarm functions (Alarm_W: Day/Hour/Min, Alarm_D: Hour/Min)
• 32.768-kHz clock output (CMOS output with control pin)
• Oscillation stop detection function (used to determine presence of internal data)
• Power supply voltage monitoring function (with selectable detection threshold)
• Wide clock (retention) voltage range: 1.15 V to 5.5 V
• Wide interface voltage range: 1.7 V to 5.5 V
• Low current consumption: 0.48 µA/3.0 V (Typ.)
1. Overview
This module is an I2C bus interface-compliant real-time clock which includes a 32.768-kHz quartz oscillator
that has been adjusted for high precision. In addition to providing a function for generating six types of
interrupts, a dual alarm function, an oscillation stop detection function (used to determine presence of valid
internal data at power-on), and a power supply voltage monitoring function, this module includes a digital clock
precision adjustment function that can be used to set various levels of precision.
Since the internal oscillation circuit is driven at a constant voltage, 32.768-kHz clock output is stable and free
of voltage fluctuation effects.
This implementation of multiple functions in one SMT package is ideal for applications ranging from cellular
phones to PDAs and other small electronic devices.
2. Block Diagram
Alarm_W Register
( Min,Hour,Day)
Comparator_W
Comparator_D
FOUT
FOE
32 kHz
Output
Control
Voltage
Detect
V
DD
Alarm_D Register
( Min,Hour )
Divider
Correc
-tion
Time Counter
( Sec,Min,Hour,Day,Date,Month,Year )
Div.
OSC
Address
Decoder
Address
Register
SCL
SDA
GND
OSC
Detect
I/O
Control
/ INTA
/ INTB
Interrupt Control
Shift Register
Page - 1
ETM10E-04
RX - 8025 SA NB
/
3. Description of Pins
3.1. Pin Layout
RX - 8025 SA
RX - 8025 NB
1. FOE
2. VDD
22. N.C.
21. N.C.
20. N.C.
19. N.C.
18. N.C.
17. N.C.
16. N.C.
15. N.C.
14. N.C.
1. N.C.
2. SCL
3. FOUT
4. N.C.
5. TEST
6. VDD
14. N.C.
13. SDA
12. / INTB
11. GND
10. / INTA
9. N.C.
# 1
# 22
(GND)
3.
4. TEST
5. FOUT
6. SCL
7. SDA
8. / INTB
9. GND
# 11
(#12)
10. / INTA
11. N.C.
(13)
(12)
−
−
7. FOE
8. N.C.
SOP - 14pin
SON - 22pin
3.2. Pin Functions
Signal
I / O
Function
name
This is the serial clock input pin for I2C communications. Data input and output across the
SDA pin is synchronized with this pin's clock signal.
SCL
I
Up to 5.5 V can be used for this input, regardless of the power supply voltage.
This pin's signal is used for input and output of address, data, and ACK bits, synchronized
with the serial clock used for I2C communications.
SDA
I/O
The SDA pin is an N-ch open drain pin during output. Be sure to connect a suitable pull-up
resistance relative to the signal line capacity.
FOUT terminal is 32.768 kHz clock output terminal (C-MOS) that output control is possible.
FOE terminal is the input terminal controlling the output of FOUT pin with /CLEN1 and
/CLEN2 bit.
FOUT
O
The output of FOUT terminal stops when /CLEN1bit and /CLEN2 bit both sets to "1".
FOUT output stops when FOE is Low or OPEN. Status of FOUT output stopped is " L ".
The logic table.
FOE
input
/CLEN1
bit
/CLEN2
bit
FOUT
output
L
Χ
0
0
1
1
Χ
0
1
0
1
OFF ( " L " )
32.768 kHz
32.768 kHz
32.768 kHz
OFF ( " L " )
H
FOE
I
' Χ ' Don't care.
FOE terminal had pull-down resistor built-in and input voltage is possible regardless of
power supply voltage to 5.5 V.
This interrupt output A pin is an N-ch open drain output.
It outputs alarm interrupts (Alarm_D) and periodic interrupts.
This interrupt output B pin is an N-ch open drain output.
It outputs alarm interrupts (Alarm_W).
/INTA
/INTB
TEST
VDD
O
O
−
This pin is used by the manufacturer for testing. Do not connect externally.
This pin is connected to a positive power supply.
−
GND
This pin is connected to a ground.
−
(GND)
This pin has the same voltage level as GND. Do not connect externally.
−
This pin is not connected to the internal IC.
However, note with caution that the RX-8025NB's N.C. pins (pins 14 to 22) are interconnected
via the internal frame.
N.C.
−
Leave N.C. pins open or connect them to GND or VDD
.
Note: Be sure to connect a bypass capacitor rated at least 0.1 ꢀF between VDD and GND.
Page - 2
ETM10E-04
RX - 8025 SA
/
NB
4. Absolute Maximum Ratings
GND = 0 V
Item
Supply voltage
Input voltage
Symbol
Condition
Between VDD and GND
SCL, SDA, FOE pins
SDA, /INTA, /INTB pins
FOUT pin
Rating
Unit
V
V
V
DD
to +6.5
−0.3
GND−0.3
GND−0.3
GND−0.3
V
I
to +6.5
V
V
O1
O2
to +6.5
V
Output voltage
to VDD+0.3
V
When stored separately, without
packaging
Storage temperature
TSTG
to +125
−55
°C
5. Recommended Operating Conditions
GND = 0 V
Item
Symbol
Condition
Min.
Typ.
Max.
Unit
Operating supply voltage
Clock supply voltage
Applied voltage when OFF
Pull-up resistance
V
DD
3.0
3.0
5.5
5.5
5.5
10
V
V
°C
kΩ
°C
−
−
1.7
1.15
GND−0.3
V
CLK
V
PUP
SCL, SDA, /INTA, /INTB pins
FOE pin
R
PUP
Operating temperature
TOPR
No condensation
+25
+85
−40
6. Frequency Characteristics
GND = 0 V
Item
Symbol
Condition
Rating
Unit
AA ; 5 ± 5 ( 1)
AC ; 0 ± 5 ( 1)
Ta = +25°C
DD = 3.0 V
Ta = +25°C
DD = 2 V to 5 V
Ta = −20 °C to +70 °C,
DD = 3.0 V; +25 °C reference
Ta = +25 °C
DD = 2.0 V
Ta = +25 °C
DD=3.0 V; first year
∆ f / f
× 10−6
Frequency precision
V
Frequency/voltage
characteristics
Frequency/temperature
characteristics
± 1 Max.
+10 / −120
1 Max.
× 10−6 / V
× 10−6
f / V
Top
V
V
Oscillation start time
Aging
t
STA
s
V
± 5 Max.
× 10−6 / year
fa
V
1) AC rank. Precision gap per month: 13 seconds (excluding offset value)
7. Electrical Characteristics
7.1. DC Electrical Characteristics
7.1.1. DC electrical characteristics (1)
* Unless otherwise specified, GND = 0 V, VDD = 3 V, Ta = −40 °C to +85 °C
Item
Symbol
Condition
Min.
Typ.
Max.
Unit
f
SCL = 0Hz, FOE = GND
VDD=5 V
VDD=3 V
0.60
1.80
Current
consumption (1)
/INTA, /INTB = VDD
FOUT; output OFF
I
DD1
DD2
µA
0.48
3.0
1.20
6.5
( Output = OPEN )
SCL = 0Hz
DD, /INTA, /INTB, FOE = 5.5 V
f
V
Current
consumption (2)
I
µA
FOUT;32.768 kHz output ON
( Output = OPEN ; CL= 0 pF )
High-level
input voltage
Low-level
input voltage
High-level input
current
V
IH
IL
OH
5.5
0.2 × VDD
−0.5
V
V
0.8 × VDD
GND − 0.3
SCL, SDA, FOE pins
DD = 1.7 5.5 V
V
V
I
mA
FOUT pin, VOH = VDD − 0.5 V
I
I
I
OL1
OL2
OL3
0.5
1.0
4.0
mA
mA
mA
FOUT pin, VOL = 0.4 V
/INTA and /INTB pins, VOL = 0.4 V
SDA pin, VOL = 0.4 V
Low-level input
current
Input leakage
current
I
IL
1
SCL pin, V
I
= 5.5 V or GND, VDD = 5.5 V
−1
µA
Page - 3
ETM10E-04
RX - 8025 SA NB
/
7.1.2. DC electrical characteristics (2)
* Unless otherwise specified, GND = 0 V, VDD = 3 V, Ta = −40 °C to +85 °C
Item
Symbol
Condition
Min.
Typ.
Max.
Unit
Input current with pull-down
resistance
Output current when OFF
I
FOE
OZ
DETH
0.3
1.0
FOE pin, V
I
= 5.5 V
µA
SDA, /INTA, and /INTB pins
I
1
−1
µA
V
V
O = 5.5 V or GND, VDD = 5.5 V
High-voltage
mode
Power
supply
V
1.90
1.15
2.10
1.30
2.30
1.45
V
DD pin, Ta = −30 to +70 °C
DD pin, Ta = −30 to +70 °C
detection
voltage
Low-voltage
mode
V
DETL
V
V
7.2. AC Electrical Characteristics
Unless otherwise specified: GND = 0 V, VDD = 1.7 V to 5.5 V, Ta = −40 °C to +85 °C
Input conditions: VIH = 0.8 × VDD, VIL = 0.2 × VDD, VOH = 0.8 × VDD, VOL = 0.2 ×VDD, CL = 50 pF
Item
Symbol Condition
Min.
Typ.
Max.
Unit
SCL clock frequency
SCL clock low time
SCL clock higt time
Start condition hold time
Stop condition setup time
Start condition setup time
Recovery time from stop condition
to start condition
f
t
t
SCL
LOW
HIGH
400
kHz
µs
µs
µs
µs
µs
1.3
0.6
0.6
0.6
0.6
t
t
t
HD;STA
SU;STO
SU;STA
t
RCV
62
µs
tSU:DAT
tHD;DAT
tPL;DAT
tPZ;DAT
tR
Data setup time
Data hold time
SDA “L” stable time after falling of SCL
SDA off stable time after falling of SCL
Rising time of SCL and SDA (input)
Falling time of SCL and SDA (input)
Spike width that can be removed
with input filter
200
0
ns
ns
µs
µs
ns
ns
0.9
0.9
300
300
tF
tSP
50
ns
S
Sr
P
S
SCL
tSP
tLOW
tHIGH
tHD;STA
SDA(IN)
tHD;STA
tSU;DAT
tHD;DAT
tRCV
tSU;STA
tSU;STO
S
START Condition
STOP condition
SDA(OUT)
tPL;DAT
tPZ;DAT
P
Sr Re-start condition
Caution: When accessing this device, all communication from transmitting the start condition to transmitting the stop
condition after access should be completed within 0.5 seconds.
If such communication requires 0.5 to 1.0 second or longer, the I2C bus interface is reset by the internal bus
timeout function. Please see also 8.8.3. Starting and stopping I2C bus communications.
Page - 4
ETM10E-04
RX - 8025 SA NB
/
8.1. Functional descriptions
8.1. Overview of Functions
1) Clock functions
This function is used to set and read out month, date, day, hour, minute, and second.
Any (two-digit) year that is a multiple of 4 is treated as a leap year and calculated automatically as such until the year
2099.
For details, see "8.2. Description of Registers".
2) Clock precision adjustment function
The clock precision can be adjusted forward or back in units of ± 3.05 × 10−6. This function can be used to implement
a higher-precision clock function, such as by:
• enabling higher clock precision throughout the year by taking seasonal clock precision adjustments into account in
advance, or
• enabling correction of temperature-related clock precision variation in systems that include a temperature detection
function.
Note: Only the clock precision can be adjusted. The adjustments have no effect on the 32.768-kHz output from the
FOUT pin.
For details, see "8.3. Clock Precision Adjustment Function".
3) Periodic interrupt function
In addition to the alarm function, Periodic interrupts can be output via the /INTA pin.
Select among five Periodic frequency settings: 2 Hz, 1 Hz, 1/60 Hz, hourly, or monthly.
Select among two output waveforms for periodic interrupts: an ordinary pulse waveform (2 Hz or 1 Hz) or a waveform
(every second, minute, hour, or month) for CPU-level interrupts that can support CPU interrupts.
A polling function is also provided to enable monitoring of pin states via registers.
For details, see "8.4. Periodic Interrupt Function".
4) Alarm functions
This module is equipped with two alarm functions (Alarm W and Alarm D) that output interrupt signals to the host at
preset times. The Alarm W function can be used for day, hour, and minute-based alarm settings, and it outputs
interrupt signals via the /INTB pin. Multiple day settings can be selected (such as Monday, Wednesday, Friday,
Saturday, and Sunday). The Alarm D function can be used only for hour or minute-based settings, and it outputs
interrupt signals via the /INTA pin.
A polling function is also provided to enable checking of each alarm mode by the host.
For details on the Alarm W function, see "8.5. Alarm W function" and for the Alarm D function, see "8.6. Alarm D Function".
5) Oscillation stop detection function, power drop detection function (voltage monitoring function), and
power-on reset detection function
The oscillation stop detection function uses registers to record when oscillation has stopped.
The power drop detection function (supply voltage monitoring function) uses registers to record when the supply
voltage drops below a specified voltage threshold value. Use registers to specify either of two voltage threshold
values: 2.1 V or 1.3 V. Voltage sampling is performed once per second in consideration of the module's low current
consumption.
While the oscillation stop detection function is useful for determining when clock data has become invalid, the supply
voltage monitoring function is useful for determining whether or not the clock data is able to become invalid. The
supply voltage monitoring function can also be used to monitor a battery's supply voltage.
When these functions are utilized in combination with the power-on reset detection function, they are useful for
determining whether clock data is valid or invalid when checking for power-on from 0 V or for back-up.
For details, see "8.7. Detection Functions".
6) Interface with CPU
Data is read and written via the I2C bus interface using two signal lines: SCL (clock) and SDA (data).
Since neither SCL nor SDA includes a protective diode on the VDD side, a data interface between hosts with differing
supply voltages can still be implemented by adding pull-up resistors to the circuit board.
The SCL's maximum clock frequency is 400 kHz (when VDD ≥ 1.7 V), which supports the I2C bus's high-speed mode.
For further description of data read/write operations, see "8.8. Reading/Writing Data via the I2C Bus Interface".
7) 32.768-kHz clock output
The 32.768-kHz clock (with precision equal to that of the built-in quartz oscillator) can be output via the FOUT pin.
Note: The precision of this 32.768-kHz clock output via the FOUT pin cannot be adjusted (even when using the clock
precision adjustment function).
Page - 5
ETM10E-04
RX - 8025 SA NB
/
8.2. Description of Registers
8.2.1. Register table
note
Address
Function
bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0
ꢀ
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Seconds
Minutes
S40
M40
ꢀ
S20
M20
S10
M10
H10
ꢀ
S8
M8
H8
ꢀ
S4
M4
S2
M2
S1
M1
5
5
5
5
5
ꢀ
ꢀ
H20
P , /A
H4
H2
H1
Hours
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
W4
D4
W2
D2
W1
D1
Weekdays
Days
D20
D10
MO10
Y10
F4
D8
MO8
Y8
ꢀ
MO4
Y4
MO2
Y2
MO1
Y1
Months
C
Y80
TEST
ꢀ
4, 5
Y20
F5
Years
Y40
F6
−
F3
F2
F1
F0
Digital Offset
Alarm_W ; Minute
Alarm_W ; Hour
Alarm_W ; Weekday
Alarm_D ; Minute
Alarm_D ; Hour
Reserved
4
WM40 WM20 WM10 WM8
WH20
WM4
WH4
WM2
WH2
WM1
WH1
5
ꢀ
ꢀ
ꢀ
ꢀ
WH10 WH8
5
WP,/A
WW6 WW5 WW4 WW3 WW2 WW1 WW0
5
DM40 DM20 DM10
DH20
DM8
DH8
DM4
DH4
DM2
DH2
DM1
DH1
5
ꢀ
ꢀ
DH10
5
DP , /A
Reserved
/CLEN2 TEST
3
WALE DALE
VDSL VDET
CT2
CT1
CT0
Control 1
/12 , 24
/XST
1, 2, 6
1, 6
PON /CLEN1 CTFG WAFG DAFG
Control 2
Caution points:
The PON bit is a power-on reset flag bit.
1.
The PON bit is set to "1" when a reset occurs, such as during the initial power-up or when recovering from a
supply voltage drop. At the same time, all bits in the Control 1 and Control 2 registers except for the PON and /
XST bits are reset to "0".
Note: At this point, all other register values are undefined, so be sure to perform a reset before using the module.
Also, be sure to avoid entering incorrect date and time data, as clock operations are not guaranteed when
the time data is incorrect.
The TEST bit is used by the manufacturer for testing. Be sure to set "0" for this bit.
2.
3.
Read data from address-D are always "00", and The write access to address-D are invalid.
4. All bits marked with a " 0 " in the above table should be set as "0". Their value when read will be "0".
5. All bits marked with " " are read-only bits. Their value when read is always "0".
ꢀ
When PON bit became 1 because power-on reset function worked, /CLEN1 and /CLEN2 bit become 0.
When /CLEN1 and /CLEN2 bit become 1 even if FOE input is "H", FOUT output stops.
6.
FOE
input
/CLEN1
bit
/CLEN2
bit
FOUT
output
L
Χ
0
0
1
1
Χ
0
1
0
1
OFF ( " L " )
32.768 kHz
32.768 kHz
32.768 kHz
OFF ( " L " )
H
' Χ ' Don't care.
Page - 6
ETM10E-04
RX - 8025 SA NB
/
8.2.2. Time counter (Reg 0 to 2)
Address
0
Function
bit 7
bit 6
S40
bit 5
S20
bit 4
S10
bit 3
S8
bit 2
S4
bit 1
S2
bit 0
S1
ꢀ
Seconds
Minutes
Hours
ꢀ
ꢀ
1
2
M40
M20
M10
H10
M8
H8
M4
H4
M2
H2
M1
H1
H20
P, /A
ꢀ
• The time counter counts seconds, minutes, and hours.
• The data format is BCD format (except during 12-hour mode)
"0101 1001" it indicates 59 seconds.
.
For example, when the "seconds" register value is
Note with caution that writing non-existent time data may interfere with normal operation of the time counter.
1) Second counter
Address
0
Function
Seconds
bit 7
bit 6
S40
bit 5
S20
bit 4
S10
bit 3
S8
bit 2
S4
bit 1
S2
bit 0
S1
ꢀ
• This second counter counts from "00" to "01," "02," and up to 59 seconds, after which it starts again from
00 seconds.
• When a value is written to the second counter, the internal counter is also reset to zero in less than one
second.
2) Minute counter
Address
Function
Minutes
bit 7
bit 6
M40
bit 5
M20
bit 4
M10
bit 3
M8
bit 2
M4
bit 1
M2
bit 0
M1
ꢀ
1
• This minute counter counts from "00" to "01," "02," and up to 59 minutes, after which it starts again from 00
minutes.
3) Hour counter
Address
Function
Hours
bit 7
bit 6
bit 5
bit 4
H10
bit 3
H8
bit 2
H4
bit 1
H2
bit 0
H1
H20
P , /A
ꢀ
ꢀ
2
• The hour counter counts hours, and its clock mode differs according to the value of its /12,24 bit.
• During 24-hour clock operation, bit 5 functions as H20 (two-digit hour display). During 12-hour clock
operation, bit 5 functions as an AM/PM indicator ("0" indicates AM and "1" indicates PM).
Address 2 (Hours register) data [h] during 24-hour and
12-hour clock operation modes
/12,24 bit
Description
24-hour clock 12-hour clock
24-hour clock 12-hour clock
00
01
02
03
04
05
06
07
08
09
10
11
12 ( AM 12 )
01 ( AM 01 )
02 ( AM 02 )
03 ( AM 03 )
04 ( AM 04 )
05 ( AM 05 )
06 ( AM 06 )
07 ( AM 07 )
08 ( AM 08 )
09 ( AM 09 )
10 ( AM 10 )
11 ( AM 11 )
12
13
14
15
16
17
18
19
20
21
22
23
32 ( PM 12 )
21 ( PM 01 )
22 ( PM 02 )
23 ( PM 03 )
24 ( PM 04 )
25 ( PM 05 )
26 ( PM 06 )
27 ( PM 07 )
28 ( PM 08 )
29 ( PM 09 )
30 ( PM 10 )
31 ( PM 11 )
12-hour
clock
0
24-hour
clock
1
Page - 7
ETM10E-04
RX - 8025 SA NB
/
8.2.3. Day counter (Reg 3)
Address
3
Function
Days
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
W4
bit 1
W2
bit 0
W1
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
• The day counter is a divide-by-7 counter that counts from 00 to 01 and up 06 before starting again from 01.
• The correspondence between days and count values is shown below.
Days
W4
W2
W1
Day
Remark
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
Sunday
Monday
Tuesday
00 h
01 h
02 h
Write / Read
Wednesday 03 h
Thursday
Friday
Saturday
−
04 h
05 h
06 h
Write prohibit
Do not enter a setting for this bit.
8.2.4. Calendar counter (Reg 4 to 6)
Address
4
Function
Days
bit 7
bit 6
bit 5
bit 4
D10
bit 3
D8
bit 2
D4
bit 1
D2
bit 0
D1
ꢀ
ꢀ
D20
ꢀ
ꢀ
5
6
Months
Years
C
MO10
Y10
MO8
Y8
MO4
Y4
MO2
Y2
MO1
Y1
Y80
Y40
Y20
• The auto calendar function updates all dates, months, and years from January 1, 2001 to December 31, 2099.
• The data format is BCD format. For example, a date register value of "0011 0001" indicates the 31st.
Note with caution that writing non-existent date data may interfere with normal operation of the calendar counter.
1) Date counter
Address
4
Function
Days
bit 7
bit 6
bit 5
D20
bit 4
D10
bit 3
D8
bit 2
D4
bit 1
D2
bit 0
D1
ꢀ
ꢀ
• The updating of dates by the date counter varies according to the month setting.
A leap year is set whenever the year value is a multiple of four (such as 04, 08, 12, 88, 92, or 96).
Days
Month
Date update pattern
1, 3, 5, 7, 8, 10, or 12
4, 6, 9, or 11
February in leap year
February in normal year
01, 02, 03 to 30, 31, 01…
01, 02, 03 to 30, 01, 02…
01, 02, 03 to 28, 29, 01…
01, 02, 03 to 28, 01, 02…
Write / Read
2) Month counter
Address
5
Function
Months
bit 7
C
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
ꢀ
ꢀ
MO10
MO8
MO4
MO2
MO1
• The month counter counts from 01 (January), 02 (February), and up to 12 (December), then starts again at
01 (January).
Be sure to set a "0" for any bit whose value is shown above as "0". A zero is returned when any of these
bits is read.
When an years counter is updated to 00 from 99, a C bit is updated to 1 from 0.
C is not updated in 0 from 1.
3) Year counter
Address
Function
Years
bit 7
Y80
bit 6
Y40
bit 5
Y20
bit 4
Y10
bit 3
Y8
bit 2
Y4
bit 1
Y2
bit 0
Y1
6
• The year counter counts from 00, 01, 02 and up to 99, then starts again at 00.
In any year that is a multiple of four (04, 08, 12, 88, 92, 96, etc.), the dates in February are counted from
01, 02, 03 and up to 29 before starting again at 01.
Page - 8
ETM10E-04
RX - 8025 SA NB
/
8.2.5. Clock precision adjustment register (Reg 7)
Address
7
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
Digital Offset
(Default)
TEST
(0)
F6
(0)
F5
(0)
F4
(0)
F3
(0)
F2
(0)
F1
(0)
F0
(0)
• The binary encoded settings in the seven bits from F6 to F0 are used to set the precision of the clock generated
from the 32768-Hz internal oscillator up to ±189 × 10−6 in the forward (ahead) or reverse (behind) direction, in
units of ± 3.05 × 10−6. (Only the clock precision can be adjusted. The 32.768-kHz output from the FOUT pin is
not affected.)
• When not using this function, be sure to set "0" for bits F6 to F0.
TEST is used by the manufacturer for testing. Be sure to write "0" to this bit.
For details, see "8.3. Clock Precision Adjustment Function".
8.2.6. Alarm_W register (Reg 8 to A)
Address
8
Function
bit 7
bit 6
WM40
ꢀ
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
ꢀ
Alarm_W ; Minute
WM20
WM10
WM8
WM4
WM2
WM1
WH20
WP , /A
ꢀ
ꢀ
9
Alarm_W ; Hour
Alarm_W ; Day
WH10
WW4
WH8
WH4
WH2
WH1
A
WW6
WW5
WW3
WW2
WW1
WW0
• The Alarm W function is used, along with the WALE and WAFG bits, to set alarms for specified day, hour, and
minute values.
• When the Alarm_W setting matches the current time, /INTB pin is set to "L" and the WALE bit is set to "1".
Note: If the current date/time is used as the Alarm_W setting, the alarm will not occur until the counter counts up
to the current date/time (i.e., an alarm will occur next time, not immediately).
• During 24-hour clock operation, the "Alarm_W ; Hours" register's bit 5 (WH20, WP, /A) functions as WH20
(two-digit hour display), and during 12-hour clock operation it functions as an AM/PM indicator.
• When the Alarm_W function's day values (WW6 to WW0) are all "0" Alarm W does not occur.
For details, see "8.5. Alarm W Function".
8.2.7. Alarm_ D register (Reg B and C)
Address
B
Function
bit 7
bit 6
DM40
ꢀ
bit 5
bit 4
bit 3
DM8
bit 2
DM4
bit 1
DM2
bit 0
DM1
ꢀ
Alarm_D ; Minute
DM20
DM10
DH20
DP , /A
ꢀ
C
Alarm_D ; Hour
DH10
DH8
DH4
DH2
DH1
• The Alarm D function is used, along with the DALE and DAFG bits, to set alarms for specified hour and minute
values.
• When the Alarm_D setting matches the current time, /INTA pin is set to "L" and the DALE bit is set to "1".
Note: If the current time is used as the Alarm_D setting, the alarm will not occur until the counter counts up to the
current time (i.e., an alarm will occur next time, not immediately).
• During 24-hour clock operation, the "Alarm_D ; Hours" register's bit 5 (DH20, DP, /A) functions as DH20 (two-digit
hour display), and during 12-hour clock operation it functions as an AM/PM indicator.
For details, see "8.6. Alarm D Function".
Page - 9
ETM10E-04
RX - 8025 SA NB
/
8.2.8. Control register 1 (Reg E)
Address
E
Function
bit 7
bit 6
DALE /12 , 24
(0) (0)
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
/CLEN2
(0)
Control 1
(Default)
WALE
(0)
TEST
(0)
CT2
(0)
CT1
(0)
CT0
(0)
) The default value is the value that is read (or is set internally) after the PON bit has been set to "1," such as after powering up from 0 V or
recovering from a supply voltage drop.
1) WALE bit
This bit is used to set up the Alarm W function (to generate alarms matching day, hour, or minute settings).
WALE
Data
Description
Default
Default
Default
0
1
Alarm_W, match comparison operation invalid
Alarm_W, match comparison operation valid (/INTB = "L" when
match occurs)
Write / Read
For details, see "8.5. Alarm W Function".
2) DALE bit
This bit is used to set up the Alarm D function (to generate alarms matching hour or minute settings).
DALE
Data
Description
0
1
Alarm_D, match comparison operation invalid
Alarm_D, match comparison operation valid (/INTA = "L" when
match occurs)
Write / Read
For details, see "8.6. Alarm D Function".
3) /12,24 bit
This bit is used to select between 12-hour clock operation and 24-hour clock operation.
/12,24
Data
Description
0
1
12-hour clock
24-hour clock
Write / Read
Be sure to select between 12-hour and 24-hour clock operation before writing the time data.
See also "3) Hour counter" in section 8.2.4.
4) /CLEN2 bit
It combines /CLEN1 bit, and is bit controlling FOUT output.
When /CLEN1 and /CLEN2 bit become 1 even if FOE input is "H", FOUT output stops.
If FOUT output is unnecessary, it functions as RAM-bit and is ( FOE="L" )
When PON bit became 1 because power-on reset function worked, /CLEN1 and /CLEN2 bit become 0.
5) TEST bit
This bit is used by the manufacturer for testing. Be sure to write "0" to this bit.
Be careful to avoid writing a "1" to this bit when writing to other bits.
TEST
Data
Description
Default
0
1
Normal operation mode
Setting prohibited (manufacturer's test mode)
Write / Read
6) CT2, CT1, and CT0 bits
These bits are used to set up the operation of the periodic interrupt function that uses the /INTA pin.
/INTA pin's output setting
CT2
CT1
CT0
Waveform mode
Cycle/Fall timing
Default
0
0
0
0
0
0
1
1
0
1
0
1
/INTA = Hi-Z (= OFF)
/INTA = Fixed low
2 Hz
−
−
1)
(50% duty)
(50% duty)
Pulse mode
Pulse mode
1)
1 Hz
(Synchronous with per-second
count-up)
(Occurs when seconds reach ":00")
(Occurs when minutes and seconds
reach "00:00")
2)
1
1
1
0
0
1
0
1
0
Once per second
Once per minute
Once per hour
Level mode
2)
Level mode
2)
Level mode
(Occurs at 00:00:00 on first day of
month)
2)
1
1
1
Once per month
Level mode
For details, see "8.4. Periodic Interrupt".
Page - 10
ETM10E-04
RX - 8025 SA NB
/
8.2.9. Control register 2 (Reg F)
Address
F
Function
bit 7
bit 6
bit 5
bit 4
bit 3
/CLEN1 CTFG
(0) (0)
bit 2
bit 1
bit 0
Control 2
(Default)
VDSL
(0)
VDET
(0)
/ XST
(−)
PON
(1)
WAFG
(0)
DAFG
(0)
1) The default value is the value that is read (or is set internally) after the PON bit has been set to "1," such as after powering up from 0 V or
recovering from a supply voltage drop.
2) '"−" indicates undefined status.
1) VDSL bit
This bit is used to set the power drop detection function's threshold voltage value.
VDSL
Data
Description
Sets 2.1 V as the power drop detection function's threshold
voltage value
Sets 1.3 V as the power drop detection function's threshold
voltage value
Default
0
Write / Read
1
For details, see "8.7. Detection Functions".
2) VDET bit
This bit indicates the power drop detection function's detection results.
VDET = "1" once a power voltage drop has occurred.
VDET
Data
Description
Default
Default
Clears the VDET bit to zero, restarts the power drop detection
operation and sets up for next power drop detection operation
0
Write
1
0
1
The writes "1" are invalid.
Power drop was not detected
Read
Power drop was detected
(result is that bit value is held until cleared to zero)
For details, see "8.7. Detection Functions".
3) / XST bit
This bit indicates the oscillation stop detection function's detection results.
If a "1" has already been written to this bit, it is cleared to zero when stopping of internal oscillation is detected.
/ XST
Data
Description
0
The writes "0" are invalid.
Write
Sets the oscillation stop detection function as use-enabled and
sets up for next detection operation
Oscillation stop was detected
1
0
1
(result is that bit value is held until a "1" is written)
Read
Oscillation stop was not detected
For details, see "8.7. Detection Functions".
4) PON bit
This bit indicates the power-on reset detection function's detection results.
The PON bit is set (= 1) when the internal power-on reset function operates.
PON
Data
Description
0
Clears the PON bit to zero and sets up next detection operation
Write
1
0
1
The writes "1" are invalid.
Power-on reset was not detected
Read
Default
Power-on reset was detected
(result is that bit value is held until cleared to zero)
When PON = "1" all bits in the Clock Precision Adjustment register and in the Control 1 and Control 2
registers (except for the PON and / XST bits) are reset to "0". This also causes output from /INTA and
/INTB pin to be stopped (= Hi-Z).
For details, see "8.7. Detection Functions".
Page - 11
ETM10E-04
RX - 8025 SA NB
/
5) /CLEN1 bit
This bit is controlling FOUT output with /CLEN2 bit.
When /CLEN1 and /CLEN2 bit set to 1 even if FOE input is "H", FOUT output stops.
If FOUT output is unnecessary, it functions as RAM-bit and is ( FOE="L" )
When PON bit became 1 because power-on reset function worked, /CLEN1 and /CLEN2 bit become 0.
6) CTFG bit
During a read operation, this bit indicates the /INTA pin's priodic interrupt output status.
This status can be set as OFF by writing a "0" to this bit when /INTA = " L".
CTFG
Data
Description
Default
A "0" can be written only when the periodic interrupt is in level
mode, at which time the /INTA pin is set to OFF (Hi-z) status.
(Only when Alarm_D does not match)
0
Write
After a "0" is written, the value still becomes "1" again at the
next cycle.
1
0
1
The writes "1" are invalid.
Default
Periodic interrupt output OFF status; /INTA = OFF (Hi-z)
Read
Periodic interrupt output ON status; /INTA = "L"
For details, see "8.4. Periodic Interrupt Function".
7) WAFG bit
This bit is valid only when the WALE bit value is "1". The WAFG bit value becomes "1" when Alarm W has
occurred.
The /INTB = "L" status that is set at this time can be set to OFF by writing a "0" to this bit.
WAFG
Data
Description
Default
Default
0
/INTB pin = OFF (Hi-z)
Write
1
0
1
The writes "1" are invalid.
Alarm_W time setting does not match current time
(This bit's value is always "0" when the WALE bit's setting is "0")
Alarm_W setting matches current time
Read
(Result is that bit value is held until cleared to zero)
For details, see "8.5. Alarm W Function".
8) DAFG bit
This bit is valid only when the DALE bit value is "1". The DAFG bit value becomes "1" when Alarm D has
occurred.
The /INTA = "L" status that is set at this time can be set to OFF by writing a "0" to this bit.
DAFG
Data
Description
Default
Default
/INTA pin = OFF (Hi-z) (but only when the periodic interrupt
output status is OFF)
0
Write
1
0
1
The writes "1" are invalid.
Alarm_D time setting does not match current time
(This bit's value is always "0" when the DALE bit's setting is "0")
Alarm_D time setting matches current time
Read
(result is that bit value is held until cleared to zero)
For details, see "8.6. Alarm D function".
Page - 12
ETM10E-04
RX - 8025 SA NB
/
8.3. Clock Precision Adjustment Function
The clock precision can be set ahead or behind.
This function can be used to implement a higher-precision clock function, such as by:
• enabling higher clock precision throughout the year by taking seasonal clock precision adjustments into
account in advance, or
• enabling correction of temperature-related clock precision variation in systems that include a temperature
detection function.
Note: Only the clock precision can be adjusted. The adjustments have no effect on the 32.768-kHz output from
the FOUT pin.
8.3.1. Related register
Address
7
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
Digital Offset
(Default)
0
(0)
F6
(0)
F5
(0)
F4
(0)
F3
(0)
F2
(0)
F1
(0)
F0
(0)
) Be sure to set a "0" for any bit whose value is shown above as "0". A zero is returned when any of these bits is read.
• The binary encoded settings in the seven bits from F6 to F0 are used to set the precision of the clock generated
from the 32768-Hz internal oscillator up to ±189.1 × 10−6 in the forward (ahead) or reverse (behind) direction, in
units of ± 3.05 × 10−6.
1) When not using this function, be sure to set "0" for bits F6 to F0.
2) This function operates every twenty seconds (at 00 seconds, 20 seconds, and 40 seconds within each
minute), which changes the cycle of the periodic interrupts that occur via this timing. (See "8.4. Periodic Interrupt
Function".)
8.3.2. Adjustment capacity
1) Adjustment range and resolution
Adjustment range
Adjustment resolution
Internal timing of adjustment
Once every 20 seconds
(at "00", "20" and "40" seconds)
−189.1 x 10−6 to +189.1 x 10−6
± 3.05 x 10−6
2) Adjustment amount and adjustment value
Adjustment amount
Adjustment data
bit 7
0
bit 6
F6
bit 5
F5
bit 4
F4
bit 3
F3
bit 2
F2
bit 1
F1
bit 0
F0
(× 10−6
)
Decimal / Hexadecimal
+63 / 3F h
+62 / 3E h
+61 / 3D h
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
1
0
1
−189.10
−186.05
−183.00
•
•
•
•
•
•
•
•
•
+4 / 04
+3 / 03
+2 / 02 h
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
1
1
1
0
0
0
0
0
1
1
1
0
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
0
1
1
0
0
1
1
0
0
1
0
1
0
1
0
1
−9.15
−6.10
−3.05
OFF
1
0
/ 01 h
/ 00 h
/ 7F h
/ 7E h
/ 7D h
OFF
+3.05
+6.10
+9.15
−1
−2
−3
•
•
•
•
•
•
•
•
•
+183.00
+186.05
+189.10
OFF
/ 44 h
/ 43 h
/ 42 h
/ 41 h
/ 40 h
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
1
1
0
0
0
1
0
1
0
−60
−61
−62
−63
−64
OFF
Page - 13
ETM10E-04
RX - 8025 SA NB
/
8.3.3. Adjustment examples
Example 1) Setting time forward
Objective) To adjust (advance) the clock precision when FOUT clock output is 32767.7 Hz
(1) Determine the current amount of variance
32767.7 Hz → (32767.7 − 32768) / 32768 [ 32768 ] = Reference values
6
→ −9.16 × 10−
(2) Calculate the optimum adjustment data (decimal value) relative to the current variance.
Adjustment data = variance / adjustment resolution
= −9.16 / 3.05
≈ −3 (decimal values are rounded down from 4 and up from 5)
For adjusting forward from a retarded variance, this formula can be corrected using reciprocal numbers, but since this
product inverts the +/- attributes, this formula can be used as it is.
(3) Calculate the setting adjustment data (hexadecimal)
To calculate the setting adjustment data while taking 7-bit binary encoding into account,
subtract the adjustment data (decimal) from 128 (80h).
Setting adjustment data = 128 − 3 = 125 (decimal)
= 80h − 03h = 7Dh (hexadecimal)
Example 2) Setting time backward
Objective) To adjust (set back) the clock precision when FOUT clock output is 32768.3 Hz
(1) Determine the current amount of variance
32768.3 Hz → (32768.3 − 32768) / 32768 [ 32768 ] = reference values
6
→ +9.16 × 10−
(2) Calculate the optimum adjustment data (decimal value) relative to the current variance.
Adjustment data = (variance / adjustment resolution) + 1
= (+9.16 / 3.05) + 1
Add 1 since reference value is 01h
≈ +4 (decimal values are rounded down from 4 and up from 5)
For adjusting backward from an advanced variance, this formula can be corrected using reciprocal numbers, but
since this product inverts the +/- attributes, this formula can be used as it is.
(3) Calculate the setting adjustment data (hexadecimal)
The value "4" can be used in hexadecimal as it is (04h).
Setting adjustment data = 04 h (hexadecimal)
Page - 14
ETM10E-04
RX - 8025 SA NB
/
8.4. Periodic Interrupt Function
Periodic interrupt output can be obtained via the /INTA pin.
Select among five periodic-cycle settings: 2 Hz (once per 0.5 seconds), 1 Hz (once per second), 1/60 Hz (once
per minute), 1/3600 Hz (once per hour), or monthly (on the 1st of each month).
Select among two output waveforms for periodic interrupts: an ordinary pulse waveform (2 Hz or 1 Hz) or a
waveform (every second, minute, hour, or month) for CPU-level interrupts that can support CPU interrupts.
A polling function is also provided to enable monitoring of pin states via registers.
8.4.1. Related registers
Address
E
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
WALE
(0)
DALE
(0)
/12 , 24
(0)
/CLEN2
(0)
TEST
(0)
Control 1
(Default)
Control 2
(Default)
CT2
(0)
CTFG
(0)
CT1
(0)
CT0
(0)
VDSL
(0)
VDET
(0)
/ XST
(−)
PON
(1)
/CLEN1
(0)
WAFG
DAFG
F
(0)
(0)
1) The default value is the value that is read (or is set internally) after the PON bit has been set to "1," such as after powering up from 0 V or
recovering from a supply voltage drop.
2) "−" indicates undefined status.
1) CTFG bit
During a read operation, this bit indicates the /INTA pin's periodic interrupt output status.
This status can be set as OFF by writing a "0" to this bit when /INTA = " L". .
CTFG
Data
Description
Default
A "0" can be written only when the periodic interrupt is in level
mode, at which time the /INTA pin is set to OFF (Hi-z) status.
(Only when Alarm_D does not match)
0
Write
After a "0" is written, the value still becomes "1" again at the
next cycle.
1
0
1
The writes "1" are invalid.
Default
periodic interrupt output OFF status; /INTA = OFF (Hi-z)
Periodic interrupt output ON status; /INTA = "L"
Read
2) CT2, CT1, CT0 bit
Combinations of these three bits are used to change the /INTA pin's output status.
/INTA pin's output setting
CT2
CT1
CT0
Waveform mode
Cycle / Fall timing
Default
0
0
0
0
0
0
1
1
0
1
0
1
/INTA = Hi-z (= OFF)
/INTA = Fixed low
−
−
1)
2 Hz
(50% duty)
Pulse mode
Pulse mode
1)
1 Hz
(50% duty)
Once per
second
Once per
minute
(Synchronous with per-second
count-up)
2)
1
1
1
1
0
0
1
1
0
1
0
1
Level mode
2)
(Occurs when seconds reach ":00")
Level mode
(Occurs when minutes and seconds
reach "00:00")
(Occurs at 00:00:00 on first day of
month)
2)
Once per hour
Level mode
Once per
month
2)
Level mode
The /INTA pin goes low ("L") when the Alarm_D function operates, but you can prevent that effect by
setting "0" for CT2, CT1, and CT0 to stop this function.
See the next page's description of pulse mode/level mode waveforms.
Page - 15
ETM10E-04
RX - 8025 SA NB
/
8.4.2. Mode-specific output waveforms
1) Pulse mode
A 2-Hz or 1-Hz clock pulse is output.
The relation between the clock pulse and the count operation is shown below.
CTFG bit
/INTA pin
92ꢀs (approx)
(Count up seconds)
Overwrite seconds counter
Note 1: As is shown in the above diagram, the seconds register's count up operation occurs approximately
92 ꢀs after the falling edge of the /INTA output. Therefore, if the clock's value is read immediately
after the output's falling edge, the read clock value may appear to be about one second slower than
the RTC module's clock value.
Note 2: When the seconds counter is overwritten, the counter for time values under one second is also
reset, which causes the /INTA level to go low ("L") again.
Note 3: When using the clock precision adjustment function, the periodic interrupt's cycle changes once
every 20 seconds.
During pulse mode:
The period during which the output pulse is low can be adjusted backward or forward up to
±3.784 msec.
(For example, the duty for the 1-Hz setting can be adjusted
±0.3784% from 50%.)
2) Level mode
Select among four interrupt cycles: one second, one minute, one hour, or one month.
Counting up of seconds occurs in sync with the falling edge of the interrupt output. The following is a timing
chart when a one-second interrupt cycle has been set.
CTFG bit
/INTA pin
Write 0 to CTFG
(Count up seconds)
Write 0 to CTFG
(Count up seconds) (Count up seconds)
Note: When using the clock precision adjustment function, the periodic interrupt's cycle changes once every
20 seconds.
During level mode
A one-second period can be adjusted backward or forward up to ±3.784 msec.
Page - 16
ETM10E-04
RX - 8025 SA NB
/
8.5. Alarm W function
The Alarm W function generates interrupt signals (output via the /INTB pin) that correspond to specified days,
hours, and minutes.
For description of the Alarm D function, which supports only hour and minute data, see "8.6. Alarm D Function".
Multiple day settings can be selected (such as Monday, Wednesday, Friday, Saturday, and Sunday).
A polling function is also provided to enable checking of each alarm mode by the host.
8.5.1. Related registers
Address
Function
Minutes
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
ꢀ
1
2
M40
M20
M10
M8
M4
M2
M1
H20
P, /A
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Hours
Days
H10
H8
H4
H2
H1
ꢀ
ꢀ
ꢀ
3
8
9
A
E
F
W4
W2
W1
Alarm_W ; Minute
Alarm_W ; Hour
Alarm_W ; Day
WM40
WM20
WM10
WH10
WW4
WM8
WH8
WW3
WM4
WH4
WW2
WM2
WH2
WW1
WM1
WH1
WW0
WH20
WP, /A
ꢀ
WW6
WW5
DALE
(0)
/CLEN2
( 0 )
TEST
( 0 )
CT2
(0)
CT1
(0)
CT0
(0)
Control 1
(Default)
WALE
(0)
/12, 24
(0)
VDSL
VDET
(0)
/ XST
PON
( 1 )
/CLEN1
( 0 )
CTFG
(0)
DAFG
(0)
Control 2
(Default)
WAFG
(0)
(0)
(−)
1) The default value is the value that is read (or is set internally) after the PON bit has been set to "1," such as after powering up from 0 V or
recovering from a supply voltage drop.
2) " " indicates write-protected bits. A zero is always read from these bits.
○
3) "−" indicates undefined status.
• When the Alarm_W setting matches the current time, /INTB pin is set to "L" and the WALE bit is set to "1".
Note: If the current date/time is used as the Alarm_W setting, the alarm will not occur until the counter counts up
to the current date/time (i.e., an alarm will occur next time, not immediately).
• During 24-hour clock operation, the "Alarm_W ; Hours" register's bit 5 (WH20, WP, /A) functions as WH20
(two-digit hour display), and during 12-hour clock operation it functions as an AM/PM indicator.
• When the Alarm_W function's day values (WW6 to WW0) are all "0" Alarm W does not occur.
1) WALE bit
This bit is used to set up the Alarm W function (to generate alarms matching day, hour, or minute settings).
WALE
Data
Description
Default
0
1
Alarm_W, match comparison operation invalid
Alarm_W, match comparison operation valid (/INTB = "L" when
match occurs)
Write / Read
When using the Alarm W function, first set this WALE bit value as "0," then stop the function. Next, set
the day, hour, minute, and the WAFG bit. Finally, set "1" to the WALE bit to set the Alarm W function as
valid. The reason for first setting the WALE bit value as "0" is to prevent /INTB = "L" output in the event
that a match between the current time and alarm setting occurs while the alarm setting is still being made.
2) WAFG bit
This bit is valid only when the WALE bit value is "1". When a match occurs between the Alarm_W setting and
the current time, the WAFG bit value becomes "1" approximately 61 µs afterward. (There is no effect when the
WALE bit becomes "0".)
The /INTB = "L" status that is set at this time can be set to OFF by writing a "0" to this bit.
WAFG
Data
Description
Default
Default
0
/INTB pin = OFF (Hi-z)
Write
Setting prohibited (do not set this bit value, even though it has no
effect)
Alarm_W time setting does not match current time
(This bit's value is always "0" when the WALE bit's setting is "0")
Alarm_W setting matches current time
1
0
1
Read
(Result is that bit value is held until cleared to zero)
When a "0" is written to the WAFG bit, provisionally the WAFG bit value is "0" and the /INTB pin status is
OFF (Hi-z). However, as long as the WALE bit value is "1" the Alarm W function continues to operate, and
Alarm W occurs again the next time the same specified time arrives. You can stop Alarm W from
occurring by writing "0" to the WALE bit to set this function as invalid.
Page - 17
ETM10E-04
RX - 8025 SA NB
/
3) /12, 24 bit
This bit is used to select between 12-hour clock operation and 24-hour clock operation.
Address 2 (Hours register) data [h] during 24-hour and
12-hour clock operation modes
/12,24
Data
Description
24-hour clock 12-hour clock
24-hour clock 12-hour clock
00
01
02
03
04
05
06
07
08
09
10
11
12 ( AM 12 )
01 ( AM 01 )
02 ( AM 02 )
03 ( AM 03 )
04 ( AM 04 )
05 ( AM 05 )
06 ( AM 06 )
07 ( AM 07 )
08 ( AM 08 )
09 ( AM 09 )
10 ( AM 10 )
11 ( AM 11 )
12
13
14
15
16
17
18
19
20
21
22
23
32 ( PM 12 )
21 ( PM 01 )
22 ( PM 02 )
23 ( PM 03 )
24 ( PM 04 )
25 ( PM 05 )
26 ( PM 06 )
27 ( PM 07 )
28 ( PM 08 )
29 ( PM 09 )
30 ( PM 10 )
31 ( PM 11 )
12-hour
clock
0
Write / Read
24-hour
clock
1
Be sure to select between 12-hour and 24-hour clock operation before writing the time data.
4) Day setting
The following table shows the correspondence between the current day (W4, W2, W1) and the Alarm_W day
(WW6 to WW0). Be sure to set a "1" to the Alarm_W day when the alarm will occur. (An alarm will not occur for
any day that has a "0" setting.)
It is possible to enter settings for several days at the same time, in which case be sure to set a "1" for each day
(among WW6 to WW0) in which an alarm will occur.
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
□
Alarm_W ; Day
WW6
WW5
WW4
WW3
WW2
WW1
WW0
Wednesday
Thursday
(1, 0, 0)
Target day(s)
(W4,W2,W1)
Saturday Friday
(1, 1, 0) (1, 0, 1)
Tuesday Monday Sunday
(0, 1, 0) (0, 0, 1) (0, 0, 0)
−
(0, 1, 1)
8.5.2. Alarm setting examples
Examples of settings for alarm usage are shown below.
Alarm_W
; Minute
Alarm_W
; Day
Alarm_W
; Hour
Minute
(hexadecimal)
Day setting
Hour (hexadecimal)
Alarm setting (example)
WW WW WW WW WW WW WW
24-hour
clock
12-hour
clock
12- & 24-hour
clock
6
5
4
3
2
1
0
Sat Fri Thu Wed Tue Mon Sun
Every day
Every day
Every day
Mon to Fri
Sunday
at 00:00 AM
at 01:30 AM
at 11:59 AM
at 12:00 PM
at 01:30 PM
at 11:59 PM
1
1
1
0
0
0
1
1
1
1
0
1
1
1
1
1
0
0
1
1
1
1
0
1
1
1
1
1
0
0
1
1
1
1
0
1
1
1
1
0
1
0
00h hours 12h hours
01h hours 01h hours
11h hours 11h hours
12h hours 32h hours
13h hours 21h hours
23h hours 31h hours
00h min
30h min
59h min
00h min
30h min
59h min
Mon/Wed/Fri
8.5.3. WAFG, DAFG and /INTA, /INTB output
61ꢀs (approx)
61ꢀs (approx)
WAFG (DAFG) bit
/INTA, /INTB pins
Write "0" to WAFG
(DAFG)
Write "0" to WAFG
(DAFG)
(Alarm/time match)
(Alarm/time match)
(Alarm/time match)
Page - 18
ETM10E-04
RX - 8025 SA NB
/
8.6. Alarm D function
The Alarm D function generates interrupt signals (output via the /INTA pin) that correspond to specified hours and
minutes.
For description of the Alarm W function, which supports only day, hour, and minute data, see "8.5. Alarm W Function".
A polling function is also provided to enable checking of each alarm mode by the host.
8.6.1. Related registers
Address
Function
Minutes
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
ꢀ
1
2
M40
M20
M10
M8
M4
M2
M1
H20
P , /A
ꢀ
ꢀ
Hours
H10
H8
H4
H2
H1
ꢀ
ꢀ
B
C
Alarm_D ; Minute
Alarm_D ; Hour
DM40
DM20
DM10
DH10
DM8
DH8
DM4
DH4
DM2
DH2
DM1
DH1
DH20
DP , /A
ꢀ
WALE
(0)
/CLEN2
( 0 )
TEST
( 0 )
CT2
(0)
CT1
(0)
CT0
(0)
Control 1
(Default)
DALE /12 , 24
E
F
(0)
VDET
(0)
(0)
/ XST
(−)
VDSL
(0)
PON
( 1 )
/CLEN1
( 0 )
CTFG
(0)
WAFG
(0)
Control 2
(Default)
DAFG
(0)
1) The default value is the value that is read (or is set internally) after the PON bit has been set to "1," such as after powering up from 0 V or
recovering from a supply voltage drop.
2) " " indicates write-protected bits. A zero is always read from these bits.
○
3) "−" indicates undefined status.
• When the Alarm_D setting matches the current time, /INTA pin is set to "L" and the DALE bit is set to "1".
Note: If the current date/time is used as the Alarm_D setting, the alarm will not occur until the counter counts up to
the current date/time (i.e., an alarm will occur next time, not immediately).
• During 24-hour clock operation, the "Alarm_D ; Hours" register's bit 5 (DH20, DP, /A) functions as DH20 (two-digit
hour display), and during 12-hour clock operation it functions as an AM/PM indicator.
1) DALE bit
This bit is used to set up the Alarm D function (to generate alarms matching hour or minute settings).
DALE
Data
Description
Default
0
1
Alarm_D, match comparison operation invalid
Alarm_D, match comparison operation valid (/INTA = "L" when
match occurs)
Write / Read
When using the Alarm D function, first set this DALE bit value as "0," then stop the function. Next, set the
hour, minute, and the DAFG bit. Finally, set "1" to the DALE bit to set the Alarm D function as valid.
The reason for first setting the DALE bit value as "0" is to prevent /INTA = "L" output in the event that a
match between the current time and alarm setting occurs while the alarm setting is still being made.
2) DAFG bit
This bit is valid only when the DALE bit value is "1". When a match occurs between the Alarm_D setting and the
current time, the DAFG bit value becomes "1" approximately 61 µs afterward. (There is no effect when the DALE
bit becomes "0".)
The /INTA = "L" status that is set at this time can be set to OFF by writing a "0" to this bit.
DAFG
Data
Description
Default
Default
/INTA pin = OFF (Hi-z) (only when periodic interrupt output is
OFF)
0
Write
1
0
1
The writes "1" are invalid.
Alarm_D time setting does not match current time
(This bit's value is always "0" when the DALE bit's setting is "0")
Alarm_D time setting matches current time
Read
(result is that bit value is held until cleared to zero)
When a "0" is written to the DAFG bit, provisionally the DAFG bit value is "0" and the /INTA pin status is
OFF (Hi-z). However, as long as the DALE bit value is "1" the Alarm D function continues to operate, and
Alarm D occurs again the next time the same specified time arrives.
You can stop Alarm D from occurring by writing "0" to the DALE bit to set this function as invalid.
3) /12,24 bit
See "/12, 24 bit" in section 8.5.1. 3.
8.6.2. WAFG, DAFG and /INTA, /INTB output
See "WAFG, DAFG and /INTA, /INTB output" in section 8.5.3.
Page - 19
ETM10E-04
RX - 8025 SA NB
/
8.7. The various detection Functions
The detection functions include detection of power-on resets, oscillation stops, and supply voltage drops, as well as
reporting of detection results in corresponding bits of the address Fh (Control 2) register.
The status of the power supply, oscillation circuit, and clock can be confirmed by checking these results.
Note with caution that detection functions may not operate correctly when power flickers occur.
8.6.1. Related register
Address
F
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
/CLEN1
( 0 )
CTFG
(0)
WAFG
(0)
DAFG
(0)
Control 2
(Default)
VDSL
(0)
VDET
(0)
/ XST
(−)
PON
(1)
1) The default value is the value that is read (or is set internally) after the PON bit has been set to "1," such as after powering up from 0 V or
recovering from a supply voltage drop.
2) '"−" indicates undefined status.
8.7.1. Power-on reset detection
This function detects when a power-on reset occurs. When a power-on reset is detected, the PON bit value becomes
"1".
A reset is detected when a power-on from 0 V has occurred, including when the power-on reset from 0 V occurred
due to a supply voltage drop.
1) PON bit
This bit indicates the detection results when a power-on reset has occurred.
The power-on reset function operates when a power-on from 0 V has occurred, including when a power-on reset
from 0 V occurred due to a supply voltage drop. When this function operates, the PON bit value becomes "1".
The /XST and VDET bits can be used in combination to determine the valid/invalid status of the clock and
calendar data.
PON
Data
Description
0
Clears PON bit to zero and sets up for next detection operation
Write
1
0
1
The writes "1" are invalid.
Power-on reset was not detected
Read
Default
Power-on reset was detected
(result is that bit value is held until cleared to zero)
When PON = "1" the clock precision adjustment register, Control register 1, and Control register 2 (except
for PON and /XST) are reset and cleared to "0". This stops (sets Hi-Z for) output from the /INTA and
/INTB pins.
2) Status of other bits when power-on reset is detected
• Internal initialization status during a power-on reset
Address
7
Function
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
Digital Offset
(Default)
0
(0)
F6
(0)
F5
(0)
F4
(0)
F3
(0)
F2
(0)
F1
(0)
F0
(0)
E
F
Control 1
(Default)
Control 2
(Default)
WALE
(0)
VDSL
(0)
DALE
(0)
VDET
(0)
/12, 24 /CLEN2 TEST
CT2
(0)
CT1
(0)
WAFG
(0)
CT0
(0)
DAFG
(0)
( 0 )
( 0 )
(0)
/ XST
(−)
PON
( 1 )
/CLEN1 CTFG
( 0 )
(0)
1) The default value is the value that is read (or is set internally) after the PON bit has been set to "1," such
as after powering up from 0 V or recovering from a supply voltage drop.
2) " −" indicates undefined status.
3) At this point, all other register bits are undefined, so be sure to perform a reset before using the module.
Also, be sure to avoid entering incorrect date and time data, as clock operations are not guaranteed
when the time data is incorrect.
Page - 20
ETM10E-04
RX - 8025 SA NB
/
8.7.2. Oscillation stop detection
This function detects when internal oscillation has stopped. When an oscillation stop is detected, the /XST bit value
becomes "0".
If a "1" has already been written to the /XST bit, the /XST bit is cleared to zero when stopping of
internal oscillation is detected, so this function can be used to determine whether or not an oscillation stop has
occurred previously, such as after recovery from a backup.
1) / XST bit
This bit indicates the oscillation stop detection function's detection results.
/ XST
Data
Description
0
The writes "0" are invalid.
Write
Sets the oscillation stop detection function as use-enabled and
sets up for next detection operation
Oscillation stop was detected
1
0
1
(result is that bit value is held until a "1" is written)
Read
Oscillation stop was not detected
2) Caution points
To prevent detection errors during operation of the oscillation stop
detection function, be sure to prevent stops due to VDD power flicker and
prevent application of voltage exceeding the maximum rated voltage to
any pin.
Example of voltage fluctuation that
makes oscillation stop hard to detect
In particular, fluctuation in the supply voltage may occur as shown in the
figure at right, such as when a back-up battery is used. If this occurs,
internal data may be lost even when the / XST bit value has not changed
from "1" to "0" so be sure to avoid any input that contains large amounts
of chattering.
V
DD
8.7.3. Voltage drop detection
This function detects when a voltage drop occurs. Detection of a voltage drop changes the VDET bit value to "1".
The threshold voltage value for detection can be set via the VDSL bit as 2.1 V or 1.3 V.
1) VDSL bit
This bit is used to set the power drop detection function's threshold voltage value.
VDSL
Data
Description
Sets 2.1 V as the power drop detection function's threshold
voltage value
Sets 1.3 V as the power drop detection function's threshold
voltage value
Default
0
Write / Read
1
2) VDET bit
This bit indicates the power drop detection function's detection results. VDET = "1" once a power voltage drop
has occurred. This detection operation is then stopped and the bit value (1) is held.
VDET
Data
Description
Default
Clears the VDET bit to zero, restarts the power drop detection
operation and sets up for next power drop detection operation
0
Write
1
0
1
The writes "1" are invalid.
Default
Power drop was not detected
Read
Power drop was detected
(result is that bit value is held until cleared to zero)
3) Caution points
To reduce current
consumption while
monitoring the supply
VDD
2.1 V or 1.3 V
voltage, the supply voltage
monitor circuit samples for
only 7.8 ms during each
second, as shown at right.
Sampling is stopped once
the VDET bit = "1". (Clear
the VDET bit to zero to
resume operation of the
detection function.)
7.8 ms
PON
Internal initialization
period (1 to 2 s)
1 s
Sampling for supply
voltage monitoring
VDET
(D6 in address Fh)
Write 0 to
VDET
Write 0 to PON
& VDET
Page - 21
ETM10E-04
RX - 8025 SA NB
/
8.7.4. Estimation of status based on detection results
The power supply status and clock status can be confirmed by reading the detection results indicated by the PON,
/XST, and VDET bits.
The following are status estimates based on various combinations of detection results.
Address F h
Estimated status
Control 2 Register
bit 4
bit 5
bit 6
Status of power supply and
oscillation circuit
Status of clock and backup
PON / XST VDET
• No supply voltage drop,
but oscillation has
stopped.
• Clock abnormality has occurred → Initialization is
required
0
0
0
Clock has stopped temporarily, possibly due to
condensation.
• Supply voltage has
dropped and oscillation
has stopped.
• Clock abnormality has occurred → Initialization is
required
Clock has stopped, perhaps due to drop in backup
power supply.
• Normal status.
0
0
0
0
1
1
1
0
1
• Normal status.
• Supply voltage has
dropped but oscillation
continues.
• Clock is normal, but an abnormality exists in the power
supply.
Backup power supply may have dropped to a
hazardous level.
• Supply voltage has
dropped to 0 V.
• Initialization is required regardless of the clock status
and whether or not a voltage drop has occurred.
Initialization is required due to bits that are reset
when PON = "1".
Χ
Χ
1
1
0
1
• Power supply flickering is
likely.
The example shown above is when a "1" has already been written to /XST.
Threshold voltage ( 2.1 V or 1.3 V )
Supply voltage
32768-Hz oscillation
Normal voltage detector
Power-on reset (PON)
Oscillation stop detection
(/XST)
Supply voltage monitor
(VDET)
Internal initialization
period (1 to 2 s)
PON, VDET←0
/XST←1
VDET←0
/XST←1
Internal initialization
period (1 to 2 s)
PON,VDET←0
/XST←1
Note
When a crystal oscillation is stopping, RX-8035 cannot output ACK signal in I2C access.
Therefore, In initial-power-ON, please access RX-8035, after crystal oscillation started.
Internal crystal start-up time are 1sec. (Max.)
At initial-power-on, please start access after fixed waiting time.
Or retry repeated access to RX8025 till ACK output from RX8025 with time-out processing.
Page - 22
ETM10E-04
RX - 8025 SA NB
/
2
8.8. Reading/Writing Data via the I C Bus Interface
8.8.1. Overview of I2C-BUS
The I2C bus supports bi-directional communications via two signal lines: the SDA (data) line and SCL (clock) line. A
combination of these two signals is used to transmit and receive communication start/stop signals, data transfer
signals, acknowledge signals, and so on.
Both the SCL and SDA signals are held at high level whenever communications are not being performed. The
starting and stopping of communications is controlled at the rising edge or falling edge of SDA while SCL is at high
level. During data transfers, data changes that occur on the SDA line are performed while the SCL line is at low level,
and on the receiving side the data is captured while the SCL line is at high level. In either case, the data is
transferred via the SCL line at a rate of one bit per clock pulse. The I2C bus device does not include a chip select pin
such as is found in ordinary logic devices. Instead of using a chip select pin, slave addresses are allocated to each
device and the receiving device responds to communications only when its slave address matches the slave address
in the received data.
8.8.2. System configuration
All ports connected to the I2C bus must be either open drain or open collector ports in order to enable AND
connections to multiple devices.
SCL and SDA are both connected to the VDD line via a pull-up resistance. Consequently, SCL and SDA are both
held at high level when the bus is released (when communication is not being performed).
V
DD
SDA
SCL
Master
Slave
Master
Slave
Transmitter/
Receiver
Transmitter/
Receiver
Transmitter/
Receiver
Transmitter/
Receiver
CPU, etc.
RX - 8025
Other I2C bus device
Any device that controls the transmission and reception of data is defined as a master device and any device that is
controlled by a master device is defined as a slave device.
Also, any device that transmits data is defined as a transmitter and any device that receives data is defined as a
receiver.
In the case of this RTC module, controllers such as a CPU are defined as master devices and the RTC module is
defined as a slave device. When a device is used for both transmitting and receiving data, it is defined as either a
transmitter or receiver depending on these conditions.
Note
When a crystal oscillation is stopping, RX-8035 cannot output ACK signal in I2C access.
Therefore, In initial-power-ON, please access RX-8035, after crystal oscillation started.
Internal crystal start-up time are 1sec. (Max.)
Page - 23
ETM10E-04
RX - 8025 SA NB
/
8.8.3. Starting and stopping I2C bus communications
STOP
RE-START
START
SCL
SDA
0.5 s ( Max. )
1) START condition, repeated START condition, and STOP condition
(1) START condition
2
• This condition regulates how communications on the I C-BUS are started.
SDA level changes from high to low while SCL is at high level
(2) STOP condition
2
• This condition regulates how communications on the I C-BUS are terminated.
SDA level changes from low to high while SCL is at high level
(3) Repeated START condition (RESTART condition)
• In some cases, the START condition occurs between a previous START condition and the next
STOP condition, in which case the second START condition is distinguished as a RESTART
condition. Since the required status is the same as for the START condition, the SDA level
changes from high to low while SCL is at high level.
Some important matters when RX8025 is controlled in I2C.
When a stop condition occurred during communication, SDA of RX8025 is freed to Hi-Z.
As a result, as for all the reading data after STOP, "1" is received.
This can cause data error in a system.
Data every 4 bits are stored to RX-8 025 in writing.
When writing, Data every 4 bits are stored to RX-8025.
Therefore, it is written in at the RTC inside to 4 bits (nybble) just before that when a stop condition
occurs during write-access.
When update of the clock counters occurs during serial communication, the error that read/write data
become false setting occurs.
Therefore, update of a clock counter of RX8025 is stopped temporarily to prevent this error when
RX8025 receives a start condition.
A update of clock counter is revised , afterwards when RX8025 receives a stop condition.
And clock of RX8025 is started again immediately.
However, for example, a RX8025 time continues stopping when STOP is not transmitted by power
supply troubles of a host.
To evade this problem, RX8025 re-start counters of clock, when a stop-condition is not received even if
2Hz (0.5 seconds) pulse two times occurs at inside counter of RX-8025.
And I2C interface is reset.
As a result, SDA becomes Hi-Z, and all the reading data become "1".
Please consider the following communication conditions to operate this compensation function
precisely.
In I2C communication, please complete stop condition from the first start condition within 0.5 second.
Re-START condition are included in 0.5second.
When restart occurs, RX-8 025 stops the time once more, and it is it for 2Hz pulse twice waiting.
Therefore, when restart continued occurring in a short time, clock pause is not released.
As a result, the time will delay very much.
And waiting more than 62 s(Min.) is necessary from the transmission of a stop condition to the
transmission of a next start condition.
Update of the clock which occurred during I2C communication is corrected in 62us(Min.).
Therefore RX8025 time delay when this waiting is short.
This time compensation function of RX8025 is possible only one second.
STOP
START
SCL
SDA
62 µs ( Min. )
Page - 24
ETM10E-04
RX - 8025 SA NB
/
8.8.4. Data transfers and acknowledge responses during I2C-BUS communications
1) Data transfers
Data transfers are performed in 8-bit (1 byte) units once the START condition has occurred. There is no limit on
the amount (bytes) of data that are transferred between the START condition and STOP condition.
The address auto increment function operates during both write and read operations.
After address Fh, incrementation goes to address 0h.
Updating of data on the transmitter (transmitting side)'s SDA line is performed while the SCL line is at low level.
The receiver (receiving side) captures data while the SCL line is at high level.
SCL
SDA
Data is valid
Data can be
when data line is
changed
stable
Note with caution that if the SDA data is changed while the SCL line is at high level, it will be treated as a
START, RESTART, or STOP condition.
2) Data acknowledge response (ACK signal)
When transferring data, the receiver generates a confirmation response (ACK signal, low active) each time an
8-bit data segment is received. If there is no ACK signal from the receiver, it indicates that normal
communication has not been established. (This does not include instances where the master device intentionally
does not generate an ACK signal.)
Immediately after the falling edge of the clock pulse corresponding to the 8th bit of data on the SCL line, the
transmitter releases the SDA line and the receiver sets the SDA line to low (= acknowledge) level.
SCL from Master
1
2
8
9
SDA from transmitter (sending
side)
Release SDA
SDA from receiver (receiving
side)
Low active
ACK signal
After transmitting the ACK signal, if the Master remains the receiver for transfer of the next byte, the SDA is
released at the falling edge of the clock corresponding to the 9th bit of data on the SCL line. Data transfer
resumes when the Master becomes the transmitter.
When the Master is the receiver, if the Master does not send an ACK signal in response to the last byte sent
from the slave, that indicates to the transmitter that data transfer has ended. At that point, the transmitter
continues to release the SDA and awaits a STOP condition from the Master.
8.8.5. Slave address
The I2C bus device does not include a chip select pin such as is found in ordinary logic devices. Instead of using a
chip select pin, slave addresses are allocated to each device.
All communications begin with transmitting the [START condition] + [slave address (+ R/W specification)]. The
receiving device responds to this communication only when the specified slave address it has received matches its
own slave address.
Slave addresses have a fixed length of 7 bits. This RTC's slave address is [ 0110 010 ].
An R/W bit ("*" above) is added to each 7-bit slave address during 8-bit transfers.
Slave address
R / W bit
Transfer data
bit 7
0
bit 6
1
bit 5
bit 4
0
bit 3
bit 2
1
bit 1
0
bit 0
Read
Write
65 h
64 h
1 (= Read)
0 (= Write)
1
0
Page - 25
ETM10E-04
RX - 8025 SA NB
/
8.8.6. I2C bus's basic transfer format
• The write/read steps are illustrated below.
Master is transmitter (sending side),
RTC is receiver (receiving side)
START condition,
sent by Master
Confirmation response from
Master
S
Sr
P
A
/A
A
RESTART condition,
sent by Master
Master does not respond
Master is receiver (receiving side)
RTC is transmitter (sending side)
､
STOP condition,
sent by Master
Confirmation response from
RTC
1) Write via I2C bus
• The steps for writing via the I2C bus are shown below.
bit
bit
6
bit
5
bit
4
bit
3
bit
2
bit
1
bit
0
Address setting
0 h F h 1)
Transfer mode
0 h 1)
Slave address (7 bits)
S
A
A
A
P
7
Write
0
(
(
0
1
1
0
0
1
0
Address + transfer mode specification
Write data
Slave address + write specification
1) Specifies the write start address.
2) Specifies the write mode (= 0h fixed).
2) Read via I2C bus
(1) Standard read method for I2C bus
• The steps for standard reading of the I2C bus are shown below.
Standard Read mode
Transfer mode setting = 0h
Address setting
0 h F h
Transfer mode
Slave address (7 bits)
S
A
A
Write
0
•
0
0
0
0
0
1
1
0
0
1
0
Address and transfer mode settings
Slave address + write specification
1) Specifies the read start address.
2) Specifies the Standard Read
mode (= 0h)
This "write" is the writing of the read
start address, which occurs during a
read operation.
bit
7
bit
6
bit
5
bit
4
bit
3
bit
2
bit
1
bit
0
bit
7
bit
6
bit
5
bit
4
bit
3
bit
2
bit
1
bit
0
Slave address (7 bits)
Sr
A
A
/A
P
Read
0
1
1
0
0
1
0
1
R
e
s
t
a
r
Data read (1)
Data read (2)
Slave address + read specification
N
o
Data is read from the specified
start address.
Address auto incrementation function
is used to add one to the last address
read to set the start address for the
next data to be read.
Indicates next byte will be read.
A
C
K
t
(2) Simplified read method
• This RTC module also provides a special read method that uses fewer read steps.
Simplified Read mode
Address setting
0 h F h
Slave address (7 bits)
Transfer mode
S
A
A
Transfer mode setting = 4h
•
Write
0
0
1
0
0
0
1
1
0
0
1
0
Address and transfer mode settings
Slave address + write specification
1) Specifies the read start address.
2) Specifies the Simplified
Read mode (= 4h)
This "write" is the writing of the read
start address, which occurs during a
read operation.
bit
7
bit
6
bit
5
bit
4
bit
3
bit
2
bit
1
bit
0
bit
7
bit
6
bit
bit
4
bit
3
bit
2
bit
1
bit
0
A
/A
P
5
Data read (1)
Data read (2)
N
o
Data is read from the specified
start address.
Address auto incrementation function
is used to add one to the last address
read to set the start address for the
next data to be read.
A
C
K
(3) Read method from address Fh, with no specified start address for read operation
• Only when reading from address Fh (Fh → 0h → 1h → 2h, etc.) can a read operation be performed
without specifying the read start address or the transfer mode.
bit
7
bit
6
bit
5
bit
4
bit
3
bit
2
bit
1
bit
0
bit
7
bit
6
bit
5
bit
4
bit
3
bit
2
bit
1
bit
0
Slave address (7 bits)
S
A
A
/A
P
Read
1
0
1
1
0
0
1
0
N
o
Data read (1)
Data read (2)
Slave address + read specification
Since no address is specified, data is
read from address Fh.
The address auto incrementation
function is used to read data from
address Fh + 1 (= 0h).
Indicates next byte will be read.
A
C
K
The above steps are an example of transfers of one or two bytes only. There is no limit to the number of bytes
transferred during actual communications. (However, the transfer time must be no longer than 0.5 seconds and
access to the Address Dh (Reserved) register is prohibited.)
Page - 26
ETM10E-04
RX - 8025 SA NB
/
8.9. External Connection Example
D 1
Note
4.7 µF
V
DD
Schottky
Barrier
Diode
+
RX - 8025
DD
V
OPEN
TEST
SCL
0.1 µF
SDA
/ INTA
/ INTB
FOE
FOUT
GND
Note : Pull-up resistor connections.
• SCL and SDA
Connect to the system-power-supply .
• / INTA and / INTB
When , uses these interrupt signals at battery backup, connect these pins to backup power supply.
Note : Use a secondary cell or lithium cell. A diode is not required when using a secondary cell.
When using a lithium cell, be sure to use a diode. Contact the battery manufacturer for
details regarding applied resistance values.
Page - 27
ETM10E-04
RX - 8025 SA NB
/
9. External Dimensions / Marking Layout
9.1. External Dimensions
RX-8025 SA (SOP-14pin)
• External dimensions
• Recommended soldering
10.1
±
0.2
0° - 10°
#14
#8
1.4
5.4
1.4
5.0 7.4
±
0.2
0.1
0.6
#1
#7
0.15
1.27
0.7
0.05
Min.
1.27 × 6 = 7.62
3.2
±
0.35
1.27 1.2
Unit : mm
The cylinder of the crystal oscillator can be seen in this area ( back and front ),
but it has no affect on the performance of the device.
RX-8025 NB (SON-22pin)
• External dimensions
• Soldering pattern
6.3 Max.
0.25 0.75
#14
#22
#14
#22
#22
0.7
#14
0.25 0.5
#1
#11
0.7
#1
#11
#11
#1
P 0.5 × 10 = 5.0
5.25
0.2
0.5
Unit : mm
0.1
1)
The cylinder of the crystal oscillator can be seen in this area ( back and front ),
but it has no affect on the performance of the device.
2)
In this area, At a parts side of electronic base, you must not do layout any signal line.
9.2. Marking Layout
RX - 8025 SA (SOP-14pin)
Type
Logo
R 8025
E A123B
Production lot
RX - 8025 NB (SON-22pin)
Type
Logo
R8025
E A123B
Production lot
The layout shown above is a simplified drawing of the seal and label. Details such as the fonts, sizes, and positioning of
label contents are not necessarily as shown.
Page - 28
ETM10E-04
RX - 8025 SA NB
/
10. Reference Data
(1) Example of frequency and temperature characteristics
[Finding the frequency stability]
T = +25 C Typ.
θ
°
10-6
= -0.035 10-6 Typ.
×
α
×
1. Frequency and temperature characteristics can be
0
approximated using the following equations.
2
∆f
T
= α (θ
T - θX)
: Frequency deviation in any
temperature
: Coefficient of secondary temperature
(−0.035±0.005) × 10-6 / °C2
: Ultimate temperature (+25±5 °C)
: Any temperature
∆f
T
-50
-100
-150
α
(1 / °C2)
θ
θ
T
(°C)
(°C)
X
-50
0
+50
+100
2. To determine overall clock accuracy, add the frequency
precision and voltage characteristics.
Temperature [ C]
°
∆f/f = ∆f/fo + ∆fT + ∆fV
: Clock accuracy (stable frequency) in any
temperature and voltage
∆f/f
(2) Example of frequency and voltage characteristics
Condition :
: Frequency precision
: Frequency deviation in any temperature
: Frequency deviation in any voltage
∆f/fo
3 V as reference, Ta=+25 °C
+ 3
∆f
∆f
T
V
0
3. How to find the date difference
Date difference = ∆f/f × 86400 (seconds)
* For example: ∆f/f = 11.574 × 10-6 is an error of
approximately 1 second/day.
- 3
2
3
4
5
DD
Supply Voltage V [V]
(3) Current and voltage consumption characteristics
(3-1) Current consumption when non-accessed (i)
when FOUT=OFF
(3-2) Current consumption when non-accessed (ii)
when FOUT=32.768 kHz
Condition :
Condition :
Ta = +25 °C
Ta = +25 °C
fSCL = 0 Hz
1.0
10
f
SCL = 0 Hz
FOE = GND, /INTA, /INTB = VDD
FOUT ; Output OFF
FOE, /INTA, /INTB = VDD
FOUT ; 32.768 kHz output ON
CL=30 pF
0.5
5
CL=0 pF
5
2
3
4
5
2
3
4
Supply Voltage VDD[V]
Supply Voltage VDD[V]
Page - 29
ETM10E-04
RX - 8025 SA NB
/
11. Application notes
1) Notes on handling
This module uses a C-MOS IC to realize low power consumption. Carefully note the following cautions when handling.
(1) Static electricity
While this module has built-in circuitry designed to protect it against electrostatic discharge, the chip could still be damaged by a
large discharge of static electricity. Containers used for packing and transport should be constructed of conductive materials. In
addition, only soldering irons, measurement circuits, and other such devices which do not leak high voltage should be used with
this module, which should also be grounded when such devices are being used.
(2) Noise
If a signal with excessive external noise is applied to the power supply or input pins, the device may malfunction or "latch up." In
order to ensure stable operation, connect a filter capacitor (preferably ceramic) of greater that 0.1F as close as possible to the
power supply pins (between VDD and GNDs). Also, avoid placing any device that generates high level of electronic noise near
this module.
* Do not connect signal lines to the shaded area in the figure shown in Fig. 1 and, if possible, embed this area in a GND land.
(3) Voltage levels of input pins
When the input pins are at the mid-level, this will cause increased current consumption and a reduced noise margin, and can
impair the functioning of the device. Therefore, try as much as possible to apply the voltage level close to VDD or GND.
(4) Handling of unused pins
Since the input impedance of the input pins is extremely high, operating the device with these pins in the open circuit state can
lead to unstable voltage level and malfunctions due to noise. Therefore, pull-up or pull-down resistors should be provided for all
unused input pins.
2) Notes on packaging
(1) Soldering heat resistance.
If the temperature within the package exceeds +260 °C, the characteristics of the crystal oscillator will be degraded and it may
be damaged. The reflow conditions within our reflow profile is recommended. Therefore, always check the mounting
temperature and time before mounting this device. Also, check again if the mounting conditions are later changed.
* See Fig. 2 profile for our evaluation of Soldering heat resistance for reference.
(2) Mounting equipment
While this module can be used with general-purpose mounting equipment, the internal crystal oscillator may be damaged in
some circumstances, depending on the equipment and conditions. Therefore, be sure to check this. In addition, if the mounting
conditions are later changed, the same check should be performed again.
(3) Ultrasonic cleaning
Depending on the usage conditions, there is a possibility that the crystal oscillator will be damaged by resonance during
ultrasonic cleaning. Since the conditions under which ultrasonic cleaning is carried out (the type of cleaner, power level, time,
state of the inside of the cleaning vessel, etc.) vary widely, this device is not warranted against damage during ultrasonic
cleaning.
(4) Mounting orientation
This device can be damaged if it is mounted in the wrong orientation. Always confirm the orientation of the device before
mounting.
(5) Leakage between pins
Leakage between pins may occur if the power is turned on while the device has condensation or dirt on it. Make sure the device
is dry and clean before supplying power to it.
Fig. 1 : Example GND Pattern
RX - 8025 SA ( SOP-14pin )
Fig. 2 : Reference profile for our evaluation of Soldering heat resistance.
Temperature [ °C ]
+260 °C Max.
−1 −5 °C / s
+1 +5 °C / s
RX - 8025 NB ( SON-22pin )
+170 °C
+220 °C
+1 +5 °C / s
100 s
35 s
Pre-heating area
Stable Melting area
time [ s ]
In addition, please confirm the Notes of an individual specification.
Page - 30
ETM10E-04
Application Manual
AMERICA
EPSON ELECTRONICS AMERICA, INC.
HEADQUARTER
214 Devcon Drive, San Jose, CA 95112, U.S.A.
Phone: (1)800-228-3964
FAX :(1)408-922-0238
http://www.eea.epson.com
Chicago Office
1827 Walden Office Square. Suite 450 Schaumburg, IL 60173, U.S.A.
Phone: (1)847-925-8350
Fax: (1)847 925-8965
El Segundo Office
1960 E. Grand Ave., 2nd Floor, El Segundo, CA 90245, U.S.A.
Phone: (1)800-249-7730 (Toll free) : (1)310-955-5300 (Main)
Fax: (1)310-955-5400
EUROPE
EPSON EUROPE ELECTRONICS GmbH
HEADQUARTER Riesstrasse 15, 80992 Munich, Germany
Phone: (49)-(0)89-14005-0 Fax: (49)-(0)89-14005-110
http://www.epson-electronics.de
ASIA
EPSON (China) CO., LTD.
HEADQUARTER
7F, Jinbao Building No.89 Jinbao Street Dongcheng District, Beijing, China, 100005
Phone: (86) 10-8522-1199 Fax: (86) 10-8522-1120
http://www.epson.com.cn/ed/
Shanghai Branch
Shenzhen Branch
High-Tech Building,900 Yishan Road Shanghai 200233,China
Phone: (86) 21-5423-5577 Fax: (86) 21-5423-4677
12/F, Dawning Mansion,#12 Keji South Road, Hi-Tech Park,Shenzhen, China
Phone: (86) 755-2699-3828 Fax: (86) 755-2699-3838
EPSON HONG KONG LTD.
Unit 715-723 7/F Trade Square, 681 Cheung Sha Wan Road, Kowloon, Hong Kong
Phone: (86) 755-2699-3828 (Shenzhen Branch)
Fax: (86) 755-2699-3838 (Shenzhen Branch)
http://www.epson.com.hk
EPSON TAIWAN TECHNOLOGY & TRADING LTD.
14F, No.7, Song Ren Road, Taipei 110
Phone: (886) 2-8786-6688 Fax: (886)2-8786-6660
http://www.epson.com.tw/ElectronicComponent
EPSON SINGAPORE PTE. LTD.
No 1 HarbourFront Place, #03-02 HarbourFront Tower One, Singapore 098633.
Phone: (65)- 6586-5500 Fax: (65) 6271-3182
http://www.epson.com.sg/epson_singapore/electronic_devices/electronic_devices.page
SEIKO EPSON CORPORATION KOREA Office
5F, KLI 63 Building,60 Yoido-dong, Youngdeungpo-Ku, Seoul, 150-763, Korea
Phone: (82) 2-784-6027 Fax: (82) 2-767-3677
http://www.epson-device.co.kr
Distributor
Electronic devices information on WWW server
http://www5.epsondevice.com/en/quartz/index.html
厂商 型号 描述 页数 下载

RECOM

 		RX-0505D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

 		RX-0505D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0505S 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0505S/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0509D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

 		RX-0509D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0509S 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0509S/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

RECOM

 		RX-0512D ECONOLINE - DC / DC - 转换器[ ECONOLINE - DC/DC - CONVERTER ] 2 页

RECOM

 		RX-0512D/P 1瓦SIP7和DIP14单和双输出[ 1 Watt SIP7 & DIP14 Single & Dual Output ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.243870s
