CYK512K16SCCA-55BAI

型号：

CYK512K16SCCA-55BAI

品牌：

CYPRESS[ CYPRESS ]

页数：

10 页

PDF大小：

238 K

下载PDF手册

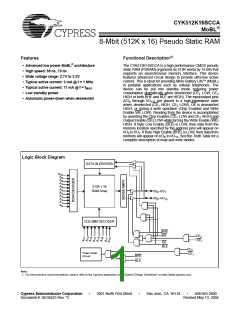

CYK512K16SCCA
MoBL
8-Mbit (512K x 16) Pseudo Static RAM
Features
Functional Description[1]
• Advanced low power MoBL® architecture
• High speed: 55 ns, 70 ns
• Wide voltage range: 2.7V to 3.3V
• Typical active current: 2 mA @ f = 1 MHz
• Typical active current: 11 mA @ f = fMAX
• Low standby power
The CYK512K16SCCA is a high-performance CMOS pseudo
static RAM (PSRAM) organized as 512K words by 16 bits that
supports an asynchronous memory interface. This device
features advanced circuit design to provide ultra-low active
current. This is ideal for providing More Battery Life(MoBL)
in portable applications such as cellular telephones. The
device can be put into standby mode reducing power
consumption dramatically when deselected (CE1 LOW, CE2
HIGH or both BHE and BLE are HIGH). The input/output pins
(I/O0 through I/O15) are placed in a high-impedance state
when: deselected (CE1 HIGH, CE2 LOW), OE is deasserted
HIGH, or during a write operation (Chip Enabled and Write
Enable WE LOW). Reading from the device is accomplished
by asserting the Chip Enables (CE1 LOW and CE2 HIGH) and
Output Enable (OE) LOW while forcing the Write Enable (WE)
HIGH. If Byte Low Enable (BLE) is LOW, then data from the
memory location specified by the address pins will appear on
I/O0 to I/O7. If Byte High Enable (BHE) is LOW, then data from
memory will appear on I/O8 to I/O15. See the Truth Table for a
complete description of read and write modes.
• Automatic power-down when deselected
Logic Block Diagram
DATA IN DRIVERS
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
512K x 16
RAM Array
I/O0–I/O7
I/O8–I/O15
COLUMN DECODER
BHE
WE
CE2
CE1
OE
BLE
CE2
CE1
Power -Down
Circuit
BHE
BLE
Note:
1. For best-practice recommendations, please refer to the Cypress application note “System Design Guidelines” on http://www.cypress.com.
Cypress Semiconductor Corporation
•
3901 North First Street
•
San Jose, CA 95134
•
408-943-2600
Document #: 38-05425 Rev. *C
Revised May 13, 2004

CYK512K16SCCA
MoBL
Pin Configuration[2, 3, 4]
48-Ball FBGA
Top View
1
2
4
3
5
6
A
A
2
A
CE2
OE
BLE
0
1
A
B
C
A
A
I/O BHE
CE1 I/O
4
3
0
8
A
A
6
I/O
I/O
I/O
I/O
5
10
1
2
9
VCC
A
V
I/O
I/O
3
A17
D
E
F
SS
7
11
VSS
DNU
A
16
V
CC
I/O
I/O
12
4
A
A
15
I/O
I/O
I/O
I/O
14
13
5
14
6
A
A
G
H
I/O
I/O
NC
WE
13
12
15
7
A
A
A
A
A18
NC
10
9
11
8
Product Portfolio[5]
Power Dissipation
Operating, ICC (mA)
f = 1 MHz f = fMAX
VCC Range
(V)
Standby, ISB2
(µA)
Speed
(ns)
55
Product
Min.
Typ.
3.0
Max.
3.3
Typ.[5]
Max.
5
Typ.[5]
11
Max.
22
Typ.[5]
Max.
CYK512K16SCCA
2.7
2
55
100
70
17
Notes:
2. DNU pins are to be left floating or tied to V
.
SS
3. Ball G2, H6 are the address expansion pins for the 16-Mbit and 32-Mbit densities respectively.
4. NC “no connect”—not connected internally to the die.
5. Typical values are included for reference only and are not guaranteed or tested. Typical values are measured at V = V (typ) and T = 25°C.
CC
CC
A
Document #: 38-05425 Rev. *C
Page 2 of 10




CYK512K16SCCA
MoBL
DC Input Voltage[6, 7, 8] ....................................−0.4V to 3.7V
Output Current into Outputs (LOW) ............................ 20 mA
Maximum Ratings
(Above which the useful life may be impaired. For user guide-
Static Discharge Voltage ......................................... > 2001V
lines, not tested.)
(per MIL-STD-883, Method 3015)
Storage Temperature .................................–65°C to +150°C
Latch-up Current ....................................................> 200 mA
Ambient Temperature with
Power Applied ..............................................–40°C to +85°C
Operating Range
Supply Voltage to Ground Potential ................ −0.4V to 4.6V
Ambient
DC Voltage Applied to Outputs
Range
Temperature (TA)
VCC
in High-Z State[6, 7, 8] ....................................... −0.4V to 3.7V
Industrial
−25°C to +85°C
2.7V to 3.3V
DC Electrical Characteristics (Over the Operating Range)[5, 6, 7, 8]
CYK512K16SCCA-55
Min. Typ.[5] Max.
CYK512K16SCCA-70
Min. Typ.[5] Max. Unit
Parameter
Vcc
VOH
Description
Supply Voltage
Output HIGH Voltage IOH = −0.1 mA
Test Conditions
2.7
VCC
0.4
3.0
3.3
0.4
VCC
0.4
2.7
VCC
0.4
3.3
V
V
–
–
VOL
VIH
Output LOW Voltage IOL = 0.1 mA
Input HIGH Voltage
0.4
VCC
0.4
V
V
0.8 *
VCC
+
0.8 *
VCC
+
VIL
IIX
Input LOW Voltage F = 0
−0.4
−1
0.4
+1
−0.4
−1
0.4
+1
V
µA
Input Leakage
Current
GND < VIN < VCC
IOZ
ICC
Output Leakage
Current
VCC Operating
Supply Current
GND < VOUT < VCC, Output
Disabled
−1
+1
−1
+1
µA
f = fMAX = 1/tRC VCC = 3.3V,
11
2
22
5
11
2
17
5
mA
I
OUT = 0 mA,
f = 1 MHz
CE > VCC − 0.2V, CE2 < 0.2V
CMOS level
ISB1
Automatic CE1
100
400
100
400
µA
µA
Power-down Current VIN > VCC − 0.2V, VIN < 0.2V,
—CMOS Inputs
f = fMAX(Address and Data Only),
f = 0 (OE, WE, BHE and BLE)
CE > VCC − 0.2V, CE2 < 0.2V
ISB2
Automatic CE1
55
100
55
100
Power-down Current VIN > VCC − 0.2V or VIN < 0.2V,
—CMOS Inputs
f = 0, VCC =3.3V
Capacitance[9]
Parameter
Description
Input Capacitance
Output Capacitance
Test Conditions
Max.
8
8
Unit
pF
pF
CIN
COUT
TA = 25°C, f = 1 MHz
V
CC = VCC(typ)
Thermal Resistance[9]
Parameter
Description
Test Conditions
FBGA
Unit
θJA
Thermal Resistance
Test conditions follow standard test methods
and procedures for measuring thermal
impedance, per EIA / JESD51.
55
°C/W
(Junction to Ambient)
θJC
Thermal Resistance
(Junction to Case)
17
°C/W
Notes:
6. V
7. V
= V + 0.5V for pulse durations less than 20 ns.
CC
IH(MAX)
= –0.5V for pulse durations less than 20 ns.
IL(MIN)
8. Overshoot and undershoot specifications are characterized and are not 100% tested.
9. Tested initially and after design or process changes that may affect these parameters.
Document #: 38-05425 Rev. *C
Page 3 of 10




CYK512K16SCCA
MoBL
AC Test Loads and Waveforms
R1
ALL INPUT PULSES
90%
10%
VCC
OUTPUT
VCC
GND
Rise Time = 1 V/ns
90%
10%
Fall Time = 1 V/ns
R2
30 pF
INCLUDING
JIG AND
SCOPE
Equivalent to: THEVENIN EQUIVALENT
RTH
OUTPUT
VTH
Parameters
3.0V VCC
22000
22000
11000
1.50
Unit
Ω
R1
R2
RTH
VTH
Ω
Ω
V
Switching Characteristics (Over the Operating Range) [10, 11, 12, 13, 14]
CYK512K16SCCA-55
CYK512K16SCCA-70
Parameter
Read Cycle
tRC
Description
Min.
55[14]
5
Max.
Min.
Max.
Unit
Read Cycle Time
Address to Data Valid
70
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
tAA
55
70
tOHA
tACE
Data Hold from Address Change
CE1 LOW and CE2 HIGH to Data Valid
OE LOW to Data Valid
OE LOW to Low Z[11, 12]
OE HIGH to High Z[11, 12]
CE1 LOW and CE2 HIGH to Low Z[11, 12]
CE1 HIGH and CE2 LOW to High Z[11, 12]
BLE/BHE LOW to Data Valid
BLE/BHE LOW to Low Z[11, 12]
BLE/BHE HIGH to High-Z[11, 12]
Address Skew
5
55
25
70
35
tDOE
tLZOE
tHZOE
tLZCE
tHZCE
tDBE
5
5
5
5
25
25
25
55
25
70
tLZBE
5
5
tHZBE
10
0
25
10
[14]
tSK
Notes:
10. Test conditions assume signal transition time of 1V/ns or higher, timing reference levels of V
/2, input pulse levels of 0V to V
and output loading of
CC(typ)
CC(typ),
the specified I /I and 30-pF load capacitance
OL OH
11. t
, t
, t
and t
transitions are measured when the outputs enter a high-impedance state.
HZOE HZCE HZBE
HZWE
12. High-Z and Low-Z parameters are characterized and are not 100% tested.
13. The internal write time of the memory is defined by the overlap of WE, CE = V , CE = V , BHE and/or BLE =V . All signals must be ACTIVE to initiate a write
1
IL
2
IH
IL
and any of these signals can terminate a write by going INACTIVE. The data input set-up and hold timing should be referenced to the edge of the signal that
terminates write.
14. To achieve 55-ns performance, the read access should be CE controlled. In this case t
is the critical parameter and t is satisfied when the addresses are
SK
ACE
stable prior to chip enable going active. For the 70-ns cycle, the addresses must be stable within 10 ns after the start of the read cycle.
Document #: 38-05425 Rev. *C
Page 4 of 10





CYK512K16SCCA
MoBL
Switching Characteristics (Over the Operating Range) (continued)[10, 11, 12, 13, 14]
CYK512K16SCCA-55
CYK512K16SCCA-70
Parameter
Write Cycle[13]
Description
Min.
Max.
Min.
Max.
Unit
tWC
tSCE
tAW
tHA
tSA
tPWE
tBW
tSD
tHD
tHZWE
tLZWE
Write Cycle Time
55
45
45
0
70
55
55
0
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
CE1 LOW and CE2 HIGH to Write End
Address Set-up to Write End
Address Hold from Write End
Address Set-up to Write Start
WE Pulse Width
BLE/BHE LOW to Write End
Data Set-up to Write End
Data Hold from Write End
WE LOW to High Z[11, 12]
WE HIGH to Low Z[11, 12]
0
0
40
50
25
0
55
55
25
0
25
25
5
5
Switching Waveforms
Read Cycle 1 (Address Transition Controlled)[14, 15, 16]
tRC
ADDRESS
t
AA
tSK
PREVIOUS DATA VALID
t
OHA
DATA OUT
DATA VALID
Read Cycle 2 (OE Controlled)[14, 15]
ADDRESS
tRC
tSK
CE1
tHZCE
CE
2
tACE
BHE/BLE
tDBE
tHZBE
tLZBE
OE
tHZOE
tDOE
tLZOE
HIGH
IMPEDANCE
HIGH IMPEDANCE
DATA OUT
DATA VALID
tLZCE
I
CC
t
V
CC
Notes:
15. WE is HIGH for Read Cycle.
16. Device is continuously selected. OE, CE = V
.
IL
Document #: 38-05425 Rev. *C
Page 5 of 10

CYK512K16SCCA
MoBL
Switching Waveforms (continued)
Write Cycle No. 1(WE Controlled)[12, 13, 17, 18, 19]
t
WC
ADDRESS
t
SCE
CE
1
CE
2
t
t
HA
AW
t
t
PWE
SA
WE
t
BW
BHE/BLE
OE
t
SD
t
HD
VALID DATA
DATAI/O
DO N’T CARE
t
HZOE
Write Cycle 2 (CE1 or CE2 Controlled)[12, 13, 17, 18, 19]
tWC
ADDRESS
CE1
tSCE
CE
2
tSA
tAW
tHA
tPWE
WE
tBW
BHE/BLE
OE
tSD
VALID DATA
tHD
DATA I/O
DON’T CARE
tHZOE
Notes:
17. Data I/O is high impedance if OE >V
.
IH
18. If Chip Enable goes INACTIVE simultaneously with WE = HIGH, the output remains in a high-impedance state.
19. During the DON’T CARE period in the DATA I/O waveform, the I/Os are in output state and input signals should not be applied.
Document #: 38-05425 Rev. *C
Page 6 of 10



CYK512K16SCCA
MoBL
Switching Waveforms (continued)
Write Cycle 3 (WE Controlled, OE LOW)[18, 19]
tWC
ADDRESS
CE1
tSCE
CE
2
tBW
tAW
BHE/BLE
tHA
tSA
tPWE
WE
t
HD
tSD
DON’T CARE
DATAI/O
VALID DATA
tLZWE
tHZWE
Write Cycle No. 4 (BHE/BLE Controlled, OE LOW)[18, 19]
t
WC
ADDRESS
CE1
CE
2
t
SCE
AW
t
t
HA
tBW
BH E/BLE
WE
t
SA
tPWE
t
HD
t
SD
DON’T CARE
DATA I/O
VALID DATA
Document #: 38-05425 Rev. *C
Page 7 of 10
CYK512K16SCCA
MoBL
Truth Table[20]
CE1
H
X
X
L
CE2
X
L
X
H
WE
X
X
X
H
OE
X
X
X
L
BHE BLE
Inputs/Outputs
High Z
High Z
High Z
Data Out (I/O0–I/O15
Mode
Power
X
X
H
L
X
X
H
L
Deselect/Power-down
Deselect/Power-down
Deselect/Power-down
Standby (ISB
Standby (ISB
Standby (ISB)
)
)
)
Read (Upper Byte and Lower Active (ICC)
Byte)
L
L
H
H
H
H
L
L
H
L
L
Data Out (I/O0–I/O7);
I/O8–I/O15 in High Z
Data Out (I/O8–I/O15);
I/O0–I/O7 in High Z
Read (Lower Byte only)
Active (ICC
)
H
Read (Upper Byte only)
Active (ICC)
L
L
L
L
H
H
H
H
H
H
H
L
H
H
H
X
L
H
L
L
L
H
L
High Z
High Z
High Z
Output Disabled
Output Disabled
Output Disabled
Active (ICC
Active (ICC
Active (ICC
)
)
)
L
Data In (I/O0–I/O15
)
Write (Upper Byte and Lower Active (ICC)
Byte)
L
L
H
H
L
L
X
X
H
L
L
Data In (I/O0–I/O7);
I/O8–I/O15 in High Z
Data In (I/O8–I/O15);
I/O0 –I/O7 in High Z
Write (Lower Byte Only)
Active (ICC
)
H
Write (Upper Byte Only)
Active (ICC)
Ordering Information
Speed
Package
Name
BA48K
Operating
Range
Industrial
(ns)
55
Ordering Code
CYK512K16SCCAU-55BAI
Package Type
48-ball Fine Pitch BGA (6.0 x 8.0 x 1.2 mm)
70
CYK512K16SCCAU-70BAI
BA48K
48-ball Fine Pitch BGA (6.0 x 8.0 x 1.2 mm)
Industrial
Note:
20. H = Logic HIGH, L = Logic LOW, X = Don’t Care
Document #: 38-05425 Rev. *C
Page 8 of 10

CYK512K16SCCA
MoBL
Package Diagrams
48-Ball (6 mm x 8mm x 1.2 mm) FBGA BA48K
BOTTOM VIEW
A1 CORNER
TOP VIEW
Ø0.05 M C
Ø0.25 M C A B
Ø0.30 0.05ꢀ(48X
A1 CORNER
1
2
3
5
6
6
5
3
2
1
(
(
A
B
A
B
C
C
D
D
E
F
E
F
G
H
G
H
1.475
A
A
0.75
3.75
6.00 0.10
B
6.00 0.10
B
0.15ꢀ(8X
REFERENCE JEDEC MO-207
SEATING PLANE
51-85193-*A
C
MoBL is a registered trademark, and MoBL3 and More Battery Life are trademarks, of Cypress Semiconductor Corporation. All
product and company names mentioned in this document are the trademarks of their respective holders.
Document #: 38-05425 Rev. *C
Page 9 of 10
© Cypress Semiconductor Corporation, 2004. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use
of any circuitry other than circuitry embodied in a Cypress Semiconductor product. Nor does it convey or imply any license under patent or other rights. Cypress Semiconductor does not authorize
its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress
Semiconductor products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress Semiconductor against all charges.
CYK512K16SCCA
MoBL
Document History Page
Document Title: CYK512K16SCCA 8-Mbit (512K x 16) Pseudo Static RAM
Document #: 38-05425
Orig. of
REV.
**
ECN NO. Issue Date Change
Description of Change
130538
01/27/04
AWK
New Data Sheet
*A
216680
See ECN
REF
Added 55 ns Speed bin
Updated from Advance Information to Final Data Sheet.
*B
*C
220121
230851
See ECN
See ECN
REF
AJU
Changed the tOHA for 70 ns speed grade from 10 ns to 5 ns
Changed the ISB2 from 80 µA to 100 µA
Changed Ordering code from CYK512K16SCCA to CYK512K16SCCAU in
‘Ordering Information’ table
Modified MAX limit on DC Input voltage from 3.3V to 3.7V in ‘Maximum
Ratings’ section
Document #: 38-05425 Rev. *C
Page 10 of 10
厂商 型号 描述 页数 下载

MERRIMAC

 		CYK-10R-26G 定向耦合器[ DIRECTIONAL COUPLERS ] 2 页

MERRIMAC

 		CYK-10R-29G 定向耦合器[ DIRECTIONAL COUPLERS ] 2 页

MERRIMAC

 		CYK-16R-21G 定向耦合器[ DIRECTIONAL COUPLERS ] 2 页

CYPRESS

 		CYK001M16SCAU-55BAXI 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 10 页

CYPRESS

 		CYK001M16SCAU-70BAXI 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 10 页

CYPRESS

 		CYK001M16SCCA 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 10 页

ETC

 		CYK001M16SCCAU 内存\n[ Memory ] 10 页

CYPRESS

 		CYK001M16SCCAU-55BAI 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 10 页

CYPRESS

 		CYK001M16SCCAU-70BAI 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 10 页

CYPRESS

 		CYK001M16ZCCA 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 11 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.229770s
