0MIC3VP

型号:

0MIC3VP

品牌:

LITTELFUSE[ LITTELFUSE ]

页数:

1 页

PDF大小:

1255 K

www.Littelfuse.com

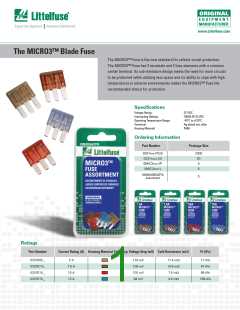

The MICRO3™ Blade Fuse
The MICRO3™ Fuse is the new standard for vehicle circuit protection.
The MICRO3™ Fuse has 3 terminals and 2 fuse elements with a common
center terminal. Its sub-miniature design meets the need for more circuits
to be protected while utilizing less space and its ability to cope with high
temperatures in adverse environments makes the MICRO3™ Fuse the
recommended choice for protection.
Specifications
Voltage Rating:
32 VDC
Interrupting Ratings:
Operating Temperature Range:
Terminals:
1000A @ 32 VDC
-40˚C to +125˚C
Ag plated zinc alloy
PA66
Housing Material:
Ordering Information
Part Number
Package Size
0337xxx.PX2S
0337xxx.LXS
0MIC3xxx.VP
0MIC3xxx.V
2000
50
5
5
009404564ZPA
Assortment
5
Ratings
Part Number
Current Rating (A) Housing Material Color Typ. Voltage Drop (mV) Cold Resistance (mΩ)
I2t (A2s)
0337005._
033707.5_
0337010._
0337015._
5 A
7.5 A
10 A
15 A
116 mV
106 mV
102 mV
94 mV
17.4 mΩ
10.8 mΩ
7.8 mΩ
4.9 mΩ
17 A²s
47 A²s
89 A²s
189 A²s
厂商 型号 描述 页数 下载

LITTELFUSE

0MIC3V [ Electric Fuse ] 1 页
