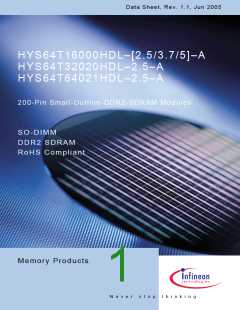

Data Sheet, Rev. 1.1, Jun 2005
HYS64T16000HDL–[2.5/3.7/5]–A
HYS64T32020HDL–2.5–A
HYS64T64021HDL–2.5–A
200-Pin Small-Outline-DDR2-SDRAM Modules
SO-DIMM
DDR2 SDRAM
RoHS Compliant
Memory Products
N e v e r s t o p t h i n k i n g .
Edition 2005-06
Published by Infineon Technologies AG,
St.-Martin-Strasse 53,
81669 München, Germany
© Infineon Technologies AG 2005.
All Rights Reserved.
Attention please!
The information herein is given to describe certain components and shall not be considered as a guarantee of
characteristics.
Terms of delivery and rights to technical change reserved.
We hereby disclaim any and all warranties, including but not limited to warranties of non-infringement, regarding
circuits, descriptions and charts stated herein.
Information
For further information on technology, delivery terms and conditions and prices please contact your nearest
Infineon Technologies Office (www.infineon.com).
Warnings
Due to technical requirements components may contain dangerous substances. For information on the types in
question please contact your nearest Infineon Technologies Office.
Infineon Technologies Components may only be used in life-support devices or systems with the express written
approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure
of that life-support device or system, or to affect the safety or effectiveness of that device or system. Life support
devices or systems are intended to be implanted in the human body, or to support and/or maintain and sustain
and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may
be endangered.
HYS64T16000HDL–[2.5/3.7/5]–A, HYS64T32020HDL–2.5–A, HYS64T64021HDL–2.5–A
Revision History: 2005-05, Rev. 1.1
Page
Subjects (major changes since last revision)
Extend product definition including DDR2-800
Chapter 3 Update of IDD Currents
Chapter 4 Update of SPD Codes
Previous Version: 2004-04, Rev. 1.01
Only green products included
IDD currents updated
We Listen to Your Comments
Any information within this document that you feel is wrong, unclear or missing at all?
Your feedback will help us to continuously improve the quality of this document.
Please send us your proposal (including a reference to this document) to:
techdoc.mp@infineon.com
Template: mp_a4_s_rev314 / 3 / 2005-05-02
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Table of Contents
Table of Contents
1
1.1
1.2
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2
2.1
2.2
Pin Configuration and Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3
3.1
3.2
3.3
3.3.1
3.3.2
3.3.3
3.4
3.4.1
3.4.2
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
DC Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Speed Grade Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
AC Timing Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
ODT AC Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
I
DD Specifications and Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
DD Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
On Die Termination (ODT) Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
I
4
5
6
SPD Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Product Type Nomenclature (DDR2 DRAMs and DIMMs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Data Sheet
1
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
200-Pin Small-Outline-DDR2-SDRAM Modules
SO-DIMM
HYS64T16000HDL–[2.5/3.7/5]–A
HYS64T32020HDL–2.5–A
HYS64T64021HDL–2.5–A
1
Overview
This chapter gives an overview of the 200-Pin Small-Outline-DDR2-SDRAM Modules product family and
describes its main characteristics.
1.1
Features
•
200-pin PC2-6400, PC2-4200 and PC2-3200
DDR2 SDRAM memory modules for use as main
memory when installed in systems such as mobile
personal computers.
16M × 64, 32M × 64, 64Mx64 module organization,
and 16M × 16, 32M × 8 chip organization
128, 256 and 512 MByte modules built with 256-
Mbit DDR2 SDRAMs in P-TFBGA-60 and P-
TFBGA-84 chipsize packages
•
Programmable CAS Latencies (3, 4, 5 and 6), Burst
Length (8 & 4) and Burst Type
•
•
•
Auto Refresh (CBR) and Self Refresh
All inputs and outputs SSTL_18 compatible
Off-Chip Driver Impedance Adjustment (OCD) and
On-Die Termination (ODT)
Serial Presence Detect with E2PROM
SO-DIMM Dimensions (nominal) :
30 mm high, 133.35 mm wide
•
•
•
•
•
•
Standard DDR2 Synchronous DRAMs (DDR2
SDRAM) with a single + 1.8 V (± 0.1 V) power
supply
All speed grades faster than DDR2-400 comply with
DDR2-400 timing specifications
•
•
Based on standard reference layouts Raw Card “A”,
“C“ and “F”
RoHS compliant products1)
Table 1
Performance for DDR2-800
Product Type Speed Code
Speed Grade
–2.5
Unit
—
PC2–6400 6–6–6
max. Clock Frequency
@CL6
@CL5
@CL4
@CL3
fCK6
fCK5
fCK4
fCK3
tRCD
tRP
400
333
333
200
15
MHz
MHz
MHz
ns
min. RAS-CAS-Delay
min. Row Precharge Time
min. Row Active Time
min. Row Cycle Time
15
ns
tRAS
tRC
45
ns
60
ns
1) RoHS Compliant Product: Restriction of the use of certain hazardous substances (RoHS) in electrical and electronic
equipment as defined in the directive 2002/95/EC issued by the European Parliament and of the Council of 27 January
2003. These substances include mercury, lead, cadmium, hexavalent chromium, polybrominated biphenyls and
polybrominated biphenyl ethers.
Data Sheet
2
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Overview
Table 2
Performance for DDR2-533 and DDR2-400
Product Type Speed Code
Speed Grade
–3.7
–5
Units
—
PC2–4200 4–4–4
PC2–3200 3–3–3
Max. Clock Frequency
@CL5
@CL4
@CL3
fCK5 266
200
200
200
15
MHz
MHz
MHz
ns
fCK4 266
fCK3 200
tRCD 15
Min. RAS-CAS-Delay
Min. Row Precharge Time
Min. Row Active Time
Min. Row Cycle Time
tRP
tRAS 45
tRC 60
15
15
ns
40
ns
55
ns
1.2
Description
The INFINEON HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A module family are Small Outline modules “SO-DIMMs”
with 30.0-mm height based on DDR2 technology. DIMMs are available as non-ECC modules in 16M × 64
(128 MB), 32M × 64 (256 MB) and 64Mx64 (512 MB) organization and density, intended for mounting into 200-pin
connector sockets.
The memory array is designed with 256-Mbit Double-Data-Rate-Two (DDR2) Synchronous DRAMs. Decoupling
capacitors are mounted on the PCB. The DIMMs feature serial presence detect based on a serial E2PROM device
using the 2-pin I2C protocol. The first 128 bytes are programmed with configuration data and are write protected;
the second 128 bytes are available to the customer.
Table 3
Ordering Information for RoHS Compliant Products
Product Type1)
Compliance Code2)
Description
SDRAM Technology
PC2-6400
HYS64T16000HDL–2.5–A 128MB 1Rx16 PC2–6400S–666–12–C0 1 Rank, Non-ECC 256 Mbit (×16)
HYS64T32020HDL–2.5–A 256MB 2Rx16 PC2–6400S–666–12–A0 2 Ranks, Non-ECC 256 Mbit (×16)
HYS64T64021HDL–2.5–A 512MB 2Rξ8 PC2–6400S–666–12–F0 2 Ranks, Non-ECC 256 Mbit (×8)
PC2-4200
HYS64T16000HDL–3.7–A 128MB 1Rx16 PC2–4200S–444–11–C0 1 Rank, Non-ECC 256 Mbit (×16)
PC2-3200
HYS64T16000HDL–5–A
128MB 1Rx16 PC2–3200S–333–11–C0 1 Rank, Non-ECC 256 Mbit (×16)
1) All product types end with a place code, designating the silicon die revision. Example: HYS64T16000HDL–5–A, indicating
Rev. “A” dies are used for DDR2 SDRAM components. For all INFINEON DDR2 module and component nomenclature see
Chapter 6 of this data sheet.
2) The Compliance Code is printed on the module label and describes the speed grade, for example “PC2–4200S–444–
11–C0”, where 4200S means SO-DIMM with 4.26 GB/sec Module Bandwidth and “444-11” means Column Address
Strobe (CAS) latency = 4, Row Column Delay (RCD) latency = 4 and Row Precharge (RP) latency = 4 using the latest
JEDEC SPD Revision 1.1 and produced on the Raw Card “C”.
Data Sheet
3
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Overview
Table 4
Address Format
DIMM
Density
Module
Organization
Memory
Ranks
ECC/
Non-ECC
# of
SDRAMs
# of row/bank/column Raw
bits
Card
128 MByte
256 MByte
512 MByte
16M × 64
32M × 64
64M × 64
1
2
2
Non-ECC
Non-ECC
Non-ECC
4
13/2/9
13/2/9
13/2/9
C
A
F
8
16
Table 5
Components on Modules1)
Product Type
DRAM Component2)
DRAM Density
256 Mbit
DRAM Organisation
16M × 16
HYS64T16000HDL
HYS64T32020HDL
HYS64T64021HDL
HYB18T256160AF
HYB18T256160AF
HYB18T256800AF
256 Mbit
16M × 16
256 Mbit
32M × 8
1) For a detailed description of all functionalities of the DRAM components on these modules see the component data sheet.
2) Green Product
Data Sheet
4
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Pin Configuration and Block Diagrams
2
Pin Configuration and Block Diagrams
2.1
Pin Configuration
The pin configuration of the Small Outline DDR2 SDRAM DIMM is listed by function in Table 6 (200 pins). The
abbreviations used in columns Pin and Buffer Type are explained in Table 7 and Table 8 respectively. The pin
numbering is depicted in Figure 1
Table 6
Pin Configuration of SO-DIMM
Pin or Ball No.
Name Pin
Buffer Function
Type Type
Clock Signals
30
CK0
CK1
CK0
CK1
I
I
I
I
SSTL
SSTL
SSTL
SSTL
Clock Signals 2:0, Complement Clock Signals 2:0
The system clock inputs. All address and command
lines are sampled on the cross point of the rising edge
of CK and the falling edge of CK. A Delay Locked
Loop (DLL) circuit is driven from the clock inputs and
output timing for read operations is synchronized to
the input clock.
164
32
166
79
80
CKE0
CKE1
I
I
SSTL
SSTL
Clock Enable Rank 1:0
Activates the DDR2 SDRAM CK signal when HIGH
and deactivates the CK signal when LOW. By
deactivating the clocks, CKE LOW initiates the Power
Down Mode or the Self Refresh Mode.
Note:2 Ranks module
Not Connected
NC
NC
—
Note:1-rank module
Control Signals
110
115
S0
S1
I
I
SSTL
SSTL
Chip Select Rank 1:0
Enables the associated DDR2 SDRAM command
decoder when LOW and disables the command
decoder when HIGH. When the command decoder is
disabled, new commands are ignored but previous
operations continue. Rank 0 is selected by S0; Rank
1 is selected by S1. Ranks are also called "Physical
banks".2 Ranks module
NC
NC
I
—
Not Connected
Note:1-rank module
108
RAS
SSTL
Row Address Strobe
When sampled at the cross point of the rising edge of
CK,and falling edge of CK, RAS, CAS and WE define
the operation to be executed by the SDRAM.
113
109
CAS
WE
I
I
SSTL
SSTL
Column Address Strobe
Write Enable
Data Sheet
5
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Pin Configuration and Block Diagrams
Table 6
Pin Configuration of SO-DIMM (cont’d)
Pin or Ball No.
Name Pin
Buffer Function
Type Type
Address Signals
107
106
BA0
BA1
I
SSTL
SSTL
Bank Address Bus 2:0
Selects which DDR2 SDRAM internal bank of four or
eight is activated.
I
85
BA2
I
SSTL
Bank Address Bus 2
Greater than 512Mb DDR2 SDRAMS
NC
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
AP
A11
NC
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
Less than 1Gb DDR2 SDRAMS
102
101
100
99
I
I
I
I
I
I
I
I
I
I
I
I
I
Address Bus 12:0
During a Bank Activate command cycle, defines the
row address when sampled at the crosspoint of the
rising edge of CK and falling edge of CK. During a
Read or Write command cycle, defines the column
address when sampled at the cross point of the rising
edge of CK and falling edge of CK. In addition to the
column address, AP is used to invoke autoprecharge
operation at the end of the burst read or write cycle. If
AP is HIGH, autoprecharge is selected and BA0-BAn
defines the bank to be precharged. If AP is LOW,
autoprecharge is disabled. During a Precharge
command cycle, AP is used in conjunction with BA0-
BAn to control which bank(s) to precharge. If AP is
HIGH, all banks will be precharged regardless of the
state of BA0-BAn inputs. If AP is LOW, then BA0-BAn
are used to define which bank to precharge.
98
97
94
92
93
91
105
90
89
A12
A13
NC
I
SSTL
SSTL
—
Address Signal 12
Note:Module based on 256 Mbit or larger dies
Address Signal 13
116
I
Note:1 Gbit based module
NC
Not Connected
Note:Module based on 512 Mbit or smaller dies
Data Signals
5
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
Data Bus 63:0
7
Note:Data Input/Output pins
17
19
4
6
14
16
23
25
35
37
Data Sheet
6
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Pin Configuration and Block Diagrams
Table 6
Pin Configuration of SO-DIMM (cont’d)
Pin or Ball No.
Name Pin
Type Type
I/O SSTL
I/O SSTL
Buffer Function
20
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
Data Bus 63:0
Data Input/Output pins
22
36
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
38
43
45
55
57
44
46
56
58
61
63
73
75
62
64
74
76
123
125
135
137
124
126
134
136
141
143
151
153
140
142
152
154
157
159
173
175
Data Sheet
7
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Pin Configuration and Block Diagrams
Table 6
Pin Configuration of SO-DIMM (cont’d)
Pin or Ball No.
Name Pin
Type Type
I/O SSTL
I/O SSTL
Buffer Function
158
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
Data Bus 63:0
160
174
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
176
179
181
189
191
180
182
192
194
Data Strobe Signals
13
DQS0 I/O
DQS0 I/O
DQS1 I/O
DQS1 I/O
DQS2 I/O
DQS2 I/O
DQS3 I/O
DQS3 I/O
DQS4 I/O
DQS4 I/O
DQS5 I/O
DQS5 I/O
DQS6 I/O
DQS6 I/O
DQS7 I/O
DQS7 I/O
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
Data Strobe Bus 7:0
The data strobes, associated with one data byte,
sourced with data transfers. In Write mode, the data
strobe is sourced by the controller and is centered in
the data window. In Read mode the data strobe is
sourced by the DDR2 SDRAM and is sent at the
leading edge of the data window. DQS signals are
complements, and timing is relative to the crosspoint
of respective DQS and DQS. If the module is to be
operated in single ended strobe mode, all DQS
signals must be tied on the system board to VSS and
DDR2 SDRAM mode registers programmed
appropriately.
11
31
29
51
49
70
68
131
129
148
146
169
167
188
186
Data Mask Signals
10
DM0
DM1
DM2
DM3
DM4
DM5
DM6
DM7
I
I
I
I
I
I
I
I
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
Data Mask Bus 7:0
The data write masks, associated with one data byte.
In Write mode, DM operates as a byte mask by
allowing input data to be written if it is LOW but blocks
the write operation if it is HIGH. In Read mode, DM
lines have no effect.
26
52
67
130
147
170
185
EEPROM
Data Sheet
8
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Pin Configuration and Block Diagrams
Table 6
Pin Configuration of SO-DIMM (cont’d)
Pin or Ball No.
Name Pin
Buffer Function
Type Type
197
SCL
SDA
I
CMOS Serial Bus Clock
This signal is used to clock data into and out of the
SPD EEPROM.
195
I/O
OD
Serial Bus Data
This is a bidirectional pin used to transfer data into or
out of the SPD EEPROM. A resistor must be
connected from SDA to VDDSPD on the motherboard to
act as a pull-up.
198
200
SA0
SA1
I
I
CMOS Serial Address Select Bus 2:0
Address pins used to select the Serial Presence
Detect base address.
CMOS
Power Supplies
1
VREF
AI
—
—
I/O Reference Voltage
Reference voltage for the SSTL-18 inputs.
199
VDDSPD PWR
EEPROM Power Supply
Power supplies for core, I/O, Serial Presence Detect,
and ground for the module.
81,82,87,88,95,96,103,104,
111,112,117,118
VDD
PWR
GND
—
—
Power Supply
Power supplies for core, I/O, Serial Presence Detect,
and ground for the module.
2,3,8,9,12,15,18,21,24,27,28, VSS
33,34,39,40,41,42,47,48,53,
54,59,60,65,66,71,72,77,78,
121,122,127,128,132,133,138,
139,144,145,149,150,155,156,
, 161,162,165,171,172,177,
178,183,184,187,190,193,196
Ground Plane
Power supplies for core, I/O, Serial Presence Detect,
and ground for the module.
Other Pins
114
119
ODT0
I
I
SSTL
SSTL
On-Die Termination Control 1:0
ODT1
On-Die Termination Control 1
Asserts on-die termination for DQ, DM, DQS, and
DQS signals if enabled via the DDR2 SDRAM mode
register.
Note:2 Rank modules
Not Connected
NC
NC
NC
NC
—
—
Note:1 Rank modules
50,69,83,84,120,163,168
Not connected
Pins not connected on Infineon SO-DIMMs
Table 7
Abbreviations for Pin Type
Abbreviation
Description
I
Standard input-only pin. Digital levels.
Output. Digital levels.
O
I/O
I/O is a bidirectional input/output signal.
Data Sheet
9
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Pin Configuration and Block Diagrams
Table 7
Abbreviations for Pin Type (cont’d)
Abbreviation
Description
Input. Analog levels.
Power
AI
PWR
GND
NC
Ground
Not Connected
Table 8
Abbreviation
SSTL
Abbreviations for Buffer Type
Description
Serial Stub Terminated Logic (SSTL_18)
Low Voltage CMOS
LV-CMOS
CMOS
CMOS Levels
OD
Open Drain. The corresponding pin has 2 operational states, active low and
tristate, and allows multiple devices to share as a wire-OR.
Data Sheet
10
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Pin Configuration and Block Diagrams
62%& ꢇ 0IN ꢀꢀꢁ
$1ꢀ ꢇ 0IN ꢀꢀꢈ
633 ꢇ 0IN ꢀꢀꢊ
0IN ꢀꢀꢃ ꢇ
0IN ꢀꢀꢄ ꢇ
0IN ꢀꢁꢀ ꢇ
0IN ꢀꢁꢂ ꢇ
0IN ꢀꢁꢅ ꢇ
0IN ꢀꢃꢃ ꢇ
0IN ꢀꢃꢄ ꢇ
0IN ꢀꢆꢀ ꢇ
0IN ꢀꢆꢂ ꢇ
0IN ꢀꢆꢅ ꢇ
633
633 ꢇ 0IN ꢀꢀꢆ
$1ꢁ ꢇ 0IN ꢀꢀꢉ
$13ꢀ ꢇ 0IN ꢀꢁꢁ
633 ꢇ 0IN ꢀꢁꢈ
0IN ꢀꢀꢂ ꢇ
$1ꢂ
$1ꢈ
$-ꢀ
$1ꢄ
633
0IN ꢀꢀꢅ ꢇ 633
0IN ꢀꢁꢃ ꢇ 633
0IN ꢀꢁꢄ ꢇ $1ꢉ
0IN ꢀꢃꢀ ꢇ $1ꢁꢃ
0IN ꢀꢃꢂ ꢇ 633
0IN ꢀꢃꢅ ꢇ 633
0IN ꢀꢆꢃ ꢇ #+ꢀ
0IN ꢀꢆꢄ ꢇ $1ꢁꢂ
0IN ꢀꢂꢀ ꢇ 633
$13ꢀ ꢇ 0IN ꢀꢁꢆ
$1ꢃ ꢇ 0IN ꢀꢁꢉ
633 ꢇ 0IN ꢀꢃꢁ
$1ꢆ ꢇ 0IN ꢀꢁꢊ
$1ꢅ ꢇ 0IN ꢀꢃꢆ
633 ꢇ 0IN ꢀꢃꢉ
$1ꢁꢆ
$-ꢁ
#+ꢀ
633
$1ꢊ ꢇ 0IN ꢀꢃꢈ
$13ꢁ ꢇ 0IN ꢀꢃꢊ
633 ꢇ 0IN ꢀꢆꢆ
$13ꢁ ꢇ 0IN ꢀꢆꢁ
$1ꢁꢀ ꢇ 0IN ꢀꢆꢈ
633 ꢇ 0IN ꢀꢆꢊ
$1ꢁꢁ ꢇ 0IN ꢀꢆꢉ
$1ꢁꢈ
633 ꢇ 0IN ꢀꢂꢁ
$1ꢁꢉ ꢇ 0IN ꢀꢂꢈ
$13ꢃ ꢇ 0IN ꢀꢂꢊ
633 ꢇ 0IN ꢀꢈꢆ
0IN ꢀꢂꢃ ꢇ 633
0IN ꢀꢂꢄ ꢇ $1ꢃꢁ
0IN ꢀꢈꢀ ꢇ .#
$1ꢁꢄ ꢇ 0IN ꢀꢂꢆ
633 ꢇ 0IN ꢀꢂꢉ
$13ꢃ ꢇ 0IN ꢀꢈꢁ
$1ꢁꢅ ꢇ 0IN ꢀꢈꢈ
633 ꢇ 0IN ꢀꢈꢊ
$1ꢃꢈ ꢇ 0IN ꢀꢄꢆ
$-ꢆ ꢇ 0IN ꢀꢄꢉ
633 ꢇ 0IN ꢀꢉꢁ
$1ꢃꢉ ꢇ 0IN ꢀꢉꢈ
#+%ꢀ ꢇ 0IN ꢀꢉꢊ
.# ꢇ 0IN ꢀꢅꢆ
0IN ꢀꢂꢂ ꢇ $1ꢃꢀ
0IN ꢀꢂꢅ ꢇ 633
0IN ꢀꢈꢃ ꢇ $-ꢃ
0IN ꢀꢈꢄ ꢇ $1ꢃꢃ
0IN ꢀꢄꢀ ꢇ 633
0IN ꢀꢈꢂ ꢇ 633
0IN ꢀꢈꢅ ꢇ $1ꢃꢆ
0IN ꢀꢄꢃ ꢇ $1ꢃꢅ
0IN ꢀꢄꢄ ꢇ 633
0IN ꢀꢉꢀ ꢇ $13ꢆ
0IN ꢀꢉꢂ ꢇ $1ꢆꢀ
0IN ꢀꢉꢅ ꢇ 633
$1ꢁꢊ ꢇ 0IN ꢀꢈꢉ
$1ꢃꢂ ꢇ 0IN ꢀꢄꢁ
633 ꢇ 0IN ꢀꢄꢈ
0IN ꢀꢄꢂ ꢇ $1ꢃꢊ
0IN ꢀꢄꢅ ꢇ $13ꢆ
0IN ꢀꢉꢃ ꢇ 633
.# ꢇ 0IN ꢀꢄꢊ
$1ꢃꢄ ꢇ 0IN ꢀꢉꢆ
633 ꢇ 0IN ꢀꢉꢉ
0IN ꢀꢉꢄ ꢇ $1ꢆꢁ
0IN ꢀꢅꢀ ꢇ .#ꢋ#+%ꢁ
0IN ꢀꢅꢂ ꢇ .#
0IN ꢀꢅꢅ ꢇ 6$$
0IN ꢀꢊꢃ ꢇ !ꢉ
6$$ ꢇ 0IN ꢀꢅꢁ
.#ꢋ"!ꢃ ꢇ 0IN ꢀꢅꢈ
0IN ꢀꢅꢃ ꢇ 6$$
0IN ꢀꢅꢄ ꢇ .#ꢋ!ꢁꢂ
6$$ ꢇ 0IN ꢀꢅꢉ
!ꢊ ꢇ 0IN ꢀꢊꢁ
!ꢁꢃ ꢇ 0IN ꢀꢅꢊ
!ꢅ ꢇ 0IN ꢀꢊꢆ
0IN ꢀꢊꢀ ꢇ !ꢁꢁ
0IN ꢀꢊꢂ ꢇ !ꢄ
6$$ ꢇ 0IN ꢀꢊꢈ
!ꢆ ꢇ 0IN ꢀꢊꢊ
0IN ꢀꢊꢄ ꢇ 6$$
0IN ꢁꢀꢀ ꢇ !ꢃ
!ꢈ ꢇ 0IN ꢀꢊꢉ
!ꢁ ꢇ 0IN ꢁꢀꢁ
0IN ꢀꢊꢅ ꢇ !ꢂ
0IN ꢁꢀꢃ ꢇ !ꢀ
6$$ ꢇ 0IN ꢁꢀꢆ
"!ꢀ ꢇ 0IN ꢁꢀꢉ
6$$ ꢇ 0IN ꢁꢁꢁ
0IN ꢁꢀꢂ ꢇ 6$$
0IN ꢁꢀꢅ ꢇ 2!3
0IN ꢁꢁꢃ ꢇ 6$$
0IN ꢁꢁꢄ ꢇ .#ꢋ!ꢁꢆ
0IN ꢁꢃꢀ ꢇ .#
!ꢁꢀꢋ!0 ꢇ 0IN ꢁꢀꢈ
7% ꢇ 0IN ꢁꢀꢊ
#!3 ꢇ 0IN ꢁꢁꢆ
6$$ ꢇ 0IN ꢁꢁꢉ
633 ꢇ 0IN ꢁꢃꢁ
0IN ꢁꢀꢄ ꢇ "!ꢁ
0IN ꢁꢁꢀ ꢇ 3ꢀ
0IN ꢁꢁꢂ ꢇ /$4ꢀ
0IN ꢁꢁꢅ ꢇ 6$$
0IN ꢁꢃꢃ ꢇ 633
0IN ꢁꢃꢄ ꢇ $1ꢆꢉ
0IN ꢁꢆꢀ ꢇ $-ꢂ
0IN ꢁꢆꢂ ꢇ $1ꢆꢅ
0IN ꢁꢆꢅ ꢇ 633
0IN ꢁꢂꢃ ꢇ $1ꢂꢈ
0IN ꢁꢂꢄ ꢇ $13ꢈ
0IN ꢁꢈꢀ ꢇ 633
0IN ꢁꢈꢂ ꢇ $1ꢂꢉ
0IN ꢁꢈꢅ ꢇ $1ꢈꢃ
0IN ꢁꢄꢃ ꢇ 633
0IN ꢁꢄꢄ ꢇ #+ꢁ
0IN ꢁꢉꢀ ꢇ $-ꢄ
0IN ꢁꢉꢂ ꢇ $1ꢈꢂ
.#ꢋ3ꢁ ꢇ 0IN ꢁꢁꢈ
.#ꢋ/$4ꢁ ꢇ 0IN ꢁꢁꢊ
$1ꢆꢃ ꢇ 0IN ꢁꢃꢆ
633 ꢇ 0IN ꢁꢃꢉ
0IN ꢁꢃꢂ ꢇ $1ꢆꢄ
0IN ꢁꢃꢅ ꢇ 633
0IN ꢁꢆꢃ ꢇ 633
0IN ꢁꢆꢄ ꢇ $1ꢆꢊ
0IN ꢁꢂꢀ ꢇ $1ꢂꢂ
0IN ꢁꢂꢂ ꢇ 633
0IN ꢁꢂꢅ ꢇ $13ꢈ
0IN ꢁꢈꢃ ꢇ $1ꢂꢄ
0IN ꢁꢈꢄ ꢇ 633
0IN ꢁꢄꢀ ꢇ $1ꢈꢆ
0IN ꢁꢄꢂ ꢇ #+ꢁ
0IN ꢁꢄꢅ ꢇ 633
0IN ꢁꢉꢃ ꢇ 633
0IN ꢁꢉꢄ ꢇ $1ꢈꢈ
$1ꢆꢆ ꢇ 0IN ꢁꢃꢈ
$13ꢂ ꢇ 0IN ꢁꢃꢊ
633 ꢇ 0IN ꢁꢆꢆ
$13ꢂ ꢇ 0IN ꢁꢆꢁ
$1ꢆꢂ ꢇ 0IN ꢁꢆꢈ
633 ꢇ 0IN ꢁꢆꢊ
$1ꢆꢈ ꢇ 0IN ꢁꢆꢉ
$1ꢂꢀ ꢇ 0IN ꢁꢂꢁ
633 ꢇ 0IN ꢁꢂꢈ
$1ꢂꢁ ꢇ 0IN ꢁꢂꢆ
$-ꢈ ꢇ 0IN ꢁꢂꢉ
$1ꢂꢃ ꢇ 0IN ꢁꢈꢁ
633 ꢇ 0IN ꢁꢈꢈ
633 ꢇ 0IN ꢁꢂꢊ
$1ꢂꢆ ꢇ 0IN ꢁꢈꢆ
$1ꢂꢅ ꢇ 0IN ꢁꢈꢉ
633 ꢇ 0IN ꢁꢄꢁ
$1ꢂꢊ ꢇ 0IN ꢁꢈꢊ
.# ꢇ 0IN ꢁꢄꢆ
633 ꢇ 0IN ꢁꢄꢈ
$13ꢄ ꢇ 0IN ꢁꢄꢉ
633 ꢇ 0IN ꢁꢉꢁ
$13ꢄ ꢇ 0IN ꢁꢄꢊ
$1ꢈꢀ ꢇ 0IN ꢁꢉꢆ
$1ꢈꢁ ꢇ 0IN ꢁꢉꢈ
633 ꢇ 0IN ꢁꢉꢉ
$1ꢈꢉ ꢇ 0IN ꢁꢅꢁ
0IN ꢁꢉꢅ ꢇ 633
0IN ꢁꢅꢃ ꢇ $1ꢄꢁ
$1ꢈꢄ ꢇ 0IN ꢁꢉꢊ
633 ꢇ 0IN ꢁꢅꢆ
0IN ꢁꢅꢀ ꢇ $1ꢄꢀ
0IN ꢁꢅꢂ ꢇ 633
$-ꢉ ꢇ 0IN ꢁꢅꢈ
$1ꢈꢅ ꢇ 0IN ꢁꢅꢊ
633 ꢇ 0IN ꢁꢊꢆ
0IN ꢁꢅꢄ ꢇ $13ꢉ
0IN ꢁꢊꢀ ꢇ 633
633 ꢇ 0IN ꢁꢅꢉ
$1ꢈꢊ ꢇ 0IN ꢁꢊꢁ
3$! ꢇ 0IN ꢁꢊꢈ
0IN ꢁꢅꢅ ꢇ $13ꢉ
0IN ꢁꢊꢃ ꢇ $1ꢄꢃ
0IN ꢁꢊꢄ ꢇ 633
0IN ꢁꢊꢂ ꢇ $1ꢄꢆ
0IN ꢁꢊꢅ ꢇ 3!ꢀ
3#, ꢇ 0IN ꢁꢊꢉ
6$$ 30$ ꢇ 0IN ꢁꢊꢊ
0IN ꢃꢀꢀ ꢇ 3!ꢁ
-004ꢀꢁꢂꢀ
Figure 1
Pin Configuration SO-DIMM (200 Pin)
Data Sheet
11
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Pin Configuration and Block Diagrams
2.2
Block Diagrams
"!ꢀ ꢋ "!ꢁ
"!ꢀ ꢋ "!ꢁꢌ 3$2!-S $ꢀ ꢋ $ꢇ
6$$ꢍ30$
6$$ꢊ6$$1
6$$ꢌ 30$ %%02/- %ꢀ
6$$ꢊ6$$1ꢌ 3$2!-S $ꢀ ꢋ $ꢇ
62%&ꢌ 3$2!-S $ꢀ ꢋ $ꢇ
633ꢌ 3$2!-S $ꢀ ꢋ $ꢇ
!ꢀ ꢋ !N
2!3
#!3
7%
!ꢀ ꢋ !Nꢌ 3$2!-S $ꢀ ꢋ $ꢇ
2!3ꢌ 3$2!-S $ꢀ ꢋ $ꢇ
#!3ꢌ 3$2!-S $ꢀ ꢋ $ꢇ
7%ꢌ 3$2!-S $ꢀ ꢋ $ꢇ
62%&
633
#+%ꢀ
#+%ꢁ
/$4ꢀ
/$4ꢁ
#+ꢀ
#+ꢀ
#+ꢁ
#+ꢁ
#+%ꢀꢌ 3$2!-S $ꢀ ꢋ $ꢄ
#+%ꢁꢌ 3$2!-S $ꢅ ꢋ $ꢇ
/$4ꢀꢌ 3$2!-S $ꢀ ꢋ $ꢄ
/$4ꢁꢌ 3$2!-S $ꢅ ꢋ $ꢇ
%ꢀ
3#,
3$!
!ꢀ
3#,
3$!
3!ꢀ
3!ꢁ
!ꢁ
ꢅ LOADS
ꢅ LOADS
!ꢃ
70
6SS
3ꢀ
3ꢁ
$ꢃ
$ꢀ
$ꢅ
$ꢂ
$-ꢀ
$13ꢀ
$13ꢀ
$1ꢀ
,$- #3
,$13
,$13
)ꢊ/ ꢀ
,$- #3
,$13
,$13
)ꢊ/ ꢀ
$-ꢅ
$13ꢅ
$13ꢅ
$1ꢄꢃ
$1ꢄꢄ
$1ꢄꢅ
$1ꢄꢆ
$1ꢄꢂ
$1ꢄꢇ
$1ꢄꢈ
$1ꢄꢉ
$-ꢆ
$13ꢆ
$13ꢆ
$1ꢅꢀ
$1ꢅꢁ
$1ꢅꢃ
$1ꢅꢄ
$1ꢅꢅ
$1ꢅꢆ
$1ꢅꢂ
$1ꢅꢇ
,$- #3
,$- #3
,$13
,$13
)ꢊ/ ꢀ
,$13
,$13
)ꢊ/ ꢀ
)ꢊ/ ꢁ
)ꢊ/ ꢃ
)ꢊ/ ꢄ
)ꢊ/ ꢅ
)ꢊ/ ꢆ
)ꢊ/ ꢂ
)ꢊ/ ꢇ
5$-
5$13
5$13
)ꢊ/ꢈ
$1ꢁ
)ꢊ/ ꢁ
)ꢊ/ ꢁ
)ꢊ/ ꢁ
$1ꢃ
)ꢊ/ ꢃ
)ꢊ/ ꢃ
)ꢊ/ ꢃ
$1ꢄ
)ꢊ/ ꢄ
)ꢊ/ ꢄ
)ꢊ/ ꢄ
$1ꢅ
)ꢊ/ ꢅ
)ꢊ/ ꢅ
)ꢊ/ ꢅ
$1ꢆ
)ꢊ/ ꢆ
)ꢊ/ ꢆ
)ꢊ/ ꢆ
$1ꢂ
)ꢊ/ ꢂ
)ꢊ/ ꢂ
)ꢊ/ ꢂ
$1ꢇ
)ꢊ/ ꢇ
)ꢊ/ ꢇ
)ꢊ/ ꢇ
$-ꢁ
5$-
5$13
5$13
)ꢊ/ꢈ
5$-
5$13
5$13
)ꢊ/ꢈ
5$-
5$13
5$13
)ꢊ/ꢈ
$13ꢁ
$13ꢁ
$1ꢈ
$1ꢉ
)ꢊ/ꢉ
)ꢊ/ꢉ
)ꢊ/ꢉ
)ꢊ/ꢉ
$1ꢁꢀ
$1ꢁꢁ
$1ꢁꢃ
$1ꢁꢄ
$1ꢁꢅ
$1ꢁꢆ
)ꢊ/ꢁꢀ
)ꢊ/ꢁꢁ
)ꢊ/ꢁꢃ
)ꢊ/ꢁꢄ
)ꢊ/ꢁꢅ
)ꢊ/ꢁꢆ
)ꢊ/ꢁꢀ
)ꢊ/ꢁꢁ
)ꢊ/ꢁꢃ
)ꢊ/ꢁꢄ
)ꢊ/ꢁꢅ
)ꢊ/ꢁꢆ
)ꢊ/ꢁꢀ
)ꢊ/ꢁꢁ
)ꢊ/ꢁꢃ
)ꢊ/ꢁꢄ
)ꢊ/ꢁꢅ
)ꢊ/ꢁꢆ
)ꢊ/ꢁꢀ
)ꢊ/ꢁꢁ
)ꢊ/ꢁꢃ
)ꢊ/ꢁꢄ
)ꢊ/ꢁꢅ
)ꢊ/ꢁꢆ
$ꢁ
$ꢆ
$ꢄ
$ꢇ
$-ꢃ
$13ꢃ
$13ꢃ
$1ꢁꢂ
$1ꢁꢇ
$1ꢁꢈ
$1ꢁꢉ
$1ꢃꢀ
$1ꢃꢁ
$1ꢃꢃ
$1ꢃꢄ
$-ꢄ
$13ꢄ
$13ꢄ
$1ꢃꢅ
$1ꢃꢆ
$1ꢃꢂ
$1ꢃꢇ
$1ꢃꢈ
$1ꢃꢉ
$1ꢄꢀ
$1ꢄꢁ
,$- #3
,$13
,$13
)ꢊ/ ꢀ
,$- #3
,$13
,$13
)ꢊ/ ꢀ
$-ꢂ
$13ꢂ
$13ꢂ
$1ꢅꢈ
$1ꢅꢉ
$1ꢆꢀ
$1ꢆꢁ
$1ꢆꢃ
$1ꢆꢄ
$1ꢆꢅ
$1ꢆꢆ
$-ꢇ
$13ꢇ
$13ꢇ
$1ꢆꢂ
$1ꢆꢇ
$1ꢆꢈ
$1ꢆꢉ
$1ꢂꢀ
$1ꢂꢁ
$1ꢂꢃ
$1ꢂꢄ
,$- #3
,$13
,$13
)ꢊ/ ꢀ
,$- #3
,$13
,$13
)ꢊ/ ꢀ
)ꢊ/ ꢁ
)ꢊ/ ꢁ
)ꢊ/ ꢁ
)ꢊ/ ꢁ
)ꢊ/ ꢃ
)ꢊ/ ꢃ
)ꢊ/ ꢃ
)ꢊ/ ꢃ
)ꢊ/ ꢄ
)ꢊ/ ꢄ
)ꢊ/ ꢄ
)ꢊ/ ꢄ
)ꢊ/ ꢅ
)ꢊ/ ꢅ
)ꢊ/ ꢅ
)ꢊ/ ꢅ
)ꢊ/ ꢆ
)ꢊ/ ꢆ
)ꢊ/ ꢆ
)ꢊ/ ꢆ
)ꢊ/ ꢂ
)ꢊ/ ꢂ
)ꢊ/ ꢂ
)ꢊ/ ꢂ
)ꢊ/ ꢇ
)ꢊ/ ꢇ
)ꢊ/ ꢇ
)ꢊ/ ꢇ
5$-
5$13
5$13
)ꢊ/ꢈ
5$-
5$13
5$13
)ꢊ/ꢈ
5$-
5$13
5$13
)ꢊ/ꢈ
5$-
5$13
5$13
)ꢊ/ꢈ
)ꢊ/ꢉ
)ꢊ/ꢉ
)ꢊ/ꢉ
)ꢊ/ꢉ
)ꢊ/ꢁꢀ
)ꢊ/ꢁꢁ
)ꢊ/ꢁꢃ
)ꢊ/ꢁꢄ
)ꢊ/ꢁꢅ
)ꢊ/ꢁꢆ
)ꢊ/ꢁꢀ
)ꢊ/ꢁꢁ
)ꢊ/ꢁꢃ
)ꢊ/ꢁꢄ
)ꢊ/ꢁꢅ
)ꢊ/ꢁꢆ
)ꢊ/ꢁꢀ
)ꢊ/ꢁꢁ
)ꢊ/ꢁꢃ
)ꢊ/ꢁꢄ
)ꢊ/ꢁꢅ
)ꢊ/ꢁꢆ
)ꢊ/ꢁꢀ
)ꢊ/ꢁꢁ
)ꢊ/ꢁꢃ
)ꢊ/ꢁꢄ
)ꢊ/ꢁꢅ
)ꢊ/ꢁꢆ
-0"4ꢀꢁꢂꢀ
Figure 2
Block Diagram Raw Card A SO-DIMM (×64, 2 Ranks, ×16)
Notes
2. S0, S1, BAn, An, RAS, CAS, WE, ODTO, ODT1,
CKEO, CKE1 resistors are 3 Ω ±5 %
1. DQ, DQS, DM resistors are 22 Ω ±5 %
Data Sheet
12
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Pin Configuration and Block Diagrams
"!ꢀ ꢋ "!ꢂꢌ 3$2!-S $ꢀ ꢋ $ꢈ
!ꢀ ꢋ !Nꢌ 3$2!-S $ꢀ ꢋ $ꢈ
2!3ꢌ 3$2!-S $ꢀ ꢋ $ꢈ
#!3ꢌ 3$2!-S $ꢀ ꢋ $ꢈ
7%ꢌ 3$2!-S $ꢀ ꢋ $ꢈ
#+%ꢌ 3$2!-S $ꢀ ꢋ $ꢄ
/$4ꢌ 3$2!-S $ꢀ ꢋ $ꢄ
"!ꢀ ꢋ "!ꢂ
!ꢀ ꢋ !N
2!3
6$$ꢍ30$
6$$ꢊ6$$1
6$$ꢌ 30$ %%02/- %ꢀ
6$$ꢊ6$$1ꢌ 3$2!-S $ꢀ ꢋ $ꢈ
62%&ꢌ 3$2!-S $ꢀ ꢋ $ꢈ
633ꢌ 3$2!-S $ꢀ ꢋ $ꢈ
62%&
633
#!3
7%
#+%ꢀ
/$4ꢀ
3ꢀ
$ꢃ
$ꢀ
#+ꢀ
#+ꢀ
#+ꢂ
#+ꢂ
$-ꢀ
$13ꢀ
$13ꢀ
$1ꢀ
,$- #3
,$13
,$13
)ꢊ/ ꢀ
$-ꢅ
$13ꢅ
$13ꢅ
$1ꢄꢃ
$1ꢄꢄ
$1ꢄꢅ
$1ꢄꢆ
$1ꢄꢇ
$1ꢄꢈ
$1ꢄꢉ
$1ꢄꢁ
$-ꢆ
$13ꢆ
$13ꢆ
$1ꢅꢀ
$1ꢅꢂ
$1ꢅꢃ
$1ꢅꢄ
$1ꢅꢅ
$1ꢅꢆ
$1ꢅꢇ
$1ꢅꢈ
,$- #3
,$13
,$13
)ꢊ/ ꢀ
ꢅ LOADS
ꢅ LOADS
$1ꢂ
)ꢊ/ ꢂ
)ꢊ/ ꢂ
%ꢀ
$1ꢃ
)ꢊ/ ꢃ
)ꢊ/ ꢃ
3#,
3$!
3!ꢀ
3!ꢂ
3#,
$1ꢄ
)ꢊ/ ꢄ
)ꢊ/ ꢄ
3$!
!ꢀ
$1ꢅ
)ꢊ/ ꢅ
)ꢊ/ ꢅ
$1ꢆ
)ꢊ/ ꢆ
)ꢊ/ ꢆ
!ꢂ
$1ꢇ
)ꢊ/ ꢇ
)ꢊ/ ꢇ
!ꢃ
$1ꢈ
)ꢊ/ ꢈ
)ꢊ/ ꢈ
70
$-ꢂ
5$-
5$13
5$13
)ꢊ/ꢉ
5$-
5$13
5$13
)ꢊ/ꢉ
$13ꢂ
$13ꢂ
$1ꢉ
6SS
$1ꢁ
)ꢊ/ꢁ
)ꢊ/ꢁ
$1ꢂꢀ
$1ꢂꢂ
$1ꢂꢃ
$1ꢂꢄ
$1ꢂꢅ
$1ꢂꢆ
)ꢊ/ꢂꢀ
)ꢊ/ꢂꢂ
)ꢊ/ꢂꢃ
)ꢊ/ꢂꢄ
)ꢊ/ꢂꢅ
)ꢊ/ꢂꢆ
)ꢊ/ꢂꢀ
)ꢊ/ꢂꢂ
)ꢊ/ꢂꢃ
)ꢊ/ꢂꢄ
)ꢊ/ꢂꢅ
)ꢊ/ꢂꢆ
$ꢂ
$ꢄ
$-ꢃ
$13ꢃ
$13ꢃ
$1ꢂꢇ
$1ꢂꢈ
$1ꢂꢉ
$1ꢂꢁ
$1ꢃꢀ
$1ꢃꢂ
$1ꢃꢃ
$1ꢃꢄ
$-ꢄ
$13ꢄ
$13ꢄ
$1ꢃꢅ
$1ꢃꢆ
$1ꢃꢇ
$1ꢃꢈ
$1ꢃꢉ
$1ꢃꢁ
$1ꢄꢀ
$1ꢄꢂ
,$- #3
,$13
,$13
)ꢊ/ ꢀ
$-ꢇ
$13ꢇ
$13ꢇ
$1ꢅꢉ
$1ꢅꢁ
$1ꢆꢀ
$1ꢆꢂ
$1ꢆꢃ
$1ꢆꢄ
$1ꢆꢅ
$1ꢆꢆ
$-ꢈ
$13ꢈ
$13ꢈ
$1ꢆꢇ
$1ꢆꢈ
$1ꢆꢉ
$1ꢆꢁ
$1ꢇꢀ
$1ꢇꢂ
$1ꢇꢃ
$1ꢇꢄ
,$- #3
,$13
,$13
)ꢊ/ ꢀ
)ꢊ/ ꢂ
)ꢊ/ ꢂ
)ꢊ/ ꢃ
)ꢊ/ ꢃ
)ꢊ/ ꢄ
)ꢊ/ ꢄ
)ꢊ/ ꢅ
)ꢊ/ ꢅ
)ꢊ/ ꢆ
)ꢊ/ ꢆ
)ꢊ/ ꢇ
)ꢊ/ ꢇ
)ꢊ/ ꢈ
)ꢊ/ ꢈ
5$-
5$13
5$13
)ꢊ/ꢉ
5$-
5$13
5$13
)ꢊ/ꢉ
)ꢊ/ꢁ
)ꢊ/ꢁ
)ꢊ/ꢂꢀ
)ꢊ/ꢂꢂ
)ꢊ/ꢂꢃ
)ꢊ/ꢂꢄ
)ꢊ/ꢂꢅ
)ꢊ/ꢂꢆ
)ꢊ/ꢂꢀ
)ꢊ/ꢂꢂ
)ꢊ/ꢂꢃ
)ꢊ/ꢂꢄ
)ꢊ/ꢂꢅ
)ꢊ/ꢂꢆ
-0"4ꢀꢀꢁꢀ
Figure 3
Block Diagram Raw Card C SO-DIMM (×64, 1Rank, ×16)
Notes
2. S0, S1, BAn, An, RAS, CAS, WE, ODTO, ODT1,
CKEO, CKE1 resistors are 3 Ω ±5 %
1. DQ, DQS, DM resistors are 22 Ω ±5 %
Data Sheet
13
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Pin Configuration and Block Diagrams
"!ꢀ ꢃ "!ꢄꢆ 3$2!-S $ꢀ ꢃ $ꢅꢇ
"!ꢀ ꢃ "!ꢄ
!ꢀ ꢃ !N
2!3
!ꢀ ꢃ !Nꢆ 3$2!-S $ꢀ ꢃ $ꢅꢇ
2!3ꢆ 3$2!-S $ꢀ ꢃ $ꢅꢇ
6$$ꢈ30$
6$$ꢍ6$$1
62%&
6$$ꢆ 30$ %%02/- %ꢀ
6$$ꢍ6$$1ꢆ 3$2!-S $ꢀ ꢃ $ꢅꢇ
62%&ꢆ 3$2!-S $ꢀ ꢃ $ꢅꢇ
633ꢆ 3$2!-S $ꢀ ꢃ $ꢅꢇ
#!3ꢆ 3$2!-S $ꢀ ꢃ $ꢅꢇ
#!3
7%ꢆ 3$2!-S $ꢀ ꢃ $ꢅꢇ
7%
#+% ꢀꢆ 3$2!-S $ꢀ ꢃ $ꢅꢈ $ꢉ ꢃ $ꢇꢈ $ꢅꢀ ꢃ $ꢅꢅꢈ $ꢅꢉ ꢃ $ꢅꢇ
#+% ꢅꢆ 3$2!-S $ꢄ ꢃ $ꢁꢈ $ꢊ ꢃ $ꢋꢈ $ꢅꢄ ꢃ $ꢅꢁ
/$4 ꢀꢆ 3$2!-S $ꢀ ꢃ $ꢅꢈ $ꢉ ꢃ $ꢇꢈ $ꢅꢀ ꢃ $ꢅꢅꢈ $ꢅꢉ ꢃ $ꢅꢇ
/$4 ꢅꢆ 3$2!-S $ꢄ ꢃ $ꢁꢈ $ꢊ ꢃ $ꢋꢈ $ꢅꢄ ꢃ $ꢅꢁ
#+% ꢀ
#+% ꢅ
/$4 ꢀ
/$4 ꢅ
633
3ꢀ
3ꢅ
$ꢀ
$ꢌ
$ꢋ
$ꢄ
$ꢁ
$ꢉ
$ꢅꢄ
$ꢅꢁ
$ꢊ
%ꢀ
$-ꢉ
$13ꢉ
$13ꢉ
$1ꢁꢄ
$1ꢁꢁ
$1ꢁꢉ
$1ꢁꢇ
$1ꢁꢊ
$1ꢁꢂ
$1ꢁꢌ
$1ꢁꢋ
$-ꢀ
$13ꢀ
$13ꢀ
$1ꢀ
$1ꢅ
$1ꢄ
$1ꢁ
$1ꢉ
$1ꢇ
$1ꢊ
$1ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
3#,
3$!
!ꢀ
3#,
3$!
3!ꢀ
3!ꢅ
3!ꢄ
633
!ꢅ
!ꢄ
70
#+ꢀ
#+ꢀ
ꢌ LOADS
ꢌ LOADS
ꢇꢎꢊ P&
ꢇꢎꢊ P&
$ꢅ
$ꢇ
#+ꢅ
#+ꢅ
$-ꢅ
$13ꢅ
$13ꢅ
$1ꢌ
$-ꢇ
$13ꢇ
$13ꢇ
$1ꢉꢀ
$1ꢉꢅ
$1ꢉꢄ
$1ꢉꢁ
$1ꢉꢉ
$1ꢉꢇ
$1ꢉꢊ
$1ꢉꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$1ꢋ
$1ꢅꢀ
$1ꢅꢅ
$1ꢅꢄ
$1ꢅꢁ
$1ꢅꢉ
$1ꢅꢇ
$ꢅꢀ
$ꢅꢉ
$-ꢄ
$13ꢄ
$13ꢄ
$1ꢅꢊ
$1ꢅꢂ
$1ꢅꢌ
$1ꢅꢋ
$1ꢄꢀ
$1ꢄꢅ
$1ꢄꢄ
$1ꢄꢁ
$-ꢊ
$13ꢊ
$13ꢊ
$1ꢉꢌ
$1ꢉꢋ
$1ꢇꢀ
$1ꢇꢅ
$1ꢇꢄ
$1ꢇꢁ
$1ꢇꢉ
$1ꢇꢇ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$ꢅꢅ
$ꢅꢇ
$ꢂ
$-ꢁ
$13ꢁ
$13ꢁ
$1ꢄꢉ
$1ꢄꢇ
$1ꢄꢊ
$1ꢄꢂ
$1ꢄꢌ
$1ꢄꢋ
$1ꢁꢀ
$1ꢁꢅ
$-ꢂ
$13ꢂ
$13ꢂ
$1ꢇꢊ
$1ꢇꢂ
$1ꢇꢌ
$1ꢇꢋ
$1ꢊꢀ
$1ꢊꢅ
$1ꢊꢄ
$1ꢊꢁ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
$- #3
$13
$13
)ꢍ/ ꢀ
)ꢍ/ ꢅ
)ꢍ/ ꢄ
)ꢍ/ ꢁ
)ꢍ/ ꢉ
)ꢍ/ ꢇ
)ꢍ/ ꢊ
)ꢍ/ ꢂ
-0"4ꢀꢁꢂꢀ
Figure 4
Block Diagram Raw Card F SO-DIMM (×64, 1Rank, ×8)
Notes
2. S0, S1, ODTO, ODT1, CKEO, CKE1 resistors are
3 Ω ±5 %
3. BAn, An, RAS, CAS, WE resistors are 10 Ω ±5 %
1. DQ, DQS, DM resistors are 22 Ω ±5 %
Data Sheet
14
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
3
Electrical Characteristics
3.1
Absolute Maximum Ratings
Table 9
Absolute Maximum Ratings
Symbol
Parameter
Values
Min.
– 0.5
– 1.0
– 0.5
5
Unit
Note/Test
Condition
1)
Max.
2.3
2.3
2.3
95
Voltage on any pins relative to VSS
Voltage on VDD relative to VSS
Voltage on VDDQ relative to VSS
VIN, VOUT
VDD
V
V
V
%
1)
1)
1)
VDDQ
Storage Humidity (without condensation) HSTG
1) Stresses greater than those listed may cause permanent damage to the device. This is a stress rating only, and device
functional operation at or above the conditions indicated is not implied. Exposure to absolute maximum rating conditions
for extended periods may affect reliability
3.2
DC Operating Conditions
Table 10
Operating Conditions
Parameter
Symbol
Values
Min.
0
Unit
Note
Max.
+65
+95
+100
105
90
Operating temperature (ambient)
DRAM Case Temperature
TOPR
TCASE
TSTG
°C
°C
°C
kPa
%
1)2)3)4)
5)
0
Storage Temperature
– 50
69
Barometric Pressure (operating & storage)
Operating Humidity (relative)
PBar
HOPR
10
1) DRAM Component Case Temperature is the surface temperature in the center on the top side of any of the DRAMs.
2) Within the DRAM Component Case Temperature Range all DRAM specifications will be supported
3) Above 85 °C DRAM Case Temperature the Auto-Refresh command interval has to be reduced to tREFI = 3.9 µs
4) Self-Refresh period is hard-coded in the DRAMs and therefore it is imperative that the system ensures the DRAM is below
85 °C Case Temperature before initiating Self-Refresh operation.
5) Up to 3000 m.
Data Sheet
15
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
Table 11
Supply Voltage Levels and DC Operating Conditions
Parameter
Symbol
Values
Min.
Unit
Note
Nom.
Max.
1.9
Device Supply Voltage
Output Supply Voltage
Input Reference Voltage
SPD Supply Voltage
VDD
1.7
1.8
V
1)
2)
VDDQ
VREF
VDDSPD
VIH (DC)
VIL (DC)
IL
1.7
1.8
1.9
V
0.49 x VDDQ
1.7
0.5 x VDDQ
0.51 x VDDQ
3.6
V
—
—
—
V
DC Input Logic High
V
REF + 0.125
V
V
5
DDQ + 0.3
V
DC Input Logic Low
– 0.30
– 5
REF – 0.125
V
3)
In / Output Leakage Current
µA
1)Under all conditions, VDDQ must be less than or equal to VDD
2)Peak to peak AC noise on VREF may not exceed ± 2% VREF (DC).VREF is also expected to track noise in VDDQ
3)Input voltage for any connector pin under test of 0 V ≤ VIN ≤ VDDQ + 0.3 V; all other pins at 0 V. Current is per pin
.
3.3
AC Characteristics
3.3.1
Speed Grade Definitions
Table 12
Speed Grade Definition Speed Bins DDR2-800E
Speed Grade
DDR2–800
–2.5
6–6–6
Min.
3.75
3.75
3
Unit
Note
IFX Sort Name
CAS-RCD-RP latencies
Parameter
tCK
—
ns
ns
ns
ns
ns
ns
ns
ns
Symbol
tCK
Max.
1)2)3)4)
1)2)3)4)
1)2)3)4)
1)2)3)4)
1)2)3)4)5)
1)2)3)4)
1)2)3)4)
1)2)3)4)
Clock Frequency
@ CL = 3
8
@ CL = 4
@ CL = 5
@ CL = 6
tCK
8
tCK
8
tCK
2.5
8
Row Active Time
Row Cycle Time
RAS-CAS-Delay
tRAS
tRC
tRCD
tRP
45
70000
—
60
15
—
Row Precharge Time
15
—
1) Timings are guaranteed with CK/CK differential Slew Rate of 2.0 V/ns. For DQS signals timings are guaranteed with a
differential Slew Rate of 2.0 V/ns in differential strobe mode and a Slew Rate of 1 V/ns in single ended mode. Timings are
further guaranteed for normal OCD drive strength (EMRS(1) A1 = 0) only.
2) The CK/CK input reference level (for timing reference to CK/CK) is the point at which CK and CK cross. The DQS / DQS,
RDQS / RDQS, input reference level is the crosspoint when in differential strobe mode
3) Inputs are not recognized as valid until VREF stabilizes. During the period before VREF stabilizes, CKE = 0.2 x VDDQ is
recognized as low.
4) The output timing reference voltage level is VTT.
5) tRAS.MAX is calculated from the maximum amount of time a DDR2 device can operate without a refresh command which is
equal to 9 x tREFI
.
Data Sheet
16
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
Table 13
Speed Grade Definition Speed Bins for DDR2-533C and DDR2-400B
Speed Grade
DDR2–533
–3.7
DDR2–400
–5
Unit
Note
IFX Sort Name
CAS-RCD-RP latencies
Parameter
4–4–4
3–3–3
tCK
—
ns
ns
ns
ns
ns
ns
ns
Symbol
tCK
Min.
5
Max.
Min.
5
Max.
1)2)3)4)
1)2)3)4)
1)2)3)4)
1)2)3)4)5)
1)2)3)4)
1)2)3)4)
1)2)3)4)
Clock Frequency
@ CL = 3
8
8
@ CL = 4
@ CL = 5
tCK
3.75
3.75
45
8
5
8
tCK
8
5
8
Row Active Time
Row Cycle Time
RAS-CAS-Delay
Row Precharge Time
tRAS
tRC
tRCD
tRP
70000
—
40
55
15
15
70000
—
60
15
—
—
15
—
—
1) Timings are guaranteed with CK/CK differential Slew Rate of 2.0 V/ns. For DQS signals timings are guaranteed with a
differential Slew Rate of 2.0 V/ns in differential strobe mode and a Slew Rate of 1 V/ns in single ended mode. Timings are
further guaranteed for normal OCD drive strength (EMRS(1) A1 = 0) only.
2) The CK/CK input reference level (for timing reference to CK/CK) is the point at which CK and CK cross. The DQS / DQS,
RDQS / RDQS, input reference level is the crosspoint when in differential strobe mode
3) Inputs are not recognized as valid until VREF stabilizes. During the period before VREF stabilizes, CKE = 0.2 x VDDQ is
recognized as low.
4) The output timing reference voltage level is VTT.
5) tRAS.MAX is calculated from the maximum amount of time a DDR2 device can operate without a refresh command which is
equal to 9 x tREFI
.
Data Sheet
17
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
3.3.2
AC Timing Parameters
Table 14
Timing Parameter by Speed Grade - DDR2-800
Parameter
Symbol
DDR2-800
Min.
Unit Note
1)2)3)4)5)6)
Max.
7)
DQ output access time from CK / CK
CAS A to CAS B command period
CK, CK high-level width
tAC
tCCD
tCH
tCKE
tCL
tDAL
tDELAY
–400
2
+400
—
ps
tCK
tCK
tCK
tCK
tCK
ns
0.45
3
0.55
—
CKE minimum high and low pulse width
CK, CK low-level width
0.45
WR + tRP
0.55
—
Auto-Precharge write recovery + precharge time
Minimum time clocks remain ON after CKE
asynchronously drops LOW
tIS + tCK + tIH ––
DQ and DM input hold time (differential data strobe)
DQ and DM input pulse width (each input)
DQS output access time from CK / CK
tDH(base)
tDIPW
—
––
ps
tCK
ps
tCK
ps
0.35
—
tDQSCK
tDQSL,H
tDQSQ
tDQSS
tDS(base)
tDSH
–350
+350
—
DQS input low (high) pulse width (write cycle)
DQS-DQ skew (for DQS & associated DQ signals)
Write command to 1st DQS latching transition
DQ and DM input setup time (differential data strobe)
DQS falling edge hold time from CK (write cycle)
DQS falling edge to CK setup time (write cycle)
Clock half period
0.35
—
—
– 0.25
+ 0.25 tCK
—
—
—
—
ps
0.2
tCK
tCK
tDSS
0.2
tHP
MIN. (tCL, tCH)
Data-out high-impedance time from CK / CK
Address and control input hold time
tHZ
—
tAC.MAX ps
tIH(base)
tIPW
—
—
—
ps
Address and control input pulse width
(each input)
0.6
tCK
Address and control input setup time
DQ low-impedance time from CK / CK
DQS low-impedance from CK / CK
Mode register set command cycle time
OCD drive mode output delay
tIS(base)
tLZ(DQ)
tLZ(DQS)
tMRD
—
—
ps
2 x tAC.MIN
tAC.MAX ps
tAC.MAX ps
tAC.MIN
2
0
—
tCK
tOIT
12
ns
Data output hold time from DQS
Data hold skew factor
tQH
t
HP – tQHS
—
tQHS
—
—
—
75
400
7.8
3.9
—
ps
µs
µs
ns
ns
tCK
tCK
ns
ns
8)
9)
Average periodic refresh Interval
tREFI
Auto-Refresh to Active/Auto-Refresh command period tRFC
Precharge-All (4 banks) command period
Read preamble
tRP
t
RP + 1tCK
—
tRPRE
tRPST
tRRD
0.9
0.40
7.5
10
1.1
0.60
—
Read postamble
10)
11)
Active bank A to Active bank B command period
—
Data Sheet
18
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
Table 14
Timing Parameter by Speed Grade - DDR2-800
Symbol
Parameter
DDR2-800
Min.
Unit Note
1)2)3)4)5)6)
Max.
7)
Internal Read to Precharge command delay
Write preamble
tRTP
7.5
—
ns
tWPRE
tWPST
tWR
0.35
0.40
15
—
tCK
tCK
ns
Write postamble
0.60
—
Write recovery time for write without Auto-Precharge
Write recovery time for write with Auto-Precharge
Internal Write to Read command delay
WR
t
WR/tCK
tCK
ns
tWTR
tXARD
7.5
2
—
—
Exit power down to any valid command
(other than NOP or Deselect)
tCK
Exit active power-down mode to Read command (slow tXARDS
exit, lower power)
8 – AL
2
—
—
tCK
tCK
Exit precharge power-down to any valid command (other tXP
than NOP or Deselect)
Exit Self-Refresh to non-Read command
Exit Self-Refresh to Read command
tXSNR
tXSRD
t
RFC +10
—
—
ns
200
tCK
1) For details and notes see the relevant INFINEON component data sheet
2) VDDQ = 1.8 V ± 0.1 V; VDD = 1.8 V ± 0.1 V. See notes 4)5)6)7)
3) Timing that is not specified is illegal and after such an event, in order to guarantee proper operation, the DRAM must be
powered down and then restarted through the specified initialization sequence before normal operation can continue.
4) Timings are guaranteed with CK/CK differential Slew Rate of 2.0 V/ns. For DQS signals timings are guaranteed with a
differential Slew Rate of 2.0 V/ns in differential strobe mode and a Slew Rate of 1 V/ns in single ended mode.
5) The CK/CK input reference level (for timing reference to CK/CK) is the point at which CK and CK cross.
The DQS/DQS, RDQS/RDQS, input reference level is the crosspoint when in differential strobe mode
6) Inputs are not recognized as valid until VREF stabilizes. During the period before VREF stabilizes, CKE = 0.2 x VDDQ is
recognized as low.
7) The output timing reference voltage level is VTT. See Chapter 8 for the reference load for timing measurements.
8) 0 ≤ TCASE ≤ 85 °C
9) 85 °C < TCASE ≤ 95 °C
10) x4 & x8
11) x16
Data Sheet
19
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
Table 15
Timing Parameter by Speed Grade - DDR2-533
Symbol
Parameter
DDR2–533
Min.
Unit Note1)2)
3)4)5)6)7)
Max.
+500
—
DQ output access time from CK / CK
CAS A to CAS B command period
CK, CK high-level width
tAC
–500
2
ps
tCCD
tCH
tCKE
tCL
tDAL
tDELAY
tCK
tCK
tCK
tCK
tCK
ns
0.45
0.55
—
CKE minimum high and low pulse width
CK, CK low-level width
3
0.45
0.55
—
Auto-Precharge write recovery + precharge time
WR + tRP
Minimum time clocks remain ON after CKE
asynchronously drops LOW
tIS + tCK + tIH ––
DQ and DM input hold time (differential data
strobe)
tDH(base)
225
–25
––
—
ps
ps
DQ and DM input hold time (single ended data
strobe)
tDH1(base)
DQ and DM input pulse width (each input)
DQS output access time from CK / CK
DQS input low (high) pulse width (write cycle)
tDIPW
0.35
—
tCK
ps
tCK
ps
tCK
ps
tDQSCK
tDQSL,H
–450
0.35
+450
—
DQS-DQ skew (for DQS & associated DQ signals) tDQSQ
—
300
Write command to 1st DQS latching transition
tDQSS
WL – 0.25
100
WL + 0.25
—
DQ and DM input setup time (differential data
strobe)
tDS(base)
DQ and DM input setup time (single ended data
strobe)
t
DS1(base)
–25
—
ps
DQS falling edge hold time from CK (write cycle) tDSH
0.2
—
—
tCK
tCK
DQS falling edge to CK setup time (write cycle)
Clock half period
tDSS
0.2
tHP
MIN. (tCL, tCH)
Data-out high-impedance time from CK / CK
Address and control input hold time
tHZ
—
tAC.MAX
ps
ps
tCK
tIH(base)
tIPW
375
0.6
—
Address and control input pulse width
(each input)
—
Address and control input setup time
DQ low-impedance time from CK / CK
DQS low-impedance from CK / CK
Mode register set command cycle time
OCD drive mode output delay
tIS(base)
tLZ(DQ)
tLZ(DQS)
tMRD
250
—
ps
ps
ps
tCK
ns
2 ° tAC.MIN
tAC.MAX
tAC.MAX
—
tAC.MIN
2
0
tOIT
12
Data output hold time from DQS
Data hold skew factor
tQH
t
HP – tQHS
—
tQHS
—
—
—
75
400
7.8
ps
8)
Average periodic refresh Interval
tREFI
µs
9)
3.9
µs
Auto-Refresh to Active/Auto-Refresh command
period
tRFC
tRP
—
ns
Precharge-All (4 banks) command period
t
RP + 1tCK
—
ns
Data Sheet
20
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
Table 15
Timing Parameter by Speed Grade - DDR2-533 (cont’d)
Parameter
Symbol
DDR2–533
Min.
0.9
Unit Note1)2)
3)4)5)6)7)
Max.
1.1
0.60
—
Read preamble
Read postamble
tRPRE
tRPST
tCK
tCK
0.40
7.5
10)
Active bank A to Active bank B command period tRRD
ns
1)11)
10
—
ns
Internal Read to Precharge command delay
Write preamble
tRTP
7.5
—
ns
tCK
tCK
ns
tWPRE
tWPST
tWR
0.35xtCK
0.40
15
—
Write postamble
0.60
—
Write recovery time for write without Auto-
Precharge
Write recovery time for write with Auto-Precharge WR
t
WR/tCK
tCK
ns
Internal Write to Read command delay
tWTR
7.5
2
—
—
Exit power down to any valid command
(other than NOP or Deselect)
tXARD
tCK
Exit active power-down mode to Read command tXARDS
(slow exit, lower power)
6 – AL
2
—
—
tCK
tCK
Exit precharge power-down to any valid command tXP
(other than NOP or Deselect)
Exit Self-Refresh to non-Read command
Exit Self-Refresh to Read command
tXSNR
tXSRD
t
RFC +10
—
—
ns
200
tCK
1) For details and notes see the relevant INFINEON component data sheet
2) VDDQ = 1.8 V ± 0.1 V; VDD = 1.8 V ± 0.1 V. See notes 4)5)6)7)
3) Timing that is not specified is illegal and after such an event, in order to guarantee proper operation, the DRAM must be
powered down and then restarted through the specified initialization sequence before normal operation can continue.
4) Timings are guaranteed with CK/CK differential Slew Rate of 2.0 V/ns. For DQS signals timings are guaranteed with a
differential Slew Rate of 2.0 V/ns in differential strobe mode and a Slew Rate of 1 V/ns in single ended mode.
5) The CK / CK input reference level (for timing reference to CK / CK) is the point at which CK and CK cross. The DQS / DQS,
RDQS/ RDQS, input reference level is the crosspoint when in differential strobe mode
6) Inputs are not recognized as valid until VREF stabilizes. During the period before VREF stabilizes, CKE = 0.2 x VDDQ is
recognized as low.
7) The output timing reference voltage level is VTT.
8) 0 ≤ TCASE ≤ 85 °C
9) 85 < TCASE ≤ 95 °C
10) x4 & x8
11) x16
Data Sheet
21
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
Table 16
Timing Parameter by Speed Grade - DDR2-400
Symbol
Parameter
DDR2-400
Min.
Unit Note
1)2)3)4)5)6)7)
Max.
+600
—
DQ output access time from CK / CK
CAS A to CAS B command period
CK, CK high-level width
tAC
tCCD
tCH
tCKE
tCL
tDAL
tDELAY
–600
2
ps
tCK
tCK
tCK
tCK
tCK
ns
0.45
0.55
—
CKE minimum high and low pulse width
CK, CK low-level width
3
0.45
0.55
—
Auto-Precharge write recovery + precharge time
WR + tRP
Minimum time clocks remain ON after CKE
asynchronously drops LOW
tIS + tCK + tIH ––
DQ and DM input hold time (differential data strobe)
DQ and DM input hold time (single-ended strobe)
DQ and DM input pulse width (each input)
DQS output access time from CK / CK
tDH(base)
275
––
ps
ps
tCK
ps
tCK
ps
t
DH1(base) 25
––
tDIPW
0.35
–500
0.35
—
—
tDQSCK
tDQSL,H
tDQSQ
tDQSS
tDS(base)
+500
—
DQS input low (high) pulse width (write cycle)
DQS-DQ skew (for DQS & associated DQ signals)
Write command to 1st DQS latching transition
DQ and DM input setup time (differential data strobe)
DQ and DM input setup time (single-ended strobe)
DQS falling edge hold time from CK (write cycle)
DQS falling edge to CK setup time (write cycle)
Clock half period
350
– 0.25
150
+ 0.25 tCK
—
—
—
—
ps
ps
tCK
tCK
t
DS1(base) 25
tDSH
tDSS
tHP
0.2
0.2
MIN. (tCL, tCH)
Data-out high-impedance time from CK / CK
Address and control input hold time
tHZ
—
tAC.MAX ps
tIH(base)
tIPW
475
0.6
—
—
ps
Address and control input pulse width
(each input)
tCK
Address and control input setup time
DQ low-impedance time from CK / CK
DQS low-impedance from CK / CK
Mode register set command cycle time
OCD drive mode output delay
tIS(base)
tLZ(DQ)
tLZ(DQS)
tMRD
350
—
ps
2 x tAC.MIN
tAC.MAX ps
tAC.MAX ps
tAC.MIN
2
0
—
tCK
tOIT
12
—
ns
Data output hold time from DQS
Data hold skew factor
tQH
tHP – tQHS
tQHS
—
—
—
75
450
7.8
3.9
—
ps
µs
µs
ns
ns
tCK
tCK
ns
ns
ns
8)
9)
Average periodic refresh Interval
tREFI
Auto-Refresh to Active/Auto-Refresh command period tRFC
Precharge-All (4 banks) command period
Read preamble
tRP
t
RP + 1tCK
—
tRPRE
tRPST
tRRD
0.9
0.40
7.5
10
1.1
0.60
—
Read postamble
10)
11)
Active bank A to Active bank B command period
—
Internal Read to Precharge command delay
Data Sheet
tRTP
7.5
—
22
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
Table 16
Timing Parameter by Speed Grade - DDR2-400
Symbol
Parameter
DDR2-400
Min.
Unit Note
1)2)3)4)5)6)7)
Max.
—
Write preamble
tWPRE
tWPST
tWR
0.35
tCK
tCK
ns
Write postamble
0.40
0.60
—
Write recovery time for write without Auto-Precharge
Write recovery time for write with Auto-Precharge
Internal Write to Read command delay
10
WR
t
WR/tCK
tCK
ns
tWTR
tXARD
7.5
2
—
—
Exit power down to any valid command
(other than NOP or Deselect)
tCK
Exit active power-down mode to Read command (slow tXARDS
exit, lower power)
6 – AL
2
—
—
tCK
tCK
Exit precharge power-down to any valid command
(other than NOP or Deselect)
tXP
Exit Self-Refresh to non-Read command
Exit Self-Refresh to Read command
tXSNR
tXSRD
t
RFC +10
—
—
ns
200
tCK
1) For details and notes see the relevant INFINEON component data sheet
2) VDDQ = 1.8 V ± 0.1 V; VDD = 1.8 V ± 0.1 V. See notes 4)5)6)7)
3) Timing that is not specified is illegal and after such an event, in order to guarantee proper operation, the DRAM must be
powered down and then restarted through the specified initialization sequence before normal operation can continue.
4) Timings are guaranteed with CK/CK differential Slew Rate of 2.0 V/ns. For DQS signals timings are guaranteed with a
differential Slew Rate of 2.0 V/ns in differential strobe mode and a Slew Rate of 1 V/ns in single ended mode.
5) The CK/CK input reference level (for timing reference to CK/CK) is the point at which CK and CK cross.
The DQS/DQS, RDQS/RDQS, input reference level is the crosspoint when in differential strobe mode
6) Inputs are not recognized as valid until VREF stabilizes. During the period before VREF stabilizes, CKE = 0.2 x VDDQ is
recognized as low.
7) The output timing reference voltage level is VTT. See Chapter 8 for the reference load for timing measurements.
8) 0 ≤ TCASE ≤ 85 °C
9) 85 °C < TCASE ≤ 95 °C
10) x4 & x8
11) x16
Data Sheet
23
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
3.3.3
ODT AC Electrical Characteristics
Table 17
ODT AC Electrical Characteristics and Operating Conditions for DDR2-800
Symbol Parameter / Condition
Values
Min.
2
Unit
Note
Max.
tAOND
tAON
ODT turn-on delay
2
tCK
ns
ns
tCK
ns
1)
ODT turn-on
tAC.MIN
t
AC.MAX + 0.7 ns
AC.MAX + 1 ns
tAONPD
tAOFD
tAOF
ODT turn-on (Power-Down Modes)
ODT turn-off delay
t
AC.MIN + 2 ns 2 tCK +
t
2.5
2.5
2)
ODT turn-off
tAC.MIN
tAC.MAX + 0.6 ns
tAOFPD
tANPD
tAXPD
ODT turn-off (Power-Down Modes)
tAC.MIN + 2 ns 2.5 tCK + tAC.MAX + 1 ns ns
ODT to Power Down Mode Entry Latency 3
ODT Power Down Exit Latency
—
—
tCK
tCK
8
1) ODT turn on time min. is when the device leaves high impedance and ODT resistance begins to turn on. ODT turn on time
max is when the ODT resistance is fully on. Both are measure from tAOND
2) ODT turn off time min. is when the device starts to turn off ODT resistance. ODT turn off time max is when the bus is in high
impedance. Both are measured from tAOFD
.
.
Table 18
ODT AC Characteristics and Operating Conditions for DDR2-533 and DDR2-400
Symbol Parameter / Condition
Values
Min.
2
Unit
Note
Max.
tAOND
tAON
ODT turn-on delay
2
tCK
ns
ns
tCK
ns
1)
ODT turn-on
tAC.MIN
t
AC.MAX + 1 ns
AC.MAX + 1 ns
tAONPD
tAOFD
tAOF
ODT turn-on (Power-Down Modes)
ODT turn-off delay
t
AC.MIN + 2 ns 2 tCK +
t
2.5
2.5
2)
ODT turn-off
tAC.MIN
tAC.MAX + 0.6 ns
tAOFPD
tANPD
tAXPD
ODT turn-off (Power-Down Modes)
tAC.MIN + 2 ns 2.5 tCK + tAC.MAX + 1 ns ns
ODT to Power Down Mode Entry Latency 3
ODT Power Down Exit Latency
—
—
tCK
tCK
8
1) ODT turn on time min. is when the device leaves high impedance and ODT resistance begins to turn on. ODT turn on time
max is when the ODT resistance is fully on. Both are measure from tAOND
2) ODT turn off time min. is when the device starts to turn off ODT resistance. ODT turn off time max is when the bus is in high
impedance. Both are measured from tAOFD
.
.
Data Sheet
24
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
3.4
IDD Specifications and Conditions
Table 19
I
DD Measurement Conditions 1)2)3)4)5)6)
Parameter
Symbol
Operating Current 0
IDD0
One bank Active - Precharge; tCK = tCK.MIN, tRC = tRC.MIN, tRAS = tRAS.MIN, CKE is HIGH, CS is HIGH
between valid commands. Address and control inputs are SWITCHING, Databus inputs are
SWITCHING.
Operating Current 1
IDD1
One bank Active - Read - Precharge; IOUT = 0 mA, BL = 4, tCK = tCK.MIN, tRC = tRC.MIN, tRAS = tRAS.MIN
,
t
RCD = tRCD.MIN, AL = 0, CL = CLMIN; CKE is HIGH, CS is HIGH between valid commands. Address and
control inputs are SWITCHING, Databus inputs are SWITCHING.
Precharge Standby Current
IDD2N
All banks idle; CS is HIGH; CKE is HIGH; tCK = tCK.MIN; Other control and address inputs are
SWITCHING, Data bus inputs are SWITCHING.
Precharge Power-Down Current
Other control and address inputs are STABLE, Data bus inputs are FLOATING.
IDD2P
IDD2Q
Precharge Quiet Standby Current
All banks idle; CS is HIGH; CKE is HIGH; tCK = tCK.MIN; Other control and address inputs are STABLE,
Data bus inputs are FLOATING.
Active Standby Current
IDD3N
Burst Read: All banks open; Continuous burst reads; BL = 4; AL = 0, CL = CLMIN; tCK = tCK.MIN
;
t
RAS = tRAS.MAX, tRP = tRP.MIN; CKE is HIGH, CS is HIGH between valid commands. Address inputs are
SWITCHING; Data Bus inputs are SWITCHING; IOUT = 0 mA.
Active Power-Down Current
All banks open; tCK = tCK.MIN, CKE is LOW; Other control and address inputs are STABLE, Data bus
inputs are FLOATING. MRS A12 bit is set to LOW (Fast Power-down Exit);
IDD3P(0)
IDD3P(1)
IDD4W
Active Power-Down Current
All banks open; tCK = tCK.MIN, CKE is LOW; Other control and address inputs are STABLE, Data bus
inputs are FLOATING. MRS A12 bit is set to HIGH (Slow Power-down Exit);
Operating Current
urst Write: All banks open; Continuous burst writes; BL = 4; AL = 0, CL = CLMIN; tCK = tCK.MIN
;
t
RAS = tRAS.MAX., tRP = tRP.MAX; CKE is HIGH, CS is HIGH between valid commands. Address inputs are
SWITCHING; Data Bus inputs are SWITCHING;
Burst Refresh Current
IDD5B
t
CK = tCK.MIN., Refresh command every tRFC = tRFC.MIN interval, CKE is HIGH, CS is HIGH between valid
commands, Other control and address inputs are SWITCHING, Data bus inputs are SWITCHING.
Distributed Refresh Current
IDD5D
t
CK = tCK.MIN., Refresh command every tRFC = tREFI interval, CKE is LOW and CS is HIGH between valid
commands, Other control and address inputs are SWITCHING, Data bus inputs are SWITCHING.
Data Sheet
25
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
Table 19
I
DD Measurement Conditions (cont’d)1)2)3)4)5)6)
Parameter
Symbol
Self-Refresh Current
IDD6
CKE ≤ 0.2 V; external clock off, CK and CK at 0 V; Other control and address inputs are FLOATING,
Data bus inputs are FLOATING. IDD6 current values are guaranteed up to TCASE of 85 °C max.
All Bank Interleave Read Current
IDD7
All banks are being interleaved at minimum tRC without violating tRRD using a burst length of 4. Control
and address bus inputs are STABLE during DESELECTS. Iout = 0 mA.
1) VDDQ = 1.8 V ± 0.1 V; VDD = 1.8 V ± 0.1 V
2) IDD specifications are tested after the device is properly initialized and IDD parameter are specified with ODT disabled.
3) Definitions for IDD see Table 20
4) IDD1, IDD4R and IDD7 current measurements are defined with the outputs disabled (IOUT = 0 mA). To achieve this on module
level the output buffers can be disabled using an EMRS(1) (Extended Mode Register Command) by setting A12 bit to
HIGH.
5) For two rank modules: for all active current measurements the other rank is in Precharge Power-Down Mode IDD2P
6) For details and notes see the relevant INFINEON component data sheet
Table 20
Parameter
LOW
Definitions for IDD
Description
VIN ≤ VIL(ac).MAX, HIGH is defined as VIN ≥ VIH(ac).MIN
inputs are stable at a HIGH or LOW level
inputs are VREF = VDDQ /2
STABLE
FLOATING
SWITCHING inputs are changing between HIGH and LOW every other clock (once per 2 cycles) for address
and control signals, and inputs changing between HIGH and LOW every other data transfer (once
per cycle) for DQ signals not including mask or strobes
Data Sheet
26
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
Table 21
IDD Specification for HYS64T[16000/32020/64021]HDL–2.5–A
Product Type
Unit
Notes1)
Organization
128 MB
x64
1 Rank
–2.5
Max.
300
340
200
20
256 MB
x64
2 Ranks
–2.5
Max.
320
360
400
40
512 MB
x64
2 Ranks
–2.5
Max.
640
Symbol
IDD0
2)
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
2)
IDD1
720
3)
IDD2N
800
3)
IDD2P
80
3)
IDD2Q
140
200
90
280
400
180
40
560
3)
IDD3N
800
3)
IDD3P(MRS= 0)
IDD3P(MRS= 1)
IDD4R
350
3)
20
80
2)
700
760
380
20
720
780
400
50
1040
1120
800
2)
IDD4W
IDD5B
2)
3)4)
3)4)
2)
IDD5D
100
IDD6
15
30
65
IDD7
680
700
1280
1) Calculated values from component data. ODT disabled. IDD1, IDD4R and IDD7 are defined with the outputs disabled
2) The other rank is in IDD2P Precharge Power-Down Standby Current mode
3) Both ranks are in the same IDD mode
4) Values for 0 °C ≤ TCASE ≤ 85 °C
Data Sheet
27
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
Table 22
IDD Specification for HYS64T16000GDL-3.7-A
Product Type
Organization
HYS64T16000HDL-3.7-A
Unit
Note1)
128 MB
×64
1 Rank
–3.7
Max.
220
240
140
20
Symbol
IDD0
2)
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
2)
IDD1
3)
IDD2N
3)
IDD2P
3)
IDD2Q
100
140
60
3)
IDD3N
3)
IDD3P(MRS= 0)
IDD3P(MRS= 1)
IDD4R
3)
20
2)
460
520
360
20
2)
IDD4W
IDD5B
2)
3)4)
3)4)
2)
IDD5D
IDD6
15
IDD7
600
1) Calculated values from component data. ODT disabled. IDD1, IDD4R, and IDD7 are defined with the outputs disabled.
2) The other rank is in IDD2P Precharge Power-Down Standby Current mode
3) Both ranks are in the same IDD mode
4) Values for 0 °C ≤ TCASE ≤ 85 °C
Data Sheet
28
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
Table 23
IDD Specification for HYS64T16000HDL-5-A
Product Type
Organization
HYS64T16000HDL-5-A
Unit
Note1)
128 MB
×64
1 Rank
–5
Symbol
IDD0
Max.
200
220
110
20
2)
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
2)
IDD1
3)
IDD2N
3)
IDD2P
3)
IDD2Q
80
3)
IDD3N
120
50
3)
IDD3P(MRS= 0)
IDD3P(MRS= 1)
IDD4R
3)
20
2)
360
420
340
20
2)
IDD4W
IDD5B
2)
3)4)
3)4)
2)
IDD5D
IDD6
15
IDD7
560
1) Calculated values from component data. ODT disabled. IDD1, IDD4R, and IDD7 are defined with the outputs disabled.
2) The other rank is in IDD2P Precharge Power-Down Standby Current mode
3) Both ranks are in the same IDD mode
4) Values for 0 °C ≤ TCASE ≤ 85 °C
Data Sheet
29
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Electrical Characteristics
3.4.1
IDD Test Conditions
For testing the IDD parameters, the timing parameters as in Table 24 are used.
Table 24
IDD Measurement Test Conditions for DDR2–400 and DDR2–533
Parameter
Symbol
–3.7
–5
Unit
DDR2–533C
DDR2–400B
CAS Latency
CL(IDD)
tCK(IDD)
tRCD(IDD)
tRC(IDD)
4
3
tCK
ns
ns
ns
ns
ns
ns
ns
ns
µs
Clock Cycle Time
3.75
15
60
7.5
10
5
Active to Read or Write delay
15
Active to Active / Auto-Refresh command period
55
Active bank A to Active bank B command delay ×81) tRRD(IDD)
×162) tRRD(IDD)
7.5
10
Active to Precharge Command
Active to Precharge Command
tRAS.MIN(IDD) 45
tRAS.MAX(IDD) 70000
40
70000
15
Precharge Command Period
tRP(IDD)
tREFI
15
Average periodic Refresh interval
1) ×4 & ×8 (1 kB page size)
7.8
7.8
2) ×16 (2 kB page size), not on 256M components
3.4.2
On Die Termination (ODT) Current
The ODT function adds additional current consumption current consumption for any terminated input pin,
to the DDR2 SDRAM when enabled by the EMRS(1). depends on the input pin is in tri-state or driving 0 or 1,
Depending on address bits A[6,2] in the EMRS(1) a as long a ODT is enabled during a given period of time.
“weak” or “strong” termination can be selected. The
Table 25
ODT current per terminated pin
Parameter
Symbol Min.
Typ.
Max. Unit
EMRS(1) State
Enabled ODT current per DQ
IODTO
5
6
7.5 mA/DQ A6 = 0, A2 = 1
ODT is HIGH; Data Bus inputs are FLOATING
2.5
7.5
10
5
3
3.75 mA/DQ A6 = 1, A2 = 0
11.25 mA/DQ A6 = 1, A2 = 1
9
Active ODT current per DQ
ODT is HIGH; worst case of Data Bus inputs are
STABLE or SWITCHING.
IODTT
12
6
15
mA/DQ A6 = 0, A2 = 1
mA/DQ A6 = 1, A2 = 0
7.5
15
18
22.5 mA/DQ A6 = 1, A2 = 0
Note:For power consumption calculations the ODT duty cycle has to be taken into account
Data Sheet
30
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
SPD Codes
4
SPD Codes
This chapter lists all hexadecimal byte values stored in the EEPROM of the products described in this data sheet.
SPD stands for serial presence detect. All values with XX in the table are module specific bytes which are defined
during production.
List of SPD Code Tables
•
•
Table 26 “SPD Codes for PC2–6400S–666” on Page 31
Table 27 “SPD Codes for PC2–4200S–444 and PC2–3200S–333” on Page 35
Table 26
SPD Codes for PC2–6400S–666
Product Type
Organization
128 MB
×64
256 MB
512 MB
×64
×64
1 Rank (×16)
2 Ranks (×16)
2 Ranks (×8)
Label Code
PC2–6400S–666 PC2–6400S–666 PC2–6400S–666
JEDEC SPD Revision
Byte# Description
Rev. 1.2
HEX
80
Rev. 1.2
HEX
80
Rev. 1.2
HEX
80
0
Programmed SPD Bytes in EEPROM
1
Total number of Bytes in EEPROM
Memory Type (DDR2)
Number of Row Addresses
Number of Column Addresses
DIMM Rank and Stacking Information
Data Width
08
08
08
2
08
08
08
3
0D
09
0D
09
0D
0A
61
4
5
60
61
6
40
40
40
7
Not used
00
00
00
8
Interface Voltage Level
05
05
05
9
t
t
CK @ CLMAX (Byte 18) [ns]
25
25
25
10
11
12
13
14
15
16
17
18
AC SDRAM @ CLMAX (Byte 18) [ns]
40
40
40
Error Correction Support (non-ECC, ECC) 00
00
00
Refresh Rate and Type
Primary SDRAM Width
Error Checking SDRAM Width
Not used
82
10
00
00
0C
04
70
82
82
10
08
00
00
00
00
Burst Length Supported
Number of Banks on SDRAM Device
Supported CAS Latencies
0C
04
0C
04
70
70
Data Sheet
31
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
SPD Codes
Table 26
SPD Codes for PC2–6400S–666 (cont’d)
Product Type
Organization
128 MB
×64
256 MB
512 MB
×64
×64
1 Rank (×16)
2 Ranks (×16)
2 Ranks (×8)
Label Code
PC2–6400S–666 PC2–6400S–666 PC2–6400S–666
JEDEC SPD Revision
Byte# Description
Rev. 1.2
HEX
01
Rev. 1.2
HEX
01
Rev. 1.2
HEX
01
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
DIMM Mechanical Characteristics
DIMM Type Information
DIMM Attributes
04
04
04
00
00
00
Component Attributes
03
03
03
t
t
t
t
t
t
t
t
CK @ CLMAX -1 (Byte 18) [ns]
AC SDRAM @ CLMAX -1 [ns]
CK @ CLMAX -2 (Byte 18) [ns]
AC SDRAM @ CLMAX -2 [ns]
RP.MIN [ns]
30
30
30
45
45
45
3D
50
3D
50
3D
50
3C
28
3C
28
3C
1E
3C
2D
40
RRD.MIN [ns]
RCD.MIN [ns]
3C
2D
20
3C
2D
20
RAS.MIN [ns]
Module Density per Rank
t
t
t
t
t
t
t
AS.MIN and tCS.MIN [ns]
AH.MIN and tCH.MIN [ns]
DS.MIN [ns]
15
15
15
22
22
22
05
05
05
DH.MIN [ns]
12
12
12
WR.MIN [ns]
3C
1E
1E
00
3C
1E
1E
00
3C
1E
1E
00
WTR.MIN [ns]
RTP.MIN [ns]
Analysis Characteristics
t
t
t
t
t
t
RC and tRFC Extension
RC.MIN [ns]
00
00
00
3C
4B
80
3C
4B
80
3C
4B
80
RFC.MIN [ns]
CK.MAX [ns]
DQSQ.MAX [ns]
QHS.MAX [ns]
14
14
14
1E
00
1E
00
1E
00
PLL Relock Time
Data Sheet
32
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
SPD Codes
Table 26
SPD Codes for PC2–6400S–666 (cont’d)
Product Type
Organization
128 MB
×64
256 MB
512 MB
×64
×64
1 Rank (×16)
2 Ranks (×16)
2 Ranks (×8)
Label Code
PC2–6400S–666 PC2–6400S–666 PC2–6400S–666
JEDEC SPD Revision
Byte# Description
Rev. 1.2
HEX
55
Rev. 1.2
HEX
55
Rev. 1.2
HEX
53
47
48
49
50
TCASE.MAX Delta / ∆T4R4W Delta
Psi(T-A) DRAM
82
82
82
∆T0 (DT0)
5B
5B
5B
∆T2N (DT2N, UDIMM) or ∆T2Q (DT2Q,
3E
3E
3E
RDIMM)
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
∆T2P (DT2P)
29
29
36
19
6C
17
2A
00
00
00
00
12
88
C1
00
00
00
00
00
00
00
xx
29
29
36
19
6C
17
2A
00
00
00
00
12
89
C1
00
00
00
00
00
00
00
xx
29
29
36
19
4E
17
26
00
00
00
00
12
74
C1
00
00
00
00
00
00
00
xx
∆T3N (DT3N)
∆T3P.fast (DT3P fast)
∆T3P.slow (DT3P slow)
∆T4R (DT4R) / ∆T4R4W Sign (DT4R4W)
∆T5B (DT5B)
∆T7 (DT7)
Psi(ca) PLL
Psi(ca) REG
∆TPLL (DTPLL)
∆TREG (DTREG) / Toggle Rate
SPD Revision
Checksum of Bytes 0-62
JEDEC ID Code of Infineon (1)
JEDEC ID Code of Infineon (2)
JEDEC ID Code of Infineon (3)
JEDEC ID Code of Infineon (4)
JEDEC ID Code of Infineon (5)
JEDEC ID Code of Infineon (6)
JEDEC ID Code of Infineon (7)
JEDEC ID Code of Infineon (8)
Module Manufacturer Location
Product Type, Char 1
36
36
36
Data Sheet
33
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
SPD Codes
Table 26
SPD Codes for PC2–6400S–666 (cont’d)
Product Type
Organization
128 MB
×64
256 MB
512 MB
×64
×64
1 Rank (×16)
2 Ranks (×16)
2 Ranks (×8)
Label Code
PC2–6400S–666 PC2–6400S–666 PC2–6400S–666
JEDEC SPD Revision
Byte# Description
Rev. 1.2
HEX
34
Rev. 1.2
HEX
34
Rev. 1.2
HEX
34
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
Product Type, Char 2
Product Type, Char 3
54
54
54
Product Type, Char 4
31
33
36
Product Type, Char 5
36
32
34
Product Type, Char 6
30
30
30
Product Type, Char 7
30
32
32
Product Type, Char 8
30
30
31
Product Type, Char 9
48
48
48
Product Type, Char 10
Product Type, Char 11
Product Type, Char 12
Product Type, Char 13
Product Type, Char 14
Product Type, Char 15
Product Type, Char 16
Product Type, Char 17
Product Type, Char 18
Module Revision Code
Test Program Revision Code
Module Manufacturing Date Year
Module Manufacturing Date Week
Module Serial Number
44
44
44
4C
32
4C
32
4C
32
2E
35
2E
35
2E
35
41
41
41
20
20
20
20
20
20
20
20
20
0x
0x
0x
xx
xx
xx
xx
xx
xx
xx
xx
xx
95 -
98
xx
xx
xx
99 -
127
Not used
00
00
00
Data Sheet
34
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
SPD Codes
Table 27
SPD Codes for PC2–4200S–444 and PC2–3200S–333
Product Type
Organization
128 MB
×64
128 MB
×64
1 Rank (×16)
1 Rank (×16)
Label Code
PC2–4200S–444 PC2–3200S–333
JEDEC SPD Revision
Rev. 1.1
HEX
80
Rev. 1.1
HEX
80
Byte#
0
Description
Programmed SPD Bytes in EEPROM
Total number of Bytes in EEPROM
Memory Type (DDR2)
Number of Row Addresses
Number of Column Addresses
DIMM Rank and Stacking Information
Data Width
1
08
08
2
08
08
3
0D
09
0D
09
4
5
60
60
6
40
40
7
Not used
00
00
8
Interface Voltage Level
05
05
9
t
t
CK @ CLMAX (Byte 18) [ns]
3D
50
50
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
AC SDRAM @ CLMAX (Byte 18) [ns]
60
Error Correction Support (non-ECC, ECC)
Refresh Rate and Type
00
00
82
82
Primary SDRAM Width
10
10
Error Checking SDRAM Width
Not used
00
00
00
00
Burst Length Supported
Number of Banks on SDRAM Device
Supported CAS Latencies
DIMM Mechanical Characteristics
DIMM Type Information
DIMM Attributes
0C
04
0C
04
38
38
00
00
04
04
00
00
Component Attributes
01
01
t
t
t
t
CK @ CLMAX -1 (Byte 18) [ns]
AC SDRAM @ CLMAX -1 [ns]
CK @ CLMAX -2 (Byte 18) [ns]
AC SDRAM @ CLMAX -2 [ns]
3D
50
50
60
50
50
60
60
Data Sheet
35
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
SPD Codes
Table 27
SPD Codes for PC2–4200S–444 and PC2–3200S–333 (cont’d)
Product Type
Organization
128 MB
×64
128 MB
×64
1 Rank (×16)
1 Rank (×16)
Label Code
PC2–4200S–444 PC2–3200S–333
JEDEC SPD Revision
Rev. 1.1
HEX
3C
28
Rev. 1.1
HEX
3C
28
Byte#
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
Description
t
t
t
t
RP.MIN [ns]
RRD.MIN [ns]
RCD.MIN [ns]
RAS.MIN [ns]
3C
2D
20
3C
28
Module Density per Rank
20
t
t
t
t
t
t
t
AS.MIN and tCS.MIN [ns]
AH.MIN and tCH.MIN [ns]
DS.MIN [ns]
25
35
37
47
10
15
DH.MIN [ns]
22
27
WR.MIN [ns]
3C
1E
1E
00
3C
28
WTR.MIN [ns]
RTP.MIN [ns]
1E
00
Analysis Characteristics
t
t
t
t
t
t
RC and tRFC Extension
RC.MIN [ns]
00
00
3C
4B
80
37
RFC.MIN [ns]
4B
80
CK.MAX [ns]
DQSQ.MAX [ns]
QHS.MAX [ns]
1E
28
23
2D
00
PLL Relock Time
CASE.MAX Delta / ∆T4R4W Delta
00
T
56
56
Psi(T-A) DRAM
7A
32
7A
2A
20
∆T0 (DT0)
∆T2N (DT2N, UDIMM) or ∆T2Q (DT2Q, RDIMM)
∆T2P (DT2P)
29
1F
1B
25
1F
17
∆T3N (DT3N)
∆T3P.fast (DT3P fast)
∆T3P.slow (DT3P slow)
1E
13
13
Data Sheet
36
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
SPD Codes
Table 27
SPD Codes for PC2–4200S–444 and PC2–3200S–333 (cont’d)
Product Type
Organization
128 MB
×64
128 MB
×64
1 Rank (×16)
1 Rank (×16)
Label Code
PC2–4200S–444 PC2–3200S–333
JEDEC SPD Revision
Rev. 1.1
HEX
2E
14
Rev. 1.1
HEX
28
Byte#
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
Description
∆T4R (DT4R) / ∆T4R4W Sign (DT4R4W)
∆T5B (DT5B)
13
∆T7 (DT7)
23
20
Psi(ca) PLL
00
00
Psi(ca) REG
00
00
∆TPLL (DTPLL)
00
00
∆TREG (DTREG) / Toggle Rate
SPD Revision
00
00
11
11
Checksum of Bytes 0-62
JEDEC ID Code of Infineon (1)
JEDEC ID Code of Infineon (2)
JEDEC ID Code of Infineon (3)
JEDEC ID Code of Infineon (4)
JEDEC ID Code of Infineon (5)
JEDEC ID Code of Infineon (6)
JEDEC ID Code of Infineon (7)
JEDEC ID Code of Infineon (8)
Module Manufacturer Location
Product Type, Char 1
Product Type, Char 2
Product Type, Char 3
Product Type, Char 4
Product Type, Char 5
Product Type, Char 6
Product Type, Char 7
Product Type, Char 8
Product Type, Char 9
Product Type, Char 10
47
9B
C1
00
C1
00
00
00
00
00
00
00
00
00
00
00
00
00
xx
xx
36
36
34
34
54
54
31
31
36
36
30
30
30
30
30
30
48
48
44
44
Data Sheet
37
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
SPD Codes
Table 27
SPD Codes for PC2–4200S–444 and PC2–3200S–333 (cont’d)
Product Type
Organization
128 MB
×64
128 MB
×64
1 Rank (×16)
1 Rank (×16)
Label Code
PC2–4200S–444 PC2–3200S–333
JEDEC SPD Revision
Rev. 1.1
HEX
4C
33
Rev. 1.1
HEX
4C
35
Byte#
83
Description
Product Type, Char 11
Product Type, Char 12
Product Type, Char 13
Product Type, Char 14
Product Type, Char 15
Product Type, Char 16
Product Type, Char 17
Product Type, Char 18
Module Revision Code
Test Program Revision Code
Module Manufacturing Date Year
Module Manufacturing Date Week
Module Serial Number
84
85
2E
37
41
86
20
87
41
20
88
20
20
89
20
20
90
20
20
91
1x
1x
92
xx
xx
93
xx
xx
94
xx
xx
95 -
98
xx
xx
99 -
127
Not used
00
00
Data Sheet
38
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Package Outlines
5
Package Outlines
ꢂꢇꢄꢂ
ꢆꢄꢉ -!8ꢄ
›ꢀꢄꢅ
ꢂꢆꢄꢂ
ꢅ
ꢅꢀꢀ
ꢊꢋꢄꢅꢈꢌ
›ꢀꢄꢅ
ꢊꢋꢄꢃꢈꢌ
›ꢀꢄꢅ
ꢅ
ꢅꢇꢄꢈꢈ
ꢀꢄꢅꢈ
›ꢀꢄꢅ
ꢋꢄꢇ
ꢊꢅꢄꢈꢌ
›ꢀꢄꢅ
›ꢀꢄꢅ
ꢅꢅꢄꢃ
›ꢀꢄꢅ
ꢃꢇꢄꢃ
ꢊꢅꢄꢉꢌ
ꢊꢋꢄꢃꢈꢌ
›ꢀꢄꢅ
ꢊꢋꢄꢅꢈꢌ
ꢋꢀꢀ
ꢋꢄꢃ
ꢅ
ꢅꢀꢅ
ꢋ -).ꢄ
$ETAIL OF CONTACTS
›ꢀꢄꢀꢆ
ꢀꢄꢃꢈ
›ꢀꢄꢅ
ꢀꢄꢂ
"URNISHEDꢍ NO BURR ALLOWED
',$ꢀꢁꢂꢃꢁ
Figure 5
Package Outline Raw Card A L-DIM-200-31
Data Sheet
39
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Package Outlines
ꢂꢈꢅꢂ
ꢇꢅꢄ -!8ꢅ
›ꢀꢅꢆ
ꢂꢇꢅꢂ
ꢆ
ꢆꢀꢀ
ꢊꢋꢅꢆꢉꢌ
›ꢀꢅꢆ
ꢊꢋꢅꢃꢉꢌ
›ꢀꢅꢆ
ꢆ
ꢆꢈꢅꢉꢉ
ꢀꢅꢆꢉ
›ꢀꢅꢆ
ꢋꢅꢈ
ꢊꢆꢅꢉꢌ
›ꢀꢅꢆ
›ꢀꢅꢆ
ꢆꢆꢅꢃ
›ꢀꢅꢆ
ꢃꢈꢅꢃ
ꢊꢆꢅꢄꢌ
ꢊꢋꢅꢃꢉꢌ
›ꢀꢅꢆ
ꢊꢋꢅꢆꢉꢌ
ꢋꢀꢀ
ꢋꢅꢃ
ꢆ
ꢆꢀꢆ
ꢋ -).ꢅ
$ETAIL OF CONTACTS
›ꢀꢅꢀꢇ
ꢀꢅꢃꢉ
›ꢀꢅꢆ
ꢀꢅꢂ
"URNISHEDꢍ NO BURR ALLOWED
',$ꢀꢁꢂꢃꢄ
Figure 6
Package Outline Raw Card C L-DIM-200-30
Data Sheet
40
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Package Outlines
ꢂꢃꢅꢂ
ꢇꢅꢉ -!8ꢅ
›ꢀꢅꢆ
ꢂꢇꢅꢂ
ꢆ
ꢆꢀꢀ
ꢊꢋꢅꢆꢄꢌ
›ꢀꢅꢆ
ꢊꢋꢅꢈꢄꢌ
›ꢀꢅꢆ
ꢆ
ꢆꢃꢅꢄꢄ
ꢀꢅꢆꢄ
›ꢀꢅꢆ
ꢋꢅꢃ
ꢊꢆꢅꢄꢌ
›ꢀꢅꢆ
›ꢀꢅꢆ
ꢆꢆꢅꢈ
›ꢀꢅꢆ
ꢈꢃꢅꢈ
ꢊꢆꢅꢉꢌ
ꢊꢋꢅꢈꢄꢌ
›ꢀꢅꢆ
ꢊꢋꢅꢆꢄꢌ
ꢋꢀꢀ
ꢋꢅꢈ
ꢆ
ꢆꢀꢆ
ꢋ -).ꢅ
$ETAIL OF CONTACTS
›ꢀꢅꢀꢇ
ꢀꢅꢈꢄ
›ꢀꢅꢆ
ꢀꢅꢂ
"URNISHEDꢍ NO BURR ALLOWED
',$ꢀꢁꢂꢃꢄ
Figure 7
Package Outline Raw Card F - L-DIM-200-34
Data Sheet
41
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
HYS64T[16/32/64]0xxxHDL–[2.5/3.7/5]–A
Small Outline DDR2 SDRAM Modules
Product Type Nomenclature (DDR2 DRAMs and DIMMs)
6
Product Type Nomenclature (DDR2 DRAMs and DIMMs)
Infineon’s nomenclature uses simple coding combined with some proprietary coding. Table 28 provides examples
for module and component product type number as well as the field number. The detailed field description together
with possible values and coding explanation is listed for modules in Table 29 and for components in Table 30.
Table 28
Nomenclature Fields and Examples
Field Number
Example for
1
2
3
T
T
4
5
6
7
0
0
8
9
10
–5
–5
11
Micro-DIMM
DDR2 DRAM
HYS
HYB
64
18
64
512
0
2
K
A
M
C
–A
16
1) Multiplying “Memory Density per I/O” with “Module Data
Width” and dividing by 8 for Non-ECC and 9 for ECC
modules gives the overall module memory density in
MBytes as listed in column “Coding”.
Table 29
DDR2 DIMM Nomenclature
Values Coding
Field Description
1
INFINEON
HYS
Constant
Modul Prefix
2
Module Data
Width [bit]
64
72
T
Non-ECC
ECC
Table 30
DDR2 DRAM Nomenclature
Values Coding
Field Description
3
4
DRAM
Technology
DDR2
1
2
3
4
INFINEON
Component Prefix
HYB
Constant
SSTL1.8
DDR2
Memory Density
per I/O [Mbit];
Module Density1)
32
256 MByte
512 MByte
1 GByte
Interface Voltage 18
[V]
64
DRAM
Technology
T
128
256
512
0 .. 9
2 GByte
Component
256
512
1G
2G
40
256 Mbit
512 Mbit
1 Gbit
2 Gbit
×4
4 GByte
Density [Mbit]
5
6
Raw Card
Generation
Look up table
Number of Module 0, 2, 4 1, 2, 4
Ranks
5+6 Number of I/Os
7
8
Product Variations 0 .. 9
Look up table
80
×8
Package,
A .. Z
Look up table
16
×16
Lead-Free Status
7
8
Product Variations 0 .. 9
Look up table
First
9
Module Type
D
SO-DIMM
Die Revision
A
B
C
M
Micro-DIMM
Registered
Second
R
9
Package,
FBGA,
U
Unbuffered
Lead-Free Status
lead-containing
–2.5
–3
–3S
–3.7
–5
–A
–B
PC2–6400 6–6–6
PC2–5300 4–4–4
PC2–5300 5–5–5
PC2–4200 4–4–4
PC2–3200 3–3–3
First
F
FBGA, lead-free
DDR2-800E 6-6-6
DDR2-667C 4-4-4
DDR2-667D 5-5-5
DDR2-533C 4-4-4
DDR2-400B 3-3-3
10
11
Speed Grade
Die Revision
10
Speed Grade
–2.5
–3
–3S
–3.7
–5
Second
Data Sheet
42
Rev. 1.1, 2005-06
02182004-HWZ1-64OM
w w w . i n f i n e o n . c o m
Published by Infineon Technologies AG
厂商 型号 描述 页数 下载

INFINEON

 		HYS64-72V2200GU-8 3.3V 2M ×64 /72- 1位BANK SDRAM模块3.3V 4M ×64 /72- 2位BANK SDRAM模块[ 3.3V 2M x 64/72-Bit 1 BANK SDRAM Module 3.3V 4M x 64/72-Bit 2 BANK SDRAM Module ] 17 页

INFINEON

 		HYS64-74V8200GU 3.3 V 8M ×64 /72- 1位银行SDRAM模块3.3 V 16M ×64 /72- 2位银行SDRAM模块[ 3.3 V 8M x 64/72-Bit 1 Bank SDRAM Module 3.3 V 16M x 64/72-Bit 2 Bank SDRAM Module ] 17 页

INFINEON

 		HYS6472V16200GU 3.3 V 16M ×64 /72-位SDRAM模块3.3 V 32M ×64 /72-位SDRAM模块3.3 V 64M ×64 /72-位SDRAM模块[ 3.3 V 16M x 64/72-Bit SDRAM Modules 3.3 V 32M x 64/72-Bit SDRAM Modules 3.3 V 64M x 64/72-Bit SDRAM Modules ] 17 页

INFINEON

 		HYS6472V4200GU 3.3V 4M ×64 /72- 1位BANK SDRAM模块3.3V 8M ×64 /72- 2位BANK SDRAM模块[ 3.3V 4M x 64/72-Bit 1 BANK SDRAM Module 3.3V 8M x 64/72-Bit 2 BANK SDRAM Module ] 15 页

INFINEON

 		HYS64D128020GBDL-6-A [ DDR DRAM Module, 128MX64, 0.7ns, CMOS, SO-DIMM-200 ] 11 页

ETC

 		HYS64D128020GBDL-7-A ？ 1GB （ 1024Mx64 ） PC2100 2银行？\n[ ?1GB (1024Mx64) PC2100 2-bank? ] 11 页

INFINEON

 		HYS64D128020GU-7-A 2.5 V 184针无缓冲DDR- SDRAM我模块[ 2.5 V 184-pin Unbuffered DDR-I SDRAM Modules ] 18 页

INFINEON

 		HYS64D128020GU-8-A 2.5 V 184针无缓冲DDR- SDRAM我模块[ 2.5 V 184-pin Unbuffered DDR-I SDRAM Modules ] 18 页

QIMONDA

 		HYS64D128020GU-8-A [ DDR DRAM Module, 128MX64, 0.8ns, CMOS, PDMA184 ] 18 页

INFINEON

 		HYS64D128021 200针的小型双列直插式内存模块[ 200-Pin Small Outline Dual-In-Line Memory Modules ] 23 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.273182s
