YV09T50-0G

型号：

YV09T50-0G

品牌：

BEL[ BEL FUSE INC. ]

页数：

13 页

PDF大小：

701 K

下载PDF手册

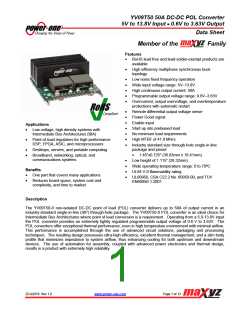

YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
Member of the
Family
Features
•
RoHS lead free and lead-solder-exempt products are
available
•
High efficiency multiphase synchronous buck
topology
•
•
•
•
•
Low noise fixed frequency operation
Wide input voltage range: 5V–13.8V
High continuous output current: 50A
Programmable output voltage range: 0.6V–3.63V
Overcurrent, output overvoltage, and overtemperature
protections with automatic restart
•
•
•
•
•
•
•
Remote differential output voltage sense
Power Good signal
Enable input
Applications
Start up into prebiased load
No minimum load requirements
High MTBF of 41.8 MHrs
•
Low voltage, high density systems with
Intermediate Bus Architectures (IBA)
•
Point-of-load regulators for high performance
DSP, FPGA, ASIC, and microprocessors
Industry standard size through-hole single-in-line
package and pinout
•
•
Desktops, servers, and portable computing
•
1.45”x0.725” (36.83mm x 18.41mm)
Broadband, networking, optical, and
communications systems
•
•
•
•
Low height of 1.115” (28.32mm)
Wide operating temperature range: 0 to 70ºC
UL94 V-0 flammability rating
Benefits
•
•
One part that covers many applications
UL60950, CSA C22.2 No. 60950-00, and TUV
EN60950-1:2001
Reduces board space, system cost and
complexity, and time to market
Description
The YV09T50-0 non-isolated DC-DC point of load (POL) converter delivers up to 50A of output current in an
industry-standard single-in-line (SIP) through-hole package. The YV09T50-0 POL converter is an ideal choice for
Intermediate Bus Architectures where point of load conversion is a requirement. Operating from a 5.0-13.8V input
the POL converter provides an extremely tightly regulated programmable output voltage of 0.6 V to 3.63V. The
POL converters offer exceptional thermal performance, even in high temperature environment with minimal airflow.
This performance is accomplished through the use of advanced circuit solutions, packaging and processing
techniques. The resulting design possesses ultra-high efficiency, excellent thermal management, and a slim body
profile that minimizes impedance to system airflow, thus enhancing cooling for both upstream and downstream
devices. The use of automation for assembly, coupled with advanced power electronics and thermal design,
results in a product with extremely high reliability.
ZD-02078 Rev 1.0
www.power-one.com
Page 1 of 13
YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
1. Ordering Information
Y
V
09
T
50
–
0
z
Product
Family
Profile
Input
Voltage
PCB
Mounting
Output
Current
Dash
ON/OFF Logic
RoHS compliance
No suffix - RoHS compliant
with Pb solder exemption1
G - RoHS compliant for all six
substances
POL
Converter
5V to
13.8V
Through-
hole
Vertical
50A
Positive Logic
______________________________________
1
The solder exemption refers to all the restricted materials except lead in solder. These materials are Cadmium (Cd), Hexavalent chromium
(Cr6+), Mercury (Hg), Polybrominated biphenyls (PBB), Polybrominated diphenylethers (PBDE), and Lead (Pb) used anywhere except in
solder.
Example: YV09T50-0G: YV09T50-0 POL converter with positive ON/OFF logic and lead-free solder.
2. Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings may cause performance degradation, adversely affect long-
term reliability, and cause permanent damage to the converter.
Parameter
Conditions/Description
Continuous
Min
-0.3
0
Max
15
Units
VDC
°C
Input Voltage
Ambient Temperature Range
Storage Temperature (Ts)
Operating
70
-55
125
°C
3. Environmental and Mechanical Specifications
Parameter
Conditions/Description
Min
Nom
Max
Units
Weight
25
grams
Calculated Per Telcordia Technologies SR-332
Method I Case 1
MTBF
41.8
MHrs
50% electrical stress, 40°C ambient
Lead Plating
YV09T50-0 and YV09T50-0G
100% Matte Tin
ZD-02078 Rev 1.0
www.power-one.com
Page 2 of 13
YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
4. Electrical Specifications
Specifications apply at the input voltage from 5V to 13.8V, output load from 0 to 50A, output voltage from 0.6V to
3.63V, 470µF external output capacitor, and ambient temperature from 0°C to 70°C unless otherwise noted.
4.1 Input Specifications
Parameter
Conditions/Description
Min
Nom
Max
Units
Input voltage (VIN)
VOUT≤0.55*VIN
5
12
13.8
VDC
Undervoltage Lockout
Turn-On Threshold
Input Voltage Ramping Up
4.25
3.75
4.5
4.75
4.25
VDC
VDC
Undervoltage Lockout
Turn-Off Threshold
Input Voltage Ramping Down
4.0
16
Standby Input Current
Maximum Input Current
VIN=12V, POL is disabled via ON/OFF
VIN=6V, VOUT=3.3V
mADC
ADC
32
Input Reflected Ripple Current
Peak-to-Peak
BW=5MHz to 20MHz, LSOURCE=1µH,
See Figure 19 for setup
60
mA
4.2 Output Specifications
Parameter
Conditions/Description
Min
Nom
Max
Units
Programmable with a resistor between
TRIM+ and TRIM- pins
0.6
3.63
VDC
Output Voltage Range (VOUT
)
Output Voltage Setpoint Accuracy,
VIN=12V, IOUT=IOUT MAX
0.1% trim resistor, room temperature
VIN=12V, IOUT=IOUT MAX
,
-0.8
-8
0.8
8
%VOUT
mVDC
VOUT≥1V
Output Voltage Setpoint Accuracy,
VOUT<1V
,
0.1% trim resistor, room temperature
Line Regulation, VOUT≥2.5V
Load Regulation, VOUT≥2.5V
Line Regulation, VOUT<2.5V
Load Regulation, VOUT<2.5V
VIN MIN to VIN MAX
0.3
0.6
9
%VOUT
%VOUT
mVDC
mVDC
0 to IOUT MAX
VIN MIN to VIN MAX
0 to IOUT MAX
12
Over operating input voltage, resistive
load, and temperature conditions until
the end of life
Output Voltage Regulation
-1.1
1.1
%VOUT
Output Voltage Peak-to-Peak
Ripple and Noise, BW=20MHz,
Full Load
VIN=12V, VOUT=0.6V
VIN=12V, VOUT=2.5V
VIN=12V, VOUT=3.3V
15
20
25
30
40
50
mV
mV
mV
VIN=12V, VOUT=3.3V
50 - 100% load step, Slew rate 10A/µs,
to 10% of peak deviation
Dynamic Regulation
Peak Deviation
Settling Time
mV
µs
130
80
Efficiency
VIN=12V
Full Load
VOUT=0.6V
VOUT=1.2V
VOUT=2.5V
VOUT=3.3V
72.8
83.4
90.5
92.3
%
%
%
%
Room temperature
Output Current (IOUT
)
VIN MIN to VIN MAX
0
50
ADC
ZD-02078 Rev 1.0
www.power-one.com
Page 3 of 13

YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
Parameter
Conditions/Description
Min
Nom
Max
Units
Turn-On Delay Time1
POL is Enabled
ON/OFF pin is pulled high
From VIN=VIN MIN to VOUT=0.1*VOUT.SET
0.5
1
ms
VIN=12V
Turn-On Delay Time1
POL is Disabled
From ON/OFF pin changing its state
from low to high until VOUT=0.1*VOUT.SET
0.5
1.4
1
ms
Rise Time1
COUT=0 µF, Resistive Load
From VOUT=0.1*VOUT.SET to
VOUT=0.9*VOUT.SET
3
ms
µF
Admissible Output Capacitance
VOUT≤2.5V
IOUT=IOUT MAX, Resistive load,
ESR>2.5mΩ
5,000
2,200
Admissible Output Capacitance
VOUT≥2.5V
IOUT=IOUT MAX, Resistive load,
ESR>2.5mΩ
µF
Switching Frequency
2 phases combined
900
kHz
__________________________
1
Total start-up time is the sum of the turn-on delay time and the rise time
4.3 Protection Specifications
Parameter
Conditions/Description
Output Overcurrent Protection
Min
Nom
Max
Units
Type
Auto-Restart
Inception Point
55
65
5.5
10
75
A
A
Output Short Circuit
Current (RMS value)
VOUT=2.5V, ROUT<0.01Ω
Autorestart Period
After IOUT drops below inception point
ms
Output Overvoltage Protection
Type
Auto-Restart
Threshold
IOUT=IOUT MAX, room temperature
After VOUT drops below threshold voltage
Overtemperature Protection
120
125
0
130
%VO.SET
ms
Autorestart Period
Type
Auto-Restart
130
Turn Off Threshold
Temperature is increasing
°C
°C
s
Temperature is decreasing after the POL was
shut down by OTP
Turn On Threshold
Autorestart Period
120
3
After temperature drops below turn-on threshold
Power Good Signal (PwrGood pin)
VOUT is inside the PG window
VOUT is outside the PG window
High
Low
Logic
N/A
Low Output Voltage
High Output Voltage
ISINK=4mA
0.5
VDC
VDC
External pull-up
2.4
5.25
ZD-02078 Rev 1.0
www.power-one.com
Page 4 of 13
YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
4.4 Feature Specifications
Parameter
Conditions/Description
Enable (ON/OFF pin)
Min
Nom
Max
Units
ON/OFF Logic
Positive (enables the output when ON/OFF pin is open)
N/A
ON/OFF High Input Voltage
ON/OFF High Input Current
ON/OFF Low Input Voltage
ON/OFF Low Input Current
POL is ON
POL is ON
POL is OFF
POL is OFF
2.4
VIN.MAX
0.5
VDC
mADC
VDC
-0.3
1.2
0.12
µADC
Remote Voltage Sense (+VS and –VS pins)
Voltage Drop Compensation1
500
mV
1
The output voltage measured directly between Vout and GND pins shall never exceed 3.63V
ZD-02078 Rev 1.0
www.power-one.com
Page 5 of 13

YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
5.
Typical Performance Characteristics
5.1 Efficiency Curves
85
80
75
70
65
60
95
90
85
80
55
50
Vin = 5V
Vin = 12V
30
Vin = 13.8V
Vin = 10V
20
Vin = 12V
30
Vin = 13.8V
40 50
75
0
10
0
10
20
40
50
Output Current, A
Output Current, A
Figure 3. Efficiency vs. Load. Vout=2.5
Figure 1. Efficiency vs. Load. Vout=0.6V
95
90
85
80
90
85
80
75
70
65
Vin = 10V
20
Vin = 12V
30
Vin = 13.8V
40
Vin = 10V
20
Vin = 12V
30
Vin = 13.8V
40
0
10
50
0
10
50
Output Current, A
Output Current, A
Figure 4. Efficiency vs. Load. Vout=3.3V
Figure 2. Efficiency vs. Load. Vout=1.2V
ZD-02078 Rev 1.0
www.power-one.com
Page 6 of 13
YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
5.2 Turn-On Characteristics
Figure 5. Typical Start-Up Using Remote On/Off
(Vo = 1.2 Vdc, Io=50A). Ch1 – Vout, Ch2 – ON/OFF
Figure 7. Typical Start-Up with application of Vin
(Vo = 1.2Vdc, Io = 50A). Ch1 – Vout, Ch2 – Vin
Figure 6. Typical Start-Up Using Remote On/Off
(Vo = 3.3 Vdc, Io=50A). Ch1 – Vout, Ch2 – ON/OFF
Figure 8. Typical Start-Up with application of Vin
(Vo = 3.3Vdc, Io = 50A). Ch1 – Vout, Ch2 – Vin
ZD-02078 Rev 1.0
www.power-one.com
Page 7 of 13
YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
5.3 Transient Response
5.4 Derating Curves
50
45
40
35
NC
100 LFM (0.5 m/s)
30
25
200 LFM (1 m/s)
300 LFM (1.5 m/s)
400 LFM (2 m/s)
20
30
40
50
60
70
Ambient Temperature, C
Figure 11 Output Current versus Local Ambient
Temperature and Airflow (Vin = 12.0 Vdc,
Vo=0.6Vdc)
50
45
40
Figure 9. Transient Response to Dynamic Load Change
from 50% to 100% of full load (Vin=12V,
Vo=0.6Vdc). Ch3 – Iout
35
NC
100 LFM (0.5 m/s)
30
25
200 LFM (1 m/s)
300 LFM (1.5 m/s)
400 LFM (2 m/s)
20
30
40
50
60
70
Ambient Temperature, C
Figure 12. Output Current versus Local Ambient
Temperature and Airflow (Vin = 12.0 Vdc,
Vo=1.2Vdc).
Figure 10. Transient Response to Dynamic Load Change
from 50% to 100% of full load (Vin=12V,
Vo=3.3Vdc). Ch3 – Iout
ZD-02078 Rev 1.0
www.power-one.com
Page 8 of 13
YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
50
45
40
35
30
25
6. Application Information
6.1 Input and Output Impedance
The POL converter should be connected to the DC
power source via low impedance.
In many
applications, the inductance associated with the
distribution from the power source to the input of the
converter can affect the stability of the converter.
Internally, the converter includes 60µF (low ESR
ceramics) of input capacitance which eliminates the
need for external input capacitance. However, if the
distribution of the input voltage to the POL converter
contains high inductance, it is recommended to add
a 150µF decoupling capacitor placed as close as
possible to the converter input pins. A low-ESR
tantalum or POS capacitor connected across the
input pins help ensuring stability of the POL
converter and reduce input ripple voltage.
NC
100 LFM (0.5 m/s)
200 LFM (1 m/s)
300 LFM (1.5 m/s)
400 LFM (2 m/s)
20
30
40
50
60
70
Ambient Temperature, C
Figure 13 Output Current versus Local Ambient
Temperature and Airflow (Vin = 12.0 Vdc,
Vo=1.8Vdc).
50
45
40
A 470µF POS, tantalum, or ceramic output capacitor
is recommended to improve output ripple and
dynamic response.
It is important to keep low resistance and low
inductance of PCB traces for connecting load to the
output pins of the converter in order to maintain good
load regulation.
35
NC
100 LFM (0.5 m/s)
30
25
200 LFM (1 m/s)
300 LFM (1.5 m/s)
400 LFM (2 m/s)
6.2 Output Voltage Programming
The output voltage can be programmed from 0.6V to
3.63V by connecting an external resistor RTRIM
between Trim+ pin (Pin 8) and Trim- pin (Pin 7), as
shown in Figure 16.
20
30
40
50
60
70
Ambient Temperature, C
Figure 14. Output Current versus Local Ambient
Temperature and Airflow (Vin = 12.0 Vdc,
Vo=2.5Vdc).
11
SENSE+
12,13
50
45
40
VIN
1,2,3
YV09T50
VOUT
TRIM+
6
9
8
7
ON/OFF
Power Good
GND
RTRIM
Rload
Vin
TRIM-
4,5
10
GND
4,5
SENSE-
35
NC
100 LFM (0.5 m/s)
30
25
200 LFM (1 m/s)
300 LFM (1.5 m/s)
400 LFM (2 m/s)
Figure 16. Programming Output Voltage With A Resistor
The trim resistor RTRIM for a desired output voltage
can be calculated using the following equation:
20
30
40
50
60
70
Ambient Temperature, C
1.2
Figure 15. Output Current versus Local Ambient
Temperature and Airflow (Vin = 12.0 Vdc,
Vo=3.3Vdc).
kΩ
,
RTRIM
=
VOUT − 0.6
ZD-02078 Rev 1.0
www.power-one.com
Page 9 of 13

YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
where:
internal 50kꢀ pull-up to 5V supply.
It is
recommended to control the ON/OFF pin with an
open collector transistor or similar device.
RTRIM = Required value of trim resistor in kΩ
VOUT = Desired (trimmed) value of output voltage V
6.4 Remote Sense (Pins 10 and 11)
If the RTRIM is not used and the Sense+ and Sense-
pins are shorted to VOUT and GND respectively, the
output voltage of the POL converter will be 0.6V. No
capacitor is allowed between Trim+ and Trim- pins.
The remote sense feature compensates for the
voltage drop between the output pins of the POL
converter and the load. The Sense- (Pin 10) and
Sense+ (Pin 11) pins should be connected at the
load or at the point where regulation is required
(refer to Figure 18).
Note that the trim resistor tolerance directly affects
the output voltage accuracy. It is recommended to
use ±0.1% trim resistors to meet the output voltage
setpoint accuracy specified in p. 4.2.
If remote sensing is not required, the Sense pins
must be connected to the VOUT and GND pins
directly at the output of the POL converter.
Table 1. Trim Resistor Values
11
SENSE+
12,13
VIN
Rw
Rw
1,2,3
Calculated
Standard Value of
0.1% Resistor, kΩ
YV09T50
VOUT
V0UT,
V
RTRIM, kΩ
6
8
ON/OFF
Power Good
GND
TRIM+
TRIM-
Open
3.0
2.0
1.333
1.0
0.857
0.631
0.444
0.396
0.6
1.0
1.2
1.5
1.8
2.0
2.5
3.3
Open
3.01
2.0
1.33
1.0
0.856
0.634
0.442
0.397
Rload
7
Vin
9
4,5
GND
4,5
10
SENSE-
Figure 18. Remote Sense Circuit Configuration
Because the sense leads carry minimal current,
large traces on the end-user board are not required.
The voltage sense traces should be located close to
a ground plane to minimize system noise.
3.63
6.3 ON/OFF (Pin 6)
When using remote sense, the output voltage at the
converter can be increased by up to 0.5V in order to
maintain the required voltage at the load. However,
the maximum output voltage measured directly
between the VOUT and GND pins shall not exceed
3.63V. In addition it is the user’s responsibility to
ensure the POL converter’s actual output power
always remains at or below the maximum allowable
output power obtained from the derating curves.
The ON/OFF pin is used to turn the POL converter
ON or OFF remotely by a signal from a system
controller. For positive logic, the POL converter is
ON when the ON/OFF pin is at a logic high (2.4V
min) or left open. The POL converter is OFF when
the ON/OFF pin is at a logic low (1.2V max) or
connected to GND.
The typical connections are shown in Figure 17.
6.5 Protections
11
SENSE+
12,13
6
VIN
1,2,3
VOUT
6.5.1
Power Good
YV09T50
8
Power Good pin (Pin 9) is an open drain output,
capable of sinking up to 4mA. The Power Good pin
is high when the output voltage is within the
regulation band. The Power Good pin is at logic low
during start-up, undervoltage, overvoltage, or
overcurrent conditions, or when the POL converter is
disabled via the ON/OFF signal.
ON
TRIM+
TRIM-
Rload
7
Vin
9
Power Good
GND
4,5
GND
4,5
10
SENSE-
CONTROL
INPUT
Figure 17. Circuit Configuration For ON/OFF Function
6.5.2
Input Undervoltage Lockout
The POL converter will shut down when the input
voltage drops below a predetermined voltage. It will
The ON/OFF pin is referenced to ground and
typically has 50kꢀ input impedance. It has an
ZD-02078 Rev 1.0
www.power-one.com
Page 10 of 13


YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
start automatically when the input voltage exceeds
the specified threshold.
8. Safety
The YV09T50-0 POL converters do not provide
isolation from input to output. The input devices
powering YV09T50-0 must provide relevant isolation
requirements according to all IEC60950 based
standards. Nevertheless, if the system using the
converter needs to receive safety agency approval,
certain rules must be followed in the design of the
system. In particular, all of the creepage and
clearance requirements of the end-use safety
6.5.3
The POL converter is protected against overcurrent
and short circuit conditions. Upon sensing an
Output Overcurrent Protection
overcurrent condition, the POL converter will shut
down. Once the converter has shut down, it will
attempt to restart nominally every 10 ms with a
typical 2% duty cycle. The attempted restart will
continue indefinitely until the overload or short circuit
condition is removed.
requirements must be observed.
These
requirements are included in UL60950 - CSA60950-
00 and EN60950, although specific applications may
have other or additional requirements.
When the overload or short circuit condition is
removed, the POL converter will automatically restart
and Vout will return to its nominal value.
The YV09T50-0 POL converters have no internal
fuse. If required, the external fuse needs to be
provided to protect the converter from catastrophic
failure. Refer to the “Input Fuse Selection for DC/DC
converters” application note on www.power-one.com
for proper selection of the input fuse. Both input
traces and the chassis ground trace (if applicable)
must be capable of conducting a current of 1.5 times
the value of the fuse without opening.
6.5.4
Output Overvoltage Protection
The POL converter is protected against overvoltage
on the output. If the output voltage is higher than
125% of its nominal value set by the RTRIM, the high
side MOSFETs will be immediately turned off and
the low side MOSFETs will be turned on. The POL
converter will remain in the state until the output
voltage reduces below 120% of its nominal value. At
that point the POL converter will automatically
restart.
To comply with safety agencies’ requirements, a
recognized fuse must be used in series with the input
line. The fuse must not be placed in the grounded
input line. Abnormal and component failure tests
were conducted with the POL input protected by
three 15A/125VDC fuses connected in parallel. If
fuses rated greater than 15A are used, additional
testing may be required.
6.5.5
Overtemperature Protection
The POL converter will shut down under an
overtemperature condition to protect itself from
overheating caused by operation outside the thermal
derating curves, or operation in abnormal conditions
such as system fan failure. After the POL converter
has cooled to a safe operating temperature, it will
automatically restart.
The maximum DC voltage between any two pins is
Vin under all operating conditions. In order for the
output of the YV09T50-0 POL converter to be
considered as SELV (Safety Extra Low Voltage),
according to all IEC60950 based standards, the input
to the POL needs to be supplied by an isolated
secondary source providing a SELV also.
7. Characterization
7.1 Ripple and Noise
The output voltage ripple and input reflected ripple
current waveforms are measured using the test
setup shown in Figure 19.
iS
1. µH
0
source
inductance
YV09T50
100µF
tantalum
470µF
capacitor
Vout
+ 47µF
ceramic
capacitor
CIN
Vsource
Figure 19. Test Setup For Measuring Input Reflected-Ripple
Current And Output Voltage Ripple
ZD-02078 Rev 1.0
www.power-one.com
Page 11 of 13

YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
9. Pin Assignments and Description
Pin
Name
Pin
Pin
Buffer
Type
Pin Description
Notes
Number Type
VOUT
GND
1, 2, 3
4, 5
6
P
P
I
Output Voltage
Power Ground
Enable
ON/OFF
PU
A
Pull high or leave floating to turn ON the POL
Connect a high accuracy resistor between Trim+
and Trim- pins to set the output voltage
Connect a high accuracy resistor between Trim+
and Trim- pins to set the output voltage
Open drain pin indicating status of the output
voltage
Trim-
Trim+
7
8
9
I/O
I
Output Voltage Trim
Output Voltage Trim
Power Good
A
PwrGood
I/O
PU
Sense-
Sense+
VIN
10
I
I
A
A
Negative Voltage Sense
Positive Voltage Sense
Input Voltage
Connect to the negative point close to the load
Connect to the positive point close to the load
11
12, 13
14, 15
P
Mechanical Support
Connected to GND inside of the POL converter
Legend: I=input, O=output, I/O=input/output, P=power, A=analog, PU=internal pull-up
ZD-02078 Rev 1.0
www.power-one.com
Page 12 of 13
YV09T50 50A DC-DC POL Converter
5V to 13.8V Input • 0.6V to 3.63V Output
Data Sheet
10. Mechanical Drawings
All Dimensions are in inches
Tolerances: X.XX: ±0.02” X.XXX: ±0.01”
Figure 20. Mechanical Drawing
Figure 21. Recommended Footprint – Top View
Notes:
1. NUCLEAR AND MEDICAL APPLICATIONS - Power-One products are not designed, intended for use in, or authorized for use as critical
components in life support systems, equipment used in hazardous environments, or nuclear control systems without the express written
consent of the respective divisional president of Power-One, Inc.
2. TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on
the date manufactured. Specifications are subject to change without notice.
ZD-02078 Rev 1.0
www.power-one.com
Page 13 of 13
厂商 型号 描述 页数 下载

BEL

 		YV09T60-0 [ DC-DC Regulated Power Supply Module, 1 Output, Hybrid, SIP-26 ] 14 页

BEL

 		YV09T60-0E [ DC-DC Regulated Power Supply Module, 1 Output, Hybrid, SIP-26 ] 14 页

BEL

 		YV09T60-0EG [ DC-DC Regulated Power Supply Module, 1 Output, Hybrid, ROHS COMPLIANT, SIP-26 ] 14 页

BEL

 		YV09T60-0G [ DC-DC Regulated Power Supply Module, 1 Output, Hybrid, SIP-26 ] 14 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.209371s
