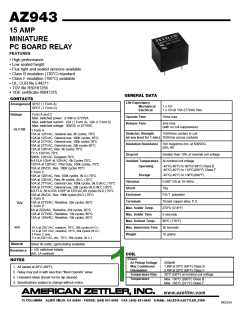

AZ943
15 AMP
MINIATURE
PC BOARD RELAY
FEATURES
• High performance
• Low seated height
• Flux tight and sealed versions available
• Class B insulation (130°C) standard
• Class F insulation (155°C) available
• UL, CUR file E44211
• TÜV file R50161256
VDE certificate 40047375
GENERAL DATA
CONTACTS
Arrangement SPST (1 Form A)
Life Expectancy
Mechanical
Electrical
1 x 107
SPDT (1 Form C)
1 x 105 at 10A 277VAC Res.
Ratings
Form A and C
Operate Time
Release Time
10ms max.
Max. switched power: 210W or 2770VA
Max. switched current: 15A (1 Form A), 10A (1 Form C)
Max. switched voltage: 30VDC or 277VAC
5ms max.
(with no coil suppression)
UL/CUR
1 Form A
Dielectric Strength
(at sea level for 1 min.) 750Vrms across contacts
1500Vrms contact to coil
15A at 125VAC, General use, 6k cycles, 70°C
12A at 125VAC, General use, 100K cycles, 85°C
10A at 277VAC, General use, 100k cycles 70°C
10A at 277VAC, General use, 20k cycles 85°C
12A at 120VAC, Res. 6k cycles 70°C
TV-5 120VAC 70°C
Insulation Resistance 100 megohms min. at 500VDC,
50% RH
Dropout
Greater than 10% of nominal coil voltage
500W, 120VAC Tungsten 70°C
9.8 FLA 1/2HP at 125VAC, 6k Cycles 70°C
125VA at 120VAC Pilot Duty, 100k cycles, 70°C
10A at 28VDC, Res. 100K cycles 70°C
1 Form C
10A at 120VAC, Res, 100k cycles, (N.O.) 70°C
10A at 120VAC, Res, 6k cycles, (N.C.) 70°C
10A at 277VAC, General Use, 100k cycles, (N.O./N.C.) 70°C
10A at 277VAC, General use, 20k cycles (N.O./N.C.) 85°C
9.8 FLA, 58.8 LRA 1/2HP at 125VAC,6K cycles (N.O.) 70°C
10A at 28VDC, Res. 100k cycles (N.O.) 70°C
1 Form A
10A at 277VAC, Resistive, 25k cycles, 85°C
1 Form C
5A at 250VAC, Resistive, 25k cycles, 85°C
10A at 277VAC, Resistive, 10k cycles, 85°C
12A at 125VAC, Resistive, 10k cycles, 85°C
Ambient Temperature At nominal coil voltage
Operating
Storage
-40°C(-40°F) to 90°C(194°F) Class B
-40°C(-40°F) to 110°C(230°F) Class F
-40°C(-40°F) to 130°C(266°F)
Vibration
0.062" DA at 10–55Hz
10g
Shock
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
Terminals
TÜV
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
80°C (176°F)
VDE
10 A at 250 VAC, resistive, 70°C, 50k cycles (N.O.)
12 A at 125 VAC, resistive, 25°C, 50k cycles (N.O.)
1 Form C only
Max. Immersion Time 30 seconds
Weight
10 grams
5 A at 250 VAC, res., 70°C, 50k cycles, (N.C.)
Material
Silver tin oxide, (gold plating available)
< 100 milliohms initially
(6V, 1A method)
Resistance
COIL
Power
At Pickup Voltage
NOTES
203mW
Max Continuous
Dissipation
Temperature Rise
Temperature
1.8W at 20°C (68°F) Class B
2.4W at 20°C (68°F) Class F
32°C (58°F) at nominal coil voltage
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Unsealed relays should not be dip cleaned.
4. Specifications subject to change without notice.
Max. 130°C (266°F) Class B
Max. 155°C (311°F) Class F
04/23/19
