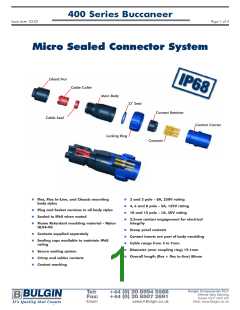

400 Series Buccaneer
Issue date: 03.02
Page 2 of 4
Part No System
PX04xx / xx x / xxxx
Body Styles
PX0410 = Flex body
PX0411 = Flex in-line body
PX0412 = Chassis mounting body
Number Contacts
02 = 2 pole, 03 = 3 pole,
04 = 4 pole, 06 = 6 pole
08 = 8 pole, 10 = 10 pole
12 = 12 pole
Contact Type
P = Plug, S = Socket
Cable Entry
(leave blank for PX0412)
3035 = 3.0 - 3.5mm (Light Grey)
3540 = 3.5 - 4.0mm (Grey)
4045 = 4.0 - 4.5mm (Green)
4550 = 4.5 - 5.0mm (Red)
5055 = 5.0 - 5.5mm (Yellow)
5560 = 5.5 - 6.0mm (Blue)
6065 = 6.0 - 6.5mm (White)
6570 = 6.5 - 7.0mm (Black)
Ordering Information
Ordering
Configuration
ꢀ
ꢀ
ꢀ
ꢀ
Determine body style, i.e. PX0410 = flex body, PX0411 =
flex in-line body
ꢀ
ꢀ
ꢀ
Crimp contacts supplied separately in packs (see table
below)
Determine number of contacts & type, i.e. 02 = 2 way,
P = pin contacts
Solder contacts supplied separately in packs (see table
below)
Determine cable range, i.e. 3035 = 3.0 to 3.5mm cable
accomation
Supplied with colour coded sealing glands for specified
cable range
Choose appropriate contacts pack, i.e. SA3350 = pin
contacts suitable for 2 & 3 way connectors, supplied in pack
quantities of 10
ꢀ
ꢀ
Seperate gland packs available
Contact inserts are part of body moulding - no assembly
required
ꢀ
ꢀ
ꢀ
Is a sealing cap required?
Is an insertion tool required?
Is a crimp tool required?
ꢀ
Sealing caps supplied separately
Crimp Contacts
Pole
Pin
Socket
SA3349
SA3347
SA3179
Pack Qty
Cable Acceptance (dia)
20 - 24 AWG
Current Rating
2, 3
SA3350
SA3348
SA3180
10
10
10
8A
5A
1A
4, 6, 8
22 - 26 AWG
10, 12
24 - 28 AWG
Solder Contacts
Pole
Pin
Socket
Pack Qty
Cable Acceptance (dia)
20 - 24 AWG
Current Rating
2, 3
SA3350/1
SA3348/1
SA3180/1
SA3349/1
SA3347/1
SA3179/1
10
10
10
8A
5A
1A
4, 6, 8
22 - 26 AWG
10, 12
24 - 28 AWG
Contact Insertion Tools
Crimp Tools
Contact rating Colour Part No
Contact rating Colour
Part No
8 Indent Crimp Tool for use with positioners
14025
Insertion/Extraction Tool
Insertion/Extraction Tool
Insertion/Extraction Tool
1A
5A
8A
Green 13027
Red 13027/1
Blue 13027/2
Positioner
Positioner
Positioner
1A
5A
8A
Green 14025/1AMP
Red 14025/5AMP
Blue 14025/8AMP
