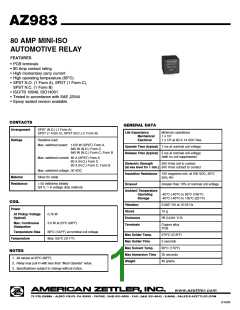

AZ983
80 AMP MINI-ISO
AUTOMOTIVE RELAY
FEATURES
• PCB terminals
• 80 Amp contact rating
• High momentary carry current
• High operating temperature (85°C)
• SPST N.O. (1 Form A), SPDT (1 Form C),
SPST N.C. (1 Form B)
• ISO/TS 16949, ISO14001
• Tested in accordance with SAE J2544
• Epoxy sealed version available
CONTACTS
GENERAL DATA
Arrangement
SPST (N.O.) (1 Form A)
SPDT (1 Form C), SPST (N.C.) (1 Form B)
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 107
1 x 105 at 80 A 14 VDC Res.
Ratings
Resistive load:
Max. switched power: 1120 W (SPST) Form A
840 W (N.O.) Form C
Operate Time (typical) 7 ms at nominal coil voltage
840 W (N.C.) Form C, Form B
Release Time (typical) 5 ms at nominal coil voltage
(with no coil suppression)
Max. switched current: 80 A (SPST) Form A
60 A (N.O.) Form C
Dielectric Strength
500 Vrms coil to contact
(at sea level for 1 min.) 500 Vrms contact to contact
60 A (N.C.) Form C, Form B
Max. switched voltage: 30 VDC
Silver tin oxide
Insulation Resistance 100 megohms min. at 500 VDC, 20°C
Material
50% RH
Resistance
< 50 milliohms initially
(24 V, 1 A voltage drop method)
Dropout
Greater than 10% of nominal coil voltage
Ambient Temperature
Operating
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 105°C (221°F)
Storage
COIL
Vibration
Shock
0.062" DA at 10-55 Hz
10 g
Power
At Pickup Voltage
(typical)
0.76 W
Enclosure
Terminals
PA (UL94: V-0)
Max. Continuous
Dissipation
3.0 W at 20°C (68°F)
Copper alloy
PCB
Temperature Rise
Temperature
68°C (122°F) at nominal coil voltage
Max.155°C (311°F)
Max Solder Temp.
Max Solder Time
Max Solvent Temp.
Max Immersion Time
Weight
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
40 grams
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
3/10/09
