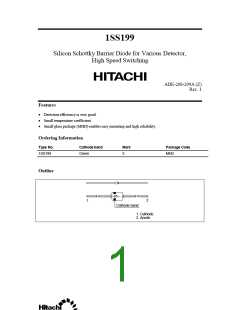

1SS199
Silicon Schottky Barrier Diode for Various Detector,
High Speed Switching
ADE-208-299A (Z)
Rev. 1
Features
•
•
•
Detection efficiency is very good.
Small temperature coefficient.
Small glass package (MHD) enables easy mounting and high reliability.
Ordering Information
Type No.
Cathode band
Mark
Package Code
1SS199
Green
3
MHD
Outline
2
1
Cathode band
1. Cathode
2. Anode
1SS199
Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
Value
Unit
V
Reverse voltage
Average rectified current
Junction temperature
Storage temperature
VR
IO
30
15
mA
°C
Tj
125
Tstg
–55 to +125
°C
Electrical Characteristics (Ta = 25°C)
Item
Symbol Min
Typ
—
Max
Unit
mA
µA
pF
Test Condition
VF = 1V
Forward current
Reverse current
Capacitance
Rectifier efficiency
IF
IR
C
η
3.0
—
—
—
100
3.0
—
VR = 10V
—
—
VR = 1V, f = 1MHz
70
—
%
Vin = 2Vrms, f = 40MHz,RL = 5kΩ, CL
= 20pF
ESD-Capability
—
70
—
—
V
*C = 200pF, Both forward and
reverse direction 1 pulse.
Note: Failure criterion; IR ≥ 200µA at VR = 10V
1SS199
10–1
10–2
10–3
10–4
10–5
0.8
1.2
1.6
0
0.4
2.0
Forward voltage VF (V)
Fig.1 Forward current Vs. Forward voltage
10–2
10–3
10–4
10–5
10–6
0
5
10
15
25
30
20
Reverse voltage VR (V)
Fig.2 Reverse current Vs. Reverse voltage
1SS199
f = 1MHz
10
1.0
10–1
10–1
10
1.0
Reverse voltage VR (V)
Fig.3 Capacitance Vs. Reverse voltage
100
80
60
40
20
0
0
0.5
1.5
2.5 3.0
1.0
2.0
Input voltage Vin (Vrms)
Fig.4 Rectifier efficiency Vs. Input voltage
1SS199
Package Dimensions
Unit: mm
26.0 Min
26.0 Min
2.4 Max
1
2
1 Cathode
2 Anode
Cathode band (Green)
HITACHI Code
JEDEC Code
EIAJ Code
MHD
DO-34
—
Weight (g)
0.084
