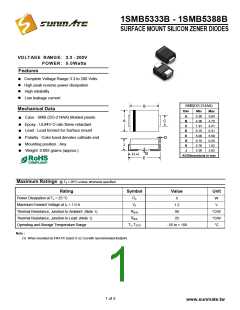

1SMB5333B - 1SMB5388B
SURFACE MOUNT SILICON ZENER DIODES
VOLTAGE RANGE: 3.3 - 200V
POWER: 5.0Wa t t s
Features
Complete Voltage Range 3.3 to 200 Volts
High peak reverse power dissipation
!
!
! High reliability
! Low leakage current
SMB(DO-214AA)
B
Mechanical Data
Dim
Min
3.30
4.06
1.91
0.15
5.00
0.10
0.76
2.00
Max
A
B
C
D
E
G
H
J
3.94
4.70
2.21
0.31
5.59
0.20
1.52
2.62
Case : SMB (DO-214AA) Molded plastic
!
A
J
C
! Epoxy : UL94V-O rate flame retardant
Lead : Lead formed for Surface mount
!
!
Polarity : Color band denotes cathode end
Mounting position : Any
D
!
!
Weight: 0.093 grams (approx.)
G
H
All Dimensions in mm
E
Maximum Ratings
@ TA = 25°C unless otherwise specified
Rating
Symbol
PD
Value
5
Unit
Power Dissipation at TL = 25 °C
W
V
Maximum Forward Voltage at IF = 1.0 A
Thermal Resistance, Junction to Ambient (Note 1)
Thermal Resistance, Junction to Lead (Note 1)
Operating and Storage Temperature Range
VF
1.2
90
RӨJA
°C/W
°C/W
°C
RӨJL
25
TJ, TSTG
- 65 to + 150
Note :
(1) When mounted on FR4 PC board (1 oz Cu) with recommended footprint.
1 of 3
www.sunmate.tw
