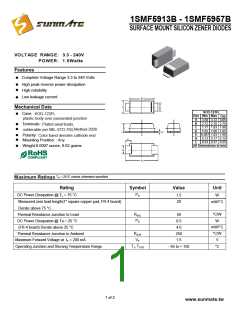

1SMF5913B - 1SMF5957B
SURFACE MOUNT SILICON ZENER DIODES
VOLTAGE RANGE: 3.3 - 240V
POWER: 1.5Wa t t s
Features
Complete Voltage Range 3.3 to 240 Volts
!
High peak reverse power dissipation
High reliability
!
!
Low leakage current
!
B
C
E
Mechanical Data
SOD-123FL
Case
: SOD-123FL
plastic body over passivated junction
!
Dim Min Max
Typ
3.58 3.72 3.65
2.72 2.78 2.75
1.77 1.83 1.80
1.02 1.08 1.05
0.097 1.03 1.00
0.13 0.17 0.15
0.53 0.57 0.55
A
B
C
D
E
H
L
Terminals
!
!
: Plated axial leads,
D
Method 2026
solderable per MIL-STD-750,
H
Polarity
!
!
: Color band denotes cathode end
L
Mounting Position
: Any
All Dimensions in mm
Weight:0.0007 ounce, 0.02 grams
!
E
A
TA = 25ꢀC unless otherwise specified
Maximum Ratings
Rating
Symbol
Value
Unit
PD
DC Power Dissipation @ TL = 75 °C
Measured zero lead length(1" square copper pad, FR-4 board)
Derate above 75 °C
1.5
20
W
mW/°C
RӨJL
PD
°C/W
W
Thermal Resistance Junction to Lead
DC Power Dissipation @ Ta = 25 °C
50
0.5
mW/°C
°C/W
V
(FR-4 board) Derate above 25 °C
4.0
RӨJA
VF
Thermal Resistance Junction to Ambient
Maximum Forward Voltage at IF = 200 mA
Operating Junction and Storang Temperature Range
250
1.5
TJ, TSTG
- 65 to + 150
°C
1 of 2
