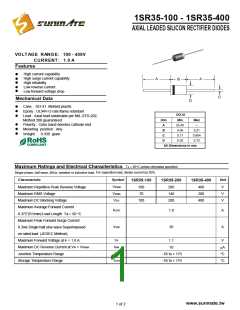

1SR35-100 - 1SR35-400
AXIAL LEADED SILICON RECTIFIER DIODES
VOLTAGE RANGE: 100 - 400V
CURRENT: 1.0 A
Features
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
!
!
A
B
A
!
!
!
C
Mechanical Data
D
Case : DO-41 Molded plastic
Epoxy : UL94V-O rate flame retardant
Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
Polarity : Color band denotes cathode end
Mounting position : Any
!
!
!
DO-41
Min
Dim
A
Max
!
!
!
25.40
4.06
¾
B
5.21
0.864
2.72
Weight : 0.339 gram
C
0.71
D
2.00
All Dimensions in mm
TA = 25ꢀC unless otherwise specified
Maximum Ratings and Electrical Characteristics
For capacitive load, derate current by 20%.
Single phase, half wave, 60Hz, resistive or inductive load.
Characteristic
Symbol
Unit
1SR35-100
1SR35-200
200
1SR35-400
400
VRRM
VRMS
VDC
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
100
70
V
V
V
140
280
Maximum DC Blocking Voltage
100
200
400
Maximum Average Forward Current
0.375"(9.5mm) Lead Length Ta = 50 °C
Maximum Peak Forward Surge Current
8.3ms Single half sine wave Superimposed
on rated load (JEDEC Method)
IF(AV)
1.0
30
A
IFSM
A
Maximum Forward Voltage at IF = 1.0 A
Maximum DC Reverse Current at VR = VRRM
Junction Temperature Range
VF
IRM
1.1
V
10
mA
°C
°C
TJ
- 65 to + 175
- 65 to + 175
TSTG
Storage Temperature Range
