1SS226

型号：

1SS226

描述：

超高速开关[ Ultra High Speed Switching ]

品牌：

WILLAS[ WILLAS ELECTRONIC CORP ]

页数：

3 页

PDF大小：

468 K

下载PDF手册

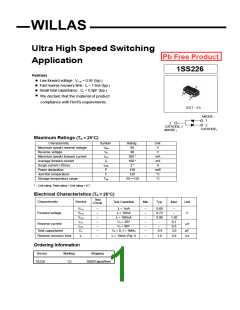

WILLAS
Ultra High Speed Switching
Application
Pb Free Product
1SS226
Featrues
z Low forward voltage : VF (3) = 0.9V (typ.)
z Fast reverse recovery time : trr = 1.6ns (typ.)
z Small total capacitance : CT = 0.9pF (typ.)
z
We declare that the material of product
compliance with RoHS requirements.
SOT –23
ANODE 1
1
3
2
CATHODE 1 /
CATHODE2
ANODE 2
Maximum Ratings (TA = 25°C)
Characteristic
Symbol
VRM
VR
Rating
85
Unit
V
Maximum (peak) reverse voltage
Reverse voltage
80
V
Maximum (peak) forward current
Average forward current
Surge current (10ms)
IFM
300 *
100 *
2 *
mA
mA
A
IO
IFSM
P
Power dissipation
150
mW
°C
°C
Junction temperature
Tj
125
Storage temperature range
Tstg
-55~+125
* : Unit rating. Total rating = Unit rating × 0.7.
Electrical Characteristics (TA = 25°C)
Test
Circuit
Characteristic
Symbol
Test Condition
Min
Typ.
Max
Unit
V
VF (1)
VF (2)
VF (3)
IR (1)
IR (2)
CT
–
–
–
–
–
–
IF = 1mA
IF = 10mA
–
–
–
–
–
–
0.60
0.72
0.90
–
–
–
Forward voltage
Reverse current
IF = 100mA
VR = 30V
1.20
0.1
0.5
3.0
µA
VR = 80V
–
Total capacitance
VR = 0, f = 1MHz
0.9
pF
ns
Reverse recovery time
trr
–
IF = 10mA (Fig.1)
–
1.6
4.0
Ordering Information
Device
Marking
C3
Shipping
1S226
3000/Tape&Reel
WILLAS
1SS226
Electrical characteristic curves
10
Ta=100
1
75
25
100n
-25
50
25
10n
1n
0ꢀ
0.2ꢀ
0.4ꢀ
0.6ꢀ
0.8ꢀ
1.0ꢀ
1.2
0ꢀ
20ꢀ
40ꢀ
60ꢀ
80
Fig.2 REVERSE VOLTAGE VR(V)
Fig.1 FORWARD VOLTAGE VF(V)
50
30
Ta=25
Fig.5
f=1MHz
Ta=25
1.6
1.2
0.8
10
5
3
0.4
0
1
0.5
0.1ꢀ 0.3ꢀ
1ꢀ
3ꢀ
10ꢀ
30ꢀ 50ꢀ
0.3ꢀ
1ꢀ
3ꢀ
10ꢀ
30ꢀ
100ꢀ
Fig.3 REVERSE VOLTAGE VR(V)
Fig.4 FORWARD CURRENT IF(mA)
OUTPUT WAVEFORM
0.01 F DUT
INPUT
0
OUTPUT
IF=10mA
0
OSCILLOSCOPE
(R =50
-6V
)
IN
E
0.1I
R
I
R
50ns
PULSE GENERATOR
(R =50
)
OUT
t
rr
Fig.5 Reverse recovery time (t ) test circuit
rr
WILLAS
1SS226
SOT-23
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M,1982
A
L
2. CONTROLLING DIMENSION: INCH.
3
INCHES
MAX
MILLIMETERS
DIM
S
B
MIN
MIN
2.80
1.20
0.89
0.37
1.78
0.013
0.085
0.35
0.89
2.10
0.45
MAX
3.04
1.40
1.11
0.50
2.04
0.100
0.177
0.69
1.02
2.64
0.60
1
2
A
B
C
D
G
H
J
0.1102
0.0472
0.0350
0.0150
0.0701
0.0005
0.0034
0.0140
0.0350
0.0830
0.0177
0.1197
0.0551
0.0440
0.0200
0.0807
0.0040
0.0070
0.0285
0.0401
0.1039
0.0236
V
G
C
K
L
H
J
D
K
S
V
0.037
0.95
0.037
0.95
0.079
2.0
0.035
0.9
0.031
0.8
inches
mm
