1SS400-G_12

型号：

1SS400-G_12

描述：

SMD开关二极管[ SMD Switching Diodes ]

品牌：

COMCHIP[ COMCHIP TECHNOLOGY ]

页数：

4 页

PDF大小：

102 K

下载PDF手册

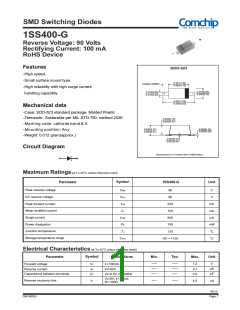

SMD Switching Diodes
1SS400-G
+
Reverse Voltage: 90 Volts
Rectifying Current: 100 mA
RoHS Device
-
Features
-High speed.
SOD-523
-Small surface mount type.
-High reliability with high surge current
handling capability.
0.051(1.30)
0.043(1.10)
0.008(0.20)REF.
0.033(0.85)
0.030(0.75)
0.014(0.35)
0.010(0.25)
0.067(1.70)
0.059(1.50)
Mechanical data
-Case: SOD-523 standard package, Molded Plastic
-Terminals: Solderable per MIL-STD-750, method 2026
-Marking code: cathode band & A
0.028(0.70)
0.020(0.51)
0.006(0.15)
0.003(0.08)
0.030(0.77)
0.020(0.51)
-Mounting position: Any
-Weight: 0.012 gram(approx.)
0.003(0.07)
0.001(0.01)
Circuit Diagram
Dimensions in inches and (millimeter)
Maximum Ratings(at TA=25°C unless otherwise noted)
Symbol
Parameter
1SS400-G
Unit
Peak reverse voltage
DC reverse voltage
VRM
VDC
IFM
90
80
V
V
Peak forward current
Mean rectified current
Surge current
225
100
500
150
mA
mA
mA
mW
IO
IFSM
PD
Power dissipation
Junction temperature
TJ
125
°C
°C
Storage temperature range
TSTG
-55 ~ +125
Electrical Characteristics(at TA=25°C unless otherwise noted)
Symbol
Typ.
Parameter
Conditions
Min.
Max.
Unit
-----
-----
-----
-----
-----
-----
1.2
0.1
3.0
V
Forward voltage
VF
IR
IF=100mA
μA
pF
Reverse current
VR=80V
Capacitance between terminals
VR=0.5V, f=1.0MHz
CT
VR=6V, IF=10mA,
RL=100Ω
-----
-----
Reverse recovery time
trr
4.0
nS
REV:A
Page 1
QW-B0053
SMD Switching Diodes
RATING AND CHARACTERISTIC CURVES (1SS400-G)
Fig.1 - Power Derating Curve
Fig.2 - Typical Forward Characteristics
200
150
100
50
100
10
TA=100°C
TA=25°C
1.0
0
0.1
0
25
50
75
100
125
150
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
Ambient Temperature, (°C)
Forward Voltage, (V)
Fig.3 - Typical Reverse Characteristics
Fig.4 - Capacitance Characteristics
1.2
1.1
1.0
0.9
0.8
1000
100
TA=25°C
f=1.0MHz
TA=100°C
10
TA=25°C
1.0
0
10
20
30
40
50
60
70
80
0
5
10
15
20
Reverse Voltage, (V)
Reverse Voltage, (V)
REV:A
Page 2
QW-B0053
SMD Switching Diodes
Reel Taping Specification
T
d
P0
P1
E
F
Index hole
W
B
Polarity
P
A
C
1
2
0
o
D2
D
D1
W1
Trailer
Device
Leader
.......
.......
....... .......
....... .......
.......
..... ..
Start
End
10 pitches (min)
10 pitches (min)
Direction of Feed
SYMBOL
(mm)
A
B
C
d
D
D1
D2
SOD-523
SOD-523
0.90 ± 0.10
1.94 ± 0.10
0.73 ± 0.10
1.50 + 0.10
178 ± 1.00
54.40 ± 0.40
13.00 ± 0.20
(inch)
0.035 ± 0.004
0.076 ± 0.004
0.029 ± 0.004
0.059 + 0.004
7.008 ± 0.039
0.512 ± 0.008
2.142 ± 0.016
SYMBOL
(mm)
E
F
P
P0
P1
W
W1
8.00 + 0.30 /–0.10
1.75 ± 0.10
3.50 ± 0.05
2.00 ± 0.10
4.00 ± 0.10
0.158 ± 0.004
2.00 ± 0.10
9.50 ± 1.00
(inch)
0.069 ± 0.004
0.138 ± 0.002
0.079 ± 0.004
0.079 ± 0.004 0.315 + 0.012 /–0.004
0.374 ± 0.039
REV:A
Page 3
QW-B0053
SMD Switching Diodes
Marking Code
Marking Code
A
Part Number
1SS400-G
-
+
A
Suggested PAD Layout
SOD-523
SIZE
(mm)
(inch)
D
A
E
A
B
C
1.40
0.055
0.60
0.70
0.024
0.028
C
D
E
2.00
0.80
0.079
0.031
B
Standard Packaging
REEL PACK
Case Type
SOD-523
REEL
Reel Size
( pcs )
(inch)
3,000
7
REV:A
Page 4
QW-B0053
