8S2TH06I-M

型号:

8S2TH06I-M

描述:

超快整流器, 8的FRED Pt®[ Hyperfast Rectifier, 8 A FRED Pt® ]

品牌:

VISHAY[ VISHAY ]

页数:

7 页

PDF大小:

131 K

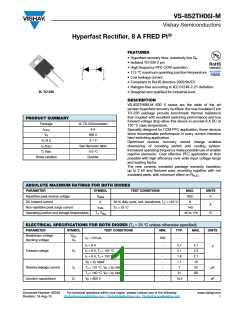

VS-8S2TH06I-M
Vishay Semiconductors
Hyperfast Rectifier, 8 A FRED Pt®
FEATURES
• Hyperfast recovery time, extremely low Qrr
• Isolated TO-220 2 pin
• High frequency PFC CCM operation
• 175 °C maximum operating junction temperature
• Low leakage current
1
2
• Compliant to RoHS directive 2002/95/EC
• Halogen-free according to IEC 61249-2-21 definition
• Designed and qualified for industrial level
2L TO-220
DESCRIPTION
VS-8S2TH06I-M 600 V series are the state of the art
tandem hyperfast recovery rectifiers: the new insulated 2 pin
TO-220 package provide benchmark thermal resistance
that coupled with excellent switching performance and low
forward voltage drop allow this device to provide 8 A DC at
120 °C case temperature.
Specially designed for CCM PFC application, these devices
show incomparable performance in every current intensive
hard switching application.
Optimized reverse recovery stored charge enables
downsizing of boosting switch and cooling system.
Increased operating frequency make possible use of smaller
reactive elements. Cost effective PFC application is then
possible with high efficiency over wide input voltage range
and loading factor.
PRODUCT SUMMARY
Package
2L TO-220 Insulated
IF(AV)
8 A
600 V
VR
VF at IF
3.1 V
trr (typ.)
TJ max.
Diode variation
See Recovery table
175 °C
Doubler
The new ceramic insulated package warranty insulation
up to 2 kV and features easy mounting together with not
insulated parts, with minimum effect on RthJC
.
ABSOLUTE MAXIMUM RATINGS FOR BOTH DIODES
PARAMETER
SYMBOL
VRRM
IF
TEST CONDITIONS
MAX.
600
UNITS
Repetitive peak reverse voltage
DC forward current
V
50 % duty cycle, rect. waveforms, TC = 120 °C
TC = 25 °C
8
A
Non-repetitive peak surge current
Operating junction and storage temperatures
IFSM
140
TJ, TStg
- 55 to 175
°C
ELECTRICAL SPECIFICATIONS FOR BOTH DIODES (TJ = 25 °C unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX.
UNITS
Breakdown voltage,
blocking voltage
VBR
VR
,
IR = 100 μA
IF = 8 A
600
-
-
-
-
-
-
-
-
-
2.7
2.1
1.9
< 1
7
3.1
2.3
2.1
10
50
80
-
V
Forward voltage
VF
IF = 8 A, TJ = 125 °C
IF = 8 A, TJ = 150 °C
VR = VR rated
Reverse leakage current
Junction capacitance
IR
TJ = 125 °C, VR = VR rated
TJ = 150 °C, VR = VR rated
VR = 600 V
μA
pF
27
CT
10.5
Document Number: 93049
Revision: 19-Aug-10
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com
1
VS-8S2TH06I-M
Vishay Semiconductors
Hyperfast Rectifier, 8 A FRED Pt®
DYNAMIC RECOVERY CHARACTERISTICS FOR BOTH DIODES (TJ = 25 °C unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
IF = 1.0 A, dIF/dt = - 50 A/μs, VR = 30 V
TJ = 25 °C
MIN.
TYP.
MAX.
UNITS
-
-
-
-
-
-
-
13
20
Reverse recovery time
trr
11
16
ns
TJ = 125 °C
23
30
IF = 8 A
TJ = 25 °C
1.5
2.8
7
2.5
3.7
15
Peak recovery current
IRRM
dIF/dt = - 200 A/μs
TJ = 125 °C
A
VR = 390 V
TJ = 25 °C
Reverse recovery charge
Qrr
nC
TJ = 125 °C
35
51
THERMAL - MECHANICAL SPECIFICATIONS FOR BOTH DIODES
PARAMETER
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX.
UNITS
Maximum junction and
storage temperature range
TJ, TStg
- 55
-
175
°C
Thermal resistance,
junction to case
RthJC
RthCS
-
-
2.30
0.1
2.85
-
°C/W
Thermal resistance,
case to heatsink
Mounting surface, flat, smooth
and greased
-
-
2.0
-
-
g
Approximate weight
0.07
oz.
6.0
(5.0)
12
(10)
kgf · cm
(lbf · in)
Mounting torque
Marking device
-
Case style 2L TO-220
8S2TH06I
www.vishay.com
2
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
Document Number: 93049
Revision: 19-Aug-10
VS-8S2TH06I-M
Vishay Semiconductors
Hyperfast Rectifier, 8 A FRED Pt®
100
1000
175 °C
100
150 °C
10
125 °C
100 °C
10
1
0.1
75 °C
TJ = 175 °C
TJ = 150 °C
TJ = 125 °C
TJ = 25 °C
0.01
0.001
25 °C
1
0.5
1.5
2.5
3.5
4.5
5.5
6.5
0
100
200
300
400
500
600
VF - Forward Voltage Drop (V)
VR - Reverse Voltage (V)
Fig. 1 - Typical Forward Voltage Drop Characteristics
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
100
10
1
0
100
200
300
400
500
600
VR - Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
10
1
D = 0.50
D = 0.20
D = 0.10
D = 0.05
D = 0.02
D = 0.01
0.1
Single pulse
(thermal resistance)
0.01
0.00001
0.0001
0.001
0.01
0.1
1
10
100
1000
t1 - Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance ZthJC Characteristics
Document Number: 93049
Revision: 19-Aug-10
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com
3
VS-8S2TH06I-M
Vishay Semiconductors
Hyperfast Rectifier, 8 A FRED Pt®
200
100
VR = 390 V
IF = 8 A, 125 °C
150
DC
100
10
IF = 8 A, 25 °C
Square wave (D = 50)
50 % rated VR applied
50
See note (1)
0
1
100
0
2
4
6
8
10
12
14
1000
IF(AV) - Average Forward Current (A)
dIF/dt (A/µs)
Fig. 7 - Typical Reverse Recovery Time vs. dIF/dt
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
30
1000
VR = 390 V
25
20
15
10
5
IF = 8 A, 125 °C
100
10
1
D = 0.01
D = 0.02
D = 0.05
D = 0.1
D = 0.2
D = 0.5
IF = 8 A, 25 °C
RMS limit
DC
4
0
0
2
6
8
10
12
14
100
1000
IF(AV) - Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
dIF/dt (A/µs)
Fig. 8 - Typical Stored Charge vs. dIF/dt
Note
(1)
Formula used: TC = TJ - (Pd +PdREV) x RthJC
;
Pd = Forward power loss = IF(AV) x VFM at (IF(AV)/D) (see fig. 6);
PdREV = Inverse power loss = VR1 x IR (1 - D); IR at VR1 = 50 % rated VR
www.vishay.com
4
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
Document Number: 93049
Revision: 19-Aug-10
VS-8S2TH06I-M
Vishay Semiconductors
Hyperfast Rectifier, 8 A FRED Pt®
ORDERING INFORMATION TABLE
Device code
VS-
8
S2
T
H
06
I
-M
1
2
3
4
5
6
7
8
1
-
-
-
-
-
-
-
-
Vishay Semiconductors product suffix
Current rating (8 = 8 A)
S2 = Doubler true 2 pin
T = TO-220
2
3
4
5
6
7
8
H = Hyperfast recovery
Voltage rating (06 = 600 V)
I = Insulated
Environmental digit:
-M = Halogen-free, RoHS compliant and terminations lead (Pb)-free
LINKS TO RELATED DOCUMENTS
www.vishay.com/doc?95171
www.vishay.com/doc?95170
www.vishay.com/doc?95257
Dimensions
Part marking information
SPICE model
Document Number: 93049
Revision: 19-Aug-10
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com
5
Outline Dimensions
Vishay High Power Products
TO-220-2L
DIMENSIONS in millimeters and inches
D
A
Ø
F
c1
E1
E
L1
A1
b1
L
b
c
e1
MILLIMETERS
INCHES
SYMBOL
MIN.
4.420
2.520
0.710
1.170
0.360
1.170
9.950
8.990
12.550
4.980
2.59
MAX.
4.720
2.820
0.910
1.370
0.460
1.370
10.250
9.290
12.850
5.180
2.89
MIN.
0.174
0.099
0.028
0.046
0.014
0.046
0.392
0.354
0.494
0.196
0.102
0.515
0.136
0.149
MAX.
0.186
0.111
0.036
0.054
0.018
0.054
0.404
0.366
0.506
0.204
0.114
0.531
0.152
0.153
A
A1
b
b1
c
c1
D
E
E1
e1
F
L
13.08
3.47
13.48
3.87
L1
Ø
3.79
3.89
Document Number: 95171
Revision: 24-Apr-09
For technical questions concerning discrete products, contact: diodes-tech@vishay.com
For technical questions concerning module products, contact: ind-modules@vishay.com
www.vishay.com
1
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree
to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and
damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay
or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to
obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Revision: 12-Mar-12
Document Number: 91000
1
厂商 型号 描述 页数 下载

NIDEC

8S2011C-Z [ Toggle Switches ] 10 页

NIDEC

8S2012C-Z [ Toggle Switches ] 10 页

NIDEC

8S2014C-Z [ Toggle Switches ] 10 页

NIDEC

8S2016C-Z [ Toggle Switches ] 10 页

NIDEC

8S2021C-Z [ Toggle Switches ] 10 页

NIDEC

8S2022C-Z [ Toggle Switches ] 10 页

NIDEC

8S2024C-Z [ Toggle Switches ] 10 页

NIDEC

8S2026C-Z [ Toggle Switches ] 10 页

NIDEC

8S2041C-Z [ Toggle Switches ] 10 页

NIDEC

8S2042C-Z [ Toggle Switches ] 10 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.228232s
