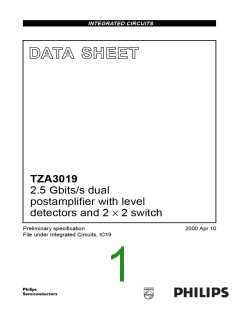

TZA3019

2.5 Gbits/s dual

postamplifier with level

detectors and 2 × 2 switch

Preliminary speciﬁcation

2000 Apr 10

File under Integrated Circuits, IC19

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

FEATURES

APPLICATIONS

• Dual postamplifier

• Postamplifier for Synchronous Digital Hierarchy and

Synchronous Optical Network (SDH/SONET)

transponder

• Single 3.3 V power supply

• Wideband operation from 50 kHz to 2.5 GHz (typical

value)

• SDH/SONET wavelength converter

• Crosspoint or channel switch

• PECL driver

• Fully differential

• Channels are delay matched

• Fibre channel arbitrated loop

• Protection ring

• On-chip DC-offset compensations without external

capacitor

• Interfacing with positive or negative supplied logic

• Switching possibility between channels

• Monitoring

• Signal level detectors

• Positive Emitter Coupled Logic (PECL) or Current-Mode

Logic (CML) compatible data outputs adjustable from

200 to 800 mV (p-p) single-ended

• Swing converter CML 200 mV (p-p) to

PECL 800 mV (p-p)

• Port bypass circuit

• Power-down capability for unused outputs and detectors

• Rise and fall times 80 ps (typical value)

• 2.5 GHz clock amplification.

• Possibility to invert the output of each channel

separately

GENERAL DESCRIPTION

The TZA3019 is a low gain postamplifier multiplexer with a

dual RSSI and/or LOS detector that is designed for use in

critical signal path control applications, such as

loop-through, redundant channel switching or Wavelength

Division Multiplexing (WDM). The signal path is

unregistered, so no clock is required for the data inputs.

The signal path is fully differential and delay matched. It is

capable of operating from 50 kHz to 2.5 GHz.

• Input level-detection circuits for Received Signal

Strength Indicator (RSSI) or Loss Of Signal (LOS)

detection, programmable from 0.4 to 400 mV (p-p)

single-ended, with open-drain comparator output for

direct interfacing with positive or negative logic

• Reference voltage for output level and LOS adjustment

• Automatic strongest input signal switch possibility

(TZA3019 version B)

The TZA3019 HTQFP32 and HBCC32 packages can be

delivered in three versions:

• HTQFP32 or HBCC32 plastic package with exposed

pad.

• TZA3019AHT and TZA3019AV with two RSSI signals

• TZA3019BHT and TZA3019BV with one RSSI and one

LOS signal

• TZA3019CHT and TZA3019CV with two LOS signals.

ORDERING INFORMATION

TYPE

PACKAGE

NUMBER

NAME

DESCRIPTION

VERSION

TZA3019AHT HTQFP32 plastic, heatsink thin quad ﬂat package; 32 leads; body 5 × 5 × 1 mm

TZA3019BHT HTQFP32 plastic, heatsink thin quad ﬂat package; 32 leads; body 5 × 5 × 1 mm

TZA3019CHT HTQFP32 plastic, heatsink thin quad ﬂat package; 32 leads; body 5 × 5 × 1 mm

SOT547-2

TZA3019AV

TZA3019BV

TZA3019CV

TZA3019U

HBCC32

−

plastic, heatsink bottom chip carrier; 32 terminals; body 5 × 5 × 0.65 mm SOT560-1

bare die; 2.22 × 2.22 × 0.28 mm

−

2000 Apr 10

2

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

BLOCK DIAGRAM

handbook, full pagewidth

32

25

27

V

EE1A

EE1B

10

LOSTH1

LOS

DETECTOR

1×

RSSI1

offset

level

TZA3019AHT

TZA3019AV

12

29

31

LEVEL1

INV1

S1

24

1

2

3

GND1B

SWITCH

GND1A

23

22

21

OUT1

IN1

IN1Q

OUT1Q

GND1B

A1A A1B

4

GND1A

TEST

15

8

14

BAND GAP

REFERENCE

DFT

V

ref

17

18

19

GND2A

GND2B

OUT2Q

OUT2

A2A A2B

7

6

5

IN2Q

IN2

20

GND2A

SWITCH

GND2B

30

28

13

S2

INV2

level

LEVEL2

offset

26

1×

RSSI2

LOS

DETECTOR

11

9

LOSTH2

16

V

EE2A

EE2B

MGT028

Fig.1 Block diagram (TZA3019AHT and TZA3019AV).

3

2000 Apr 10

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

handbook, full pagewidth

32

25

27

V

EE1B

EE1A

10

LOSTH1

LOS

DETECTOR

5 kΩ

LOS1

offset

level

TZA3019BHT

TZA3019BV

12

LEVEL1

29

INV1

31

S1

24

1

GND1B

SWITCH

GND1A

2

3

23

22

21

OUT1

IN1

IN1Q

OUT1Q

GND1B

A1A A1B

4

GND1A

TEST

15

8

14

BAND GAP

REFERENCE

DFT

V

ref

17

18

19

GND2A

GND2B

OUT2Q

OUT2

A2A A2B

7

6

5

IN2Q

IN2

20

GND2A

SWITCH

GND2B

30

28

13

S2

INV2

level

LEVEL2

offset

26

1×

RSSI2

LOS

DETECTOR

11

9

LOSTH2

16

V

EE2A

EE2B

MGT027

Fig.2 Block diagram (TZA3019BHT and TZA3019AV).

4

2000 Apr 10

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

handbook, full pagewidth

32

25

27

V

EE1B

EE1A

10

LOSTH1

LOS

DETECTOR

5 kΩ

LOS1

offset

level

TZA3019CHT

TZA3019CV

12

LEVEL1

29

INV1

31

S1

24

1

GND1B

SWITCH

GND1A

2

3

23

22

21

OUT1

IN1

IN1Q

OUT1Q

GND1B

A1A A1B

4

GND1A

TEST

15

8

14

BAND GAP

REFERENCE

DFT

V

ref

17

18

19

GND2A

GND2B

OUT2Q

OUT2

A2A A2B

7

6

5

IN2Q

IN2

20

GND2A

SWITCH

GND2B

30

28

13

S2

INV2

level

LEVEL2

offset

LOS

DETECTOR

5 kΩ

26

LOS2

11

9

LOSTH2

16

V

EE2A

EE2B

MGS553

Fig.3 Block diagram (TZA3019CHT and TZA3019CV).

5

2000 Apr 10

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

PINNING

SYMBOL TZA3019xHT/xV⁽¹⁾PAD TYPE⁽²⁾

DESCRIPTION

A

B

C

GND1A

IN1

1

2

1

2

1

2

1

2

S

I

ground for input 1 and LOS1 circuits

differential circuit 1 input; complimentary to pin IN1Q; DC bias level

is set internally at approximately −0.33 V

IN1Q

3

I

differential circuit 1 input; complimentary to pin IN1; DC bias level is

set internally at approximately −0.33 V

GND1A

n.c

4

−

5

6

4

−

5

6

4

−

5

6

4

5

6

7

8

S

−

S

I

ground for input 1 and LOS1 circuits

not connected

n.c

not connected

GND2A

IN2

ground for input 2 and LOS2 circuits

differential circuit 2 input; complimentary to pin IN2Q; DC bias level

is set internally at approximately −0.33 V

IN2Q

7

9

I

differential circuit 2 input; complimentary to pin IN2; DC bias level is

set internally at approximately −0.33 V

GND2A

V_EE2A

8

9

8

9

8

9

10

11

12

S

I

ground for input 2 and LOS2 circuits

negative supply voltage for input 2 and LOS2 circuits

LOSTH1

10

Input for level detector programming of input 1 circuit; threshold

level is set by connecting external resistors between pins

GND1A and V_ref. When forced to V_EE2Aor not connected, the

LOS1 circuit will be switched off.

LOSTH2

11

13

I

Input for level detector programming of input 2 circuit; threshold

level is set by connecting external resistors between pins

GND2A and V_ref. When forced to V_EE2Aor not connected, the

LOS2 circuit will be switched off.

n.c

−

14

15

−

not connected

LEVEL1

12

I

Input for programming output level of output 1 circuit; output level is

set by connecting external resistors between pins GND1A and V_ref.

When forced to GND1A or not connected, pins OUT1 and OUT1Q

will be switched off.

LEVEL2

V_ref

13

14

13

14

13

14

16

I

Input for programming output level of output 2 circuit; output level is

set by connecting external resistors between pins GND2A and V_ref.

When forced to GND2A or not connected, pins OUT2 and OUT2Q

will be switched off.

17

O

reference voltage for level circuit and LOS threshold programming;

typical value is −1.6 V; no external capacitor allowed

n.c

−

18

19

20

21

22

−

I

TEST

V_EE2B

GND2B

OUT2Q

15

16

17

18

15

16

17

18

15

16

17

18

for test purposes only; to be left open-circuit in the application

negative supply voltage for output 2 circuit

ground for output 2 circuit

S

O

PECL or CML compatible differential circuit 2 output;

complimentary to pin OUT2

2000 Apr 10

6

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

SYMBOL TZA3019xHT/xV⁽¹⁾PAD TYPE⁽²⁾

DESCRIPTION

A

B

C

OUT2

19

23

O

PECL or CML compatible differential circuit 2 output;

complimentary to pin OUT2Q

GND2B

n.c

20

−

20

−

20

−

24

25

26

27

28

S

−

ground for output 2 circuit

not connected

n.c

−

not connected

GND1B

OUT1Q

21

22

21

22

21

22

S

O

ground for output 1 circuit

PECL or CML compatible differential circuit 1 output;

complimentary to pin OUT1

OUT1

23

29

O

PECL or CML compatible differential circuit 1 output;

complimentary to pin OUT1Q

GND1B

V_EE1B

24

25

26

−

24

25

26

−

24

25

−

30

31

32

33

S

O

ground for output 1 circuit

negative supply voltage for output 1 circuit

output of received signal strength indicator of detector

RSSI2

LOS2

26

O-DRN output loss of signal detector 2; detection of input 2 signal; direct

drive of positive or negative supplied logic via internal 5 kΩ resistor

RSSI1

LOS1

27

−

34

35

O

output of received signal strength indicator of detector

−

27

O-DRN output loss of signal detector 2; detection of input 2 signal; direct

drive of positive or negative supplied logic via internal 5 kΩ resistor

INV2

INV1

S2

28

29

30

31

32

28

29

30

31

32

28

29

30

31

32

36

37

38

39

TTL

input to invert the signal of pins OUT2 and OUT2Q; directly positive

(inverted) or negative supplied logic driven

input to invert the signal of pins OUT1 and OUT1Q; directly of

positive (inverted) or negative supplied logic driven

input selector output 2 circuit; directly positive (inverted) or negative

supplied logic driven

S1

input selector output 1 circuit; directly positive (inverted) or negative

supplied logic driven

V_EE1A

V_EEP

40

S

negative supply voltage for input 1 and LOS1 circuits

negative supply voltage pad (exposed die pad)

pad pad pad

−

Notes

1. The ‘x’ in TZA3019xHT/xV represents versions A, B and C.

2. Pin type abbreviations: O = output, I = input, S = power supply, TTL = logic input and O-DRN = open-drain output.

2000 Apr 10

7

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

handbook, full pagewidth

1

2

3

4

5

6

7

8

24

23

22

21

20

19

18

17

GND1A

IN1

GND1B

OUT1

exposed pad

IN1Q

OUT1Q

GND1B

GND2B

OUT2

GND1A

GND2A

IN2

TZA3019xHT

V

IN2Q

OUT2Q

GND2B

EEP

GND2A

MGS554

Fig.4 Pin configuration HTQFP32.

handbook, full pagewidth

GND1A

1

32 31 30 29 28 27 26

exposed pad

25

GND1B

OUT1

IN1

IN1Q

2

3

4

5

6

7

8

24

23

22

21

20

19

18

GND1A

GND2A

IN2

OUT1Q

GND1B

GND2B

OUT2

TZA3019xV

IN2Q

V

EEP

GND2A

OUT2Q

GND2B

9

10 11 12 13 14 15 16

17

MGT029

Fig.5 Pin configuration HBCC32.

8

2000 Apr 10

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

FUNCTIONAL DESCRIPTION

In such cases, pull-up resistors of 100 Ω should be

connected as close as possible to the IC from

pins OUT1 and OUT1Q, and pins OUT2 and OUT2Q to

V_EE1Band V_EE2Brespectively. These matching resistors

are not needed in most applications.

The TZA3019 is a dual postamplifier with multiplexer and

loss of signal detection see Figs 1, 2 and 3. The RF path

starts with the multiplexer, which connects an amplifier to

one of the two inputs. It is possible to invert the output for

easy layout of the Printed-Circuit Board (PCB). The signal

is amplified to a certain level. To guarantee this level with

minimum distortion over the temperature range and level

range, an active control part is added. The offset

compensation circuit following the inverter minimizes the

offset.

GND1A,

GND2A

handbook, halfpage

12 pF

420 Ω

50 Ω

The Received Signal Strength Indicator (RSSI) or the Loss

Of Signal (LOS) detection uses a 7-stage ‘successive

detection’ circuit. It provides a logarithmic output. The LOS

is followed by a comparator with a programmable

threshold. The input signal level-detection is implemented

to check if the input signal voltage is above the user

programmed level. This can insure that data will only be

transmitted when the input signal-to-noise ratio is sufficient

for low bit error rate system operation. A second

offset compensation circuit minimizes the offset of the

logarithmic amplifier.

50 Ω

IN1, IN2

IN1Q, IN2Q

V

,

EE1A

EE2A

MGS555

Fig.6 RF input circuit.

RF input circuit

The input circuit contains internal 50 Ω resistors

decoupled to ground via an internal common mode 12 pF

capacitor (see Fig.6).

Postampliﬁer level adjustment

The postamplifier boosts the signal up to PECL levels. The

output can be either CML- or PECL-level compatible,

adjusted by means of the voltage on pins LEVEL1

and LEVEL2. The DC voltages of pins OUT1 and OUT1Q,

and pins OUT2 and OUT2Q match with the DC-levels

on pins LEVEL1 and LEVEL2, respectively. Due to the

receiving end 50 Ω load resistance, it means that at the

same level of V_o(p-p), V_LEVEL1and V_LEVEL2with

The input pins are DC-biased at approximately −0.33 V by

an internal reference generator. The TZA3019 can be

DC-coupled, but AC-coupling is preferred. In case of

DC-coupling, the driving source must operate within the

allowable input range (−1.0 to +0.3 V). A DC-offset voltage

of more than a few millivolts should be avoided, since the

internal DC-offset compensation circuit has a limited

correction range. When AC-coupling is used, if no

DC-compatibility is required, the values of the coupling

capacitors must be large enough to pass the lowest input

frequency of interest. Capacitor tolerance and resistor

variation must be included for an accurate calculation.

Do not use signal frequencies around the low cut-off

circuit frequencies (f_−3dB(l)= 50 kHz for the postamplifiers

and f_−3dB(l)= 1 MHz for the LOS circuits).

AC-coupling are not equal to V_LEVEL1and V_LEVEL2with

DC-coupling (see Figs 7 and 8).

The postamplifier is in power-down state when pin

LEVEL1 or LEVEL2 is connected to ground or not

connected (see Fig.8).

Postampliﬁer DC offset cancellation loop

Offset control loops connected between the inputs of the

buffers A1A and A2A and the outputs of the amplifiers A1B

and A2B (see Figs 1, 2 and 3) will keep the input of both

buffers at their toggle point during the absence of an input

signal. The active offset compensation circuit is integrated,

so no external capacitor is required. The loop time

constant determines the lower cut-off frequency of the

amplifier chain. The cut-off frequency of the offset

RF output circuit

Matching the main amplifier outputs (see Fig.7) is not

mandatory. In most applications, the transmission line

receiving end will be properly matched, while very little

reflections occur.

Matching the transmitting end to absorb reflections is only

recommended for very sensitive applications.

compensations is fixed internally at approximately 5 kHz.

2000 Apr 10

9

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

GND1A,

GND2A

handbook, full pagewidth

GND1B,

GND2B

50

Ω

50

Ω

100 Ω

R1

OUT1,

OUT2

V

o

OUT1Q,

OUT2Q

LEVEL1,

LEVEL2

V

level

REG

R2

0

level

V

ref

V

o(se)(p-p)

V

o

MGS556

(V)

V_level= 0.5 × V_o(se)(p-p)

.

R1

R1 + R2

V_level= V_ref

×

.

----------------------

Level detector in power-down mode: V_LEVEL1or V_LEVEL2= V_GND

.

a. DC-coupling.

GND1A,

GND2A

GND1B,

GND2B

handbook, full pagewidth

50

Ω

50

Ω

100 Ω

OUT1,

OUT2

V

o

R1

OUT1Q,

OUT2Q

LEVEL1,

LEVEL2

V

level

0

REG

R2

V

ref

V

level

o(se)(p-p)

V

o

MGL811

(V)

V_level= 1.5 × V_o(se)(p-p)

.

R1

R1 + R2

V_level= V_ref

×

.

----------------------

Level detector in power-down mode: V_LEVEL1or V_LEVEL2= V_GND

.

b. AC-coupling.

Fig.7 RF output configurations.

2000 Apr 10

10

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

MGS557

handbook, full pagewidth

1000

V

o(se)(p-p)

(mV)

800

DC-coupled

AC-coupled

600

400

200

0

20

40

60

80

100

V

(% of V

)

ref

level

Fig.8 Output signal as a function of V_level

.

TTL logic input of selector and inverter

Table 2 OUT2 and OUT2Q as function of input S2

The logic levels are differently defined for positive or

S2

OUT2

OUT2Q

negative logic (see Fig.9). It should be noted that positive

logic levels are inverted if a negative supply voltage is

used.

0

1

IN2

IN1

IN2Q

IN1Q

Table 3 OUT1 and OUT1Q as function of INV1

Outputs as a function of switch input pins S1, S2,

INV1 and INV2

INV1

OUT1

OUT1Q

IN1Q or IN2Q

IN1 or IN2

See Tables 1, 2, 3 and 4.

0

1

IN1 or IN2

The default values for the switch input pins S1, S2, INV1

and INV2 if not connected, is zero.

IN1Q or IN2Q

Table 4 OUT2 and OUT2Q as function of INV2

Table 1 OUT1 and OUT1Q as function of input S1

INV2

OUT2

OUT2Q

S1

0

OUT1

IN1

OUT1Q

IN1Q

0

1

IN1 or IN2

IN1Q or IN2Q

IN1 or IN2

IN1Q or IN2Q

1

IN2

IN2Q

2000 Apr 10

11

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

handbook, full pagewidth

logic

level

MGS558

2.0 V

(1)

2.0 V

1

0

TTL

0.8 V

1.4 V

V

GND

EE

−4

−3

−2

−1

0

+1

+2

+3

V (V)

I

a. Negative circuit supply voltage V_EEand negative logic supply voltage V_EE

.

handbook, full pagewidth

logic

level

MGS559

2.0 V

1

(1)

TTL

0.8 V

0

1.4 V

V

CC

EE

GND

−4

−3

−2

−1

0

+1

+2

+3

V (V)

I

b. Negative circuit supply voltage V_EEand positive logic supply voltage V_CC

.

logic

level

MGS560

handbook, full pagewidth

2.0 V

(1)

2.0 V

1

TTL

0.8 V

0

1.4 V

V

GND

CC

−1

0

+1

+2

+3

+4

+5

+6

V (V)

I

c. Positive circuit supply voltage V_CCand positive logic supply voltage V_CC

.

(1) Level not defined.

Fig.9 Logic levels on pins S1, S2, INV1 and INV2 as a function of the input voltages.

12

2000 Apr 10

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

RSSI and LOS detection

The TZA3019 allows AC-signal level detection. This can

prevent the outputs from reacting to noise during the

absence of a valid input signal, and can insure that data

only will be transmitted when the signal-to-noise ratio of

the input signal is sufficient to insure low bit error rate

system operation.

handbook, halfpage3

10

MGS564

V

i(se)(p-p)

(mV)

2

10

LOS1,

LOS2

LOW-level

(1)

(2)

The RSSI detection circuit uses seven limiting amplifiers in

a ‘successive detection’ topology to closely approximate

logarithmic response over a total range of 70 dB. The

detectors provide full-wave rectification of the AC signals

presented at each previous amplifier stage. Their outputs

are current drivers. Each cell incorporates a low-pass filter,

being the first step in recovering the average value of the

demodulated signal of the input frequency. The summed

detector output currents are converted to a voltage by an

internal load resistor. This voltage is buffered and

10

1

LOS1,

LOS2

HIGH-level

(3)

−1

10

20

30

40

50

60

70

)

V

, V

LOSTH1 LOSTH2

(% of V

ref

available in the A and B versions of the TZA3019. When

−0.16

−0.32 −0.48 −0.64 −0.8 −0.96 −1.12

, V (V)

V

V_RSSIis used V_LOSTHmust be connected to GND to

RSSI1 RSSI2

prevent the LOS comparator from switching to the standby

mode. The LOS comparator detects an input signal above

a fixed threshold, resulting in a LOW-level at the LOS

circuit output.The threshold level is determined by the

voltage on pins LOSTH1 or LOSTH2 (see Fig.10). A filter

with a time constant of 1 µs nominal is included to prevent

noise spikes from triggering the level detector.

(1) PRBS pattern input signal with a frequency <1 GHz.

(2) Linearity error typically 0.5 dB.

(3) ϕ = 1/12.5 dB/mV.

Fig.10 Loss of signal assert level.

The comparator (with internal 3 dB hysteresis) drives an

open-drain circuit with an internal resistor (5 kΩ) for direct

interfacing to positive or negative logic (see Fig.11). Only

available in the B and C versions of the TZA3019.

A full understanding of the offset control loop is useful. The

primary purpose of the loop is to extend the lower end of

the dynamic range in any case where the offset voltage of

the first stage might be high enough to cause later stages

to prematurely enter limiting, caused by the high DC-gain

of the amplifier system. The offset is automatically and

continuously compensated via a feedback path from the

last stage. An offset at the output of the logarithmic

converter is equivalent to a change of amplitude at the

input. Consequently, with DC-coupling, signal absence,

either LOW-level or HIGH-level is detected as a full signal,

only signals with an average value equal to zero give zero

output.

The response is independent of the sign of the input signal

because of the particular way the circuit has been built.

This is part of the demodulating nature of the detector,

which results in an alternating input voltage being

transformed to a rectified and filtered quasi DC-output

signal. For the TZA3019 the logarithmic voltage slope is

ϕ = 1/13 dB/mV and is essentially temperature and supply

independent through four feedback loops in the reference

circuit. The internal LOS detector output voltage is based

on V_ref. The demodulator characteristic depends on the

waveform and the response depends roughly on the input

signal RMS value. This influences high frequencies, a

square wave input of 2.4 GHz (LOS circuit bandwidth

of 2.4 GHz) offsets the intercept voltage by 20%. V_LOSTH

can be calculated using the following formulae:

Version B can be used for an auto function, which switches

the strongest input signal to output 1 and the weakest to

output 2. To achieve this output V_RSSI2must be used as

the reference voltage for input V_LOSTH. Then the output

LOS1 can switch S1 and S2.

V_LOSTH= V_RSSI= S × 20log^{(Vi ⁄ 18µV)}

(1)

where S = sensitivity.

Example: a 200 mV (p-p) single-ended 1.2 GB/s PRBS

signal has an RSSI from 1003 mV.

2000 Apr 10

13

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

V

GND

56 kΩ

handbook, halfpage

CC

handbook, halfpage

GND

5.6 kΩ

LOS1,

LOS2

TZA3019

LOS1,

LOS2

TZA3019

5 kΩ

GND1A,

GND2A

GND1A,

GND2A

I

LOS

V

I

LOS

V

EE

MGS562

MGS561

a. Negative supply and negative logic.

b. Negative supply and positive logic.

V

handbook, halfpage

CC

56 kΩ

LOS1,

LOS2

TZA3019

5 kΩ

GND1A,

GND2A

I

LOS

GND

MGS563

V_CC− V_EE< 7 V.

c. Positive supply and positive logic.

Fig.11 Loss of signal outputs, pins LOS1 and LOS2.

Supply current

(1)

60

For the supply currents I_EE1Band I_EE2B, see Fig.12.

58

I

50

Using a positive supply voltage

EE1B,

EE2B

(mA)

Although the TZA3019 has been designed to use a single

−3.3 V supply voltage (see Fig.13), a +3.3 V supply

(see Fig.14) can also be used. However, care should be

taken with respect to RF transmission lines. The on-chip

signals refer to the various ground pins as being positive

supply pins in a +3.3 V application. The external

transmission lines will most likely be referred to the

pins V_EE1A, V_EE2A, V_EE1Band V_EE2B, being the system

ground. The RF signals will change from one reference

plane to another when interfacing the RF inputs and

outputs. A positive supply application is very vulnerable to

interference with respect to this point. For a successful

+3.3 V application, special care should be taken when

designing the PCB layout in order to reduce the influence

of interference and to keep the positive supply voltage as

clean as possible.

40

30

20

17

10

5

0

0.2

0.5

V

0.8

1

(V)

o(se)(p-p)

MGS566

(1) I_EE1Band I_EE2Bat 25 °C.

Fig.12 Supply current as a function of output

voltage

2000 Apr 10

14

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 60134).

SYMBOL

V_EE

V_n

PARAMETER

MIN.

−5.5

MAX.

+0.5

UNIT

negative supply voltage

DC voltage

V

pins IN1, IN1Q, IN2, IN2Q, LOSTH1, LOSTH2, LEVEL1, LEVEL2,

V_ref, TEST, OUT2Q, OUT2, OUT1Q, OUT1, V_EEP, GND1A,

GND2A, GND1B and GND2B

V_EE− 0.5 0.5

pins LOS1, LOS2, INV1, INV2, S1 and S2

DC current

V_EE− 0.5 V_EE+ 7

V

I_n

pins IN1, IN1Q, IN2 and IN2Q

pins LOSTH1, LOSTH2, LEVEL1 and LEVEL2

pins V_ref,TEST, LOS1 and LOS2

pins OUT1, OUT1Q, OUT2 and OUT2Q

pins INV1, INV2, S1 and S2

total power dissipation

−20

0

+20

14

mA

µA

mA

µA

W

−1

−30

0

+1

+30

20

P_tot

T_stg

T_j

−

1.2

storage temperature

−65

−

+150

150

+85

°C

junction temperature

°C

T_amb

ambient temperature

−40

°C

THERMAL CHARACTERISTICS

SYMBOL

PARAMETER

CONDITIONS

VALUE

UNIT

R_th(j-s)

thermal resistance from junction to

solder point (exposed die pad); note 1

15

33

18

K/W

R_th(j-a)

thermal resistance from junction to

ambient; note 1

1s2p multi-layer test board

R_th(s-a)

thermal resistance from solder point to 1s2p multi-layer test board

ambient (exposed die pad); note 1

R_th(s-a)(req)

required thermal resistance from

solder point to ambient

LOS circuits switched on

V_o= 200 mV (p-p) single-ended;

both output circuits

60

30

K/W

V_o= 800 mV (p-p) single-ended;

both output circuits

Note

1. JEDEC standard.

2000 Apr 10

15

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

CHARACTERISTICS

Typical values at T_amb= 25 °C and V_EE= −3.3 V; minimum and maximum values are valid over the entire ambient

temperature range and supply voltage range; all voltages referenced to ground; unless otherwise speciﬁed; note 1.

SYMBOL

Supply

PARAMETER

CONDITIONS

MIN.

TYP.

MAX.

UNIT

SUPPLY PINS V_EE1A, V_EE1B, V_EE2AAND V_EE2B

V_EE

negative supply voltage

negative supply current

−3.13

−3.3

−3.47

V

I_EE1A

I_EE2A

,

LOS circuit power-down

LOS circuit switched on

ampliﬁer power-down

14

24

2

24

40

6

34

56

10

24

mA

I_EE1B

I_EE2B

negative supply current

V_o= 200 mV (p-p)

single-ended; one output

circuit

11

17

V_o= 800 mV (p-p)

single-ended; one output

circuit

47

60

77

mA

P_tot

total power dissipation

power-down

100

220

200

380

300

555

mW

both LOS circuits switched on

V_o= 200 mV (p-p)

single-ended; both output

circuits

V_o= 800 mV (p-p)

single-ended; both output

circuits

450

660

925

mW

TC

temperature coefﬁcient

LOS circuit switched on; I_EE1A

I_EE2A

;

30

15

50

30

80

50

µA/°C

V_o= 800 mV (p-p)

single-ended; I_EE1A; I_EE2A

T_j

junction temperature

ambient temperature

−40

−

+125

+85

°C

T_amb

+25

Inputs multiplexer and loss of signal detector

PECL OR CML INPUT PINS IN1, IN1Q, IN2 AND IN2Q

V_i(p-p)

input voltage swing

(peak-to-peak value)

single-ended; note 2

50

−

500

mV

V_i(bias)

V_I

DC input bias voltage

−0.28

−1.0

−0.33

−0.4

V

DC and AC input window

voltage

note 3

−

+0.3

R_i

C_i

input resistance

single-ended

35

50

70

Ω

input capacitance

single-ended; note 3

0.6

0.8

1.2

pF

2000 Apr 10

16

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

SYMBOL

PARAMETER

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Postampliﬁer

AMPLIFIERS A1A, A1B, A2A AND A2B

G_v

small signal voltage gain

V_o= 200 mV (p-p)

10

15

19

dB

single-ended; note 4

V_o= 800 mV (p-p)

22

29

34

dB

single-ended; note 4

f_D

signal path data rate

notes 5 and 9

−

2500

5

−

Mbits/s

kHz

f_−3dB(l)

low −3 dB cut-off frequency note 3

2

10

DC compensation

f_−3dB(h)

t_PD

high −3 dB cut-off frequency

−

2.0

200

0

−

GHz

ps

propagation delay

note 3

150

−

250

5

∆t_PD

propagation delay

difference

at the same signal levels;

note 3

ps

J

total jitter

20 bits of the 28.5kbits

pattern; notes 3 and 6

−

8

−

ps

α_ct

crosstalk

crosstalk of IC only

90

110

dB

PECL OR CML OUTPUT PINS OUT1, OUT1Q, OUT2 AND OUT2Q

V_o(se)(p-p)

single-ended output voltage 50 Ω load

200

−

800

mV

(peak-to-peak value)

TC

temperature coefﬁcient

output level

−1

0

−1

mV/K

t_r

rise time

20% to 80%; note 5

−

80

−

ps

Ω

t_f

fall time

80% to 20%; note 5

single-ended

−

80

−

R_o

C_o

output resistance

output capacitance

70

0.6

100

0.8

130

1.2

single-ended; note 3

pF

LEVEL CONTROL INPUT PINS LEVEL1 AND LEVEL2

V_i

R_i

input voltage

V_ref

150

−

0

V

input resistance

measured to

350

600

kΩ

GND1A or GND2A

Multiplexer and inverter switch

PECL OR CML INPUT PINS IN1, IN1Q, IN2 AND IN2Q

α_OS(red)

input offset reduction

V_o= 200 mV (p-p)

single-ended; note 7

4

9

13

dB

mV

µV

dB

V_o= 800 mV (p-p)

single-ended; note 7

10

−10

−

14

−

20

V_io(cor)

input offset voltage

correction range

peak-to-peak value

single-ended

+10

170

12

V_{n(i)(eq)(rms)}equivalent input noise

voltage (RMS value)

V_o= 800 mV (p-p)

single-ended; note 3

75

5

Fn

noise factor

note 3

−

2000 Apr 10

17

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

SYMBOL

PARAMETER

CONDITIONS

MIN.

TYP.

MAX.

UNIT

SWITCH CIRCUIT

t_a

t_d

assert time

de-assert time

multiplexer and inverter

70

100

200

160

ns

55

80

TTL INPUT PINS S1, S2, INV1 AND INV2

V_IL

LOW-level input voltage

positive logic

2.0

−

V_EE+ 7.3 V

negative logic

V

_EE− 0.3 −

−2.5

+0.3

+0.8

400

V

V_IH

HIGH-level input voltage

negative logic

−1.3

−0.3

100

−10

−

V

positive logic

−

V

R_i

I_i

input resistance

input current

measured to V_EE1Aor V_EE2A

180

−

kΩ

µA

+10

Received Signal Strength Indicator and Loss Of Signal detector

RSSI AND LOS CIRCUIT

V_i(se)(p-p)

single-ended input voltage

swing (peak-to-peak value)

0.4

−

400

mV

DR

dynamic range

LOS sensitivity

57

60

63

dB

S_LOS

50 MHz, square; note 8

620 MHz, square; note 8

1.2 GHz, square; note 8

11

12.5

11.9

11.1

12.7

14

mV/dB

10.7

10

13

12.2

14.2

100 MB/s PRBS (2³¹− 1);

11.2

note 8

1.2 GB/s PRBS (2³¹− 1);

note 8

100 GB/s PRBS (2³¹− 1);

note 8

10.9

10.7

−2

12.4

11.9

0

13.9

13

mV/dB

µV/dbK

TC_sens

temperature coefﬁcient

sensitivity

−2

LE

linearity error

see Fig.10

−

0.5

35

−

1

dB

mV

α_OS(red)

V_io(cor)

input offset reduction

notes 3 and 7

25

−5

45

+5

input offset voltage

correction range

peak-to-peak value

single-ended

f_−3dB(l)

f_−3dB(h)

low −3 dB cut-off frequency

0.5

1.5

1

2

MHz

GHz

high −3 dB cut-off frequency note 8

2.5

LOS CIRCUIT

hys_LOS

LOS hysteresis

input signal waveform

2.0

3.0

4.0

dB

dependency

t_a

t_d

assert time

note 3

−

5

µS

de-assert time

note 3

INPUT PINS LOSTH1 AND LOSTH2

V_i

R_i

input voltage

V_EE

150

−

0

V

input resistance

measured to V_EE1Aor V_EE2A

350

600

kΩ

2000 Apr 10

18

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

SYMBOL

PARAMETER

CONDITIONS

MIN.

TYP.

MAX.

UNIT

OUTPUT PINS LOS1 AND LOS2

V_o

output voltage

V_EE

−

5

3.5

V

I_o(sink)

R_o

output sink current

output resistance

−

1

mA

internal output series

resistance

3.5

6.5

kΩ

OUTPUT PINS RSSI1 AND RSSI2

V_o

I_o

output voltage

output current

−1

−

0

V

+1

mA

Band gap reference circuit

OUTPUT PIN V_REF

V_ref

reference voltage

−1.45

−1.6

−1.8

V

C_ext

allowed external

capacitance

−

10

pF

I_o(sink)

output sink current

−

500

µA

Notes

1. It is assumed that both CML inputs carry a complementary signal with the specified peak-to-peak value (true

differential excitation).

2. Minimum signal with limiting output.

3. Guaranteed by design.

V_o

4. G_V

=

------

V_i

5. Based on −3dB cut-off frequency.

6. V_i= 100 mV (p-p) single-ended and V_o= 200 mV (p-p) single-ended.

G _AC

7. Input offset reduction =

-----------

G_DC

8. Sensitivity depends on the waveform and is therefore a function of −3 dB cut-off frequency see equation (1).

9. Low limit can go as low as DC if input signal overrides input offset voltage correction range.

APPLICATION INFORMATION

All V_EEpins (one at each corner and the exposed die pad)

need to be connected to a common supply plane with an

inductance as low as possible. This plane should be

decoupled to ground. To avoid high frequency resonance,

multiple bypass capacitors should not be mounted at the

same location. To minimize low frequency switching noise

in the vicinity of the TZA3019, the power supply line should

be filtered once using a beaded capacitor circuit with a low

cut-off frequency (see Figs 13 and 14).

RF input and output connections

Striplines, or microstrips, with an odd mode characteristic

impedance of Z_o= 50 Ω must be used for the differential

RF connections on the PCB. This applies to both the signal

inputs and the signal outputs. The two lines in each pair

should have the same length.

Grounding and power supply decoupling

The V_EEconnection on the PCB also needs to be a large

copper area to improve heat transfer to the PCB and thus

support IC cooling.

The ground connection on the PCB needs to be a large

copper filled area connected to a common ground plane

with an inductance as low as possible.

2000 Apr 10

19

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

handbook, full pagewidth

2

Boundary of 200 mm area

0

1

2

3

4

5 mm

To central

decoupling

To central

V decoupling

EE

V

EE

0603

GND1A

GND1B

OUT1

IN1

IN1Q

OUT1Q

GND1B

GND2B

GND1A

GND2A

IN2

OUT2

IN2Q

OUT2Q

GND2B

GND2A

0603

To central

decoupling

To central

V

decoupling

EE

0603

HTQFP

MGS567

In order to enable heat flow out of the package, the following measures have to be taken:

(1) Solder the 3 × 3 mm²die pad to a plane with maximum size.

(2) Add a plane with minimum 200 mm²in an inner layer, surrounded by ground layers.

(3) Use maximum amount of vias to connect two planes.

(4) Use minimum of openings in heat transport area between hot plane and ground planes.

Fig.13 PCB layout for negative supply voltage.

2000 Apr 10

20

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

handbook, full pagewidth

2

Boundary of 200 mm area

0

1

2

3

4

5 mm

To central

decoupling

To central

V

decoupling

EE

0603

GND1A

GND1B

OUT1

IN1

IN1Q

OUT1Q

GND1B

GND2B

GND1A

GND2A

IN2

OUT2

IN2Q

OUT2Q

GND2B

GND2A

0603

To central

decoupling

To central

V decoupling

EE

V

EE

0603

HTQFP

MGS568

In order to enable heat flow out of the package, the following measures have to be taken:

(1) Solder the 3 × 3 mm²die pad to a plane with maximum size.

(2) Add a plane with minimum 200 mm²in an inner layer, surrounded by ground layers.

(3) Use maximum amount of vias to connect two planes.

(4) Use minimum of openings in heat transport area between hot plane and ground planes.

Fig.14 PCB layout for positive supply voltage.

2000 Apr 10

21

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

BONDING PAD LOCATIONS

COORDINATES⁽¹⁾

SYMBOL

OUT2

PAD

x

y

SYMBOL

PAD

x

y

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

+928

+707

+550

+393

+236

+79

−396

−239

−81

GND1A

IN1

1

−928

−707

−550

−393

−236

−79

+710

+553

+396

+239

+81

GND2B

n.c.

2

IN1Q

3

n.c.

+81

GND1A

n.c.

4

GND1B

OUT1Q

OUT1

GND1B

V_EE1B

RSSI2

LOS2

RSSI1

LOS1

INV2

+239

+396

+553

+710

+928

5

n.c.

6

−81

GND2A

IN2

7

−239

−396

−553

−710

−928

−710

−553

8

IN2Q

9

GND2A

V_EE2A

LOSTH1

LOSTH2

n.c.

10

11

12

13

14

15

16

17

18

19

20

21

22

−79

INV1

−236

−393

−550

−707

LEVEL1

LEVEL2

VREF

n.c.

S2

+79

S1

+236

+393

+550

+707

+928

V_EE1A

Note

TEST

V_EE2B

GND2B

OUT2Q

1. All x and y coordinates represent the position of the

centre of the pad in µm with respect to the centre of the

die (see Fig.15)

2000 Apr 10

22

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

handbook, full pagewidth

40 39 38 37 36 35 34 33 32 31

GND1A

IN1

1

2

30

29

28

27

26

25

24

23

22

21

GND1B

OUT1

OUT1Q

GND1B

n.c.

IN1Q

GND1A

n.c.

3

4

5

x

0

6

n.c.

7

GND2A

IN2

GND2B

OUT2

OUT2Q

GND2B

y

8

TZA3019U

9

IN2Q

GND2A

10

11 12 13 14 15 16 17 18 19 20

MGT030

Fig.15 Bonding pad locations TZA3019U.

2000 Apr 10

23

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

PACKAGE OUTLINE

HTQFP32: plastic, heatsink thin quad flat package; 32 leads; body 5 x 5 x 1.0 mm

SOT547-2

c

y

heathsink side

X

D

h

24

17

A

Z

25

E

16

e

H

E

(A )

3

h

A

2

A

1

w M

p

θ

b

L

p

pin 1 index

L

9

32

detail X

1

8

w M

Z

v

M

A

B

D

b

p

e

D

B

H

v M

D

0

2.5

scale

5 mm

DIMENSIONS (mm are the original dimensions)

A

(1)

UNIT

A

b

c

D

E

e

H

L

v

w

y

Z

E

θ

1

2

3

p

h

D

E

p

D

max.

0.15 1.05

0.05 0.95

0.27 0.20 5.1

0.17 0.09 4.9

3.1

2.7

5.1

4.9

3.1

2.7

7.1

6.9

7.1

6.9

0.75

0.45

0.89 0.89

0.61 0.61

7°

0°

mm

1.2

0.25

0.5

1.0

0.2 0.08 0.08

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

REFERENCES

OUTLINE

EUROPEAN

PROJECTION

ISSUE DATE

VERSION

IEC

JEDEC

EIAJ

SOT547-2

99-06-15

2000 Apr 10

24

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

HBCC32: plastic, heatsink bottom chip carrier; 32 terminals; body 5 x 5 x 0.65 mm

SOT560-1

D

x

B

b

w M

1

w M

ball A1

index area

b

3

E

w M

b

w M

2

detail X

x

C

A

B

C

e

1

e

y

v

A

E

e

4

e

2

1

32

A

X

D

1

A

2

e

3

A

0

2.5

5 mm

scale

DIMENSIONS (mm are the original dimensions)

A

b

E

e

1

w

b

D

E

e

3

e

4

v

x

y

UNIT

1

2

1

2

3

1

2

max.

0.10 0.70 0.35 0.50 0.50 0.50 5.1

0.05 0.60 0.20 0.30 0.35 0.35 4.9

3.2 5.1

3.0 4.9

3.2

3.0

mm 0.80

0.15 0.15 0.05

0.5

4.2

4.15 4.15

0.2

REFERENCES

OUTLINE

VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC

JEDEC

EIAJ

99-09-10

00-02-01

SOT560-1

MO-217

2000 Apr 10

25

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

SOLDERING

• Use a double-wave soldering method comprising a

turbulent wave with high upward pressure followed by a

smooth laminar wave.

Introduction to soldering surface mount packages

This text gives a very brief insight to a complex technology.

A more in-depth account of soldering ICs can be found in

our “Data Handbook IC26; Integrated Circuit Packages”

(document order number 9398 652 90011).

• For packages with leads on two sides and a pitch (e):

– larger than or equal to 1.27 mm, the footprint

longitudinal axis is preferred to be parallel to the

transport direction of the printed-circuit board;

There is no soldering method that is ideal for all surface

mount IC packages. Wave soldering is not always suitable

for surface mount ICs, or for printed-circuit boards with

high population densities. In these situations reflow

soldering is often used.

– smaller than 1.27 mm, the footprint longitudinal axis

must be parallel to the transport direction of the

printed-circuit board.

The footprint must incorporate solder thieves at the

downstream end.

Reﬂow soldering

• For packages with leads on four sides, the footprint must

be placed at a 45° angle to the transport direction of the

printed-circuit board. The footprint must incorporate

solder thieves downstream and at the side corners.

Reflow soldering requires solder paste (a suspension of

fine solder particles, flux and binding agent) to be applied

to the printed-circuit board by screen printing, stencilling or

pressure-syringe dispensing before package placement.

During placement and before soldering, the package must

be fixed with a droplet of adhesive. The adhesive can be

applied by screen printing, pin transfer or syringe

dispensing. The package can be soldered after the

adhesive is cured.

Several methods exist for reflowing; for example,

infrared/convection heating in a conveyor type oven.

Throughput times (preheating, soldering and cooling) vary

between 100 and 200 seconds depending on heating

method.

Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal

of corrosive residues in most applications.

Typical reflow peak temperatures range from

215 to 250 °C. The top-surface temperature of the

packages should preferable be kept below 230 °C.

Manual soldering

Wave soldering

Fix the component by first soldering two

diagonally-opposite end leads. Use a low voltage (24 V or

less) soldering iron applied to the flat part of the lead.

Contact time must be limited to 10 seconds at up to

300 °C.

Conventional single wave soldering is not recommended

for surface mount devices (SMDs) or printed-circuit boards

with a high component density, as solder bridging and

non-wetting can present major problems.

When using a dedicated tool, all other leads can be

soldered in one operation within 2 to 5 seconds between

270 and 320 °C.

To overcome these problems the double-wave soldering

method was specifically developed.

If wave soldering is used the following conditions must be

observed for optimal results:

2000 Apr 10

26

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

Suitability of surface mount IC packages for wave and reﬂow soldering methods

SOLDERING METHOD

PACKAGE

WAVE

REFLOW⁽¹⁾

BGA, SQFP

not suitable

suitable

HLQFP, HSQFP, HSOP, HTQFP, HTSSOP, SMS not suitable⁽²⁾

PLCC⁽³⁾, SO, SOJ

LQFP, QFP, TQFP

SSOP, TSSOP, VSO

suitable

not recommended⁽³⁾⁽⁴⁾

not recommended⁽⁵⁾

Notes

1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum

temperature (with respect to time) and body size of the package, there is a risk that internal or external package

cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the

Drypack information in the “Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”.

2. These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink

(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).

3. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.

The package footprint must incorporate solder thieves downstream and at the side corners.

4. Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8 mm;

it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

5. Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is

definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.

2000 Apr 10

27

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

DATA SHEET STATUS

PRODUCT

DATA SHEET STATUS

STATUS

DEFINITIONS ⁽¹⁾

Objective speciﬁcation

Development This data sheet contains the design target or goal speciﬁcations for

product development. Speciﬁcation may change in any manner without

notice.

Preliminary speciﬁcation Qualiﬁcation

This data sheet contains preliminary data, and supplementary data will be

published at a later date. Philips Semiconductors reserves the right to

make changes at any time without notice in order to improve design and

supply the best possible product.

Product speciﬁcation

Production

This data sheet contains ﬁnal speciﬁcations. Philips Semiconductors

reserves the right to make changes at any time without notice in order to

improve design and supply the best possible product.

Note

1. Please consult the most recently issued data sheet before initiating or completing a design.

DEFINITIONS

DISCLAIMERS

Short-form specification

The data in a short-form

Life support applications

These products are not

specification is extracted from a full data sheet with the

same type number and title. For detailed information see

the relevant data sheet or data handbook.

designed for use in life support appliances, devices, or

systems where malfunction of these products can

reasonably be expected to result in personal injury. Philips

Semiconductors customers using or selling these products

for use in such applications do so at their own risk and

agree to fully indemnify Philips Semiconductors for any

damages resulting from such application.

Limiting values definition Limiting values given are in

accordance with the Absolute Maximum Rating System

(IEC 60134). Stress above one or more of the limiting

values may cause permanent damage to the device.

These are stress ratings only and operation of the device

at these or at any other conditions above those given in the

Characteristics sections of the specification is not implied.

Exposure to limiting values for extended periods may

affect device reliability.

Right to make changes

Philips Semiconductors

reserves the right to make changes, without notice, in the

products, including circuits, standard cells, and/or

software, described or contained herein in order to

improve design and/or performance. Philips

Semiconductors assumes no responsibility or liability for

the use of any of these products, conveys no licence or title

under any patent, copyright, or mask work right to these

products, and makes no representations or warranties that

these products are free from patent, copyright, or mask

work right infringement, unless otherwise specified.

Application information

Applications that are

described herein for any of these products are for

illustrative purposes only. Philips Semiconductors make

no representation or warranty that such applications will be

suitable for the specified use without further testing or

modification.

2000 Apr 10

28

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

NOTES

2000 Apr 10

29

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

NOTES

2000 Apr 10

30

Philips Semiconductors

Preliminary speciﬁcation

2.5 Gbits/s dual postampliﬁer with level

detectors and 2 × 2 switch

TZA3019

NOTES

2000 Apr 10

31

Philips Semiconductors – a worldwide company

Argentina: see South America

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. +31 40 27 82785, Fax. +31 40 27 88399

Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,

Tel. +61 2 9704 8141, Fax. +61 2 9704 8139

New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. +64 9 849 4160, Fax. +64 9 849 7811

Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. +43 1 60 101 1248, Fax. +43 1 60 101 1210

Norway: Box 1, Manglerud 0612, OSLO,

Tel. +47 22 74 8000, Fax. +47 22 74 8341

Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. +375 172 20 0733, Fax. +375 172 20 0773

Pakistan: see Singapore

Belgium: see The Netherlands

Brazil: see South America

Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,

Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474

Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,

Tel. +359 2 68 9211, Fax. +359 2 68 9102

Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,

Tel. +48 22 5710 000, Fax. +48 22 5710 001

Portugal: see Spain

Romania: see Italy

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,

Tel. +1 800 234 7381, Fax. +1 800 943 0087

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,

72 Tat Chee Avenue, Kowloon Tong, HONG KONG,

Tel. +852 2319 7888, Fax. +852 2319 7700

Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. +7 095 755 6918, Fax. +7 095 755 6919

Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Colombia: see South America

Czech Republic: see Austria

Tel. +65 350 2538, Fax. +65 251 6500

Slovakia: see Austria

Slovenia: see Italy

Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. +45 33 29 3333, Fax. +45 33 29 3905

South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,

Tel. +27 11 471 5401, Fax. +27 11 471 5398

Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. +358 9 615 800, Fax. +358 9 6158 0920

France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. +33 1 4099 6161, Fax. +33 1 4099 6427

South America: Al. Vicente Pinzon, 173, 6th floor,

04547-130 SÃO PAULO, SP, Brazil,

Tel. +55 11 821 2333, Fax. +55 11 821 2382

Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. +49 40 2353 60, Fax. +49 40 2353 6300

Spain: Balmes 22, 08007 BARCELONA,

Tel. +34 93 301 6312, Fax. +34 93 301 4107

Hungary: see Austria

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,

Tel. +46 8 5985 2000, Fax. +46 8 5985 2745

India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,

Tel. +91 22 493 8541, Fax. +91 22 493 0966

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,

Tel. +41 1 488 2741 Fax. +41 1 488 3263

Indonesia: PT Philips Development Corporation, Semiconductors Division,

Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,

Tel. +62 21 794 0040 ext. 2501, Fax. +62 21 794 0080

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,

TAIPEI, Taiwan Tel. +886 2 2134 2886, Fax. +886 2 2134 2874

Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. +353 1 7640 000, Fax. +353 1 7640 200

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,

209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,

Tel. +66 2 745 4090, Fax. +66 2 398 0793

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,

TEL AVIV 61180, Tel. +972 3 645 0444, Fax. +972 3 649 1007

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,

ISTANBUL, Tel. +90 216 522 1500, Fax. +90 216 522 1813

Italy: PHILIPS SEMICONDUCTORS, Via Casati, 23 - 20052 MONZA (MI),

Tel. +39 039 203 6838, Fax +39 039 203 6800

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,

252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,

TOKYO 108-8507, Tel. +81 3 3740 5130, Fax. +81 3 3740 5057

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,

MIDDLESEX UB3 5BX, Tel. +44 208 730 5000, Fax. +44 208 754 8421

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. +82 2 709 1412, Fax. +82 2 709 1415

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,

Tel. +1 800 234 7381, Fax. +1 800 943 0087

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. +60 3 750 5214, Fax. +60 3 757 4880

Uruguay: see South America

Vietnam: see Singapore

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. +9-5 800 234 7381, Fax +9-5 800 943 0087

Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Middle East: see Italy

Tel. +381 11 3341 299, Fax.+381 11 3342 553

For all other countries apply to: Philips Semiconductors,

Internet: http://www.semiconductors.philips.com

International Marketing & Sales Communications, Building BE-p, P.O. Box 218,

5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 27 24825

69

SCA

All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed

without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license

under patent- or other industrial or intellectual property rights.

Printed in The Netherlands

403510/50/01/pp32

Date of release: 2000 Apr 10

Document order number: 9397 750 06019

厂商	型号	描述	页数
RHOMBUS-IND	TZA1-10	TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ]	1 页
RHOMBUS-IND	TZA1-20	TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ]	1 页
RHOMBUS-IND	TZA1-5	TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ]	1 页
RHOMBUS-IND	TZA1-7	TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ]	1 页
RHOMBUS-IND	TZA10-10	TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ]	1 页
RHOMBUS-IND	TZA10-20	TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ]	1 页
RHOMBUS-IND	TZA10-5	TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ]	1 页
RHOMBUS-IND	TZA10-7	TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ]	1 页
NXP	TZA1000	QIC读写放大器[ QIC read-write amplifier ]	24 页
NXP	TZA1000T/N3	[ IC 1 CHANNEL READ WRITE AMPLIFIER CIRCUIT, PDSO24, 7.50 MM, PLASTIC, SOT-137-1, SOP-24, Drive Electronics ]	26 页
