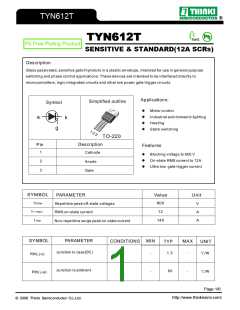

TYN612T
Pb
TYN612T
Pb Free Plating Product
SENSITIVE & STANDARD(12A SCRs)
Description
Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose
switching and phase control applications. These devices are intended to be interfaced directly to
microcontrollers, logic integrated circuits and other low power gate trigger circuits.
Applications:
Simplified outline
Symbol
Motor control
Industrial and domestic lighting
Heating
a
k
g
Static switching
1 2 3
TO-220
Description
Pin
Features
1
Cathode
Anode
Gate
Blocking voltage to 600 V
On-state RMS current to 12A
Ultra low gate trigger current
2
3
SYMBOL
PARAMETER
Value
Unit
600
V
DRM
V
A
A
Repetitive peak off-state voltages
RMS on-state current
I
T
RMS
12
I
TSM
140
Non-repetitive surge peak on-state current
SYMBOL
PARAMETER
MIN
CONDITIONS
MAX
TYP
UNIT
Junction to case(DC)
1.3
-
-
-
/W
Rth( j-c)
Junction to ambient
60
-
/W
Rth( j-a)
Page 1/6
