EZJPZV120GA

型号：

EZJPZV120GA

描述：

多层压敏电阻[ Multilayer Varistors ]

品牌：

PANASONIC[ PANASONIC ]

页数：

13 页

PDF大小：

452 K

下载PDF手册

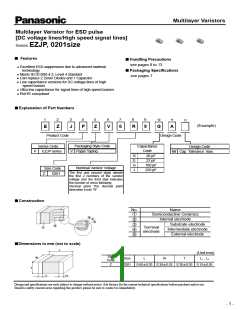

Multilayer Varistors
Multilayer Varistor for ESD pulse
[DC voltage lines/High speed signal lines]
Series EZJP, 0201size
■ Features
■Handling Precautions
see pages 8 to 13
■Packaging Specifications
● Excellent ESD suppression due to advanced material
technology
● Meets IEC61000-4-2, Level 4 standard
● Can replace 2 Zener Diodes and 1 Capacitor
● Low capacitance versions for DC voltage lines of high
see pages 7
●● URlsotrpHaeSelodwcbocumaspspaelicsaitnatnce for signal lines of high speed busses
■Explanation of Part Numbers
10
11
1
2
3
4
5
6
7
8
9
12
(Example)
E
Z
J
P
Z
V
6
R
8
G
A
Product Code
Design Code
Series Code
Packaging Style Code
Paper Taping
Capacitance
Code
Design Code
Nil Cap. Tolerance :max.
V
P
EZJP series
Size Code
R
D
G
J
20 pF
27 pF
100 pF
220 pF
Nominal Varistor Voltage
The first and second digits denote
the first 2 numbers of the varistor
voltage and the third digit indicates
the number of zeros following.
Z
0201
Decimal point The decimal point
describes it into "R"
■Construction
No.
①
②
③
④
⑤
Name
Semiconductive Ceramics
Internal electrode
Substrate electrode
Terminal
electrode
Intermediate electrode
External electrode
■Dimensions in mm (not to scale)
(Unit:mm)
L1 , L2
Size
Size
L
W
T
Code
Z
0201
0.60±0.03 0.30±0.03 0.30±0.03 0.15±0.05
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 1 -
Multilayer Varistors
Multilayer Varistor, Low Voltage Type (Standard Type）
[DC voltage lines/Low speed signal lines]
■Features
Multilayer monolithic ceramic construction
■Recommended Applications
- 1 -
for use protecting DC voltage lines or signal lines
・Circuit voltage
Mobile phone SW, LCD, LED, Audio terminal,
Battery pack, Memory card, External IF
16
6.7
3.7
DSC, DVC
PC, PDA
TV, DVD
Audio
SW, LCD, LED, USB
SW, LCD, LED, USB
Audio, Video terminal
Audio terminal, Microphone, Receiver
Game console Controller, External IF
3
5
12
Circuit voltage
DC [V]
・Varistor voltage : 6.8 to 27V [at 1mA]
・
Capacitance : 15 to 150pFtyp. [at 1MHz]
■Ratings and Characteristics
Maximum
allowable
voltage
Nominal
Maximum
Capacitance (pF)
Maximum ESD
varistor
voltage
peak current
at 8/20µs, 2times
(A)
ize
Part No.
at IEC61000-4-2
at 1MHz
220max
at 1kHz
175typ.
at DC (V)
at 1mA (V)
EZJPZV6R8JA
3.7
6.8
5
EZJPZV6R8GA
EZJPZV120GA
EZJPZV120DA
EZJPZV270RA
3.7
6.7
6.7
16
6.8
12
12
27
100max
100max
27max
100typ.
100typ.
33typ.
5
5
1
1
0201
Contact discharge
8kV
20max.
16.5typ.
●Operating Temperature Range : -40 to 85°C
＊Recommend soldering method : Reflow soldering
Maximum Allowable Voltage Maximum DC Voltage that can be applied continuously within the operating temperature range
Varistor Voltage
Varistor starting voltage between terminals at DC 1mA, also known as Breakdown voltage
Varistor’s maximum current under the standard pulse 8/20µs, 2 times based on IEC60
Maximum Peak Current
Varistor’s maximum voltage under ESD based on IEC61000-4-2, 10 times
(5 times of each positive-negative polarity)
Maximum ESD
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 2 -
Multilayer Varistors
■Voltage vs. Current
Max. Leakage Current
Max. Clamping Voltage
100
EZJPZV270RA
EZJPZV120□A
EZJPZV6R8□A
10
EZJPZV270RA
EZJPZV120□A
EZJPZV6R8□A
1
1E-06 0.00001 0.0001 0.001
10-6
10-5
10-4
10-3
10-2
0.01
10-1
100
0.1
101
102
10
1
Current (A)
■Frequency vs. Capacitance
■Frequency vs. Attenuation
10
0
1000
100
10
220pFmax.
20pFmax.
27pFmax.
100pFmax.
-10
-20
-30
-40
-50
-60
27pFmax.
20pFmax.
220pFmax.
100pFmax.
1
0.1
1
10
100
1000
10000
0.1
1
10
100
1000
10000
Frequency [MHz]
Frequency [MHz]
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 3 -
Multilayer Varistors
■Varistor Characteristics and Equivalent Circuit
A Multilayer Varistor does not have an electrical polarity like zener diodes and is equivalent to total 3 pcs. of 2 zener
diodes and 1 capacitor.
［Equivalent Circuit］
Current (A)
Zener diode
Zener diode
Capacitor 1 pc.
monopolar 2pcs.
Voltage (V)
Multilayer Varistor
■ESD Suppressive Effects
Typical effects of ESD suppression
Test conditions: IEC61000-4-2* Level 4 Contact discharge, 8kV
［ESD suppressed waveform］
1200
1000
800
600
400
200
0
Without Varistor
Electrostatic discharger
Attenuator : 60ｄB
EZJPZV6R8GA
[V1mA : 6.8V,C1MHz:100pFmax.]
Oscillo-sc
ope
330Ω
50Ω
150pF
-200
-20
0
20
40
60
80 100 120 140 160 180 200
MLCV
Time (ns)
* IEC61000-4-2 … International Standard of the ESD testing method (HBM) setting 4 levels of severity
Severity
Level 1
2kV
Level 2
4kV
Level 3
6kV
Level 4
8kV
Contact discharge
Air discharge
2kV
4kV
8kV
15kV
■Replacement of Zener diode
Using a Multilayer Varistor to replace a “Zener diode & Capacitor” saves both the amount of space and number of
components used.
1.7
0.3
0.3
2.6
Mounting area
Approx.93%space saving
0.9
Zener diode
S-79
MLCC
Size 0402
MLCV
Size 0201
Dimensions in mm
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 4 -
Multilayer Varistors
■Recommended Applications
Applications
Series
Circuit
DC 1k 1M 1G (Hz)
DC to GHｚ
Mobile phones, DSC, PC, PDA,
HDD TV (PDP, LC etc.), DVD,
DVC, Game consoles, Audio
equipment
Series
EZJZ,P
Ultra low capacitance
(Cap.:3pF or less)
Antenna, RF circuit, LVDS
USB, IEEE1394, HDMIetc.
DC to millions of Hz
Low capacitance
(Cap.:20 to 680pF)
PWR, SW, Audio terminals
LCD, RS232C, etc.
PWR, Photoelectronic sensors,
SSR, Motors, Pressure sensors,
Proximity switches
Series
EZJS
High capacitance
(Cap.:1800 to 22000pF)
DC to thousands of Hz
PWR, SW, Audio terminals etc.
■Applications
●Mobile Phone
- Audio lines
- LCD/Camera lines
LCD/
Camera
LCD/
Camera
F
P
AMP
2mode noise filter
C
controller
- LED
IC
- I/O data lines
I/O
- SW/ Keyboard
controller
Connector
IC
●USB1.1/2.0 lines
●IEEE1394 lines
Power
IC
VDD
.
USB
IEEE1394
controller
VDD
GND
.
D＋
controller
D-
.
GND
.
TPA+
TPA-
.
TPB+
TPB-
.
.
●HDMI lines
TMDS
Ch:0
Ch:1
Ch:2
HDMI
IC
Connector
1 1 1 1 1 1
1 1
Clock
2
2
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 5 -
Multilayer Varistors
■Performance and Testing Methods
Characteristics
Specifications
Testing Method
Electrical characteristics shall be measured under the following
Standard test
conditions
conditions.
Temp. : 5 to 35°C, Relative humidity : 85% or less
The voltage between both end terminals of a varistor when the
specified measuring current (CmA) is applied to the Varistor (Vc, or
To meet
Varistor voltage
the specified value
VcmA.) The measurement shall be made as quickly as possible to
avoid heating effects.
Maximum allowable
voltage
To meet
The maximum DC voltage that can be applied continuously to a
the specified value varistor
To meet
the specified ｖalue
Capacitance shall be measured at the specified frequency, bias
Capacitance
voltage 0V, measuring voltage 0.2 to 2 Vrms.
The maximum current measured (while the varistor voltage is within
±10% of its nominal value) when a standard impulse current of
8/20μseconds is applied twice within an interval of 5 minutes.
The maximum ESD measured (while the varistor voltage is within
±30% of its nominal value) when exposed to ESD 10 times (five
times for each positive-negative polarity) based on IEC61000-4-2.
The part shall be immersed into a soldering bath under the
conditions below.
To meet
Maximum peak current
the specified value
To meet
Maximum ESD
the specified value
Solder: H63A
Soldering flux: Ethanol solution of rosin (Concentration approx.25wt%）
Soldering temp.: 230±5°C
Solderability
To meet
the specified value
Period: 4±1 sec.
Soldering position: So that both terminal electrodes are completely
immersed in the soldering bath
The part shall be immersed into a soldering bath under the
conditions below (before being subjected to standard conditions) for
24±2 hours to evaluate its characteristics.
Soldering conditions:270°C, 3s / 260°C, 10s
Soldering position: So that both terminal electrodes are completely
immersed in the soldering bath
Resistance to
soldering heat
ΔVc / Vc
: within ±10%
Repeat the following cycle on the part for the specified number of
times (before being subjected to standard conditions) for 24±2
hours to evaluate its characteristics.
Cycle : 5 cycles
ΔVc / Vc
: within ±10%
Step
Temperature
Max. Operating Temp.
Ordinary temp.
Min. Operating Temp.
Ordinary temp.
Period
30 min.
3 min.
30 min.
3 min.
Temperature cycle
1
2
3
4
The part shall be tested under the conditions below (before being
subjected to standard conditions) for 24±2 hours to evaluate its
characteristics.
ΔVc / Vc
Damp heat load
Temp.: 40±2°C
: within ±10%
Humidity: 90~95%RH
Applied voltage: Maximum allowable voltage (Individually specified)
Period: 500＋24 / 0 h
The part shall be tested under the conditions below (before being
subjected to standard conditions) for 24±2 hours to evaluate its
characteristics.
ΔVc / Vc
: within ±10%
High temperature load
Temp.: Maximum operating temperature ±3°C (Individually specified)
Applied voltage: Maximum allowable voltage (Individually specified)
Period : 500＋24 / 0h
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 6 -
Multilayer Varistors
■Packaging Specifications
●Standard Packing Quantities
Thickness
Paper Taping
Q’ty （pcs./reel）
Series
Size Code
（mm）
Pitch (mm)
2
EZJP
Z (0201)
0.3
15,000
●Paper Taping
● Reel for Taping
● Leader Part and Taped End
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 7 -
Multilayer Varistors
Multilayer Varistors ,Chip Type
Series : EZJZ ,EZJP(For DC voltage lines, high speed signal lines)
Series : EZJS (For DC voltage lines)
Handling Precautions
！
Safety Precautions
Multilayer Varistors (hereafter refereed to as “Varistors”) should be used for general purpose applications as
countermeasures against ESD and noise found in consumer electronics (audio/visual, home, office, information &
communication) equipment. When subjected to severe electrical, environmental, and/or mechanical stress beyond the
specifications, as noted in the Ratings and Specified Conditions section, the Varistors may fail in a short circuit mode
or in an open-circuit mode. This case results in a burn-out, smoke or flaming.
For products which require high safety levels, please carefully consider how a single malfunction can affect your
product. In order to ensure the safety in the case of a single malfunction, please design products with fail-safe, such as
setting up protecting circuits, etc.
● For the following applications and conditions, please contact us for additional specifications not found in this
document.
・When your application may have difficulty complying with the safety or handling precautions specified below.
・For any applications where a malfunction with this product may directly or indirectly cause hazardous conditions
which could result in death or injury;
Aircraft and Aerospace Equipment (artificial satellite, rocket, etc.)
Submarine Equipment (submarine repeating equipment, etc.)
Transport Equipment (motor vehicles, airplanes, trains, ship, traffic signal controllers, etc.)
Power Generation Control Equipment (atomic power, hydroelectric power, thermal power plant control system,
etc.)
Medical Equipment (life-support equipment, pacemakers, dialysis controllers, etc.)
Information Processing Equipment (large scale computer system, etc.)
Electric Heating Appliances, Combustion devices (gas fan heaters, oil fan heaters, etc.)
Rotary Motion Equipment
Security Systems
And any similar types of equipment
！
Strict Observance
1. Confirmation of Rated Performance
The Varistors shall be operated within the specified rating/performance.
Application exceeding the specifications may cause deteriorated performance and/or breakdown, resulting in
degradation and/or smoking or ignition of products. The following are strictly observed.
(1) The Varistors shall not be operated beyond the specified operating temperature range.
(2) The Varistors shall not be operated in excess of the specified maximum allowable voltage.
(3) The Varistors shall not be operated in the circuits to which surge current and ESD are applied exceeding the
specified maximum peak current and maximum ESD.
(4) Never use for AC power supply circuits.
2. The Varistors shall not be mounted near inflammables.
Temperature Range”.
■Operating Conditions and Circuit Design
1. Circuit Design
The Varistors mounted on PCB shall be stored
without operating within the specified “Storage
Temperature Range” in the Specifications.
1.1 Operating Temperature and Storage Temperature
The specified “Operating Temperature Range” found
in the Specification is the absolute maximum and
minimum temperature rating. Every Varistor shall be
operated
within
the
specified
“Operating
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 8 -
Multilayer Varistors
1.2 Operating Voltage
c
The Varistors shall not be operated in excess of the
“Maximum allowable voltage”. If the Varistors are
operated beyond the specified Maximum allowable
voltage, it may cause short and/or damage due to
thermal run away. When high frequency and steep
pulse voltages are continuously used, even when
less than the Maximum allowable voltage, in a
circuit, please examine the reliability of the Varistor
while also checking the safety and reliability of your
circuit. Check safety and reliability in your circuit.
1.3 Self-heating
SMD
Land
b
a
P
Component
dimensions
Size Code
a
b
C
P
L
W
T
0.3～ 0.45～ 0.3～ 0.54～
S
1.37 1.0 0.6
(0504 2Array)
0.4
0.55
0.4
0.74
The surface temperature of the Varistors shall be
under the specified Maximum Operating
Temperature in the Specifications including the
temperature rise cause by self-heating. Check
temperature rise of the Varistor in your circuit.
1.4 Environmental Restrictions
(2) The size of lands shall be designed to have equal
spacing between the right and left sides. If the
amount of solder on the right land is different from
that on the left land, the component may be
cracked by stress since the side with a larger
amount of solder solidifies later during cooling.
The Varistors shall not be operated and/or stored
under the following conditions.
Recommended Amount of Solder
(1) Environmental conditions
(b) Proper amount
(a) Excessive amount
(c) Insufficient amount
(a) Under direct exposure to water or salt water
(b) Under conditions where water can condense
and/or dew can form
(c) Under conditions containing corrosive gases
such as hydrogen sulfide, sulfurous acid,
chlorine and ammonia
2.3 Utilization of Solder Resist
(1) Solder resist shall be utilized to equalize the
amounts of solder on both sides.
(2) Solder resist shall be used to divide the pattern for
the following cases;
(2) Mechanical conditions
Under severe conditions of vibration or impact
beyond the specified conditions found in the
Specifications.
･Components are arranged closely.
･The Varistor is mounted near a component with
lead wires.
2. Design of Printed Circuit Board
2.1 Selection of Printed Circuit Boards
･The Varistor is placed near a chassis.
See the table below.
When the Varistors are mounted and soldered on an
“Alumina Substrate”, the substrate influences the
Varistors’ reliability against “Temperature Cycles”
and “Heat shock” due to the difference in the
thermal expansion coefficient between them.
Confirm that the actual board used does not
deteriorate the characteristics of the Varistors.
2.2 Design of Land Pattern
Prohibited Applications and Recommended Applications
Prohibited
Improved applications
by pattern division
Item
applications
The lead wire of a
component with lead wires
Solder resist
Mixed mounting
with a component
with lead wires
(1) Recommended land dimensions are shown
below. Use the proper amount of solder in order to
prevent cracking. Using too much solder places
excessive stress on the Varistors.
Chassis
Solder
Solder resist
Arrangement
near chassis
(
Ground solder)
Recommended Land Dimensions
SMD
Land
Electrode pattern
A lead wire of
c
Retro-fitted
Solder resist
Solder resist
Retro-fitting of
component with
lead wires
Soldering
iron
component
b
a
Solder resist
Component dimensions
Portion to be expressively
soldered
Size Code
a
b
c
L
W
T
0.3
Lateral
arrangement
0.6 0.3
1.0 0.5
1.6 0.8
0.2 to 0.3 0.2 to 0.3 0.2 to 0.3
0.4 to 0.5 0.4 to 0.5 0.4 to 0.5
0.8 to 1.0 0.6 to 0.8 0.6 to 0.8
Land
Z(0201)
0(0402)
1(0603)
2(0805)
0.5
0.8
2.4 Component Layout
2.0 1.25 0.8 to 1.25 0.8 to 1.2 0.8 to 1.0 0.8 to 1.0
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 9 -
Multilayer Varistors
The Varistors/components shall be placed on the PC
board such that both electrodes are subjected to uniform
stresses, or to position the component electrodes at right
angles to the grid glove or bending line. This should be
done to avoid cracking the Varistors from bending the
PC board after or during placing/mounting on the PC
board.
2. Adhesives for Mounting
(1) The amount and viscosity of an adhesive for
mounting shall be such that the adhesive shall
not flow off on the land during its curing.
(2) If the amount of adhesive is insufficient for
mounting, the Varistors may fall off after or during
soldering.
(1) To minimize mechanical stress caused by the
warp or bending of a PC board, please follow the
recommended Varistors’ layout below.
(3) If the adhesive is too low in its viscosity, the
Varistors may be out of alignment after or during
soldering.
Prohibited
Recommendded layout
(4) Adhesives for mounting can be cured by
ultraviolet or infrared radiation. In order to prevent
the terminal electrodes of the Varistors from
oxidizing, the curing shall be done under the
following conditions:
Layout the Varistor sideways
against the stressing direction.
160°C max., for 2 minutes max.
(5) Insufficient curing may cause the Varistors to fall
off after or during soldering. In addition, insulation
resistance between terminal electrodes may
deteriorate due to moisture absorption. In order to
prevent these problems, please observe proper
curing conditions.
(2) The following layout is for your reference since
mechanical stress near the dividing/breaking
position of a PC board varies depending on the
mounting position of the Varistors.
3. Chip Mounting Consideration
(1) When mounting the Varistors/components on a PC
board, the Varistor bodies shall be free from
excessive impact loads such as mechanical impact
or stress due to the positioning, pushing force and
displacement of vacuum nozzles during mounting.
(2) Maintenance and inspection of the Chip Mounter
must be performed regularly.
E
D
Perforation
C
A
B
Slit
Magnitude of stress A>B=C>D>E
(3) If the bottom dead center of the vacuum nozzle is
too low, the Varistor will crack from excessive force
during mounting.
(3) The magnitude of mechanical stress applied to the
Varistors when the circuit board is divided is in the
order of push back < slit < V-groove < perforation.
Also take into account the layout of the Varistors
and the dividing/breaking method.
The following precautions and recommendations
are for your reference in use.
(a) Set and adjust the bottom dead center of the
vacuum nozzles to the upper surface of the PC
board after correcting the warp of the PC board.
(b) Set the pushing force of the vacuum nozzle
during mounting to 1 to 3 N in static load.
(c) For double surface mounting, apply a supporting
pin on the rear surface of the PC board to
suppress the bending of the PC board in order to
minimize the impact of the vacuum nozzles.
Typical examples are shown in the table below.
2.5 Mounting Density and Spaces
If components are arranged in too narrow a space,
the components can be affected by solder bridges
and solder balls. The space between components
should be carefully determined.
■ Precautions for Assembly
1. Storage
(1) The Varistors shall be stored between 5 – 40°C
and 20 - 70%RH, not under severe conditions of
high temperature and humidity.
Item
Prohibited mounting
Recommended mounting
The supporting pin does not
necessarily
have
to
be
(2) If stored in a place that is humid, dusty, or contains
corrosive gasses (hydrogen sulfide, sulfurous acid,
hydrogen chloride and ammonia etc.), the solderability
of terminal electrodes may deteriorate.
positioned beneath the Varistor.
Crack
Single surface
mouting
Supporting
pin
In addition, storage in a place subjected to heating
and/or exposure to direct sunlight will causes
deformed tapes and reels, and component sticking
to tapes, both of which can result in mounting
problems.
Double surface
mounting
Supporting
i
Separation
of Solder
Crack
(3) Do not store components longer than 6 months.
Check the solderability of products that have been
stored for more than 6 months before use.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 10 -
Multilayer Varistors
Recommended profile for Flow soldering [Ex.]
(d) Adjust the vacuum nozzles so that their bottom
dead center during mounting is not too low.
(4) The closing dimensions of the positioning chucks
shall be controlled. Maintenance and replacement
of positioning chucks shall be performed regularly
to prevent chipping or cracking of the Varistors
caused by mechanical impact during positioning
due to worn positioning chucks.
Soldering
260
240
Gradual cooling
(at ordinary temperature)
(5) Maximum stroke of the nozzle shall be adjusted so
that the maximum bending of PC board does not
exceed 0.5mm at 90 mm span. The PC board shall
be supported by an adequate number of supporting
pins.
Time
3 to 5
sec
60 to 120sec
<Allowable temperature difference>
Size
Temp. Tol.
0603
∆T 150°C
4. Selection of Soldering Flux
For
products
specified
in
individual
Soldering flux may seriously affect the performance of
the Varistors. The following shall be confirmed before
use.
specifications, avoid flow soldering.
5.2 Reflow Soldering
(1) The soldering flux should have a halogen based
content of 0.1 wt% (converted to chlorine) or below.
Do not use soldering flux with strong acid.
(2) When applying water-soluble soldering flux, wash
the Varistors sufficiently because the soldering flux
residue on the surface of PC boards may
deteriorate the insulation resistance on the
Varistors’ surface.
The reflow soldering temperature conditions are each
temperature curves of Preheating, Temp. rise, Heating,
Peak and Gradual cooling.
Large temperature difference caused by rapid heat
application to the Varistors may lead to excessive
thermal stresses, contributing to the thermal cracks.
The Preheating temperature requires controlling with
great care so that tombstone phenomenon may be
prevented.
5. Soldering
Item
Preheating
Temperature
140 to 180°C
Preheating temp
to Peak temp.
220°C min.
260°C max.
Peak temp.
to 140°C
Period or Speed
60 to 120 sec
5.1 Flow Soldering
For flow soldering, abnormal and large thermal and
mechanical stress, caused by the ” Temperature
Gradient” between the mounted Varistors and melted
solder in a soldering bath may be applied directly to
the Varistors, resulting in failure and damage of the
Varistors. Therefore it is essential that soldering
process follow these recommended conditions.
(1) Application of Soldering flux:
Temp. rise
2 to 5°C /sec
Heating
Peak
60 sec max.
10 sec max.
Gradual cooling
1 to 4°C /sec
The soldering flux shall be applied to the mounted Varistors
thinly and uniformly by foaming method.
Recommended profile of Reflow soldering (EX)
(2) Preheating:
④Peak
②Temp.rise
The mounted Varistors/Components shall be pre-heated
sufficiently so that the “Temperature Gradient” between the
Varistors/Components and the melted solder shall be
150 °C max. (100 to 130°C)
260
220
180
⑤Gradual
cooling
(3) Immersion into Soldering bath:
The Varistors shall be immersed into a soldering bath of
240 to 260 °C for 3 to 5 seconds.
140
(4) Gradual Cooling:
①Preheating
③Heating
The Varistors shall be cooled gradually to room ambient
temperature with the cooling temperature rates of 8 °C /s
max. from 250°C to 170 °C and 4 °C/s max. from 170 °C to
130°C.
Time
60 to 120 sec
60 sec max.
(5) Flux Cleaning:
∆T : Allowable temperature difference ∆T 150°C
When the Varistors are immersed into a cleaning solvent,
be sure that the surface temperatures of devices do not
exceed 100 °C.
The rapid cooling (forced cooling) during Gradual
cooling part should be avoided, because this may
cause defects such as the thermal cracks, etc.
When the Varistors are immersed into a cleaning
solvent, make sure that the surface temperatures of the
devices do not exceed 100 .
(6) Performing flow soldering once under the conditions shown
in the figure below [Recommended profile of Flow soldering
(Ex)] will not cause any problems. However, pay attention
to the possible warp and bending of the PC board.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 11 -
Multilayer Varistors
Performing reflow soldering twice under the conditions
shown in the figure above [Recommended profile of
Reflow soldering (EX)] will not cause any problems.
However, pay attention to the possible warp and
bending of the PC board.
Conditions of Hand soldering without preheating
Condition
Temperature of Iron tip
Wattage
270 °C max.
20 W max.
Shape of Iron tip
φ3 mm max.
Soldering time
3 sec max.
with a soldering iron
5.3 Hand Soldering
Hand soldering typically causes significant temperature
change, which may induce excessive thermal stresses
inside the Varistors, resulting in the thermal cracks, etc.
In order to prevent any defects, the following should be
observed;
6. Post Soldering Cleaning
6.1 Cleaning solvent
Soldering flux residue may remain on the PC board
if cleaned with an inappropriate solvent. This may
deteriorate the electrical characteristics and
reliability of the Varistors.
･The temperature of the soldering tips should be
controlled with special care.
･The direct contact of soldering tips with the Varistors
and/or terminal electrodes should be avoided.
･Dismounted Varistors shall not be reused.
(1) Condition 1 (with preheating)
6.2 Cleaning conditions
Inappropriate cleaning conditions such as
insufficient cleaning or excessive cleaning may
impair the electrical characteristics and reliability of
the Varistors.
(a) Soldering:
Φ1.0mm Thread eutectic solder with soldering
flux* in the core.
(1) Insufficient cleaning can lead to:
(a) The halogen substance found in the residue of
the soldering flux may cause the metal of
terminal electrodes to corrode.
*Rosin-based and non-activated flux is Recommended.
(b) Preheating:
The Varistors shall be preheated so that the
“Temperature Gradient” between the devices
and the tip of soldering iron is 150°C or below.
(c) Temperature of Iron tip: 300°C max.
(The required amount of solder shall be melted
in advance on the soldering tip.)
(b) The halogen substance found in the residue of
the soldering flux on the surface of the Varistors
may change resistance values.
(c) Water-soluble soldering flux may have more
remarkable tendencies of (a) and (b) above
compared to those of rosin soldering flux.
(2) Excessive cleaning can lead to:
(d) Gradual cooling:
After soldering, the Varistors shall be cooled
gradually at room temperature.
(a) Overuse of ultrasonic cleaning may deteriorate
the strength of the terminal electrodes or cause
cracking in the solder and/or ceramic bodies of
the Varistors due to vibration of the PC boards.
Please follow these conditions for Ultrasonic
cleaning:
Recommended profile of Hand soldering (EX)
Gradual cooling
Ultrasonic wave output: 20 W/L max.
Ultrasonic wave frequency: 40 kHz max.
Ultrasonic wave cleaning time: 5 min. max.
Preheating
6.3 Contamination of Cleaning solvent
Cleaning with contaminated cleaning solvent may
cause the same results as insufficient cleaning
due to the high density of liberated halogen.
60 to 120 sec
3 sec max.
∆T : Allowable temperature difference ∆T 150°C
7. Inspection Process
(2) Condition 2 (without preheating)
When mounted PC boards are inspected with
measuring terminal pins, abnormal and excess
mechanical stress shall not be applied to the PC broad
or mounted components, to prevent failure or damage
to the devices.
Hand soldering can be performed without preheating,
by following the conditions below:
(a) Soldering iron tip shall never directly touch the
ceramic and terminal electrodes of the Varistors.
(b) The lands are sufficiently preheated with a
soldering iron tip before sliding the soldering iron tip
to the terminal electrodes of the Varistors for
soldering.
(1) Mounted PC boards shall be supported by an
adequate number of supporting pins with bend
settings of 90 mm span 0.5 mm max.
(2) Confirm that the measuring pins have the right tip
shape, are equal in height and are set in the
correct positions.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 12 -
Multilayer Varistors
Prohibited dividing
Recommended dividing
The following figures are for your reference to
avoid bending the PC board.
Loading direction
V-groove
Loading direction
Loading
point
PC
Chip component
PC
board
board
Prohibited setting
Check pin
Recommended setting
Check pin
Chip
component
Loading
point
V-groove
Bending of
PC board
9. Mechanical Impact
Supporting pin
Separated, Crack
(1) The Varistors shall be free from any excessive
mechanical impact. The Varistor body is made of
ceramics and may be damaged or cracked if
dropped.
8. Protective Coating
When the surface of a PC board on which the Varistors
have been mounted is coated with resin to protect
against moisture and dust, it shall be confirmed that the
protective coating which is corrosive or chemically active
is not used, in order that the reliability of the Varistors in
the actual equipment may not be influenced. Coating
materials that expand or shrink also may lead to damage
to the Varistor during the curing process.
Never use a Varistor which has been dropped; their
quality may be impaired and failure rate increased.
(2) When handling PC boards with Varistors mounted
on them, do not allow the Varistors to collide with
another PC board.
When mounted PC boards are handled or stored in
a stacked state, impact between the corner of a PC
board and the Varistor may cause damage or
cracking and can deteriorate the withstand voltage
and insulation resistance of the Varistor.
9. Dividing/Breaking of PC Boards
(1) Abnormal and excessive mechanical stress such as
bending or torsion shown below can cause cracking
in the Varistors.
Torsion
Bending
(2) Dividing/Breaking of the PC boards shall be done
carefully at moderate speed by using a jig or
apparatus to prevent the Varistors on the boards
from mechanical damage.
■Other
(3) Examples of PCB dividing/breaking jigs:
The outline of PC board breaking jig is shown
below.
The various precautions described above are typical.
For special mounting conditions, please contact us.
When PC board are broken or divided, loading
points should be close to the jig to minimize the
extent of the bending.
Also, planes with no parts mounted on should be
used as plane of loading, which generates a
compressive stress on the mounted plane, in order
to prevent tensile stress induced by the bending,
which may cause cracks of the Varistors or other
parts mounted on the PC boards.
Outline of Jig
V-groove
PC board
PC board
splitting jig
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
- 13 -
厂商 型号 描述 页数 下载

PANASONIC

 		EZJ-PZ [ Multi-Layer Ceramic Varistors ] 1 页

PANASONIC

 		EZJ-Z0V80010 多层压敏电阻[ Multilayer Varistors ] 5 页

ETC

 		EZJ.0B.304.CLD [ CONN RCPT MALE 4POS GOLD SOLDER ] 204 页

PANASONIC

 		EZJP 多层压敏电阻的ESD脉冲[ Multilayer Varistor for ESD pulse ] 5 页

PANASONIC

 		EZJP0V080DA 多层压敏电阻的ESD脉冲[ Multilayer Varistor for ESD pulse ] 5 页

PANASONIC

 		EZJP0V080GA 多层压敏电阻的ESD脉冲[ Multilayer Varistor for ESD pulse ] 5 页

PANASONIC

 		EZJP0V080KA 多层压敏电阻的ESD脉冲[ Multilayer Varistor for ESD pulse ] 5 页

PANASONIC

 		EZJP0V080MA 多层压敏电阻的ESD脉冲[ Multilayer Varistor for ESD pulse ] 5 页

PANASONIC

 		EZJP0V120JA [ RESISTOR, VOLTAGE DEPENDENT ] 5 页

PANASONIC

 		EZJP0V180HA [ RESISTOR, VOLTAGE DEPENDENT ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.220859s
