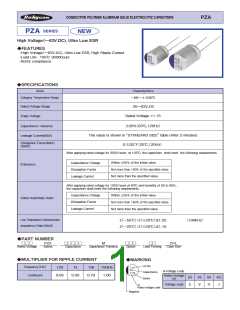

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS
PZA
SERIES
PZA
NEW
High Voltage（～63V.DC), Ultra Low ESR
◆FEATURES
・High Voltage（～63V.DC), Ultra Low ESR, High Ripple Current
・Load Life : 105℃ 3000hours
・RoHS compliance
◆SPECIFICATIONS
Items
Characteristics
Category Temperature Range
Rated Voltage Range
－55～＋105℃
25～63V.DC
Surge Voltage
Rated Voltage ×1.15
Capacitance Tolerance
±20％（20℃，120Hz）
The value is shown in“STANDARD SIZE”table (After 2 minutes)
0.12以下（20℃,120Hz）
Leakage Current(MAX)
Dissipation Factor(MAX)
(tanδ)
After applying rated voltage for 3000 hours at 105℃, the capacitors shall meet the following requirements.
Within ±20％ of the initial value.
Capacitance Change
Dissipation Factor
Leakage Current
Endurance
Not more than 150％ of the specified value.
Not more than the specified value.
After applying rated voltage for 1000 hours at 60℃ and humidity of 90 to 95%,
the capacitors shall meet the following requirements.
Capacitance Change
Dissipation Factor
Leakage Current
Within ±20％ of the initial value.
Damp heat(Stady state)
Not more than 150％ of the specified value.
Not more than the specified value.
Low Temperature Characteristics
Impedance Ratio（MAX）
Z（－55℃）/Z（＋20℃）≦1.25
Z（－25℃）/Z（＋20℃）≦1.15
（100kHz）
◆PART NUMBER
□□□
PZA
□□□□□
Ｍ
□□□
□□
D×L
Rated Voltage
Series
Capacitance
Capacitance Tolerance
Option
Lead Forming
Case Size
◆MULTIPLIER FOR RIPPLE CURRENT
◆MARKING
Lot No.
Frequenc（y Hz）
120
1k
10k
100k≦
1.00
110
22
※Voltage code
Capacitance
Series
V ZA
Coefficient
0.05
0.30
0.70
Rated Voltage
(V)
25
E
35
V
50
H
63
J
Voltage code
※
Rated voltage code
Negative
