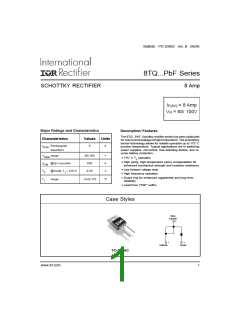

8TQ...PbF Series
Bulletin PD-20862 rev. B 06/06
Voltage Ratings
Part number
8TQ060PbF
8TQ080PbF
8TQ100PbF
VR
Max. DC Reverse Voltage (V)
60
80
100
VRWM Max. Working Peak Reverse Voltage (V)
Absolute Maximum Ratings
Parameters
8TQ Units
Conditions
IF(AV) Max. Average Forward Current
*SeeFig. 5
8
A
50%dutycycle@TC =157°C, rectangularwaveform
Following any rated
load condition and
with rated VRRM applied
IFSM Max. Peak One Cycle Non-Repetitive
SurgeCurrent *SeeFig. 7
850
230
5μs Sineor3μsRect. pulse
A
10ms Sine or 6ms Rect. pulse
EAS Non-Repetitive Avalanche Energy
7.50
0.50
mJ
A
TJ =25°C, IAS= 0.50Amps,L= 60mH
IAR
Repetitive Avalanche Current
Current decaying linearly to zero in 1 μsec
FrequencylimitedbyTJ max. VA =1.5xVR typical
Electrical Specifications
Parameters
8TQ Units
Conditions
VFM Max. Forward Voltage Drop
* See Fig. 1
(1)
0.72
0.88
0.58
0.69
V
V
V
V
@
8A
@ 16A
8A
TJ = 25 °C
TJ = 125 °C
@
@ 16A
IRM Max. Reverse Leakage Current (1)
* See Fig. 2
0.55
7
mA
mA
pF
TJ = 25 °C
TJ = 125 °C
VR = rated VR
CT
LS
Max. Junction Capacitance
Typical Series Inductance
500
8
VR = 5VDC (test signal range 100Khz to 1Mhz) 25 °C
Measured lead to lead 5mm from package body
nH
dv/dt Max. Voltage Rate of Change
(Rated VR)
10000
V/ μs
(1) Pulse Width < 300μs, Duty Cycle < 2%
Thermal-Mechanical Specifications
Parameters
8TQ Units
Conditions
TJ
Max. Junction Temperature Range -55 to 175 °C
Tstg Max. Storage Temperature Range
-55 to 175 °C
RthJC Max. Thermal Resistance Junction
to Case
2.0
°C/W DC operation *SeeFig.4
RthCS Typical Thermal Resistance, Case to
Heatsink
0.50
°C/W Mounting surface , smooth and greased
wt
T
Approximate Weight
Mounting Torque
2 (0.07) g(oz.)
Min.
6(5)
Kg-cm
(Ibf-in)
Max.
12 (10)
Marking Device
8TQ100
2
