SZ5M

型号:

SZ5M

描述:

超高光通量输出,高亮度[ Super high Flux output and high Luminance ]

品牌:

SEOUL[ Seoul Semiconductor ]

页数:

24 页

PDF大小:

568 K

RoHS

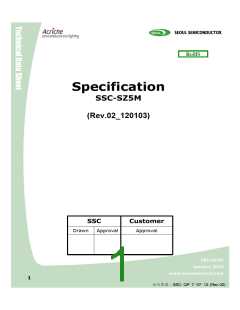

Specification
SSC-SZ5M
(Rev.02_120103)
SSC
Customer
Drawn
Approval
Approval
SSC-SZ5M
January 2012
www.seoulsemicon.com
1
: SSC- QP- 7- 07- 12 (Rev.02)
[ Contents ]
1. Description
------- 3
2. Full code of SZ5-M series
3. Outline dimension
4. Characteristics of SZ5-M series
5. Characteristic diagrams
6. Labeling
------- 4
------- 5
------- 6
------- 13
------- 19
------- 20
7. Reel Packing
8. Recommended solder pad
9. Soldering profile
------- 21
------- 22
------- 23
10. Precaution for Use
SSC-SZ5M
January 2012
www.seoulsemicon.com
2
: SSC- QP- 7- 07- 12 (Rev.02)
SZ5M
SZ5M
Features
Description
• Super high Flux output
and high Luminance
• Designed for high
current operation
• SMT solderable
• Lead Free product
• RoHS compliant
The Z-Power series is designed for high
current operation and high flux output
applications.
It incorporates state of the art SMD
design and low thermal resistant material.
The Z Power LED is ideal light sources for
general illumination applications, custom
designed solutions, automotive, large
backlights and high performance torches.
Applications
• Automotive interior /
exterior lighting
• Automotive forward
lighting
• General Torch
• Architectural lighting
• Projector light source
• Task lighting
• Decorative / Pathway
lighting
• Remote / Solar
powered lighting
SSC-SZ5M
January 2012
www.seoulsemicon.com
3
: SSC- QP- 7- 07- 12 (Rev.02)
Full code of SZ5-M series
Full code form : X1 X2 X3 – X4 X5 – X6 X7 – X8 X9
1. Part Number
- X1 : Company
- X2 : Z-Power LED series number
- X3 : PKG series
2. Internal Number
- X4: Series Code
P: P series
M: M series
X5: Revision number
X6 X7 : Color specification
W0: Pure white
WN: Neutral white
WW: Warm white
X8 X9 : CRI Group
C8: CRI min.80
C9: CRI min.90
85: CRI min.85
00: The others
SSC-SZ5M
January 2012
www.seoulsemicon.com
4
: SSC- QP- 7- 07- 12 (Rev.02)
Outline dimensions
Top View
Bottom View
Circuit
Side View
Notes :
[1] All dimensions are in millimeters.
[2] Scale : none
[3] Undefined tolerance is 0.1mm
SSC-SZ5M
January 2012
www.seoulsemicon.com
5
: SSC- QP- 7- 07- 12 (Rev.02)
Characteristics of SZ5-M0-W0-00
Pure White
1-1 Electro-Optical characteristics at 350mA
(Ta=25 , RH30%)
Value
Typ
125
115
6000
70
Parameter
Symbol
Unit
Max
Min
[2]
V
-
-
-
-
-
-
[1]
Luminous Flux
lm
V(Tj=100 )
-
[3]
Correlated Color Temperature
CRI
CCT
Ra
-
-
-
K
-
[4]
Forward Voltage
VF
3.2
V
Thermal resistance (J to S)
View Angle
R
5.8
K/W
deg.
J-S
2
½
120
1-2 Absolute Maximum Ratings
Parameter
Symbol
Value
1200
Unit
Forward Current
IF
mA
1200(1/10duty@1kHz)
Reverse Voltage
Power Dissipation
VR
Pd
5
4
V
W
ºC
ºC
ºC
-
Junction Temperature
Operating Temperature
Storage Temperature
Tj
145(@ IF 1200mA)
-40 ~ +85
-40 ~ +100
8,000V HBM
Topr
Tstg
-
[5]
ESD Sensitivity
*Notes :
[1] SSC maintains a tolerance of 10% on flux and power measurements.
[2] V is the total luminous flux output as measured with an integrating sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
Color coordinate : 0.005, CCT 5% tolerance.
[4] Tolerance is 0.06V on forward voltage measurements
[5] A zener diode is included to protect the product from ESD.
SSC-SZ5M
January 2012
www.seoulsemicon.com
6
: SSC- QP- 7- 07- 12 (Rev.02)
Characteristics of SZ5-M0-W0-C8
Pure White
1-1 Electro-Optical characteristics at 350mA
(Ta=25 , RH30%)
Value
Typ
115
105
6000
-
Parameter
Symbol
Unit
Max
Min
[2]
V
-
-
-
[1]
Luminous Flux
lm
V(Tj=100 )
-
[3]
Correlated Color Temperature
CRI
CCT
Ra
-
-
-
-
K
-
80
-
[4]
Forward Voltage
VF
3.2
V
Thermal resistance (J to S)
View Angle
R
5.8
K/W
deg.
J-S
2
½
120
1-2 Absolute Maximum Ratings
Parameter
Symbol
Value
1200
Unit
Forward Current
IF
mA
1200(1/10duty@1kHz)
Reverse Voltage
Power Dissipation
VR
Pd
5
4
V
W
ºC
ºC
ºC
-
Junction Temperature
Operating Temperature
Storage Temperature
Tj
145(@ IF 1200mA)
-40 ~ +85
-40 ~ +100
8,000V HBM
Topr
Tstg
-
[5]
ESD Sensitivity
*Notes :
[1] SSC maintains a tolerance of 10% on flux and power measurements.
[2] V is the total luminous flux output as measured with an integrating sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
Color coordinate : 0.005, CCT 5% tolerance.
[4] Tolerance is 0.06V on forward voltage measurements
[5] A zener diode is included to protect the product from ESD.
SSC-SZ5M
January 2012
www.seoulsemicon.com
7
: SSC- QP- 7- 07- 12 (Rev.02)
Characteristics of SZ5-M0-WN-C8
Neutral White
1-1 Electro-Optical characteristics at 350mA
(Ta=25 , RH30%)
Value
Typ
108
Parameter
Symbol
Unit
Max
Min
[2]
V
-
-
-
[1]
Luminous Flux
lm
V(Tj=100 )
98
-
[3]
Correlated Color Temperature
CRI
CCT
Ra
-
4000
-
-
-
K
-
80
-
[4]
Forward Voltage
VF
3.2
5.8
120
V
Thermal resistance (J to S)
View Angle
R
K/W
deg.
J-S
2
½
1-2 Absolute Maximum Ratings
Parameter
Symbol
Value
1200
Unit
Forward Current
IF
mA
1200(1/10duty@1kHz)
Reverse Voltage
Power Dissipation
VR
Pd
5
4
V
W
ºC
ºC
ºC
-
Junction Temperature
Operating Temperature
Storage Temperature
Tj
145(@ IF 1200mA)
-40 ~ +85
-40 ~ +100
8,000V HBM
Topr
Tstg
-
[5]
ESD Sensitivity
*Notes :
[1] SSC maintains a tolerance of 10% on flux and power measurements.
[2] V is the total luminous flux output as measured with an integrating sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
Color coordinate : 0.005, CCT 5% tolerance.
[4] Tolerance is 0.06V on forward voltage measurements
[5] A zener diode is included to protect the product from ESD.
SSC-SZ5M
January 2012
www.seoulsemicon.com
8
: SSC- QP- 7- 07- 12 (Rev.02)
Characteristics of SZ5-M0-WN-00
Neutral White
1-1 Electro-Optical characteristics at 350mA
(Ta=25 , RH30%)
Value
Typ
118
107
4000
67
Parameter
Symbol
Unit
Max
Min
[2]
V
-
-
-
-
-
-
[1]
Luminous Flux
lm
V(Tj=100 )
-
[3]
Correlated Color Temperature
CRI
CCT
Ra
-
-
-
K
-
[4]
Forward Voltage
VF
3.2
V
Thermal resistance (J to S)
View Angle
R
5.8
K/W
deg.
J-S
2
½
120
1-2 Absolute Maximum Ratings
Parameter
Symbol
Value
1200
Unit
Forward Current
IF
mA
1200(1/10duty@1kHz)
Reverse Voltage
Power Dissipation
VR
Pd
5
4
V
W
ºC
ºC
ºC
-
Junction Temperature
Operating Temperature
Storage Temperature
Tj
145(@ IF 1200mA)
-40 ~ +85
-40 ~ +100
8,000V HBM
Topr
Tstg
-
[5]
ESD Sensitivity
*Notes :
[1] SSC maintains a tolerance of 10% on flux and power measurements.
[2] V is the total luminous flux output as measured with an integrating sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
Color coordinate : 0.005, CCT 5% tolerance.
[4] Tolerance is 0.06V on forward voltage measurements
[5] A zener diode is included to protect the product from ESD.
SSC-SZ5M
January 2012
www.seoulsemicon.com
9
: SSC- QP- 7- 07- 12 (Rev.02)
Characteristics of SZ5-M0-WW-C8
Warm white
1-1 Electro-Optical characteristics at 350mA
Value
Typ
100
91
Parameter
Symbol
Unit
Min
Max
[2]
V
-
-
-
-
-
-
-
[1]
Luminous Flux
lm
V(Tj=100 )
[3]
Correlated Color Temperature
CRI
CCT
Ra
-
3000
-
K
-
80
-
[4]
Forward Voltage
VF
3.2
V
Thermal resistance (J to S)
View Angle
R
5.8
K/W
deg.
J-S
2
½
120
1-2 Absolute Maximum Ratings
Parameter
Value
1200
Unit
Forward Current
IF
mA
1200(1/10duty@1kHz)
Reverse Voltage
Power Dissipation
VR
Pd
5
4
V
W
ºC
ºC
ºC
-
Junction Temperature
Operating Temperature
Storage Temperature
Tj
145(@ IF 1200mA)
-40 ~ +85
-40 ~ +100
8,000V HBM
Topr
Tstg
-
[5]
ESD Sensitivity
*Notes :
[1] SSC maintains a tolerance of 10% on flux and power measurements.
[2] V is the total luminous flux output as measured with an integrating sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
Color coordinate : 0.005, CCT 5% tolerance.
[4] Tolerance is 0.06V on forward voltage measurements
[5] A zener diode is included to protect the product from ESD.
SSC-SZ5M
January 2012
www.seoulsemicon.com
10
: SSC- QP- 7- 07- 12 (Rev.02)
Characteristics of SZ5-M0-WW-85
Warm white
1-1 Electro-Optical characteristics at 350mA
Value
Typ
96
Parameter
Symbol
Unit
Min
Max
[2]
V
-
-
-
-
-
-
-
[1]
Luminous Flux
lm
V(Tj=100 )
87
[3]
Correlated Color Temperature
CRI
CCT
Ra
-
3000
-
K
-
85
-
[4]
Forward Voltage
VF
3.2
5.8
120
V
Thermal resistance (J to S)
View Angle
R
K/W
deg.
J-S
2
½
1-2 Absolute Maximum Ratings
Parameter
Symbol
Value
1200
Unit
Forward Current
IF
mA
1200(1/10duty@1kHz)
Reverse Voltage
Power Dissipation
VR
Pd
5
4
V
W
ºC
ºC
ºC
-
Junction Temperature
Operating Temperature
Storage Temperature
Tj
145(@ IF 1200mA)
-40 ~ +85
-40 ~ +100
8,000V HBM
Topr
Tstg
-
[5]
ESD Sensitivity
*Notes :
[1] SSC maintains a tolerance of 10% on flux and power measurements.
[2] V is the total luminous flux output as measured with an integrating sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
Color coordinate : 0.005, CCT 5% tolerance.
[4] Tolerance is 0.06V on forward voltage measurements
[5] A zener diode is included to protect the product from ESD.
SSC-SZ5M
January 2012
www.seoulsemicon.com
11
: SSC- QP- 7- 07- 12 (Rev.02)
Characteristics of SZ5-M0-WW-C9
Warm white
1-1 Electro-Optical characteristics at 350mA
Value
Typ
87
Parameter
Symbol
Unit
Min
Max
[2]
V
-
-
-
-
-
-
-
[1]
Luminous Flux
lm
V(Tj=100 )
79
[3]
Correlated Color Temperature
CRI
CCT
Ra
-
3000
-
K
-
90
-
[4]
Forward Voltage
VF
3.2
5.8
120
V
Thermal resistance (J to S)
View Angle
R
K/W
deg.
J-S
2
½
1-2 Absolute Maximum Ratings
Parameter
Symbol
Value
1200
Unit
Forward Current
IF
mA
1200(1/10duty@1kHz)
Reverse Voltage
Power Dissipation
VR
Pd
5
4
V
W
ºC
ºC
ºC
-
Junction Temperature
Operating Temperature
Storage Temperature
Tj
145(@ IF 1200mA)
-40 ~ +85
-40 ~ +100
8,000V HBM
Topr
Tstg
-
[5]
ESD Sensitivity
*Notes :
[1] SSC maintains a tolerance of 10% on flux and power measurements.
[2] V is the total luminous flux output as measured with an integrating sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
Color coordinate : 0.005, CCT 5% tolerance.
[4] Tolerance is 0.06V on forward voltage measurements
[5] A zener diode is included to protect the product from ESD.
SSC-SZ5M
January 2012
www.seoulsemicon.com
12
: SSC- QP- 7- 07- 12 (Rev.02)
Color Spectrum
(IF=350mA, Ta=25 , RH30%)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
-0.2
Pure
Neutral
Warm
300
400
500
600
700
800
900
Wavelength [nm]
SSC-SZ5M
January 2012
www.seoulsemicon.com
13
: SSC- QP- 7- 07- 12 (Rev.02)
Forward Current Characteristics
Forward Voltage vs. Forward Current, Ta=25
0.4
0.3
0.2
0.1
0.0
-5
-4
-3
-2
-1
0
1
2
3
4
Forward Voltage [V]
Forward Current vs. Normalized Relative Luminous Flux, Ta=25 ..
350
300
250
200
150
100
50
SSC-SZ5M
0
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
January 2012
Current [A]
www.seoulsemicon.com
14
: SSC- QP- 7- 07- 12 (Rev.02)
CCT vs. Forward Current, Ta=25
7000
6500
6000
5500
5000
4500
4000
3500
3000
Pure
Neutral
Warm
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Current [A]
SSC-SZ5M
January 2012
www.seoulsemicon.com
15
: SSC- QP- 7- 07- 12 (Rev.02)
Junction Temperature Characteristics
Relative Light Output vs. Junction Temperature at IF=350mA
100
80
60
40
20
Pure
Neutral
Warm
0
25
50
75
100
125
150
Junction Temperature [Celcius]
VF vs. Junction Temperature at IF=350mA
0.0
-0.2
-0.4
-0.6
-0.8
-1.0
25
50
75
100
125
150
SSC-SZ5M
Junction Temperature [Celcius]
January 2012
www.seoulsemicon.com
16
: SSC- QP- 7- 07- 12 (Rev.02)
CCT vs. Junction Temperature at IF=350mA
6500
6000
5500
5000
4500
4000
3500
3000
2500
Pure
Neutral
Warm
0
25
50
75
100
125
150
Temperature [Celcius]
SSC-SZ5M
January 2012
www.seoulsemicon.com
17
: SSC- QP- 7- 07- 12 (Rev.02)
Ambient Temperature vs. Allowable Forward Current
Pure White, Neutral White, Warm White (Tjmax = 145 , @1.2A)
Rj- a =15 /W
Rj- a =25 /W
Rj- a =35 /W
Radiation pattern at 350mA
SSC-SZ5M
January 2012
www.seoulsemicon.com
: SSC- QP- 7- 07- 12 (Rev.02)
Label
#1 #2 #3 #4
X1 X2 X3 – X4 X5 – X6 X7 – X8 X9
Full code form :
X1 X2 X3 – X4 X5 – X6 X7 – X8 X9
- X1X2X3 : Part Number
- X4: Series Code
- X5: Revision number
- X6X7 : Color specification
- X8X9 : CRI group
Rank
#1#2#3#4
- #1 : Luminous Flux : LF [lm]
- #2#3 : Color coordinates : x, y
- #4 : Forward Voltage : VF [V]
SSC-SZ5M
January 2012
www.seoulsemicon.com
19
: SSC- QP- 7- 07- 12 (Rev.02)
Emitter Carrier & Reel Packaging
CATHODE MARK
22
13
SSC-SZ5M
January 2012
www.seoulsemicon.com
20
: SSC- QP- 7- 07- 12 (Rev.02)
Recommended solder pad
Notes :
[1] All dimensions are in millimeters.
[2] Scale : none
[3] This drawing without tolerances are for reference only
SSC-SZ5M
January 2012
www.seoulsemicon.com
21
: SSC- QP- 7- 07- 12 (Rev.02)
Reflow Soldering Conditions / Profile
IPC/JEDEC J-STD-020C
Profile Feature
Sn-Pb Eutectic Assembly
Pb-Free Assembly
Average ramp-up rate (Tsmax to Tp)
3°C/second max.
3°C/second max.
Preheat
- Temperature Min (Tsmin)
- Temperature Max (Tsmax)
- Time (Tsmin to Tsmax) (ts)
100 °C
150 °C
60-120 seconds
150 °C
200 °C
60-180 seconds
Time maintained above:
- Temperature (TL)
- Time (tL)
183 °C
60-150 seconds
217 °C
60-150 seconds
Peak Temperature (Tp)
215
260
Time within 5°C of actual Peak
Temperature (tp)2
10-30 seconds
20-40 seconds
Ramp-down Rate
6 °C/second max.
6 °C/second max.
Time 25°C to Peak Temperature
6 minutes max.
8 minutes max.
* Caution
1. Reflow soldering should not be done more than one time.
2. Repairs should not be done after the LEDs have been soldered. When
repair is unavoidable, suitable tools must be used.
3. Die slug is to be soldered.
4. When soldering, do not put stress on the LEDs during heating.
5. After soldering, do not warp the circuit board.
6. Recommend to use a convection type reflow machine with 7 ~ 8 zones.
SSC-SZ5M
January 2012
www.seoulsemicon.com
22
: SSC- QP- 7- 07- 12 (Rev.02)
Precaution for use
• Storage
To avoid the moisture penetration, we recommend storing Z Power LEDs in a dry box
with a desiccant . The recommended storage temperature range is 5C to 30C and a maximum
humidity of 50%.
• Use Precaution after Opening the Packaging
Use proper SMD techniques when the LED is to be soldered dipped as separation of the lens may
affect the light output efficiency.
Pay attention to the following:
a. Soldering should be done immediately after opening the package (within 24Hrs).
b. Required conditions after opening the package
- Sealing
- Temperature : 5 ~ 40
Humidity : less than 30%
c. If the package has been opened more than 4 week or the color of the desiccant changes,
components should be dried for 10-12hr at 60 5
• Do not apply mechanical force or excess vibration during the cooling process to normal
temperature after soldering.
• Do not rapidly cool device after soldering.
• Components should not be mounted on warped (non coplanar) portion of PCB.
• Radioactive exposure is not considered for the products listed here in.
• Gallium arsenide is used in some of the products listed in this publication. These products are
dangerous if they are burned or shredded in the process of disposal. It is also dangerous to
drink the liquid or inhale the gas generated by such products when chemically disposed of.
• This device should not be used in any type of fluid such as water, oil, organic solvent and etc.
When washing is required, IPA (Isopropyl Alcohol) should be used.
• When the LEDs are in operation the maximum current should be decided after measuring the
package temperature.
• LEDs must be stored properly to maintain the device. If the LEDs are stored for 3 months or
more after being shipped from SSC, a sealed container with a nitrogen atmosphere should be used
for storage.
• The appearance and specifications of the product may be modified for improvement without
notice.
• Long time exposure of sunlight or occasional UV exposure will cause lens discoloration.
• The slug is isolated from anode electrically.
SSC-SZ5M
Therefore, we recommend that you don’t isolate the heat sink.
January 2012
• Attaching LEDs, do not use adhesives that outgas organic vapor.
www.seoulsemicon.com
23
: SSC- QP- 7- 07- 12 (Rev.02)
Handling of Silicone resin LEDs
The Z-Power LED is encapsulated with a silicone resin for the highest flux efficiency.
Notes for handling:
• Avoid touching silicone resin parts especially with sharp tools such as Pincetter
(Tweezers)
• Avoid leaving fingerprints on silicone resin parts.
• Silicone resin will attract dust so use covered containers for storage.
• When populating boards in SMT production, there are basically no restrictions
regarding the form of the pick and place nozzle, except that excessive mechanical
pressure on the surface of the resin must be prevented.
• It is not recommend to cover the silicone resin of the LEDs with other resin
(epoxy, urethane, etc)
SSC-SZ5M
January 2012
www.seoulsemicon.com
24
: SSC- QP- 7- 07- 12 (Rev.02)
厂商 型号 描述 页数 下载

SEOUL

SZ5-M0 [ Superior high Flux for High Current System ] 24 页

SEOUL

SZ5-M0-W0-00 [ Single Color LED, Pure White, T-1, 2.9mm, ROHS COMPLIANT, SMD, 2 PIN ] 25 页

SEOUL

SZ5-M0-W0-C8 [ Single Color LED, ] 25 页

SEOUL

SZ5-M0-WN-00 [ SINGLE COLOR LED ] 25 页

SEOUL

SZ5-M0-WN-C8 [ Single Color LED, Neutral White, T-1, 2.9mm, ROHS COMPLIANT, SMD, 2 PIN ] 25 页

SEOUL

SZ5-M0-WN-C9 [ 暂无描述 ] 25 页

SEOUL

SZ5-M0-WW-85 [ Single Color LED, ] 21 页

SEOUL

SZ5-M0-WW-C8 [ Super high Flux output and high ] 24 页

SEOUL

SZ5-M0-WW-C9 [ Single Color LED, ] 25 页

SEOUL

SZ5-M0-WX-XX [ Super high Flux output and high ] 24 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.224552s
