VTM48E_030_070A00

型号：

VTM48E_030_070A00

描述：

VTM[ VTM ]

品牌：

VICOR[ VICOR CORPORATION ]

页数：

18 页

PDF大小：

1684 K

下载PDF手册

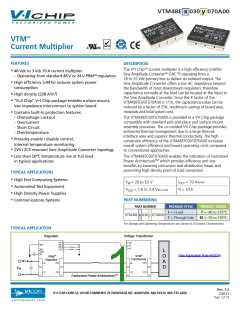

VTM48E x 030 y 070A00
TM
S
VTM
Current Multiplier
®
C
NRTL US
C
US
FEATURES
DESCRIPTION
The V I ChipTM current multiplier is a high efficiency (>94%)
Sine Amplitude ConverterTM (SACTM) operating from a
26 to 55 Vdc primary bus to deliver an isolated output. The
Sine Amplitude Converter offers a low AC impedance beyond
the bandwidth of most downstream regulators; therefore
capacitance normally at the load can be located at the input to
the Sine Amplitude Converter. Since the K factor of the
VTM48EF030T070A00 is 1/16, the capacitance value can be
reduced by a factor of 256, resulting in savings of board area,
materials and total system cost.
•
• 48 Vdc to 3 Vdc 70 A current multiplier
TM
- Operating from standard 48 V or 24 V PRM regulators
• High efficiency (>94%) reduces system power
consumption
• High density (238 A/in3)
•
• “Full Chip” V I Chip package enables surface mount,
low impedance interconnect to system board
• Contains built-in protection features:
- Overvoltage Lockout
- Overcurrent
•
The VTM48EF030T070A00 is provided in a V I Chip package
compatible with standard pick-and-place and surface mount
•
assembly processes. The co-molded V I Chip package provides
- Short Circuit
enhanced thermal management due to a large thermal
interface area and superior thermal conductivity. The high
conversion efficiency of the VTM48EF030T070A00 increases
overall system efficiency and lowers operating costs compared
to conventional approaches.
- Overtemperature
• Provides enable / disable control,
internal temperature monitoring
• ZVS / ZCS resonant Sine Amplitude Converter topology
The VTM48EF030T070A00 enables the utilization of Factorized
Power ArchitectureTM which provides efficiency and size
benefits by lowering conversion and distribution losses and
promoting high density point of load conversion.
• Less than 50ºC temperature rise at full load
in typical applications
TYPICAL APPLICATIONS
• High End Computing Systems
• Automated Test Equipment
• High Density Power Supplies
• Communications Systems
(NOM)
VIN = 26 to 55 V
IOUT = 70 A
K = 1/16
(NO LOAD)
VOUT = 1.6 to 3.4 V
PART NUMBERING
PART NUMBER
PACKAGE STYLE
F = J-Lead
PRODUCT GRADE
T = -40 to 125°C
M = -55 to 125°C
VTM48E x 030 y 070A00
T = Through hole
For Storage and Operating Temperatures see Section 6.0 General Characteristics
TYPICAL APPLICATION
Regulator
Voltage Transformer
VC
TM
VC
PC
L
PR
SG
OS
CD
PC
TM
IL
VTMTM
PRMTM
Regulator
(See Application Note AN:024)
O
A
Transformer
+Out
+Out
+In
+In
D
VIN
-Out
-Out
-In
-In
Factorized Power ArchitectureTM
Rev. 3.2
2/2011
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
Page 1 of 18
vicorpower.com
VTM48E x 030 y 070A00
1.0 ABSOLUTE MAXIMUM VOLTAGE RATINGS
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings can cause permanent
damage to the device.
MIN
MAX
60
UNIT
VDC
VDC
VDC
VDC
MIN
MAX
2250
60
UNIT
+ IN to - IN . . . . . . . . . . . . . . . . . . . . . . . -1.0
PC to - IN . . . . . . . . . . . . . . . . . . . . . . . . -0.3
TM to -IN . . . . . . . . . . . . . . . . . . . . . . . . -0.3
VC to - IN . . . . . . . . . . . . . . . . . . . . . . . . -0.3
+ IN / - IN to + OUT / - OUT (hipot)........
+ IN / - IN to + OUT / - OUT (working)...
VDC
20
VDC
7
+ OUT to - OUT....................................... -1.0
6
VDC
20
2.0 ELECTRICAL CHARACTERISTICS
Specifications apply over all line and load conditions unless otherwise noted; Boldface specifications apply over the temperature
range of -40°C < TJ < 125°C (T-Grade); All other specifications are at TJ = 25ºC unless otherwise noted.
ATTRIBUTE
Input voltage range
SYMBOL
CONDITIONS / NOTES
No external VC applied
VC applied
MIN
TYP
MAX
UNIT
26
0
55
55
1
VIN
VDC
V/µs
V
VIN slew rate
dVIN /dt
VIN_UV
Module latched shutdown,
No external VC applied, IOUT = 70A
VIN = 48 V
VIN = 26 V to 55 V
VIN = 48 V, TC = 25ºC
VIN = 26 V to 55 V, TC = 25ºC
VC enable, VIN = 48 V, COUT = 16000 µF,
RLOAD = 41 mΩ
VIN UV turn off
24
26
1.5
8.5
10.5
5.5
No Load power dissipation
Inrush current peak
PNL
W
A
4.6
10
6.5
IINRP
20
5
DC input current
Transfer ratio
Output voltage
IIN_DC
K
VOUT
A
V/V
V
K = VOUT/VIN, IOUT = 0 A
VOUT = VIN • K - IOUT • ROUT, Section 11
1/16
Output current (average)
Output current (peak)
Output power (average)
IOUT_AVG
IOUT_PK
POUT_AVG
70
105
230
A
A
W
TPEAK < 10 ms, IOUT_AVG ≤ 70 A
IOUT_AVG ≤ 70 A
VIN = 48 V, IOUT = 70 A
VIN = 26 V to 55 V, IOUT = 70 A
VIN = 48 V, IOUT = 35 A
92.8
88.8
93.8
Efficiency (ambient)
Efficiency (hot)
ηAMB
%
%
92.7
92.8
80
93.5
93.5
ηHOT
η20%
ROUT_COLD
ROUT_AMB
ROUT_HOT
FSW
VIN = 48 V, TC = 100°C, IOUT = 70 A
Efficiency (over load range)
Output resistance (cold)
Output resistance (ambient)
Output resistance (hot)
Switching frequency
14 A < IOUT < 70 A
%
TC = -40°C, IOUT = 70 A
TC = 25°C, IOUT = 70 A
TC = 100°C, IOUT = 70 A
mΩ
mΩ
mΩ
MHz
MHz
0.6
0.8
1.0
1.36
2.72
1.2
1.5
1.9
1.43
2.86
1.8
1.9
2.2
1.50
3.00
Output ripple frequency
FSW_RP
COUT = 0 F, IOUT = 70 A, VIN = 48 V,
20 MHz BW, Section 12
Output voltage ripple
VOUT_PP
225
330
mV
Frequency up to 30 MHz,
Simulated J-lead model
Effective Value at 3 VOUT
VTM Standalone Operation.
VIN pre-applied, VC enable
Output inductance (parasitic)
Output capacitance (internal)
Output capacitance (external)
LOUT_PAR
COUT_INT
COUT_EXT
600
200
pH
µF
µF
16000
PROTECTION
Overvoltage lockout
Overvoltage lockout
response time constant
Output overcurrent trip
Short circuit protection trip current
Output overcurrent
VIN_OVLO+
TOVLO
IOCP
ISCP
Module latched shutdown
Effective internal RC filter
55.1
58.5
8
60
V
µs
82
140
107
140
A
A
TOCP
Effective internal RC filter (Integrative).
4.9
ms
response time constant
From detection to cessation
of switching (Instantaneous)
Short circuit protection response time
TSCP
1
µs
ºC
Thermal shutdown setpoint
TJ_OTP
125
130
135
Reverse inrush current protection
Reverse Inrush protection disabled for this product
Rev. 3.2
2/2011
Page 2 of 18
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
vicorpower.com
VTM48E x 030 y 070A00
3.0 SIGNAL CHARACTERISTICS
Specifications apply over all line and load conditions unless otherwise noted; Boldface specifications apply over the temperature
range of -40°C < TJ < 125°C (T-Grade); All other specifications are at TJ = 25°C unless otherwise noted.
VTM CONTROL : VC
•
•
Used to wake up powertrain circuit.
A minimum of 11.5 V must be applied indefinitely for VIN < 26 V
to ensure normal operation.
•
•
•
PRM VC can be used as valid wake-up signal source.
Internal Resistance used in “Adaptive Loop” compensation
VC voltage may be continuously applied
•
VC slew rate must be within range for a succesful start.
SIGNAL TYPE
STATE
ATTRIBUTE
SYMBOL
CONDITIONS / NOTES
MIN TYP MAX UNIT
Required for start up, and operation
below 26 V. See Section 7.
VC = 11.5 V, VIN = 0 V
VC = 11.5 V, VIN > 26 V
VC = 16.5 V, VIN > 26 V
External VC voltage
VVC_EXT
11.5
16.5
150
V
115
0
0
VC current draw
IVC
mA
Steady
Fault mode. VC > 11.5 V
60
100
1
VC internal diode rating
VC internal resistor
DVC_INT
RVC-INT
V
kΩ
ANALOG
INPUT
VC internal resistor
temperature coefficient
VC start up pulse
VC slew rate
TVC_COEFF
900 ppm/°C
20
0.25 V/µs
VVC_SP
dVC/dt
IINR_VC
Tpeak <18 ms
Required for proper start up;
VC = 16.5 V, dVC/dt = 0.25 V/µs
V
Start Up
0.02
VC inrush current
1
A
VIN pre-applied, PC floating,
VC enable, CPC = 0 µF
VC to VOUT turn-on delay
TON
500
µs
Transitional
VC = 11.5 V to PC high, VIN = 0 V,
dVC/dt = 0.25 V/µs
VC = 0 V
VC to PC delay
T
75
125
µs
µF
vc_pc
Internal VC capacitance
CVC_INT
3.2
PRIMARY CONTROL : PC
•
•
•
The PC pin enables and disables the VTM.
When held below 2 V, the VTM will be disabled.
PC pin outputs 5 V during normal operation. PC pin is equal to 2.5 V
during fault mode given VIN > 26 V or VC > 11.5 V.
After successful start up and under no fault condition, PC can be used as
a 5 V regulated voltage source with a 2 mA maximum current.
•
Module will shutdown when pulled low with an impedance
less than 400 Ω.
•
•
In an array of VTMs, connect PC pin to synchronize start up.
PC pin cannot sink current and will not disable other modules
during fault mode.
SIGNAL TYPE
STATE
ATTRIBUTE
PC voltage
PC source current
PC resistance (internal)
PC source current
PC capacitance (internal)
PC resistance (external)
PC voltage
PC voltage (disable)
PC pull down current
PC disable time
SYMBOL
CONDITIONS / NOTES
MIN TYP MAX UNIT
VPC
IPC_OP
RPC_INT
IPC_EN
CPC_INT
RPC_S
VPC_EN
VPC_DIS
IPC_PD
4.7
5
5.3
2
400
300
1000
V
mA
kΩ
µA
pF
kΩ
V
Steady
ANALOG
OUTPUT
Internal pull down resistor
50
50
150
100
Start Up
Section 7
60
2
Enable
Disable
2.5
3
2
V
DIGITAL
INPUT / OUPUT
5.1
mA
µs
TPC_DIS_T
TFR_PC
5
Transitional
PC fault response time
From fault to PC = 2 V
100
µs
Rev. 3.2
2/2011
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
Page 3 of 18
vicorpower.com
VTM48E x 030 y 070A00
TEMPERATURE MONITOR : TM
•
•
The TM pin monitors the internal temperature of the VTM controller IC
within an accuracy of 5°C.
Can be used as a "Power Good" flag to verify that the VTM is operating.
•
The TM pin has a room temperature setpoint of 3 V
and approximate gain of 10 mV/°C.
Output drives Temperature Shutdown comparator
•
SIGNAL TYPE
STATE
ATTRIBUTE
TM voltage
SYMBOL
CONDITIONS / NOTES
MIN TYP MAX UNIT
VTM_AMB TJ controller = 27°C
2.95 3.00 3.05
V
TM source current
TM gain
ITM
ATM
100
µA
mV/°C
ANALOG
OUTPUT
Steady
10
CTM = 0 F, VIN = 48 V,
IOUT = 70 A
TM voltage ripple
VTM_PP
120
200
mV
Disable
TM voltage
VTM_DIS
0
40
V
kΩ
pF
µs
TM resistance (internal)
TM capacitance (external)
TM fault response time
RTM_INT
CTM_EXT
TFR_TM
Internal pull down resistor
From fault to TM = 1.5 V
25
50
50
DIGITAL OUTPUT
(FAULT FLAG)
Transitional
10
4.0 TIMING DIAGRAM
6
7
IOUT
ISSP
IOCP
8
d
1
2
3
4
5
VC
b
VVC-EXT
a
VOVLO
VIN
NL
≥ 26 V
c
e
f
VOUT
TM
VTM-AMB
PC
g
5 V
3 V
a: VC slew rate (dVC/dt)
b: Minimum VC pulse rate
c: TOVLO
1. Initiated VC pulse
2. Controller start
3. VIN ramp up
Notes:
– Timing and voltage is not to scale
– Error pulse width is load dependent
d: TOCP
4. VIN = VOVLO
5. VIN ramp down no VC pulse
6. Overcurrent
e: Output turn on delay (TON
f: PC disable time (TPC_DIS_T
)
)
g: VC to PC delay (TVC_PC
)
7. Start up on short circuit
8. PC driven low
Rev. 3.2
2/2011
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
Page 4 of 18
vicorpower.com
VTM48E x 030 y 070A00
5.0 APPLICATION CHARACTERISTICS
The following values, typical of an application environment, are collected at TC = 25ºC unless otherwise noted. See associated figures
for general trend data.
ATTRIBUTE
SYMBOL
CONDITIONS / NOTES
TYP
UNIT
No load power dissipation
Efficiency (ambient)
Efficiency (hot)
Output resistance (cold)
Output resistance (ambient)
Output resistance (hot)
PNL
ηAMB
VIN = 48 V, PC enabled
VIN = 48 V, IOUT = 70 A
4.3
93.8
93.3
1.3
1.6
2.0
W
%
%
ηHOT
VIN = 48 V, IOUT = 70 A, TC = 100ºC
VIN = 48 V, IOUT = 70 A, TC = -40ºC
VIN = 48 V, IOUT = 70 A
VIN = 48 V, IOUT = 70 A, TC = 100ºC
COUT = 0 F, IOUT = 70 A, VIN = 48 V,
20 MHz BW, Section 12
IOUT_STEP = 0 A TO 70A, VIN = 48 V,
ISLEW = 5 A/us
IOUT_STEP = 70 A to 0 A, VIN = 48 V
ISLEW = 18 A/us
ROUT_COLD
ROUT_AMB
ROUT_HOT
mΩ
mΩ
mΩ
mV
mV
mV
Output voltage ripple
VOUT transient (positive)
VOUT transient (negative)
VOUT_PP
246
0
VOUT_TRAN+
VOUT_TRAN-
40
Full Load Efficiency vs. Case Temperature
96
No Load Power Dissipation vs. Line
11
9
94
92
90
88
86
7
5
3
1
-40
-20
0
20
Case Temperature (°C)
26 V 48 V
40
60
80
100
26
29
32
35
Input Voltage (V)
-40°C 25°C
38
41
43
46
49
52
55
V
:
55 V
IN
TCASE
:
100°C
Figure 1 – No load power dissipation vs. VIN
Figure 2 – Full load efficiency vs. temperature
Efficiency & Power Dissipation -40°C Case
Efficiency & Power Dissipation 25°C Case
96
92
88
84
80
76
72
68
28
24
20
16
12
8
96
92
88
84
80
76
72
68
64
60
45
40
35
30
25
20
15
10
5
η
η
PD
PD
4
0
0
0
7
14
21
28
35
42
49
56
63
70
0
7
14
21
28
35
42
49
56
63
70
Load Current (A)
Load Current (A)
26 V
48 V
55 V
26 V
48 V
55 V
26 V
48 V
55 V
26 V
48 V
55 V
VIN:
VIN:
Figure 3 – Efficiency and power dissipation at –40°C
Figure 4 – Efficiency and power dissipation at 25°C
Rev. 3.2
2/2011
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
Page 5 of 18
vicorpower.com
VTM48E x 030 y 070A00
Efficiency & Power Dissipation 100°C Case
ROUT vs.TCASE at VIN = 48 V
2.5
2.0
1.5
1.0
0.5
96
92
88
84
80
76
72
68
28
24
20
16
12
8
η
PD
4
0
0
7
14
21
28
35
42
49
56
63
70
-40
-20
0
20
Case Temperature (°C)
IOUT
70 A
40
60
80
100
Load Current (A)
26 V
48 V
55 V
26 V
48 V
55 V
:
VIN:
35 A
Figure 5 – Efficiency and power dissipation at 100°C
Figure 6 – ROUT vs. temperature
Output Voltage Ripple vs. Load
Safe Operating Area
275
250
225
200
175
150
125
100
75
110
100
90
80
70
60
50
40
30
20
10
0
10 ms Max
Continuous
0
7
14
21
28
35
42
49
56
63
70
0
1
2
3
4
Load Current (A)
Output Voltage (V)
VIN
:
26 V
48 V
55 V
Figure 7 – VRIPPLE vs. IOUT ; No external COUT.
Board mounted module, scope setting : 20 MHz analog BW
Figure 8 – Safe operating area
Figure 10 –Start up from application of VIN; VC pre-applied
Figure 9 – Full load ripple, 100 µF CIN; No external COUT.
Board mounted module, scope setting : 20 MHz analog BW
COUT = 16000 µF
Rev. 3.2
2/2011
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
Page 6 of 18
vicorpower.com
VTM48E x 030 y 070A00
Figure 11 – Start up from application of VC; VIN pre-applied
Figure 12 – 0 A– 70 A transient response:
CIN = 100 µF, no external COUT
COUT = 16000 µF
Figure 13 – 70 A – 0 A transient response:
CIN = 100 µF, no external COUT
Rev. 3.2
2/2011
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
Page 7 of 18
vicorpower.com
VTM48E x 030 y 070A00
6.0 GENERAL CHARACTERISTICS
Specifications apply over all line and load conditions unless otherwise noted; Boldface specifications apply over the temperature
range of -40ºC < TJ < 125ºC (T-Grade); All Other specifications are at TJ = 25°C unless otherwise noted.
ATTRIBUTE
SYMBOL
CONDITIONS / NOTES
MIN
TYP
MAX
UNIT
MECHANICAL
Length
Width
Height
Volume
Weight
L
W
H
Vol
W
32.25 / [1.270]
21.75 / [0.856]
6.48 / [0.255]
32.5 / [1.280] 32.75 / [1.289] mm/[in]
22.0 / [0.866] 22.25 / [0.876] mm/[in]
6.73 / [0.265]
4.81 / [0.294]
14.5 / [0.512]
6.98 / [0.275] mm/[in]
No heat sink
cm3/[in3]
g/[oz]
2.03
Nickel
Palladium
Gold
0.51
0.02
0.003
Lead finish
0.15
µm
0.051
THERMAL
VTM48EF030T070A00 (T-Grade)
VTM48EF030M070A00 (M-Grade)
VTM48ET030T070A00 (T-Grade)
VTM48ET030M070A00 (M-Grade)
-40
-55
-40
-55
125
125
125
125
°C
°C
°C
°C
Operating temperature
TJ
Isothermal heat sink and
isothermal internal PCB
φJC
Thermal resistance
Thermal capacity
1
5
°C/W
Ws/°C
ASSEMBLY
Peak compressive force
applied to case (Z-axis)
6
lbs
lbs / in2
°C
°C
°C
Supported by J-lead only
5.41
125
125
125
125
VTM48EF030T070A00 (T-Grade)
VTM48EF030M070A00 (M-Grade)
VTM48ET030T070A00 (T-Grade)
VTM48ET030M070A00 ( M-Grade)
MSL 6, TOB = 4 hrs
MSL 5
Human Body Model,
"JEDEC JESD 22-A114-F"
-40
-65
-40
-65
Storage temperature
Moisture sensitivity level
ESD withstand
TST
°C
MSL
ESDHBM
ESDCDM
1000
400
VDC
Charge Device Model,
"JEDEC JESD 22-C101-D"
SOLDERING
MSL 6, TOB = 4 hrs
MSL 5
245
225
90
3
°C
°C
s
°C/s
°C/s
Peak temperature during reflow
Peak time above 245°C
Peak heating rate during reflow
Peak cooling rate post reflow
60
1.5
1.5
6
SAFETY
Working voltage (IN – OUT)
Isolation voltage (hipot)
Isolation capacitance
Isolation resistance
VIN_OUT
VHIPOT
CIN_OUT
RIN_OUT
60
VDC
VDC
pF
2250
2500
10
Unpowered unit
3200
3800
MΩ
MIL-HDBK-217 Plus Parts Count;
25ºC Ground Benign, Stationary,
Indoors / Computer Profile
Telcordia Issue 2 - Method I Case 1;
Ground Benign, Controlled
cTUVus
1.9
MHrs
MTBF
6.04
MHrs
cURus
CE Mark
Agency approvals / standards
RoHS 6 of 6
Rev. 3.2
2/2011
Page 8 of 18
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
vicorpower.com
VTM48E x 030 y 070A00
7.0 USING THE CONTROL SIGNALS VC, PC, TM, IM
8.0 START UP BEHAVIOR
The VTM Control (VC) pin is an input pin which powers the
internal VCC circuitry when within the specified voltage range
of 11.5 V to 16.5 V. This voltage is required for VTMTM current
multiplier start up and must be applied as long as the input is
below 26 V. In order to ensure a proper start, the slew rate of
the applied voltage must be within the specified range.
Depending on the sequencing of the VC with respect to the
input voltage, the behavior during start up will vary as follows:
• Normal operation (VC applied prior to VIN): In this case the
controller is active prior to ramping the input. When the
input voltage is applied, the VTM output voltage will track
the input (See Figure 10). The inrush current is determined by
the input voltage rate of rise and output capacitance. If the
VC voltage is removed prior to the input reaching 26 V, the
VTM may shut down.
Some additional notes on the using the VC pin:
• In most applications, the VTM module will be powered by an
upstream PRMTM regulator which provides a 10 ms
VC pulse during start up. In these applications the VC pins
of the PRM regulator and VTM current multiplier should be
tied together.
• Stand-alone operation (VC applied after VIN): In this case the
VTM output will begin to rise upon the application of the
VC voltage (See Figure 11). The Adaptive Soft Start Circuit
(See Section 11) may vary the ouput rate of rise in order to
limit the inrush current to its maximum level. When starting
into high capacitance, or a short, the output current will be
limited for a maximum of 120 µ/sec. After this period, the
Adaptive Soft Start Circuit will time out and the VTM module
may shut down. No restart will be attempted until VC is
re-applied or PC is toggled. The maximum output
• The VC voltage can be applied indefinitely allowing for
continuous operation down to 0 VIN.
• The fault response of the VTM module is latching. A positive
edge on VC is required in order to restart the unit. If VC is
continuously applied the PC pin may be toggled to restart
the VTM module.
Primary Control (PC) pin can be used to accomplish the
following functions:
capacitance is limited to 16000 µF in this mode of operation
to ensure a sucessful start.
• Delayed start: Upon the application of VC, the PC pin will
source a constant 100 µA current to the internal RC
network. Adding an external capacitor will allow further
delay in reaching the 2.5 V threshold for module start.
9.0 THERMAL CONSIDERATIONS
TM
•
V I Chip products are multi-chip modules whose temperature
distribution varies greatly for each part number as well as
with the input / output conditions, thermal management and
environmental conditions. Maintaining the top of the
VTM48EF030T070A00 case to less than 100ºC will keep all
• Auxiliary voltage source: Once enabled in regular
operational conditions (no fault), each VTM PC provides a
regulated 5 V, 2 mA voltage source.
• Output disable: PC pin can be actively pulled down in order
to disable the module. Pull down impedance shall be lower
than 400 Ω.
•
junctions within the V I Chip module below 125ºC for most
applications.
The percent of total heat dissipated through the top surface
versus through the J-lead is entirely dependent on the
particular mechanical and thermal environment. The heat
dissipated through the top surface is typically 60%. The heat
dissipated through the J-lead onto the PCB board surface is
typically 40%. Use 100% top surface dissipation when
designing for a conservative cooling solution.
• Fault detection flag: The PC 5 V voltage source is internally
turned off as soon as a fault is detected. It is important to
notice that PC doesn’t have current sink capability. Therefore,
in an array, PC line will not be capable of disabling
neighboring modules if a fault is detected.
• Fault reset: PC may be toggled to restart the unit if VC
is continuously applied.
•
It is not recommended to use a V I Chip module for an
extended period of time at full load without proper
heat sinking.
Temperature Monitor (TM) pin provides a voltage
proportional to the absolute temperature of the converter
control IC.
It can be used to accomplish the following functions:
• Monitor the control IC temperature: The temperature in
Kelvin is equal to the voltage on the TM pin scaled
by 100. (i.e. 3.0 V = 300 K = 27ºC). If a heat sink is applied,
TM can be used to thermally protect the system.
• Fault detection flag: The TM voltage source is internally
turned off as soon as a fault is detected. For system
monitoring purposes (microcontroller interface) faults are
detected on falling edges of TM signal.
Rev. 3.2
2/2011
Page 9 of 18
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
vicorpower.com
VTM48E x 030 y 070A00
10.0 VTM48EF030T070A00 BLOCK DIAGRAM
Rev. 3.2
2/2011
Page 10 of 18
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
vicorpower.com
VTM48E x 030 y 070A00
11.0 SINE AMPLITUDE CONVERTERTM POINT OF LOAD CONVERSION
The Sine Amplitude Converter (SACTM) uses a high frequency
resonant tank to move energy from input to output. (The
resonant tank is formed by Cr and leakage inductance Lr in the
power transformer windings as shown in the VTMTM module
Block Diagram. See Section 10). The resonant LC tank,
operated at high frequency, is amplitude modulated as a
function of input voltage and output current. A small amount
of capacitance embedded in the input and output stages of
the module is sufficient for full functionality and is key to
achieving power density.
The VTM48EF030T070A00 SAC can be simplified into the
following model:
218 pH
IOUT
ROUT
LIN = 5.7 nH
LOUT = 600 pH
R
L
1.5 mΩ
+
+
R
COUT
R
R
CIN
0.2 Ω
1/16 • VIN
81 µΩ
V•I
K
0.57 mΩ
3.2 µF
1/16 • IOUT
+
–
C
+
–
C
200 µF
C
C
IN
OUT
V
V
IN
IQ
OUT
I
89 mA
–
–
Figure 14 – V I ChipTM AC model
•
At no load:
interesting attributes. Assuming that ROUT = 0 Ω and IQ = 0 A,
Eq. (3) now becomes Eq. (1) and is essentially load
independent, resistor R is now placed in series with VIN as
shown in Figure 15.
•
VOUT = VIN
K
(1)
(2)
K represents the “turns ratio” of the SAC.
Rearranging Eq (1):
R
VOUT
K =
SACTM
VOUT
VIN
+
–
K = 1/32
VIN
In the presence of load, VOUT is represented by:
•
•
VOUT = VIN K – IOUT ROUT
(3)
(4)
Figure 15 – K = 1/32 Sine Amplitude Converter with series
input resistor
and IOUT is represented by:
IIN – IQ
The relationship between VIN and VOUT becomes:
IOUT
=
•
•
VOUT = (VIN – IIN R) K
(5)
K
ROUT represents the impedance of the SAC, and is a function of
the RDSON of the input and output MOSFETs and the winding
resistance of the power transformer. IQ represents the
Substituting the simplified version of Eq. (4)
(IQ is assumed = 0 A) into Eq. (5) yields:
quiescent current of the SAC control and gate drive circuitry.
2
•
•
•
The use of DC voltage transformation provides additional
VOUT = VIN K – IOUT R K
(6)
Rev. 3.2
2/2011
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
Page 11 of 18
vicorpower.com
VTM48E x 030 y 070A00
This is similar in form to Eq. (3), where ROUT is used to
represent the characteristic impedance of the SACTM. However,
in this case a real R on the input side of the SAC is effectively
scaled by K2 with respect to the output.
Low impedance is a key requirement for powering a high-
current, low voltage load efficiently. A switching regulation
stage should have minimal impedance while simultaneously
providing appropriate filtering for any switched current. The
use of a SAC between the regulation stage and the point of
load provides a dual benefit of scaling down series impedance
leading back to the source and scaling up shunt capacitance or
energy storage as a function of its K factor squared. However,
the benefits are not useful if the series impedance of the SAC
is too high. The impedance of the SAC must be low, i.e. well
beyond the crossover frequency of the system.
Assuming that R = 1 Ω, the effective R as seen from the secondary
side is 0.98 mΩ, with K = 1/32 as shown in Figure 15.
A similar exercise should be performed with the additon of a
capacitor or shunt impedance at the input to the SAC. A
switch in series with VIN is added to the circuit. This is depicted
in Figure 16.
A solution for keeping the impedance of the SAC low involves
switching at a high frequency. This enables small magnetic
components because magnetizing currents remain low. Small
magnetics mean small path lengths for turns. Use of low loss
core material at high frequencies also reduces core losses.
S
SACTM
V
K = 1/32
+
–
OUT
C
VIN
The two main terms of power loss in the VTMTM module are:
- No load power dissipation (PNL): defined as the power
used to power up the module with an enabled powertrain
at no load.
Figure 16 – Sine Amplitude ConverterTM with input capacitor
- Resistive loss (ROUT): refers to the power loss across
the VTM modeled as pure resistive impedance.
A change in VIN with the switch closed would result in a
change in capacitor current according to the following
equation:
PDISSIPATED = PNL + PROUT
Therefore,
(10)
dVIN
(7)
IC(t) = C
POUT = PIN – PDISSIPATED = PIN – PNL – PROUT
(11)
dt
Assume that with the capacitor charged to VIN, the switch is
opened and the capacitor is discharged through the idealized
SAC. In this case,
The above relations can be combined to calculate the overall
module efficiency:
POUT
PIN
PIN – PNL – PROUT
=
(12)
η =
PIN
•
IC= IOUT
K
(8)
Substituting Eq. (1) and (8) into Eq. (7) reveals:
2
•
•
VIN IIN – PNL – (IOUT
VIN • IIN
)
ROUT
=
•
C
dVOUT
dt
(9)
IOUT
=
K2
2
•
PNL + (IOUT
)
ROUT
The equation in terms of the output has yielded a K2 scaling
factor for C, specified in the denominator of the equation.
A K factor less than unity, results in an effectively larger
capacitance on the output when expressed in terms of the
input. With a K=1/32 as shown in Figure 16,
C=1 µF would appear as C=1024 µF when viewed
from the output.
= 1 –
(
)
•
VIN IIN
Rev. 3.2
2/2011
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
Page 12 of 18
vicorpower.com
VTM48E x 030 y 070A00
12.0 INPUT AND OUTPUT FILTER DESIGN
13.0 CAPACITIVE FILTERING CONSIDERATIONS
FOR A SINE AMPLITUDE CONVERTERTM
A major advantage of a SACTM system versus a conventional
PWM converter is that the former does not require large
functional filters. The resonant LC tank, operated at extreme
high frequency, is amplitude modulated as a function of input
voltage and output current and efficiently transfers charge
through the isolation transformer. A small amount of
capacitance embedded in the input and output stages of the
module is sufficient for full functionality and is key to achieving
high power density.
It is important to consider the impact of adding input and
output capacitance to a Sine Amplitude Converter on the
system as a whole. Both the capacitance value and the
effective impedance of the capacitor must be considered.
A Sine Amplitude Converter has a DC ROUT value which has
already been discussed in section 11. The AC ROUT of the
SAC contains several terms:
• Resonant tank impedance
This paradigm shift requires system design to carefully evaluate
external filters in order to:
• Input lead inductance and internal capacitance
• Output lead inductance and internal capacitance
1.Guarantee low source impedance.
To take full advantage of the VTMTM module dynamic
response, the impedance presented to its input terminals
must be low from DC to approximately 5 MHz. Input
capacitance may be added to improve transient
The values of these terms are shown in the behavioral model in
section 11. It is important to note on which side of the
transformer these impedances appear and how they reflect
across the transformer given the K factor.
performance or compensate for high source impedance.
The overall AC impedance varies from model to model. For
most models it is dominated by DC ROUT value from DC to
beyond 500 KHz. The behavioral model in section 11 should be
used to approximate the AC impedance of the specific model.
2.Further reduce input and/or output voltage ripple without
sacrificing dynamic response.
Given the wide bandwidth of the VTM module, the source
response is generally the limiting factor in the overall
system response. Anomalies in the response of the source
will appear at the output of the VTM module multiplied
by its K factor.
Any capacitors placed at the output of the VTM module reflect
back to the input of the module by the square of the K factor
(Eq. 9) with the impedance of the module appearing in series.
It is very important to keep this in mind when using a PRMTM
regulator to power the VTM module. Most PRM modules have
a limit on the maximum amount of capacitance that can be
applied to the output. This capacitance includes both the PRM
output capacitance and the VTM output capacitance reflected
back to the input. In PRM remote sense applications, it is
important to consider the reflected value of VTM output
capacitance when designing and compensating the PRM
control loop.
3.Protect the module from overvoltage transients imposed
by the system that would exceed maximum ratings and
cause failures.
TM
•
The V I Chip module input/output voltage ranges must
not be exceeded. An internal overvoltage lockout function
prevents operation outside of the normal operating input
range. Even during this condition, the powertrain is
exposed to the applied voltage and power MOSFETs must
withstand it.
Capacitance placed at the input of the VTM module appear to
the load reflected by the K factor with the impedance of the
VTM module in series. In step-down ratios, the effective
capacitance is increased by the K factor. The effective ESR of
the capacitor is decreased by the square of the K factor, but
the impedance of the module appears in series. Still, in most
step-down VTM modules an electrolytic capacitor placed at the
input of the module will have a lower effective impedance
compared to an electrolytic capacitor placed at the output. This
is important to consider when placing capacitors at the output
of the module. Even though the capacitor may be placed at
the output, the majority of the AC current will be sourced from
the lower impedance, which in most cases will be the module.
This should be studied carefully in any system design using a
module. In most cases, it should be clear that electrolytic
output capacitors are not necessary to design a stable,
well-bypassed system.
Rev. 3.2
2/2011
Page 13 of 18
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
vicorpower.com
VTM48E x 030 y 070A00
14.0 CURRENT SHARING
16.0 REVERSE OPERATION
The SACTM topology bases its performance on efficient transfer
of energy through a transformer without the need of closed
loop control. For this reason, the transfer characteristic can be
approximated by an ideal transformer with some resistive drop
and positive temperature coefficient.
The VTM48EF030T070A00 is capable of reverse operation.
If a voltage is present at the output which satisfies the
condition VOUT > VIN • K at the time the VC voltage is applied,
or after the unit has started, then energy will be transferred
from secondary to primary. The input to output ratio will be
maintained. The VTM48EF030T070A00 will continue to
operate in reverse as long as the input and output are within
the specified limits. The VTM48EF030T070A00 has not been
qualified for continuous operation (>10 ms) in the reverse
direction.
This type of characteristic is close to the impedance
characteristic of a DC power distribution system, both in
behavior (AC dynamic) and absolute value (DC dynamic).
When connected in an array with the same K factor, the VTM
module will inherently share the load current (typically 5%)
with parallel units according to the equivalent impedance
divider that the system implements from the power source to
the point of load.
Some general recommendations to achieve matched array
impedances:
• Dedicate common copper planes within the PCB
to deliver and return the current to the modules.
• Provide the PCB layout as symmetric as possible.
• Apply same input / output filters (if present) to each unit.
For further details see AN:016 Using BCM™ Bus Converters
in High Power Arrays.
ZIN_EQ1
ZOUT_EQ1
VIN
VOUT
VTM1
RO_1
ZIN_EQ2
ZOUT_EQ2
VTM2
RO_2
+
–
Load
DC
ZIN_EQn
ZOUT_EQn
VTMn
RO_n
Figure 17 – VTMTM current multiplier array
15.0 FUSE SELECTION
In order to provide flexibility in configuring power systems
V•I ChipTM products are not internally fused. Input line fusing
of V•I Chip products is recommended at system level to
provide thermal protection in case of catastrophic failure.
The fuse shall be selected by closely matching system
requirements with the following characteristics:
• Current rating (usually greater than maximum current
of VTM module)
• Maximum voltage rating (usually greater than the maximum
possible input voltage)
• Ambient temperature
• Nominal melting I2t
Rev. 3.2
2/2011
Page 14 of 18
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
vicorpower.com
VTM48E x 030 y 070A00
17.1 J-LEAD PACKAGE MECHANICAL DRAWING
Click here to view original mechanical drawings on the Vicor website.
mm
(inch)
NOTES:
mm
2. DIMENSIONS ARE
.
inch
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
3. .X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
4
. PRODUCT MARKING ON TOP SURFACE
DXF and PDF files are available on vicorpower.com
17.2 J-LEAD PACKAGE RECOMMENDED LAND PATTERN
3. .X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
mm
4. PRODUCT MARKING ON TOP SURFACE
2. DIMENSIONS ARE
.
inch
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
DXF and PDF files are available on vicorpower.com
Rev. 3.2
2/2011
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
Page 15 of 18
vicorpower.com
VTM48E x 030 y 070A00
17.3 THROUGH HOLE PACKAGE MECHANICAL DRAWING
Click here to view original mechanical drawings on the Vicor website.
mm
(inch)
NOTES:
mm
2. DIMENSIONS ARE
.
inch
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
3. .X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
4
. PRODUCT MARKING ON TOP SURFACE
DXF and PDF files are available on vicorpower.com
17.4 THROUGH HOLE PACKAGE RECOMMENDED LAND PATTERN
3. .X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
mm
4
. PRODUCT MARKING ON TOP SURFACE
2. DIMENSIONS ARE
.
inch
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
DXF and PDF files are available on vicorpower.com
Rev. 3.2
2/2011
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
Page 16 of 18
vicorpower.com
VTM48E x 030 y 070A00
Click here to view original mechanical drawings on the Vicor website.
17.5 RECOMMENDED HEAT SINK PUSH PIN LOCATION
(NO GROUNDING CLIPS)
(WITH GROUNDING CLIPS)
Notes:
5. Unless otherwise specified:
Dimensions are mm (inches)
tolerances are:
1. Maintain 3.50 (0.138) Dia. keep-out zone
free of copper, all PCB layers.
2. (A) minimum recommended pitch is 39.50 (1.555)
this provides 7.00 (0.275) component
edge-to-edge spacing, and 0.50 (0.020)
clearance between Vicor heat sinks.
(B) Minimum recommended pitch is 41.00 (1.614).
This provides 8.50 (0.334) component
edge-to-edge spacing, and 2.00 (0.079)
clearance between Vicor heat sinks.
3. V•I ChipTM module land pattern shown for reference
only, actual land pattern may differ.
Dimensions from edges of land pattern
to push–pin holes will be the same for
all full size V•I Chip products.
x.x (x.xx) = 0.3 (0.01)
x.xx (x.xxx) = 0.13 (0.005)
4. RoHS compliant per CST–0001 latest revision.
6. Plated through holes for grounding clips (33855)
shown for reference, heat sink orientation and
device pitch will dictate final grounding solution.
TM
17.6 VTM MODULE PIN CONFIGURATION
4
3
2
1
A
B
C
D
A
B
C
D
E
+Out
-Out
+In
Signal Name
Pin Designation
A1-E1, A2-E2
L1-T1, L2-T2
H1, H2
J1, J2
E
F
+In
–In
TM
VC
PC
G
H
TM
VC
PC
H
J
J
K
L
K
+Out
-Out
L
M
N
P
R
T
M
K1, K2
N
P
R
T
-In
+Out
–Out
A3-D3, A4-D4, J3-M3, J4-M4
E3-H3, E4-H4, N3-T3, N4-T4
Bottom View
Rev. 3.2
2/2011
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
Page 17 of 18
vicorpower.com
VTM48E x 030 y 070A00
Warranty
Vicor products are guaranteed for two years from date of shipment against defects in material or workmanship when in
normal use and service. This warranty does not extend to products subjected to misuse, accident, or improper
application or maintenance. Vicor shall not be liable for collateral or consequential damage. This warranty is extended to
the original purchaser only.
EXCEPT FOR THE FOREGOING EXPRESS WARRANTY, VICOR MAKES NO WARRANTY, EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Vicor will repair or replace defective products in accordance with its own best judgement. For service under this
warranty, the buyer must contact Vicor to obtain a Return Material Authorization (RMA) number and shipping
instructions. Products returned without prior authorization will be returned to the buyer. The buyer will pay all charges
incurred in returning the product to the factory. Vicor will pay all reshipment charges if the product was defective within
the terms of this warranty.
Information published by Vicor has been carefully checked and is believed to be accurate; however, no responsibility is
assumed for inaccuracies. Vicor reserves the right to make changes to any products without further notice to improve
reliability, function, or design. Vicor does not assume any liability arising out of the application or use of any product or
circuit; neither does it convey any license under its patent rights nor the rights of others. Vicor general policy does not
recommend the use of its components in life support applications wherein a failure or malfunction may directly threaten
life or injury. Per Vicor Terms and Conditions of Sale, the user of Vicor components in life support applications assumes
all risks of such use and indemnifies Vicor against all damages.
Vicor’s comprehensive line of power solutions includes high density AC-DC
and DC-DC modules and accessory components, fully configurable AC-DC
and DC-DC power supplies, and complete custom power systems.
Information furnished by Vicor is believed to be accurate and reliable. However, no responsibility is assumed by Vicor for
its use. Vicor components are not designed to be used in applications, such as life support systems, wherein a failure or
malfunction could result in injury or death. All sales are subject to Vicor’s Terms and Conditions of Sale, which are
available upon request.
Specifications are subject to change without notice.
Intellectual Property Notice
Vicor and its subsidiaries own Intellectual Property (including issued U.S. and Foreign Patents and pending patent
applications) relating to the products described in this data sheet. Interested parties should contact Vicor's
Intellectual Property Department.
The products described on this data sheet are protected by the following U.S. Patents Numbers:
5,945,130; 6,403,009; 6,710,257; 6,911,848; 6,930,893; 6,934,166; 6,940,013; 6,969,909; 7,038,917;
7,145,186; 7,166,898; 7,187,263; 7,202,646; 7,361,844; D496,906; D505,114; D506,438; D509,472; and for
use under 6,975,098 and 6,984,965.
Vicor Corporation
25 Frontage Road
Andover, MA, USA 01810
Tel: 800-735-6200
Fax: 978-475-6715
email
Customer Service: custserv@vicorpower.com
Technical Support: apps@vicorpower.com
Rev. 3.2
2/2011
V•I CHIP CORP. (A VICOR COMPANY) 25 FRONTAGE RD. ANDOVER, MA 01810 800-735-6200
Page 18 of 18
vicorpower.com
厂商 型号 描述 页数 下载

MACOM

 		VTM-1 规格等级，接通延时时序模块[ Specification Grade, On-Delay Timing Module ] 1 页

CPI

 		VTM-6096R1 12 W ， CW螺旋TWT系列[ 12 W, CW Helix TWT Series ] 1 页

CPI

 		VTM-6113R1 60至80瓦， CW迷你螺旋TWT[ 60 to 80 W, CW Mini Helix TWT ] 1 页

CPI

 		VTM-6113R2 60至80瓦， CW迷你螺旋TWT[ 60 to 80 W, CW Mini Helix TWT ] 1 页

CPI

 		VTM-6113R2D 60至80瓦， CW迷你螺旋TWT[ 60 to 80 W, CW Mini Helix TWT ] 1 页

CPI

 		VTM-6195R1 28 W， CW螺旋TWT系列[ 28 W, CW Helix TWT Series ] 1 页

CPI

 		VTM-6196R1 20 W， CW螺旋TWT系列[ 20 W, CW Helix TWT Series ] 1 页

CPI

 		VTM-6292F8 200瓦螺旋TWT系列[ 200 W Helix TWT Series ] 1 页

CPI

 		VTM-6292M4 250W的螺旋TWT系列[ 250 W Helix TWT Series ] 1 页

TE

 		VTM1 接通延时时序模块[ On-Delay Timing Module ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.219529s
